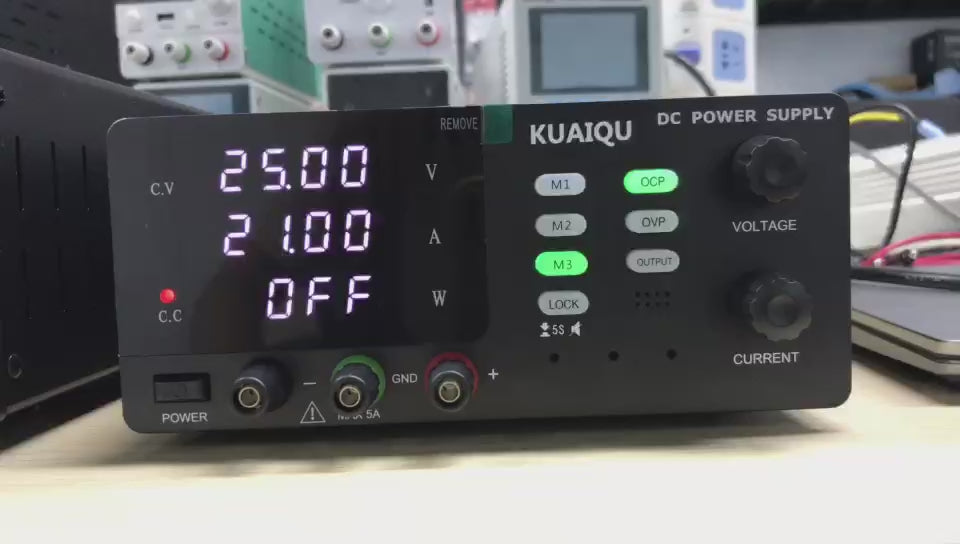

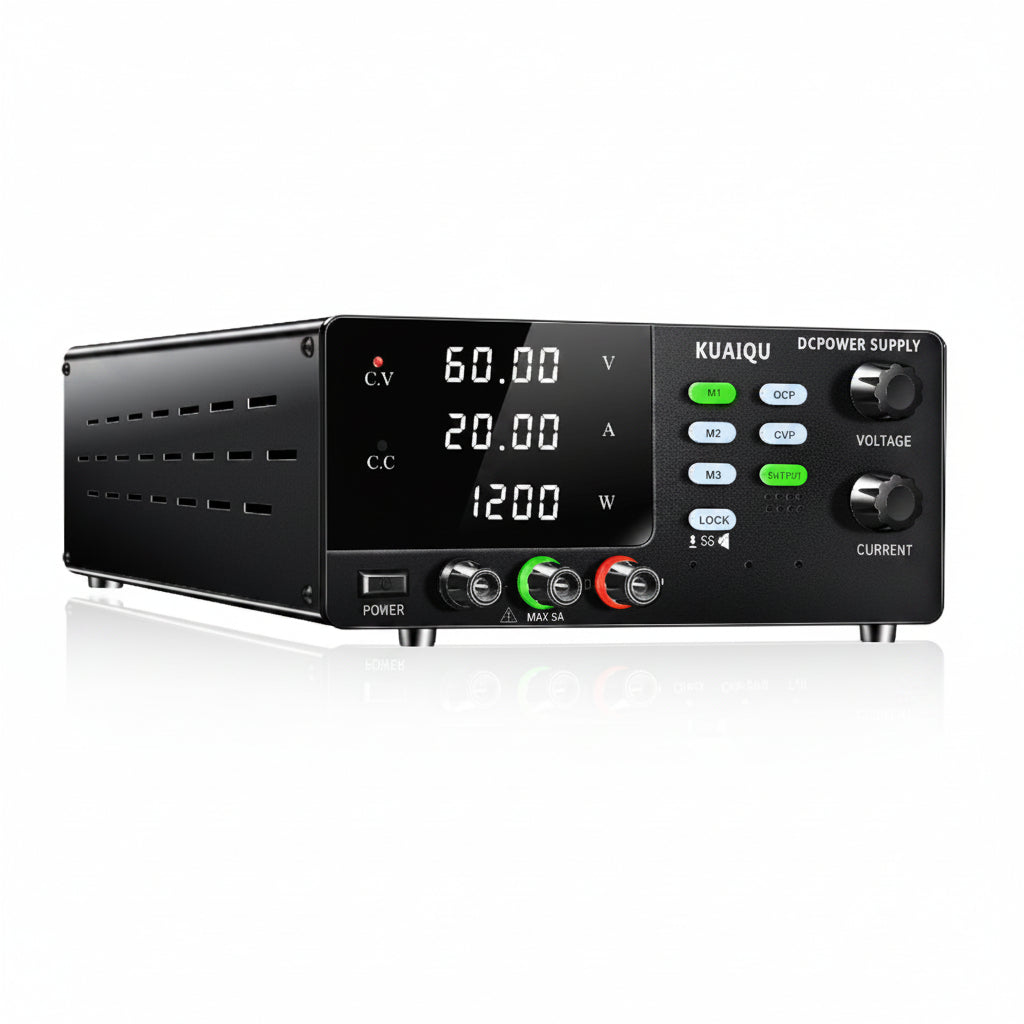

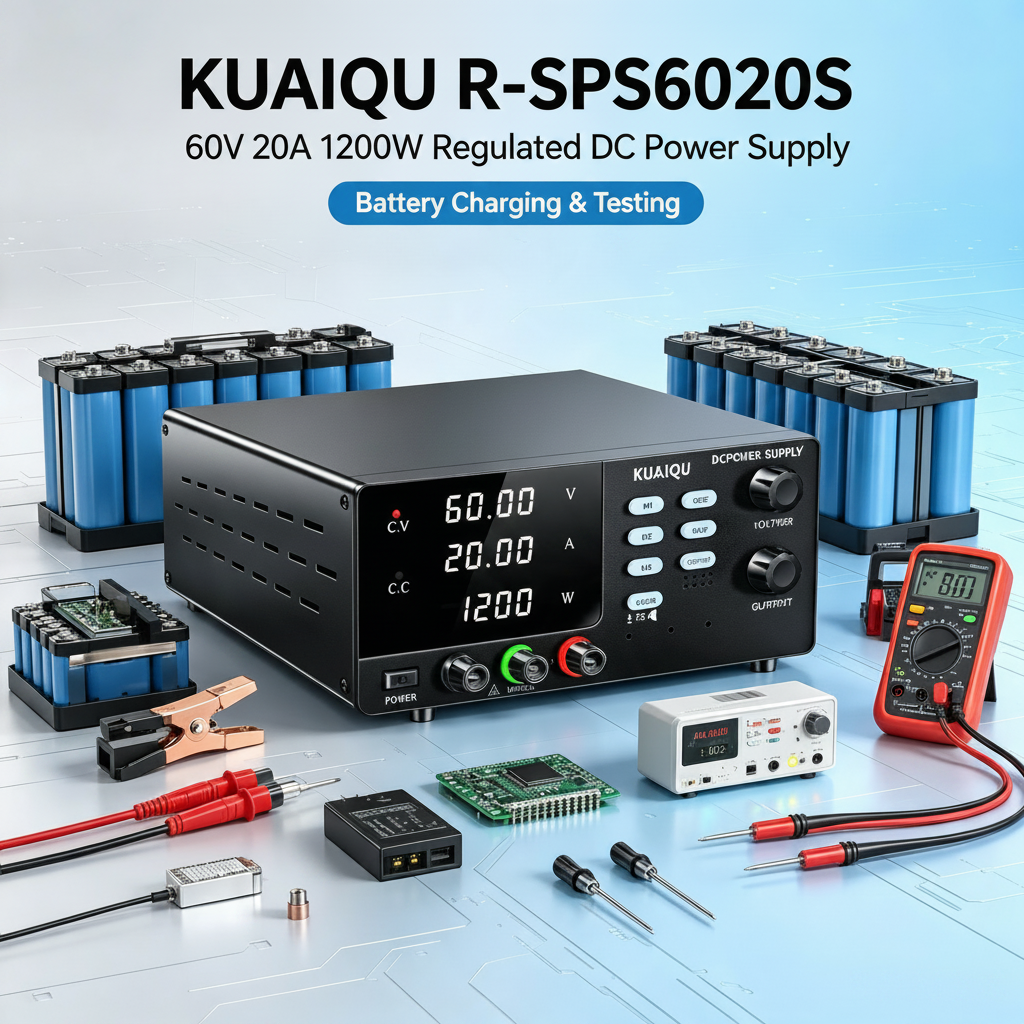

KUAIQU R-SPS6020S 60V 20A 1200W Regulated DC Power Supply

Product Overview

The R-SPS6020S 60V 20A DC Power Supply is a 1200W high-power DC power supply designed for applications requiring higher current and power, including battery testing, battery charging, energy storage testing, high-power electronics, and industrial testing.

With a 0–60V / 0–20A output and 1200W maximum power, this 60V high power DC power supply provides twice the current and power capacity of a 600W model, making it suitable for higher-power DC loads and demanding test conditions.

The R-SPS6020S combines high-current output with four-digit voltage, current and power monitoring, memory presets, panel lock, CC, CV,OCP and OVP protection, USB programmable control, optional RS232/RS485 communication, and rear high-power output terminals.

Key Features

60V 20A / 1200W High-Power Output

The 60V 20A DC power supply delivers up to 1200W of adjustable DC power, providing the additional current capacity required for battery systems, energy storage components, and high-power electronic loads.

This makes it a practical 1200W DC power supply for battery testing where a 600W power supply may not provide sufficient output.

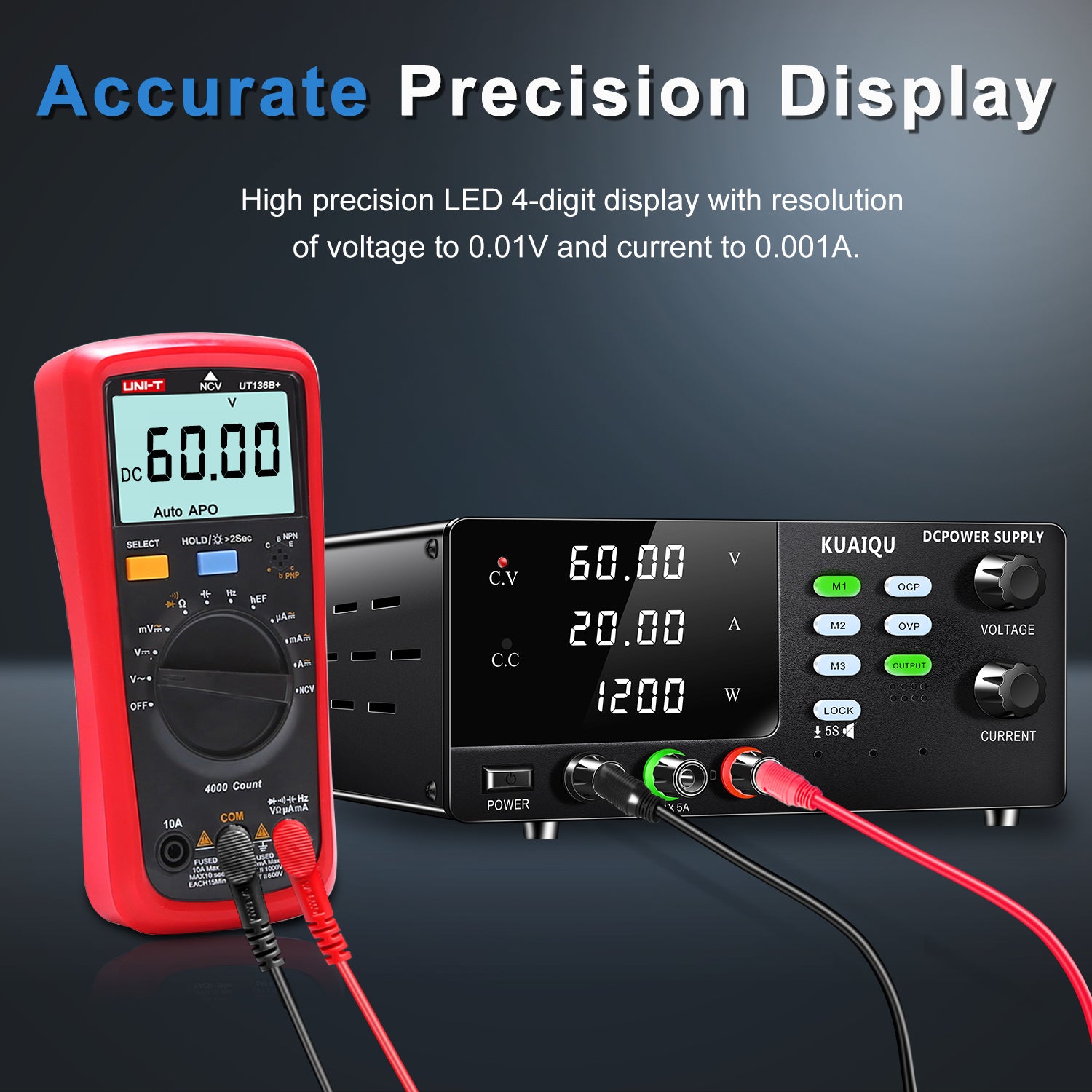

Four-Digit Voltage, Current & Power Display

The four-digit display provides real-time monitoring of voltage, current, and power, helping engineers track electrical conditions during battery charging, energy storage testing, and high-power electronics testing.

Large Output Switch for High-Power Loads

The large output switch enables fast connection and disconnection of high-power DC output, improving efficiency during repeated battery and industrial testing procedures.

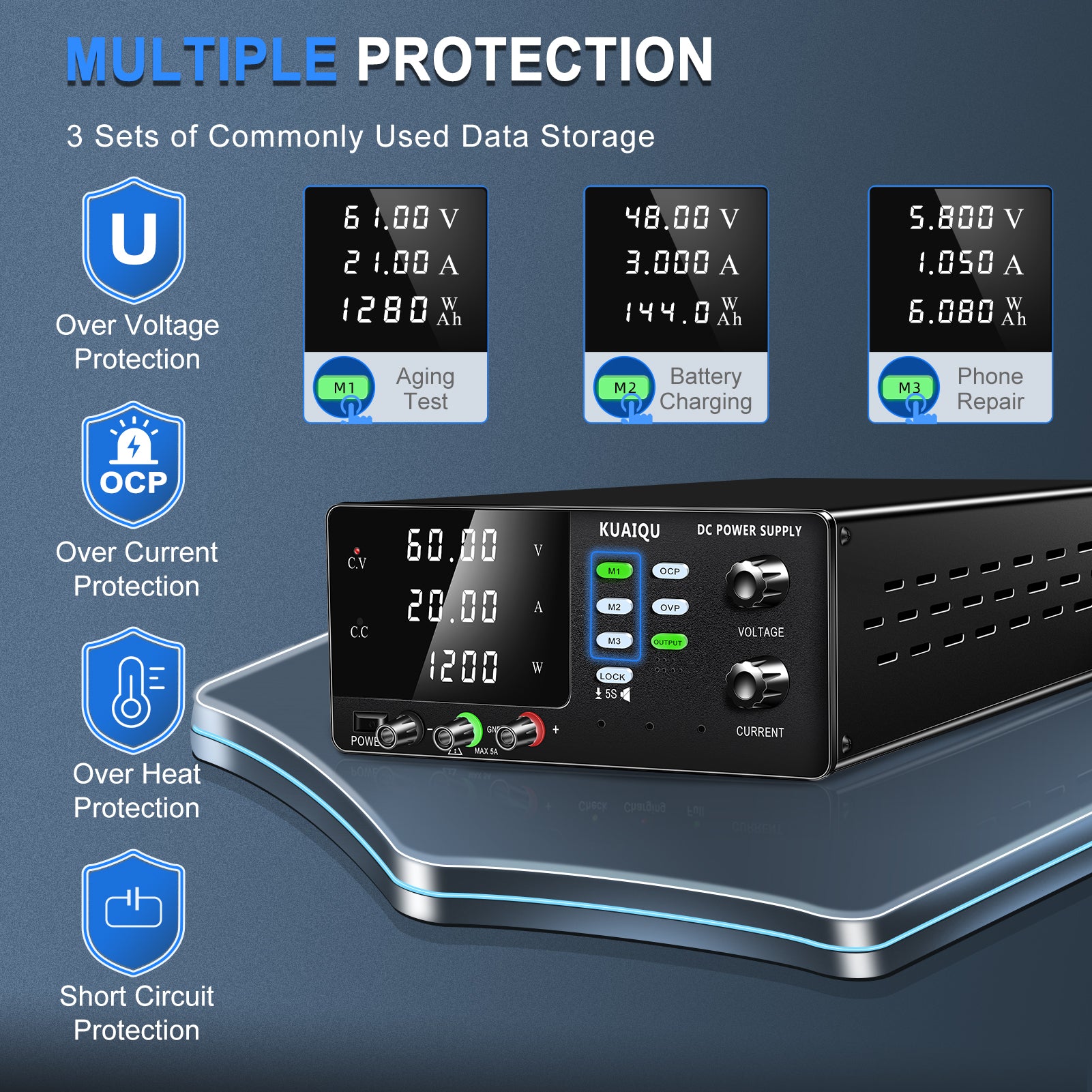

Three Memory Presets for Battery Testing

Three memory keys allow frequently used output parameters to be stored and recalled quickly, making the unit convenient for repeated battery charging, battery performance testing, and aging tests.

Large Panel Lock for High-Power Operation

The panel lock helps prevent accidental changes to voltage and current parameters during high-power operation, providing additional protection when working with high-current loads.

CC Constant Current & OCP Protection

The CC function enables controlled constant-current output, while OCP protection helps protect the power supply and connected high-current loads against excessive current.

OVP Protection for Connected Loads

Built-in OVP protection helps prevent excessive voltage from being applied to batteries, energy storage components, power electronics, and other connected equipment.

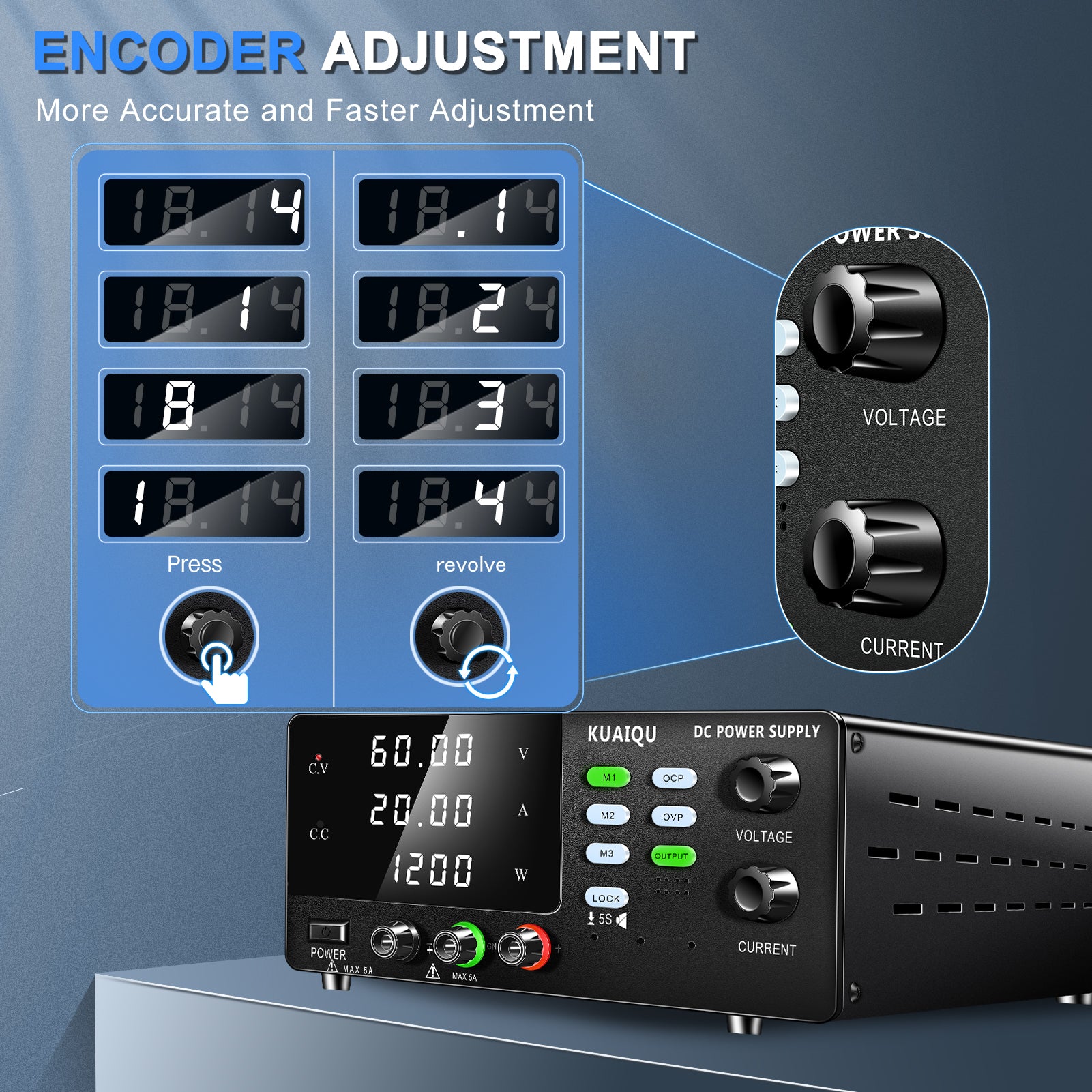

Large Encoder for High-Current Adjustment

The large encoder provides convenient adjustment of voltage and current parameters, allowing users to quickly configure output conditions for different high-power testing requirements.

Three Selectable Programmable Control Interfaces

The R-SPS6020S provides USB, RS232, and RS485 programmable control options for flexible integration with automated battery testing, industrial test systems, and production equipment.

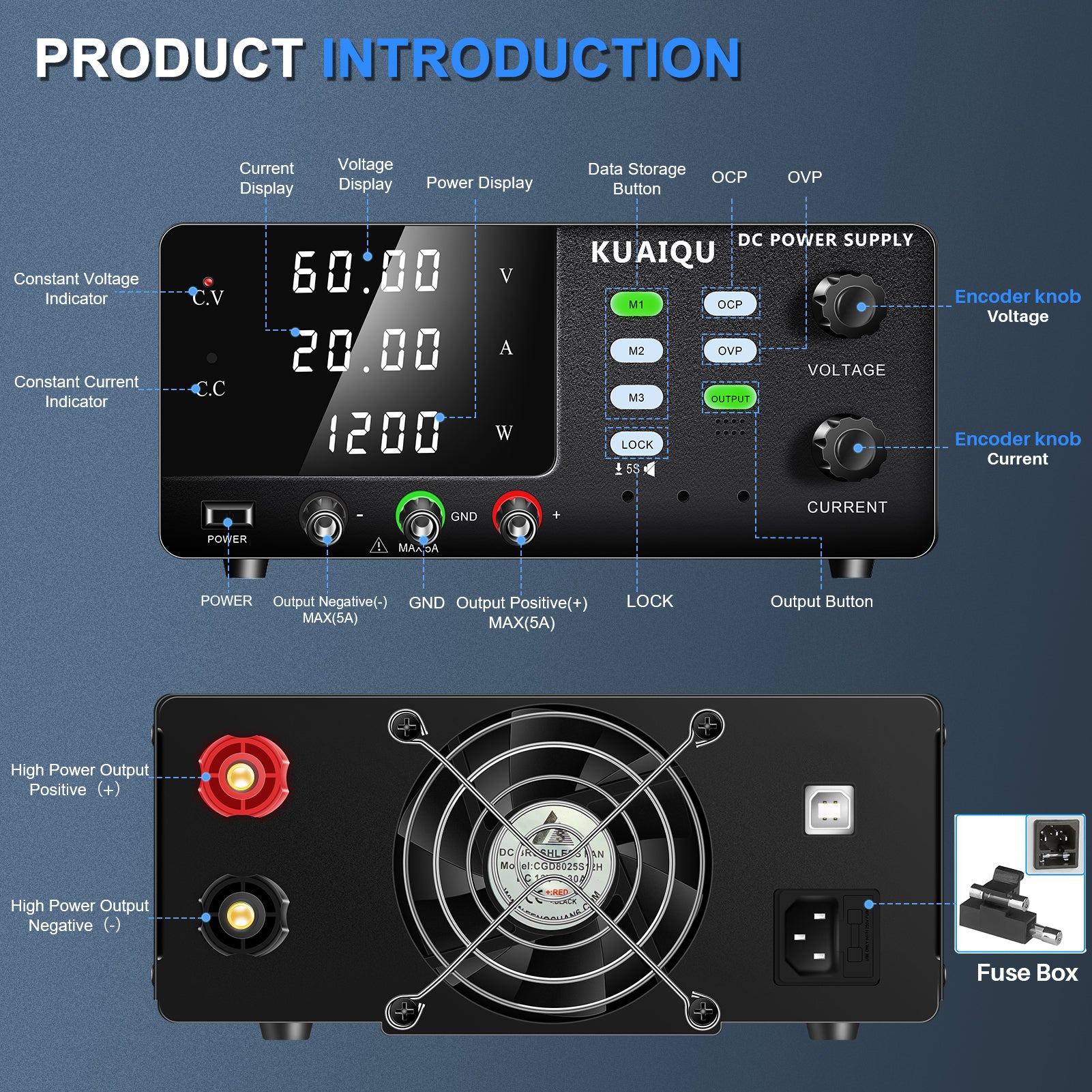

Rear High-Power Output

The rear high-power output terminal provides a suitable connection method for higher-current loads, making the R-SPS6020S particularly suitable for battery testing, energy storage testing, and high-power electronic equipment.

Adjustable Audible Feedback

The encoder provides audible confirmation during adjustment, while the beep can be disabled for quieter laboratory or automated testing environments.

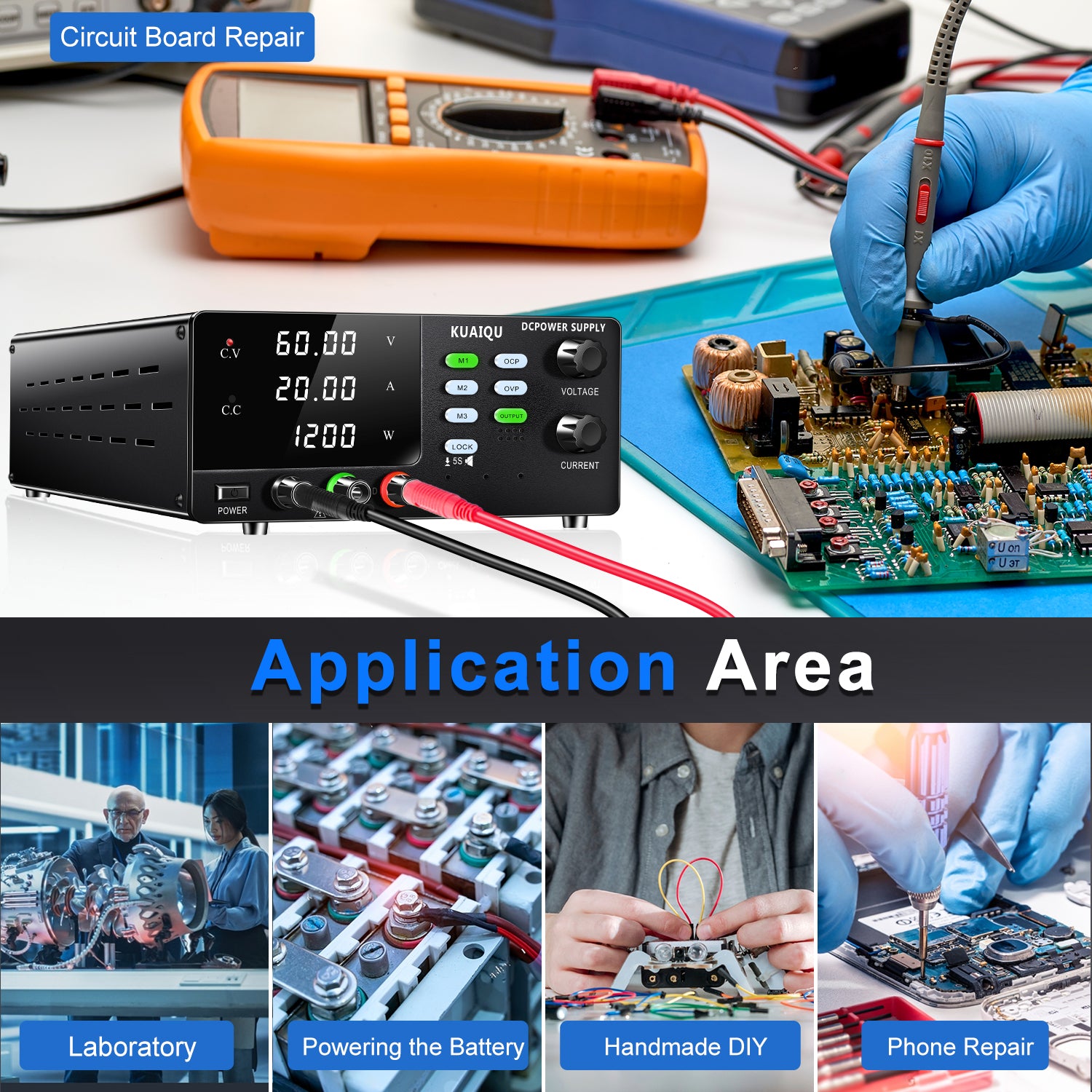

Application Scenarios

Battery Testing & Charging

Provides adjustable high-current DC power for battery charging, battery performance evaluation, capacity testing, and battery aging tests.

Energy Storage Testing

The 1200W output makes the R-SPS6020S suitable for testing energy storage modules, DC power systems, and related power components.

High-Power Electronics Testing

Provides up to 1200W for testing power electronics, high-current DC loads, electronic equipment, and high-power prototypes.

Industrial Testing

USB programmable control and optional RS232/RS485 communication support integration into industrial test systems and production testing equipment.

Quality Check and Terms of Service:

Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
Has passed CE & FCC Certification.
All DC power supplies and accessories are inspected before shipment to ensure good quality.
Customer support: Contact us with any questions, and we'll respond within 24 hours.

Specifications

Parameter	Sub-parameter	R-SPS6020S
Rated Value (0℃~40℃)	Voltage	0-60V
	Current	0-20A
	Power	1200W
Load Regulation	Voltage	≤0.1%+10 mV
	Current	≤0.1%+2.5 mA
Line Regulation	Voltage	≤0.01%+2.5 mV
	Current	≤0.1%+2.5 mA
Setting Resolution	Voltage	10mV
	Current	10mA
Readback Resolution	Voltage	10mV
	Current	10mA
Setting Accuracy	Voltage	≤0.05%+10mV
	Current	≤0.01%+10mA
Readback Accuracy	Voltage	≤0.05%+10mV
	Current	≤0.01%+10mA
Ripple (20Hz~20MHz)	Voltage	≤400 mVp-p / ≤60 mVrms
	Current	≤20 mArms
Rise Time (No Load)	Time	≤150mS
Rise Time (Full Load)	Time	≤200mS
Fall Time (No Load)	Time	≤15S
Fall Time (Full Load)	Time	≤50mS
Dynamic Response	Time	≤20mS
Efficiency	-	≥85%

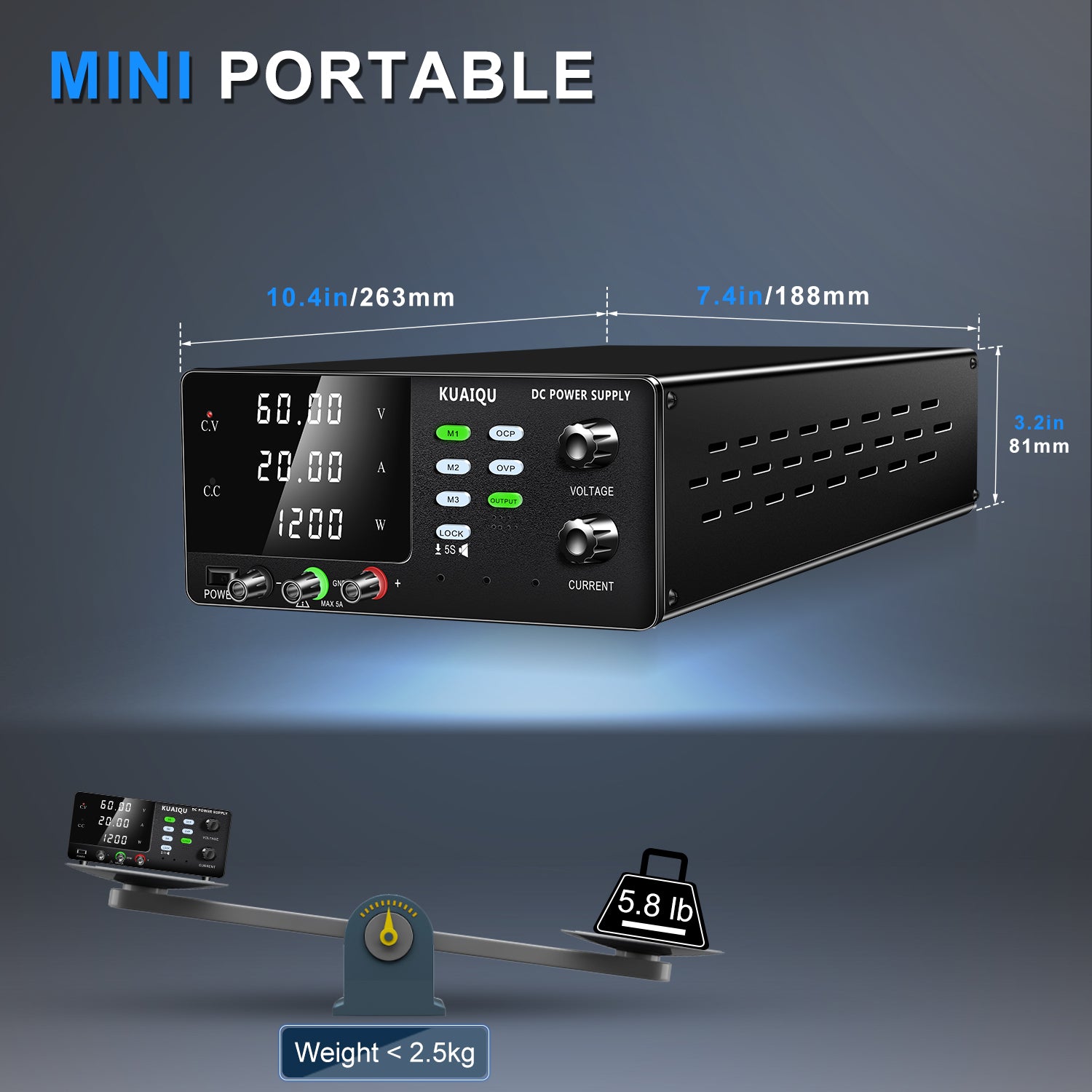

Size/Net Weight	-	Same as left
Package Size/Weight	-	Same as left
