KUAIQU 900W 30V 30A High Power DC Power Supply R-SPS3030C with Battery Charging Protections for Battery Charge,Panel Lock Button
KUAIQU 900W 30V 30A High Power DC Power Supply R-SPS3030C with Battery Charging Protections for Battery Charge,Panel Lock Button
Prix habituel
$359.99 USD
Prix habituel
Prix promotionnel
$359.99 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

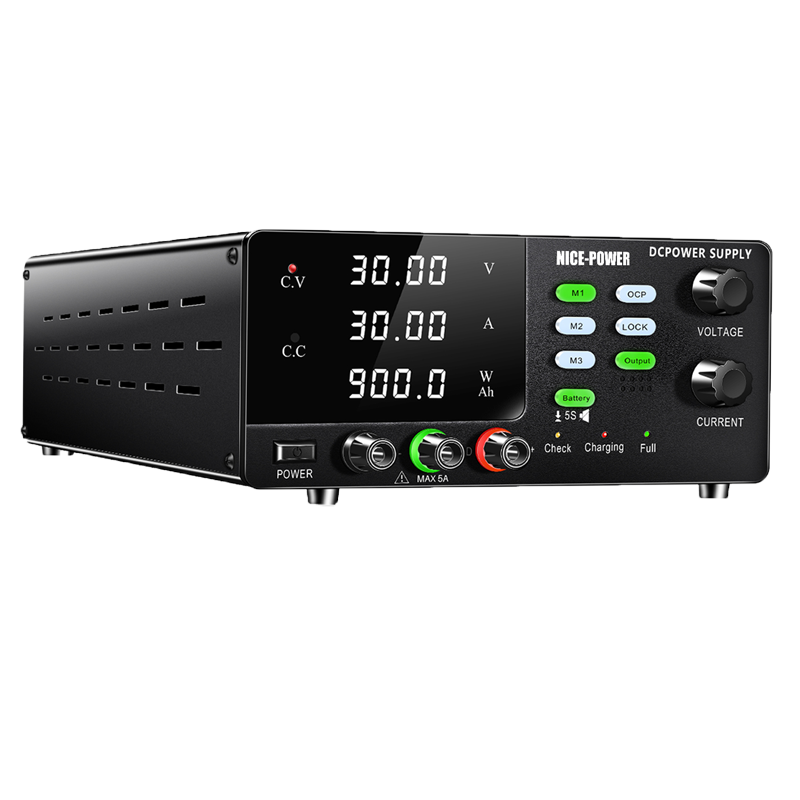

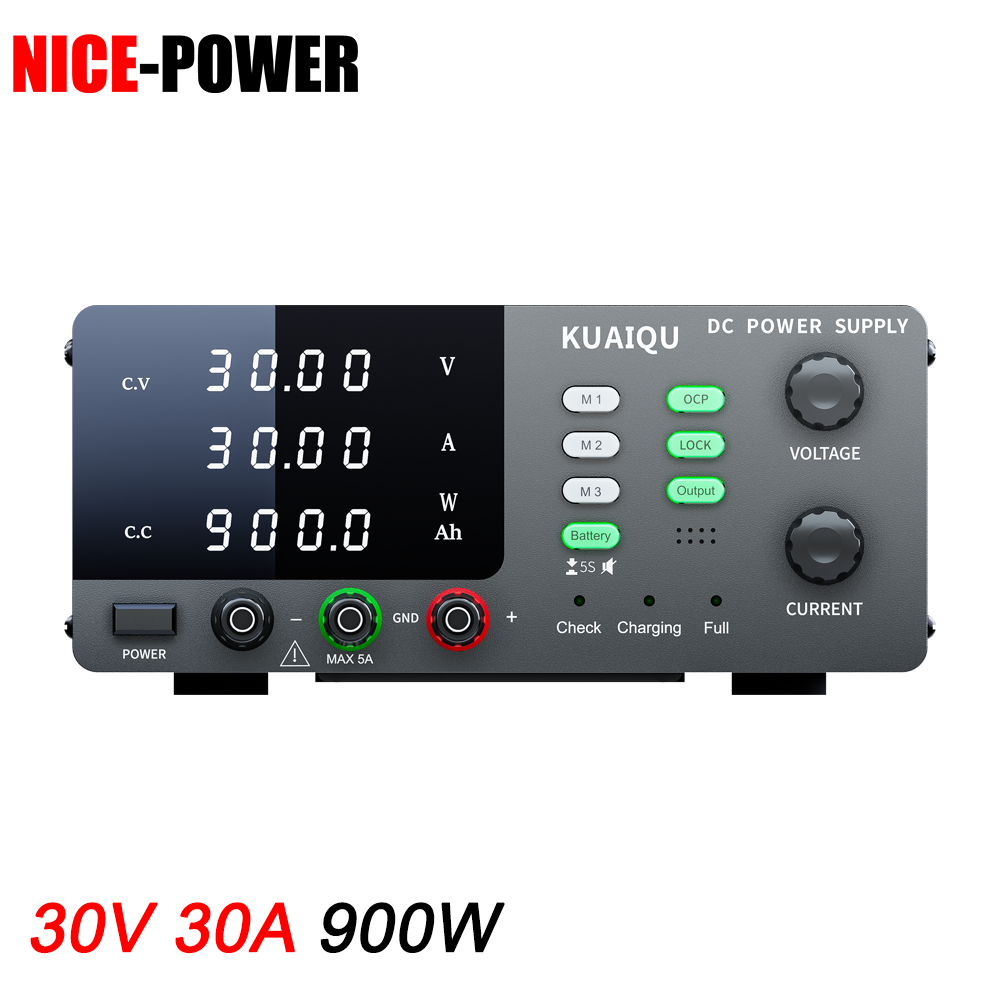

R-SPS3030C High Power Battery Charge DC Power Supply
The R - SPS3030C is a high - performance DC power supply, expertly crafted to meet the demanding power needs of industrial, laboratory, and lead battery charging applications. Packed with advanced features, it offers stable, accurate, and safe power delivery.
Key Features
- OCP Function: Incorporates an Over - Current Protection (OCP) function that safeguards connected devices from damage caused by excessive current, ensuring the longevity of your equipment.

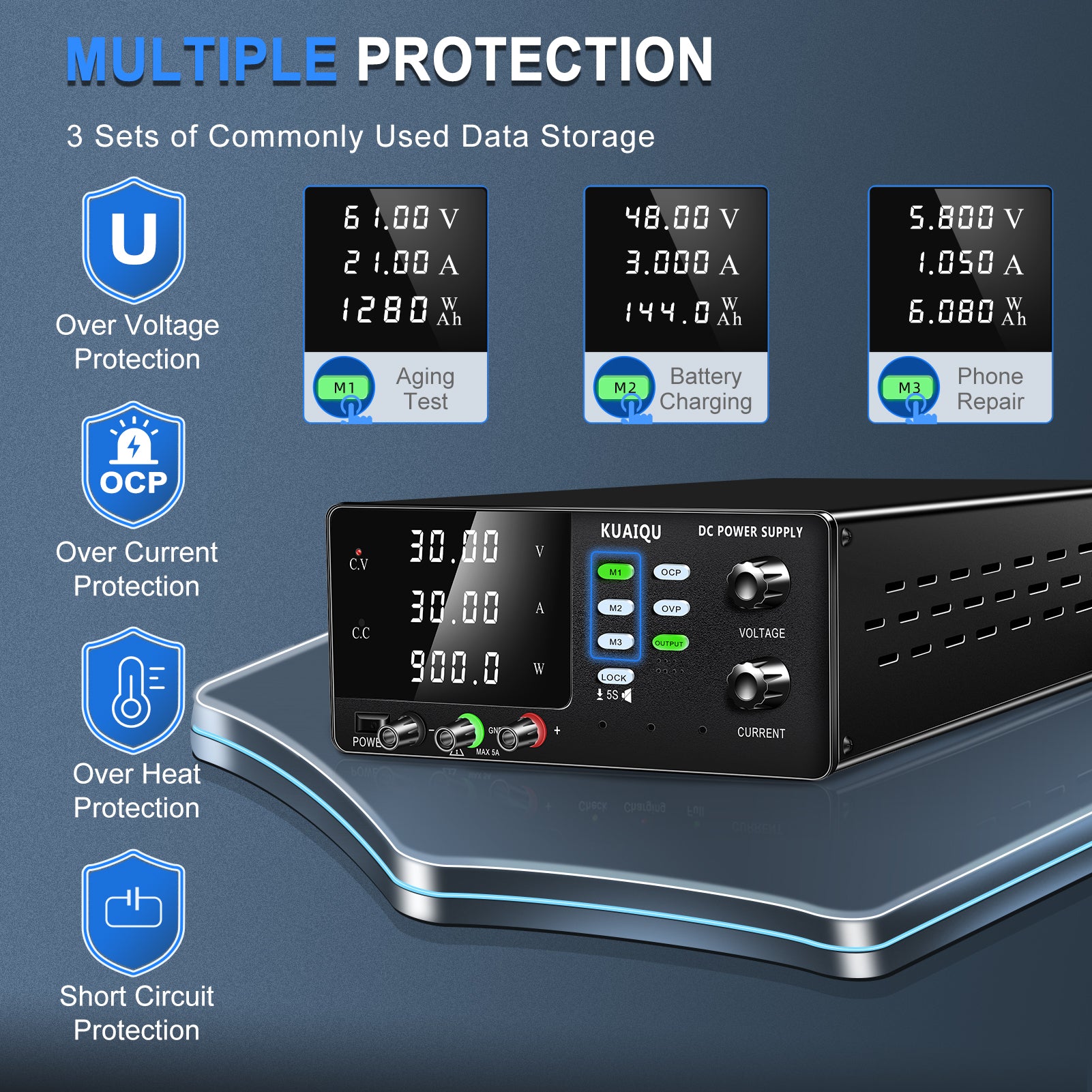

- Memory Groups: Equipped with M1 - M3 memory groups, allowing you to conveniently store and recall frequently used voltage, current, and power settings. This feature saves valuable time during repetitive testing or charging processes.
- Panel Lock Button: The panel lock button prevents accidental adjustments to the settings, maintaining consistent operation and avoiding any unexpected changes that could disrupt your work.

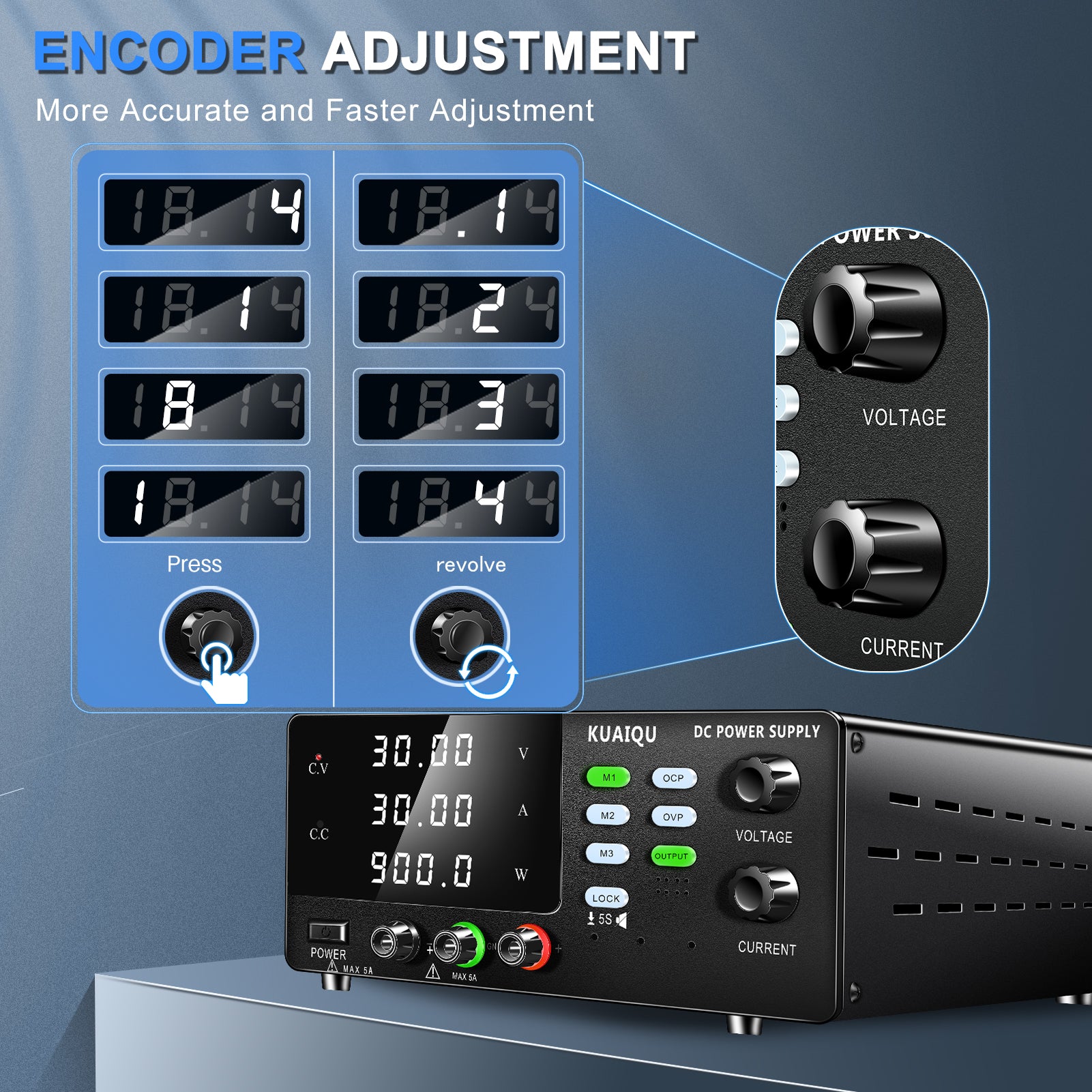

- Precise Adjustment & Display: The encoder knob enables precise fine - tuning of voltage, current, and power values. The 4 - digit display provides clear and accurate real - time readings, enabling you to monitor the power output with ease.
- Buzzer Knob: The knob comes with a buzzer that can be muted as per your preference. It provides audible feedback for various operations, adding an extra layer of convenience.

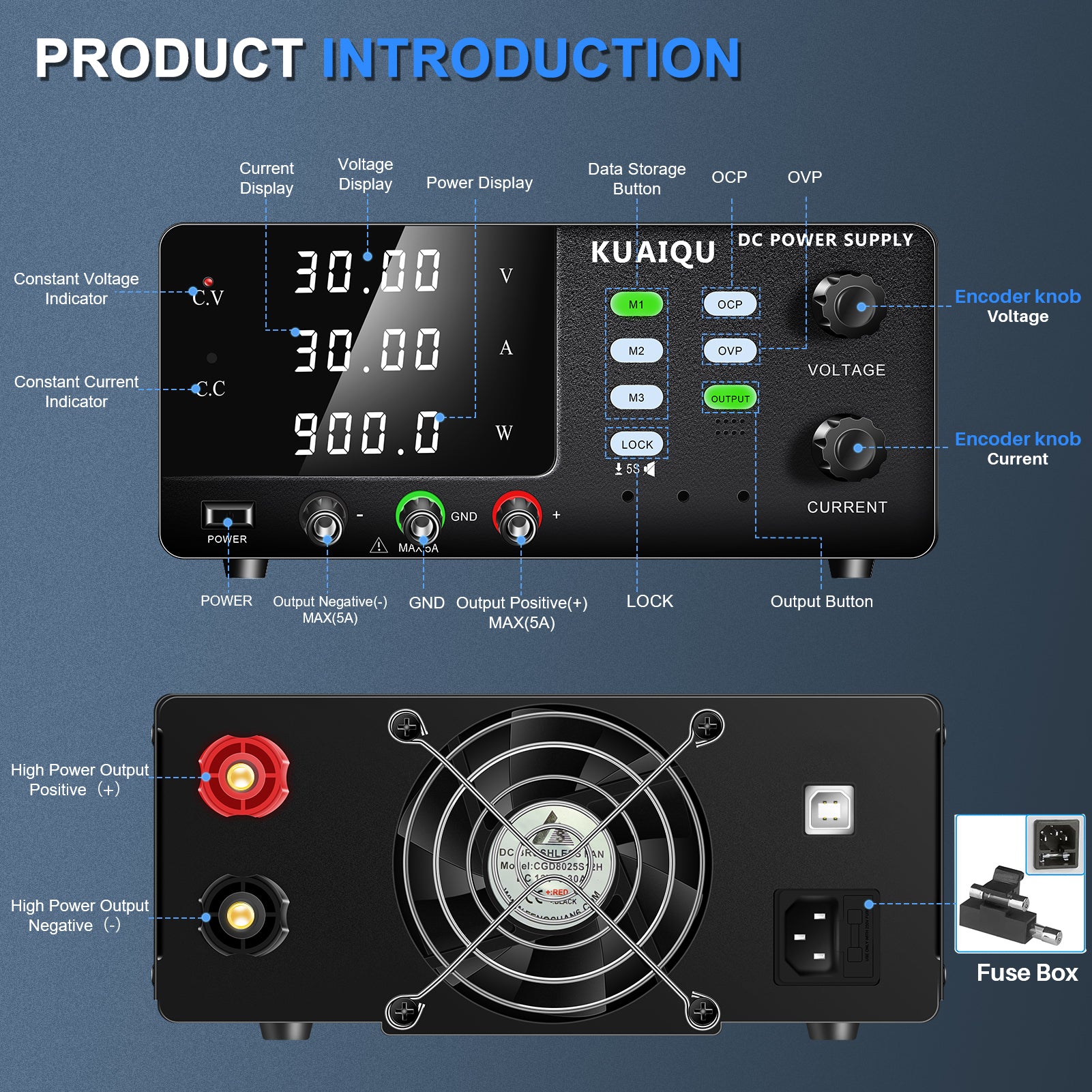

- Dual Output Ports: Features a dual - output port design. The front panel output is suitable for loads under 5A, while the back panel output can handle the full power capacity of the unit, offering flexibility in powering different devices.
- Battery Charging Protections: Offers reverse polarity protection to prevent damage when the battery is connected incorrectly. Additionally, the overcharge protection feature automatically shuts off the power when the battery reaches full charge, ensuring safe and efficient battery charging.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Number
|
R - SPS3030C
|
|
Rated Voltage
|
0 - 30V
|
|
Rated Current
|
0 - 30A
|
|
Rated Power
|
900W
|
|
Load Regulation (Voltage)
|
≤0.1% + 10 mV
|
|
Load Regulation (Current)
|
≤0.1% + 2.5 mA
|
|
Line Regulation (Voltage)
|
≤0.01% + 2.5 mV
|
|
Line Regulation (Current)
|
≤0.1% + 2.5 mA
|
|
Setting Resolution (Voltage)
|
10mV
|
|
Setting Resolution (Current)
|
10mA
|
|
Readback Resolution (Voltage)
|
10mV
|
|
Readback Resolution (Current)
|
10mA
|
|
Setting Accuracy (Voltage)
|
≤0.05% + 10mV
|
|
Setting Accuracy (Current)
|
≤0.01% + 10mA
|
|
Readback Accuracy (Voltage)
|
≤0.05% + 10mV
|
|
Readback Accuracy (Current)
|
≤0.01% + 10mA
|
|
Input Voltage
|
110V / 220V (Customizable)
|
|
Output Type
|
Single
|
|
Type
|
AC - DC
|
|
Efficiency
|
0.85
|
|
Protection
|
Overcurrent, Over Temperature, etc.
|
|
Color
|
Black
|
|

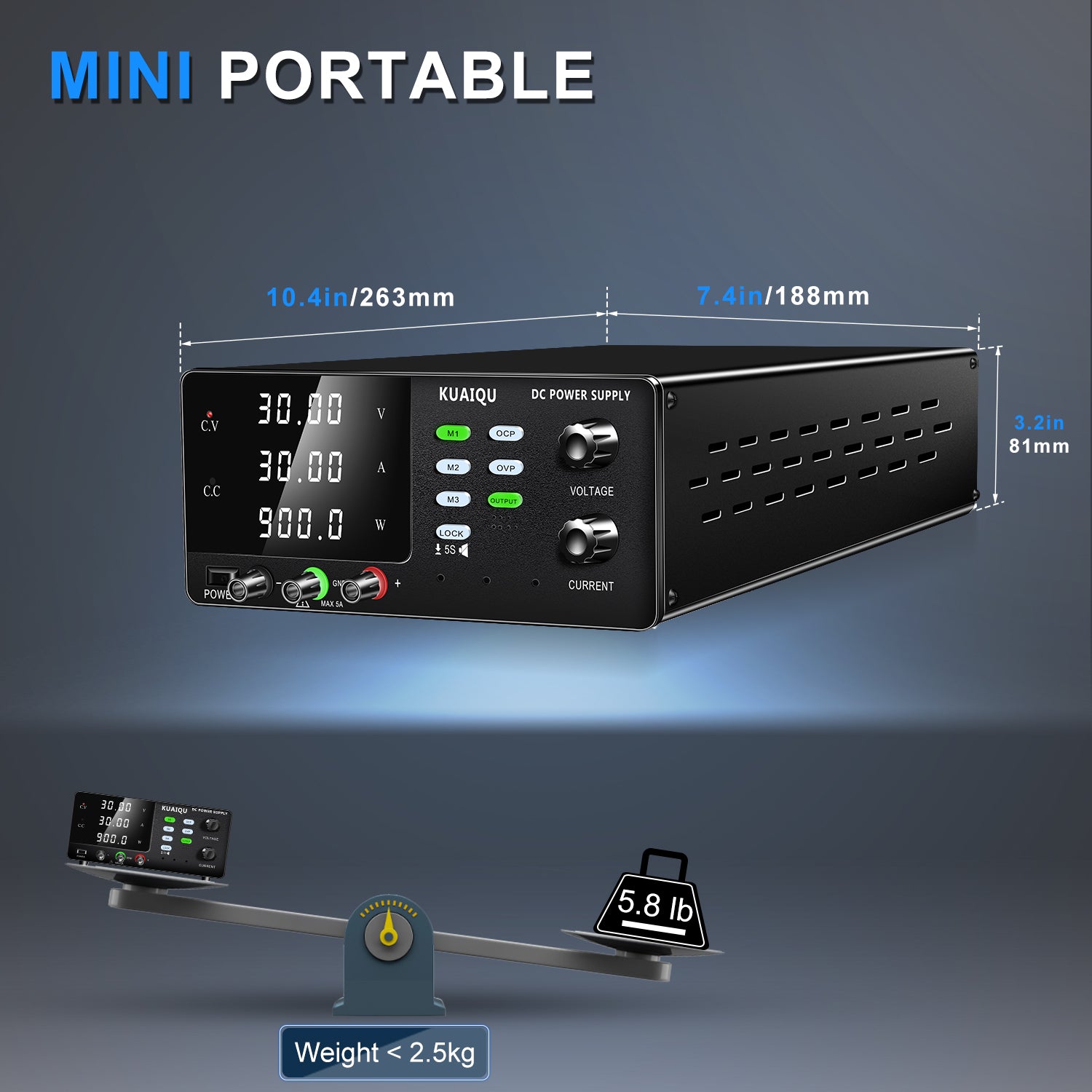

Size
|
26.5×19×8.5CM
(assumed, not in original but similar models)
|
Application Scenarios
- Industrial Applications: In industrial settings, the R - SPS3030C is perfect for powering and testing industrial control systems, robotics, and other high - power - consuming electronic equipment.
- Laboratory Research: Laboratories require precise power control for experiments and device testing.

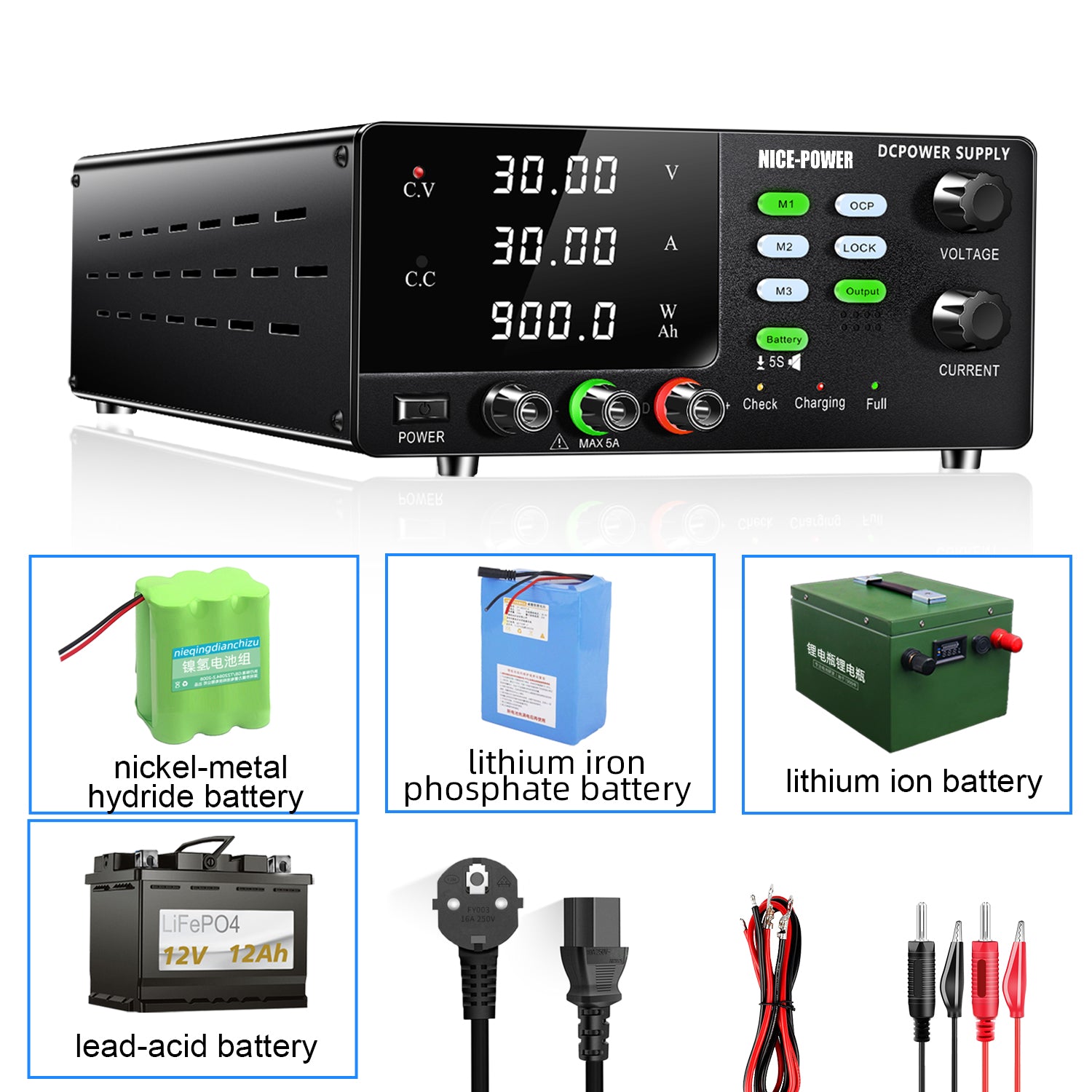

- Lead Battery Charging: Specifically designed for lead battery charging, the R - SPS3030C's protective features, such as reverse polarity and overcharge protection, ensure that lead batteries are charged safely and efficiently.
Don't compromise on power quality and reliability for your industrial, laboratory, or lead battery charging needs. Place your order for the R - SPS3030C now and experience the difference in performance and convenience!
