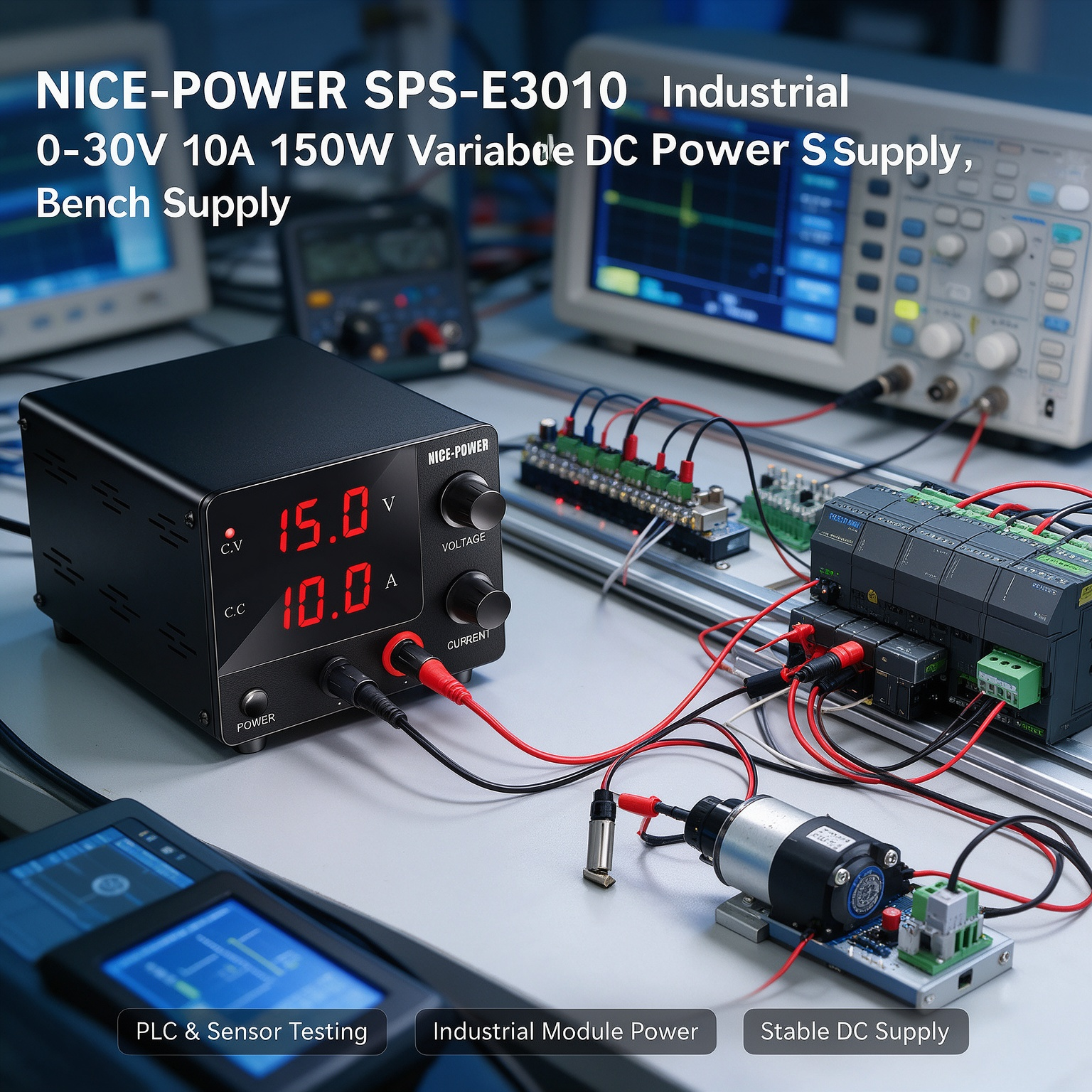

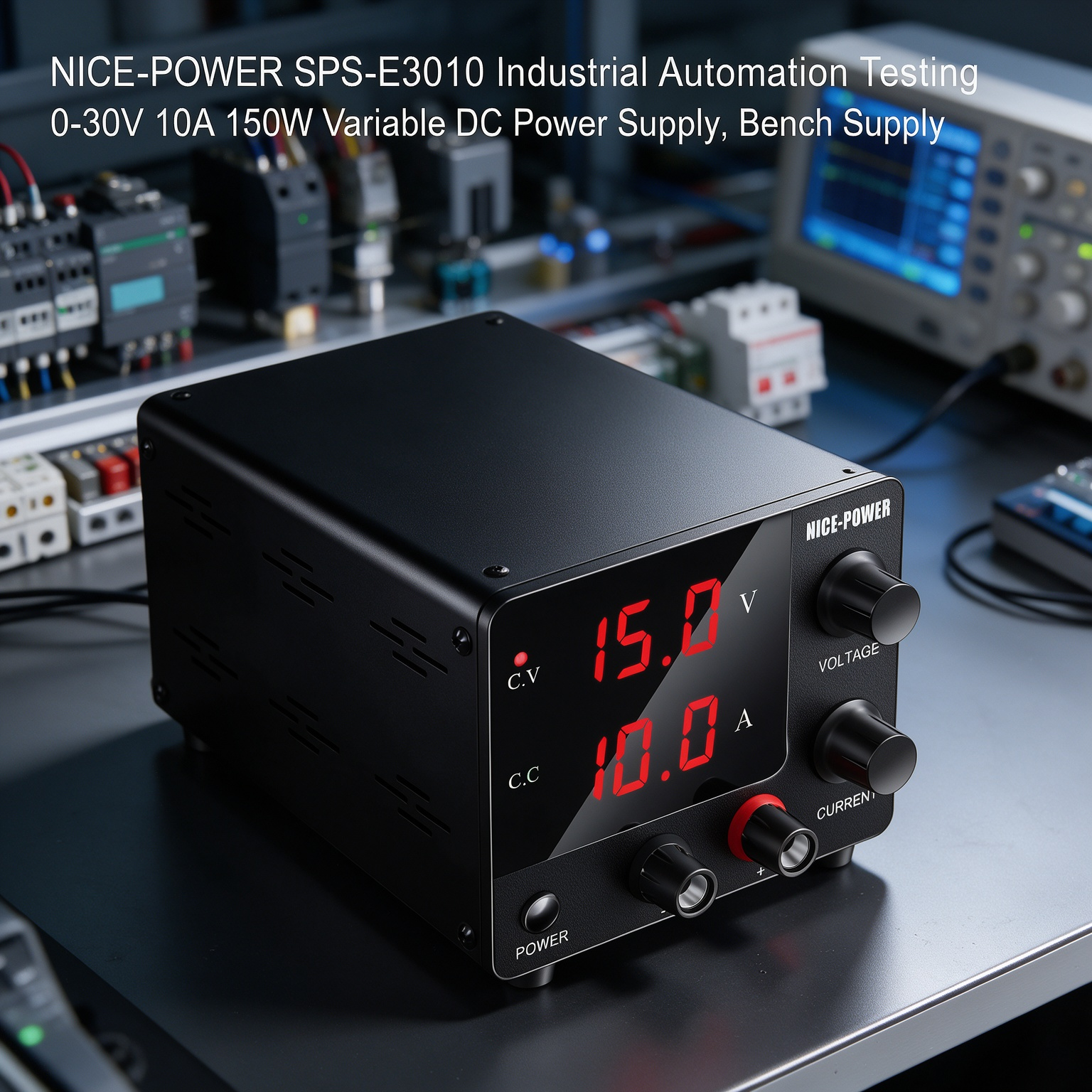

NICE-POWER SPS-E3010 Industrial
Automation Testing 0-30V 10A 150W
Variable DC Power Supply, Bench Supply
NICE-POWER SPS-E3010 is a compact Variable DC Power Supply designed for bench-level Industrial Automation Testing, control circuit development, sensor-related circuit evaluation, actuator testing, equipment troubleshooting, and low-voltage automation system verification. With a 0-30V adjustable DC output, up to 10A adjustable current capability, and 150W maximum output power, it provides a flexible DC source for establishing different supply conditions during automation equipment development and testing.
Industrial automation development often involves testing individual control circuits, electronic modules, sensors, indicators, and small actuating devices before they are integrated into a complete machine or control system. The SPS-E3010 allows engineers and technicians to adjust the DC supply conditions for these bench tests. Its Encoder Adjustment, 3-digit display, fine voltage and current setting resolution, and compact Mini Series design make it practical for automation laboratories, maintenance benches, prototype development, and equipment commissioning work.

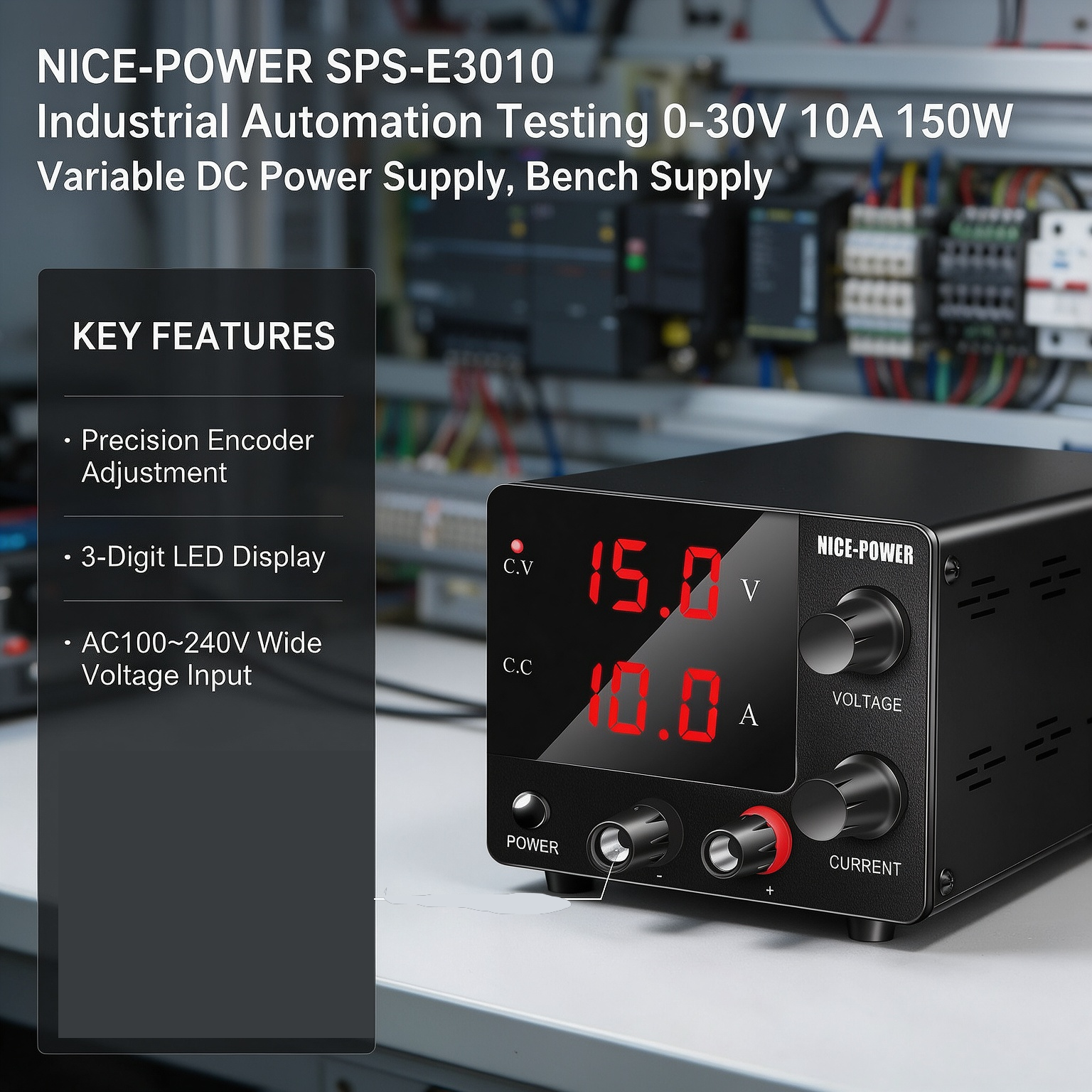

Key Features
0-30V Variable DC Output
The SPS-E3010 provides an adjustable 0-30V DC output that can be used to establish different supply conditions during Industrial Automation Testing. Users can change the output voltage according to the requirements of a suitable control circuit, electronic module, sensor-related circuit, or other low-voltage test device.
Up to 10A Adjustable Current
The Variable DC Power Supply provides an adjustable current range of up to 10A, giving users flexibility when testing automation-related circuits with different current requirements. The available voltage and current combination remains subject to the 150W maximum output power rating.
150W Maximum Output Power
The SPS-E3010 provides up to 150W of output power for suitable bench testing applications. The power rating allows users to select different voltage and current combinations according to the requirements of the test setup. For example, the supply can provide up to 30V at 5A or up to 15V at 10A while remaining within the 150W power limit.
Encoder Adjustment for Fast Parameter Changes
Industrial Automation Testing can involve repeated changes to supply voltage and current during equipment development or troubleshooting. The Encoder Adjustment provides a convenient way to modify the output settings when moving between different test conditions or test points.
3-Digit Display for Test Condition Reference
The integrated 3-digit display provides a direct numerical reference for the selected voltage and current settings. This allows users to establish and repeat specific DC supply conditions when testing automation circuits, control boards, and related electronic devices.
10mV Voltage Setting Resolution
The 10mV voltage setting resolution allows relatively fine adjustment of the DC output. This can be useful when evaluating an automation circuit at different supply voltage levels or when gradually changing the input condition during circuit development.
1mA Current Setting Resolution
The 1mA current setting resolution provides fine adjustment of the current setting. During Industrial Automation Testing, this can help users establish different current conditions when evaluating suitable control circuits, electronic modules, and other low-voltage automation equipment.
Constant Voltage and Constant Current Operation
The SPS-E3010 supports constant voltage and constant current operation. These operating modes provide controlled DC output conditions for suitable automation test setups where the test procedure requires a controlled voltage or current condition.
Stable DC Source for Control Circuit Testing
The SPS-E3010 can provide an adjustable DC source for suitable industrial control circuits during development and verification. Users can establish the required supply condition before evaluating the circuit with external measurement instruments.

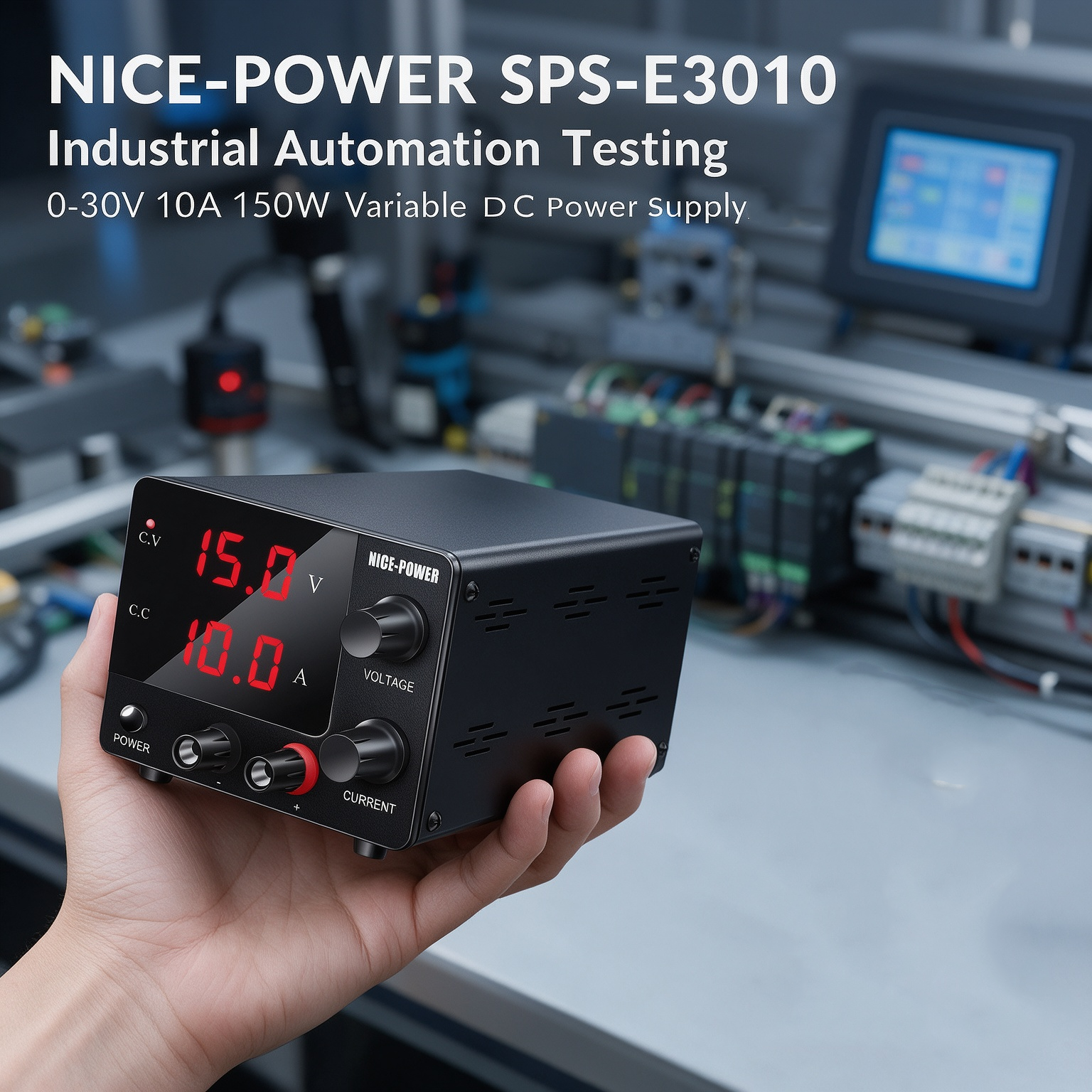

Compact Bench Supply Design
The compact design allows the SPS-E3010 to be used as a Bench Supply alongside oscilloscopes, multimeters, test fixtures, prototype control boards, and other equipment. Its small footprint is suitable for automation laboratories and maintenance workbenches where several instruments may need to share the same workspace.
Wide AC Input Range
The SPS-E3010 supports AC100-240V input, making the Variable DC Power Supply suitable for compatible laboratory and workshop environments using different mains voltage conditions.
Applications
Industrial Control Circuit Testing
The SPS-E3010 can provide adjustable DC power for suitable low-voltage industrial control circuits. Engineers can establish different voltage and current conditions while verifying circuit operation during development.
Automation Control Board Testing
For suitable control boards and prototype electronic assemblies, the SPS-E3010 can serve as an adjustable bench power source during development and verification. The adjustable output allows different supply conditions to be established without changing the test power source.
Sensor Circuit Evaluation
Suitable low-voltage sensor circuits can be supplied by the Variable DC Power Supply during bench evaluation. Users can establish the required DC supply condition and use external measurement equipment to observe the circuit response.
Industrial Indicator Circuit Testing
The SPS-E3010 can provide adjustable DC power for suitable indicator and signal circuits used in automation equipment. Different supply conditions can be established during prototype development and troubleshooting.
Relay and Control Circuit Testing
Suitable low-voltage relay and control circuits can be evaluated using the SPS-E3010 as the adjustable DC source. This can be useful during circuit development when individual control sections need to be tested before integration into a complete automation system.
Actuator Related Circuit Testing
For suitable low-voltage actuator-related electronic circuits that remain within the SPS-E3010's voltage, current, and power limits, the power supply can provide the DC source required for bench-level circuit evaluation.
PLC Related Circuit Development
The SPS-E3010 can be used as a bench DC source for suitable low-voltage electronic circuits associated with PLC-based automation development. It provides adjustable DC power for external circuit sections without claiming to replace a dedicated PLC power supply or provide PLC communication functions.
Automation Equipment Prototype Testing
During machine or automation equipment development, individual electronic sections can be tested before complete system integration. The SPS-E3010 provides an adjustable DC source for these prototype test procedures.
Industrial Equipment Troubleshooting
When an automation machine or control system requires troubleshooting, technicians may need to isolate and evaluate individual low-voltage electronic circuits. The SPS-E3010 can provide an adjustable DC source for suitable bench-level diagnostic work.
Equipment Commissioning Support
During equipment commissioning, individual control circuits and electronic modules may need to be checked before normal operation. The SPS-E3010 can be used as a Variable DC Power Supply for suitable low-voltage test procedures.
Repeated Automation Circuit Testing
Automation development often requires the same circuit to be evaluated repeatedly under different supply conditions. The Encoder Adjustment and adjustable voltage and current settings allow users to modify the test parameters between test cycles.
Industrial Electronics Repair
The compact Bench Supply format makes the SPS-E3010 suitable for maintenance workbenches where technicians need an adjustable DC source to evaluate suitable industrial electronic components and control circuits.
Automation Laboratory and Training
The SPS-E3010 can be used in industrial automation laboratories and training environments for experiments involving adjustable DC sources, control circuits, sensors, indicators, and other low-voltage automation-related electronics.
Quality Check and Terms of Service
-
Package includes: 1 × DC Power Supply
-
1 × Power Cord
-
1 × Output Test Lead
-
1 × User Manual
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-E3010 |
| Product Type |
Variable DC Power Supply |
| Output Voltage |
0-30V |
| Output Current |
0-10A |
| Maximum Output Power |
150W |
| Adjustment Method |
Encoder Adjustment |
| Display |
3-Digit Display |
| Input Voltage |
AC100-240V |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
1mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤100 mVp-p / ≤15 mVrms |
| Current Ripple |
≤15 mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20S |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Rated Operating Temperature |
0-40°C |
| Size |
About 18.5 × 10 × 7.8 cm |
| Net Weight |
About 0.7KG |
| Package Size |
23 × 19 × 11 cm |
| Package Weight |
1.1KG |
Why Choose NICE-POWER SPS-E3010?
NICE-POWER SPS-E3010 combines a 0-30V 10A 150W Variable DC Power Supply with Encoder Adjustment in a compact Bench Supply format for Industrial Automation Testing. Instead of being limited to one fixed DC output condition, users can adjust the voltage and current according to the requirements of different control circuits, electronic modules, and automation-related test setups.
Its 0-30V voltage range provides flexibility for low-voltage automation electronics, while the adjustable current capability allows different test conditions to be established within the 150W maximum output power. The combination of a 3-digit display, 10mV voltage setting resolution, and 1mA current setting resolution provides practical control when test parameters need to be changed or repeated.
The compact Mini Series design is particularly useful on industrial electronics workbenches where the power supply needs to operate alongside measurement instruments, prototype control boards, sensors, test fixtures, and other equipment. The SPS-E3010 can therefore support control circuit testing, sensor circuit evaluation, automation prototype development, equipment troubleshooting, commissioning support, industrial electronics repair, and laboratory training without adding unsupported programmable, communication, or automation-specific functions.
The SPS-E/F family is listed by NICE-POWER as its SPS-E/F Mini Type, while the manufacturer's product center identifies the SPS-E305 and SPS-F305 within this mini series.
