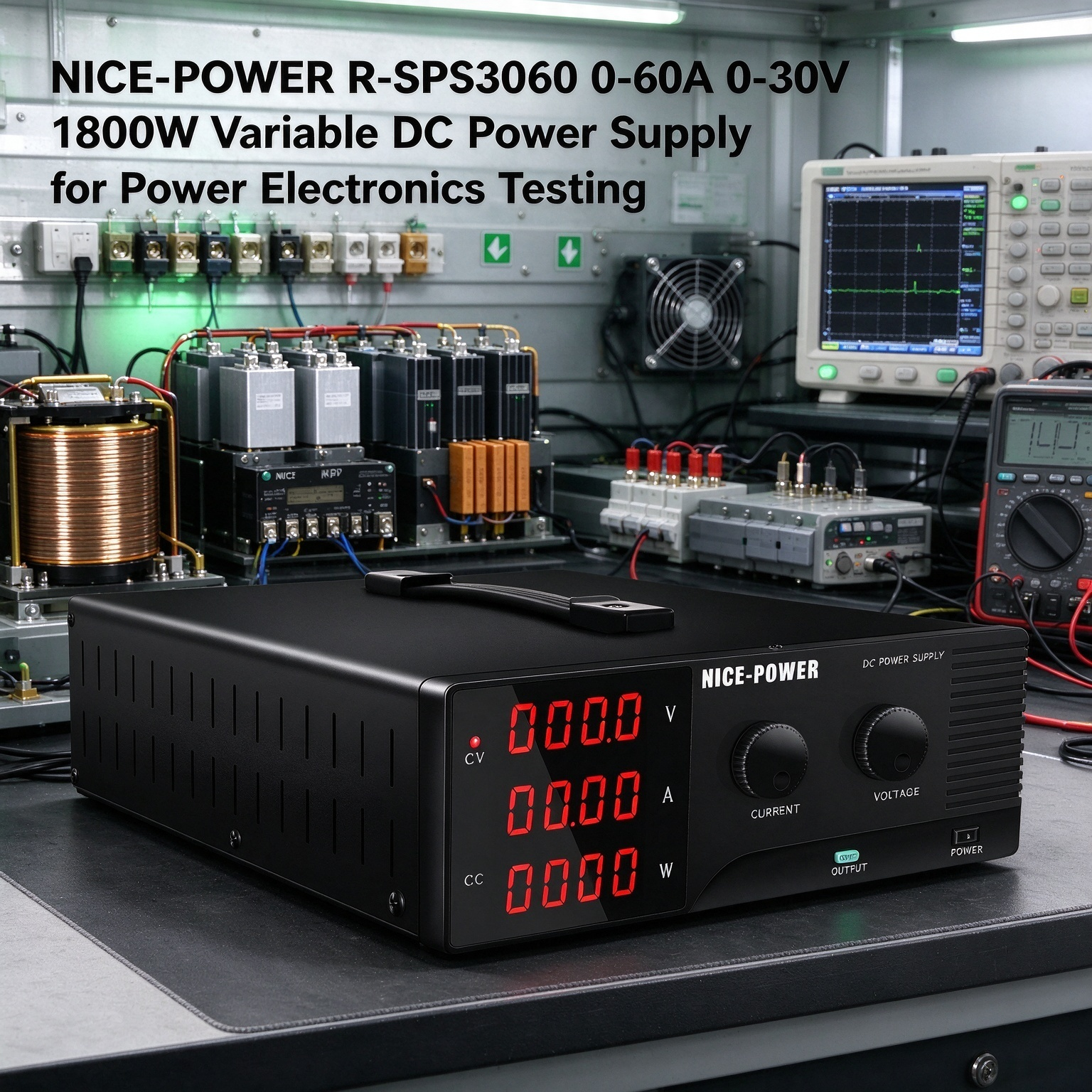

NICE-POWER R-SPS3060 0-60A 0-30V
1800W Variable DC Power Supply for Power
Electronics Testing
Key Features
Adjustable DC Output for Power Electronics Testing
The NICE-POWER R-SPS3060 series provides an adjustable DC output of 0–30V and 0–60A, with a rated output power of 1800W. It supplies DC input power to compatible power electronics circuits, DC-DC converter prototypes, and electronic modules during laboratory experiments and engineering development.
Constant Voltage and Constant Current Operation
The power supply features Constant Voltage (CV) and Constant Current (CC) operating modes, with corresponding indicators on the front panel. These modes support different DC supply requirements when powering compatible electronic circuits and power conversion devices within the unit's rated output range.
Four-Digit Voltage and Current Display
The four-digit voltage and current display helps users monitor the displayed output readings during setup and testing. Engineers can refer to these readings when adjusting the supply and observing its output while a connected device is operating.
Convenient Front-Panel Operation
The encoder knob allows users to adjust output settings, while the dedicated output ON/OFF control helps manage power delivery during circuit setup and testing. The power display also provides output power information during operation.

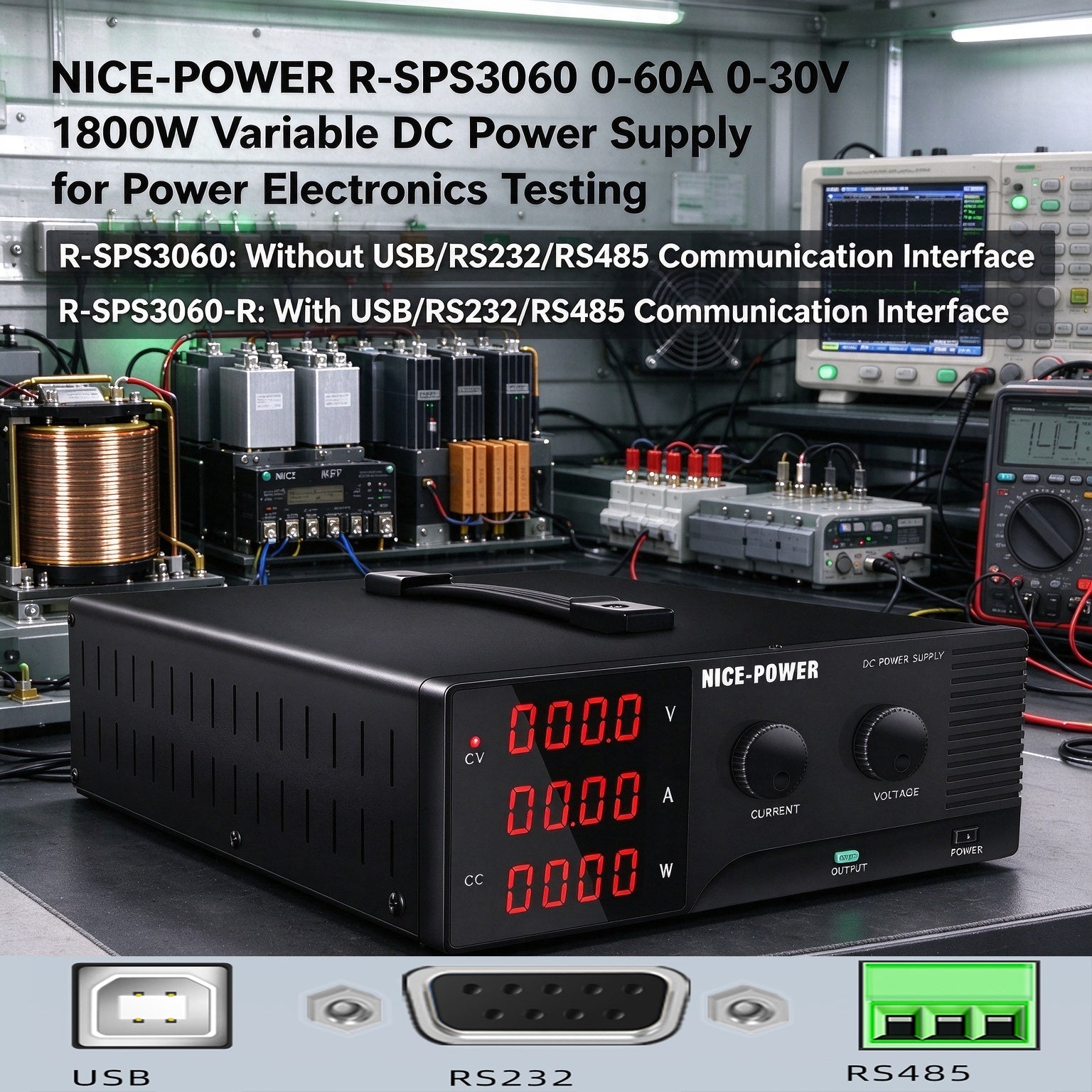

Model-Specific Communication Interfaces
The R-SPS3060 and R-SPS3060-R share the same output specifications and other listed technical parameters but differ in communication connectivity.
-
R-SPS3060: No communication interface.
-
R-SPS3060-R: Equipped with USB, RS-232, and RS-485 communication interfaces.
Choose the model according to your connectivity requirements. The communication interfaces on the R-SPS3060-R do not, by themselves, imply support for any particular programming protocol, automated test function, or remote-control software.
Applications
Power Electronics Testing

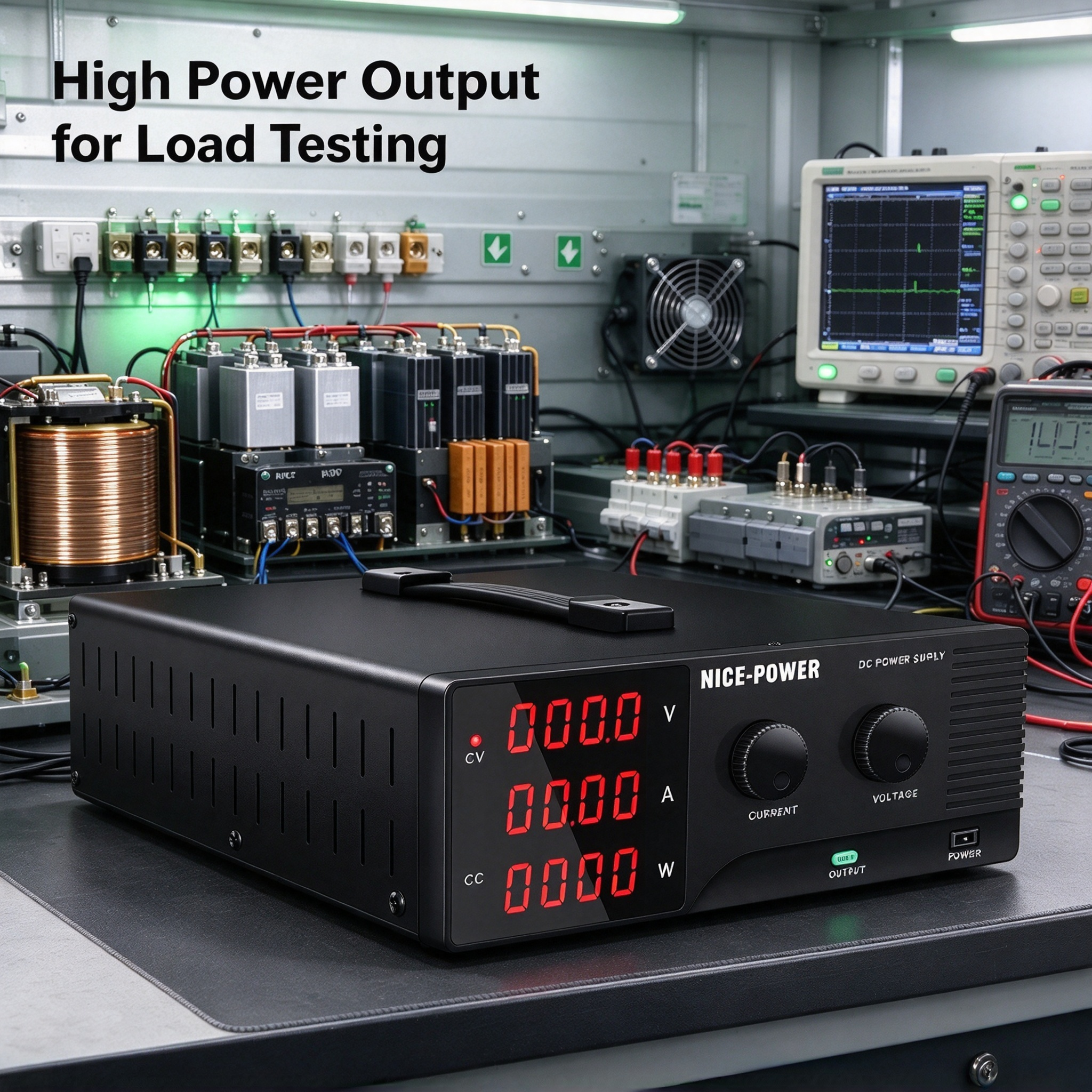

Use the R-SPS3060 series as an adjustable DC input source for compatible power electronics circuits and laboratory test setups. Its 0–30V output range, maximum current of 60A, and rated output power of 1800W support applications requiring low-voltage, high-current DC power during engineering tests.
DC-DC Converter Testing
Provide DC input power to compatible DC-DC converter prototypes during basic operation checks and design verification. Adjust the supply output within the converter's permitted input range and monitor the supply's displayed output readings while the converter is operating.
Power Circuit and Prototype Development
Supply DC power to low-voltage power circuits, prototype boards, and electronic modules during development. The adjustable output and CV/CC operation support experiments involving different voltage and current requirements, provided the connected device remains within the power supply's ratings.
Laboratory Experiments and Engineering Education
Use the R-SPS3060 series as a DC source for electronics laboratories, power electronics experiments, and engineering demonstrations. Its front-panel controls and voltage and current display support practical power setup and observation during hands-on experiments. For setups that require communication connectivity, select the R-SPS3060-R.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.
-
Certifications: Has passed CE & FCC Certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Options | R-SPS3060 / R-SPS3060-R |
| Product Type | Adjustable DC Regulated Power Supply |
| Rated Output Power | 1800W |
| Output Voltage | 0–30V |
| Output Current | 0–60A |
| Load Regulation — Voltage | ≤0.1% + 10mV |
| Load Regulation — Current | ≤0.1% + 2.5mA |
| Line Regulation — Voltage | ≤0.01% + 2.5mV |
| Line Regulation — Current | ≤0.1% + 2.5mA |
| Voltage Setting Resolution | 10mV |
| Current Setting Resolution | 10mA |
| Voltage Readback Resolution | 10mV |
| Current Readback Resolution | 10mA |
| Voltage Setting Accuracy | ≤0.05% + 10mV |
| Current Setting Accuracy | ≤0.01% + 10mA |
| Voltage Readback Accuracy | ≤0.05% + 10mV |
| Current Readback Accuracy | ≤0.01% + 10mA |
| Voltage Ripple (20Hz–20MHz) | ≤400mVp-p / ≤60mVrms |
| Current Ripple (20Hz–20MHz) | ≤20mArms |
| Rise Time, No Load | ≤100ms |
| Rise Time, Full Load | ≤150ms |
| Fall Time, No Load | ≤15s |
| Fall Time, Full Load | ≤50ms |
| Dynamic Response | ≤20ms |
| Efficiency | ≥85% |
| Communication Interfaces — R-SPS3060 | None |
| Communication Interfaces — R-SPS3060-R | USB, RS-232, and RS-485 |
| Operating Temperature | 0°C–40°C |
| Approximate Product Dimensions | 33 × 27 × 9cm |
| Approximate Net Weight | 3.7kg |
Why Choose NICE-POWER R-SPS3060?
The NICE-POWER R-SPS3060 series combines an adjustable 0–30V output, a maximum current of 60A, and a rated power of 1800W for compatible low-voltage, high-current power electronics applications. CV/CC operation, front-panel adjustment, output ON/OFF control, and voltage and current display support routine power setup and observation during laboratory experiments and engineering development.
Both models share the same listed output specifications. Choose the R-SPS3060 for applications that do not require communication interfaces, or the R-SPS3060-R when USB, RS-232, and RS-485 connectivity is required.
Before selecting a power supply for a specific test setup, verify the connected device's input voltage, current demand, startup requirements, and total power consumption. Measurements such as conversion efficiency, switching waveforms, and output ripple require appropriate external test instruments.
