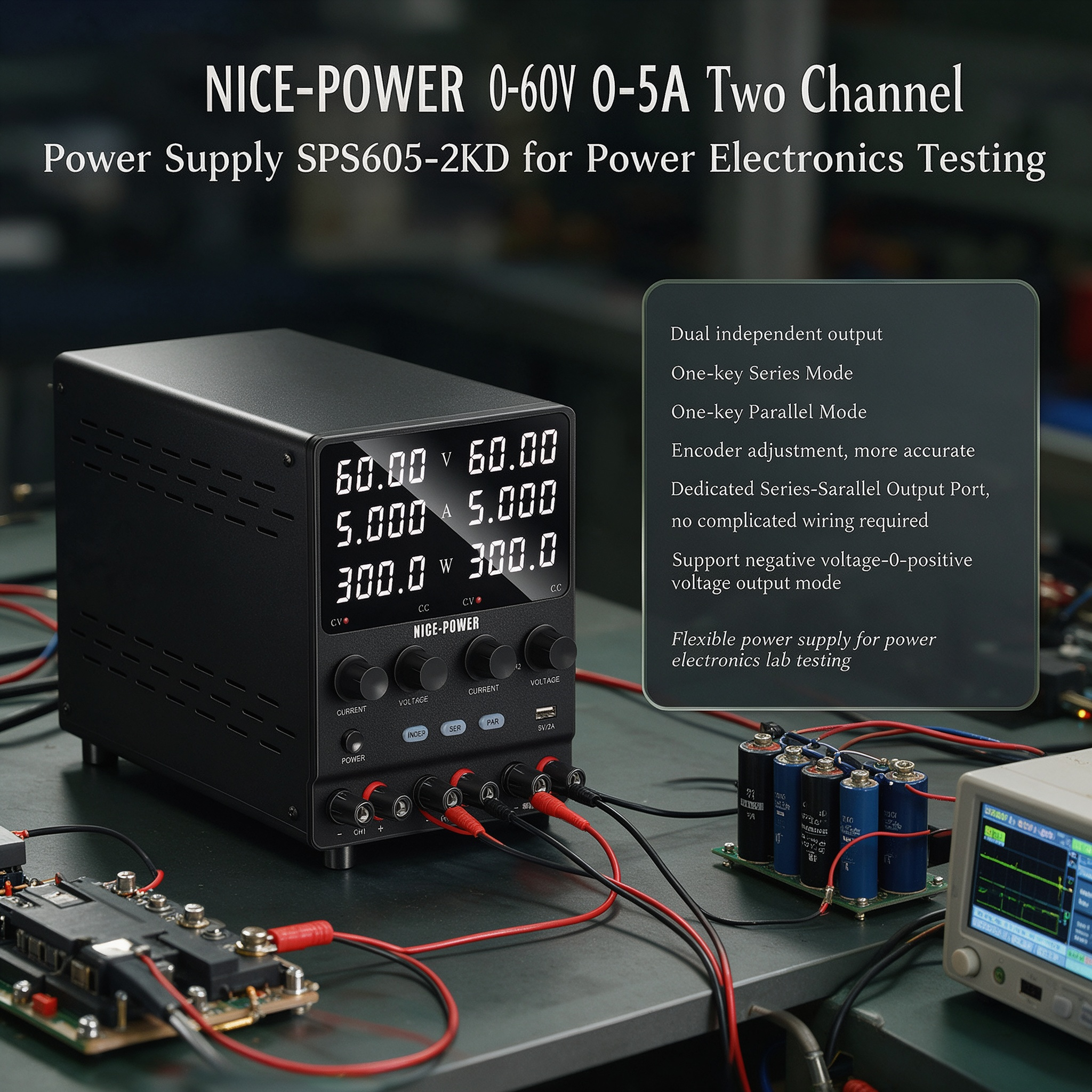

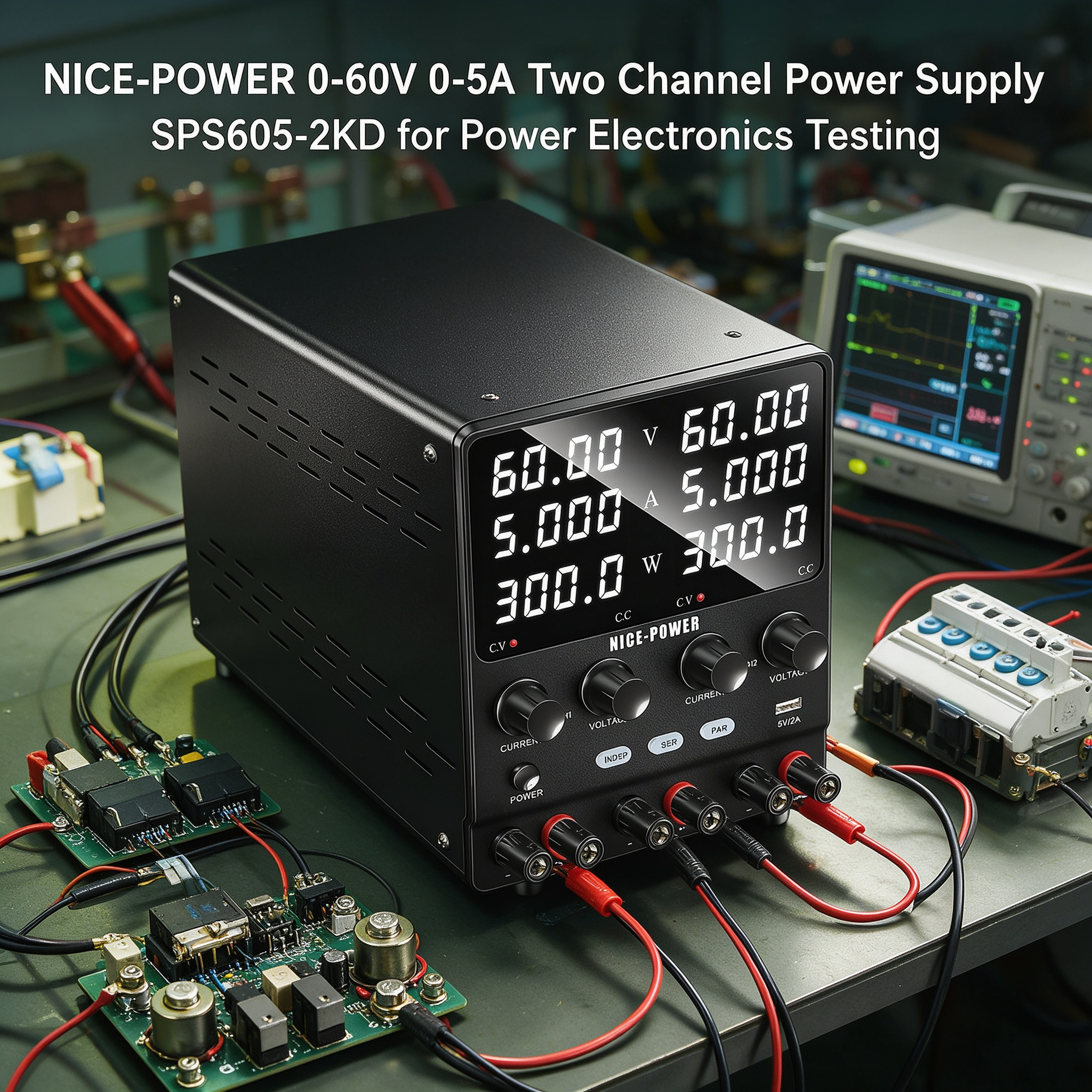

NICE-POWER 0-60V 0-5A Two Channel

Power Supply SPS605-2KD for Power

Electronics Testing

The NICE-POWER SPS605-2KD is a Two Channel Power Supply designed for Power Electronics Testing, power circuit evaluation, and adjustable DC power applications. With two independent 0-60V 0-5A outputs, this DC Bench Power Supply provides flexible power configurations for testing power electronic circuits, DC power modules, and related electronic systems within the rated output range.

The SPS605-2KD supports One-Key Series Mode and One-Key Parallel Mode for different Power Electronics Testing requirements. Series Mode provides up to 0-120V at 0-5A, while Parallel Mode provides up to 0-60V at 0-10A. The dedicated Series-Parallel Output Port simplifies configuration without complicated external wiring, allowing users to quickly switch between different output modes for various power electronic test requirements.

Key Features

Dual Independent Outputs for Power Electronics Testing

The SPS605-2KD provides two independent DC outputs, with each output supporting 0-60V and 0-5A. This Two Channel Power Supply configuration allows engineers to create separate DC power conditions for different parts of a power electronics test setup, such as input circuits, control circuits, and electronic modules.

Adjustable 0-60V 0-5A DC Power Output

Each independent output provides an adjustable 0-60V voltage range and up to 0-5A current. This adjustable DC output capability allows users to establish controlled power conditions during Power Electronics Testing according to the requirements of the tested circuit or power module.

One-Key Series Mode for Higher Voltage Testing

The One-Key Series Mode combines the two outputs to provide up to 0-120V at 0-5A. This configuration expands the available voltage range compared with a single output and can be used for Power Electronics Testing applications requiring higher DC voltage within the specified Series Mode operating range.

One-Key Parallel Mode for Higher Current Testing

The One-Key Parallel Mode combines the outputs to provide up to 0-60V and 0-10A. This configuration increases available current capacity and can be used for power electronic circuits or modules requiring higher current output within the rated Parallel Mode range.

Precision Encoder Adjustment

The SPS605-2KD uses precision Encoder Adjustment for voltage and current settings. This allows users to make controlled adjustments during Power Electronics Testing and establish accurate DC output conditions for different test procedures.

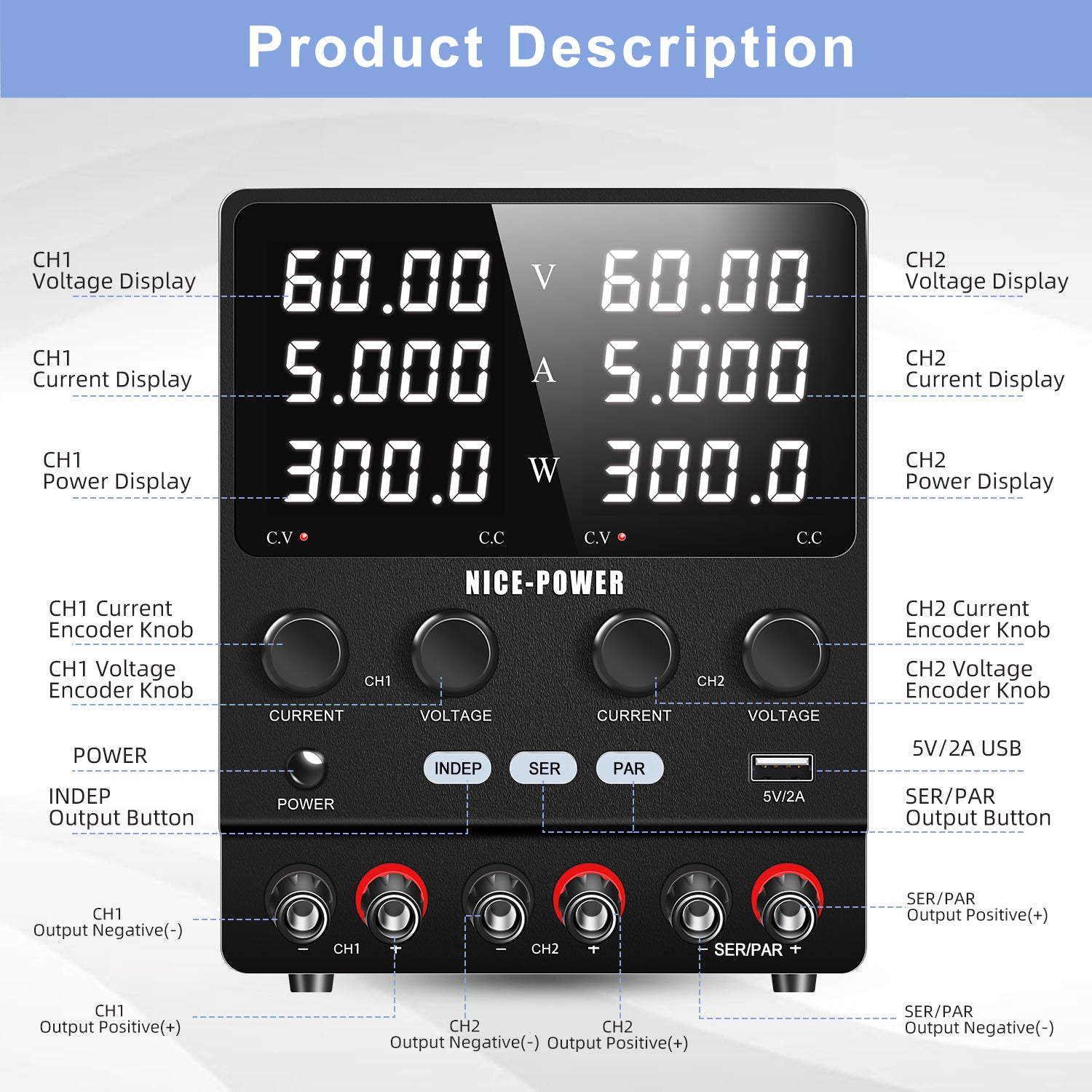

Dedicated Series-Parallel Output Port

The dedicated Series-Parallel Output Port simplifies the connection process when changing between independent, series, and parallel output configurations. This design avoids complicated external wiring and provides a convenient solution for different Two Channel Power Supply applications.

Negative Voltage to Positive Voltage Output Mode

The SPS605-2KD supports negative voltage to positive voltage output mode. This capability provides additional flexibility for power electronics circuits and test systems requiring positive and negative voltage relationships.

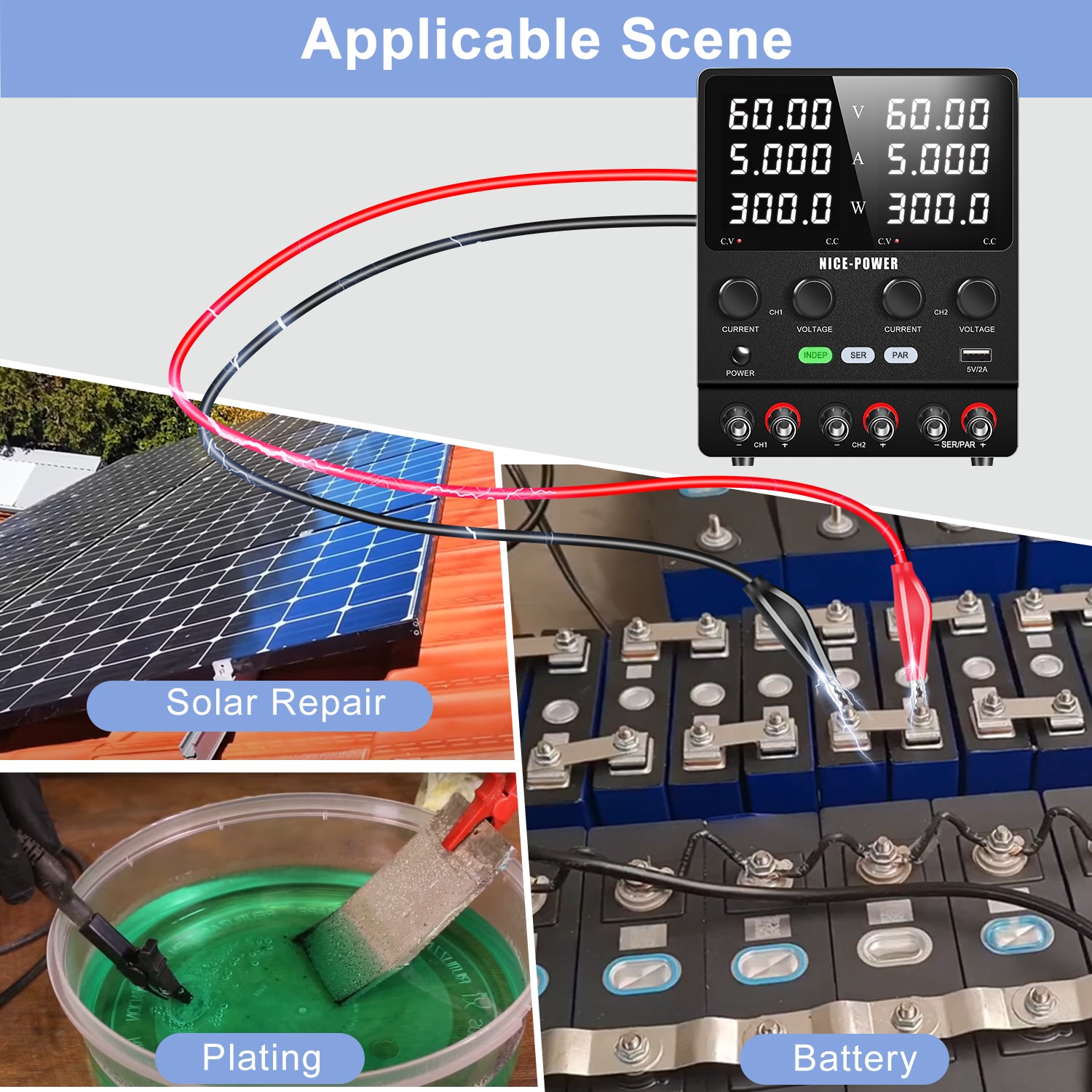

Applications

Power Module Testing

The SPS605-2KD provides adjustable DC output conditions for evaluating power electronic modules and DC power circuits. The Two Channel Power Supply configuration allows users to create flexible test setups according to different module requirements.

DC Converter Circuit Testing

The adjustable 0-60V 0-5A output can be used for testing DC converter circuits and related power conversion components. Users can adjust voltage and current parameters to match different testing conditions within the rated output range.

Power Circuit Development and Verification

The independent dual outputs allow engineers to supply different DC power conditions during power circuit development and verification. Series and Parallel Modes provide additional output configurations for different test requirements.

High Voltage and High Current Power Testing

For Power Electronics Testing requiring extended voltage or current capability, Series Mode provides up to 0-120V 0-5A and Parallel Mode provides up to 0-60V 0-10A. These configurations expand the available testing range within the specified operating conditions.

Quality Check and Terms of Service

The SPS-2KD series is inspected before shipment to help ensure that the DC Power Supply and included accessories are in good condition.

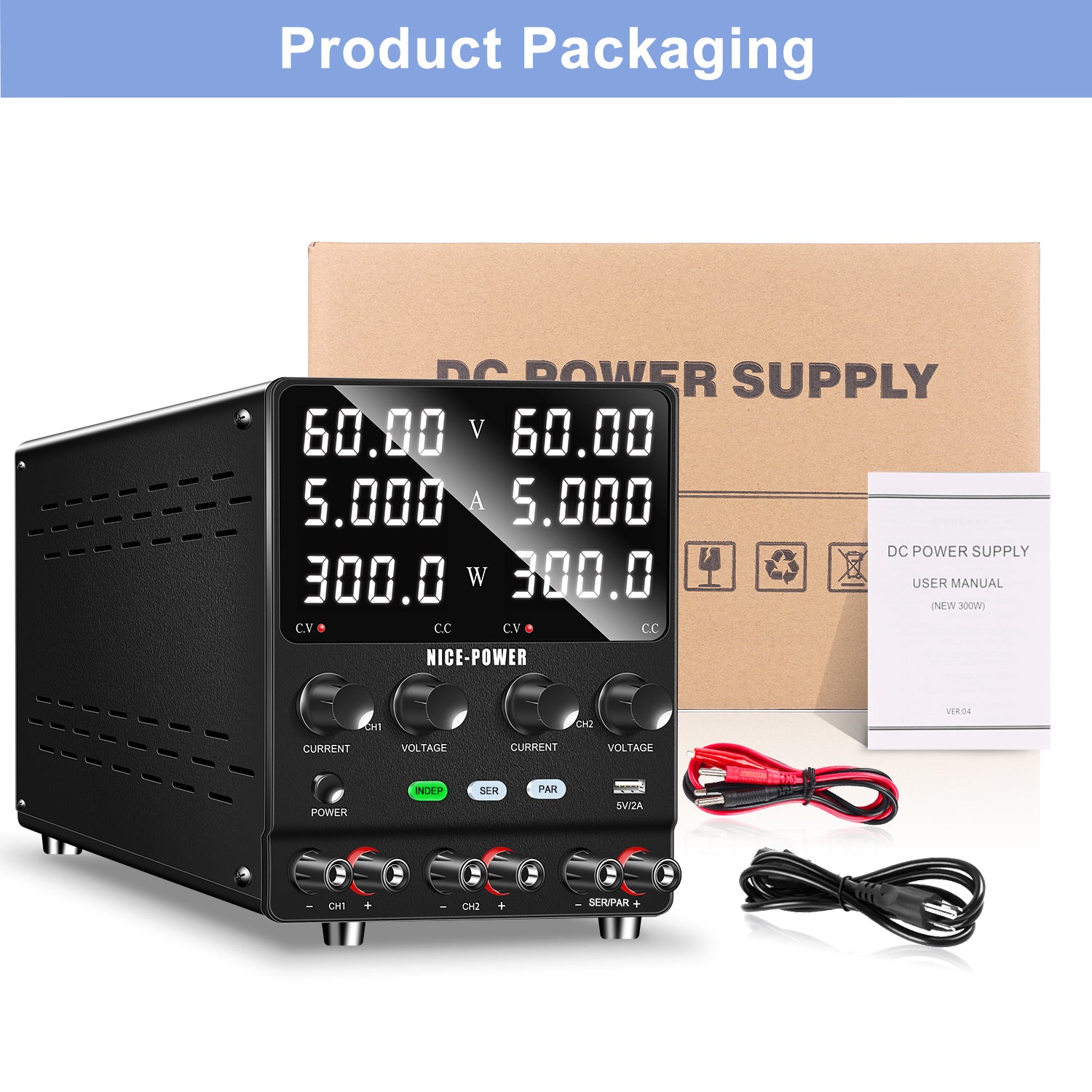

Package Includes:

• DC Power Supply ×1

• Output Power Cord ×1

• Input Power Cord ×1

• User Manual ×1

• Warranty Card ×1

Quality Assurance:

• Passed CE and FCC Certification.

• All DC power supplies and accessories are inspected before shipment.

• Contact us with any questions, and our customer support team will respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER SPS605-2KD?

The NICE-POWER SPS605-2KD combines two independent 0-60V 0-5A outputs with Series and Parallel operating modes, providing a flexible Two Channel Power Supply solution for Power Electronics Testing.

Independent Mode allows separate adjustable DC outputs, Series Mode extends the available voltage to 0-120V, and Parallel Mode increases the available current to 0-10A.

With Encoder Adjustment, a dedicated Series-Parallel Output Port, and negative voltage to positive voltage output mode, the SPS605-2KD provides a practical DC Power Supply solution for power module testing, DC converter evaluation, power circuit development, and electronic system verification within its specified operating ranges.
