Product Details

Download English Manual (PDF)

Click the link above to get the full user guide for this product.

KUAIQU SPS-C3010 DC Motor Drive

Testing Bench Supply 0-30V 0-10A 300W

with CV/CC

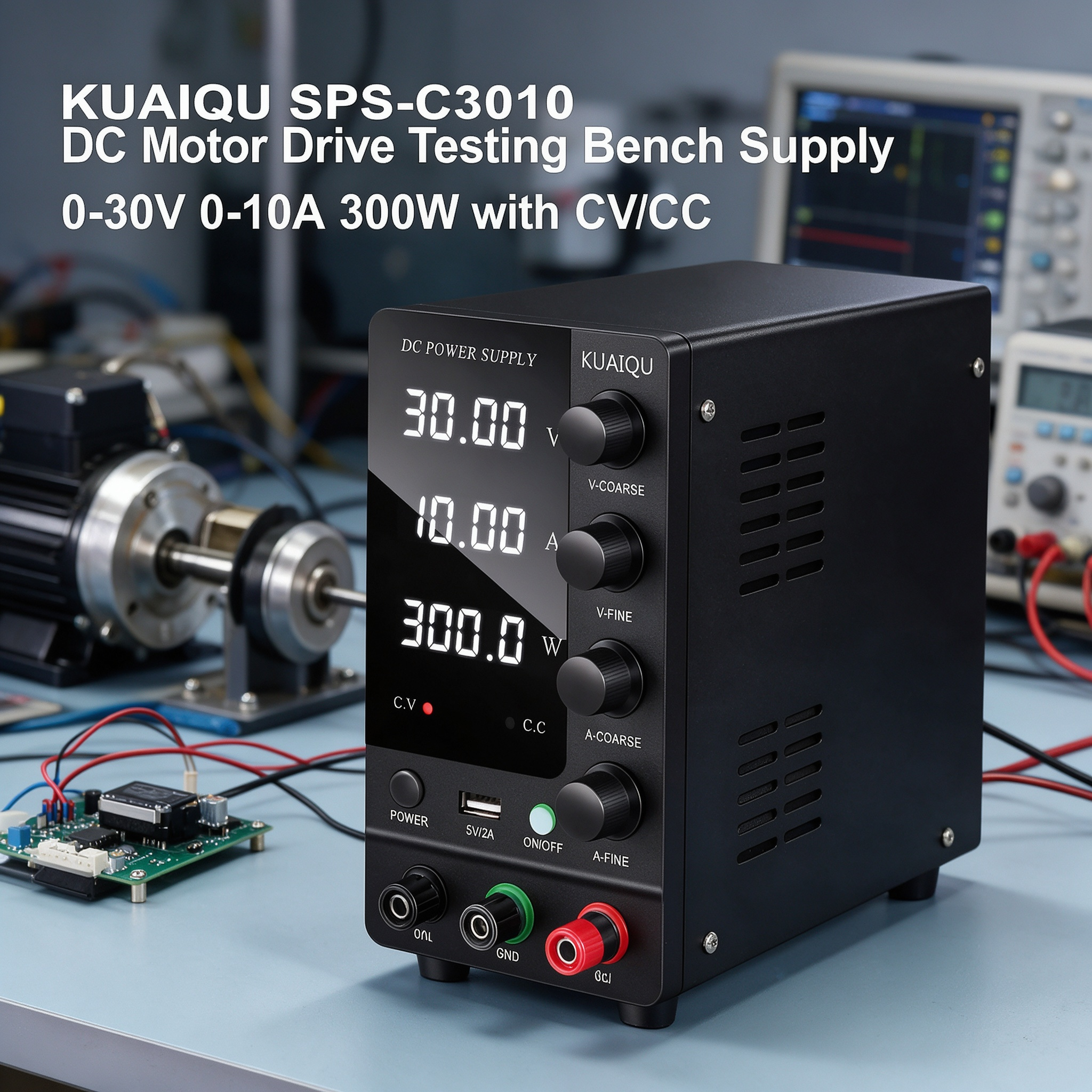

The KUAIQU SPS-C3010 is a 0-30V, 0-10A, 300W DC Motor Drive Testing Bench Supply designed for laboratory and bench testing of compatible DC motor drive circuits. With adjustable DC output, CV/CC operation, 4-Knob Adjustment, Voltage Display, Current Display, Power Display, and an Output Switch, it provides direct control and visible electrical readings when evaluating motor drive input conditions and testing related electronic circuits.

Key Features

0-30V, 0-10A Adjustable Output for Motor Drive Testing

The SPS-C3010 provides a 0-30V adjustable DC output with up to 10A current and 300W rated power. This output range allows users to configure different DC input conditions for compatible motor drive testing within the power supply's rated operating range.

For bench testing, the adjustable output makes it possible to change the supplied voltage and current settings according to the requirements of the motor drive circuit under test.

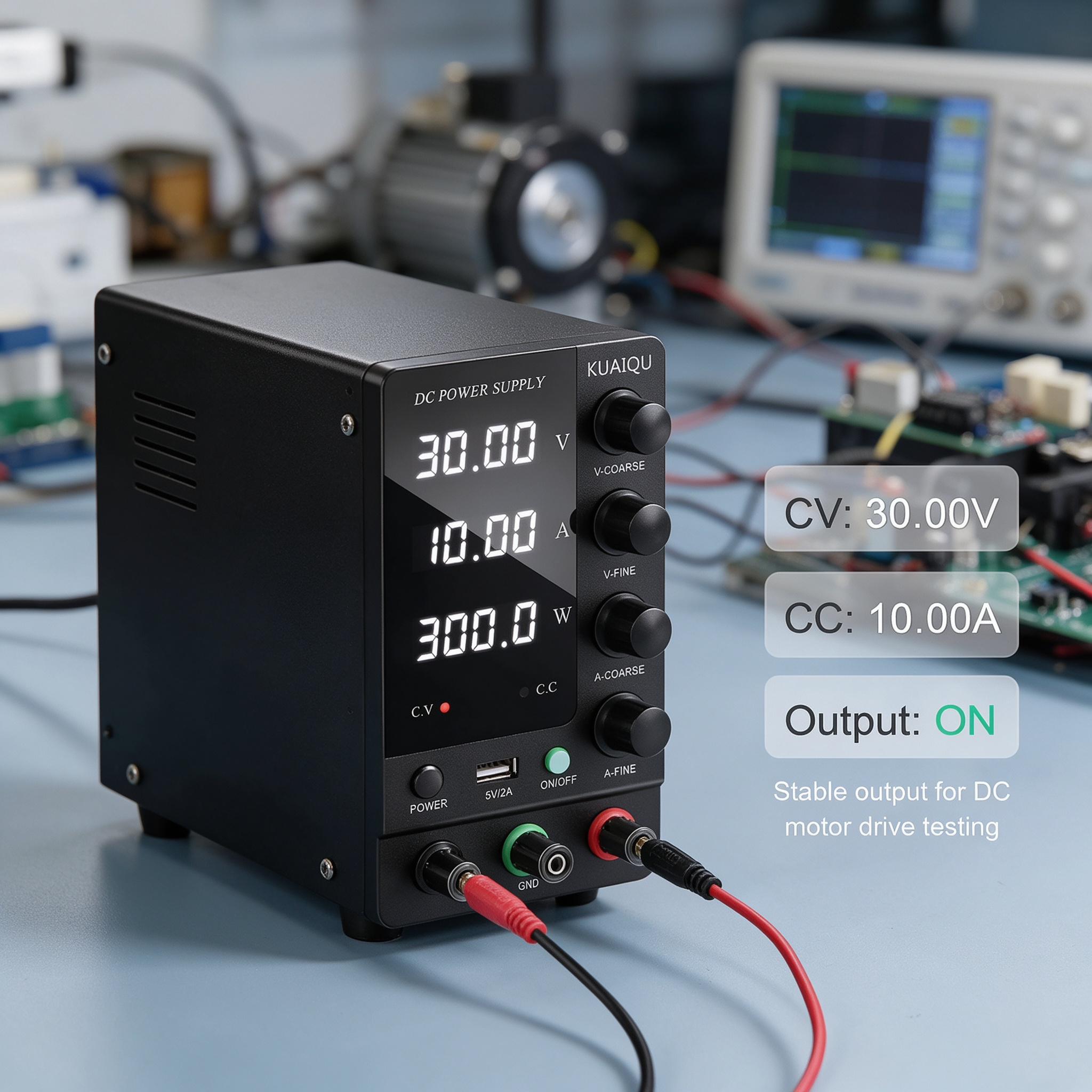

CV/CC Operation for Different Motor Drive Test Conditions

The SPS-C3010 supports Constant Voltage and Constant Current operation for compatible DC motor drive testing setups.

CV/CC operation allows users to work with the appropriate power supply mode while observing how the connected motor drive circuit responds to different electrical conditions. This makes the Bench Supply suitable for repeated laboratory testing and evaluation.

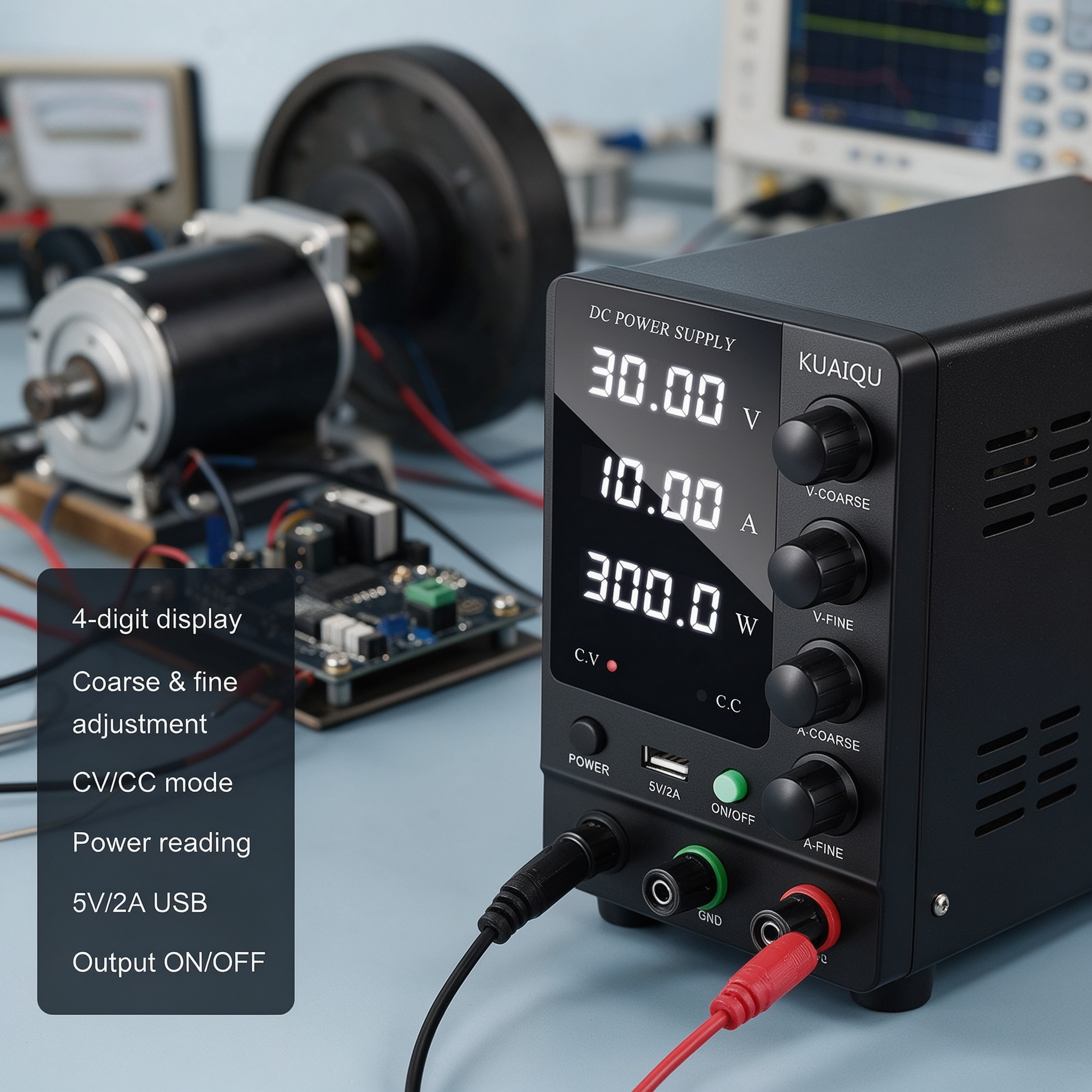

4-Knob Adjustment for Direct Test Setup Control

The 4-Knob Adjustment interface provides direct front-panel control of the power supply settings.

During DC Motor Drive Testing, users can adjust the required output conditions directly from the bench supply rather than relying on complex control procedures. This is useful when repeatedly changing test conditions during development, troubleshooting, and circuit evaluation.

Voltage, Current, and Power Display for Test Observation

The SPS-C3010 provides Voltage Display, Current Display, and Power Display so users can observe the main electrical values while the motor drive circuit is being tested.

These visible readings help users monitor changes in the supplied electrical conditions during bench testing and compare different test setups within the power supply's rated range.

Output Switch for Convenient Test Control

The Output Switch provides direct control over when the adjustable DC output is applied to the connected motor drive circuit.

Users can configure the Bench Supply before enabling the output, making it convenient to prepare, start, stop, and repeat compatible DC motor drive tests.

5V/2A USB Output for Compatible Test Accessories

The SPS-C3010 includes a 5V/2A USB Output for compatible USB-powered devices and accessories used alongside bench testing equipment.

This additional USB output can provide power for suitable low-power USB accessories while the main adjustable DC output is used for the primary motor drive test circuit.

Applications

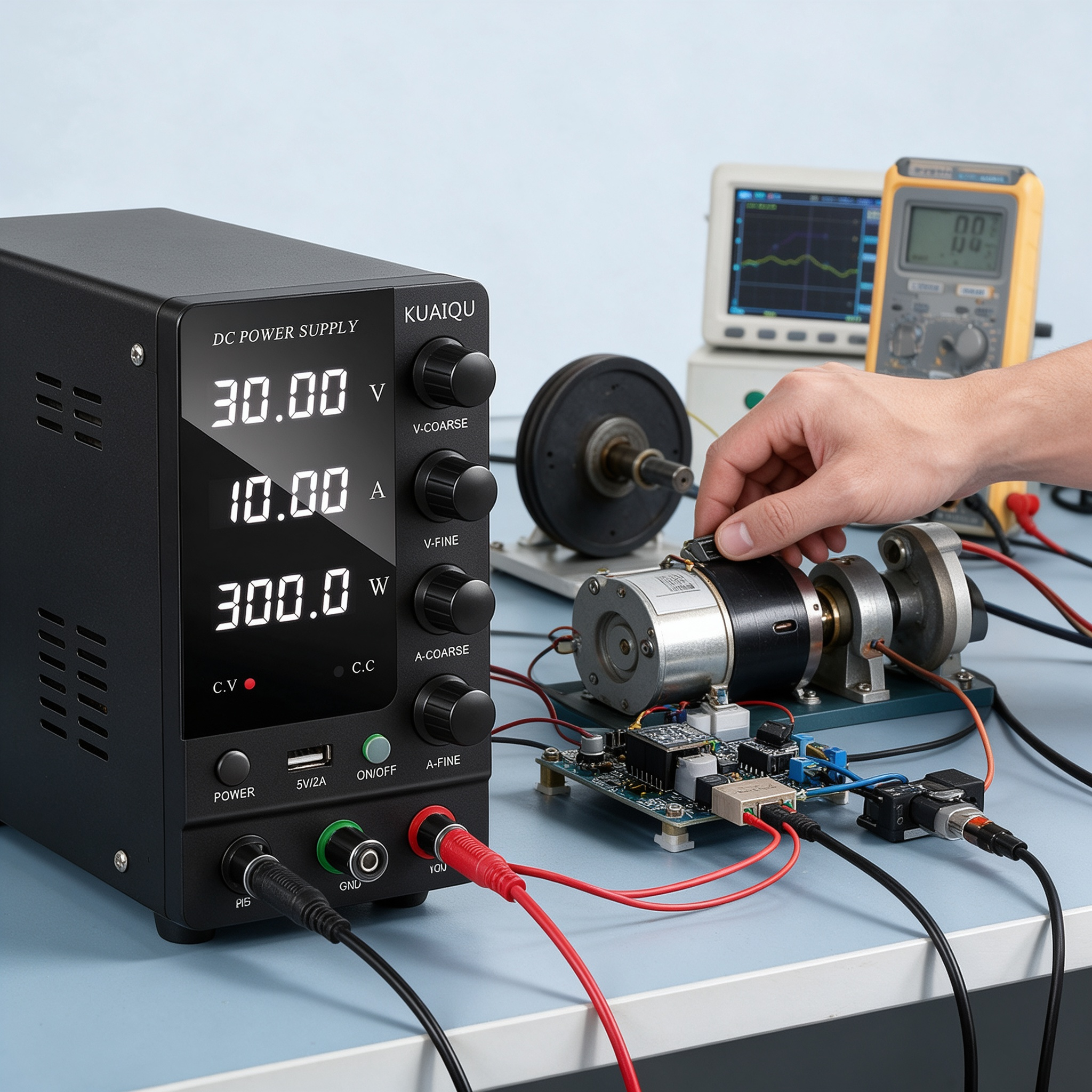

DC Motor Drive Testing

The SPS-C3010 can be used as a Bench Supply for testing compatible DC motor drive circuits within its 0-30V, 0-10A, and 300W rated output range.

Users can adjust the DC output conditions and observe voltage, current, and power readings while evaluating the electrical behavior of the motor drive circuit.

Motor Drive Circuit Development

During motor drive circuit development, the adjustable DC output provides a practical bench power source for compatible prototype and development circuits.

The 4-Knob Adjustment and visible electrical readings allow users to change test conditions and observe the corresponding power supply values during repeated development work.

Motor Controller Input Testing

The SPS-C3010 can provide adjustable DC input conditions for compatible motor controller and drive electronics.

Users can configure the required voltage and current settings and use the Voltage Display, Current Display, and Power Display to observe the electrical conditions during testing.

Repeated Laboratory Motor Drive Tests

For laboratory development and repeated bench testing, the SPS-C3010 provides direct adjustment and Output Switch control.

Users can prepare different test conditions, activate the output, observe the displayed electrical values, and repeat the test process as required within the power supply's rated specifications.

Quality Check and Terms of Service

  • Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.

  • Has passed CE & FCC Certification.

  • All DC power supplies and accessories are inspected before shipment to ensure good quality.

  • Customer support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Parameter Specification
Model SPS-C3010
Product Type DC Motor Drive Testing Bench Supply
Output Voltage 0-30V
Output Current 0-10A
Output Power 300W
Operating Mode CV/CC
Operating Temperature 0-40°C
Adjustment 4-Knob Adjustment
Voltage Display Supported
Current Display Supported
Power Display Supported
Output Control Output Switch
USB Output 5V/2A
Voltage Setting/Readback Resolution 10mV
Current Setting/Readback Resolution 1mA
Current Setting Accuracy ≤0.01% + 10mA
Voltage Readback Accuracy ≤0.05% + 10mV
Current Readback Accuracy ≤0.01% + 10mA
Voltage Load Regulation ≤0.3% + 10mV
Current Load Regulation ≤0.1% + 2.5mA
Voltage Line Regulation ≤0.01% + 2.5mV
Current Line Regulation ≤0.1% + 2.5mA
Voltage Ripple ≤100mVp-p / ≤15mVrms
Current Ripple ≤15mArms
Rise Time, No Load ≤200ms
Rise Time, Full Load ≤300ms
Fall Time, No Load ≤20s
Fall Time, Full Load ≤300ms
Dynamic Response ≤200ms
Efficiency ≥85%
Input AC 220V, AC 110V Optional
Dimensions Approx. 22 × 8.5 × 15.5 cm
Net Weight Approx. 1.2 kg

Why Choose KUAIQU SPS-C3010?

The KUAIQU SPS-C3010 combines a 0-30V adjustable DC output, up to 10A current, and 300W rated power with direct 4-Knob Adjustment and CV/CC operation, making it suitable for compatible DC Motor Drive Testing applications.

The Voltage Display, Current Display, and Power Display provide visible electrical information during bench testing, while the Output Switch allows users to control when the adjustable DC output is applied to the test circuit.

For motor drive development, controller input testing, and repeated laboratory evaluation, the SPS-C3010 provides a straightforward Bench Supply solution for configuring and observing DC power conditions within its rated specifications.
