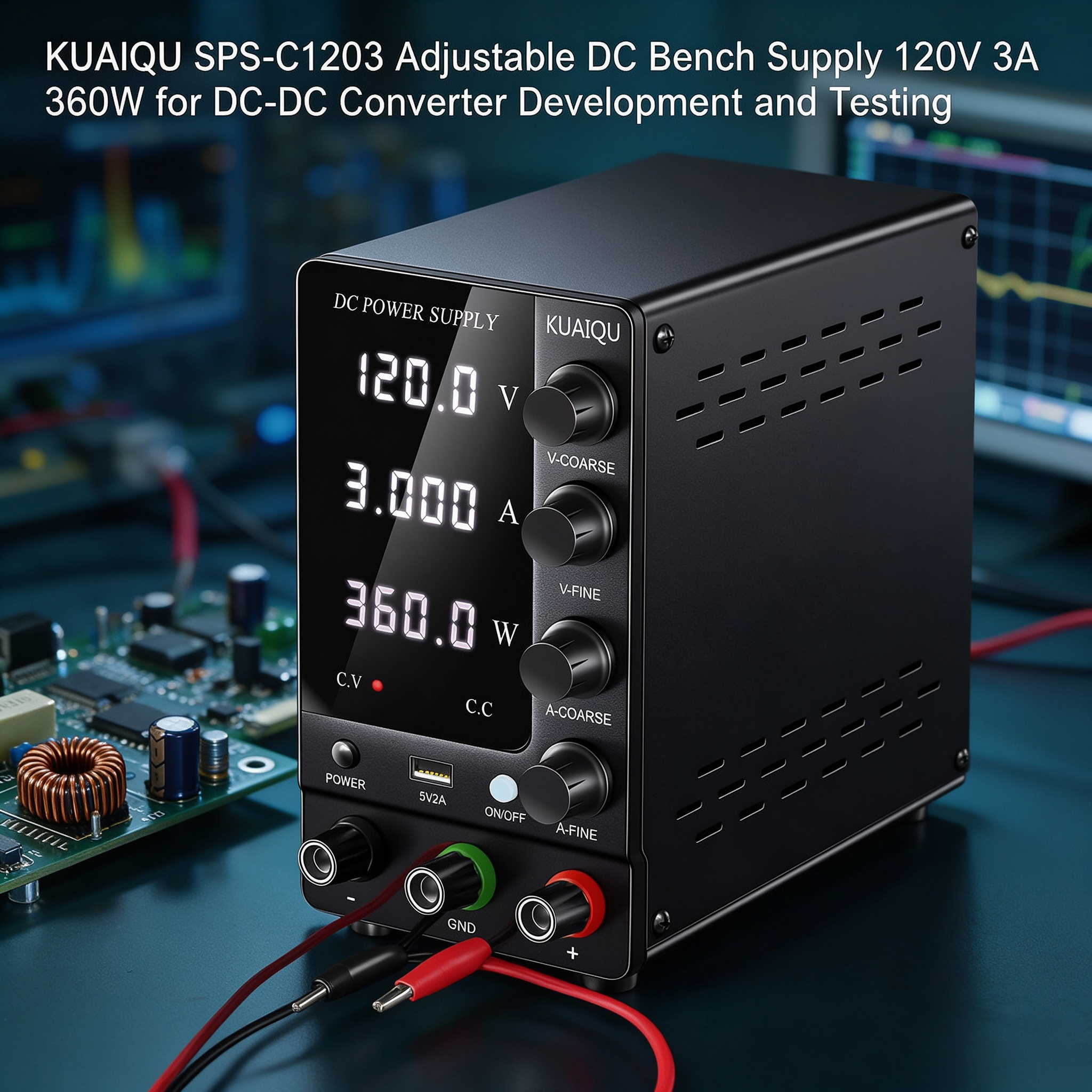

KUAIQU SPS-C1203 Adjustable DC Bench
Supply 120V 3A 360W for DC-DC
Converter Development and Testing
The KUAIQU SPS-C1203 is an Adjustable DC Bench Supply with a 0-120V adjustable output, up to 3A current, and 360W maximum power capacity. Designed for DC-DC Converter Development and Testing, it provides a flexible DC input source for establishing different converter test conditions within the rated output range.
During DC-DC converter development, engineers may need to change the input voltage, observe input current and power, and compare converter behavior under different operating conditions. The SPS-C1203 combines 4-Knob Adjustment, CV/CC operation, Voltage, Current, and Power Display, and an Output Switch to support direct adjustment and observation throughout bench testing.
With its wide 0-120V output range, the SPS-C1203 can be used to establish different DC input conditions for compatible DC-DC converters, power conversion circuits, and related electronic prototypes during development and testing.
Key Features
0-120V Adjustable Output for DC-DC Converter Testing
The SPS-C1203 provides a 0-120V adjustable DC output, allowing users to establish different input voltage conditions for DC-DC Converter Development and Testing. The wide voltage range provides flexibility when evaluating converters designed for different DC input levels within the rated operating range.
0-3A Current and 360W Power Capacity for Converter Development
With up to 3A output current and 360W maximum power, the Adjustable DC Bench Supply provides controlled DC power for compatible DC-DC converters and power conversion circuits. Users can select suitable voltage and current settings according to the requirements of the device under test.
CV/CC Operation for Different Converter Test Conditions
The SPS-C1203 supports Constant Voltage and Constant Current operation, allowing the power supply to respond according to the connected load and selected output conditions. This provides a practical power source for different stages of DC-DC Converter Development and Testing.
4-Knob Adjustment for Direct Parameter Changes
The 4-Knob Adjustment design provides separate controls for voltage and current settings. Users can directly adjust the output conditions from the front panel when changing converter input parameters during development, troubleshooting, or repeated testing.
Voltage, Current, and Power Display for Test Observation
The built-in display provides voltage, current, and power readings during operation. These readings allow users to observe the electrical conditions supplied to the DC-DC converter and compare different test points during converter development and testing.
Output Switch for Controlled Test Sequences
The Output Switch allows users to control when the DC output is applied to the connected converter. Test parameters can be configured before enabling the output, which is useful when setting up repeated DC-DC Converter Testing procedures.
5V/2A USB Output for Compatible Bench Accessories
The built-in 5V/2A USB Output provides auxiliary power for compatible USB accessories used around the development workstation, helping reduce the need for an additional low-power USB source.
Applications

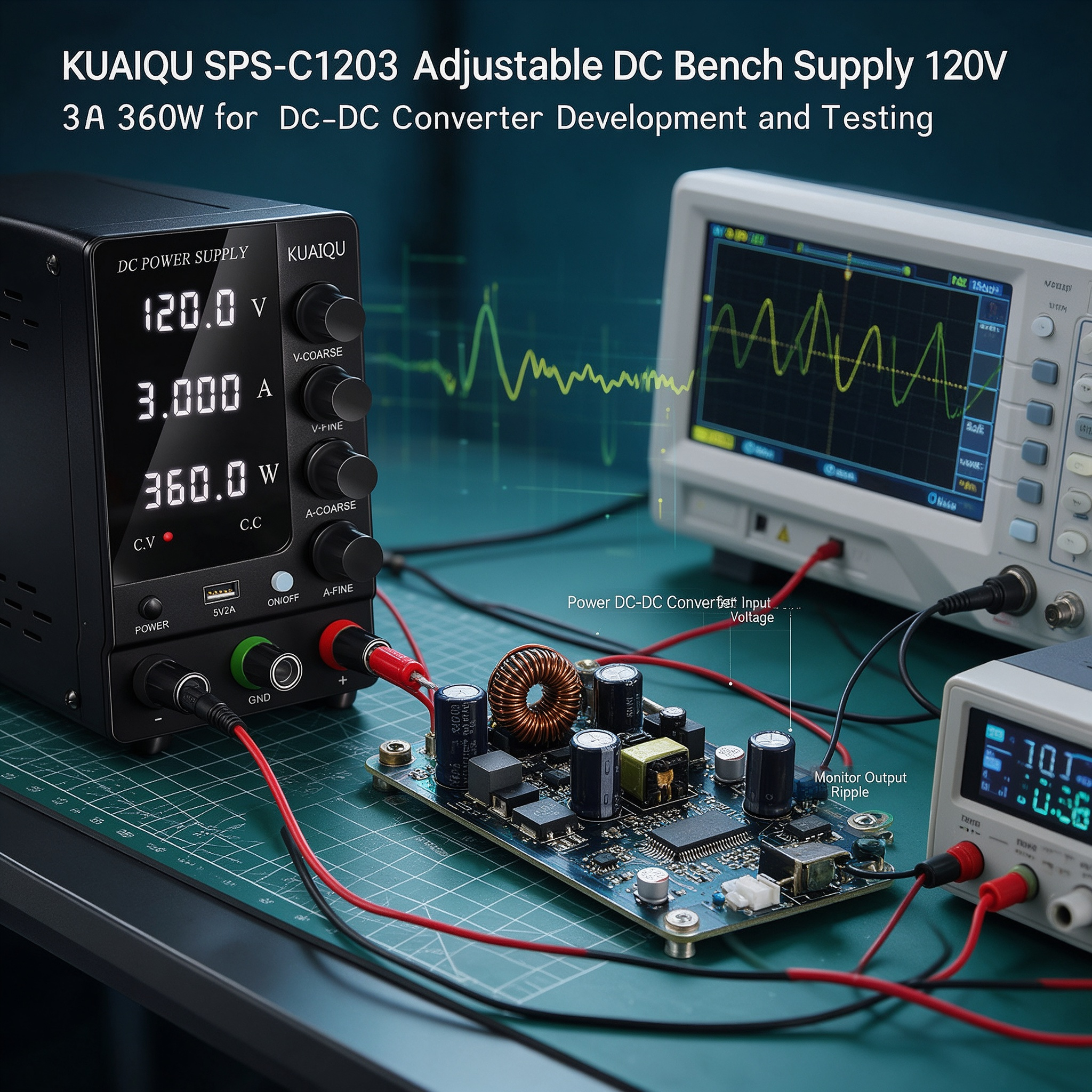

DC-DC Converter Development and Testing
The SPS-C1203 provides an adjustable DC input source for developing and testing compatible DC-DC converters within its 0-120V, 0-3A, and 360W rated output range.
Converter Input Voltage Evaluation
Users can adjust the DC output voltage to establish different converter input conditions and compare converter operation at different voltage levels within the rated range.

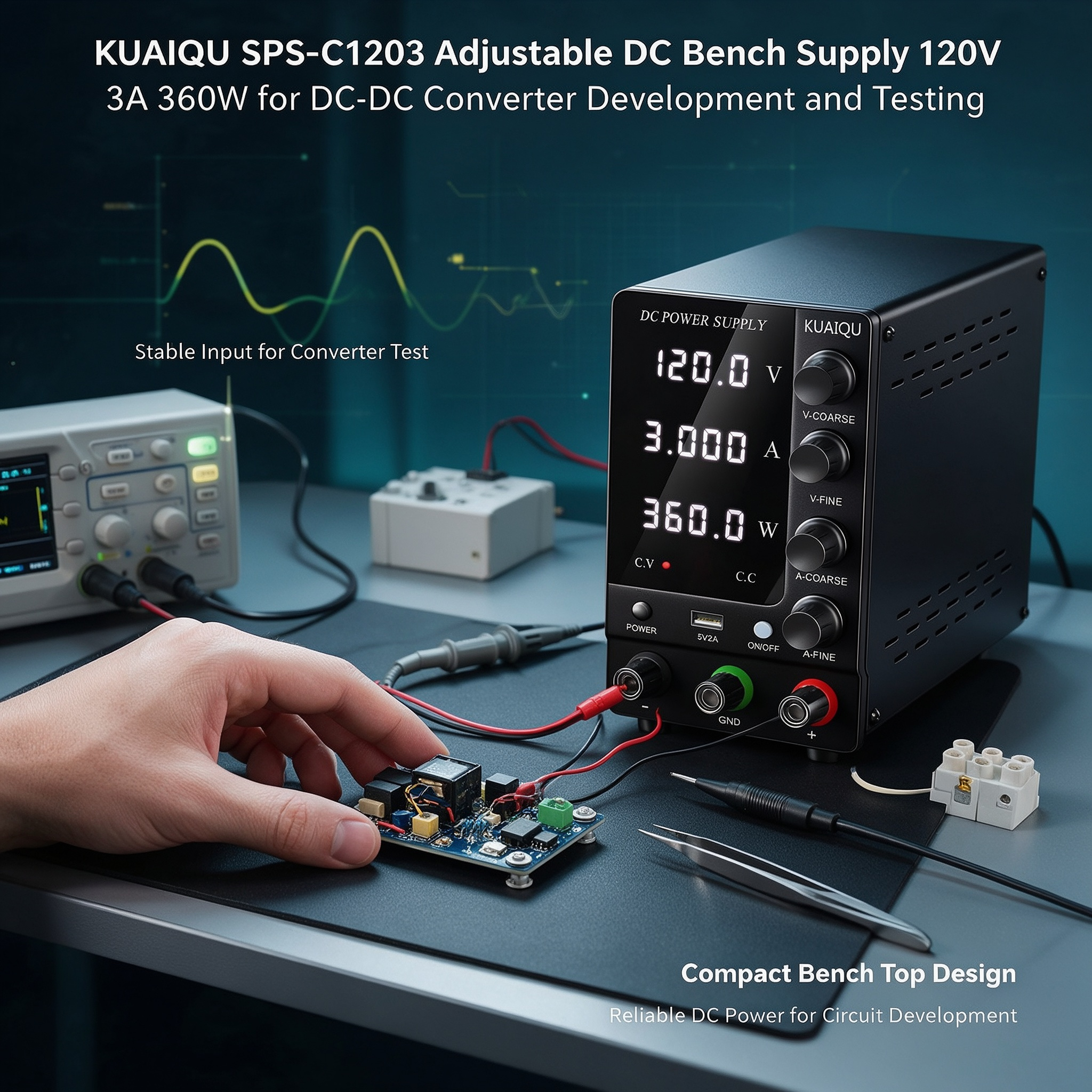

DC-DC Converter Prototype Development
The Adjustable DC Bench Supply can provide adjustable DC power for prototype converter circuits during initial development, circuit modification, and bench verification.
Power Conversion Circuit Testing
The adjustable voltage and current output supports controlled DC input conditions for compatible power conversion circuits and related electronic modules during development and testing.
Converter Operating Condition Comparison
The wide output range allows users to establish multiple DC test points and observe voltage, current, and power readings when comparing converter behavior under different input conditions.
Converter Troubleshooting and Verification
During troubleshooting, users can directly adjust output parameters and observe electrical readings to help verify converter operation under selected DC input conditions.
Repeated Laboratory and Engineering Testing
The direct front-panel controls, Output Switch, and real-time electrical readings support repeated DC-DC Converter Testing in electronics laboratories, engineering workstations, and development benches.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-C1203 |
| Product Type |
Adjustable DC Bench Supply |
| Output Voltage |
0-120V |
| Output Current |
0-3A |
| Output Power |
360W |
| Operating Mode |
CV/CC |
| Voltage Display |
Yes |
| Current Display |
Yes |
| Power Display |
Yes |
| Adjustment |
4-Knob Adjustment |
| Output Switch |
Yes |
| USB Output |
5V/2A |
| Rated Operating Temperature |
0-40°C |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
<100V: 10mV; ≥100V: 0.1V |
| Current Readback Resolution |
1mA |
| Voltage Readback Accuracy |
≤0.01% + 15mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤300mVp-p / ≤30mVrms |
| Current Ripple |
≤30mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤30s |
| Fall Time, Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input |
AC 220V, AC110V optional |
| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
Why Choose KUAIQU SPS-C1203?
The KUAIQU SPS-C1203 combines a 0-120V adjustable output, up to 3A current, and 360W maximum power capacity in an Adjustable DC Bench Supply designed for flexible DC test conditions.
For DC-DC Converter Development and Testing, the wide voltage range allows engineers to establish different converter input conditions rather than being limited to a single fixed voltage. The 4-Knob Adjustment provides direct control of voltage and current, while the Voltage, Current, and Power Display helps users observe electrical conditions during each test.
The Output Switch also allows test parameters to be configured before applying power to the converter, making the SPS-C1203 suitable for structured development, troubleshooting, comparison testing, and repeated bench verification.
With its adjustable DC output, CV/CC operation, direct front-panel adjustment, real-time electrical readings, and 5V/2A USB Output, the SPS-C1203 provides a practical DC Bench Supply solution for DC-DC Converter Development and Testing, power conversion circuit testing, and general laboratory engineering work.
