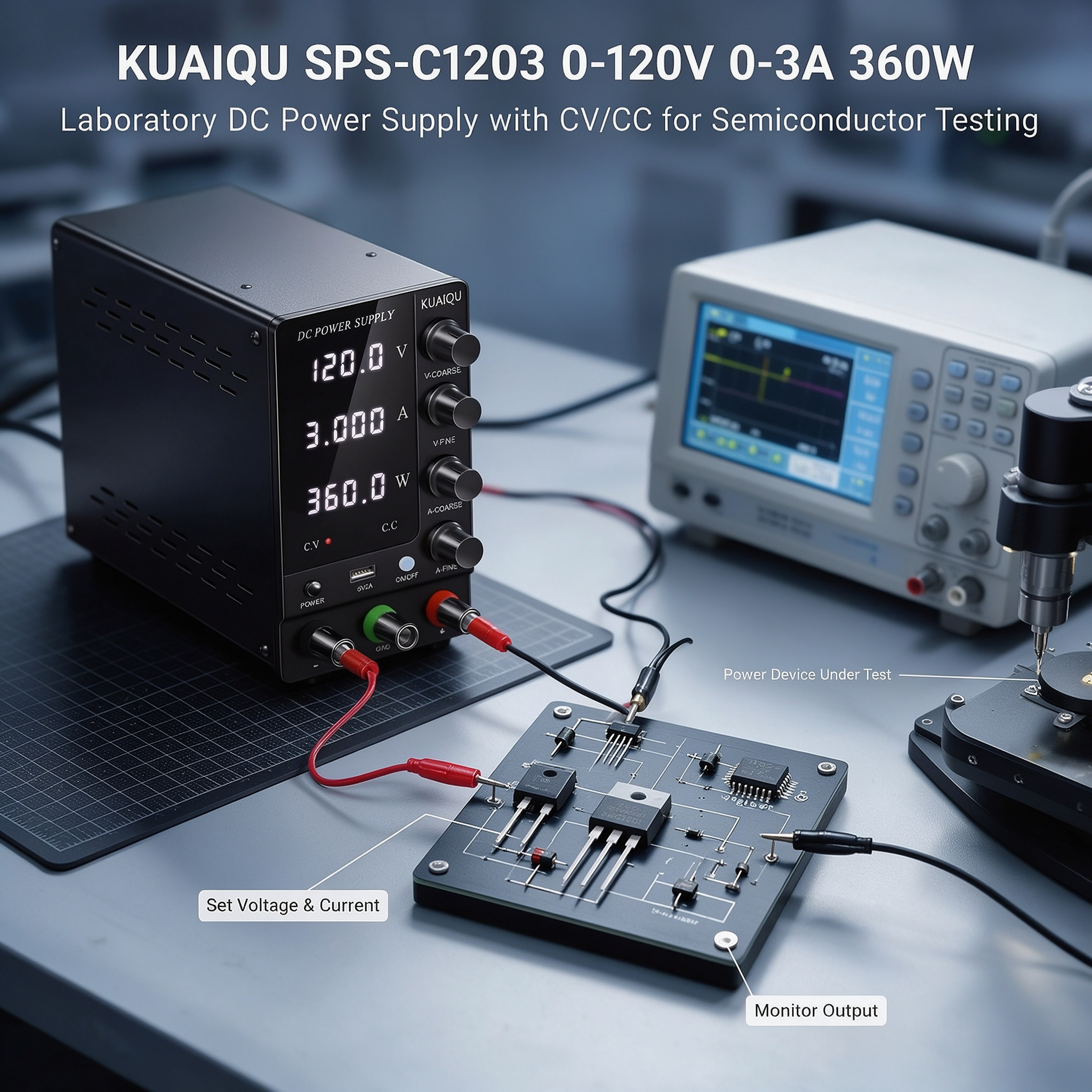

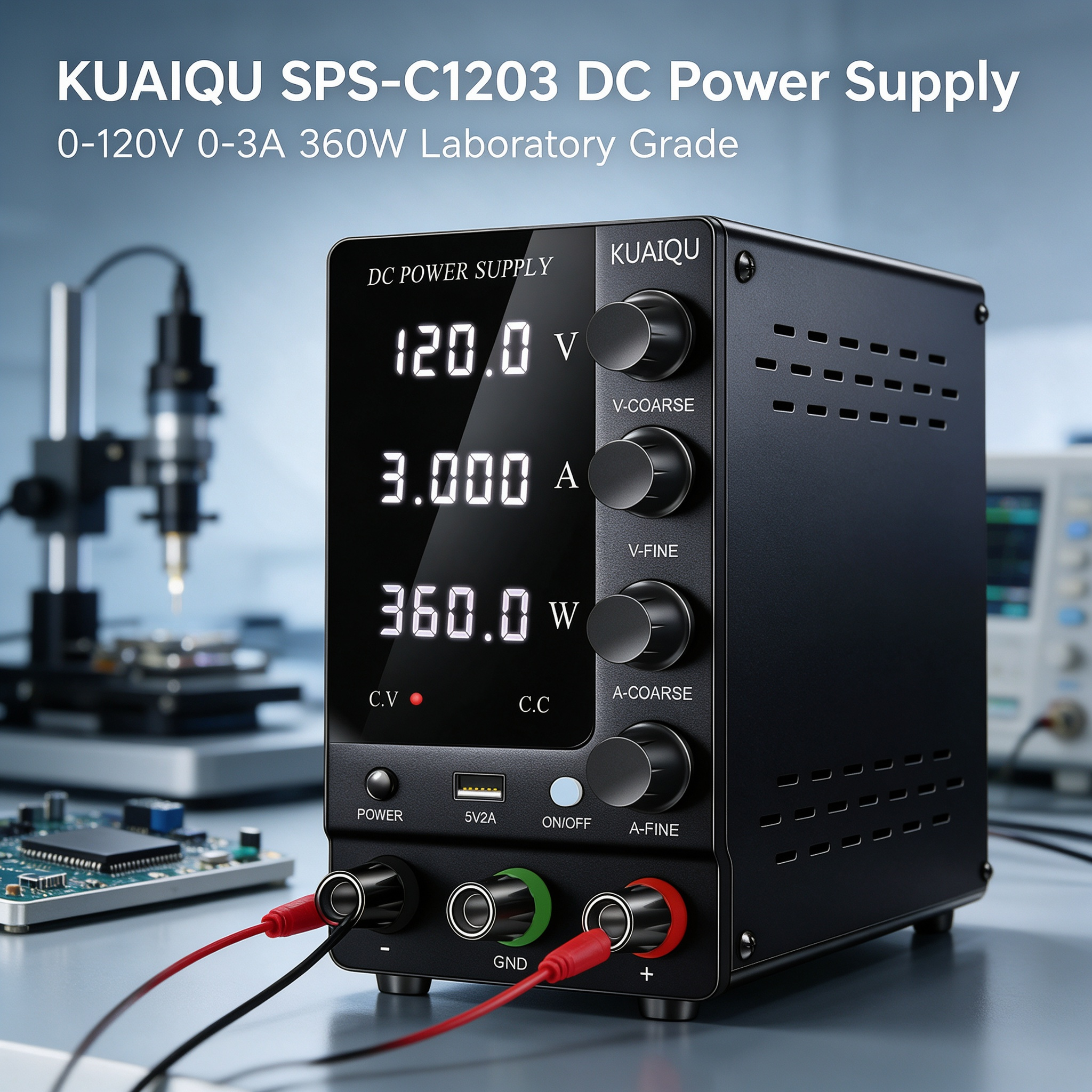

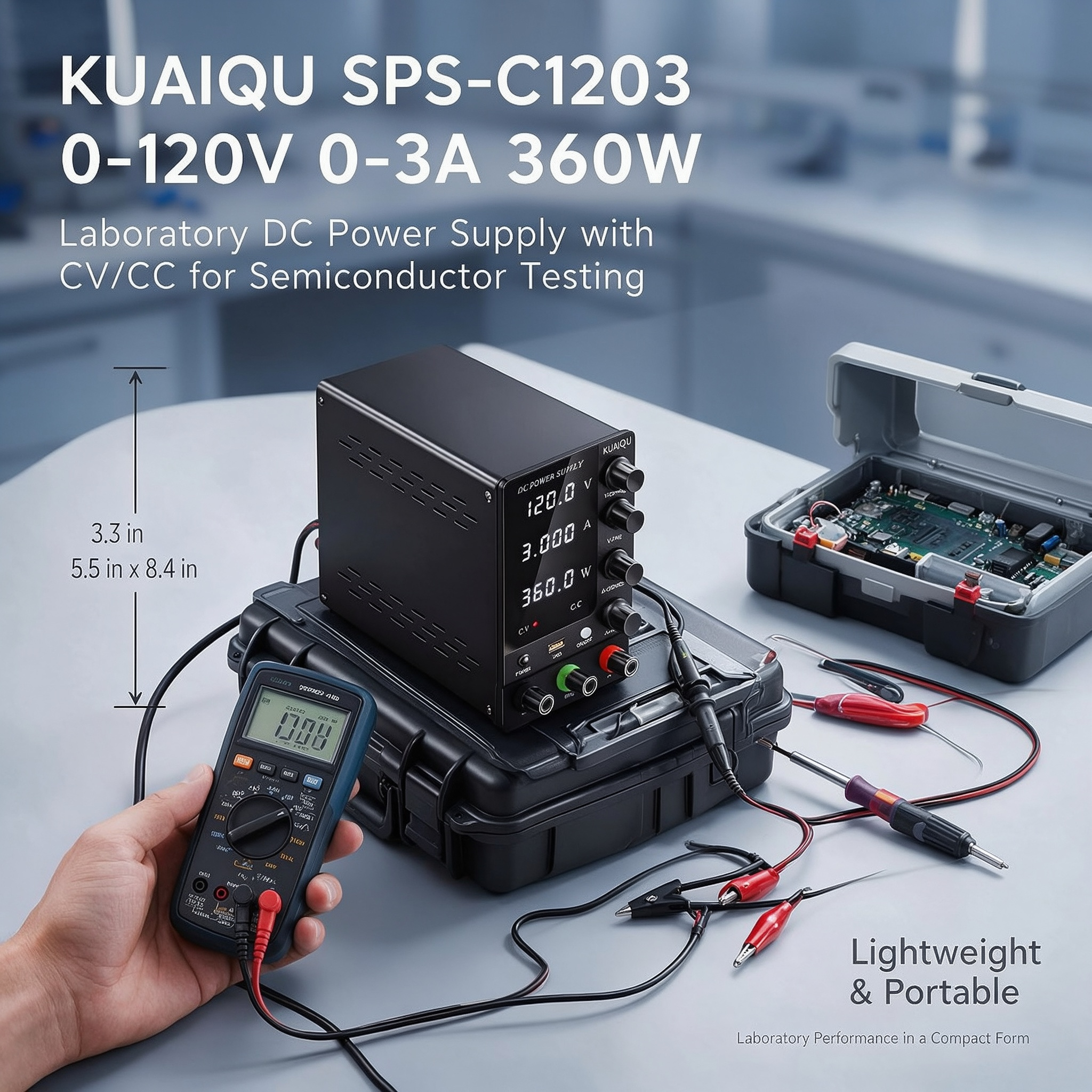

KUAIQU SPS-C1203 0-120V 0-3A 360W
Laboratory DC Power Supply with CV/CC
for Semiconductor Testing
The KUAIQU SPS-C1203 is a 0-120V, 0-3A, 360W Laboratory DC Power Supply designed for Semiconductor Device Testing, electronic device evaluation, laboratory experiments, and controlled DC test setups. Its wide adjustable voltage range provides flexible test conditions for semiconductor devices and related electronic circuits that require different DC supply levels during evaluation. With CV/CC operation, 4-Knob Adjustment, Voltage and Current Display, Power Display, and an Output Switch, the SPS-C1203 provides direct control and electrical observation during bench testing.
Semiconductor Device Testing may require a device to be evaluated under different supply conditions rather than at a single fixed voltage. The SPS-C1203 allows users to adjust the DC output and establish different voltage and current conditions within its rated range. Test operators can observe the displayed voltage, current, and power values while changing the test point, making the unit suitable for laboratory device evaluation, circuit development, and repeated semiconductor-related testing.
Key Features
0-120V Adjustable DC Output for Semiconductor Testing
The SPS-C1203 provides a 0-120V adjustable DC output with up to 3A and 360W of output power. The wide voltage range allows users to establish different DC test conditions when evaluating compatible semiconductor devices and electronic circuits, including test points that require higher DC voltage than typical low-voltage bench applications.
Adjustable Voltage for Different Device Test Points
Semiconductor devices and related circuits may need to be evaluated at multiple voltage conditions during development and testing. The adjustable output allows the operator to change the supply voltage directly and establish different test points within the 0-120V output range.
CV/CC Operation for Controlled Device Testing
The SPS-C1203 supports Constant Voltage (CV) and Constant Current (CC) operation. These operating modes provide practical flexibility when establishing different electrical conditions for semiconductor device and circuit testing.
Voltage and Current Display for Test Measurement
The built-in Voltage and Current Display provides direct visibility of the electrical values during testing. Operators can observe the supply voltage and current while changing the test condition, helping them compare electrical readings at different operating points.
Power Display for Device Test Observation
The Power Display provides a direct indication of the output power delivered by the Laboratory DC Power Supply. During semiconductor-related testing, the displayed power value provides an additional reference when the voltage or current condition is changed.

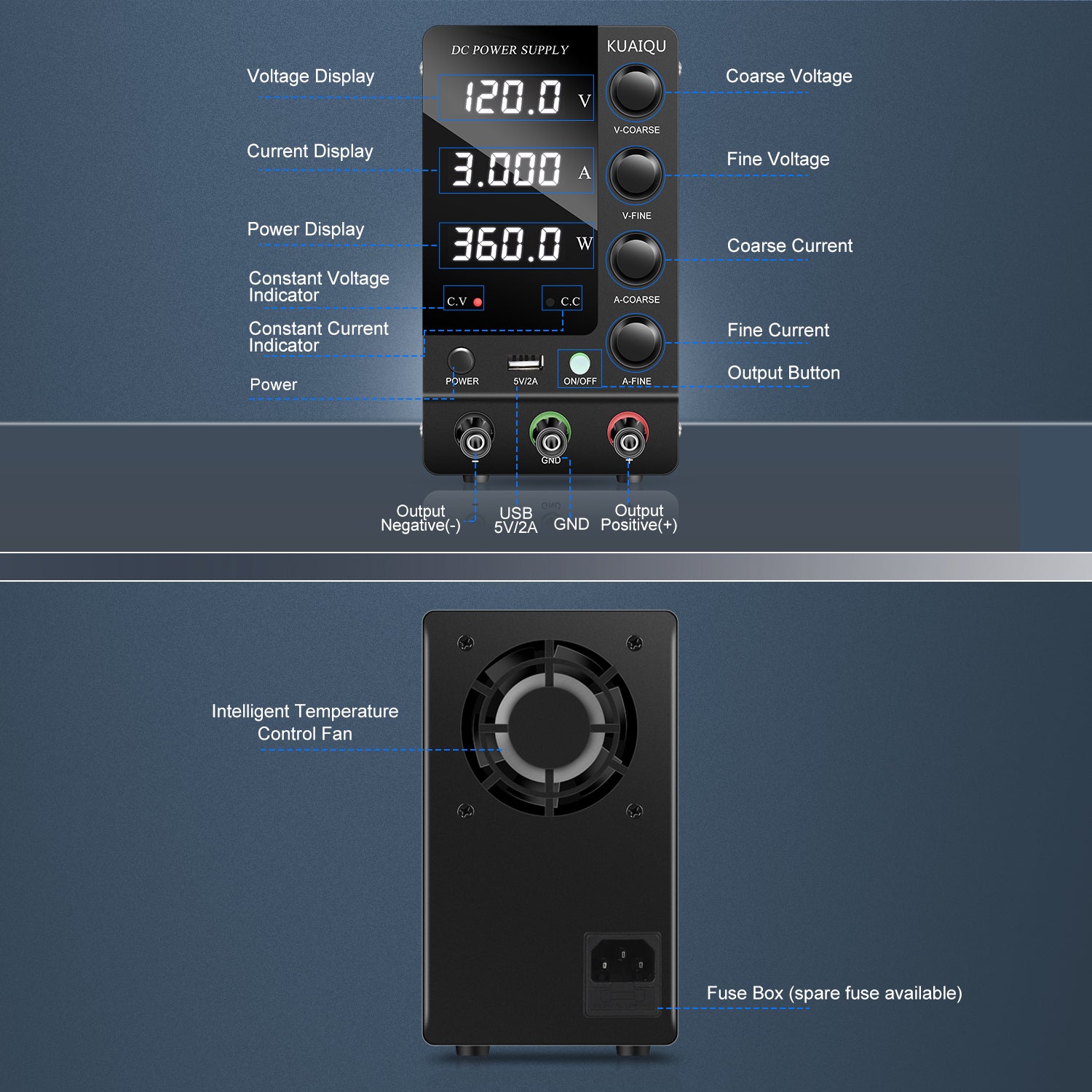

4-Knob Adjustment for Precise Bench Setup
The 4-Knob Adjustment provides direct front-panel control of voltage and current settings. This allows users to make gradual changes to test conditions when evaluating devices at multiple operating points rather than relying on a single fixed supply setting.

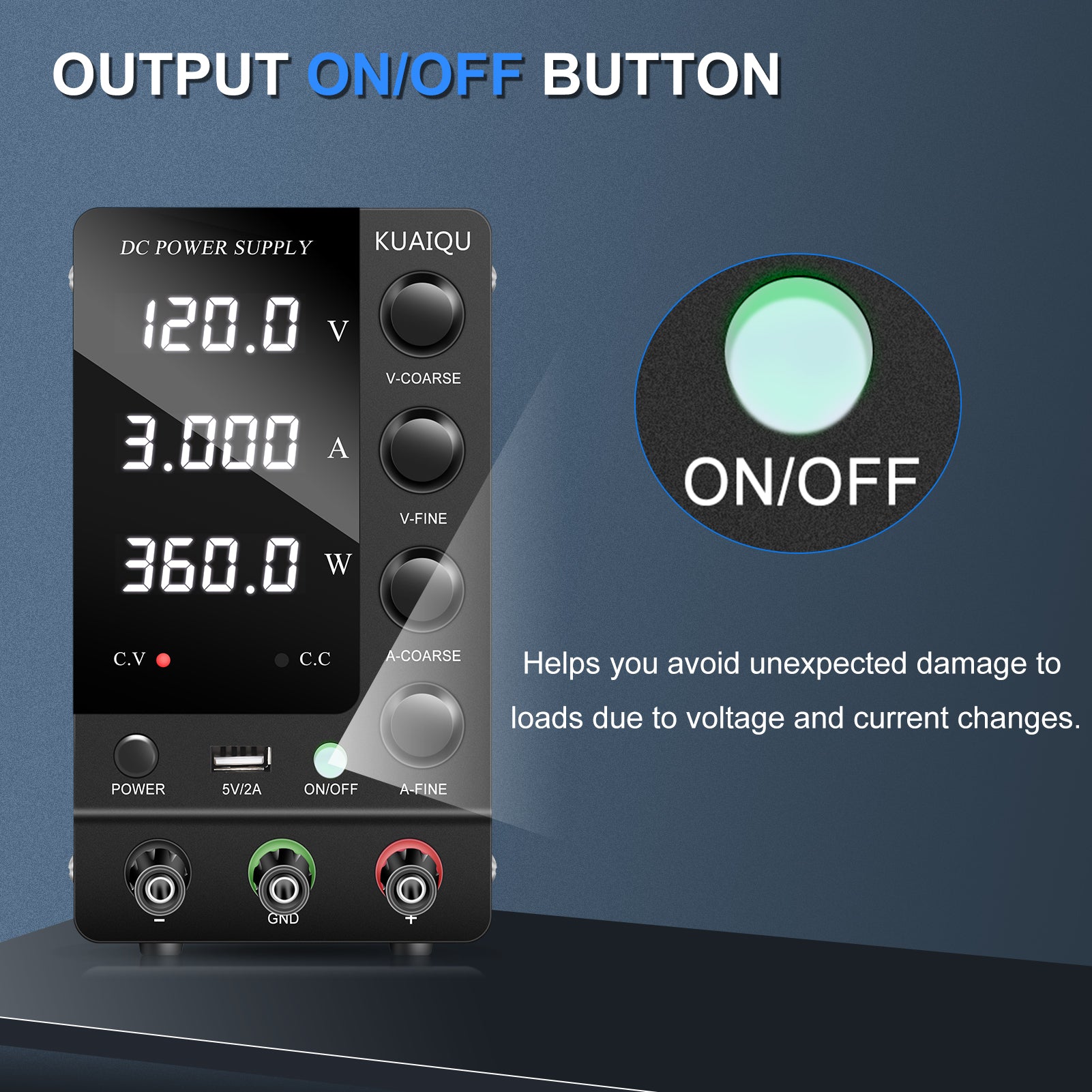

Output Switch for Controlled Test Operation
The Output Switch allows the DC output to be turned on or off directly from the front panel. This provides convenient control when preparing a semiconductor test setup, changing test connections, or moving between different stages of a laboratory procedure.
5V/2A USB Output for Compatible Laboratory Accessories
The built-in 5V/2A USB Output provides an additional power source for compatible USB-powered accessories used around the laboratory workbench. It complements the main adjustable DC output for general bench use.
Applications
Semiconductor Device Testing
The SPS-C1203 can provide adjustable DC power for compatible semiconductor device testing within its 0-120V, 0-3A, 360W output capability. Users can establish different voltage and current conditions and observe the corresponding electrical readings during evaluation.
Semiconductor Component Evaluation
During component development and laboratory evaluation, devices may need to be examined under several different DC supply conditions. The SPS-C1203 allows operators to change the supply settings and compare voltage, current, and power readings across different test points.
Device Characterization Bench Testing
The adjustable 0-120V output can be used to establish multiple DC operating conditions during laboratory evaluation of compatible semiconductor devices. By changing the supply setting between test stages, users can observe how the electrical readings change under different conditions.
Semiconductor Circuit Development
The SPS-C1203 can serve as an adjustable DC source during development of semiconductor-based electronic circuits. The 4-Knob Adjustment allows direct changes to voltage and current settings while the displays provide electrical information during bench evaluation.
Higher-Voltage Semiconductor Test Conditions
With an output range extending to 120V, the SPS-C1203 can establish higher-voltage DC test conditions for compatible semiconductor devices and circuits within its ratings. This provides more voltage adjustment range for laboratory applications that require test points beyond common low-voltage supplies.
Electronic Device and Module Evaluation
The Laboratory DC Power Supply can be used to provide adjustable DC conditions for compatible electronic devices and modules incorporating semiconductor components. Voltage, current, and power readings provide direct information for monitoring the supply condition during testing.
Repeated Laboratory Device Testing
For repeated testing at different operating points, the combination of 4-Knob Adjustment, CV/CC operation, Voltage and Current Display, Power Display, and Output Switch provides direct access to the main power-supply controls. Users can change test conditions and repeat measurements throughout a laboratory evaluation procedure.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-C1203 |
| Product Type |
Laboratory DC Power Supply / Adjustable DC Power Supply |
| Output Voltage |
0-120V |
| Output Current |
0-3A |
| Output Power |
360W |
| Operation Mode |
CV/CC |
| Voltage Display |
Yes |
| Current Display |
Yes |
| Power Display |
Yes |
| Adjustment |
4-Knob Adjustment |
| Current Adjustment |
Adjustable |
| Output Control |
Output Switch |
| USB Output |
5V/2A |
| Rated Operating Temperature |
0-40°C |
| Current Setting Resolution |
1mA |
| Voltage Readback Resolution |
<100V: 10mV; ≥100V: 0.1V |
| Current Readback Resolution |
1mA |
| Voltage Readback Accuracy |
≤0.01% + 15mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤300mVp-p / ≤30mVrms |
| Current Ripple |
≤30mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤30s |
| Fall Time, Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input |
AC 220V, AC 110V Optional |

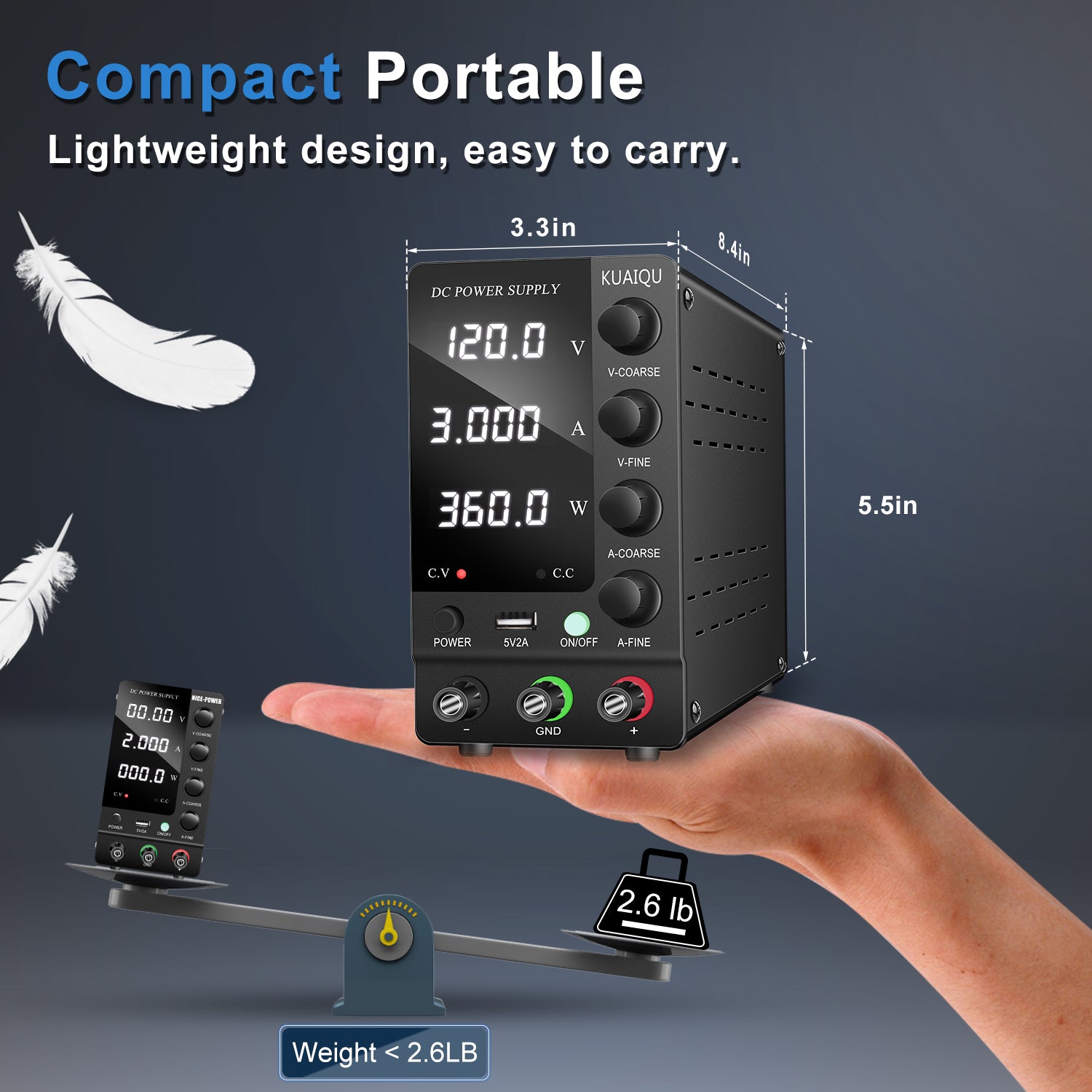

| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
Why Choose KUAIQU SPS-C1203?
The KUAIQU SPS-C1203 combines a wide 0-120V adjustable DC output, 0-3A current capability, and 360W output power in a Laboratory DC Power Supply designed for flexible semiconductor and electronic device testing. Its higher voltage range provides additional adjustment capability when a test procedure requires multiple DC voltage levels or higher-voltage test conditions within the unit's ratings.
For Semiconductor Device Testing, the SPS-C1203 provides direct control through its 4-Knob Adjustment and CV/CC operation, while the Voltage and Current Display and Power Display allow users to observe the electrical condition during each test stage. The Output Switch provides convenient control of power delivery when preparing or changing a test setup.
The SPS-C1203 is a general-purpose Laboratory DC Power Supply rather than a dedicated semiconductor parameter analyzer. Its application value comes from its adjustable 0-120V output, 0-3A current capability, 360W power capacity, direct front-panel controls, and electrical displays, making it suitable for compatible semiconductor device evaluation, circuit development, and repeated laboratory testing within these ratings.
