Click the link above to get the full user guide for this product.

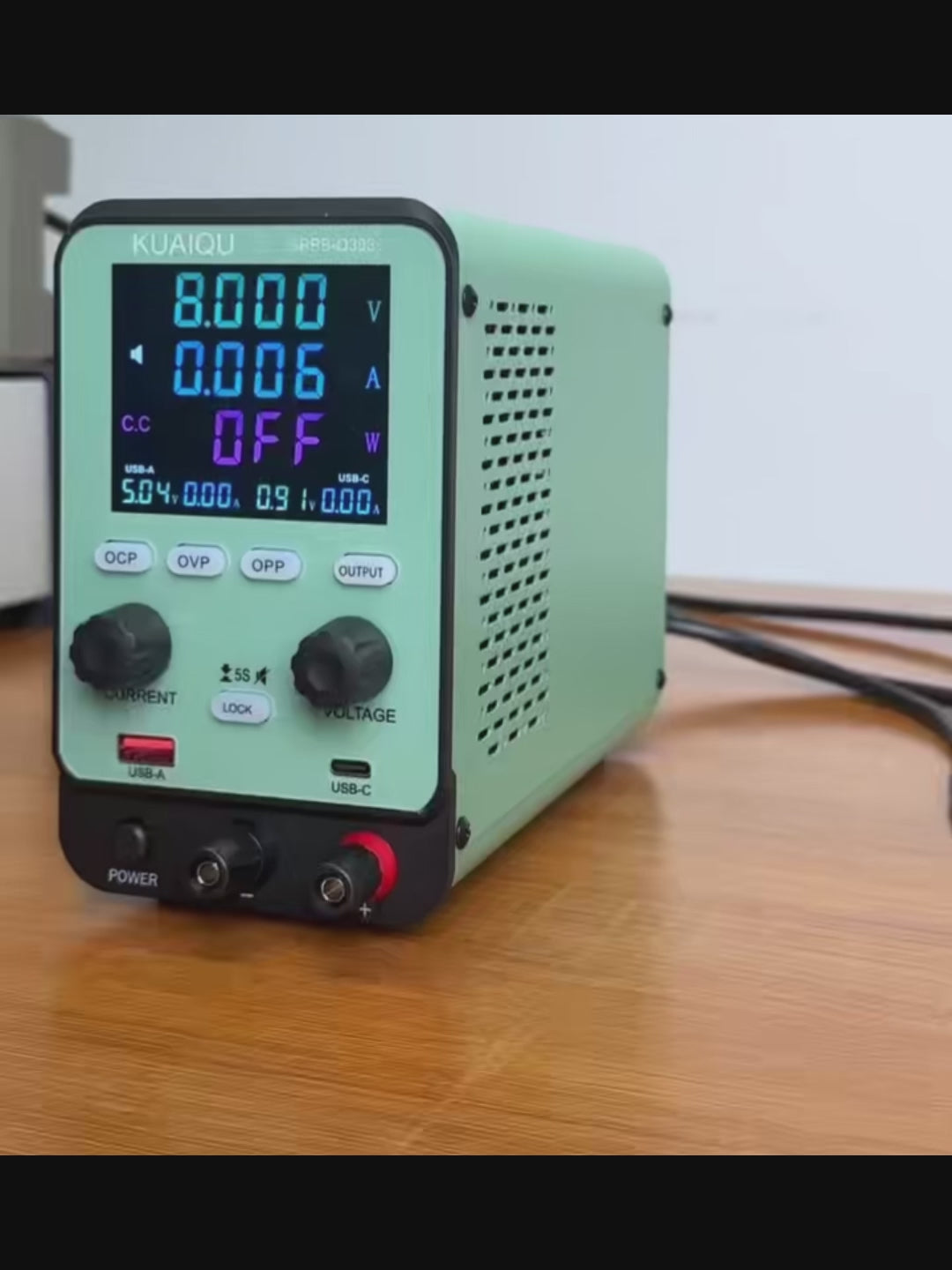

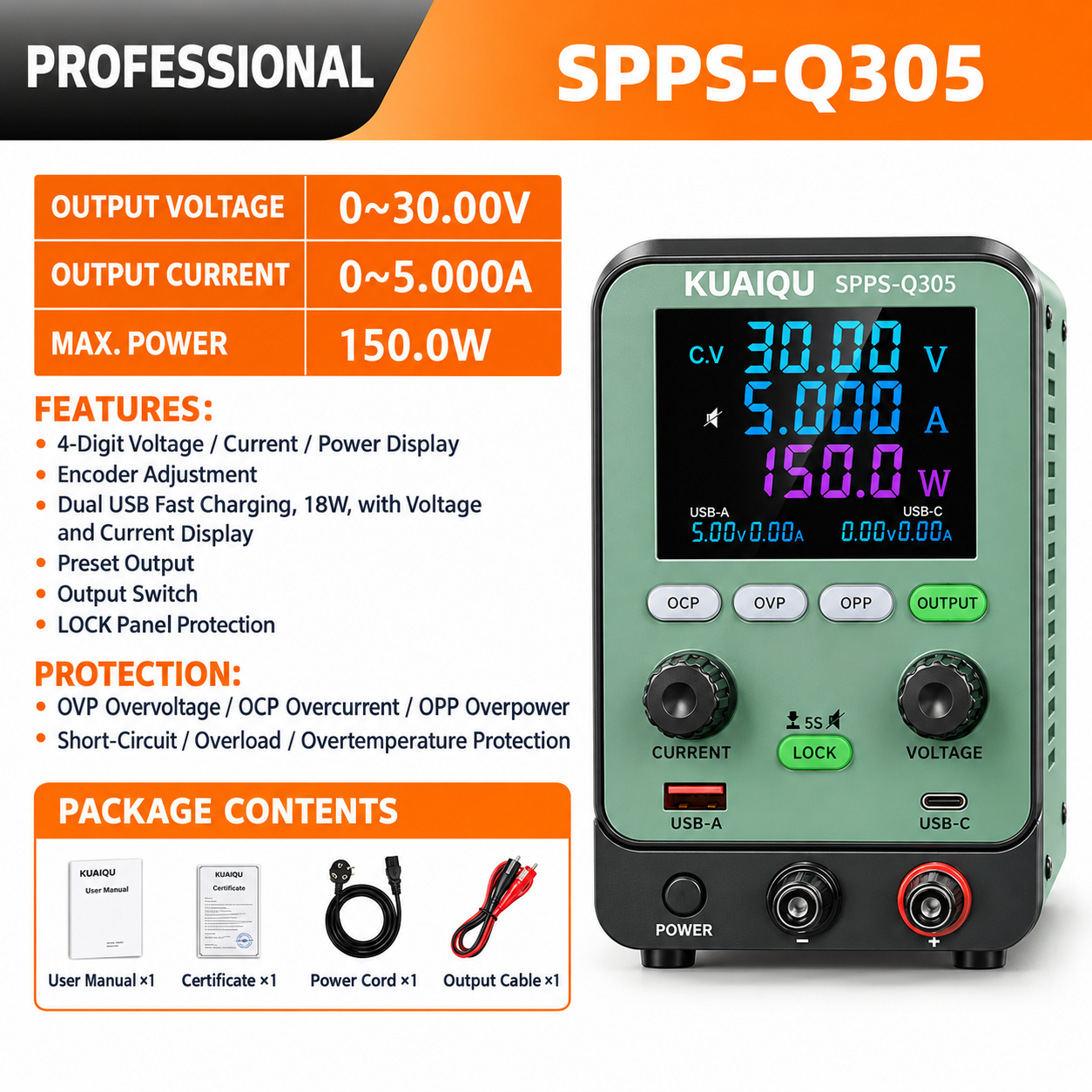

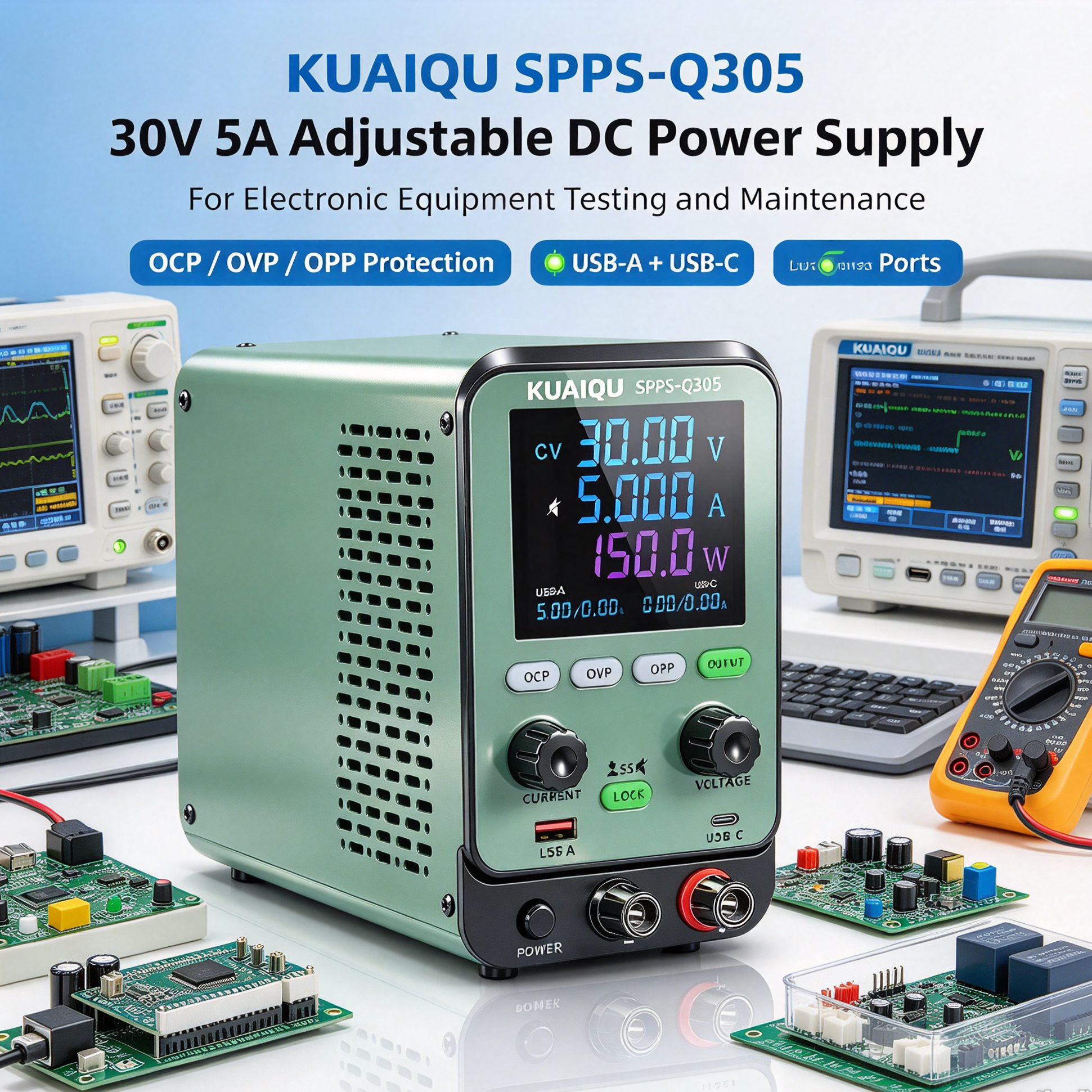

The KUAIQU SPPS-Q305 30V 5A adjustable DC power supply is designed for electronic equipment testing, electrical maintenance, and general-purpose DC power applications. With an adjustable output of 0–30V, up to 5A current, and 150W power capacity, it provides a versatile power source for evaluating electronic devices, checking electrical performance, and maintaining low-voltage equipment.
The color LCD display provides clear voltage, current, and power readings, making it easier to monitor output conditions during equipment testing and maintenance. Built-in overcurrent protection (OCP), overvoltage protection (OVP), and overpower protection (OPP) help protect connected equipment against abnormal output conditions.
Equipped with USB-A and USB-C fast-charging ports, the SPPS-Q305 supports compatible charging protocols with up to 18W USB output. Real-time USB voltage and current monitoring helps users observe charging performance, while automatic A/mA and W/mW conversion makes electrical readings easier to interpret. The output switch, panel lock, and mute function provide additional convenience for daily bench work.
Combining adjustable DC output, multiple protection functions, detailed measurement display, and integrated USB charging, the KUAIQU SPPS-Q305 is a practical bench power supply for electronic equipment evaluation, electrical troubleshooting, and routine maintenance tasks.
Adjustable 0–30V DC Output: Provides flexible voltage adjustment for electronic equipment testing and low-voltage electrical applications.
5A Output Current and 150W Power: Supports a wide range of compatible electronic devices and equipment maintenance tasks within its rated output capacity.

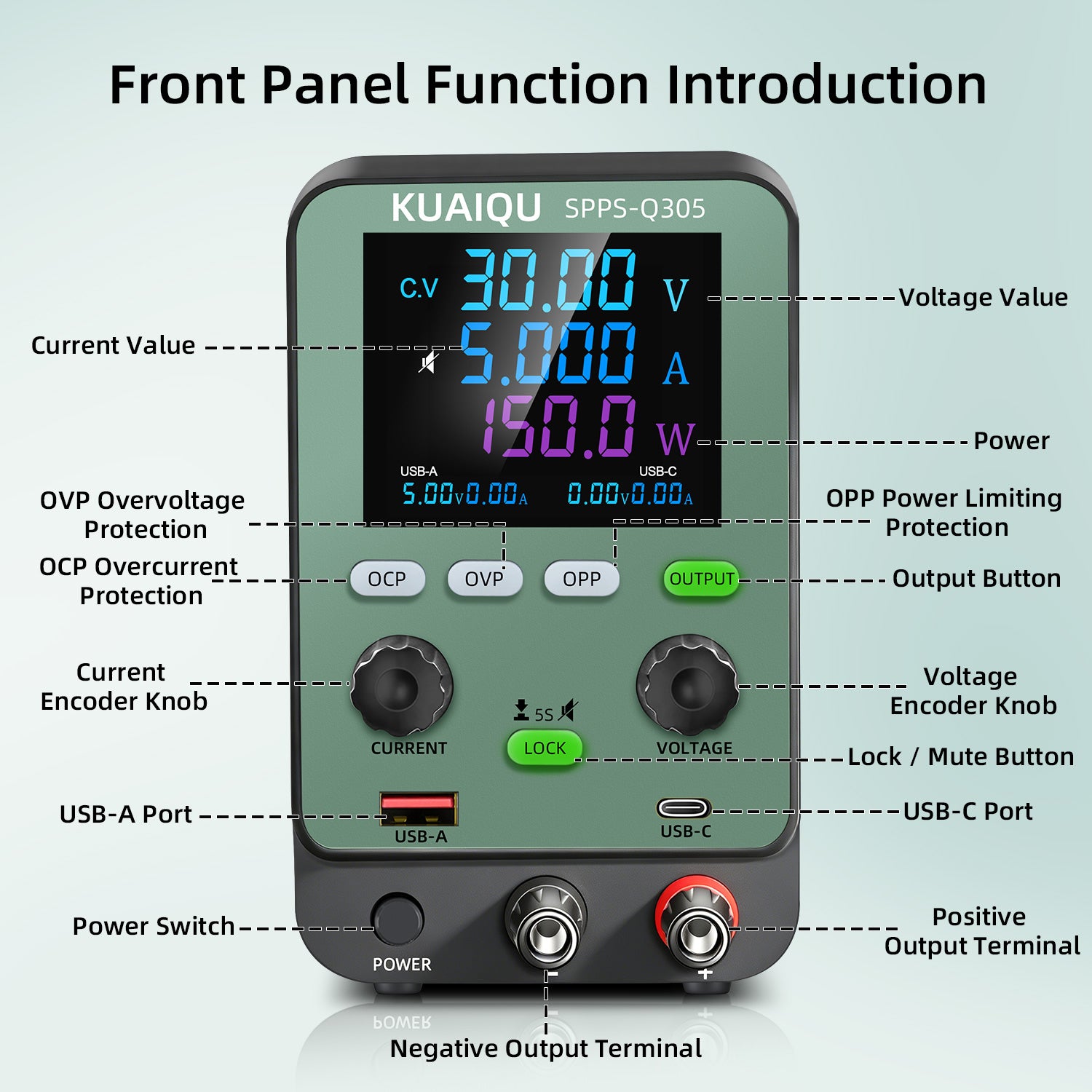

Color LCD Display: Shows voltage, current, and power for convenient monitoring during operation.

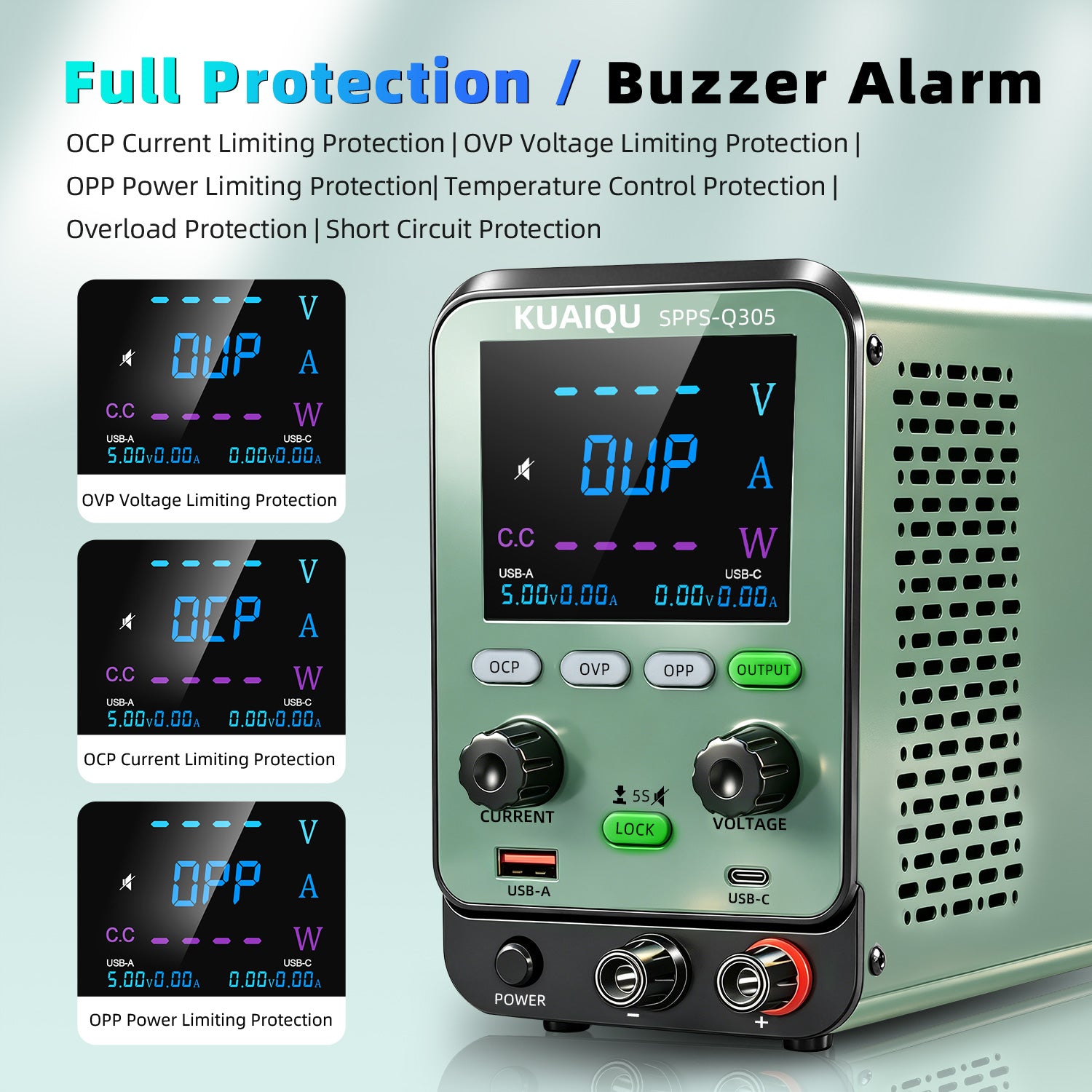

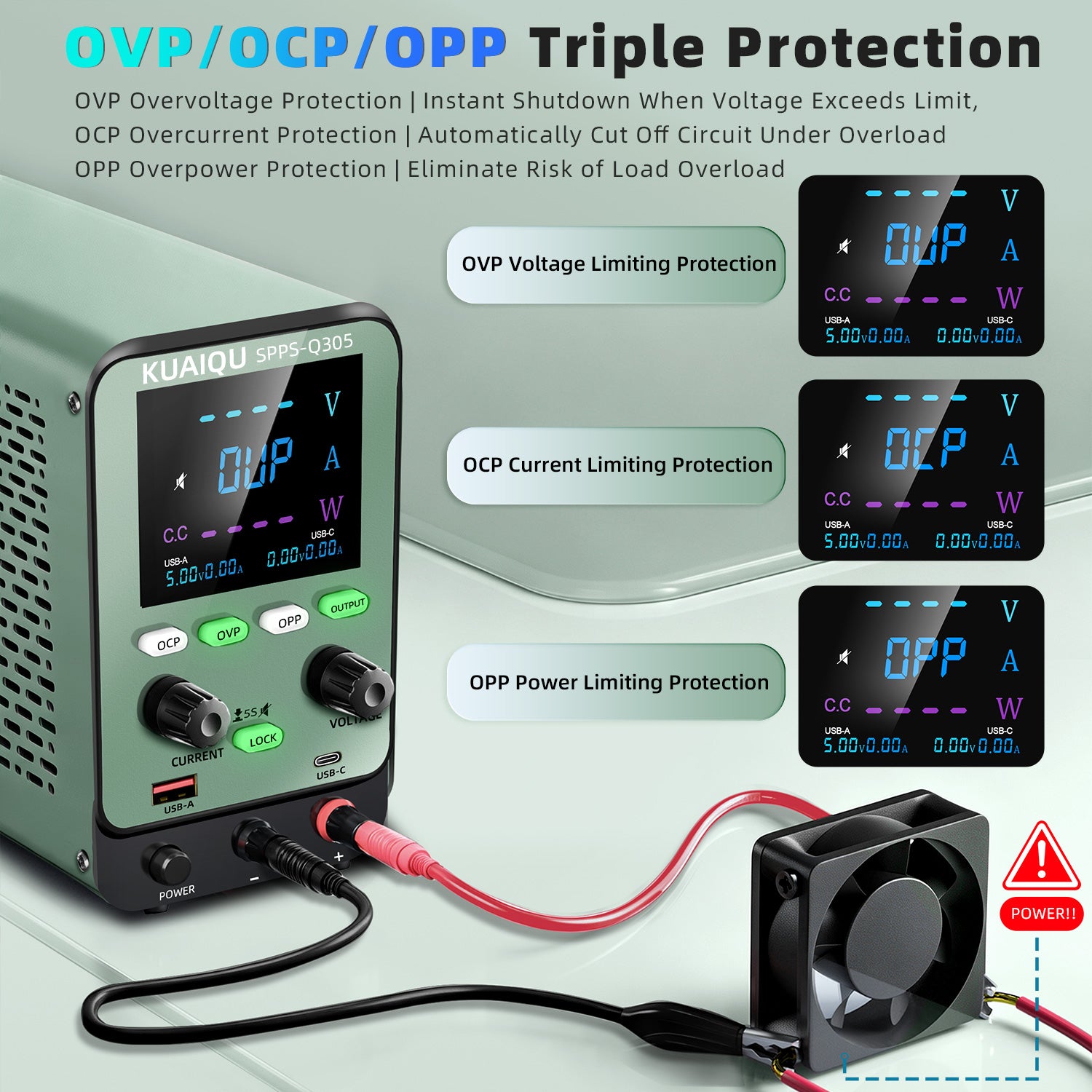

OCP, OVP, and OPP Protection: Helps protect connected devices against overcurrent, overvoltage, and overpower conditions.
USB-A and USB-C Fast-Charging Ports: Provides up to 18W USB output with automatic adaptation to supported charging protocols.
Real-Time USB Monitoring: Displays USB voltage and current to help users observe charging output.
Fine Low-Voltage Display: Shows voltage to three decimal places when the output voltage is below 10V.

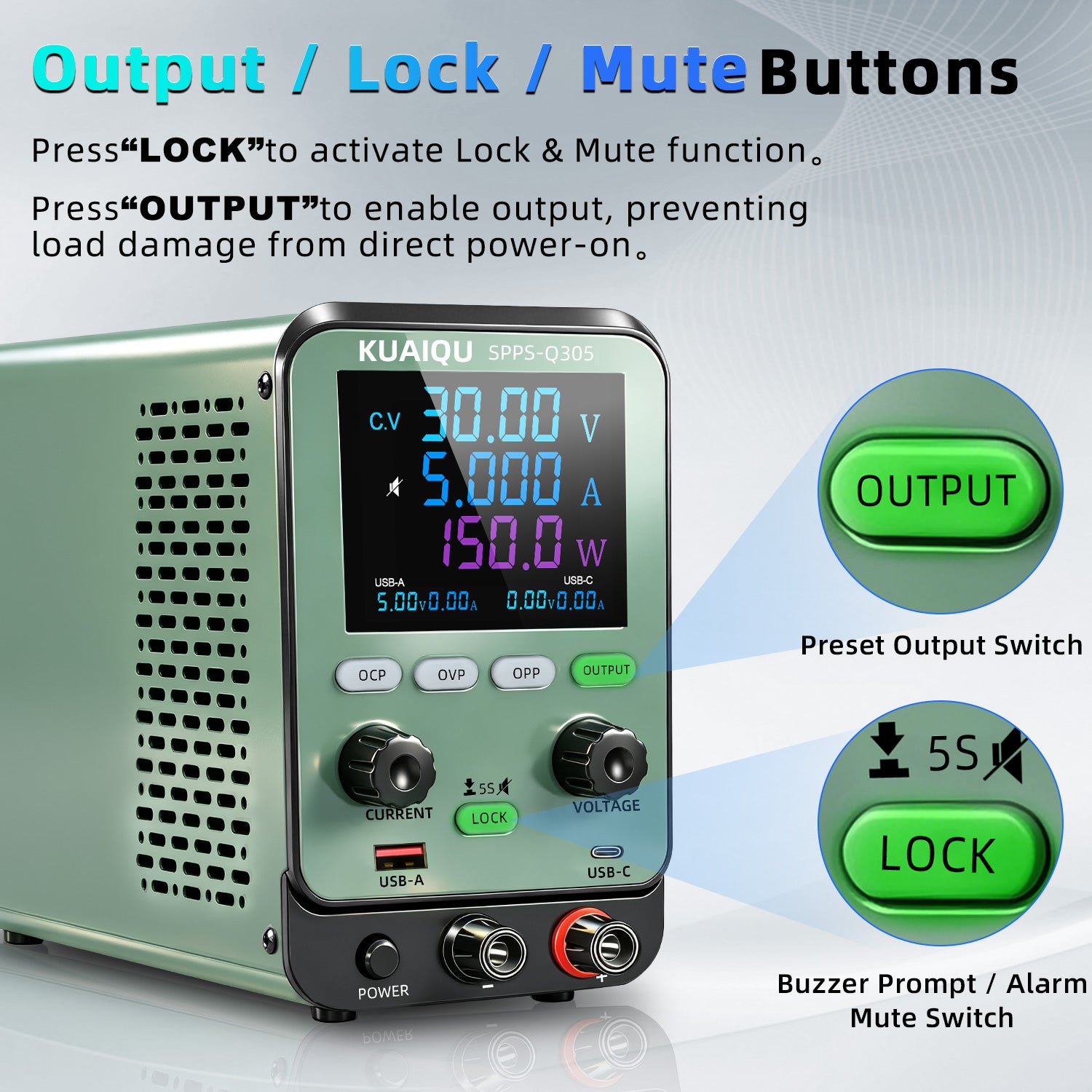

Output ON/OFF Control: Makes it convenient to control DC output during equipment evaluation and maintenance.
Panel Lock Function: Helps prevent accidental changes to voltage and current settings.
Automatic Unit Conversion: Switches current readings between A and mA and power readings between W and mW.
Audible Alarm with Mute Function: Provides audible alerts when applicable and allows the buzzer to be muted.
Electronic Equipment Testing
Electrical Equipment Maintenance
Electronic Device Troubleshooting
DC-Powered Equipment Evaluation
Low-Voltage Electrical Testing
Electronic Component Evaluation
Electrical Service Workbenches
General-Purpose DC Power Applications
DC Power Supply *1
Output Power Cord *1
Input Power Cord *1
User Manual *1
Warranty Card *1
| Parameter Item | SPPS-Q305 | |
|---|---|---|
| Rated Values | Voltage | 0~30V |
| Current | 0~5A | |
| Power | 150W | |
| Load Regulation | Voltage | ≤ 0.01%+25mV |
| Current | ≤ 0.1%+10mA | |
| Line Regulation | Voltage | ≤0.01%+5mV |
| Current | ≤0.1%+5mA | |
| Setting Resolution | Voltage | <10V: 1mV
|
| Current | 1 mA | |
| Readback Resolution (Display Resolution) | Voltage | <10V: 1mV
|
| Current | < 20mA: 10 uA
|
|
| Setting Accuracy | Voltage | ≤0.05%+20mV |
| Current | ≤0.05%+15mA | |
| Readback Accuracy (Display Accuracy) | Voltage | ≤0.05%+20mV |
| Current | <20mA: 0.1%+60uA
|
|
| Ripple (20Hz～20MHz) | Voltage | ≤60mV(p-p)
|
| Current | ≤20mA(rms) | |
| Rise Time (No Load) | Voltage | ≤100ms |
| Rise Time (Full Load) | Voltage | ≤1200ms |
| Fall Time (No Load) | Voltage | ≤2500ms |
| Fall Time (Full Load) | Voltage | ≤100ms |
| Efficiency (Full Power) | / | ≥83% |
| Input Voltage Range | Vac | 200Vac~240Vac |
| Minimum Display Current | mA | 0.01mA |
| Fuse | 220v Input | 3.15A |
| Product Dimensions | / | 218mm89mm150mm |
| Product Weight | / | 1.2KG |
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
