KUAIQU SPPS-K305 30V 5A Electronics
Test Power Supply with 10μA
Measurement for PCB & Circuit Testing
🔥 Pain Points You’re Actually Facing
⚠️ Inconsistent voltage or current can lead to unreliable test results when evaluating PCB circuits under different operating conditions
⚠️ Small voltage and current variations are difficult to observe, making circuit debugging and troubleshooting less efficient
⚠️ Low current measurement resolution makes it difficult to identify standby current, leakage-related current, and abnormal consumption
⚠️ Repeatedly setting voltage and current for different boards and circuit conditions slows down testing and validation workflows
⚠️ Incorrect voltage, excessive current, or accidental short circuits can damage sensitive PCB components and prototypes
⚠️ Long-duration PCB testing requires stable output without accidental changes to test parameters
⚠️ Coarse adjustment makes it difficult to precisely set voltage and current conditions for sensitive circuits
⚠️ Without visual voltage and current trend information, abnormal circuit behavior can be harder to identify
✅ Corresponding Core Solutions
✅ Stable 0–30V Adjustable DC Output
Provides flexible voltage adjustment for PCB testing, circuit debugging, prototype validation, and electronic system development.
✅ 0–5A Adjustable Current Control
Allows users to configure appropriate current limits for different PCB circuits, modules, and test requirements.
✅ 1mV Voltage Resolution & High-Precision Measurement
Enables precise voltage setting and monitoring for repeatable PCB testing and circuit evaluation.
✅ Dual Curve Voltage & Current Display
Visually tracks voltage and current changes in real time, helping identify startup behavior, load response, voltage variation, and abnormal circuit characteristics.
✅ 10μA Low-Current Readback Resolution
Captures small current variations for standby current analysis, low-power circuit testing, and abnormal consumption detection.
✅ 4 Groups of Stored Parameters
Save frequently used voltage and current conditions and quickly recall them when testing different PCBs and circuit configurations.
✅ Complete Protection System
Includes OVP, OCP, and SCP protection to help protect sensitive PCBs, the power supply, and connected test equipment.
✅ Panel Lock Function
Prevents accidental parameter changes during extended PCB testing and repeated measurement procedures.
✅ Encoder Precision Adjustment
Provides smoother and more precise voltage/current adjustment for setting accurate PCB and circuit test conditions.
✅ Output Enable Control
Allows users to configure voltage and current parameters before applying power to the PCB under test, improving testing safety and efficiency.

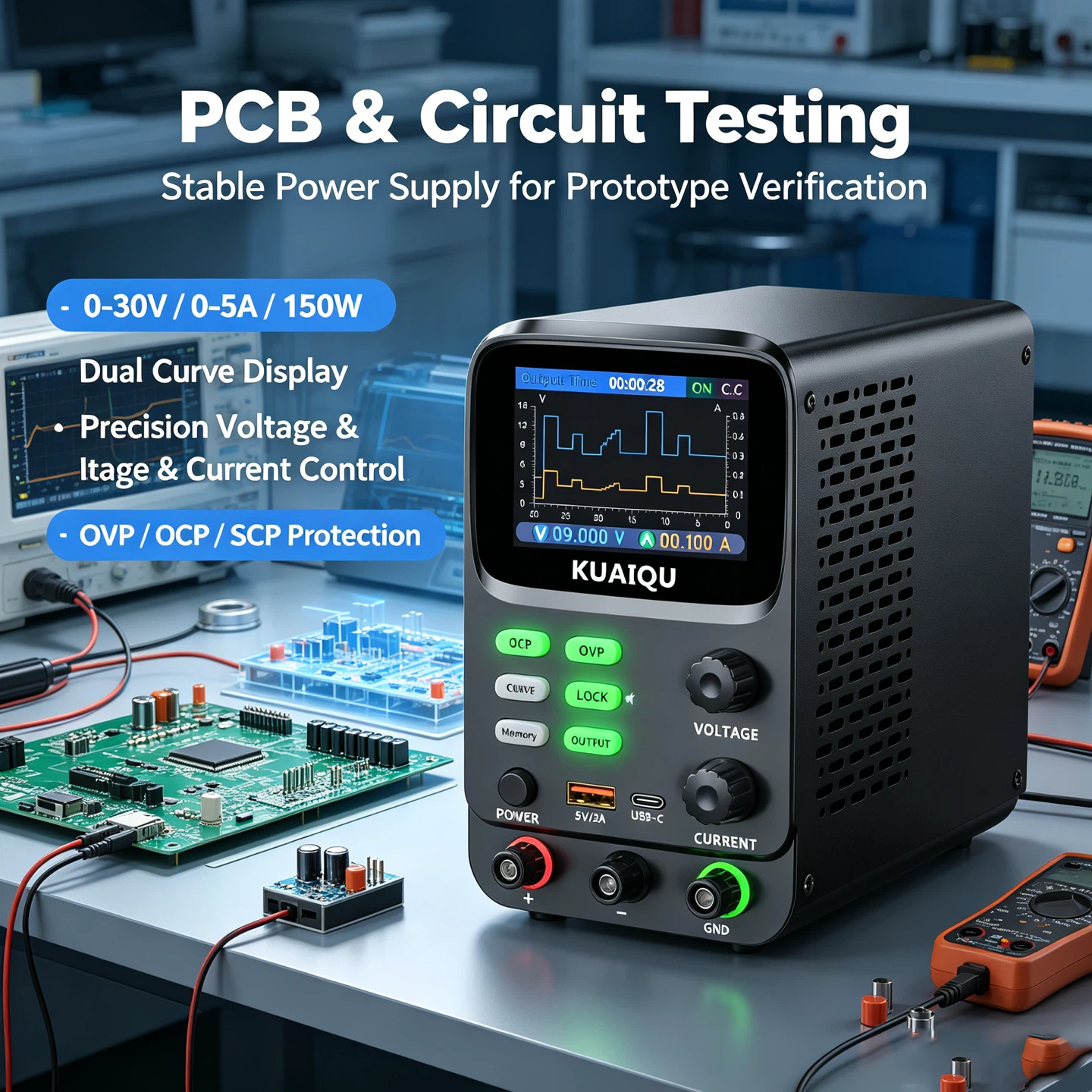

✦ Stable Power Source for PCB & Circuit Testing
PCB and circuit testing requires a controlled and repeatable power source to verify operating conditions, current consumption, load response, and electrical stability.
The KUAIQU SPPS-K305 provides:
-
0–30V adjustable output voltage
-
0–5A adjustable output current
-
150W maximum output power
-
1mV voltage resolution
-
1mA current setting resolution
-
10μA current readback resolution under low-current range
It enables engineers to evaluate:
✓ PCB operating voltage
✓ Circuit current consumption
✓ Power input behavior
✓ Startup characteristics
✓ Load response
✓ Voltage and current variation
✓ Circuit stability
Providing a precise and flexible power platform for PCB testing, circuit debugging, and electronic system verification.

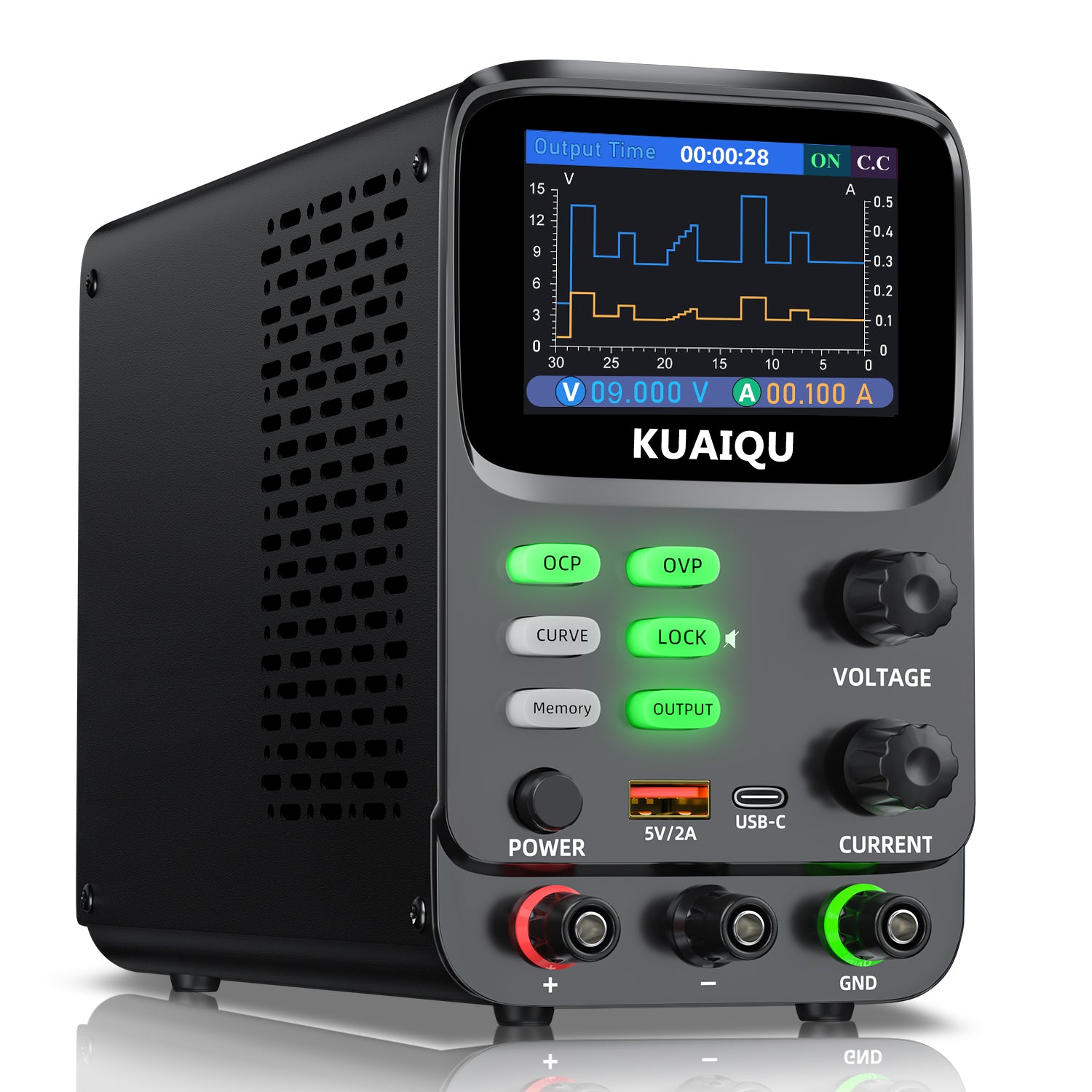

✦ Real-Time Voltage & Current Curve Display for Circuit Analysis
When testing PCBs and electronic circuits, engineers need to observe how voltage and current change as operating conditions vary.
The SPPS-K305 features a real-time dual curve display that visually presents voltage and current changes during testing.
The waveform display helps analyze:
This helps engineers identify:
-
Abnormal circuit behavior
-
Unexpected current consumption
-
Unstable electrical conditions
-
Power-related circuit issues
Improving testing efficiency during PCB verification, circuit debugging, and prototype development.
✦ High-Resolution Current Measurement for PCB & Circuit Analysis
Accurate current measurement is essential when evaluating PCB circuits with different operating and load characteristics.
The SPPS-K305 supports:
-
Automatic current unit switching
-
10μA current readback resolution under low-current range
-
5-digit high-resolution display
Engineers can measure:
-
Standby current
-
Low-load current
-
PCB operating current
-
Circuit consumption
-
Abnormal current changes
Helping engineers evaluate:
✦ 4 Memory Presets for Efficient PCB Testing
PCB and circuit testing often requires different voltage and current conditions for different boards, circuits, or test procedures.
The SPPS-K305 provides 4 groups of stored parameters, allowing engineers to quickly recall commonly used test settings.
Example applications:
M1: Low-voltage circuit test
M2: Rated operating condition test
M3: High-current circuit test
M4: Low-current or standby test
With quick parameter switching, engineers can reduce repetitive setup work and maintain consistent test conditions across multiple PCBs and circuit configurations.
✦ Protection Functions for Safe PCB & Circuit Testing
Sensitive PCB circuits can be damaged by excessive voltage, abnormal current, or accidental wiring errors.
The SPPS-K305 provides:
OVP — Over Voltage Protection
Helps prevent excessive output voltage from being applied to connected PCB circuits and electronic components.
OCP — Over Current Protection
Limits abnormal current during overload conditions or unexpected circuit behavior.
SCP — Short Circuit Protection
Helps protect the power supply and connected circuits during accidental short circuits.
Panel Lock Function
Prevents unintended parameter adjustments during long-duration or repeated PCB testing.
These protection features provide safer operation when powering prototype boards, electronic circuits, and devices under test.
✦ Precision Control for PCB & Circuit Evaluation
Different PCB circuits may require specific voltage and current conditions for accurate testing and comparison.
The SPPS-K305 provides:
-
1mV voltage adjustment resolution
-
1mA current setting resolution
-
10μA current readback resolution
-
0.05% + 10mV voltage accuracy
-
0.1% + 10mA current accuracy
Combined with encoder adjustment and a high-resolution display, the SPPS-K305 helps engineers establish repeatable test conditions and accurately monitor circuit behavior.

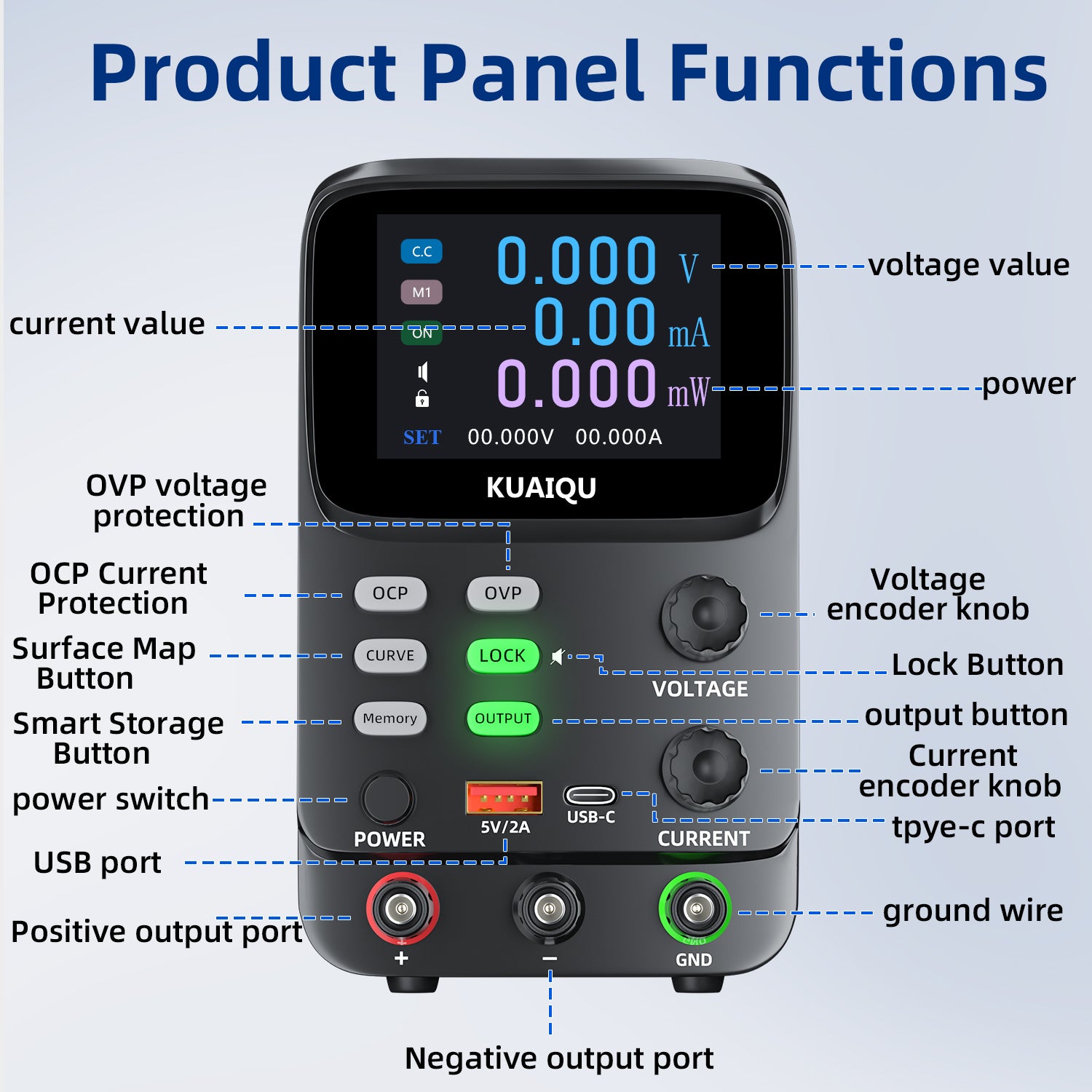

✦ Professional Operation Features for PCB Testing
Designed for R&D laboratories, electronics workshops, and production testing environments, the SPPS-K305 includes:

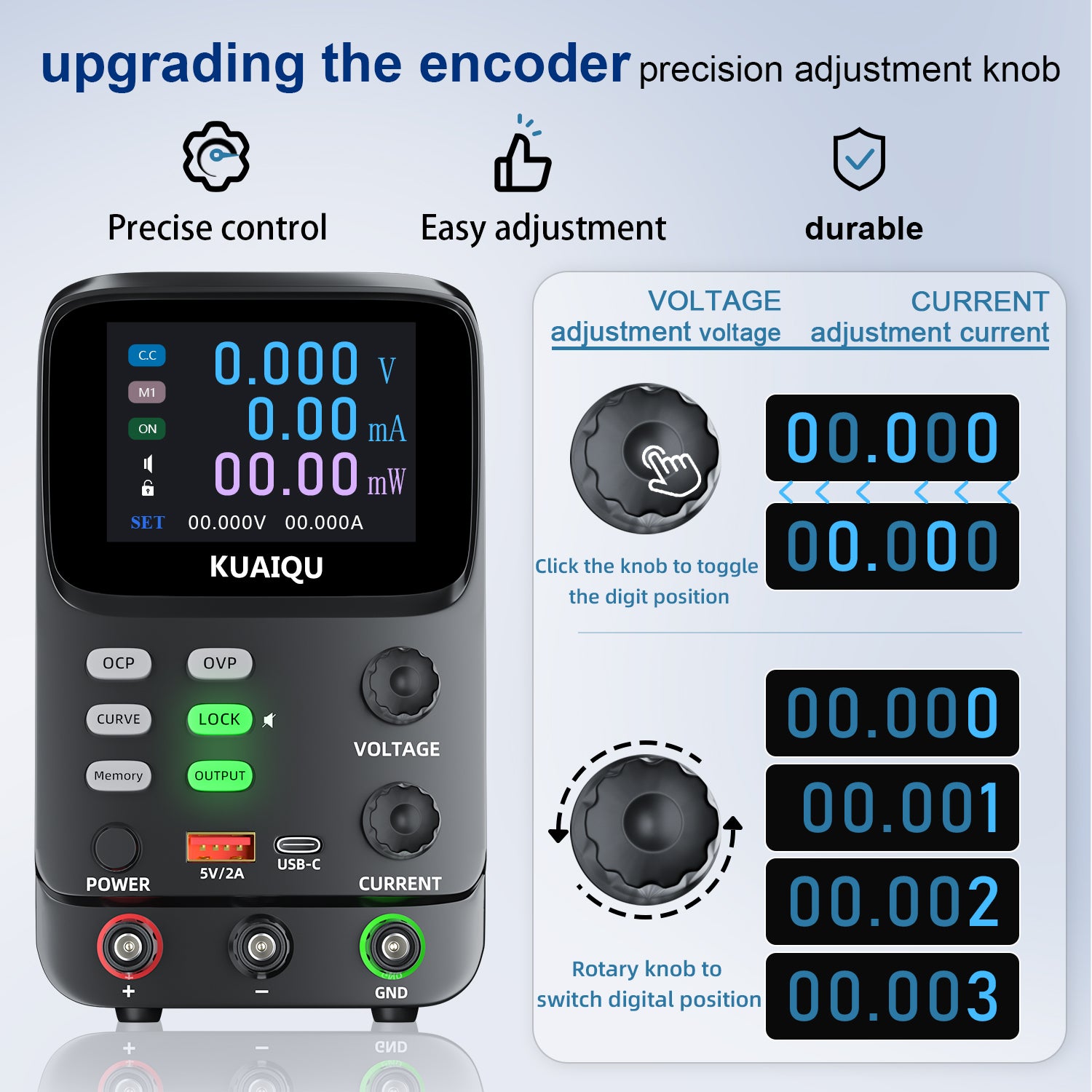

Encoder Precision Adjustment
Provides smooth and accurate voltage/current adjustment for repeatable PCB and circuit testing.
Output Enable Switch
Allows users to configure output parameters before powering the PCB under test.
Adjustable Key Tone
Supports adjustable sound feedback and mute operation for different laboratory and testing environments.
USB + Type-C Charging Ports
Provides convenient 5V/2A output for compatible electronic devices and accessories.
Intelligent Cooling System
Helps maintain stable operation during extended PCB and circuit testing.
✦ Applications
PCB Testing
Circuit Testing
-
Analog circuit testing
-
Digital circuit testing
-
Power circuit verification
-
Current consumption testing
-
Circuit stability verification
Circuit Debugging
-
Startup behavior analysis
-
Load response testing
-
Abnormal current analysis
-
Voltage response testing
-
Power-related fault analysis
R&D and Production Testing
Quality Check and Terms of Service
-
Package includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1.
-
CE & FCC Certified: The product has passed CE and FCC certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter SPPS-K305 Specs |
|
| Model |
SPPS-K305 |
| Rated Output (0℃~40℃) |
0–30V, 0–5A, 150W |
| USB/Type-C Output |
5V/2A |
| Load Regulation |
Voltage: ≤0.01%+10mV / Current: ≤0.1%+5mA |
| Line Regulation |
Voltage: ≤0.01%+2.5mV / Current: ≤0.1%+2.5mA |
| Setting Resolution |
Voltage: 1mV / Current: 1mA |
| Readback Resolution |
Current: <20mA: 10μA |
| Setting Accuracy |
Voltage: 0.05%+10mV / Current: 0.1%+10mA |
| Readback Accuracy |
Voltage: 0.05%+10mV / Current: <20mA: 0.1%+60μA |
| Ripple (20Hz~20MHz) |
Voltage: ≤100mVp-p / 15mVrms / Current: ≤15mArms |
| Rise Time (No Load) |
≤200mS |
| Fall Time (No Load) |
≤3S |
| Input Voltage |
AC 220V (AC110V optional) |
| Net Weight |
1.17KG / 2.58lb |
Why Choose KUAIQU SPPS-K305?
For PCB & circuit testing, engineers need a stable, precise, and flexible electronics test power supply that can provide repeatable test conditions and clearly show changes in voltage and current.
The KUAIQU SPPS-K305 combines:
✓ 0–30V / 0–5A adjustable output
✓ 150W power capability
✓ Dual voltage & current curve display
✓ 1mV voltage resolution
✓ 10μA low-current measurement
✓ 4 programmable memory presets
✓ OVP / OCP / SCP protection
✓ Precision encoder adjustment
✓ High-resolution 5-digit display
Providing an efficient testing solution for PCB verification, circuit testing, circuit debugging, prototype validation, and electronic R&D.
