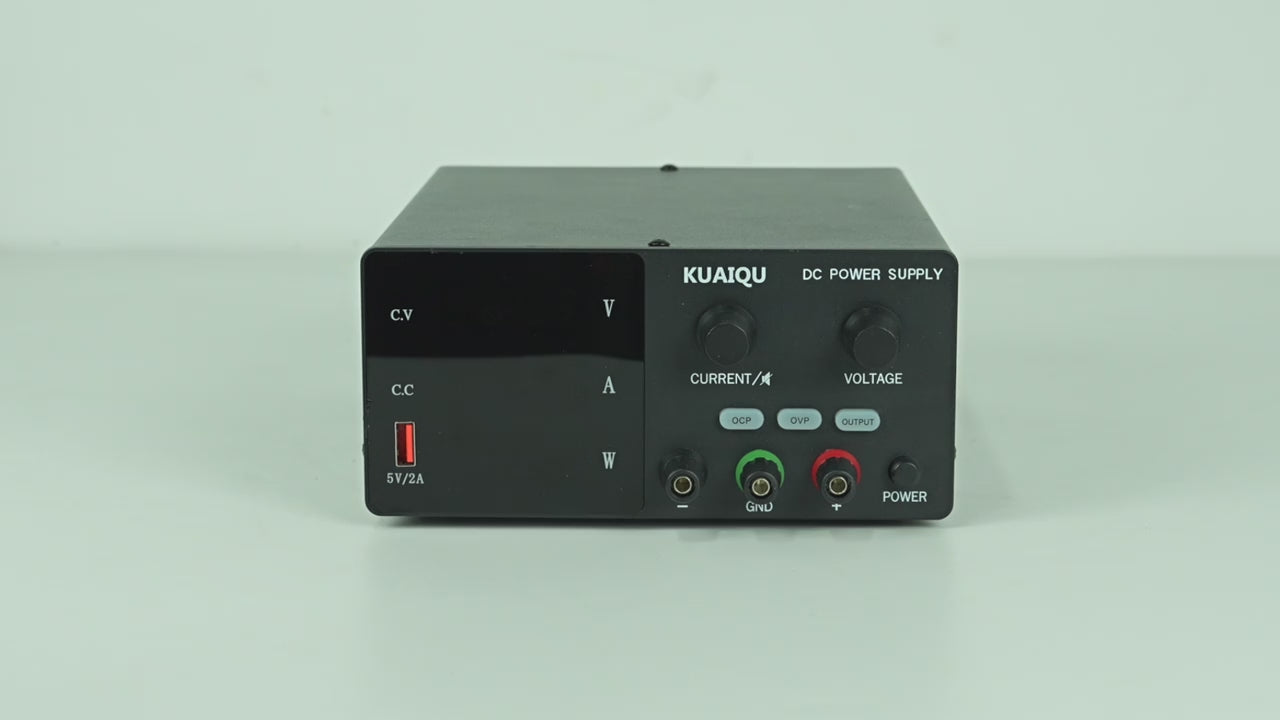

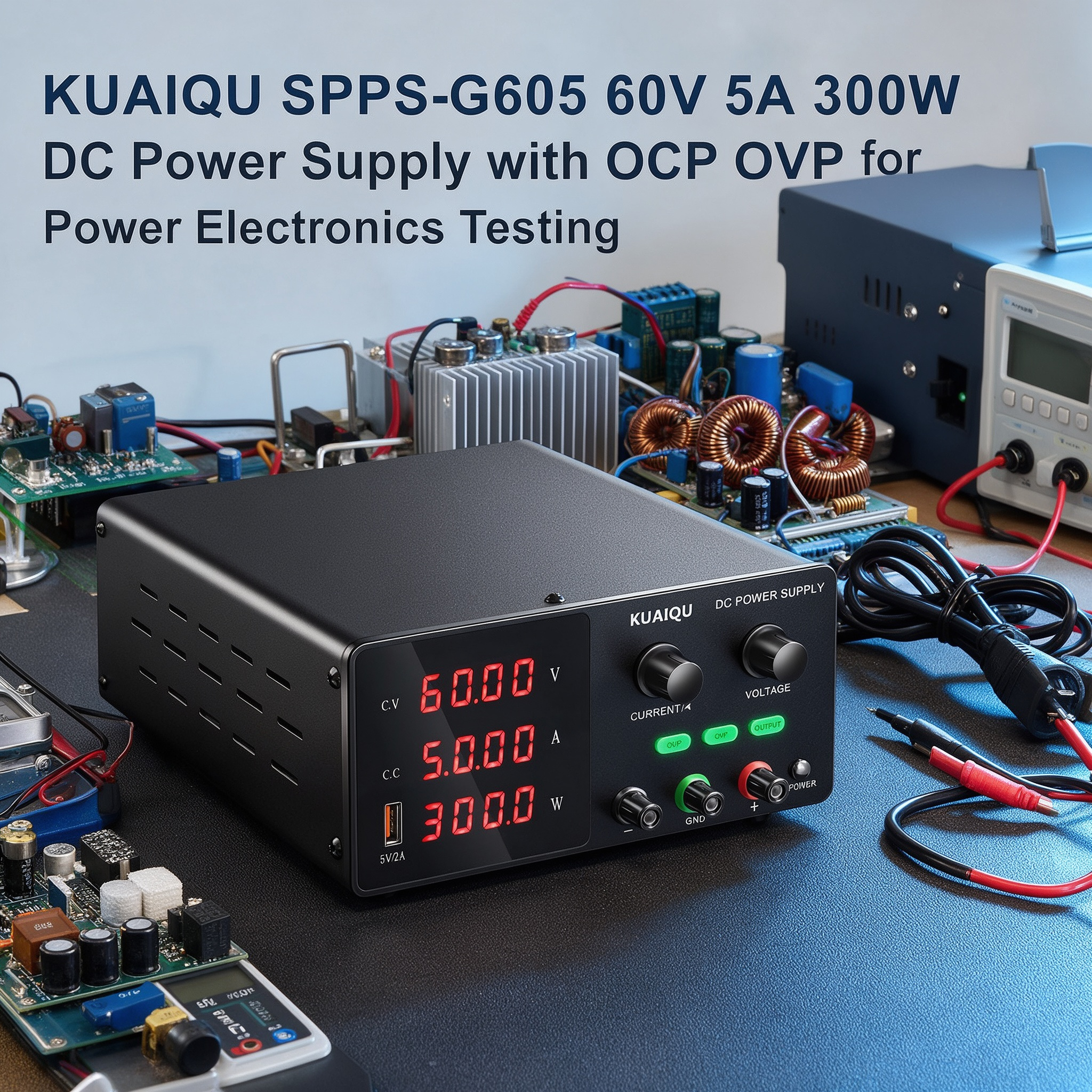

KUAIQU SPPS-G605 60V 5A 300W
DC Power Supply with OCP OVP for
Power Electronics Testing
The KUAIQU SPPS-G605 is a 60V 5A 300W DC Power Supply designed for Power Electronics Testing, circuit development, and controlled DC input evaluation. With an adjustable 0-60V output range, up to 5A current, and 300W maximum power capacity, it provides flexible power conditions for compatible power electronic circuits and devices operating within its rated output range.
Power Electronics Testing often requires adjustable voltage and current settings to evaluate circuits under different operating conditions. The SPPS-G605 combines encoder control, output ON/OFF management, real-time voltage, current, and power monitoring, and built-in OCP and OVP functions to support controlled bench testing and power electronics evaluation.
Key Features
0-60V Adjustable Output for Power Electronics Testing
The 0-60V adjustable output range allows users to set different DC input conditions for compatible power electronic circuits, modules, and devices. This flexibility is useful when evaluating circuit operation at different voltage levels within the rated output range.
Up to 5A Output Current and 300W Power Capacity
With up to 5A output current and 300W maximum power, the SPPS-G605 provides practical power support for compatible Power Electronics Testing applications. Users can adjust voltage and current settings according to the requirements of different circuits and connected loads.

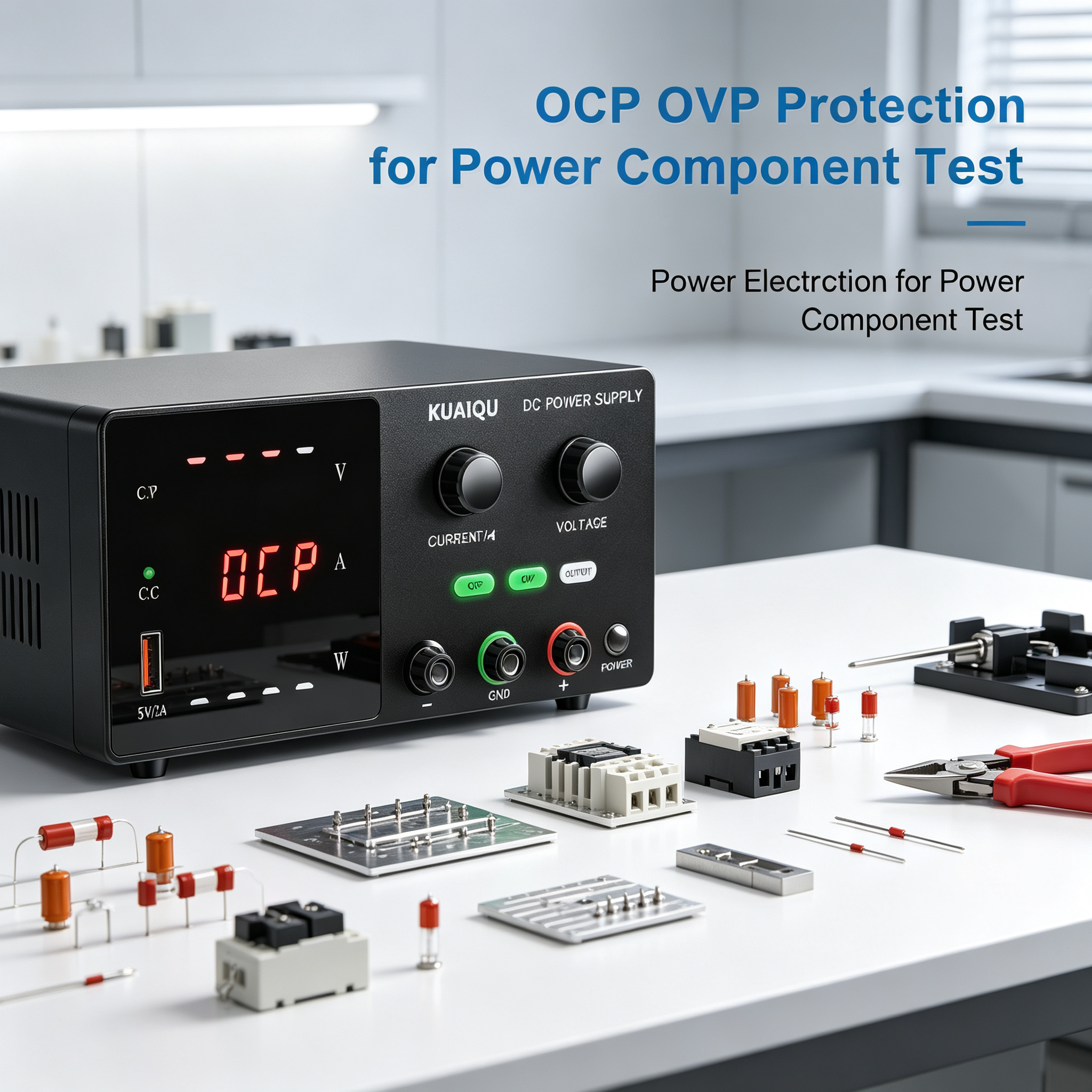

OCP and OVP Protection for Testing Operations
Power electronic circuits can experience changing load conditions during testing and evaluation. The built-in Over Current Protection and Over Voltage Protection functions provide additional protection against abnormal output conditions when operating compatible equipment.
Encoder Control for Voltage and Current Adjustment
The encoder control allows convenient adjustment of voltage and current settings when preparing different test conditions. With a 10mV voltage setting resolution and 1mA current setting resolution, users can configure output parameters for detailed power electronics evaluation.
Output ON/OFF Control for Test Preparation
The independent output ON/OFF function allows users to set the required voltage and current parameters before applying power to the connected device. This supports a more controlled workflow when connecting circuits, changing test setups, or preparing repeated evaluations.
4-Digit Display for Real-Time Parameter Monitoring
The display provides real-time monitoring of voltage, current, and power during operation. This allows users to observe output conditions and monitor changes in the connected load throughout the Power Electronics Testing process.

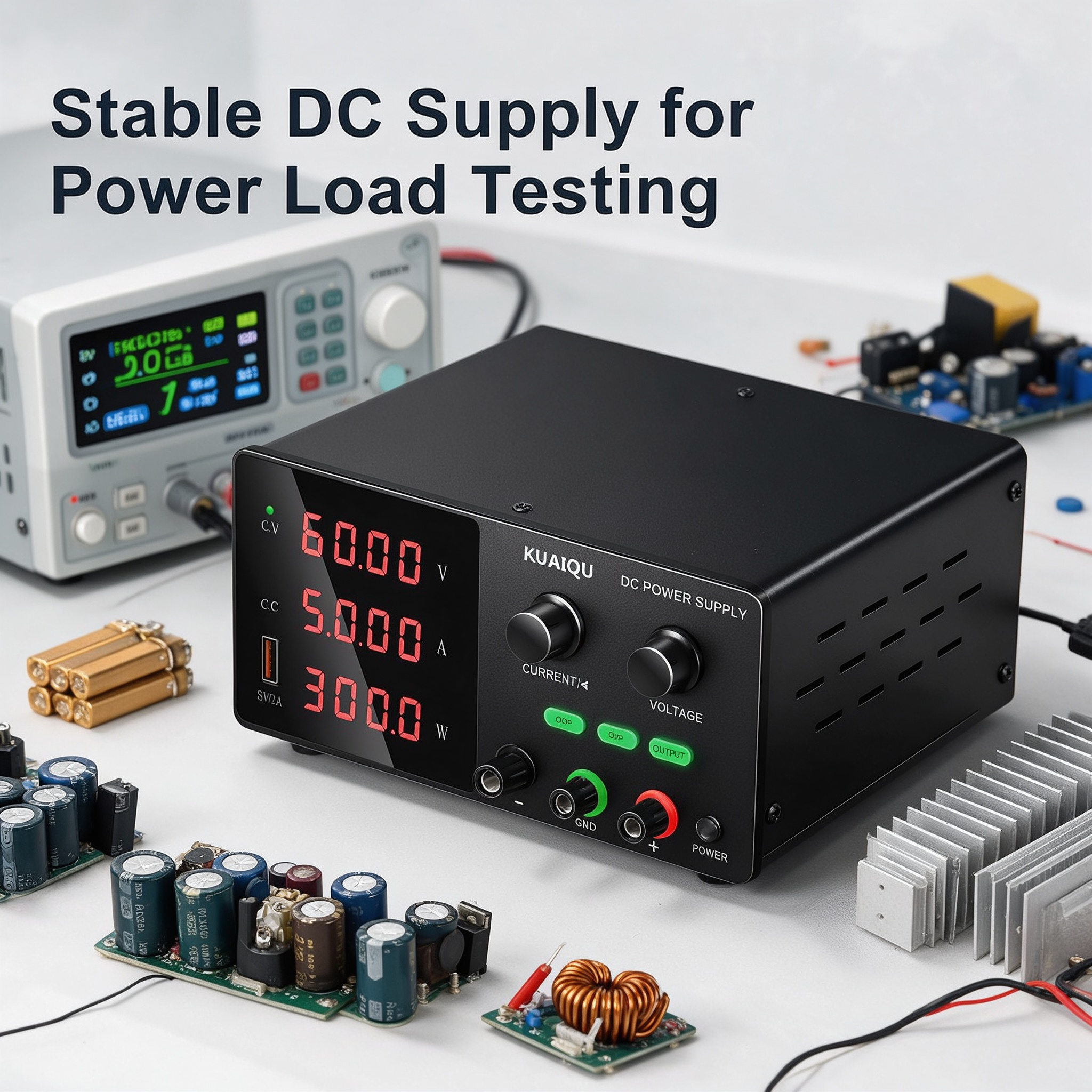

Regulated Output for Controlled DC Input
The specified load regulation, line regulation, and ripple performance support controlled DC output during normal operation. This makes the SPPS-G605 suitable for applications where adjustable power conditions are required for compatible electronic circuits and power devices.
Adjustable Buzzer Setting
The encoder includes audible operation feedback, and the buzzer can be muted when a quieter working environment is preferred.
USB 5V/2A Output
The SPPS-G605 includes a USB 5V/2A output for compatible auxiliary devices and basic power needs at the workbench.
Adjustable Power Conditions for Circuit Evaluation
Variable Input Testing
Power electronic circuits may need to be evaluated under different voltage and current conditions. The adjustable output allows users to configure DC power conditions within the 0-60V and 0-5A rated operating range.
Controlled Parameter Adjustment
Encoder control makes it convenient to adjust voltage and current settings when changing testing conditions. This is useful during circuit development and evaluation where multiple output parameters need to be tested.
Real-Time Monitoring for Power Electronics Work
Voltage, Current, and Power Observation
The real-time display allows users to monitor voltage, current, and power values during testing. This helps users observe the electrical conditions of compatible circuits and connected loads throughout the evaluation process.
Output Control During Test Procedures
The independent output ON/OFF function allows power delivery to be controlled separately from parameter setup. Users can prepare the required settings before enabling output to the connected test device.
Protection Support for Power Electronics Testing
Over Current Protection
OCP provides additional protection during testing when abnormal current conditions occur. This is useful when evaluating compatible circuits and electronic devices with changing load requirements.
Over Voltage Protection
The OVP function provides additional protection against abnormal voltage conditions during operation, supporting more controlled testing of compatible power electronic equipment.
Applications
Power Electronics Testing
Provides adjustable DC power conditions for evaluating compatible power electronic circuits and devices within the specified output range.
Power Conversion Circuit Evaluation
Suitable for controlled DC input testing of compatible power conversion circuits and related electronic assemblies.
Electronic Circuit Development
Supports voltage and current adjustment for compatible circuit development, testing, and evaluation tasks.
Power Module Testing
Can be used to provide adjustable DC input for compatible power modules during bench testing and functional evaluation.
DC Input Condition Simulation
Allows users to adjust voltage and current settings to create different DC operating conditions for compatible electronic equipment.
Laboratory Power Testing
Suitable for laboratory and workshop applications requiring an adjustable 60V DC Power Supply for compatible electronics testing.
Quality Check and Terms of Service

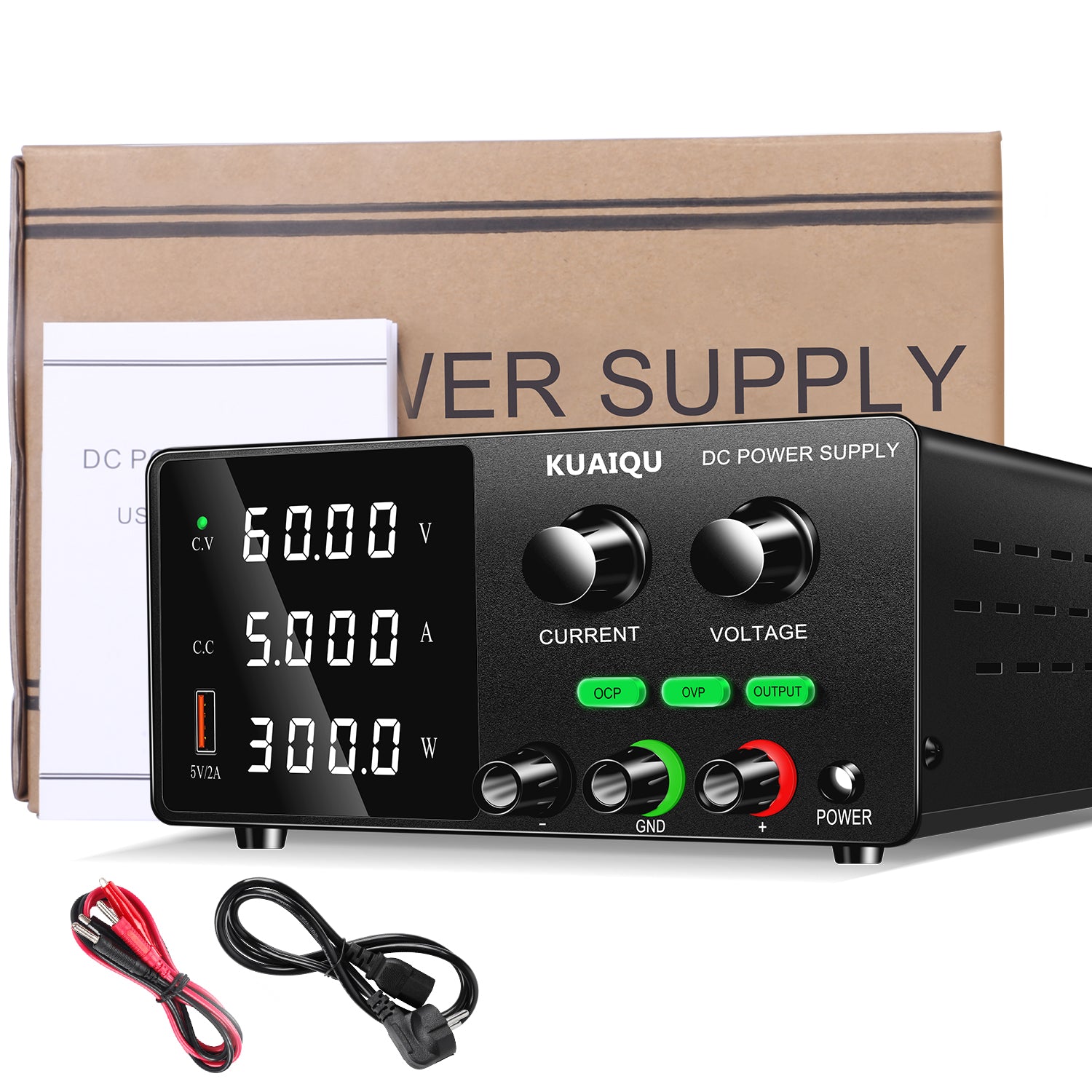

Package Includes
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
CE & FCC Certification
The SPPS-G605 DC Power Supply is manufactured with high-quality electronic components and is FCC and CE certified to support reliable operation for compatible testing applications.
Inspection Before Shipment
All DC power supplies and accessories are inspected before shipment to help ensure proper operation and product quality.
Customer Support within 24 Hours
If you have any questions about the product, operation, or specifications, please contact us. KUAIQU customer support will respond within 24 hours.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Value (0°C-40°C) | |
| Voltage | 0-60V |
| Current | 0-5A |
| Power | 300W |
| USB Output | 5V/2A |
| Load Regulation | |
| Voltage | ≤0.3% + 10mV |
| Current | ≤0.1% + 2.5mA |
| Line Regulation | |
| Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA |
| Setting Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Readback Resolution | |
| Voltage | 10mV |
| Current | 1mA |
| Setting Accuracy | |
| Voltage | ≤0.01% + 15mV |
| Current | ≤0.01% + 10mA |
| Readback Accuracy | |
| Voltage | ≤0.01% + 15mV |
| Current | ≤0.01% + 10mA |
| Ripple (20Hz-20MHz) | |
| Voltage | ≤200mVp-p / ≤20mVrms |
| Current | ≤20mArms |
| Rise Time (No Load) | ≤200ms |
| Rise Time (Full Load) | ≤300ms |
| Fall Time (No Load) | ≤20s |
| Fall Time (Full Load) | ≤300ms |
| Dynamic Response | ≤200ms |
| Efficiency | ≥85% |
| Input Voltage | AC220V (AC110V optional) |

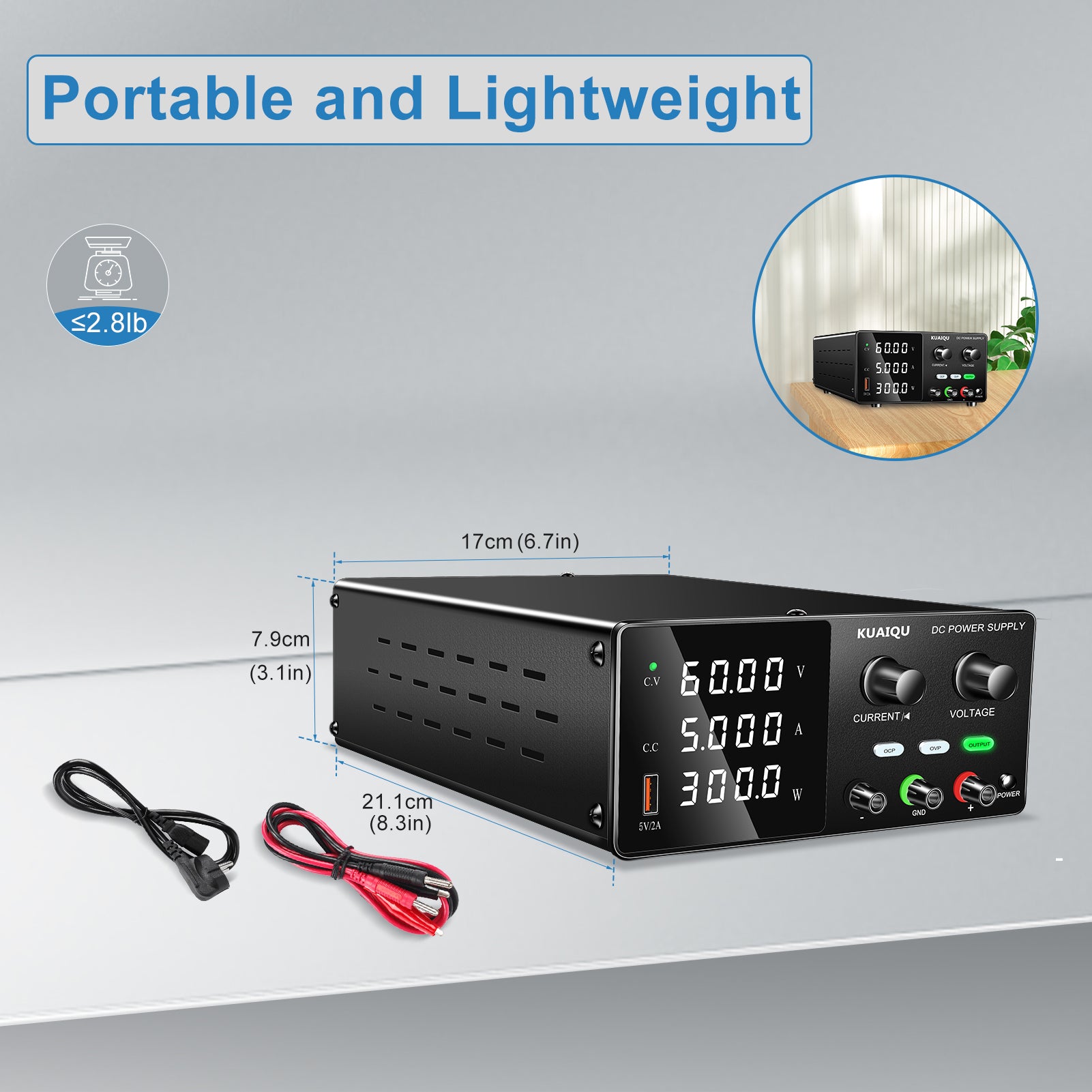

| Size / Net Weight | Approx. 21 × 17 × 8 cm / 1.3 kg |
| Package Size / Weight | Single unit: 31 × 12.5 × 22 cm / 1.72 kg |
| Carton Quantity | 8 pcs / carton |
Why Choose KUAIQU SPPS-G605?
The KUAIQU SPPS-G605 combines a 60V adjustable output range, up to 5A current capability, and 300W power capacity in a compact DC Power Supply designed for controlled bench applications.
For Power Electronics Testing, its encoder-based voltage and current adjustment helps users configure different test conditions, while the output ON/OFF control supports parameter setup before power is applied. The real-time voltage, current, and power display provides convenient monitoring throughout the testing process.
With OCP and OVP protection, regulated DC output performance, and adjustable operating parameters, the SPPS-G605 provides a practical solution for compatible power electronics evaluation, circuit development, power module testing, and laboratory DC power applications.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from kuaiquinstrument.com), lifetime technique support by KUAIQU.
