We offer a 30-day price guarantee: if the price of your purchased item drops within 30 days, we will refund the price difference.

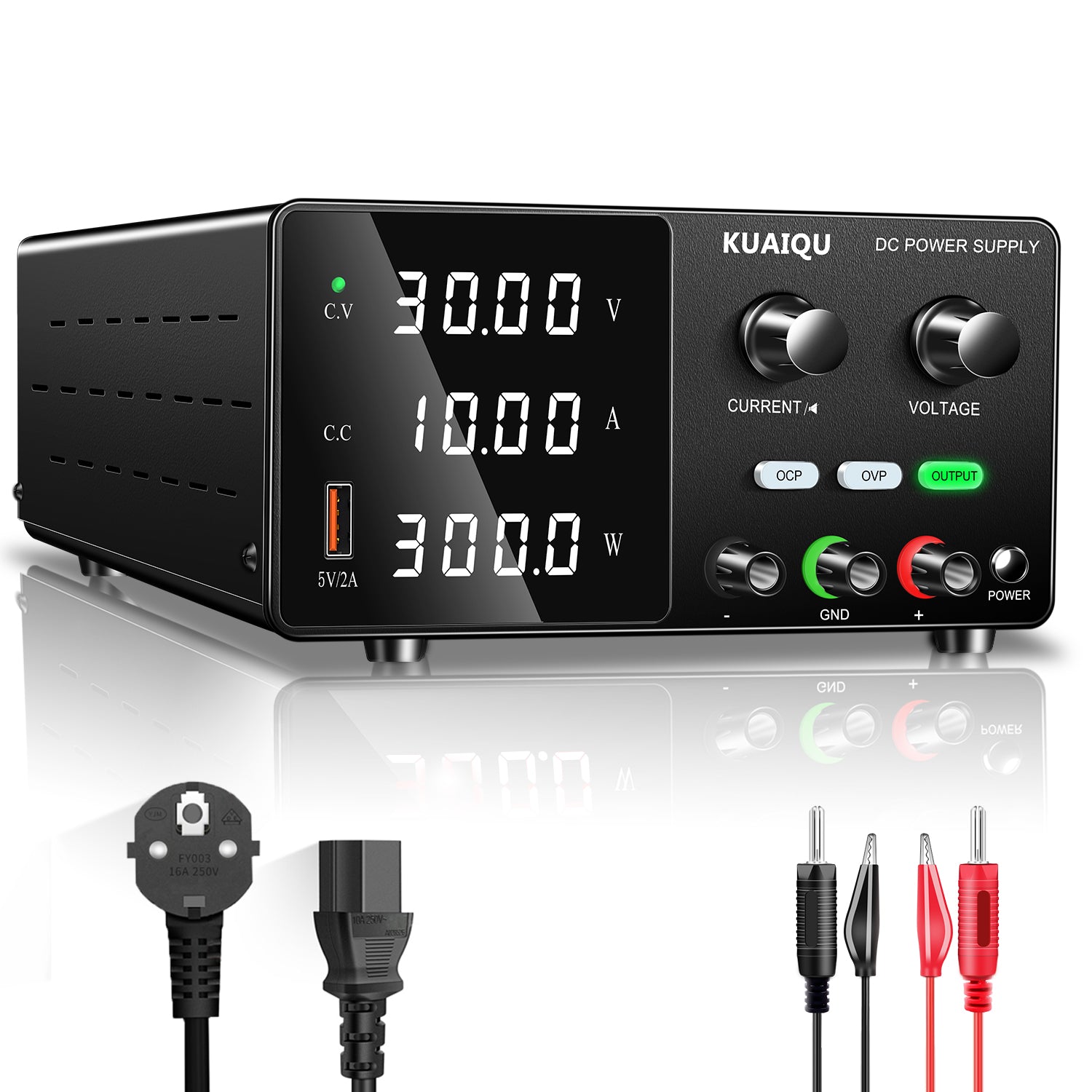

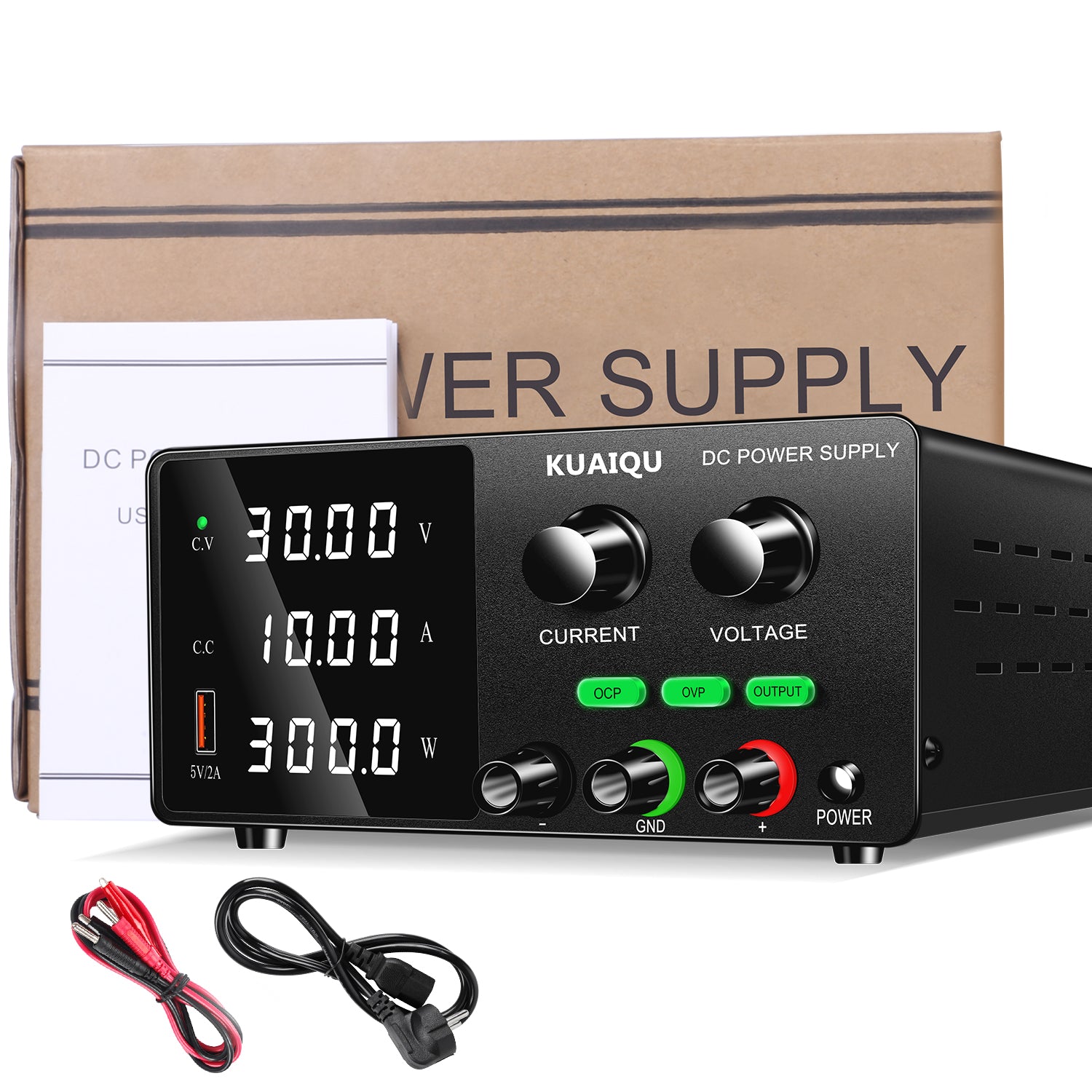

The SPPS-G3010 30V 10A 300W automotive electronics power supply is designed for low-voltage applications that require higher current output. With adjustable 0–30V voltage and 0–10A current, it provides up to 300W of DC power for automotive modules, 12V and 24V electronics, DC devices, and higher-current bench testing.
The higher 10A capacity distinguishes the SPPS-G3010 from smaller 30V bench supplies, making it a practical 30V 10A automotive test supply for technicians and engineers working with vehicle electronics and compatible DC equipment.
The 0–30V and 0–10A adjustable output provides flexible power control for 12V and 24V test power supply applications. The 300W output capacity offers additional current headroom for compatible automotive modules and DC devices.

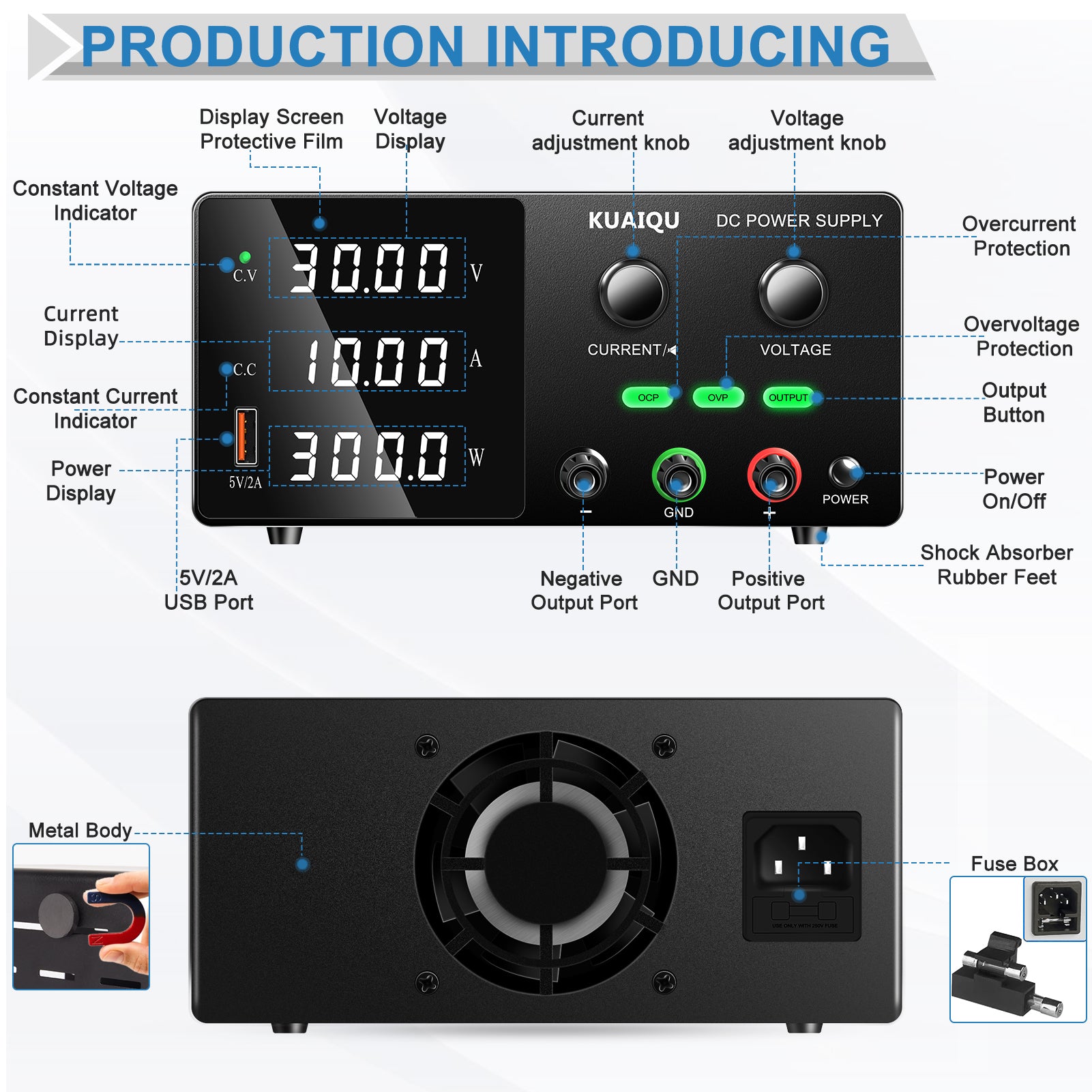

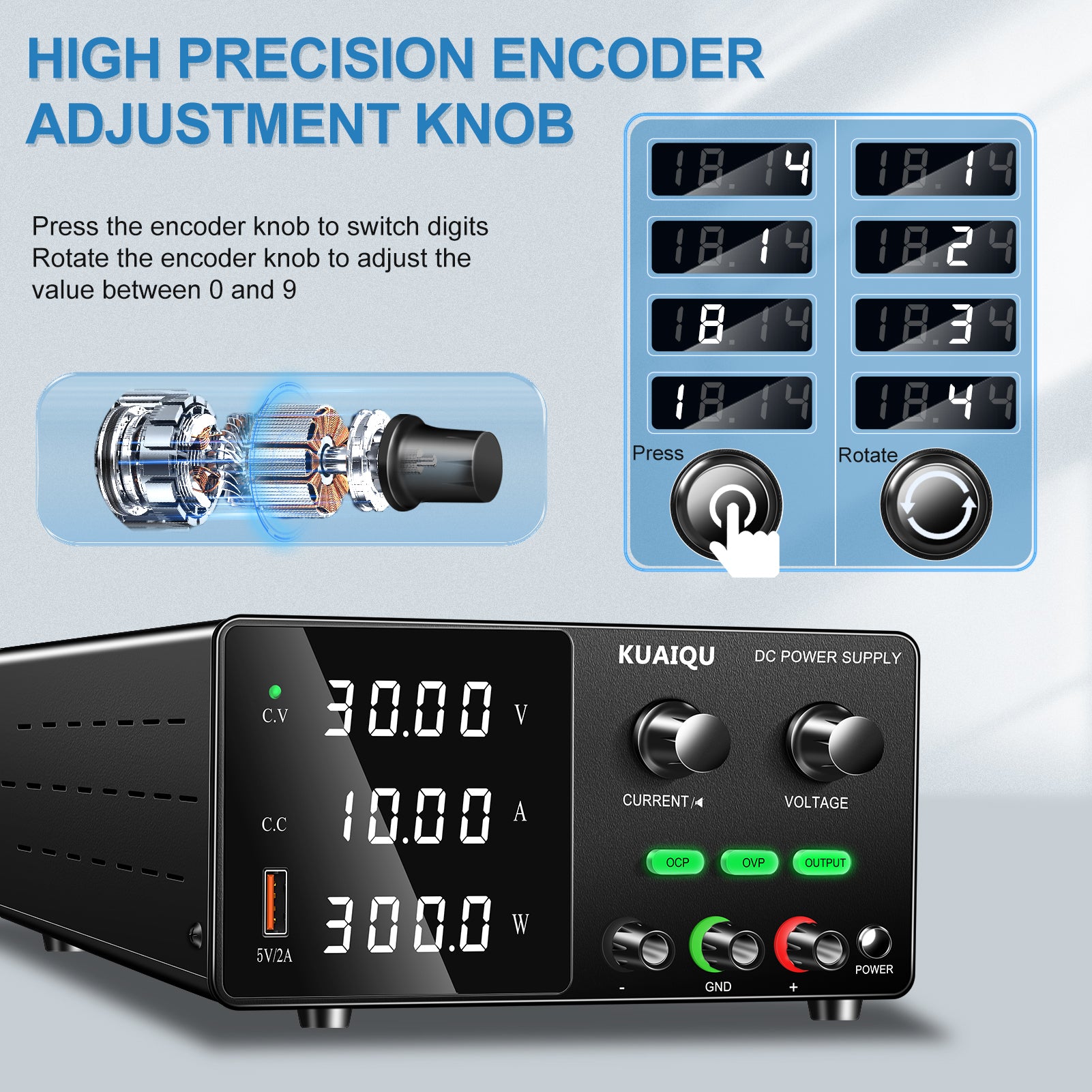

The encoder knob provides smooth voltage and current adjustment, allowing users to set precise operating conditions during automotive electrical testing and DC device evaluation.

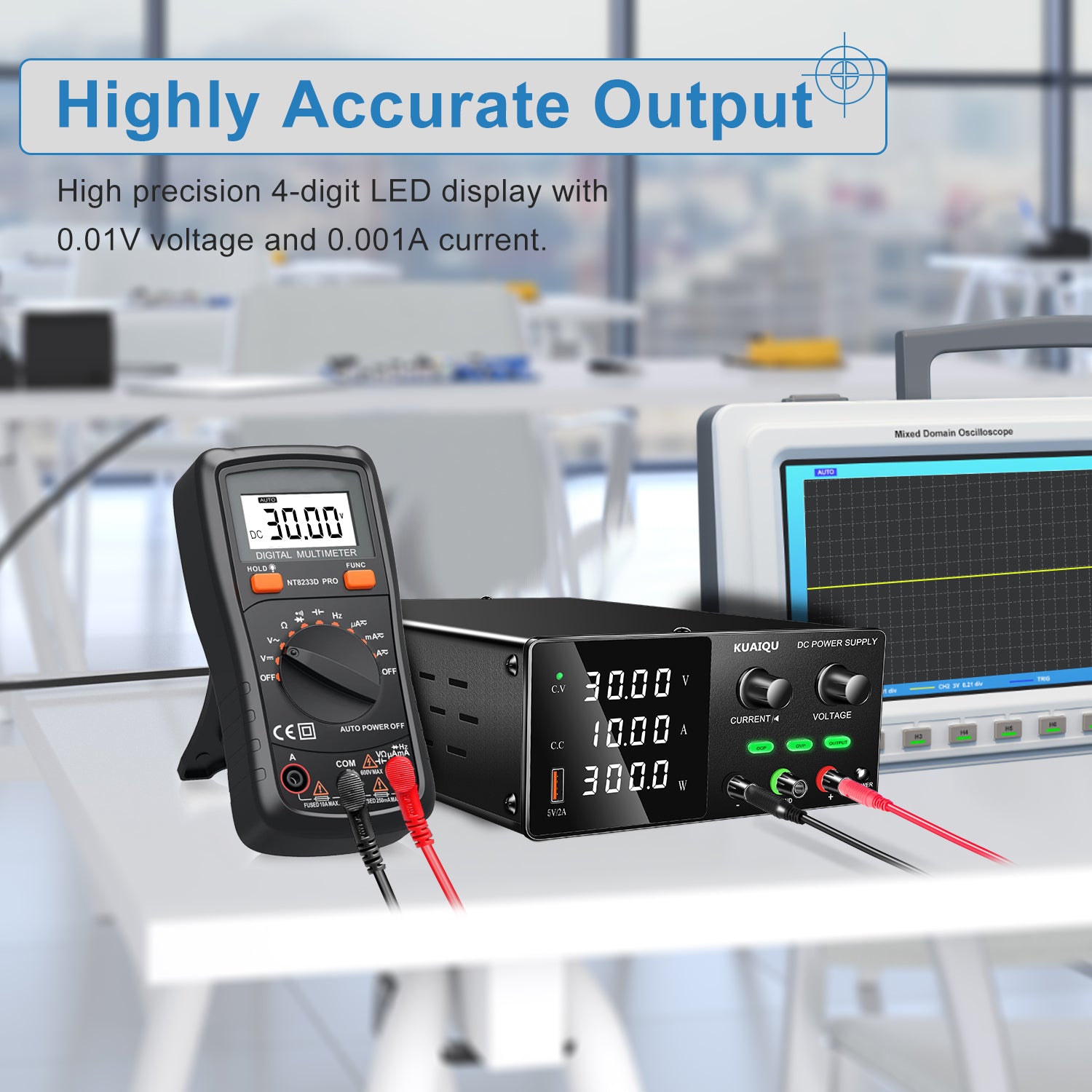

The 4-digit display clearly shows output voltage and current, helping technicians monitor load behavior while testing vehicle electronics and modules.

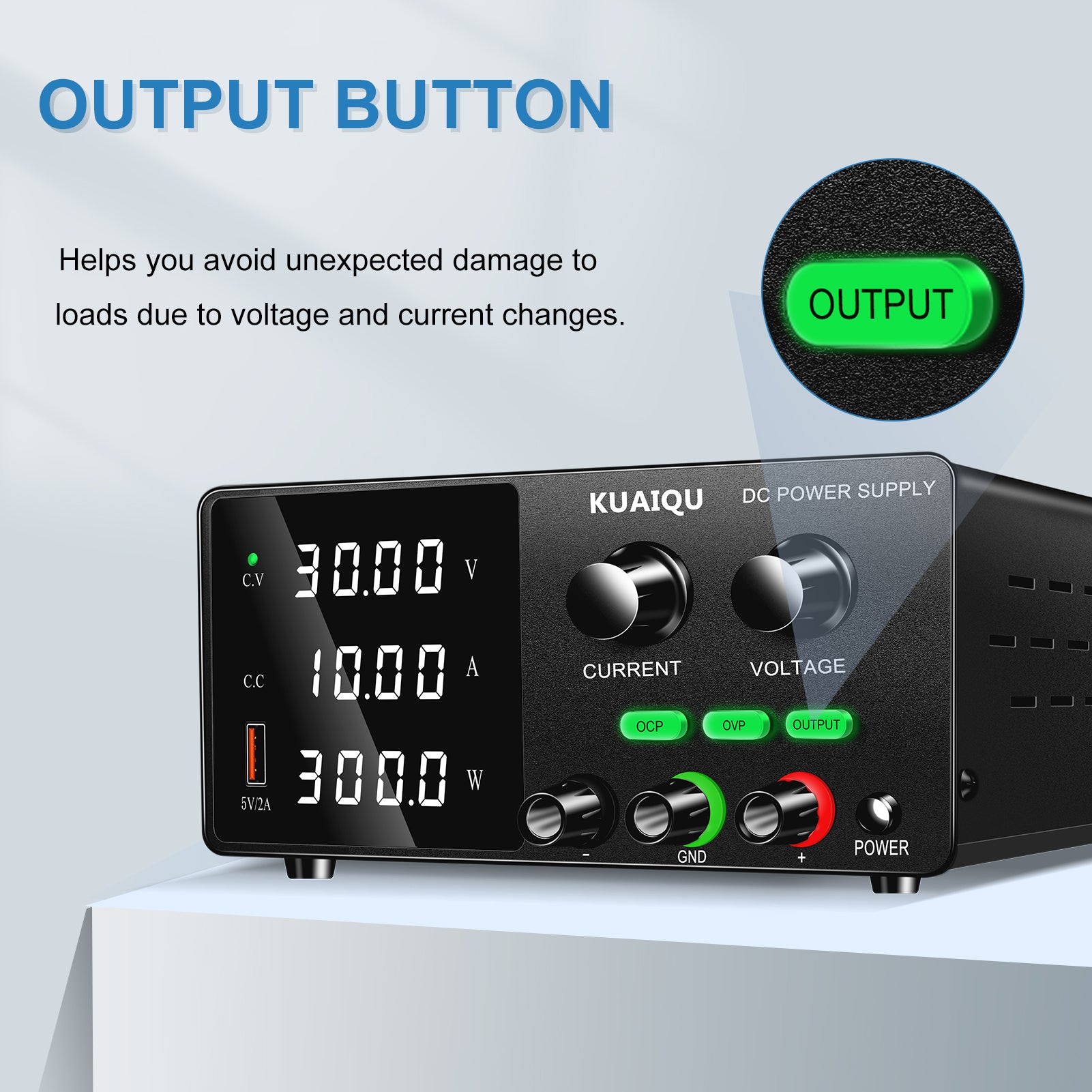

The dedicated output ON/OFF function makes repeated testing more efficient by allowing users to activate or deactivate the output without resetting the configured values.

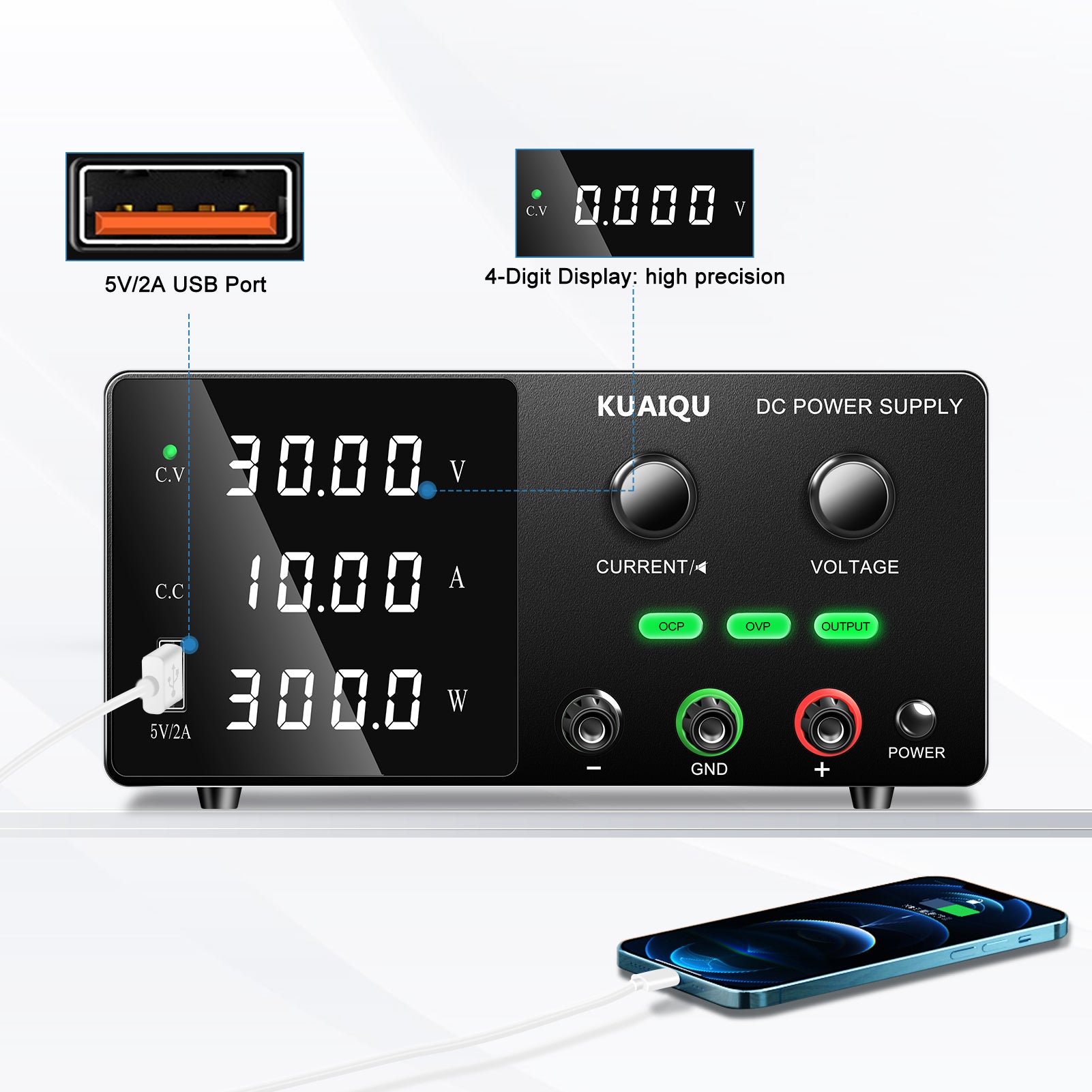

The separate USB 5V 2A output provides convenient power for compatible USB devices and accessories during automotive and electronics testing.

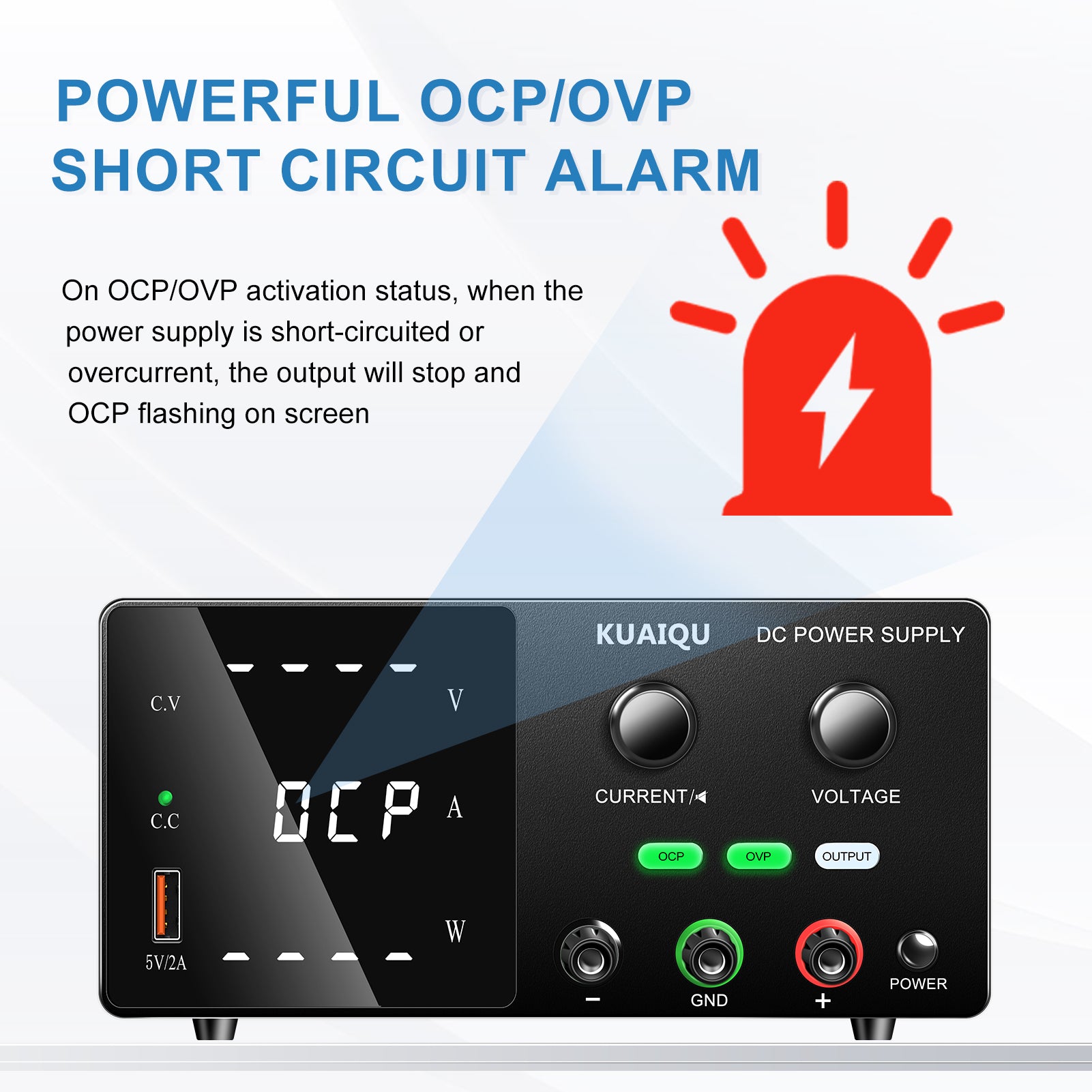

Over-current and over-voltage protection help provide additional safety when testing electronic modules and devices with different power requirements.
The encoder buzzer provides audible adjustment feedback and can be muted when silent operation is preferred.
The SPPS-G3010 is designed as a DC power source for vehicle electronics, suitable for testing compatible automotive control modules, sensors, electronic accessories, and low-voltage vehicle systems.
Its adjustable output is suitable for power supply for 12V automotive electronics testing, including compatible vehicle modules and electronic components that require controlled DC power.
The 30V maximum output provides sufficient voltage range for compatible 24V vehicle electronics and related testing applications.
With up to 10A and 300W, the SPPS-G3010 provides additional current capacity for 10A automotive power supply applications, including testing compatible electronic modules and devices with higher current requirements.
The 300W output makes this 300W power supply for automotive electronics suitable for compatible small DC motors, fans, actuators, pumps, and other low-voltage devices within the rated output range.
The SPPS-G3010 can also serve as a 30V 10A power supply for electronic devices during engineering development, prototype testing, and troubleshooting
| Items | SPPS‑G3010 | |
|---|---|---|
| Rated Value
|
Voltage | 0‑30V |
| Current | 0‑10A | |
| Power | 300W | |
| USB Output | 5V/2A | |
| Load Regulation | Voltage | ≤0.3%+10 mV |
| Current | ≤0.1%+2.5 mA | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA | |
| Setting Resolution | Voltage | 10 mV |
| Current | 1 mA | |
| Readback Resolution | Voltage | 10 mV |
| Current | 1 mA | |
| Setting Accuracy | Voltage | ≤0.05%+10 mV |
| Current | ≤0.01%+10 mA | |
| Readback Accuracy | Voltage | ≤0.05%+10 mV |
| Current | ≤0.01%+10 mA | |
| Ripple
|
Voltage | ≤100 mVp‑p
|
| Current | ≤15 mArms | |
| Rise Time (No Load) | Time | ≤200 mS |
| Rise Time (Full Load) | Time | ≤300 mS |
| Fall Time (No Load) | Time | ≤20S |
| Fall Time (Full Load) | Time | ≤300 mS |
| Dynamic Response | Time | ≤200 mS |
| Efficiency | ≥85% |
