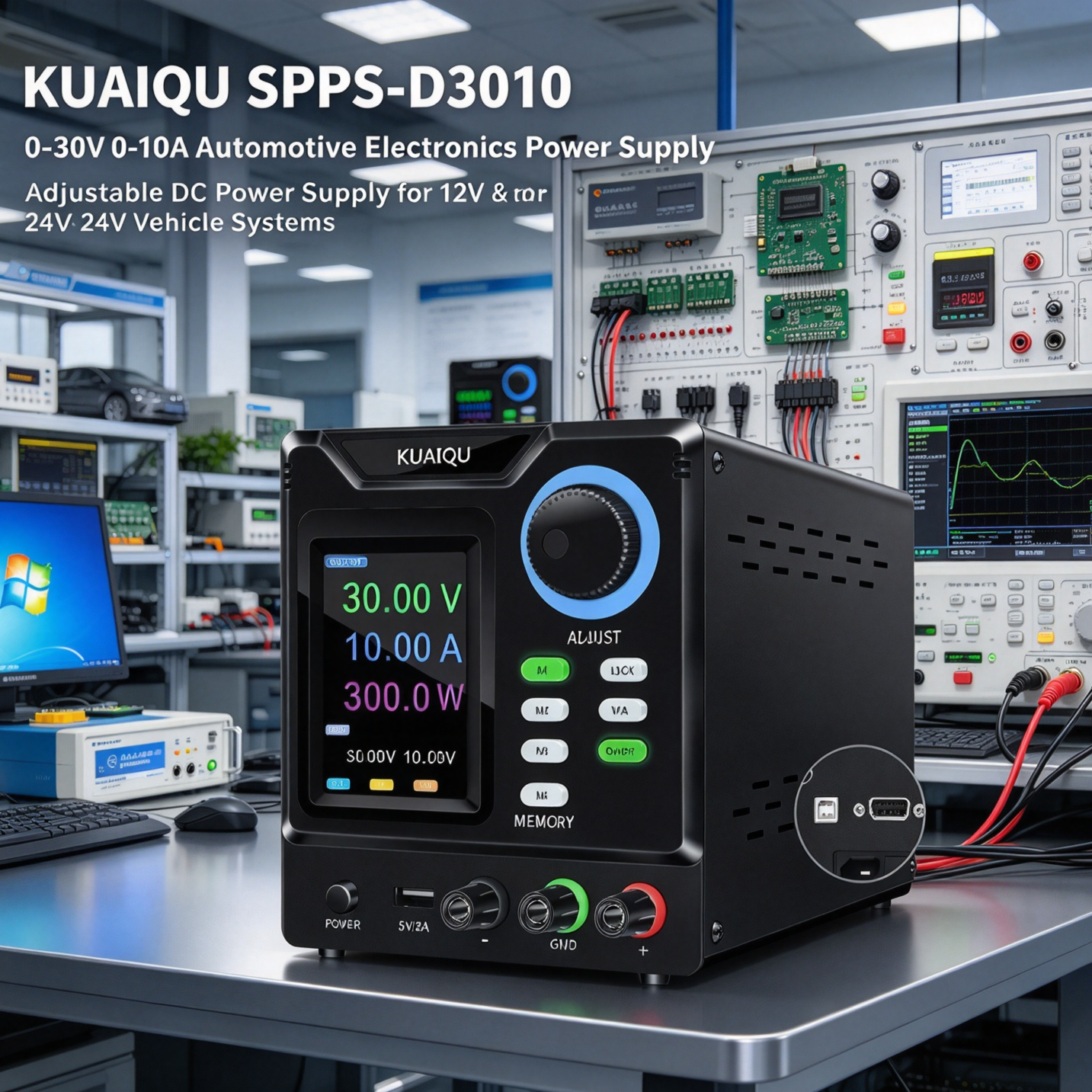

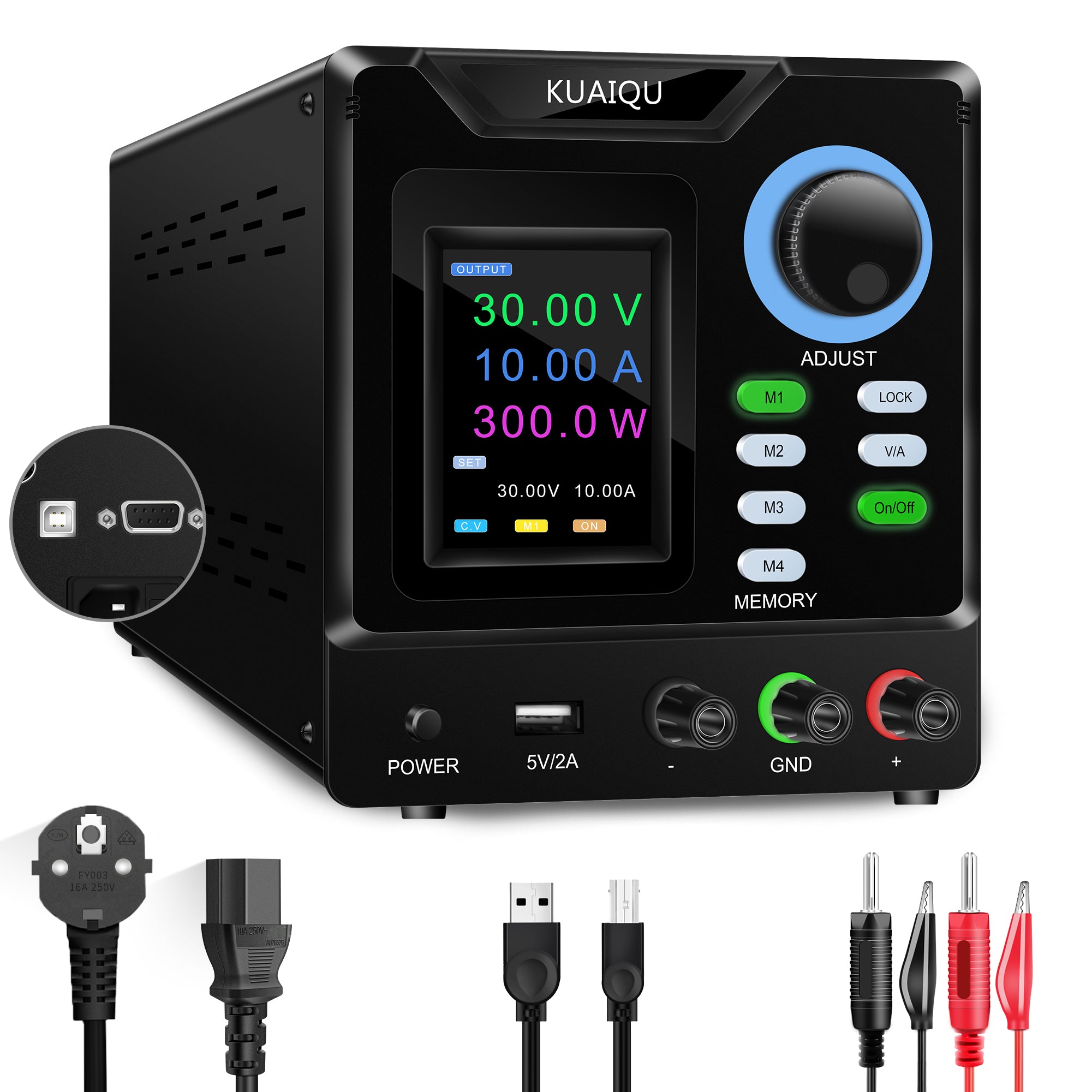

The SPPS-D3010 is a 30V 10A 300W Automotive Electronics Power Supply designed for automotive electronics, vehicle electronics, 12V and 24V systems, automotive modules, and vehicle control equipment. This automotive DC power supply provides adjustable and stable output for automotive electronics development, servicing, module development, and equipment integration. With a 2.4-inch TFT color LCD digital display, encoder control, 4-group memory, independent output switch, and comprehensive protection functions, this 30V 10A DC power supply provides convenient power control for automotive applications.
30V 10A 300W Adjustable DC Output
Provides adjustable 0–30V and 0–10A output with up to 300W power, making this 30V 10A power supply suitable for automotive electronics, vehicle electronics, control modules, and electrical equipment.
Designed for 12V & 24V Automotive Systems
The adjustable voltage range supports common 12V automotive systems and 24V automotive systems, providing flexible DC power for automotive modules, vehicle electronics, and electrical equipment.
Automotive Electronics Power Supply
Designed as an Automotive Electronics Power Supply for automotive module development, vehicle control systems, car electronics, automotive accessories, and automotive electrical equipment.

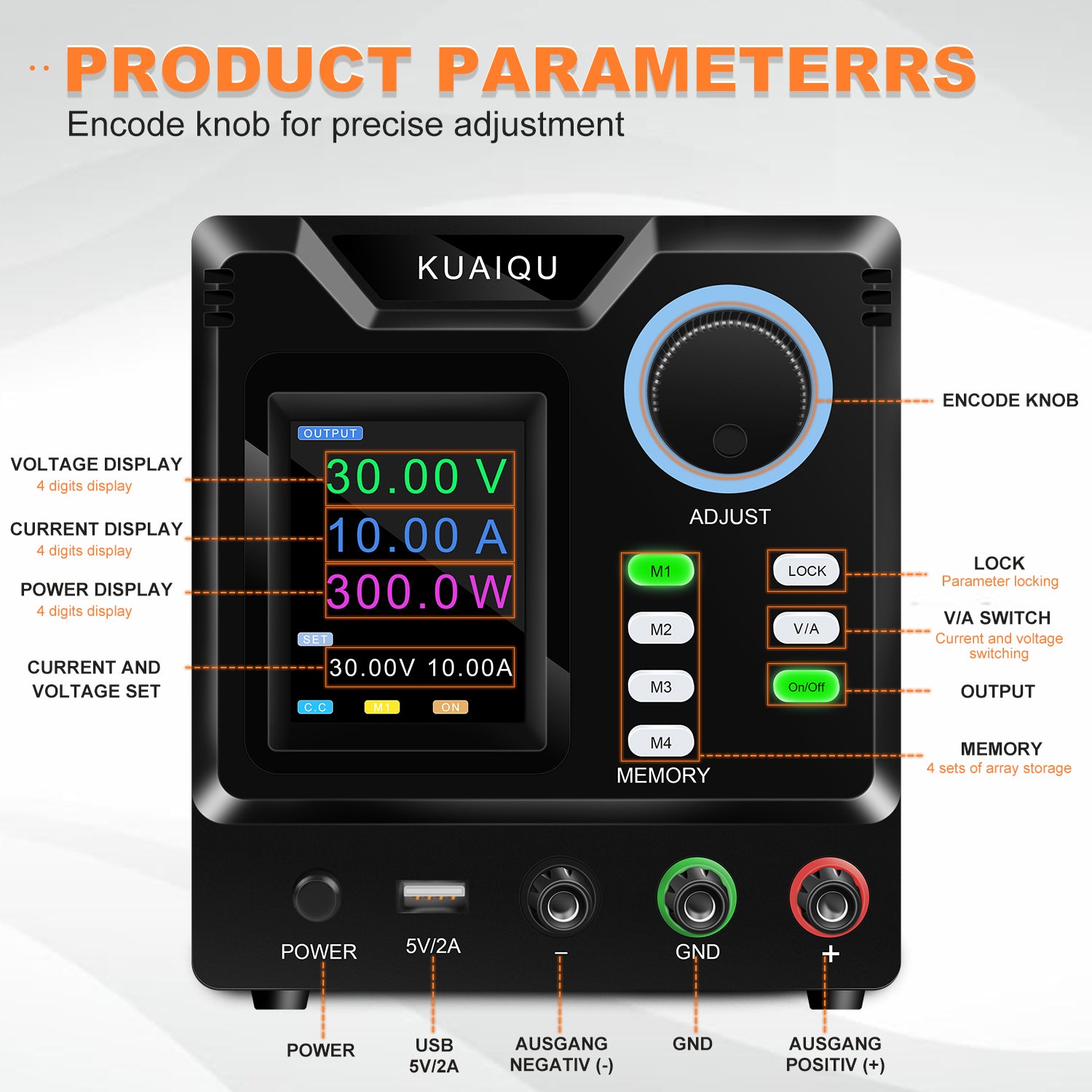

2.4-Inch TFT Color LCD Digital Display
The 2.4-inch TFT color LCD clearly displays voltage, current, and power values, allowing convenient real-time monitoring during automotive electronics development and servicing.

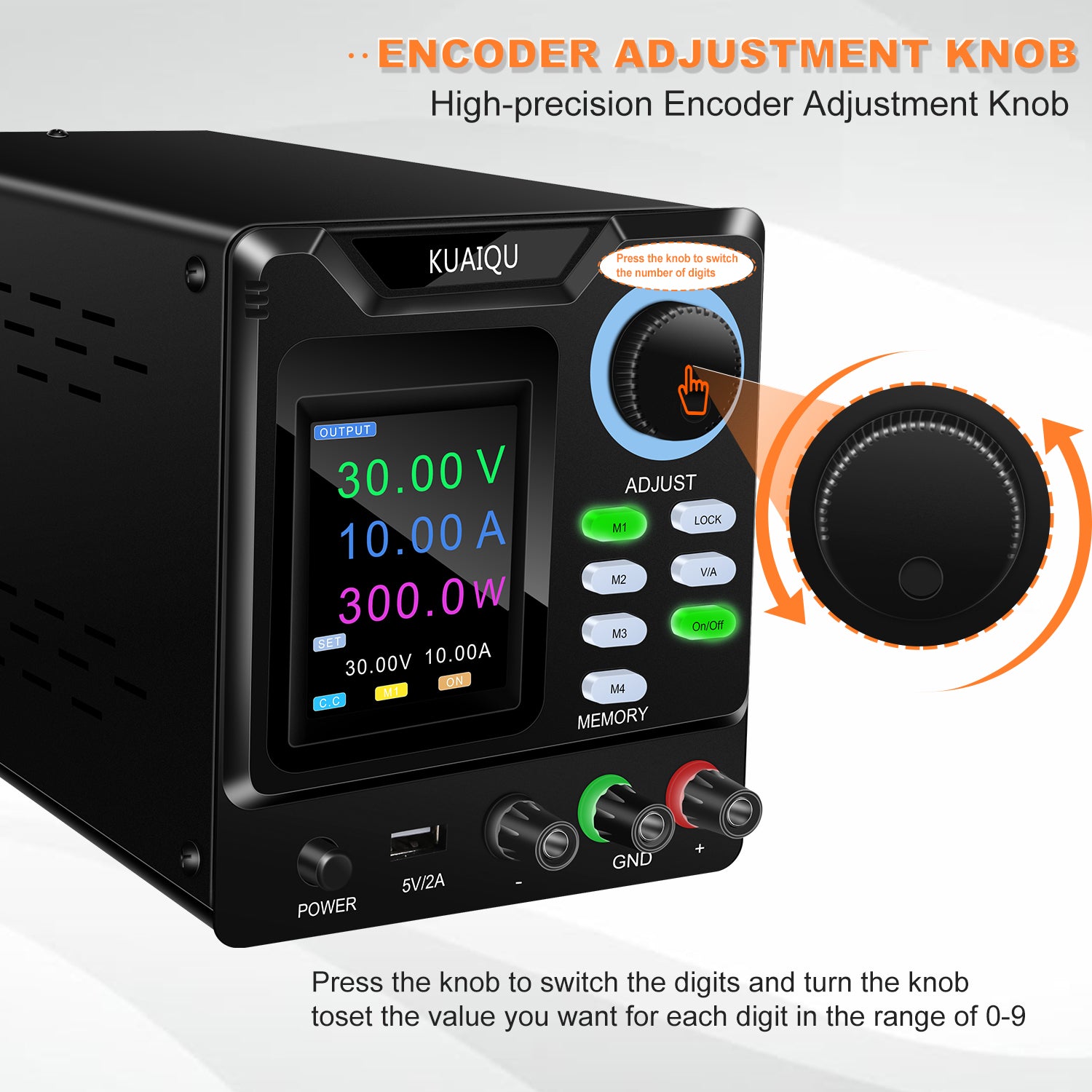

Precise Encoder Control
The encoder knob provides smooth and convenient voltage and current adjustment, making it easier to configure power parameters for different automotive control modules and vehicle electronics.
4-Group Memory Presets
Save and recall frequently used output parameters for different 12V automotive power systems, 24V automotive power systems, vehicle electronics, and automotive modules.
Independent Output ON/OFF Switch
The dedicated output switch allows users to control power delivery independently, helping reduce accidental power application when connecting or servicing automotive electronics.
Comprehensive Protection
Built-in over-voltage protection, over-current protection, and short-circuit protection provide additional protection for the power supply and connected automotive equipment.
Stable Regulated DC Output
Provides reliable adjustable DC power for automotive electronics, vehicle control modules, car electronics, automotive accessories, and electrical equipment.
Automotive Electronics: Adjustable DC power for automotive electronics development and servicing.
12V Vehicle Systems: Suitable for 12V automotive systems, vehicle electronics, automotive modules, and accessories.
24V Vehicle Systems: Provides adjustable power for 24V automotive systems and vehicle control equipment.
Automotive Control Modules: Power source for automotive control units, vehicle control modules, and electronic modules.
Vehicle Electronics Development: Suitable for car electronics and vehicle electronics development projects.
Automotive Accessories: Adjustable power for automotive accessories and electrical equipment.
Automotive Service & Maintenance: Useful for automotive electronics servicing, troubleshooting, and equipment integration.
Automotive R&D: A practical automotive DC power supply for engineers developing and maintaining automotive electronic systems.
| Parameter | Sub-parameter | SPPS-D3010 |
|---|---|---|
| Rated Value (0℃~40℃) | Voltage | 0-30V |
| Current | 0-10A | |
| Power | 300W | |
| USB Output | - | 5V 2A |
| Load Regulation | Voltage | ≤0.3%+10 mV |
| Current | ≤0.1%+2.5 mA | |
| Line Regulation | Voltage | ≤0.01%+2.5 mV |
| Current | ≤0.1%+2.5 mA | |
| Setting Resolution | Voltage | 10mV |
| Current | 1mA | |
| Readback Resolution | Voltage | 10mV |
| Current | 1mA | |
| Setting Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Readback Accuracy | Voltage | ≤0.05%+10mV |
| Current | ≤0.01%+10mA | |
| Ripple (20Hz~20MHz) | Voltage | ≤100 mVp-p / ≤15 mVrms |
| Current | ≤15 mArms | |
| Rise Time (No Load) | Time | ≤200mS |
| Rise Time (Full Load) | Time | ≤300mS |
| Fall Time (No Load) | Time | ≤20S |
| Fall Time (Full Load) | Time | ≤300mS |
| Dynamic Response | Time | ≤200mS |
| Efficiency | - | ≥85% |
| Input Voltage/Current | - | AC 220V (AC110V optional) |
