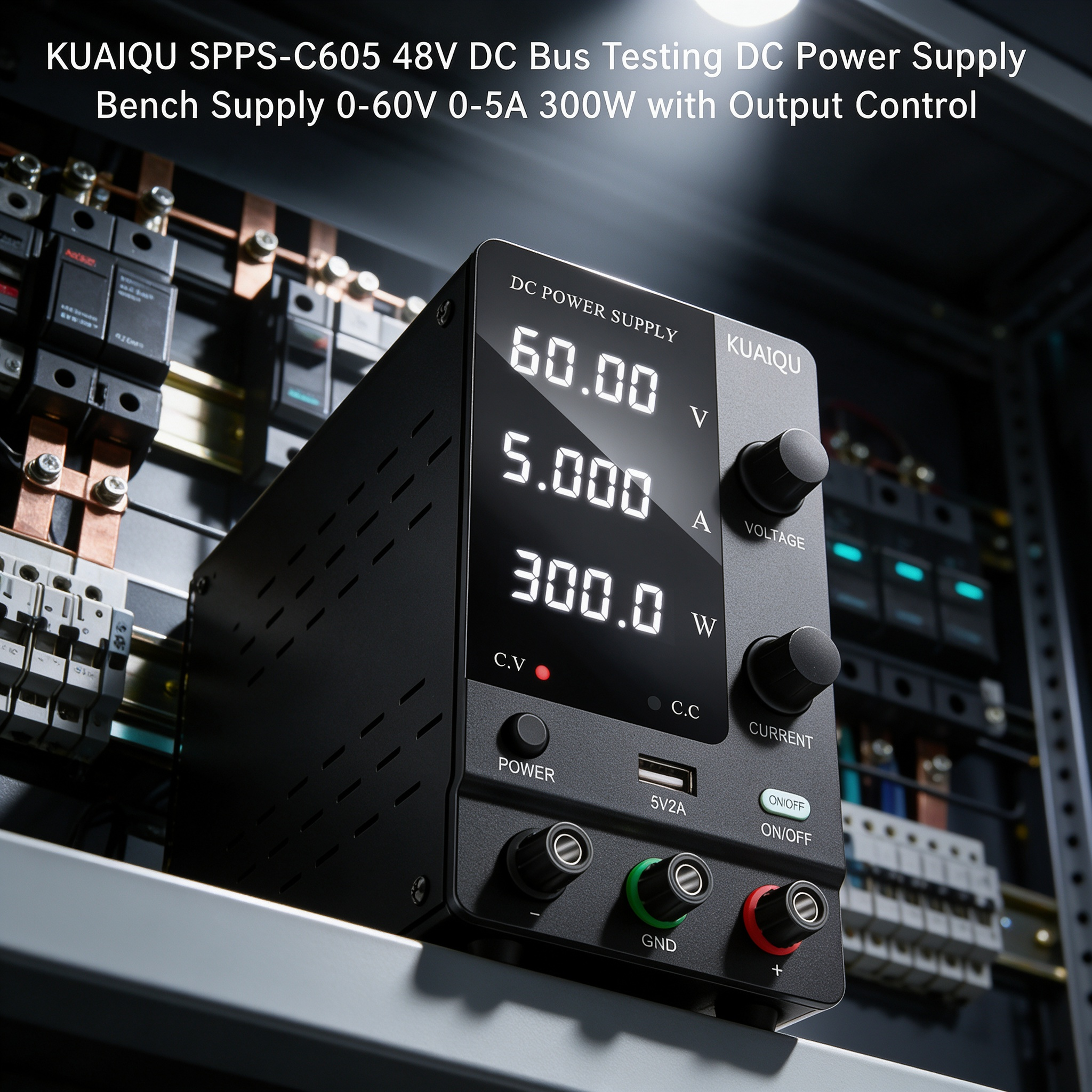

KUAIQU SPPS-C605 48V DC Bus Testing DC
Power Supply Bench Supply 0-60V 0-5A
300W with Output Control
The KUAIQU SPPS-C605 is a 0-60V 0-5A 300W DC Power Supply Bench Supply designed for 48V DC Bus Testing and compatible DC-powered electronic systems. Its adjustable output allows users to establish 48V-class DC bus conditions and other voltage levels within the rated range, while the adjustable current setting helps configure suitable test conditions for connected equipment and circuits.
With dual-knob Encoder Adjustment, Voltage Current Power Display, CV/CC operation, and Output Control, the SPPS-C605 provides a practical bench power source for DC bus evaluation, startup checks, operating-condition testing, electrical parameter observation, and repeated laboratory or engineering tests.
Key Features
0-60V Adjustable DC Output for 48V DC Bus Testing
The SPPS-C605 provides a 0-60V adjustable DC output, giving users flexibility when establishing DC bus conditions for compatible 48V electronic systems, modules, and circuits. The wide adjustment range also allows different voltage levels to be evaluated during development, troubleshooting, and bench testing.
0-5A Current and 300W Power Capacity
With up to 5A output current and 300W maximum power, this DC Power Supply Bench Supply can provide adjustable power conditions for compatible 48V DC bus loads within its rated operating range. Users can configure voltage and current according to the requirements of the device or circuit under test.
Encoder Adjustment for Controlled DC Bus Settings
The dual-knob Encoder Adjustment provides controlled voltage and current adjustment during 48V DC Bus Testing. Users can establish the required test parameters, make controlled changes between test conditions, and repeat specific DC bus settings during development or troubleshooting work.

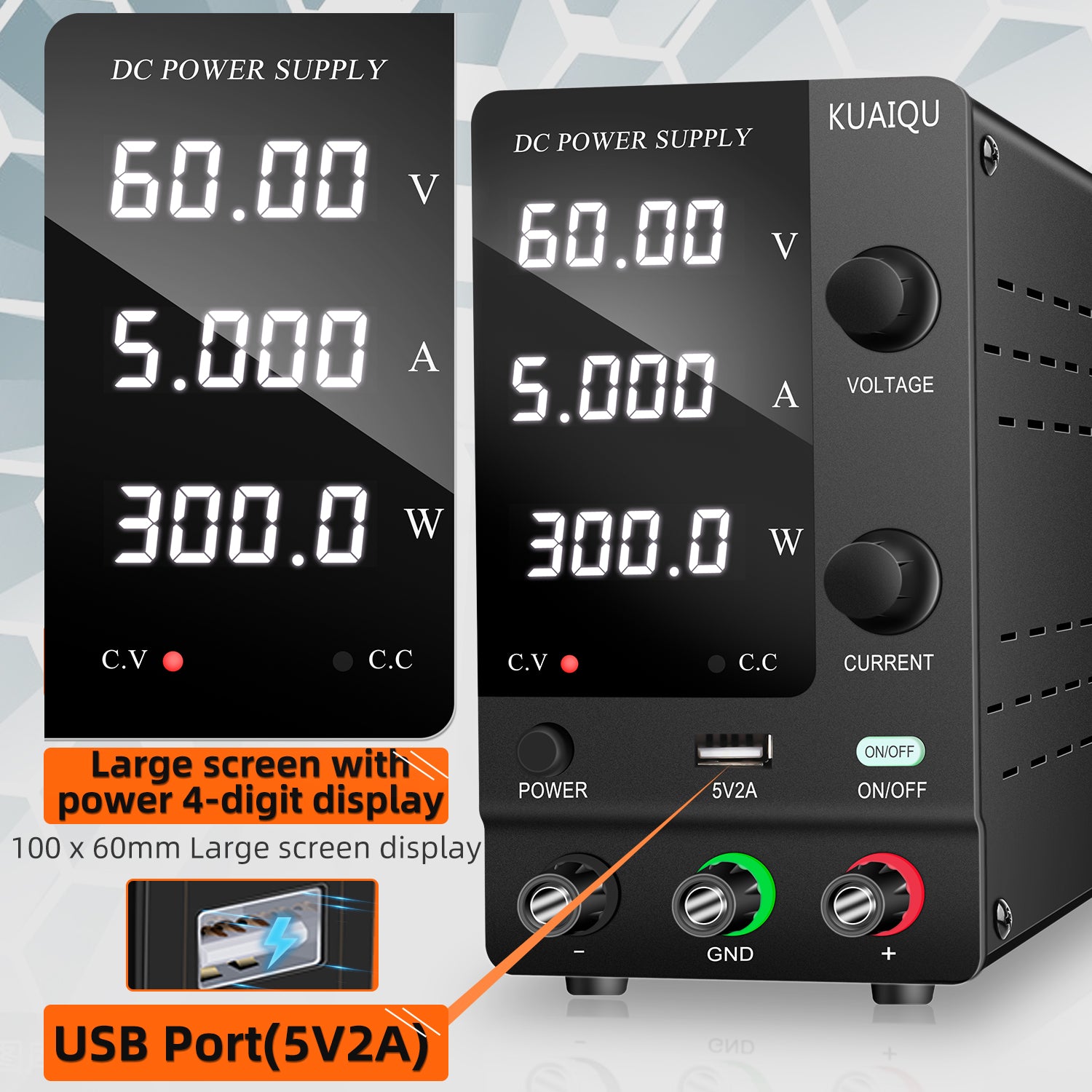

Voltage, Current and Power Display
The built-in 4-digit display provides real-time Voltage, Current and Power readings. During DC Bus Testing, users can observe the electrical parameters delivered to the connected load and identify changes when the DC bus voltage or test conditions are adjusted.
CV/CC Operation for Different DC Loads
The SPPS-C605 supports CV/CC operation and automatically switches between constant voltage and constant current behavior according to the connected load and configured output conditions. This provides a practical operating mode for testing different compatible DC bus loads within the power supply's rated range.
Output Control for Controlled Power Application
The Output Control allows users to enable or disable DC output independently from the configured settings. Test parameters can be prepared before power is applied to the connected DC bus circuit, making it easier to control startup checks, power interruption tests, and repeated test procedures.
Adjustable DC Conditions for Comparative Testing
The adjustable voltage and current settings allow users to compare how compatible DC bus circuits or equipment operate under different supply conditions. This can be useful when checking operating behavior, evaluating power requirements, or troubleshooting unexpected electrical responses.
Compact Bench Supply for Engineering Workstations
The SPPS-C605 combines a compact form factor with 300W maximum output power, making it suitable for laboratory benches, electronic development workstations, repair areas, and engineering test setups where adjustable DC bus power is required.
USB 5V/2A Output for Supporting Test Equipment
The integrated USB 5V/2A output can provide convenient power for compatible USB-powered accessories used alongside the test setup, helping keep supporting equipment powered without requiring an additional small USB power source.
Applications
48V DC Bus Testing
The SPPS-C605 provides adjustable DC power for establishing and evaluating 48V-class DC bus conditions on compatible electronic systems, modules, and circuits within the rated 0-60V output range.
DC Bus Startup Testing
Users can configure the required voltage and current before enabling Output Control, then observe voltage, current, and power during system startup to evaluate the electrical behavior of compatible DC-powered equipment.
DC Bus Operating Condition Evaluation
The adjustable output allows users to establish different DC supply conditions and observe how compatible equipment operates as the input voltage is changed within the rated range.
48V Electronic Module Testing
The DC Power Supply Bench Supply can provide controlled power for compatible 48V electronic modules and DC-powered assemblies during laboratory development, engineering evaluation, and troubleshooting.
DC Bus Voltage Comparison Testing
Different output voltage settings can be established to compare the operating behavior of compatible circuits and equipment under different DC bus conditions.
Current and Power Observation
The Voltage Current Power Display allows users to monitor electrical parameters while connected equipment is operating, helping evaluate changes in current draw and power consumption during bench testing.
DC Bus Power Cycling Checks
Output Control provides convenient control over applying and removing DC power during repeated testing procedures, making the SPPS-C605 suitable for controlled power cycling of compatible electronic systems.
DC Circuit Troubleshooting
The adjustable DC output and real-time parameter display can help technicians establish controlled power conditions while checking abnormal current or power behavior in compatible DC bus circuits and electronic assemblies.
Engineering Development and Laboratory Testing
The SPPS-C605 can be used as an adjustable DC Power Supply Bench Supply for prototype evaluation, laboratory experiments, engineering verification, and repeated DC bus testing within its rated output capability.
Quality Check and Terms of Service
-

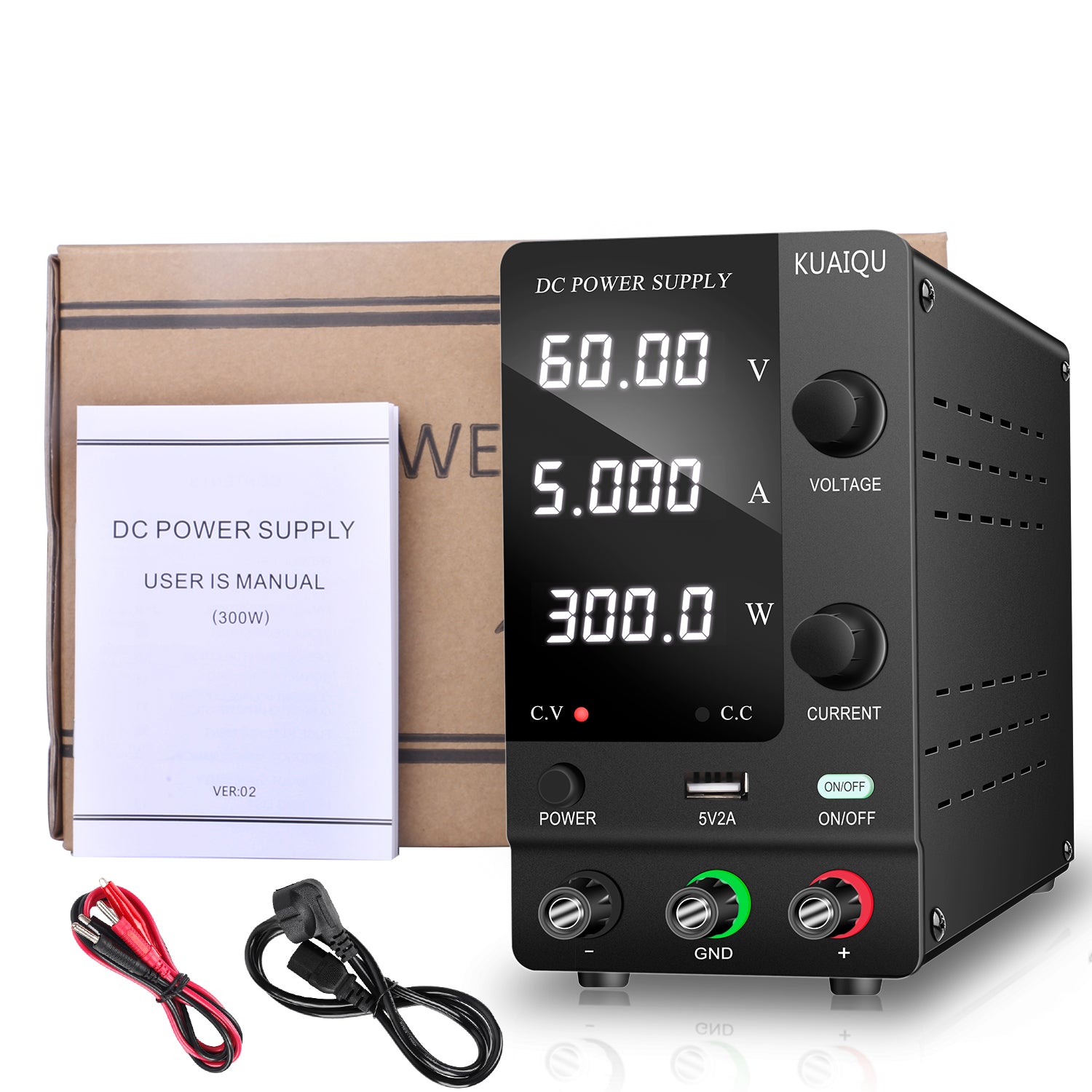

Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPPS-C605 |
| Rated Output Voltage |
0-60V |
| Rated Output Current |
0-5A |
| Rated Output Power |
300W |
| Rated Operating Temperature |
0-40℃ |
| Voltage Ripple |
≤200 mVp-p / ≤20 mVrms |
| Current Ripple |
≤20 mArms |
| Voltage Setting Accuracy |
≤0.01% + 15mV |
| Voltage Readback Accuracy |
≤0.01% + 15mV |
| Current Accuracy |
≤0.01% + 10mA |
| Voltage Setting Resolution |
10mV |
| Voltage Readback Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Current Readback Resolution |
1mA |
| Load Regulation Voltage |
≤0.3% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Rise Time No Load |
≤200ms |
| Rise Time Full Load |
≤300ms |
| Fall Time No Load |
≤20S |
| Fall Time Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| USB Output |
5V/2A |
| Input |
AC 220V, AC110V optional |
| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
| Package Size |
Approx. 29.5 × 13 × 21 cm |
| Package Weight |
Approx. 1.65 kg |
| Carton Quantity |
8 pcs/carton |
Why Choose KUAIQU SPPS-C605?
The KUAIQU SPPS-C605 combines a 0-60V adjustable DC output, up to 5A current, and 300W maximum power to provide controlled DC power conditions for 48V DC Bus Testing.
Its dual-knob Encoder Adjustment makes it practical to establish and change DC bus voltage and current settings, while the 4-digit Voltage Current Power Display provides real-time electrical information during testing. CV/CC operation supports different compatible load conditions, and Output Control allows users to manage when DC power is applied to the connected circuit.
For laboratory development, engineering verification, troubleshooting, and repeated DC bus evaluation, the SPPS-C605 provides a compact DC Power Supply Bench Supply that combines adjustable output, controlled parameter adjustment, electrical parameter display, and convenient output operation in one bench-top unit.
