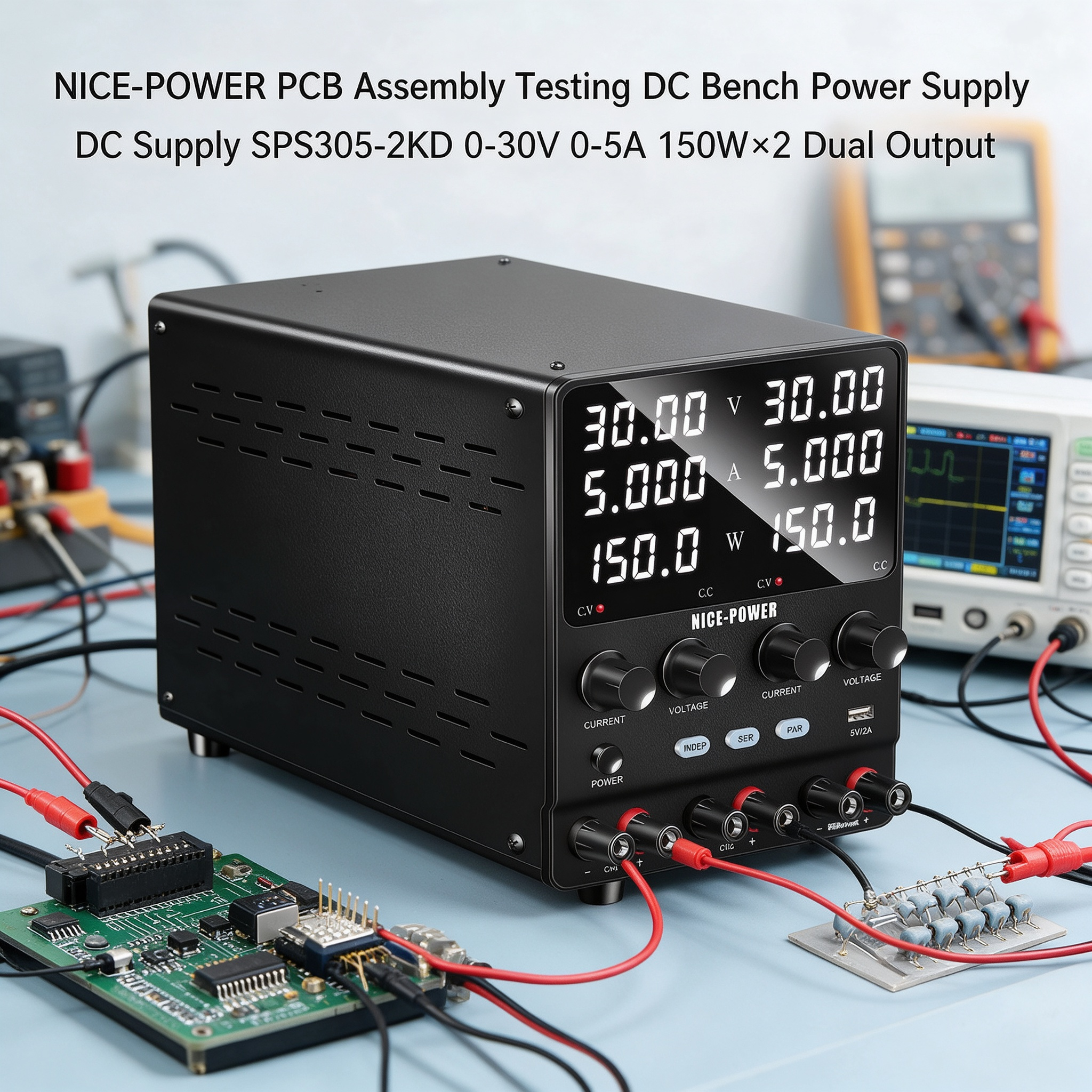

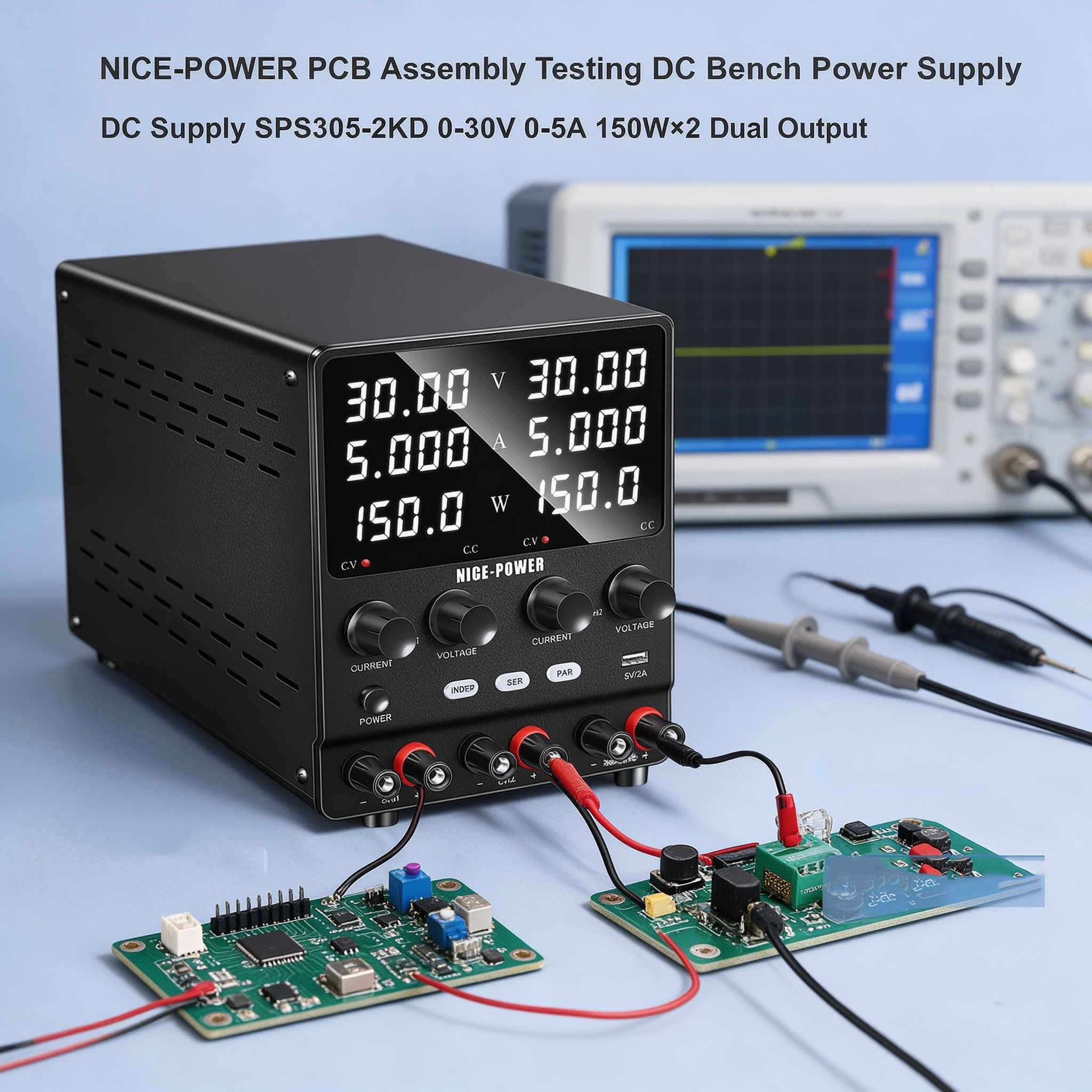

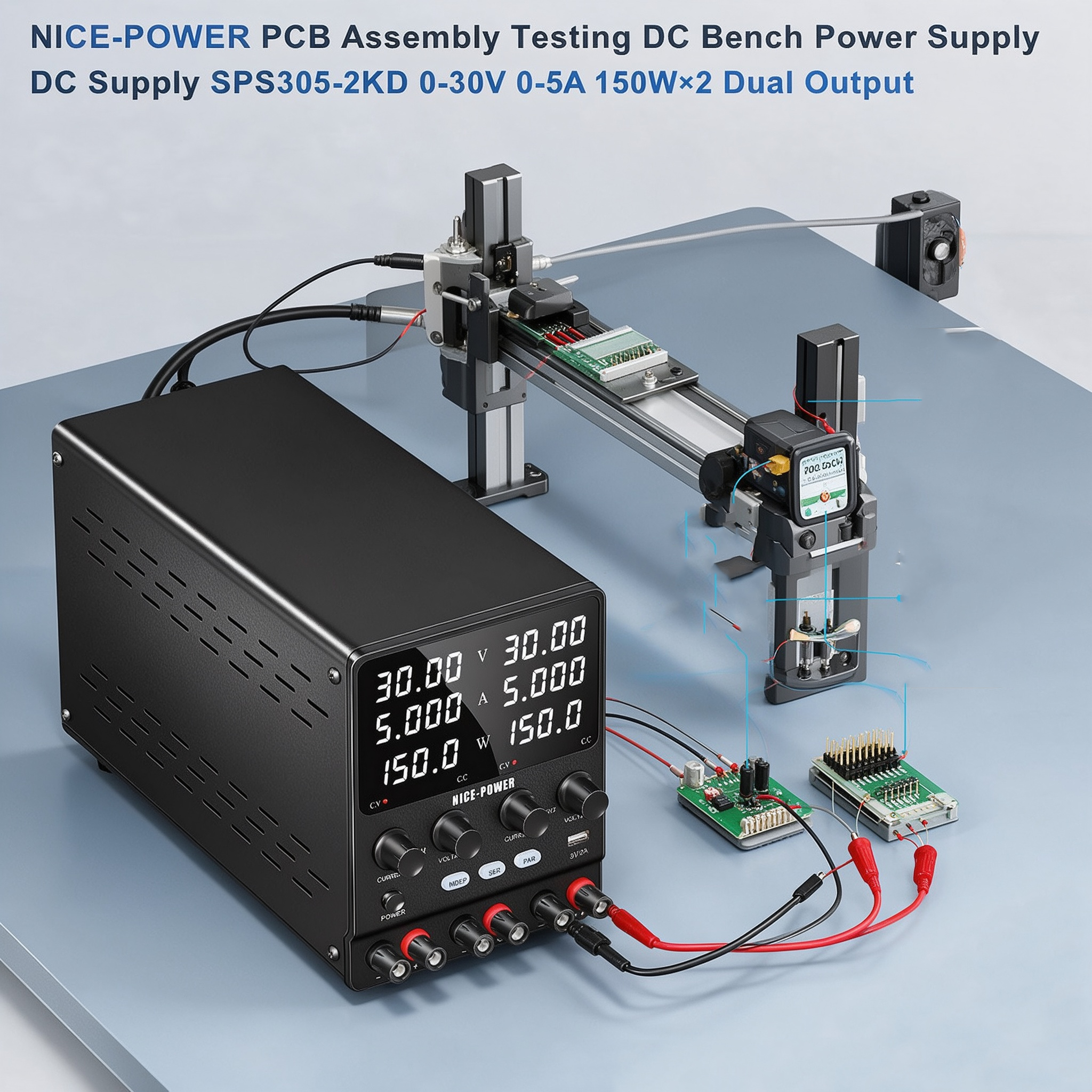

NICE-POWER PCB Assembly Testing DC

Bench Power Supply DC Supply SPS305-

2KD 0-30V 0-5A 150W×2 Dual Output

The NICE-POWER SPS305-2KD is a DC Bench Power Supply designed for PCB Assembly Testing, electronic production verification, circuit board debugging, and prototype validation. With dual independent output channels, one-key series mode, one-key parallel mode, encoder adjustment, and a dedicated series-parallel output port, this Dual Output DC Supply provides flexible power configuration options for engineers working with assembled circuit boards.

Featuring 0-30V and 0-5A output capability per channel with 150W×2 independent output power, the SPS305-2KD allows users to provide adjustable DC power conditions for PCB assemblies, electronic modules, control boards, and prototype circuits during testing.

For PCB Assembly Testing, engineers can adjust voltage and current according to different board requirements, supply power to multiple circuit sections, and quickly switch between independent, series, and parallel output modes. The dedicated series-parallel output port simplifies wiring when changing output configurations, improving efficiency during laboratory testing and production verification.

Key Features

Dual Independent Output for PCB Assembly Testing

The SPS305-2KD features two independent adjustable output channels, providing flexible power supply options for PCB Assembly Testing applications.

During PCB testing, engineers may need to power different sections of an assembled board, such as the main control circuit, peripheral modules, or auxiliary circuits. The dual independent output design allows separate power adjustment for different test requirements.

Each channel supports 0-30V and 0-5A output, providing adjustable DC power for circuit boards, assembled PCB modules, and electronic prototypes.

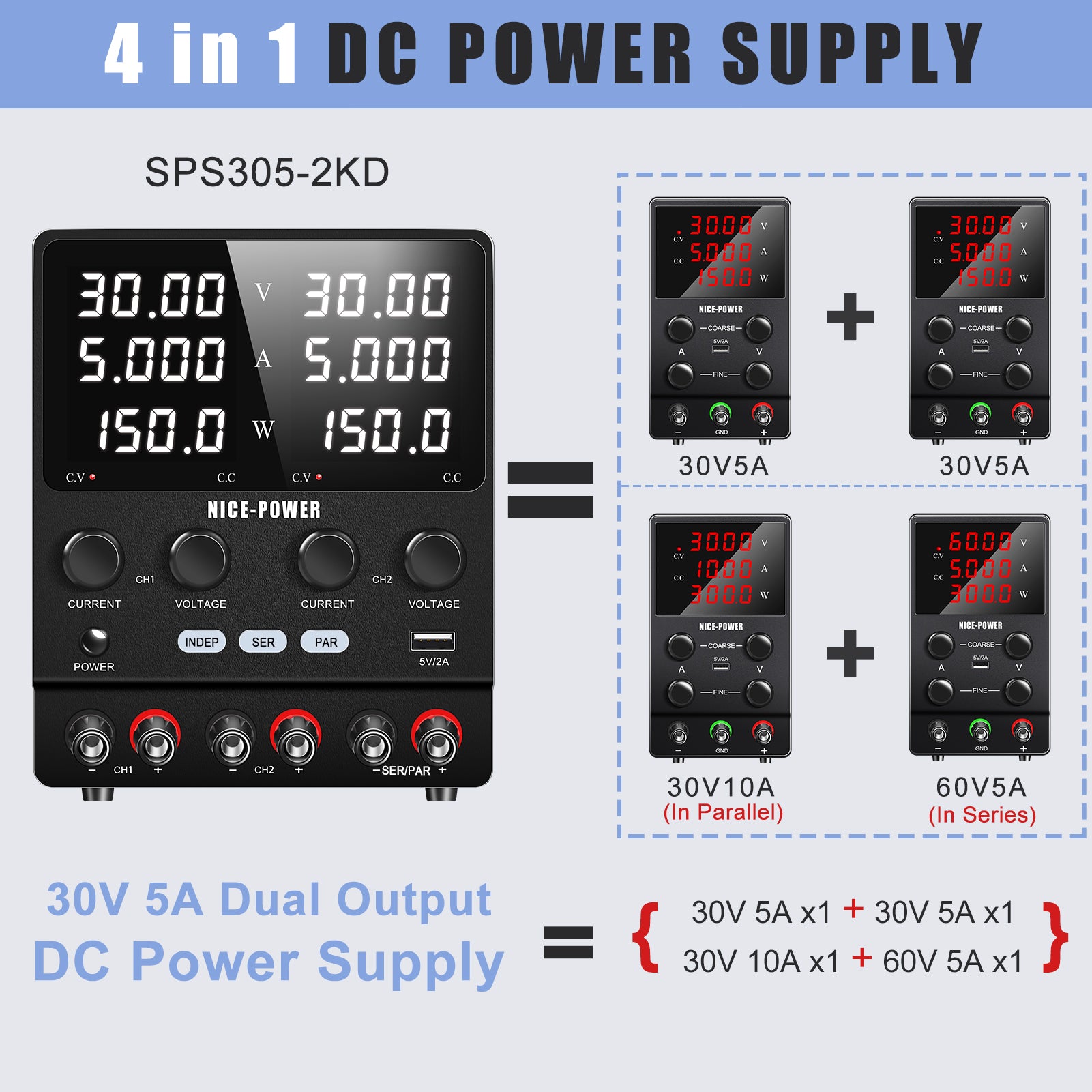

One-Key Series Mode for Extended Voltage Testing

The SPS305-2KD supports One-Key Series Mode, allowing two output channels to be combined into a higher voltage output configuration.

During PCB Assembly Testing, some assembled boards or circuit modules may require different voltage conditions during verification. Series mode provides up to 60V and 5A output, expanding the available testing range.

The one-key series function allows engineers to quickly configure higher voltage testing conditions without complicated external wiring.

One-Key Parallel Mode for Higher Current Testing

The SPS305-2KD supports One-Key Parallel Mode, allowing two output channels to work together for higher current output capability.

When testing PCB assemblies containing multiple electronic components or higher current circuits, parallel mode provides up to 30V and 10A output.

This function helps engineers create suitable current conditions for circuit board evaluation and reduces the need for additional power equipment.

Encoder Adjustment for Accurate Parameter Setting

The SPS305-2KD uses encoder adjustment control, allowing engineers to adjust voltage and current parameters more conveniently during PCB Assembly Testing.

During PCB debugging and verification, engineers often need to fine tune power parameters and observe circuit responses under different operating conditions.

The encoder adjustment design improves adjustment efficiency and provides more accurate control during repeated testing processes.

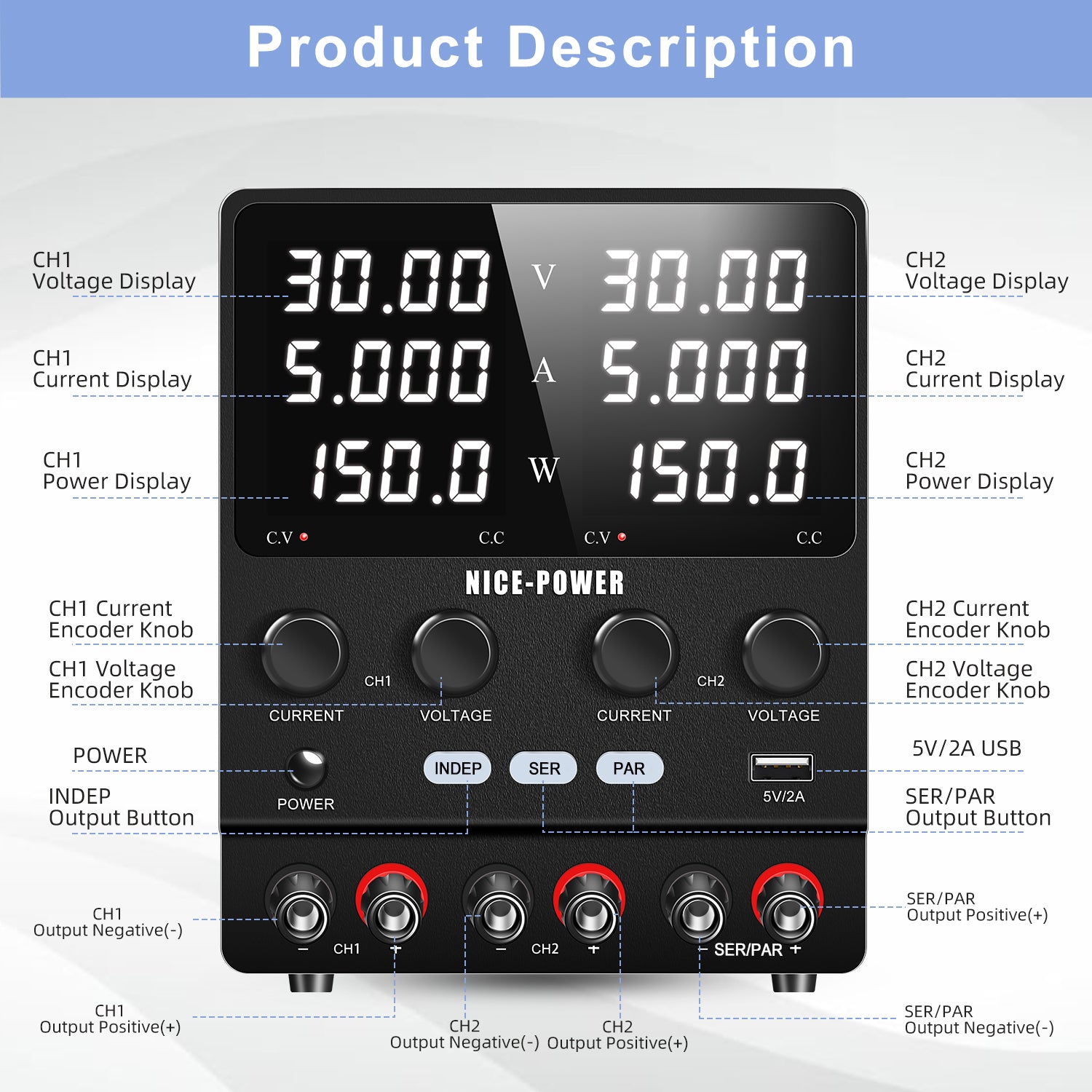

Dedicated Series-Parallel Output Port for Simplified Wiring

The SPS305-2KD includes a dedicated series-parallel output port, helping simplify connections when changing between different output modes.

During PCB testing procedures, engineers may need different power configurations according to board design requirements. The dedicated output port reduces complicated wiring operations and makes configuration changes more convenient.

This design helps improve efficiency in laboratory environments and electronic production testing.

Negative Voltage-0-Positive Voltage Output Mode for PCB Testing

The SPS305-2KD supports negative voltage-0-positive voltage output mode, providing additional flexibility for PCB circuits requiring different voltage reference conditions.

Some assembled circuit boards include analog circuits, signal processing sections, or special electronic modules that require positive and negative voltage testing.

This function allows engineers to create suitable power conditions for different PCB verification requirements.

Applications

PCB Assembly Testing

The SPS305-2KD is designed for PCB Assembly Testing applications requiring adjustable DC power output.

It can be used for testing assembled circuit boards, electronic modules, control boards, and prototype PCB designs during development, debugging, and production verification.

Circuit Board Debugging

The SPS305-2KD provides adjustable voltage and current output for engineers debugging PCB circuits.

Users can change power parameters according to circuit requirements and observe board operation under different electrical conditions.

Electronic Module Verification

The SPS305-2KD supports testing of electronic modules assembled on PCB platforms.

The dual independent output structure allows engineers to provide separate power sources for different circuit sections during verification.

Prototype PCB Development

The SPS305-2KD is suitable for prototype PCB development and laboratory testing.

Its flexible output modes allow engineers to create different power environments for circuit validation and design evaluation.

Quality Check and Terms of Service

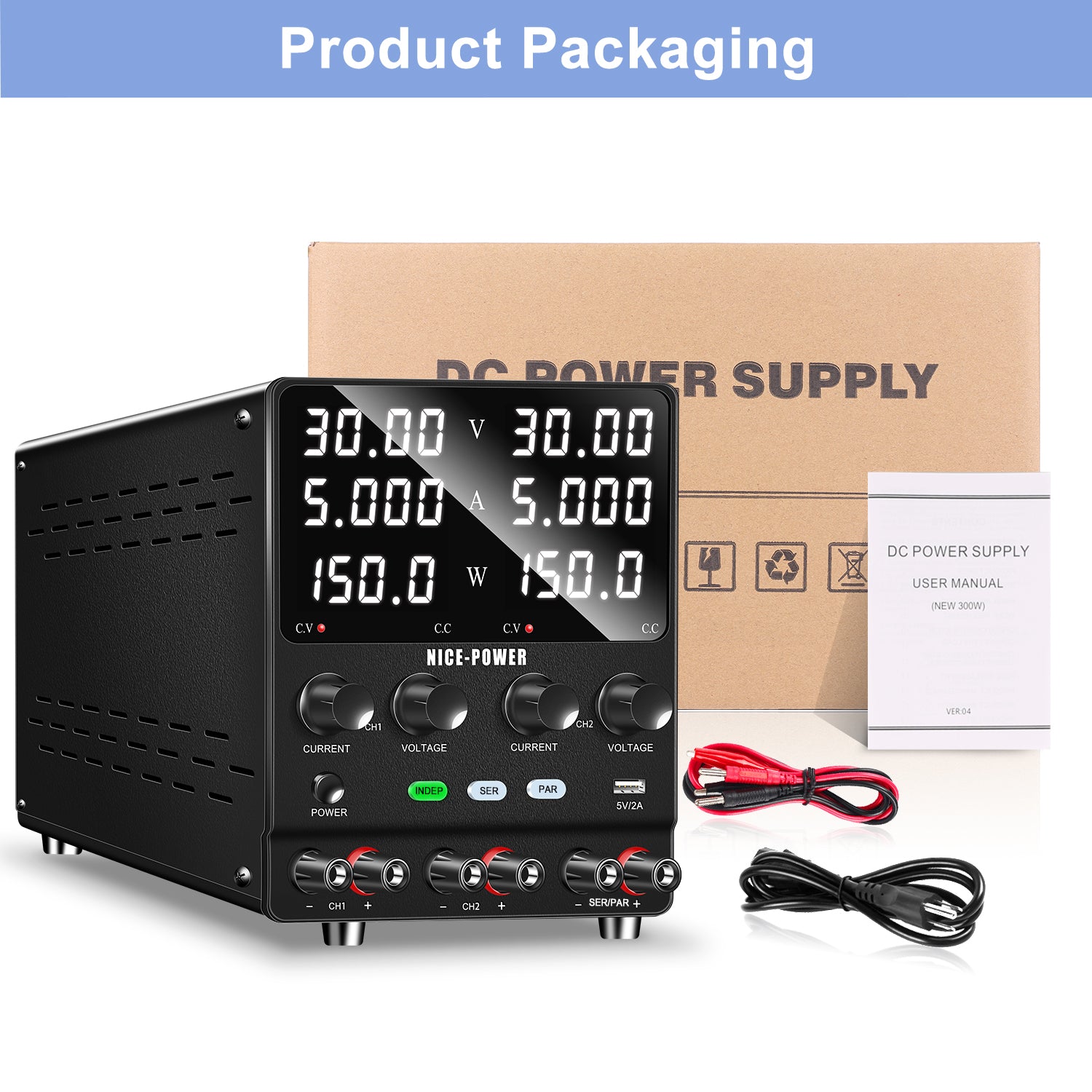

• Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.

• Has passed CE & FCC Certification.

• All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER SPS305-2KD?

The NICE-POWER SPS305-2KD combines DC Bench Power Supply capability, Dual Independent Output, One-Key Series Mode, One-Key Parallel Mode, Encoder Adjustment, and Dedicated Series-Parallel Output Port to provide a flexible power solution for PCB Assembly Testing.

With 0-30V and 0-5A output per channel, 150W×2 independent output capability, and multiple output configuration options, the SPS305-2KD allows engineers to create suitable testing environments for PCB assemblies, electronic modules, and prototype circuit boards.

The SPS305-2KD provides a practical DC Supply solution for users requiring adjustable voltage and current output, flexible connection modes, and convenient power configuration during PCB testing, circuit debugging, and electronic development.
