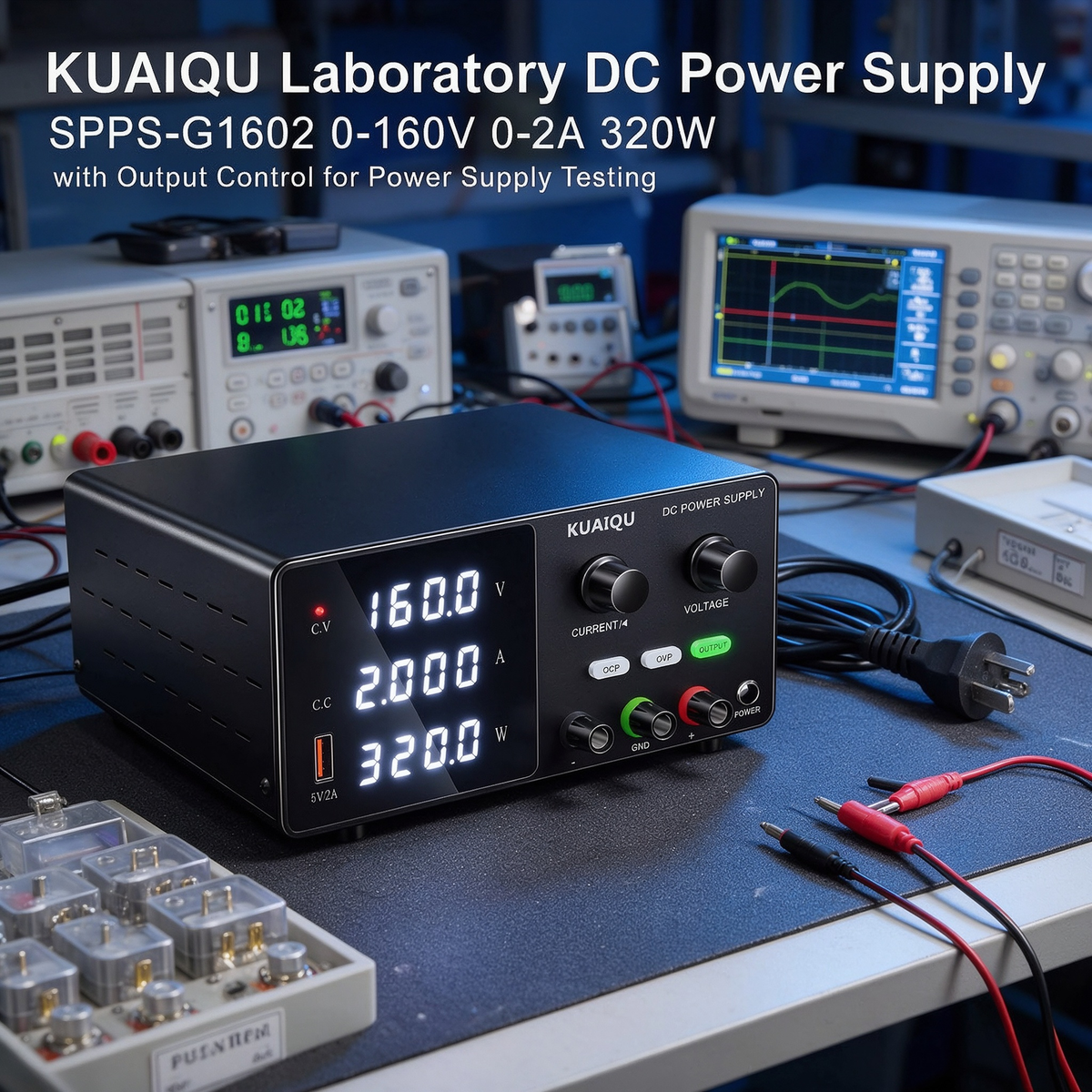

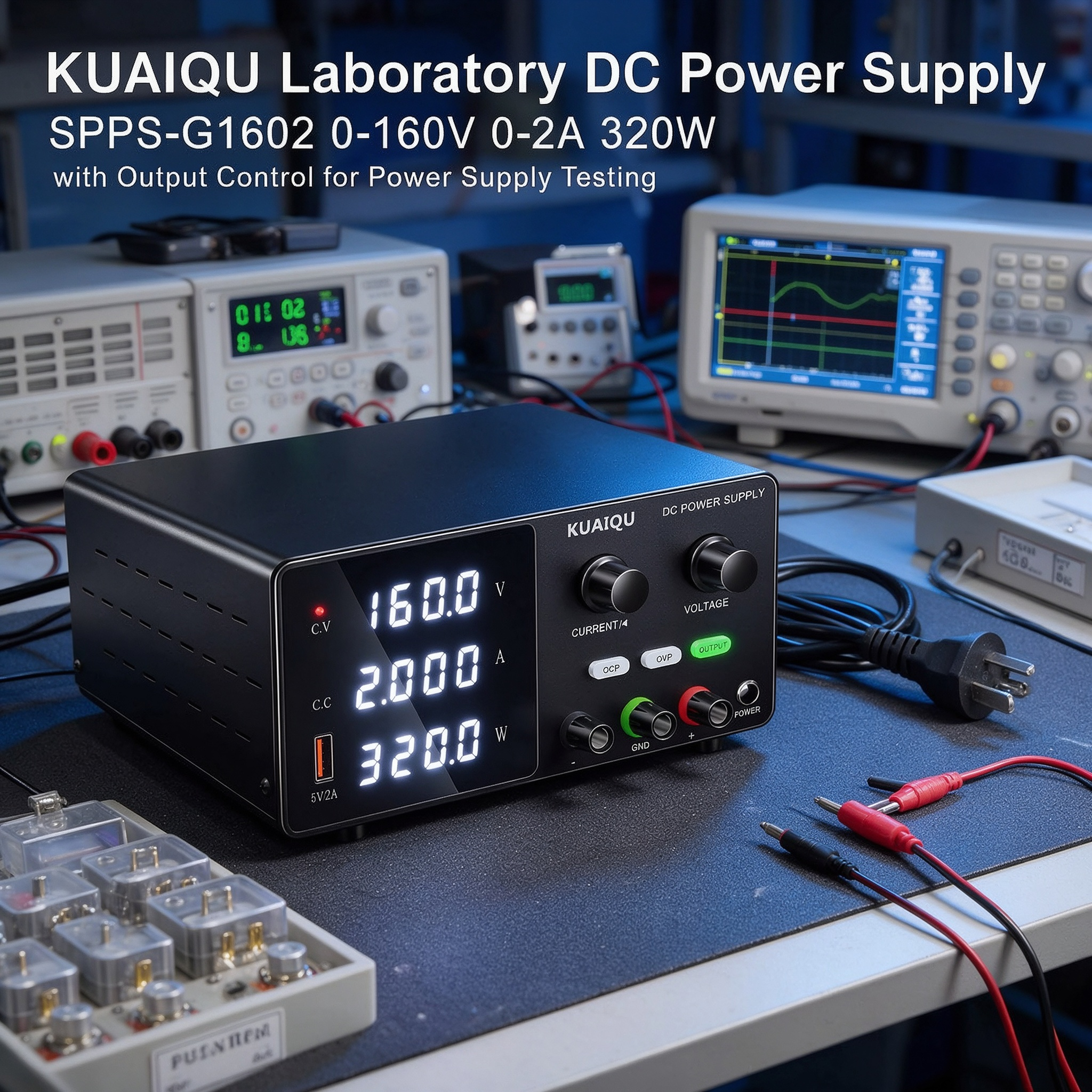

KUAIQU Laboratory DC Power Supply
SPPS-G1602 0-160V 0-2A 320W with
Output Control for Power Supply Testing
The KUAIQU SPPS-G1602 is a 0-160V 0-2A 320W Laboratory DC Power Supply designed for Power Supply Testing and electronic power evaluation applications. With a wide adjustable voltage range up to 160V, a maximum output current of 2A, and 320W power capacity, it provides controlled DC output conditions for testing power circuits, electronic devices, and compatible DC power systems.

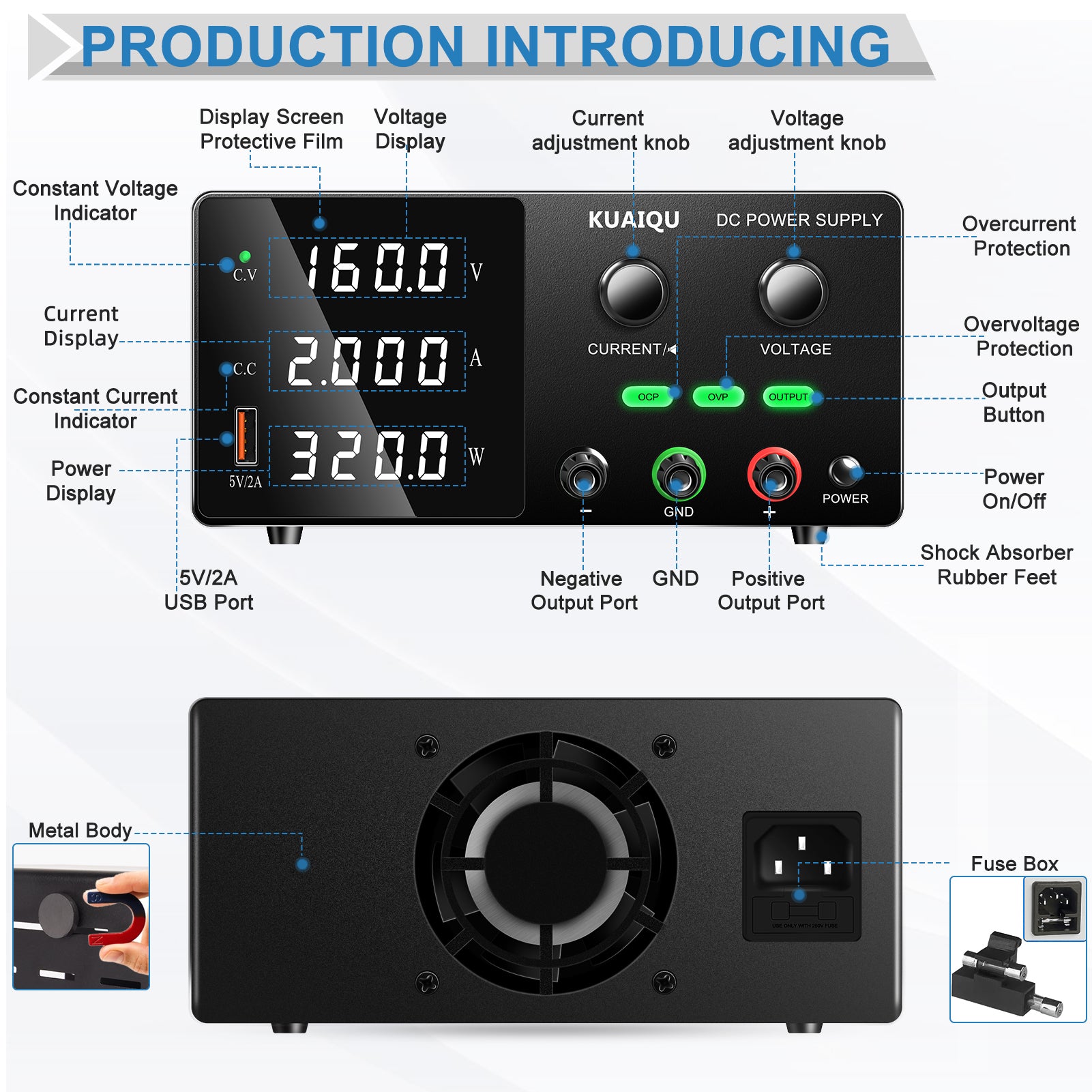

During power supply testing, engineers need flexible voltage adjustment, stable current control, and clear monitoring of electrical parameters to evaluate different output conditions. The SPPS-G1602 features encoder knob adjustment, Output ON/OFF control, CV/CC operation, 4-digit voltage/current display, and OCP/OVP protection to support practical bench testing and power evaluation within its rated specifications.
Key Features
0-160V Adjustable Output for Power Supply Testing
The SPPS-G1602 provides a wide 0-160V adjustable DC output range, allowing users to configure different voltage conditions during power supply testing. The adjustable output helps simulate various DC input and output requirements for compatible electronic circuits and power-related equipment.
320W Power Capacity with Adjustable Current Control
With up to 2A output current and 320W maximum power capacity, the Laboratory DC Power Supply provides flexible power adjustment for testing applications. Users can set suitable voltage and current parameters when evaluating the performance of compatible power supply circuits and electronic devices.

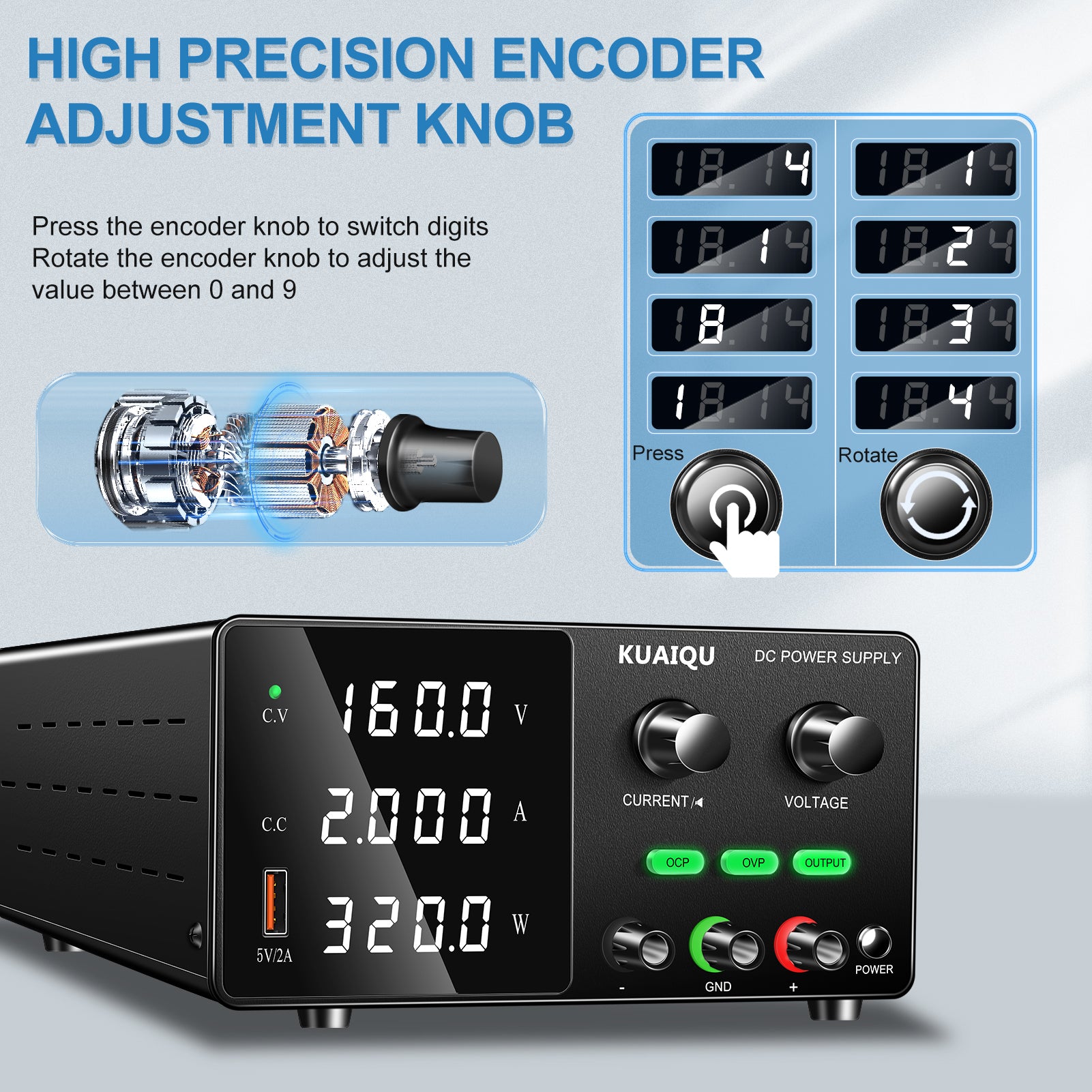

Encoder Adjustment for Precise Test Parameter Setting
The SPPS-G1602 uses an encoder knob adjustment system for voltage and current control. This allows users to adjust output parameters conveniently when changing test conditions or evaluating different power supply operating states.
For voltage settings below 100V, the unit provides 10mV voltage setting resolution. For voltage settings at or above 100V, it provides 0.1V resolution to support different voltage adjustment requirements.
Constant Voltage and Constant Current Operation
The SPPS-G1602 supports Constant Voltage (CV) and Constant Current (CC) operation modes. These functions allow the DC Power Supply to maintain controlled output conditions according to connected load changes during compatible power supply testing procedures.
4-Digit Voltage and Current Display
The built-in 4-digit display provides real-time voltage, current, and power information. During Power Supply Testing, users can monitor electrical parameters directly and evaluate output changes during different test conditions.

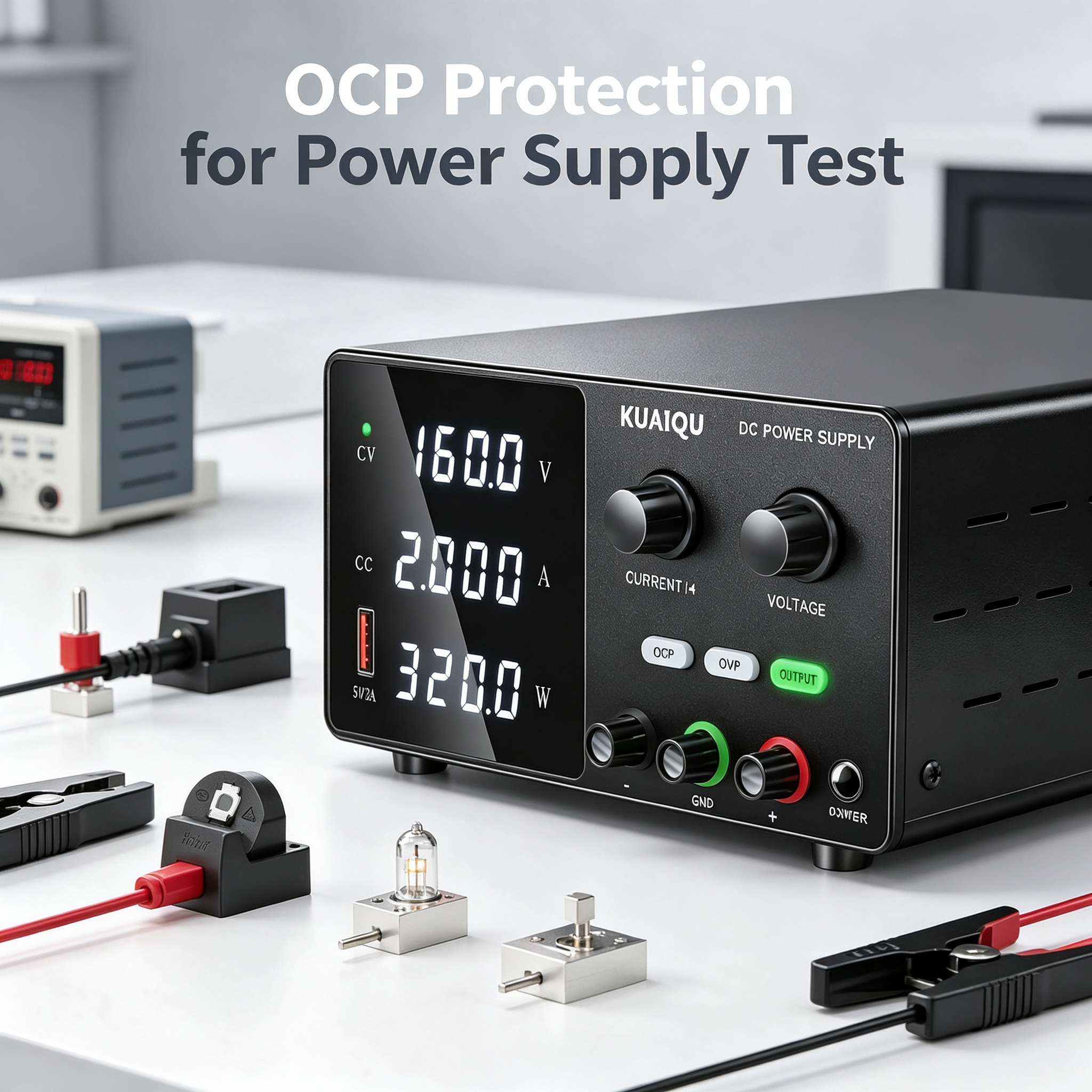

OCP and OVP Protection for Testing Safety
The SPPS-G1602 includes Over Current Protection (OCP) and Over Voltage Protection (OVP). These protection functions help reduce the risk of abnormal output conditions when testing compatible power supply circuits and electronic equipment.

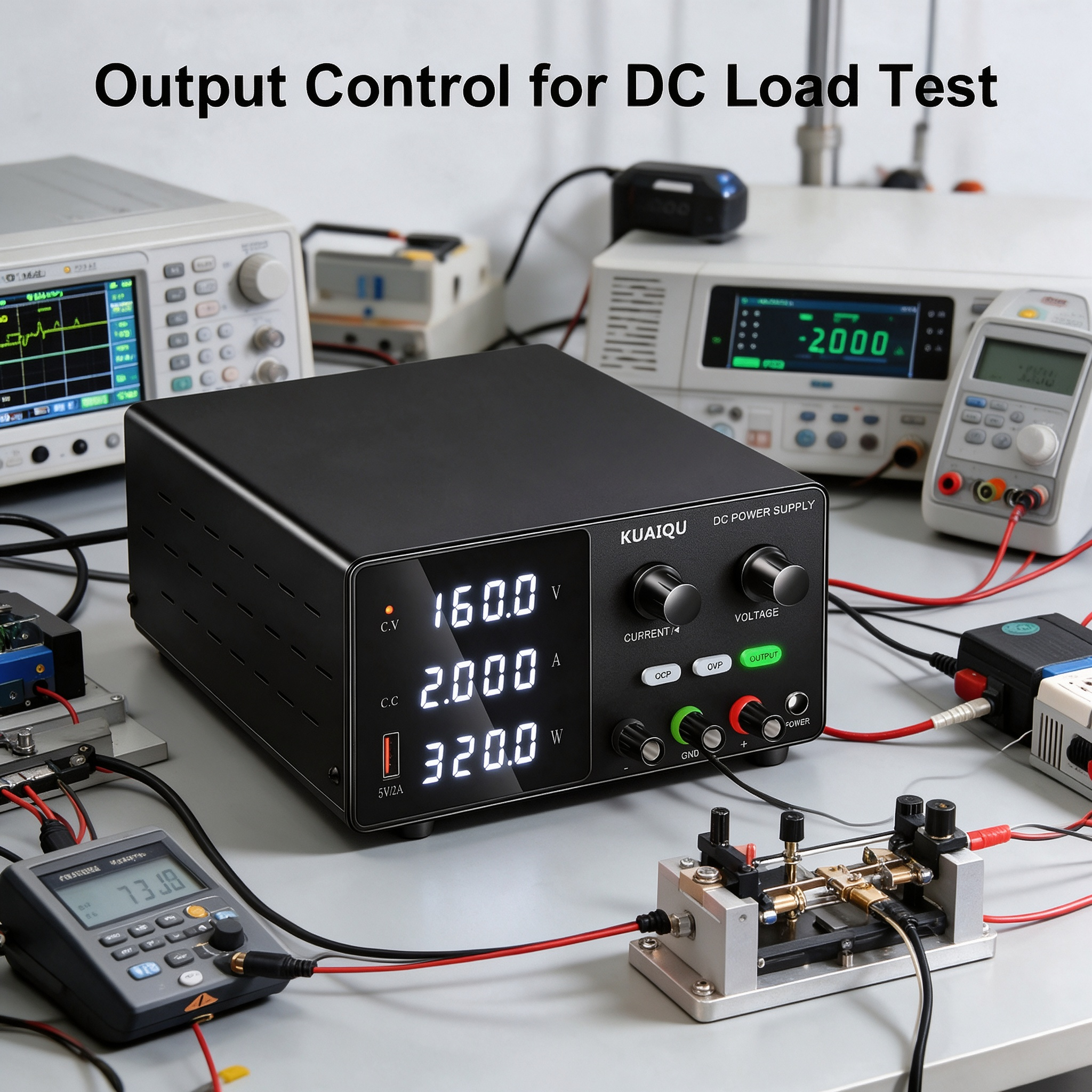

Output ON/OFF Control for Convenient Test Operation
The independent Output ON/OFF control allows users to set voltage and current parameters before applying power to the connected device. This improves convenience when preparing test conditions or changing connected equipment.
High Resolution Voltage Adjustment for Evaluation
The SPPS-G1602 provides different voltage adjustment resolutions according to output voltage levels. This helps users configure more suitable test parameters when evaluating power supply output conditions.
USB 5V/2A Auxiliary Output
The integrated USB 5V/2A output provides additional power for compatible USB-powered accessories and auxiliary equipment used during laboratory testing.
Adjustable Buzzer with Mute Function
The encoder knob includes buzzer feedback during operation, and users can adjust or mute the buzzer according to different laboratory environments.
Applications
Power Supply Output Testing
The SPPS-G1602 provides adjustable DC output conditions for testing compatible power supply circuits and evaluating output performance under different voltage and current settings.
DC Power Circuit Evaluation
The adjustable voltage and current control allow engineers to provide controlled DC conditions for evaluating electronic power circuits and related components.
Power Conversion Testing
The Laboratory DC Power Supply can be used as an adjustable DC source for compatible power conversion circuit testing and development applications.
Electronic Device Power Testing
The SPPS-G1602 provides controlled DC power for testing compatible electronic devices that require adjustable voltage and current conditions.
Laboratory Bench Testing
The compact design, encoder adjustment, display monitoring, and protection functions make the SPPS-G1602 suitable for daily laboratory and engineering bench testing tasks.
Quality Check and Terms of Service

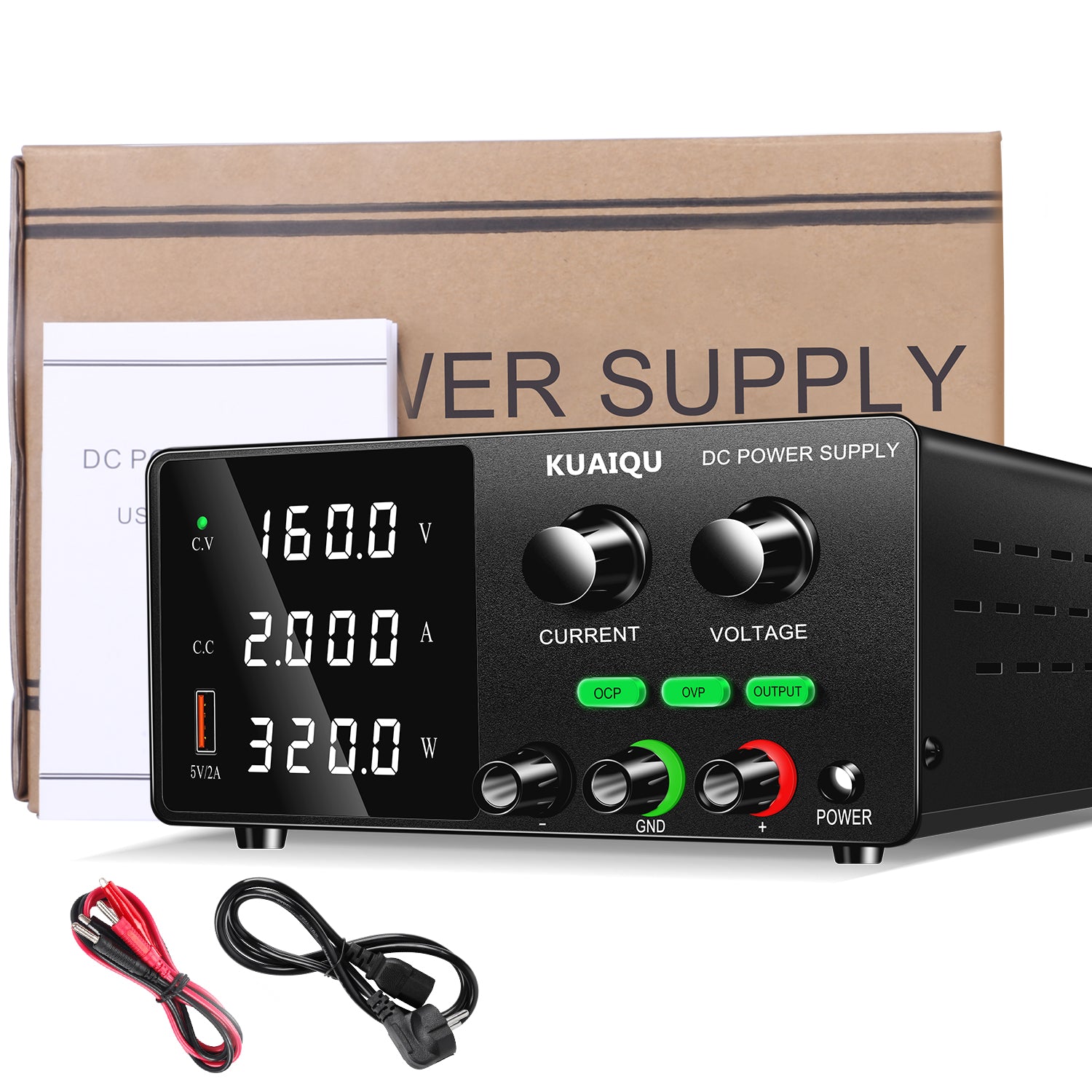

Package Includes
Each KUAIQU SPPS-G1602 Laboratory DC Power Supply package includes the necessary accessories for normal operation.
-
DC Power Supply ×1
-
Output Power Cord ×1
-
Input Power Cord ×1
-
User Manual ×1
-
Warranty Card ×1
CE & FCC Certification
The SPPS-G1602 DC Power Supply is manufactured with high-quality electronic components and is FCC and CE certified to provide reliable and stable performance for compatible testing applications.
Inspection Before Shipment
All DC power supplies and accessories are inspected before shipment to help ensure proper operation and product quality.
Customer Support within 24 Hours
If you have any questions about the product, operation, or specifications, please contact us. KUAIQU customer support will respond within 24 hours.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Value (0°C~40°C) | |
| Voltage | 0-160V |
| Current | 0-2A |
| Power | 320W |
| USB Output | 5V/2A |
| Load Regulation | |
| Voltage | ≤0.3% + 10mV |
| Current | ≤0.1% + 2.5mA |
| Line Regulation | |
| Voltage | ≤0.01% + 2.5mV |
| Current | ≤0.1% + 2.5mA |
| Setting Resolution | |
| Voltage | <100V: 10mV / ≥100V: 0.1V |
| Current | 1mA |
| Readback Resolution | |
| Voltage | <100V: 10mV / ≥100V: 0.1V |
| Current | 1mA |
| Setting Accuracy | |
| Voltage | ≤0.01% + 15mV |
| Current | ≤0.01% + 10mA |
| Readback Accuracy | |
| Voltage | ≤0.01% + 15mV |
| Current | ≤0.01% + 10mA |
| Ripple (20Hz~20MHz) | |
| Voltage | ≤300mVp-p / ≤30mVrms |
| Current | ≤30mArms |
| Rise Time (No Load) | ≤200ms |
| Rise Time (Full Load) | ≤300ms |
| Fall Time (No Load) | ≤30s |
| Fall Time (Full Load) | ≤300ms |
| Dynamic Response | ≤200ms |
| Efficiency | ≥85% |
| Input Voltage | AC220V (AC110V optional) |
| Size / Net Weight | Approx. 21 × 17 × 8 cm / 1.3 kg |
| Package Size / Weight | Single unit: 31 × 12.5 × 22 cm / 1.72 kg |
| Carton Quantity | 8 pcs / carton |
Why Choose KUAIQU SPPS-G1602?
The KUAIQU SPPS-G1602 combines 0-160V adjustable output, 0-2A current control, 320W power capacity, encoder adjustment, Output ON/OFF control, 4-digit voltage/current display, CV/CC operation, and OCP/OVP protection in one compact Laboratory DC Power Supply.
For Power Supply Testing, it provides adjustable DC power conditions, accurate parameter adjustment, and real-time electrical monitoring to support power circuit evaluation and electronic device testing within its specified operating range.
With wide voltage adjustment capability, practical protection functions, and convenient output control, the SPPS-G1602 is a reliable DC Power Supply solution for power supply testing, electronic circuit evaluation, power conversion testing, and laboratory bench applications.
