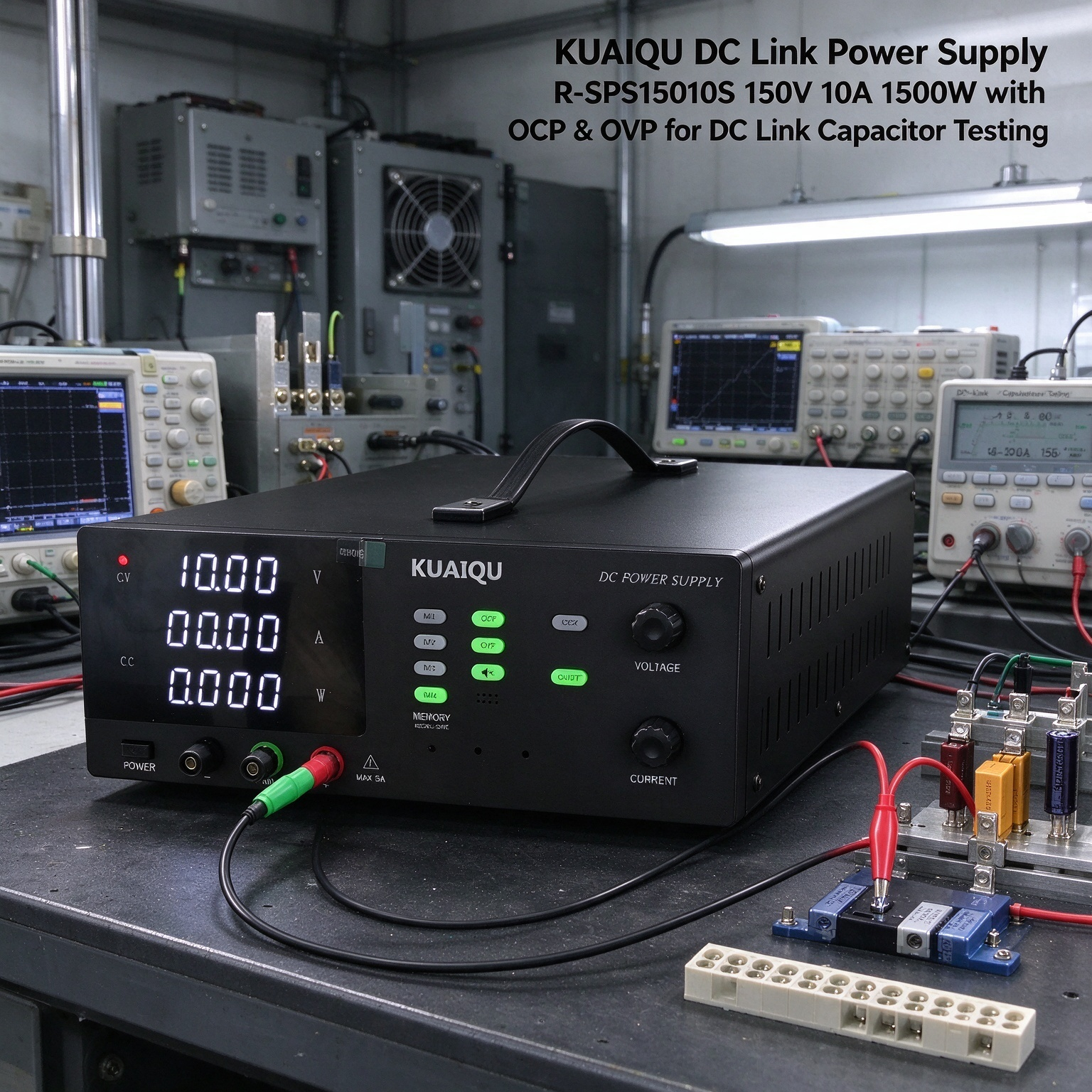

KUAIQU DC Link Power Supply
R-SPS15010S 150V 10A 1500W with OCP
& OVP for DC Link Capacitor Testing
Key Features
Adjustable 0–150V DC Output for DC Link Testing
R-SPS15010S provides an adjustable 0–150V DC output, allowing engineers to set suitable voltage conditions when evaluating DC link capacitors and related power electronics circuits. The wide voltage range supports different test requirements without changing the power supply.
10A Output and 1500W Power for High-Power Capacitor Tests
With up to 10A output current and 1500W rated power, this DC Link Power Supply provides a stable source for DC link capacitor test setups and high-power circuit evaluation. It is suitable for supplying controlled DC input conditions during capacitor and power electronics testing.
4-Digit Voltage, Current and Power Display
The 4-digit display provides real-time voltage, current and power readings, helping users monitor the electrical conditions applied to the DC link capacitor test setup. This makes it easier to observe changes during different test conditions.
Precision Encoder Adjustment
The precision encoder allows users to adjust the output settings smoothly and accurately. This is useful when gradually changing voltage or current conditions during DC Link Capacitor Testing and comparing capacitor behavior under different operating points.
OCP and OVP Protection
Built-in Over Current Protection and Over Voltage Protection help protect the power supply and connected test equipment when abnormal current or voltage conditions occur. These protection functions provide an additional layer of safety during DC link capacitor testing.
Output ON/OFF Control
The independent Output ON/OFF function allows users to control power delivery to the test setup without repeatedly changing the configured voltage and current settings. This is useful for repeated startup and shutdown tests of DC link capacitor circuits.
4-Group Memory Function
The M1–M4 memory function allows four groups of commonly used voltage and current settings to be stored and recalled. This helps reduce repeated manual adjustment when performing multiple DC link capacitor test conditions.
Panel Lock and Buzzer Mute
Panel Lock helps prevent unintended changes to the output settings during testing. The knob buzzer can also be muted when a quieter laboratory or engineering test environment is preferred.

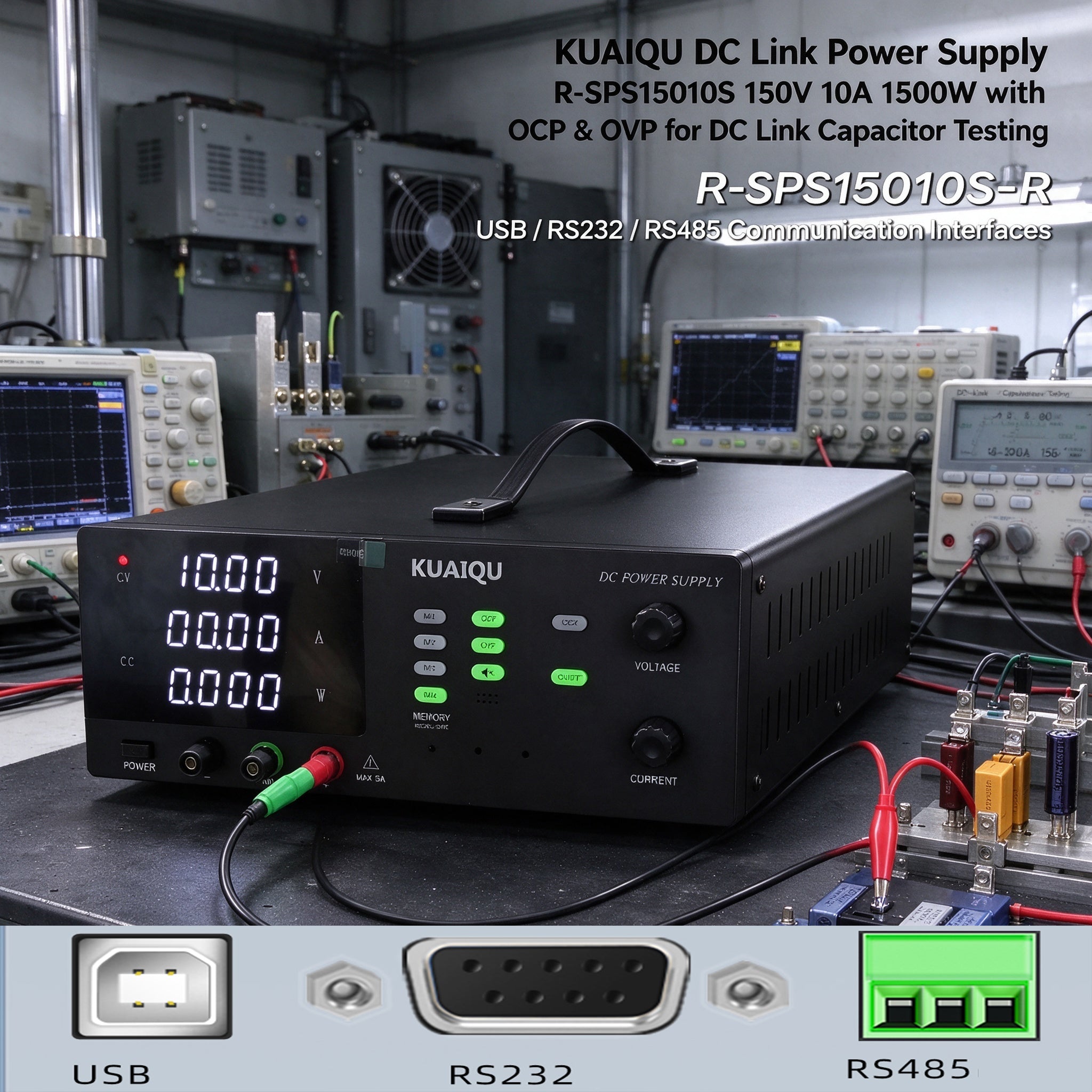

USB, RS232 and RS485 Interfaces
Standard USB, RS232 and RS485 interfaces provide convenient connectivity for test bench integration and equipment communication. These interfaces support the power supply as part of a broader test setup without claiming dedicated capacitor analysis or automated test functions.
Applications

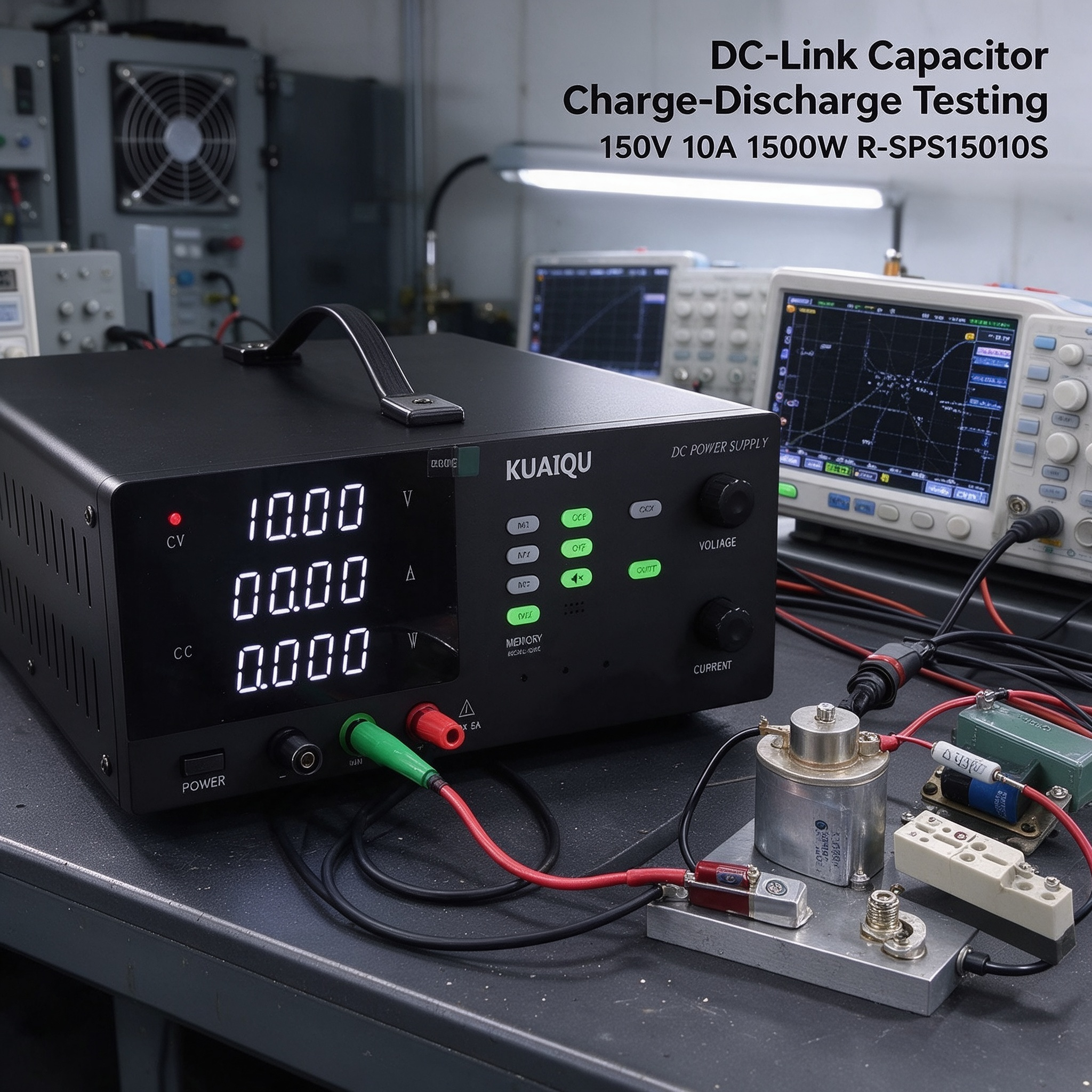

DC Link Capacitor Testing
Suitable for supplying adjustable DC conditions during DC link capacitor evaluation, including voltage application, current monitoring and operating condition checks.
DC Link Capacitor Electrical Testing
The 0–150V adjustable output and real-time electrical display allow engineers to observe voltage, current and power while evaluating capacitor test conditions.
Power Electronics DC Link Evaluation
Can be used as a DC source for test benches involving DC link capacitors and related power electronics circuits within the 150V, 10A and 1500W operating range.
Capacitor Startup and Shutdown Testing
Output ON/OFF control provides convenient control of power delivery when checking startup and shutdown behavior in DC link capacitor test setups.
Repeated DC Link Test Conditions
The M1–M4 memory function helps users recall commonly used settings for repeated testing and comparison across multiple DC link capacitor test conditions.

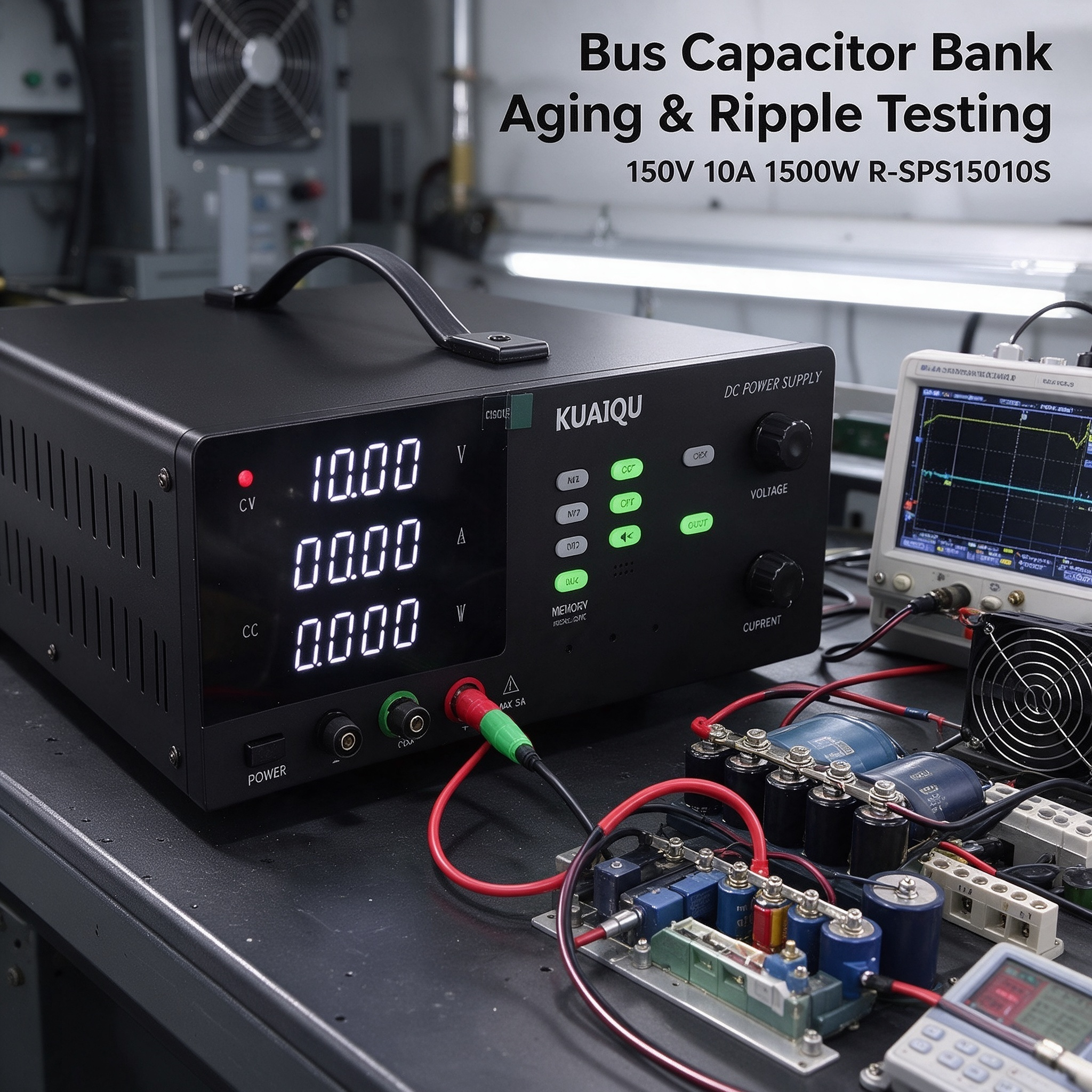

High-Power DC Link Test Benches
With up to 1500W output power and 10A current capability, R-SPS15010S is suitable for high-power DC link capacitor test benches that require an adjustable DC source and built-in protection.
Quality Check and Terms of Service:
-
Every power supply is inspected before shipment to help ensure reliable product quality.
-
Package includes: DC Power Supply ×1, Output Power Cord ×1, Input Power Cord ×1, User Manual ×1, Warranty Card ×1.
-
CE and FCC certified.
-
Customer support is available within 24 hours.
-
Please confirm the required voltage, current and power range before use to ensure the product is suitable for your DC Link Capacitor Testing application.
Technical Specifications
| Specification |
R-SPS15010S |
| Product Type |
High Power Adjustable DC Power Supply |
| Series |
R-SPS-S High Power Memory Series |
| Output Voltage |
0–150V |
| Output Current |
0–10A |
| Rated Power |
1500W |
| Voltage Display |
4 Digit |
| Current Display |
4 Digit |
| Power Display |
4 Digit |
| Voltage Setting / Readback Resolution |
10mV |
| Current Setting / Readback Resolution |
10mA |
| Voltage Setting / Readback Accuracy |
≤0.05% + 10mV |
| Current Setting / Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.1% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Ripple Voltage |
≤3500mVp-p / ≤1200mVrms |
| Ripple Current |
≤200mArms |
| Dynamic Response |
≤20ms |
| Rise Time |
≤100ms No Load / ≤150ms Full Load |
| Fall Time |
≤15s No Load / ≤50ms Full Load |
| Efficiency |
≥85% |
| Protection |
OCP / OVP |
| Output Control |
Output ON/OFF |
| Memory |
M1–M4, 4 Groups |
| Interfaces |
USB / RS232 / RS485 |
| Output Connection |
Front and Rear |
| Operating Temperature |
0–40°C |
| Product Size |
Approx. 35 × 27 × 10cm |
| Net Weight |
Approx. 4.6kg |
| Package Size |
Approx. 47 × 36 × 19cm |
| Package Weight |
Approx. 5.8kg |
| Carton Quantity |
2 pcs/carton |
| Certification |
CE / FCC |
Why Choose KUAIQU R-SPS15010S?
KUAIQU R-SPS15010S combines a 0–150V adjustable DC output, up to 10A current and 1500W power in a high-power DC Link Power Supply designed for demanding test bench applications. For DC Link Capacitor Testing, its 4-digit voltage, current and power display provides direct electrical monitoring, while the precision encoder makes output adjustment convenient. OCP and OVP add protection during testing, and Output ON/OFF control supports repeated test operations. M1–M4 memory, Panel Lock, buzzer mute and standard USB, RS232 and RS485 interfaces further support organized DC link capacitor and power electronics test setups.
