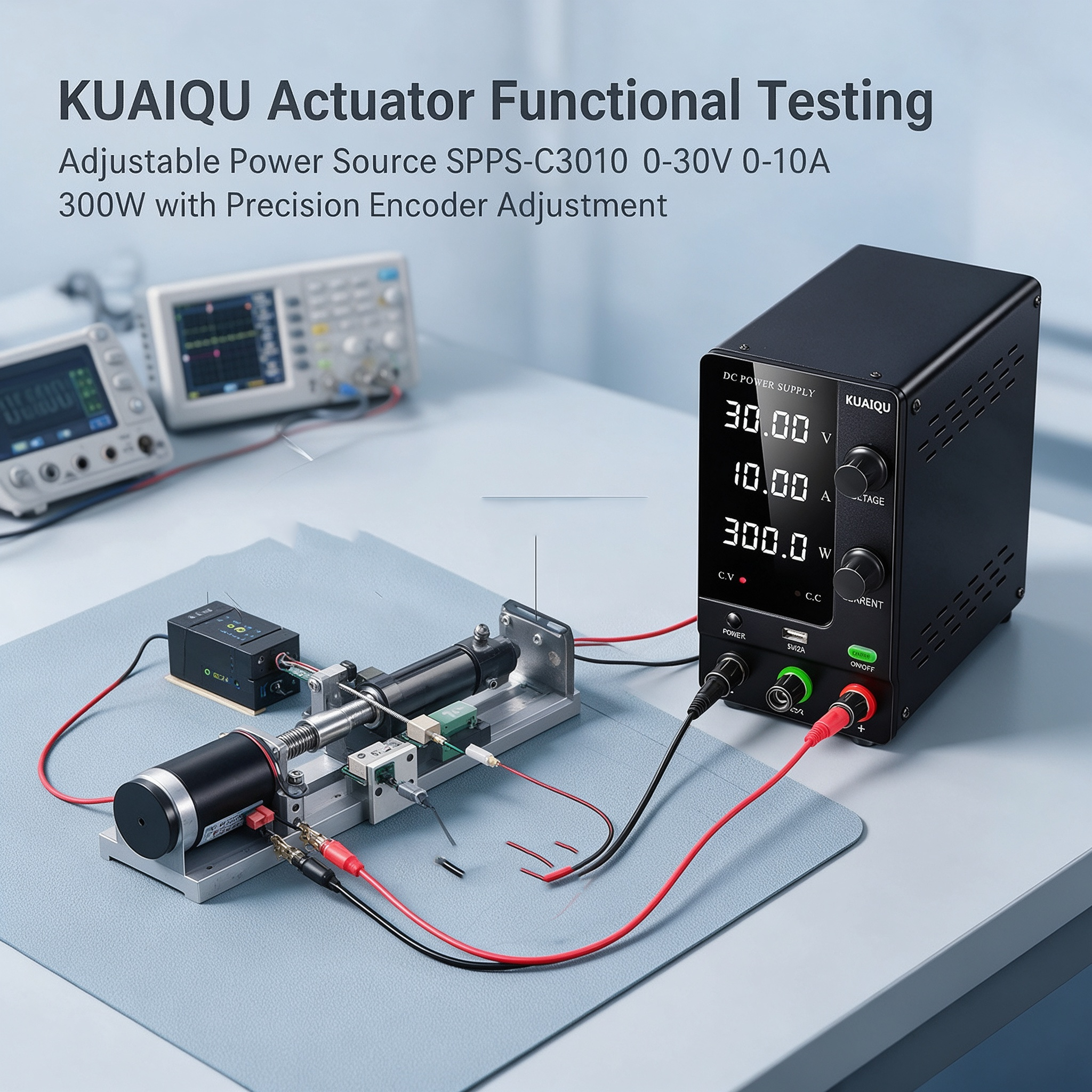

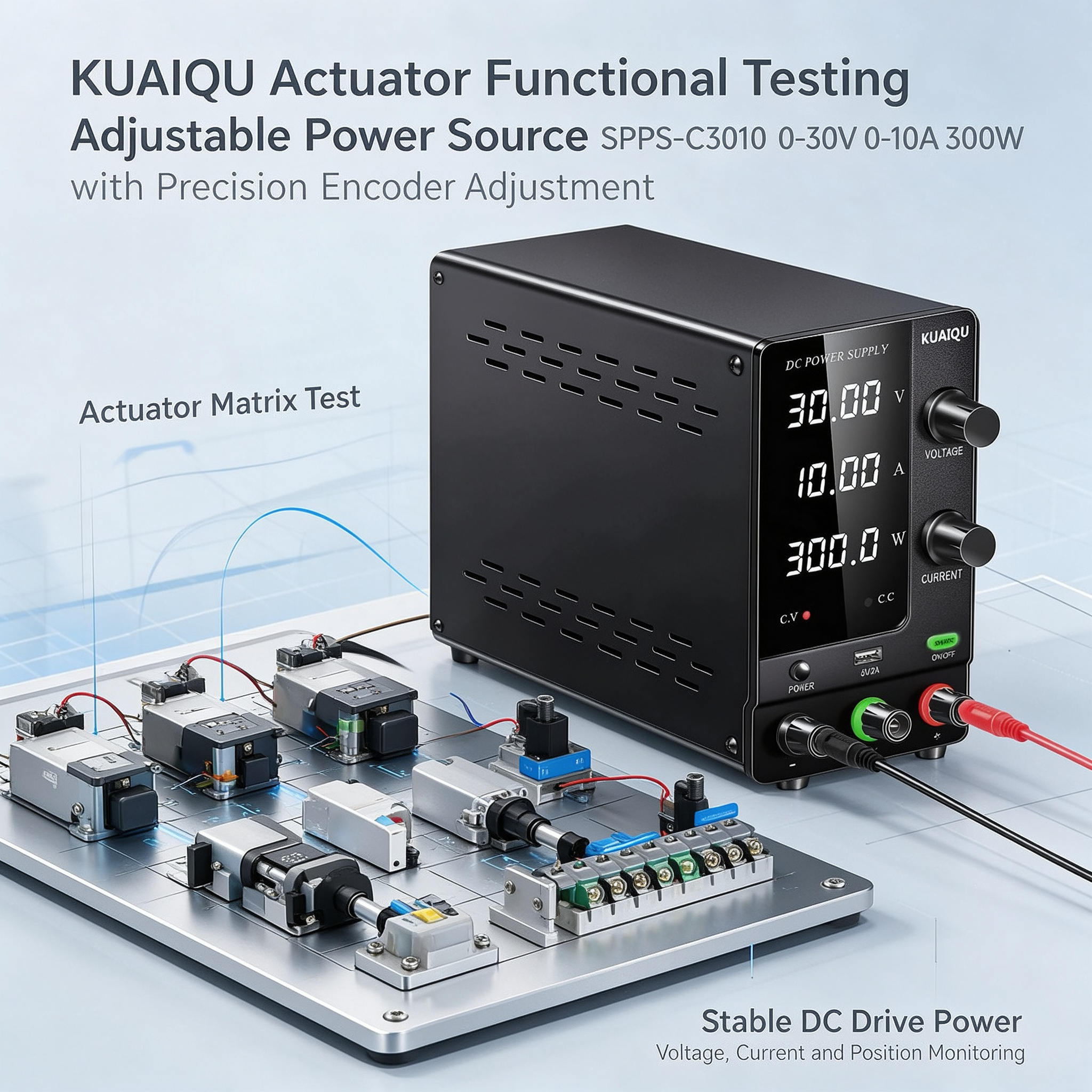

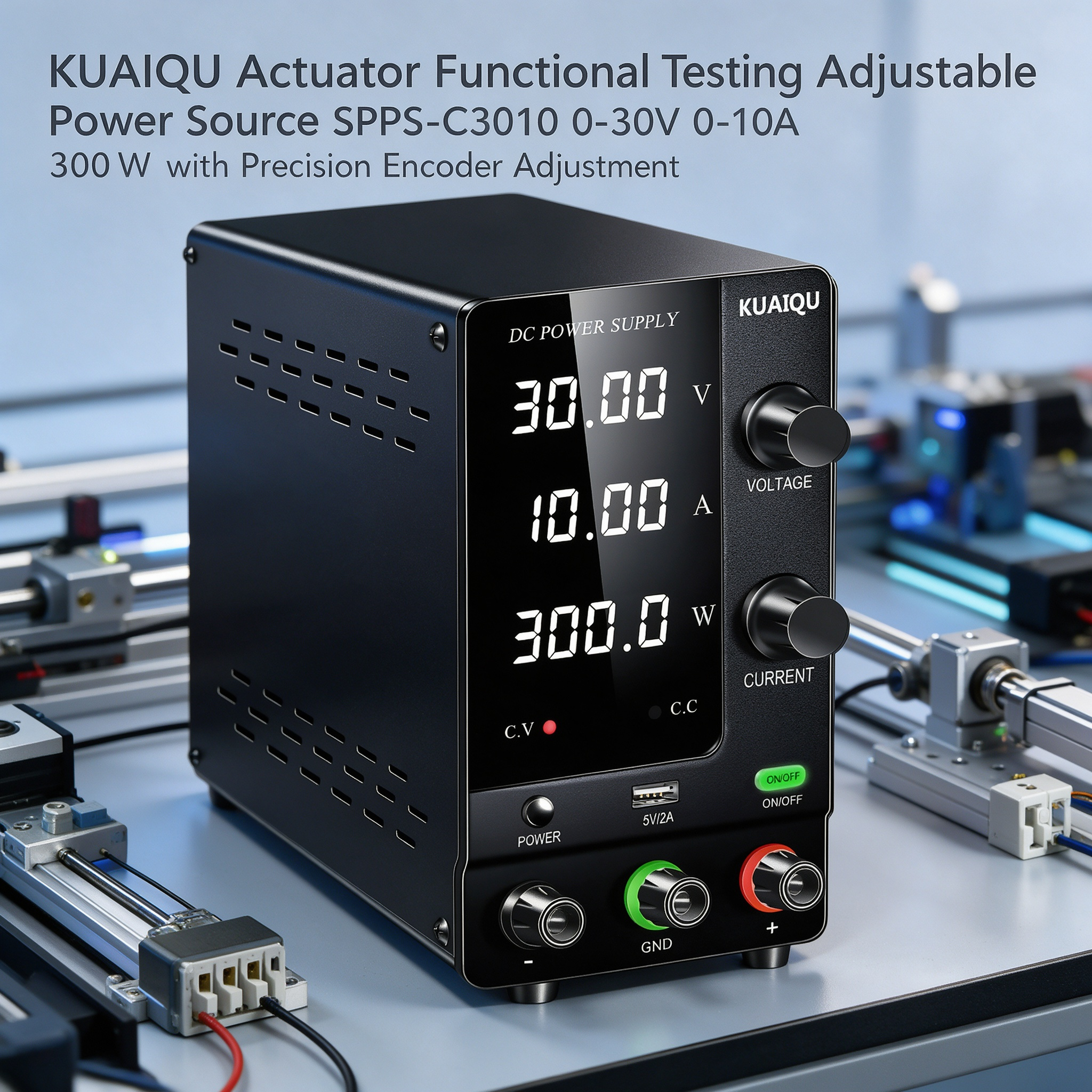

KUAIQU Actuator Functional Testing
Adjustable Power Source SPPS-C3010
0-30V 0-10A 300W with Precision Encoder
Adjustment
The KUAIQU SPPS-C3010 provides adjustable DC power for functional testing of compatible DC actuators, linear actuators, small motors, and other electromechanical devices. With a 0-30V output range, up to 10A current, and 300W maximum power, it allows engineers and technicians to establish suitable DC supply conditions while observing voltage, current, and power during actuator operation. Precision Encoder Adjustment and Output Control make it convenient to configure test conditions and perform repeated functional checks on the bench.
Key Features
0-30V 0-10A 300W Adjustable Power Source
The SPPS-C3010 provides adjustable output from 0 to 30V and up to 10A within a maximum power rating of 300W. This output range is suitable for compatible DC actuators and motor-driven mechanisms that operate within the power supply's rated specifications.

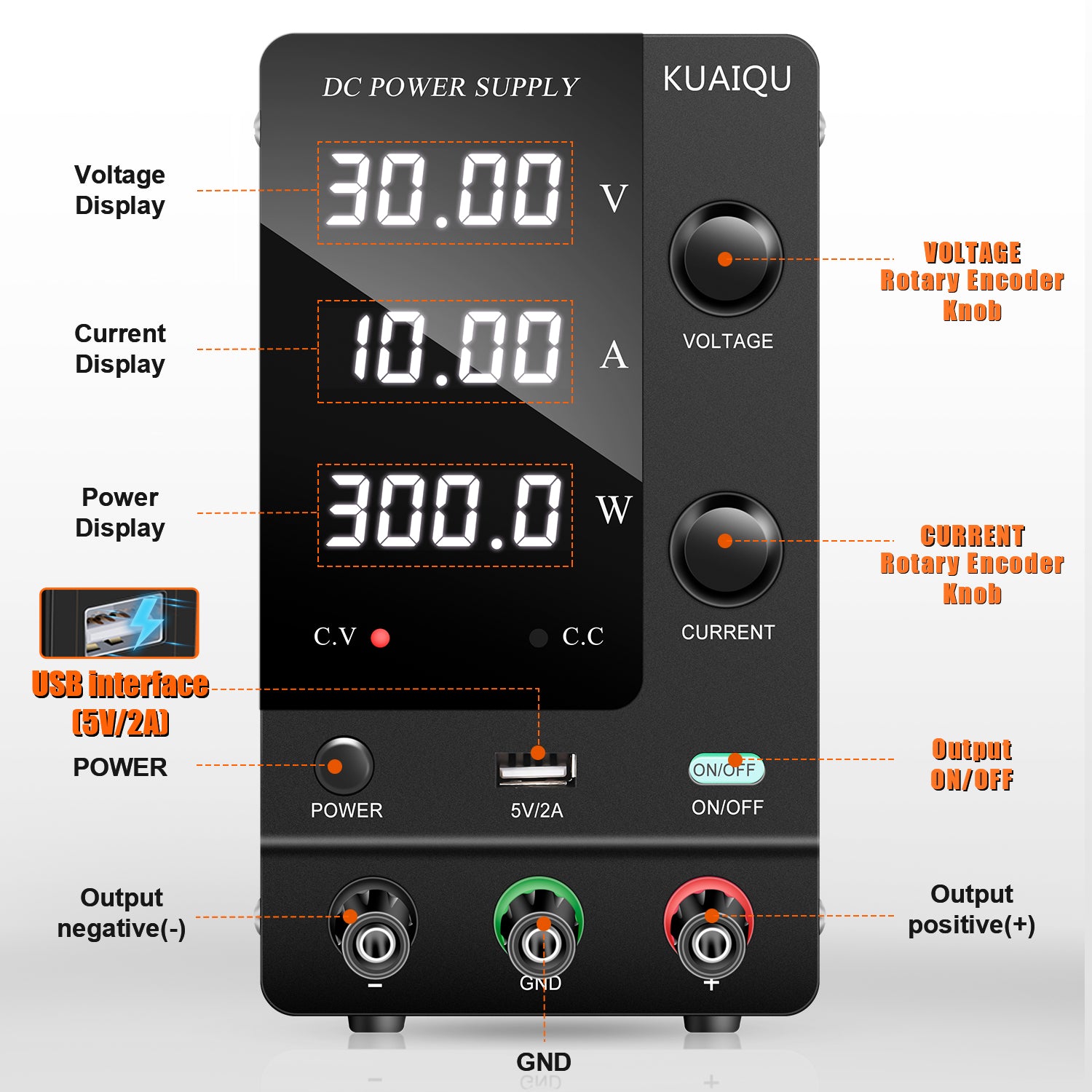

Precision Encoder Adjustment for Actuator Test Conditions
The dual-knob encoder provides precise adjustment of voltage and current settings. During Actuator Functional Testing, users can establish the required supply conditions and make controlled parameter changes when evaluating how a compatible actuator responds to different DC input conditions.
Voltage, Current and Power Display for Functional Checks

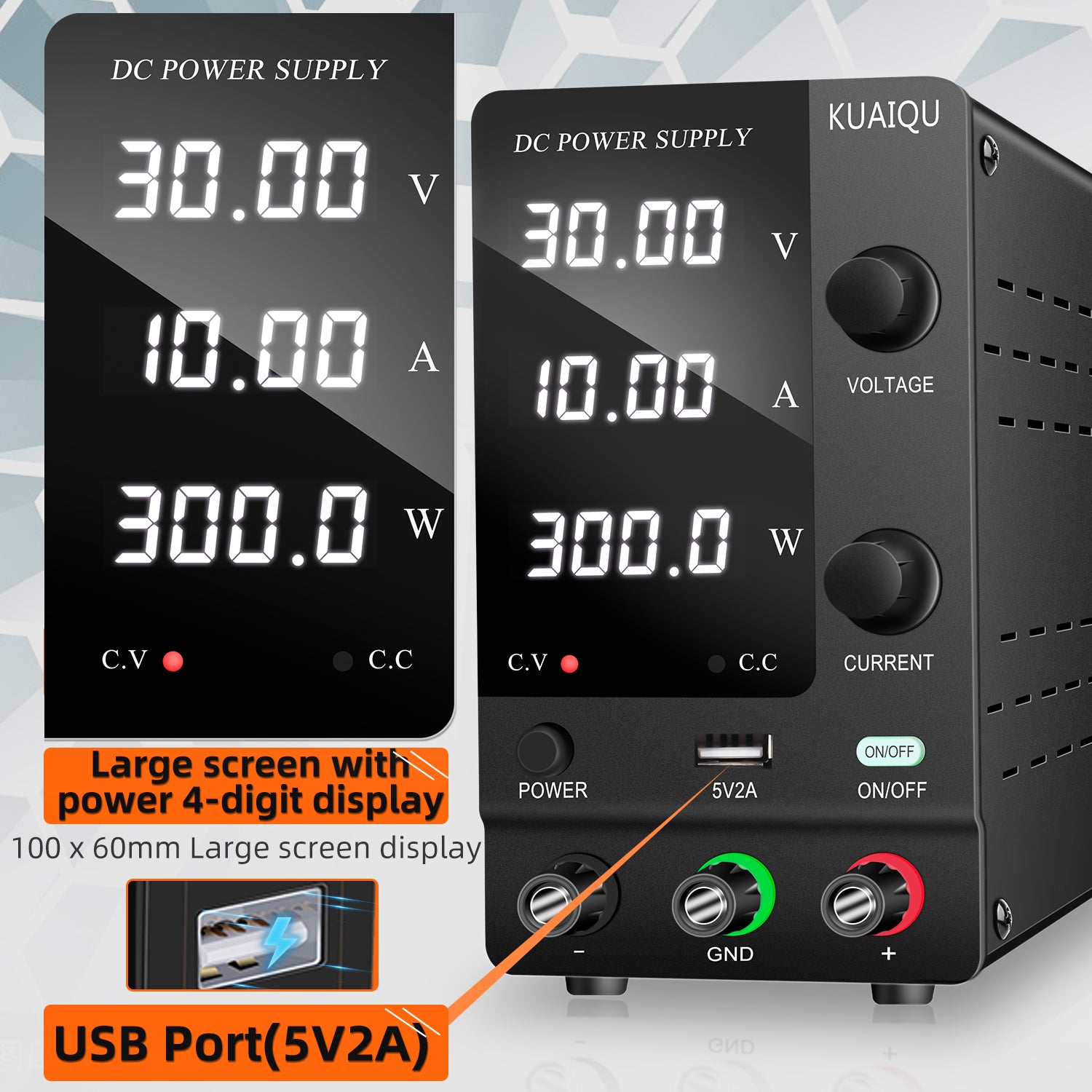

The 4-digit digital display provides clear voltage, current, and power readings during operation. These readings allow users to observe the electrical behavior of the actuator while testing its operating condition and identify changes in current draw or power consumption.
Output Control for Starting and Stopping Tests
The independent Output Control allows users to prepare the required voltage and current settings before applying power to the actuator. Switching the output on or off provides a convenient way to perform start, stop, restart, and repeated operating checks during bench testing.
CV/CC Automatic Switching for Different Actuator Loads
The SPPS-C3010 automatically switches between Constant Voltage and Constant Current operation according to the connected load. This provides an adjustable DC power source for compatible actuator testing under different electrical load conditions within the rated output range.
Compact Bench Design for Engineering Test Setups
The compact SPPS-C3010 is suitable for laboratory benches, engineering workstations, repair areas, and actuator development setups. Its USB 5V/2A output can also provide auxiliary power for compatible USB-powered accessories used around the testing workstation.
Applications
Actuator Operating Condition Testing
Use the SPPS-C3010 to provide adjustable DC power to compatible actuators and observe their electrical operating conditions. Engineers can set the required voltage and current and monitor the displayed electrical values while the actuator is operating.
Actuator Start and Stop Functional Checks
The Output Control allows users to apply or remove DC output without changing the configured voltage and current settings. This is useful for checking actuator startup, shutdown, restart, and repeated operating behavior during functional testing.
Actuator Response Under Different DC Supply Conditions
The adjustable output allows users to establish different voltage and current conditions within the actuator's rated requirements. Comparing the displayed current and power under different supply settings can help evaluate changes in the actuator's electrical operating behavior.
Repeated Actuator Functional Testing
The SPPS-C3010 can provide adjustable DC power for repeated operating checks of compatible actuators and motor-driven mechanisms. Users can establish repeatable supply conditions, control output through the front-panel Output Control, and observe voltage, current, and power during repeated tests.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Product Type |
Adjustable Power Source |
| Model |
SPPS-C3010 |
| Rated Voltage |
0-30V |
| Rated Current |
0-10A |
| Rated Power |
300W |
| Display |
4-Digit LED Display |
| Display Parameters |
Voltage / Current / Power |
| Control |
Dual-Knob Encoder Adjustment |
| Operating Mode |
CV/CC Automatic Switching |
| Output Control |
Output ON/OFF Switch |
| USB Output |
5V/2A |
| Rated Operating Temperature |
0-40°C |
| Voltage Ripple |
≤100 mVp-p / ≤15 mVrms |
| Current Ripple |
≤15 mArms |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Accuracy |
≤0.01% + 10mA |
| Voltage Setting Resolution |
10mV |
| Voltage Readback Resolution |
10mV |
| Current Setting Resolution |
1mA |
| Current Readback Resolution |
1mA |
| Load Regulation Voltage |
≤0.3% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Rise Time No Load |
≤200ms |
| Rise Time Full Load |
≤300ms |
| Fall Time No Load |
≤20s |
| Fall Time Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input |
AC 220V, AC110V Optional |

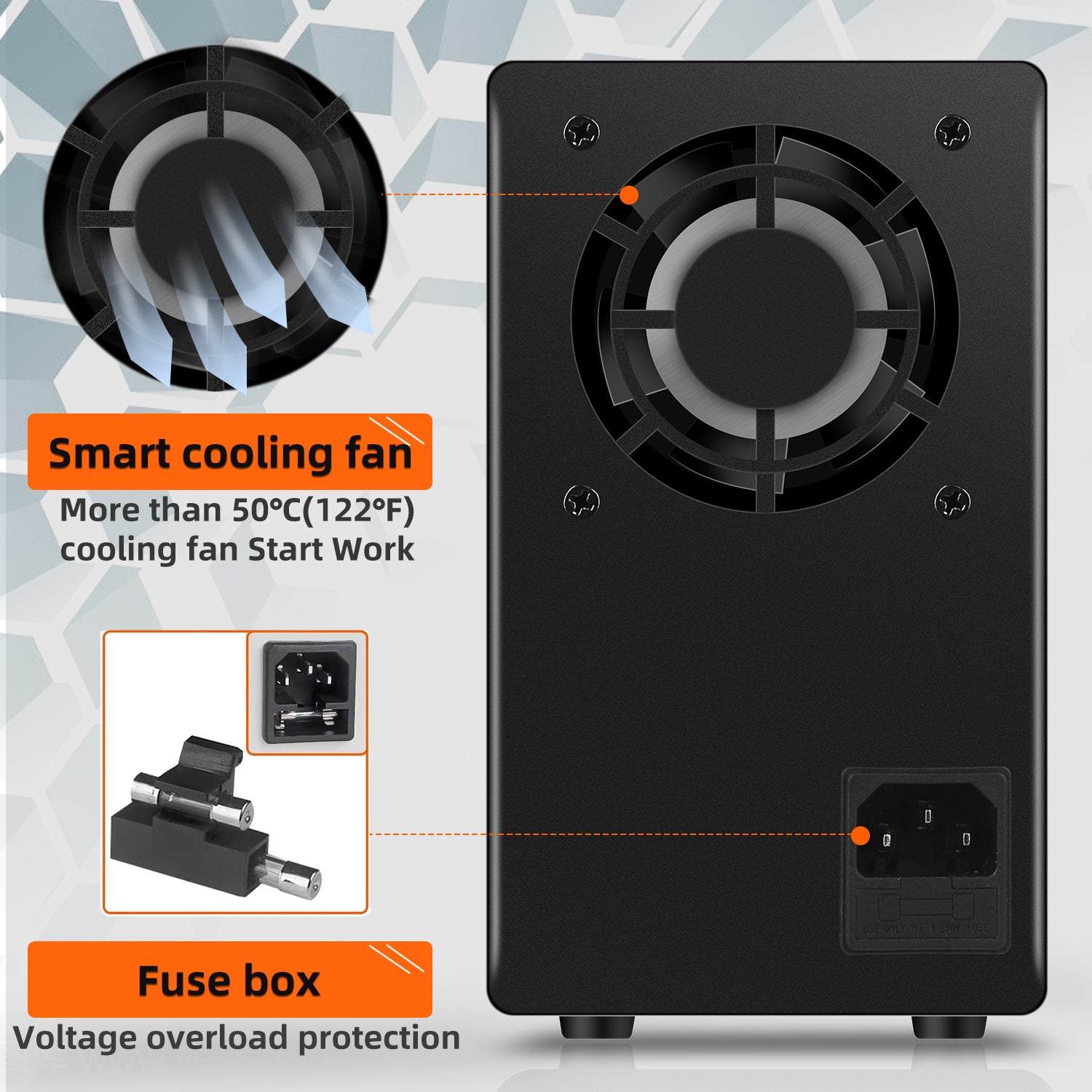

| Cooling |
Temperature-Controlled Fan |

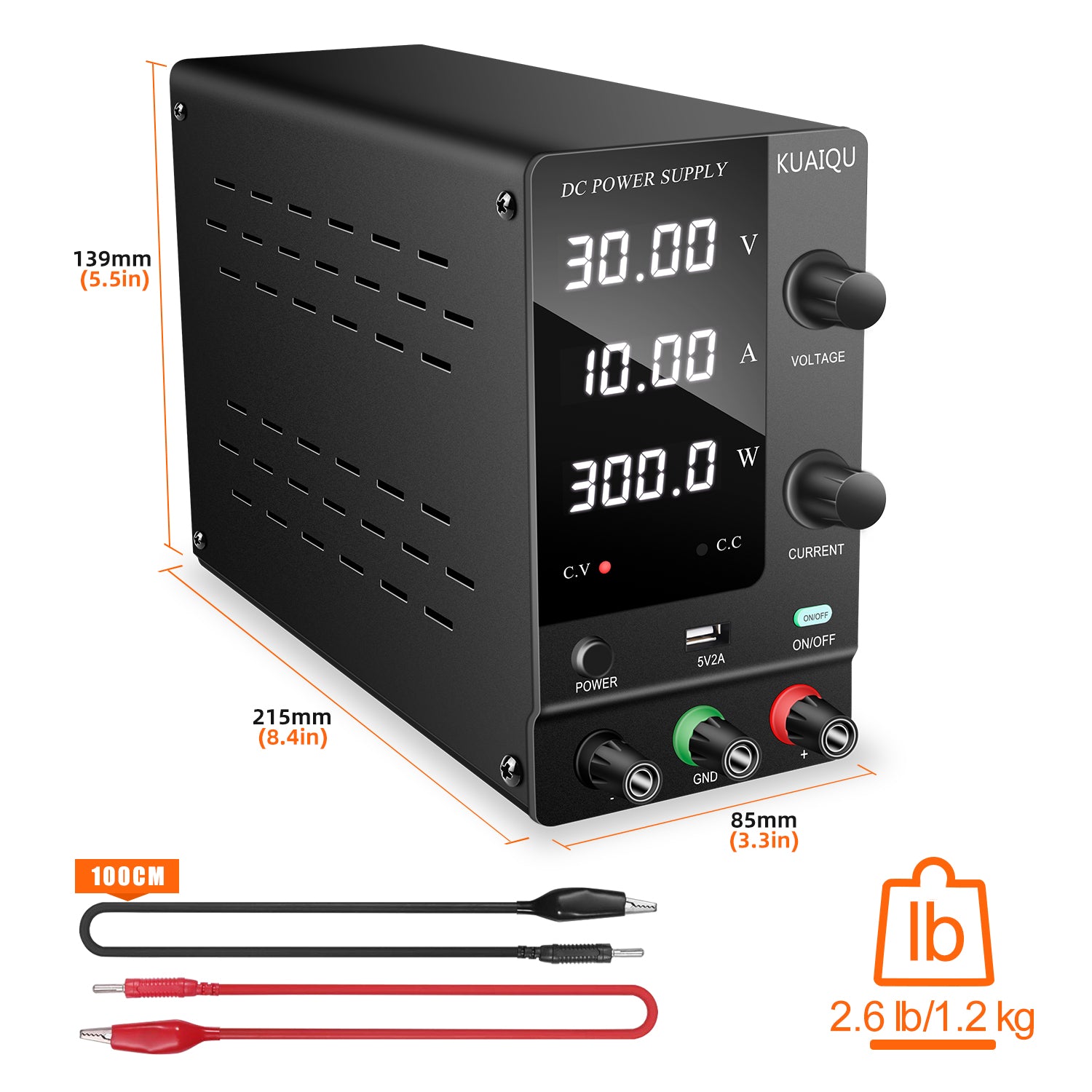

| Dimensions |
Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
Why Choose KUAIQU SPPS-C3010?
Actuator Functional Testing requires an adjustable DC power source that can establish suitable electrical conditions while allowing engineers to observe the actuator's operating response. The KUAIQU SPPS-C3010 combines 0-30V, 0-10A, and 300W output capability with Precision Encoder Adjustment, Output Control, and real-time voltage, current, and power display.
For Actuator Functional Testing, the SPPS-C3010 allows users to configure the required DC supply conditions, apply or remove output during functional checks, and observe changes in current and power while the actuator operates. Its adjustable output, CV/CC operation, and compact bench design make it suitable for actuator development, engineering evaluation, repair work, and repeated functional testing of compatible electromechanical devices.
