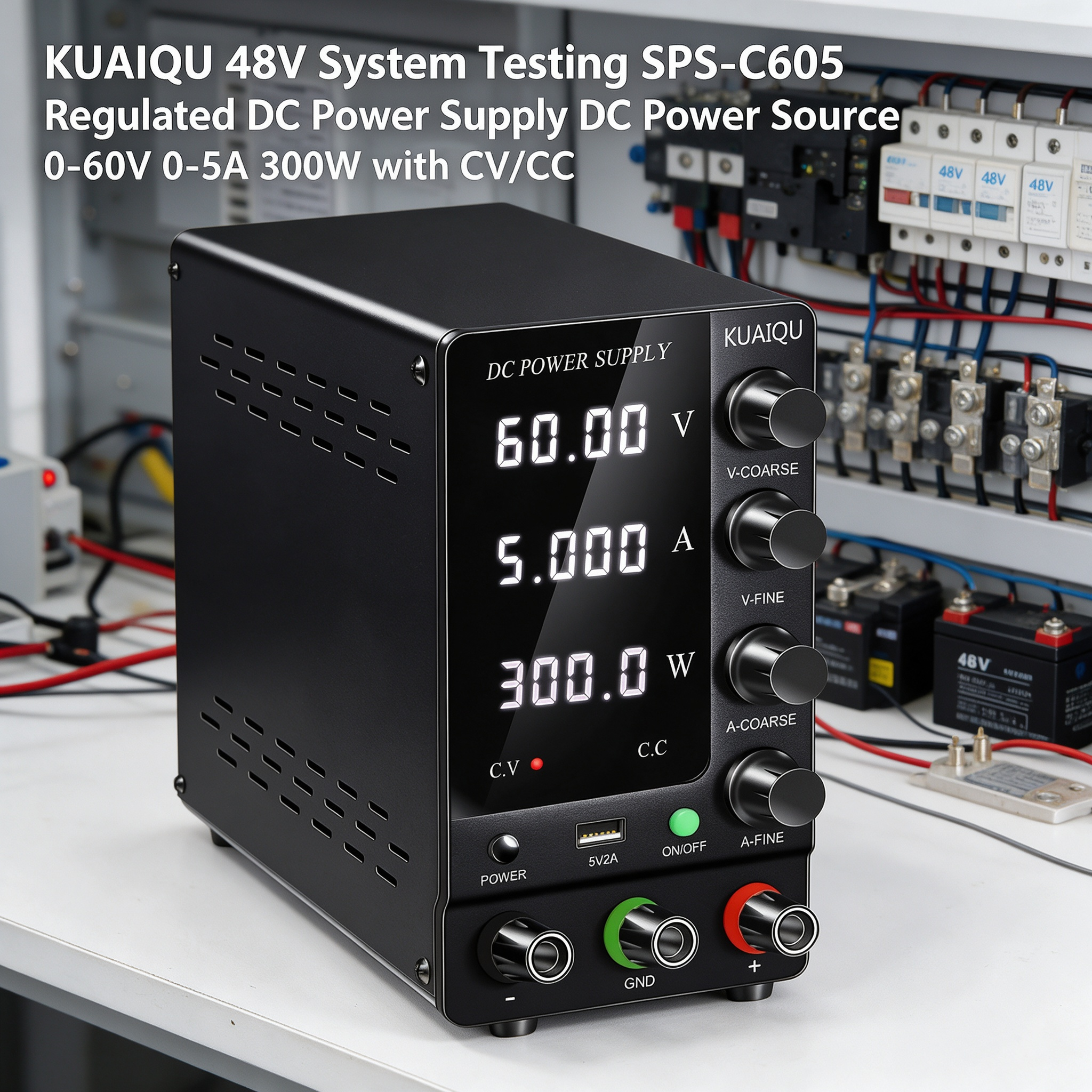

KUAIKUAIQU 48V System Testing SPS-
C605 Regulated DC Power Supply DC
Power Source 0-60V 0-5A 300W with
CV/CC
The KUAIKUAIQU SPS-C605 is a 0-60V, 0-5A, 300W Regulated DC Power Supply designed for compatible 48V System Testing applications and laboratory bench testing. Its adjustable DC output, CV/CC operation, 4-Knob Adjustment, Voltage Display, Current Display, Power Display, and Output Switch provide direct control and visible electrical readings when configuring and evaluating DC power conditions for compatible 48V-related electronic systems.
Key Features
0-60V Adjustable DC Output for 48V System Testing
The SPS-C605 provides a 0-60V adjustable DC output with up to 5A current and 300W rated power, providing a configurable DC Power Source for compatible 48V-related systems within the power supply's rated output range.
The 0-60V adjustment range allows users to configure a 48V test condition as well as other suitable voltage conditions required during system evaluation.
48V Test Conditions with Adjustable Voltage Control
The adjustable output of the SPS-C605 allows users to set the required DC supply voltage for compatible 48V System Testing.
Instead of providing only a fixed 48V output, the Regulated DC Power Supply allows users to adjust the output voltage when different test conditions are required, making it suitable for laboratory evaluation and repeated bench testing.
CV/CC Operation for Different System Test Conditions
The SPS-C605 supports Constant Voltage and Constant Current operation for compatible 48V System Testing setups.
Different electronic systems may require different power supply conditions during testing. CV/CC operation allows users to work with the appropriate power supply mode while evaluating compatible systems within the DC Power Source's rated specifications.

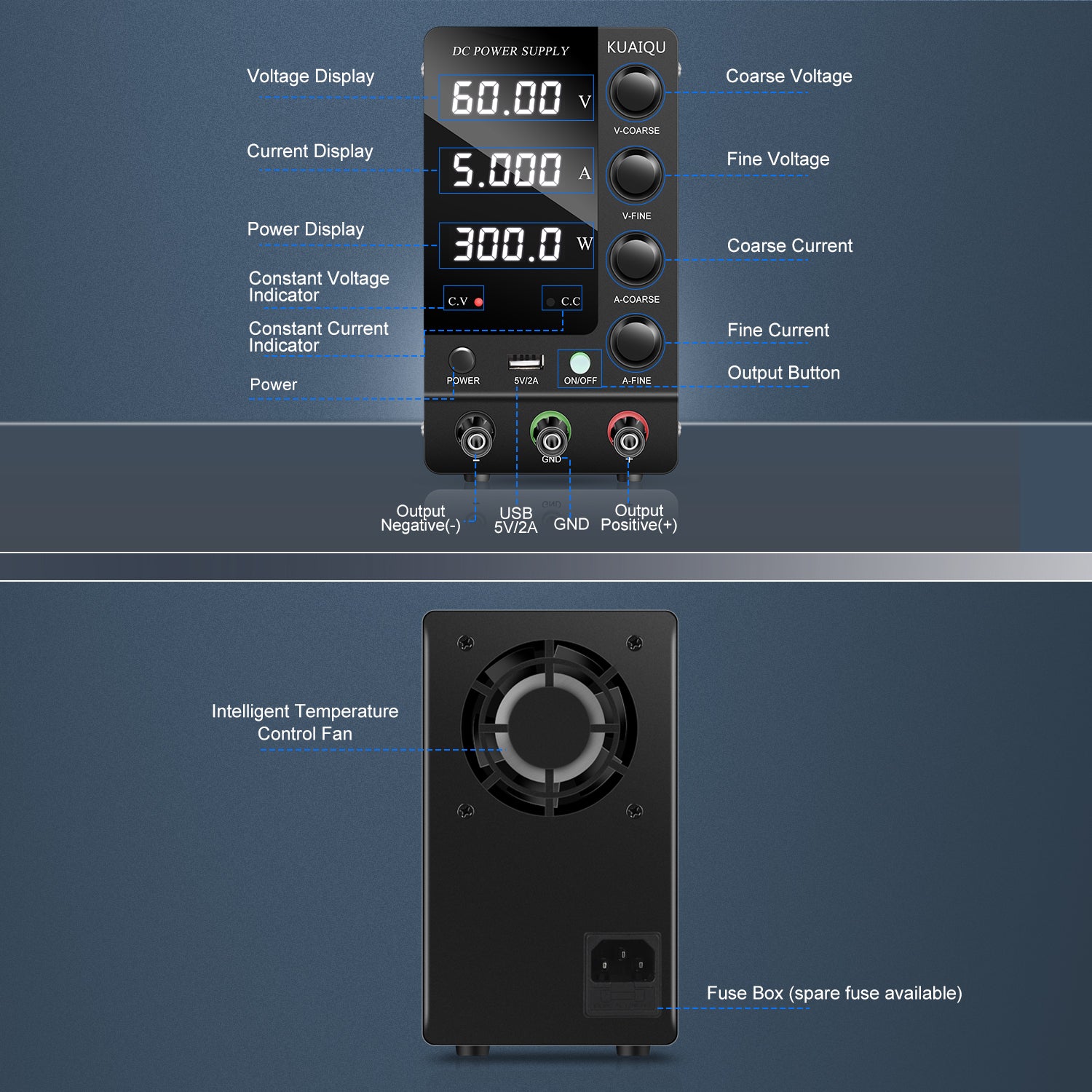

Voltage, Current, and Power Display for System Monitoring
The SPS-C605 provides Voltage Display, Current Display, and Power Display so users can observe the main electrical values during 48V System Testing.
These visible readings allow users to monitor the DC power conditions applied to the connected system and observe changes in voltage, current, and power during different test setups.

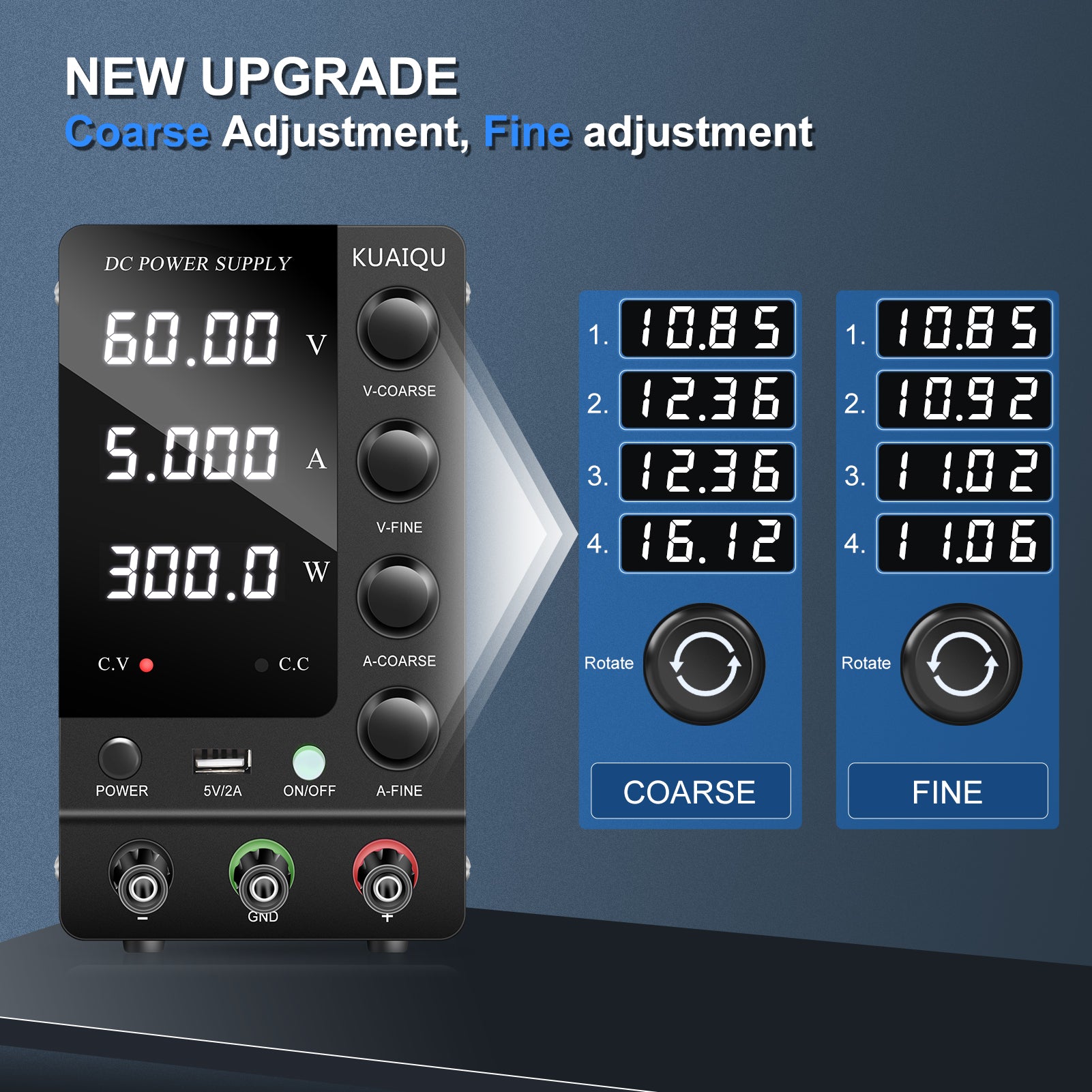

4-Knob Adjustment for Direct Test Condition Changes
The 4-Knob Adjustment interface provides direct front-panel control of the Regulated DC Power Supply.
During 48V System Testing, users can adjust the required output settings directly when changing supply conditions, comparing different test configurations, or repeating system tests.
Output Switch for Convenient System Test Control
The Output Switch provides direct control over when the adjustable DC output is applied to the connected test system.
Users can configure the required output settings before enabling the output, making it convenient to prepare, start, stop, and repeat compatible 48V system tests.
5V/2A USB Output for Compatible Test Accessories
The SPS-C605 includes a 5V/2A USB Output for compatible USB-powered devices and accessories used alongside system bench testing.
This additional USB output can provide power for suitable low-power USB accessories while the main adjustable DC output remains available for the primary 48V system test circuit.
Applications
48V System Testing
The SPS-C605 can be used as a Regulated DC Power Supply and DC Power Source for compatible 48V-related electronic systems operating within its 0-60V, 0-5A, and 300W rated output range.
Users can configure the DC output to 48V or other suitable test voltages and observe voltage, current, and power readings while evaluating the connected system.
48V Electronic System Input Testing
The adjustable DC output provides a configurable input source for compatible 48V-related electronic systems during laboratory and bench testing.
Users can set the required supply voltage, including a 48V test condition, and observe the corresponding electrical values while evaluating the system within the power supply's rated specifications.

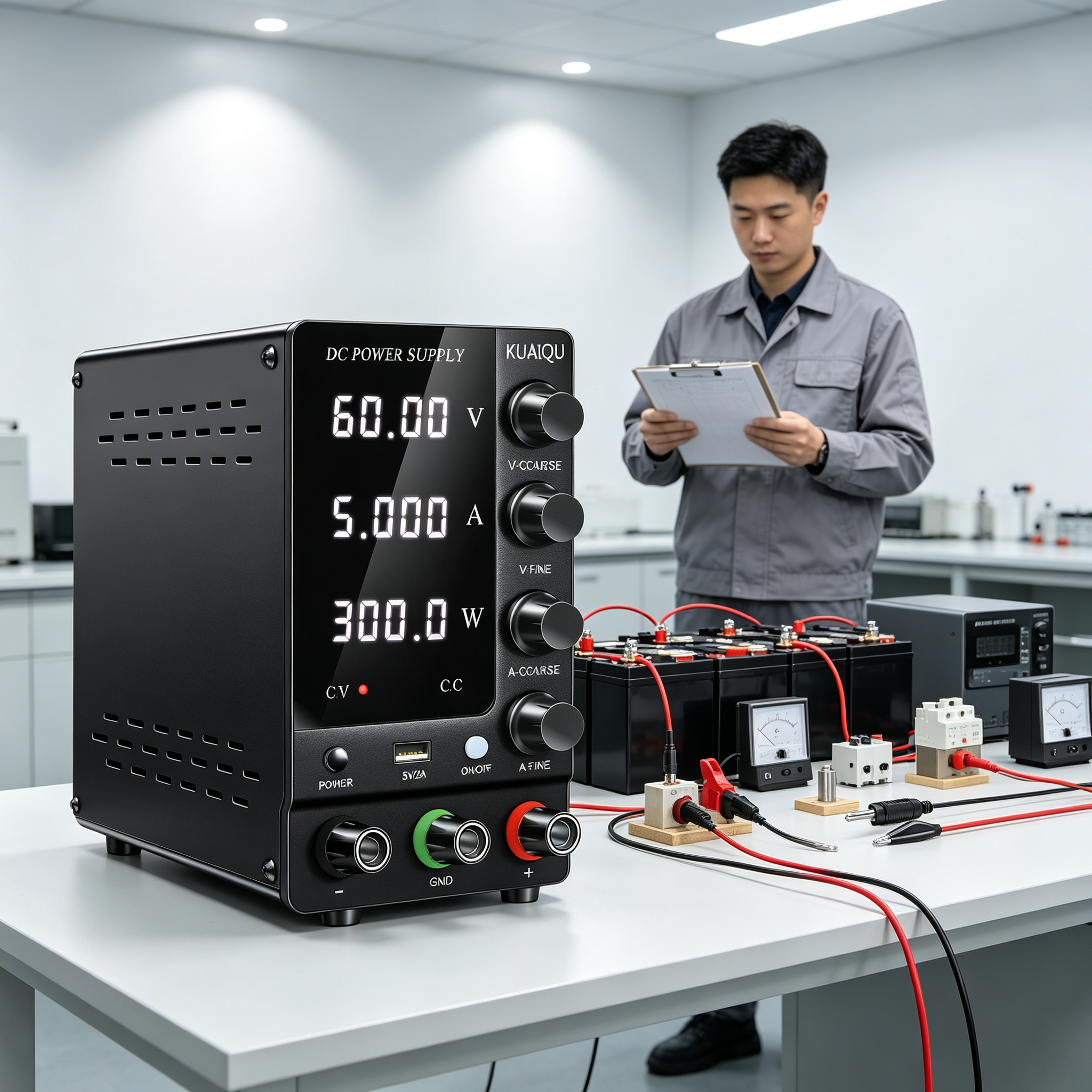

DC System Development and Bench Testing
During development of compatible DC electronic systems, the SPS-C605 can serve as a DC Power Source for prototype and bench testing.
The 4-Knob Adjustment allows users to directly change the supply settings, while the Voltage Display, Current Display, and Power Display provide visible information during repeated development tests.
Repeated 48V System Evaluation
For repeated system testing, the SPS-C605 provides adjustable output control and an Output Switch for direct bench operation.
Users can prepare different DC supply conditions, enable the output, observe the displayed electrical values, stop the output, and repeat compatible tests as required within the power supply's rated specifications.
Quality Check and Terms of Service
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
SPS-C605 |
| Product Type |
Regulated DC Power Supply / DC Power Source |
| Output Voltage |
0-60V |
| Output Current |
0-5A |
| Output Power |
300W |
| Operating Mode |
CV/CC |
| Operating Temperature |
0-40°C |
| Adjustment |
4-Knob Adjustment |
| Voltage Display |
Supported |
| Current Display |
Supported |
| Power Display |
Supported |
| Output Control |
Output Switch |
| USB Output |
5V/2A |
| Voltage Setting/Readback Resolution |
10mV |
| Current Setting/Readback Resolution |
1mA |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.01% + 15mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Load Regulation |
≤0.3% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Ripple |
≤200mVp-p / ≤20mVrms |
| Current Ripple |
≤20mArms |
| Rise Time, No Load |
≤200ms |
| Rise Time, Full Load |
≤300ms |
| Fall Time, No Load |
≤20s |
| Fall Time, Full Load |
≤300ms |
| Dynamic Response |
≤200ms |
| Efficiency |
≥85% |
| Input |
AC 220V, AC 110V Optional |
| Dimensions |

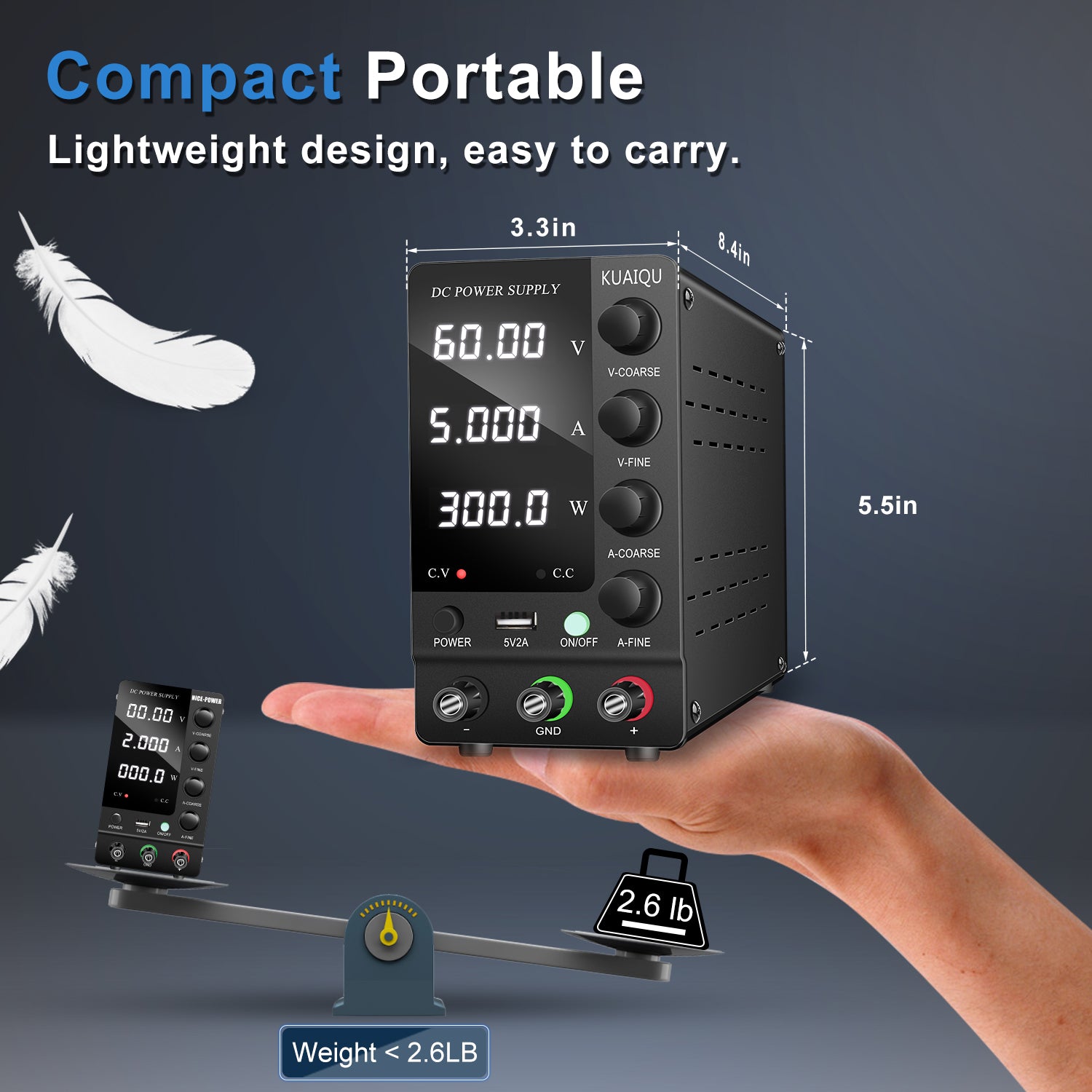

Approx. 22 × 8.5 × 15.5 cm |
| Net Weight |
Approx. 1.2 kg |
Why Choose KUAIKUAIQU SPS-C605?
The KUAIKUAIQU SPS-C605 combines a 0-60V adjustable DC output, up to 5A current, and 300W rated power with CV/CC operation and direct 4-Knob Adjustment, providing a practical Regulated DC Power Supply for compatible 48V System Testing applications.
Its 0-60V output range allows users to configure a 48V test condition while retaining the flexibility to adjust the supply voltage for other compatible system test conditions. The Voltage Display, Current Display, and Power Display provide visible electrical information during bench testing.
The Output Switch provides direct control over the adjustable DC output during test procedures. For 48V system input testing, DC system development, and repeated bench evaluation, the SPS-C605 provides a straightforward DC Power Source solution for configuring and observing DC power conditions within its rated specifications.
