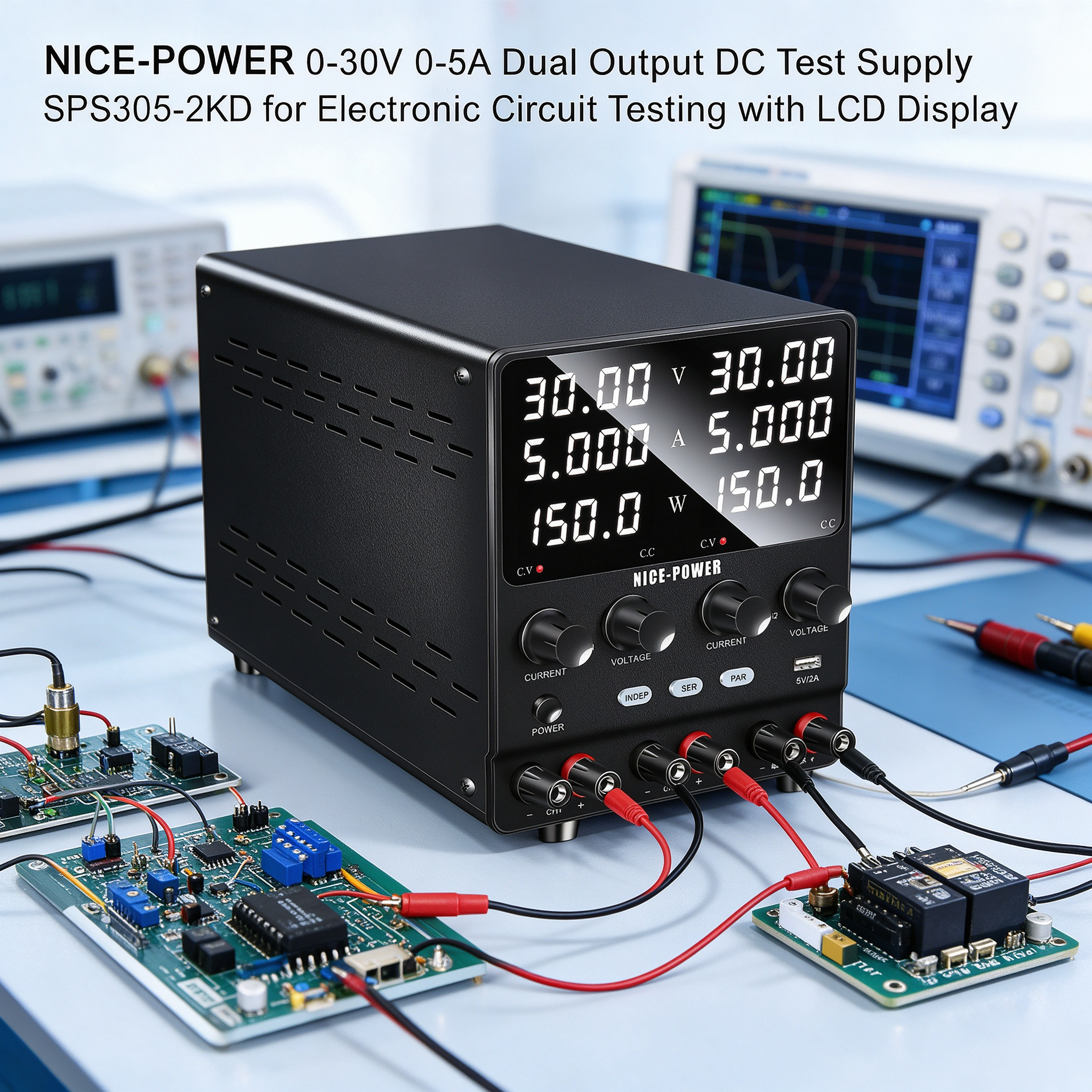

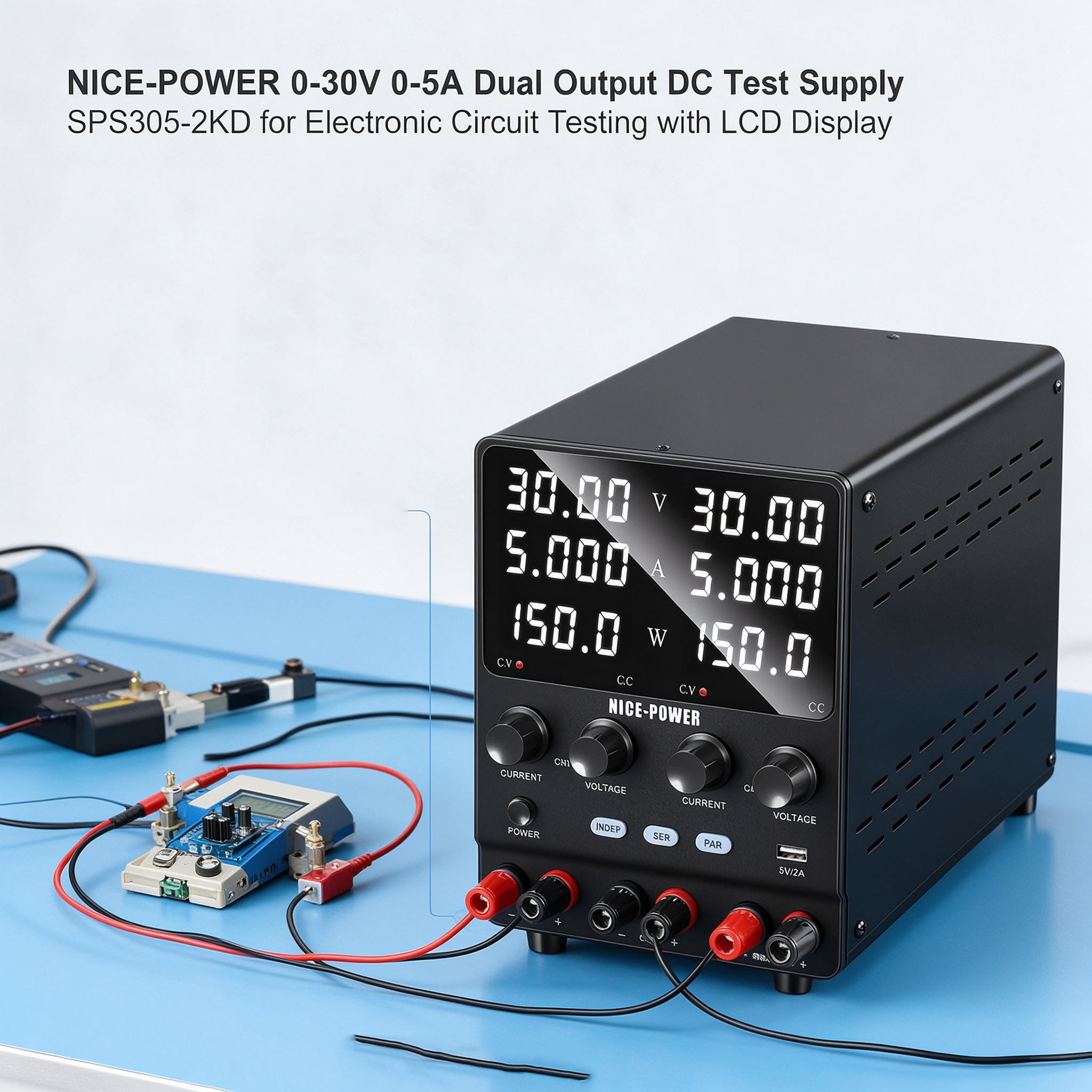

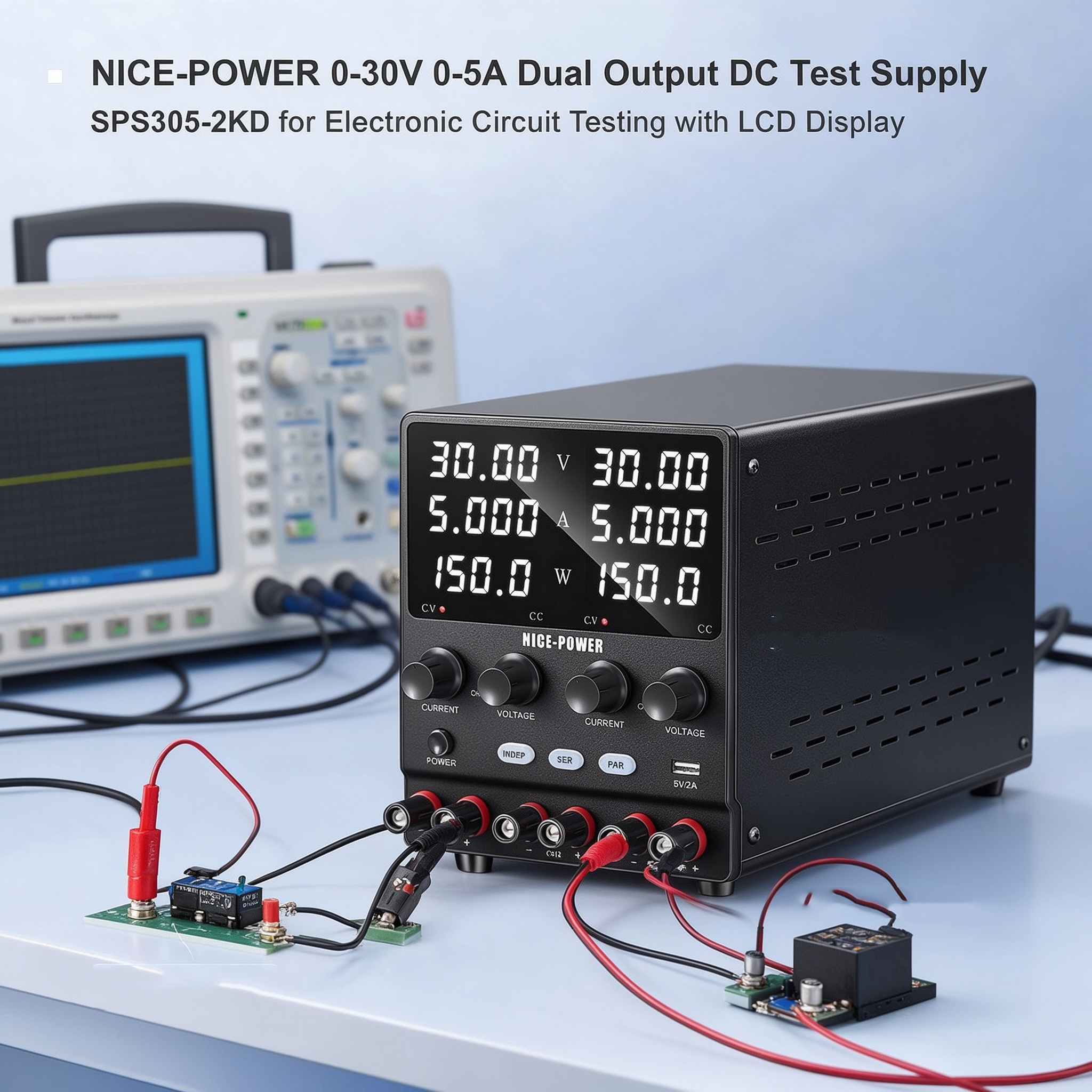

NICE-POWER 0-30V 0-5A Dual Output DC

Test Supply SPS305-2KD for Electronic

Circuit Testing

The NICE-POWER SPS305-2KD is a Dual Output DC Test Supply designed for Electronic Circuit Testing, circuit development, prototype verification, and electronic module evaluation. With dual independent output channels, one-key series mode, one-key parallel mode, encoder adjustment, and a dedicated series-parallel output port, this DC Power Supply provides engineers with a flexible power solution for different electronic circuit testing requirements.

Featuring 0-30V and 0-5A output capability per channel with 150W×2 independent output power, the SPS305-2KD allows users to apply adjustable DC power conditions to electronic circuits, development boards, circuit modules, and prototype designs.

For Electronic Circuit Testing, engineers can independently adjust two output channels, configure different voltage and current conditions, and quickly switch between independent, series, and parallel modes according to circuit requirements. The dedicated series-parallel output port reduces complicated wiring during configuration changes, making laboratory testing more efficient.

Key Features

Dual Independent Output for Flexible Circuit Testing

The SPS305-2KD features two independent output channels, providing separate adjustable DC outputs for Electronic Circuit Testing applications.

During circuit development and verification, engineers often need to test different circuit sections under different power conditions. The dual independent output design allows users to power two circuits simultaneously or provide separate power sources for the main circuit and auxiliary modules.

With 0-30V and 0-5A output per channel, the SPS305-2KD provides flexible DC power adjustment for electronic circuits, prototype boards, and laboratory test setups.

One-Key Series Mode for Higher Voltage Circuit Evaluation

The SPS305-2KD supports One-Key Series Mode, allowing the two output channels to be combined into a higher voltage output without complicated external wiring.

For Electronic Circuit Testing, some circuit designs may require higher voltage conditions during evaluation. In series mode, the SPS305-2KD provides up to 60V and 5A output, allowing engineers to test circuits requiring increased voltage input.

The one-key series function simplifies configuration and improves testing efficiency when changing circuit power requirements.

One-Key Parallel Mode for Higher Current Testing

The SPS305-2KD supports One-Key Parallel Mode, allowing two channels to work together to provide higher current output capability.

During electronic circuit evaluation, some circuits or modules may require increased current conditions for performance verification. Parallel mode provides up to 30V and 10A output, allowing engineers to test circuits requiring higher current supply capability.

This function helps users quickly configure suitable power conditions without complex manual connections.

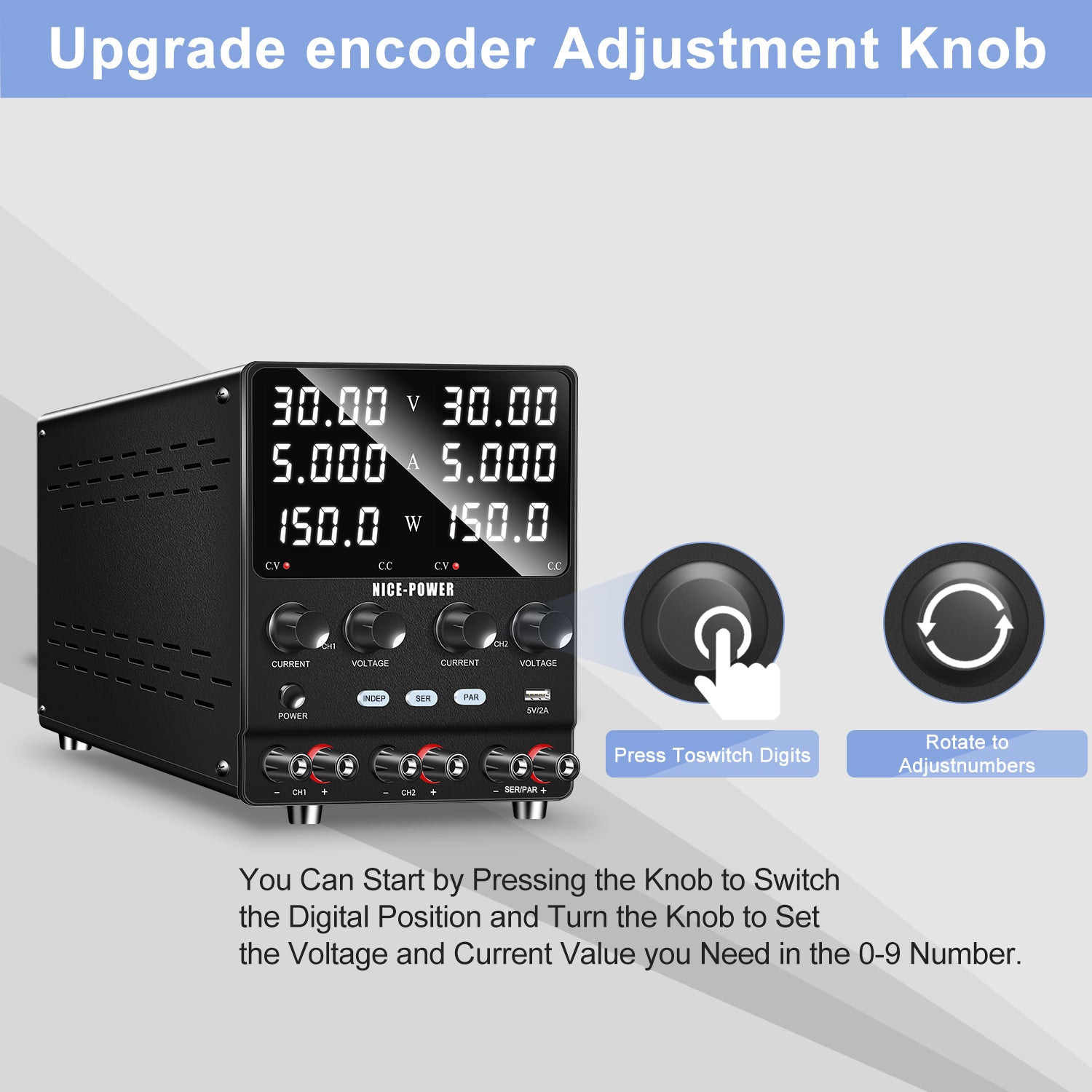

Encoder Adjustment for Accurate Voltage and Current Setting

The SPS305-2KD uses encoder adjustment control, allowing engineers to adjust voltage and current parameters more accurately during Electronic Circuit Testing.

When developing or verifying electronic circuits, engineers often need to fine tune power parameters and observe circuit responses under different conditions. The encoder adjustment design provides convenient and precise control for repeated testing operations.

This feature helps improve efficiency during circuit debugging, prototype testing, and laboratory evaluation.

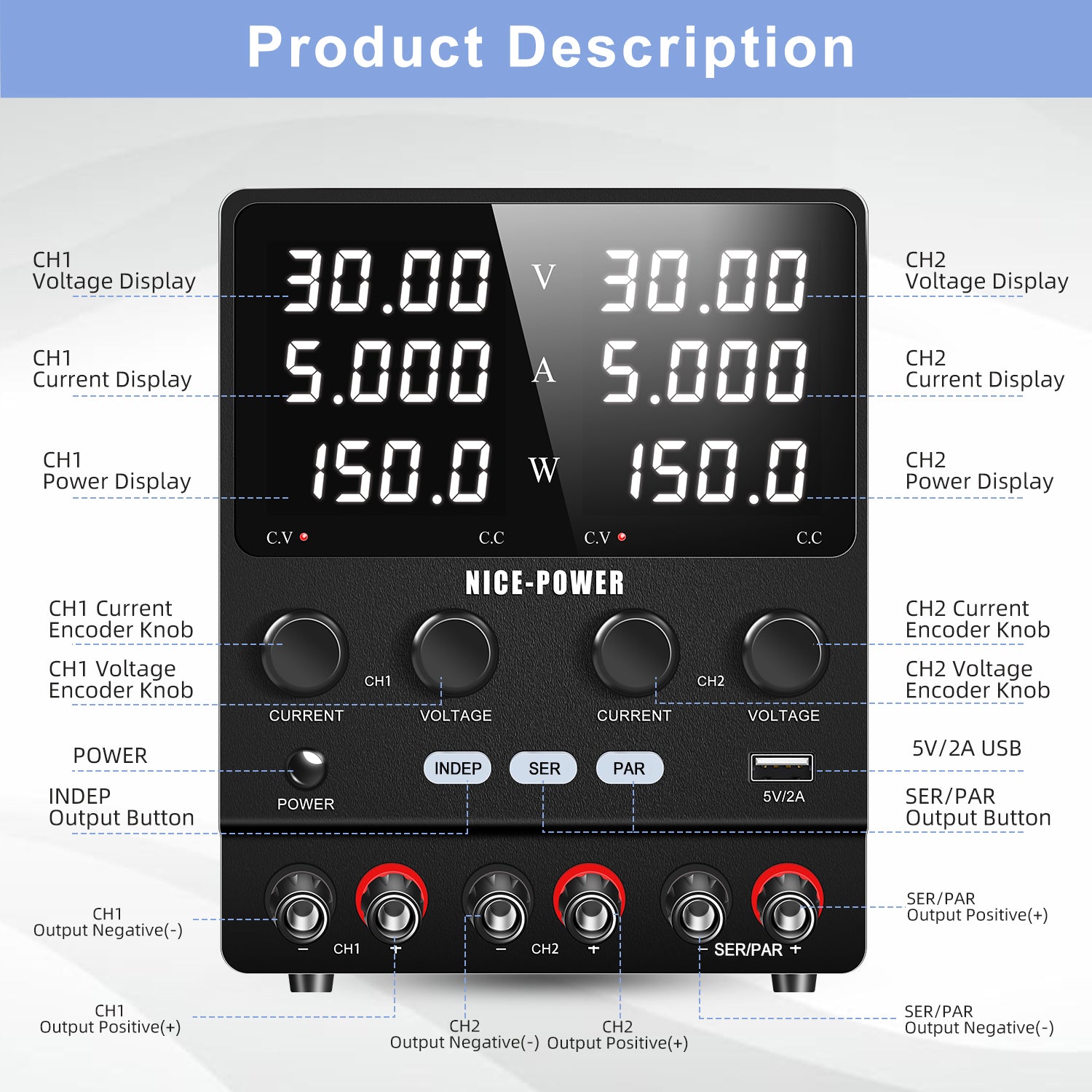

Dedicated Series-Parallel Output Port for Simplified Wiring

The SPS305-2KD is equipped with a dedicated series-parallel output port, making series and parallel configuration easier without complicated wiring arrangements.

During Electronic Circuit Testing, engineers may need to change between different output configurations according to circuit design requirements. The dedicated output port simplifies connection steps and helps create cleaner laboratory test setups.

This design provides greater convenience when switching between different power output modes.

Negative Voltage-0-Positive Voltage Output Mode for Electronic Circuit Applications

The SPS305-2KD supports negative voltage-0-positive voltage output mode, providing additional flexibility for electronic circuit testing applications.

Some electronic circuits require positive and negative voltage conditions during design verification, such as circuits involving signal processing, analog circuits, or special power configurations.

This function allows engineers to create different voltage reference conditions for evaluating circuit operation.

Applications

Electronic Circuit Testing

The SPS305-2KD is designed for Electronic Circuit Testing applications requiring adjustable and flexible DC power input.

It can be used for testing electronic circuits, prototype boards, development circuits, and electronic modules during design verification, debugging, and performance evaluation.

Prototype Circuit Development

The SPS305-2KD provides adjustable DC output for engineers developing and testing prototype circuits.

Users can adjust voltage and current parameters according to different circuit requirements and verify circuit operation under various power conditions.

Electronic Module Evaluation

The SPS305-2KD supports evaluation of electronic modules by providing flexible power output configurations.

The dual independent output structure allows engineers to supply power to different circuit sections and create customized testing environments.

Laboratory Circuit Verification

The SPS305-2KD is suitable for laboratory environments including electronic research, teaching, and engineering development.

Its independent, series, and parallel output modes provide practical solutions for different circuit testing requirements.

Quality Check and Terms of Service

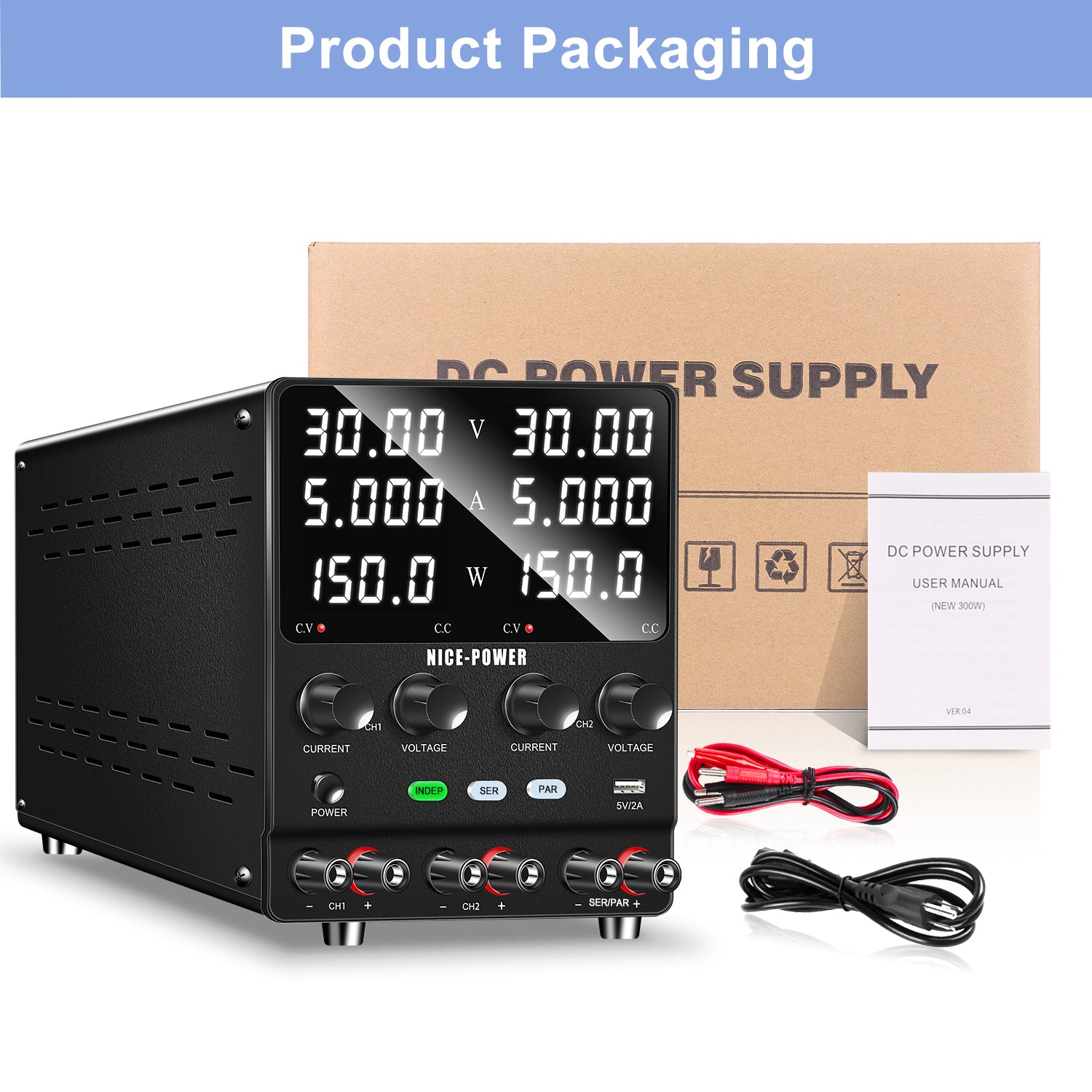

• Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.

• Has passed CE & FCC Certification.

• All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER SPS305-2KD?

The NICE-POWER SPS305-2KD combines Dual Output DC Test Supply capability, dual independent output, one-key series mode, one-key parallel mode, encoder adjustment, and dedicated series-parallel output port to provide a practical solution for Electronic Circuit Testing.

With 0-30V and 0-5A output per channel, 150W×2 independent output capability, and flexible output configuration options, the SPS305-2KD allows engineers to create different testing environments for electronic circuits, prototype boards, and electronic modules.

The SPS305-2KD provides a practical DC power solution for users who require adjustable voltage and current output, flexible output modes, convenient configuration switching, and accurate parameter adjustment during circuit development, laboratory testing, and electronic verification.
