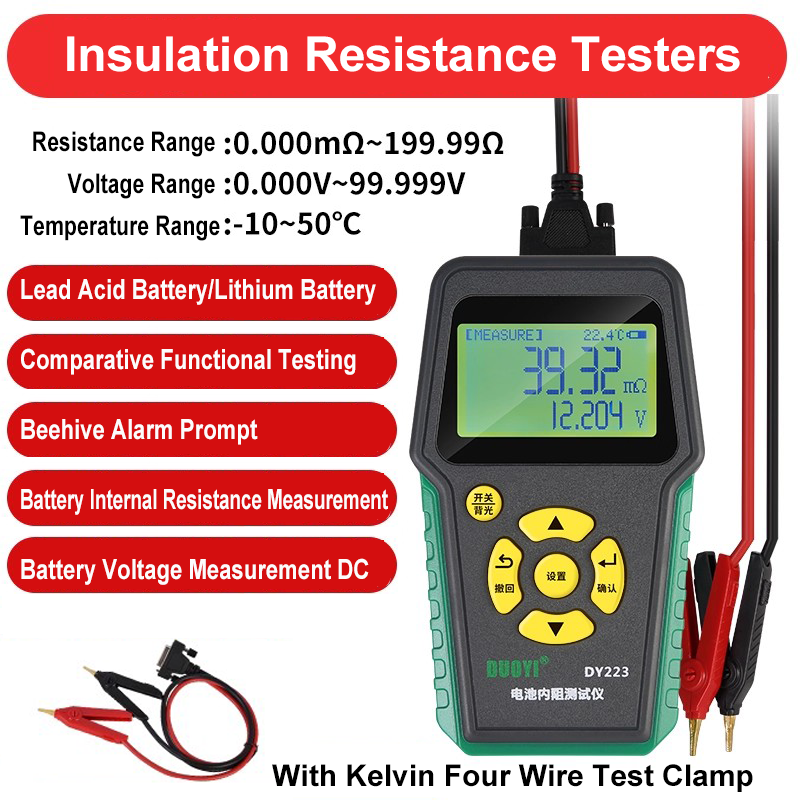

Internal Resistance Tester 0mΩ ~ 199.99mΩ Resistance Meter Battery Tester Beehive alarm prompt with Kelvin Clips
Internal Resistance Tester 0mΩ ~ 199.99mΩ Resistance Meter Battery Tester Beehive alarm prompt with Kelvin Clips
Prix habituel
$61.90 USD
Prix habituel
Prix promotionnel
$61.90 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Overview

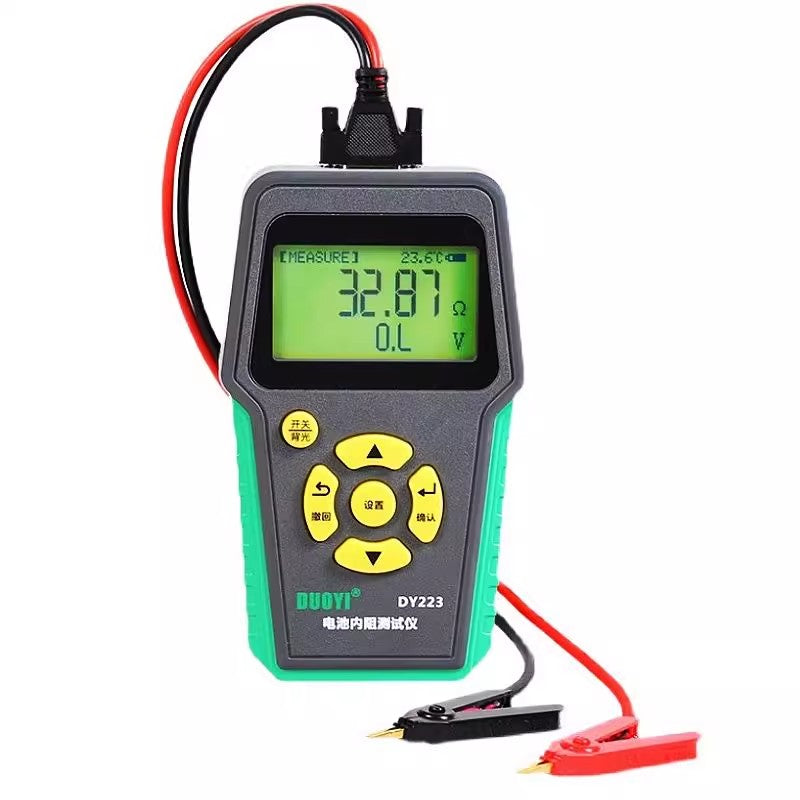

The Battery Internal Resistance Tester is a versatile tool for precise measurement of battery internal resistance, voltage, and environmental temperature. It's ideal for comprehensive battery testing with reliable performance.
Key Features
- Multi - Parameter Measurement: Tests battery internal resistance, DC voltage, and environmental temperature.
- Wide Measurement Ranges: Covers resistance (0.000mΩ - 200Ω), voltage (0.000V - ±100V), and temperature (-10°C - 50°C).
- Precise Testing Methods: Uses Kelvin four - terminal test method for resistance; differential test for voltage.
- Efficient Measurement Speed: 3 times per second for quick results.
- Useful Alerts & Functions: Offers beehive alarm prompt and comparative functional testing.
- Compatibility: Works with lead - acid and lithium batteries.
Technical Specifications
|
Parameter
|
Details
|
|
Measurement Items
|
Battery internal resistance, battery voltage, environmental temperature
|
|
Resistance Range
|
0.000mΩ - 200Ω (5 auto - switching ranges)
|
|
Voltage Range
|
0.000V - ±100V
|
|
Temperature Range
|
-10°C - 50°C
|
|
Max Input Voltage
|
DC 100V (non - polar, no AC input)
|
|
Max Rated Voltage to Ground
|
DC 100V (no measurement classification)
|
|
Measurement Method (Resistance)
|
Kelvin four - terminal test method; open - circuit terminal voltage: 3.3Vac max; measurement current: 50mAac - 50uAac
|
|
Measurement Method (Voltage)
|
Differential test
|
|
Measurement Speed
|
3 times/second
|
|
Operating Environment
|
Indoor use, pollution degree 2, altitude ≤2000m; temperature 0°C - 40°C, humidity ≤80%RH (no condensation)
|
|
Storage Environment
|
Temperature -10°C - 50°C, humidity ≤80%RH (no condensation)
|
|
Power Supply
|
6×DC1.5V AA alkaline batteries (LR6)
|
|
Continuous Use Time
|
About 10 hours (with alkaline batteries, varies by use conditions)
|
|
Dimensions
|
170×100×38mm
|
|
Weight
|
0.2kg (excluding batteries)
|
|
Resistance Test Accuracy
|
Refer to detailed range - specific accuracy in product specs.
|
|
Voltage Test Accuracy
|
±0.5% ±5dgt (0.000V - 99.999V range)
|
|
Temperature Test Accuracy
|
±1.0°C (-10°C - 50°C range)
|
|
Special Features
|
Beehive alarm prompt, comparative functional testing; compatible with lead - acid and lithium batteries
|
Application Scenarios
- Battery Manufacturing: Ensure quality by testing internal resistance and voltage of new batteries.
- Electric Vehicle Industry: Check battery health in EVs for optimal performance and safety.
- Renewable Energy Storage: Maintain solar/wind energy storage batteries via resistance and voltage tests.
- Telecommunications: Test backup batteries in telecom towers to prevent outages.
- Research Labs: Conduct precise battery experiments with resistance, voltage, and temperature data.
- Battery Recycling Centers: Assess battery condition before recycling based on internal resistance and voltage.
Get the Battery Internal Resistance Tester now for accurate battery testing!
