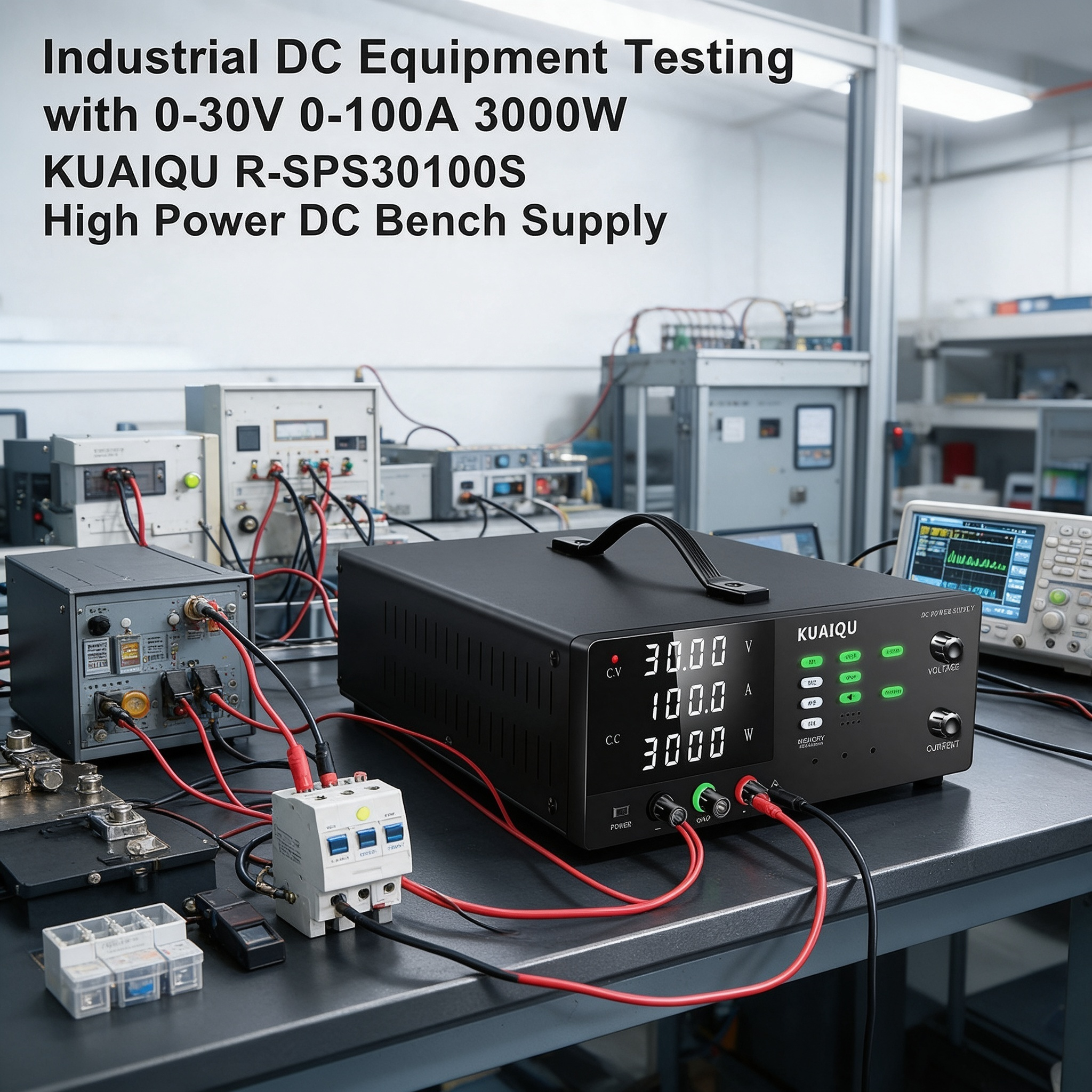

Industrial DC Equipment Testing with 0-
30V 0-100A 3000W KUAIQU R-SPS30100S
High Power DC Bench Supply
The KUAIQU R-SPS30100S is a 0-30V 0-100A 3000W High Power DC Bench Supply designed for Industrial DC Equipment Testing. Its adjustable DC output provides high current and high power capacity for testing industrial equipment, DC-powered assemblies, control circuits, power modules, and other equipment that requires controlled DC input conditions within the rated output range.
For Industrial DC Equipment Testing, the combination of 100A high current output, 3000W power capacity, CC and CV operation, OCP and OVP protection, direct voltage/current/power monitoring, and rear high-current output provides practical control of demanding DC test setups.
Key Features
0-30V Adjustable Output for Industrial DC Equipment Testing
The 0-30V adjustable voltage range allows users to establish different DC input conditions when testing industrial equipment and DC-powered assemblies within the rated voltage range.
100A High Current Capacity for Industrial DC Loads
With output current up to 100A, the R-SPS30100S provides substantial current capacity for industrial DC equipment and test setups that require high-current operating conditions.
3000W High Power DC Output
The 3000W output rating provides high power capacity for demanding Industrial DC Equipment Testing applications, including high-current equipment and DC power circuits operating within the supply's rated range.
CC and CV Operation for Controlled DC Conditions
Constant Current and Constant Voltage operation allows the power supply to establish controlled DC output conditions according to the requirements of the connected industrial equipment and test setup.
OCP for High Current Equipment Testing
The built-in Over-Current Protection provides an additional protection function when testing industrial DC equipment under higher-current conditions, helping manage excessive current situations.
OVP for Controlled DC Voltage Testing
Over-Voltage Protection helps protect connected equipment and test circuits against excessive voltage conditions during Industrial DC Equipment Testing.
Four-Digit Voltage, Current, and Power Display
The four-digit display provides direct readback of voltage, current, and power, allowing test operators to monitor the DC output condition while equipment is operating under test.
Encoder Adjustment for Test Parameter Setup
The encoder knob provides convenient adjustment of voltage and current settings, allowing operators to establish and modify DC test conditions for different industrial equipment.
M1-M4 Memory for Repeated Equipment Tests
Four memory groups, M1-M4, allow frequently used voltage and current settings to be stored and recalled, helping reduce repeated manual setup when testing multiple units or repeating the same test conditions.
Output ON/OFF for Controlled Test Operation
The Output ON/OFF function allows the DC output to be enabled or disabled directly from the power supply, providing straightforward control over when DC power is applied to the equipment under test.
Panel Lock for Stable Test Settings
The Panel Lock function helps prevent unintended changes to voltage and current settings after the required test parameters have been established.
Rear High-Current Output for 100A Testing
The rear high-current output provides the appropriate connection point for demanding high-current applications, making it suitable when the R-SPS30100S is used near its 100A output capability.

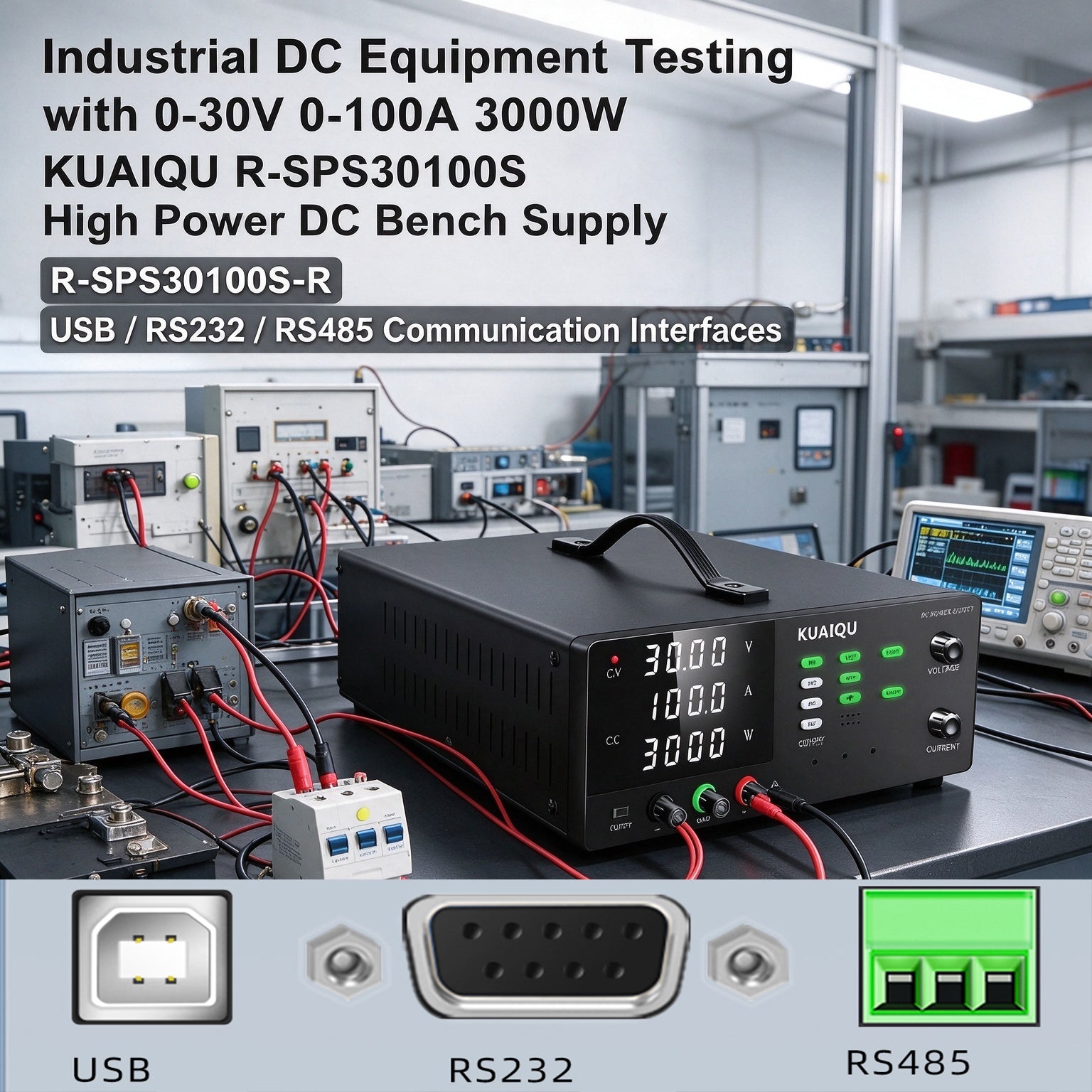

USB, RS232, and RS485 Communication Interfaces
The R-SPS30100S is equipped with USB, RS232, and RS485 communication interfaces for compatible external communication or control applications. The actual control capability depends on the connected system and supported interface functions.
Applications
Industrial DC Equipment Testing
Provides adjustable DC power for testing industrial equipment that operates from DC input power within the 0-30V, 0-100A, and 3000W output range.
Industrial Equipment Power Testing
Suitable for evaluating the DC power requirements and operating conditions of compatible industrial equipment during development, inspection, and maintenance testing.
High Current DC Equipment Testing
The 100A output capability supports industrial test setups where equipment requires substantial DC current during operating-condition evaluation.
Industrial DC Power Circuit Testing
Provides adjustable DC power for testing DC power circuits used in industrial equipment and related electrical assemblies.
Industrial Equipment Operating Condition Testing
The adjustable voltage and current output allows test operators to establish different DC operating conditions when evaluating compatible industrial equipment.
Industrial Equipment Startup Testing
The Output ON/OFF function and adjustable DC output provide practical control when applying DC power during equipment startup and initial operating tests.
Industrial DC Load Testing
The 100A current capability and 3000W power rating provide a high-power DC source for compatible industrial DC load testing applications.
Industrial Equipment Development Testing
The adjustable output, direct V/I/P monitoring, encoder adjustment, and protection functions can support DC power testing during industrial equipment development.
Repeated Industrial Equipment Testing
M1-M4 memory settings allow frequently used voltage and current conditions to be recalled for repeated testing of the same or similar industrial DC equipment.
Laboratory Industrial DC Equipment Testing
The R-SPS30100S can serve as a high-power DC source for laboratory evaluation of industrial equipment, DC assemblies, and related power circuits within its rated output range.
Quality Check and Terms of Service:
-
Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS30100S |
| Product Type |
High Power DC Bench Supply |
| Application |
Industrial DC Equipment Testing |
| Rated Voltage |
0-30V |
| Rated Current |
0-100A |
| Rated Power |
3000W |
| Operating Mode |
CC / CV |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
10mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
10mA |
| Setting Accuracy Voltage |
≤0.05% + 10mV |
| Setting Accuracy Current |
≤0.01% + 10mA |
| Readback Accuracy Voltage |
≤0.05% + 10mV |
| Readback Accuracy Current |
≤0.01% + 10mA |
| Ripple Voltage |
≤3500mVp-p / ≤1200mVrms |
| Ripple Current |
≤200mArms |
| Ripple Test Range |
20Hz-20MHz |
| Rise Time No Load |
≤100ms |
| Rise Time Full Load |
≤150ms |
| Fall Time No Load |
≤15s |
| Fall Time Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Display |
4-Digit Voltage / Current / Power Display |
| Protection |
OCP / OVP |
| Memory |
M1-M4, 4 Groups |
| Output Control |
Output ON/OFF |
| Adjustment |
Encoder Knob |
| Output Connection |
Rear High-Current Output |
| Communication |
USB / RS232 / RS485 |
| Panel Lock |
Yes |
Why Choose KUAIQU R-SPS30100S?
100A High Current Output for Industrial DC Equipment
The R-SPS30100S provides up to 100A output current, giving Industrial DC Equipment Testing setups substantial current capacity for demanding DC-powered equipment and assemblies.
3000W Power Capacity for High Power Testing
The 3000W output rating provides a high-power DC source for industrial equipment and test setups that require more than a conventional low-power bench supply can provide.
Adjustable 0-30V DC Output
The 0-30V adjustable output allows test operators to establish different DC voltage conditions without changing the power supply, making it suitable for equipment with different operating voltage requirements within this range.
CC and CV Operation
CC and CV operation provides two practical output control modes for establishing controlled DC conditions according to the requirements of the equipment under test.
OCP and OVP Protection
Integrated OCP and OVP functions provide additional protection during industrial equipment testing where incorrect current or voltage conditions may occur.
Direct V/I/P Monitoring
The four-digit voltage, current, and power display allows operators to directly monitor the electrical output during testing without relying on a separate basic readback display.
Four Memory Groups for Repeated Testing
M1-M4 memory settings help users store and recall frequently used voltage and current conditions when the same industrial equipment test needs to be repeated.
Practical High Current Test Connection
The rear high-current output is designed for demanding DC output applications and provides a suitable connection point when operating the R-SPS30100S at high current levels.
Designed for Demanding Industrial DC Testing
With 0-30V output, up to 100A current, 3000W power, OCP and OVP protection, CC/CV operation, memory settings, direct V/I/P display, and high-current rear output, the R-SPS30100S provides a practical High Power DC Bench Supply solution for Industrial DC Equipment Testing.
