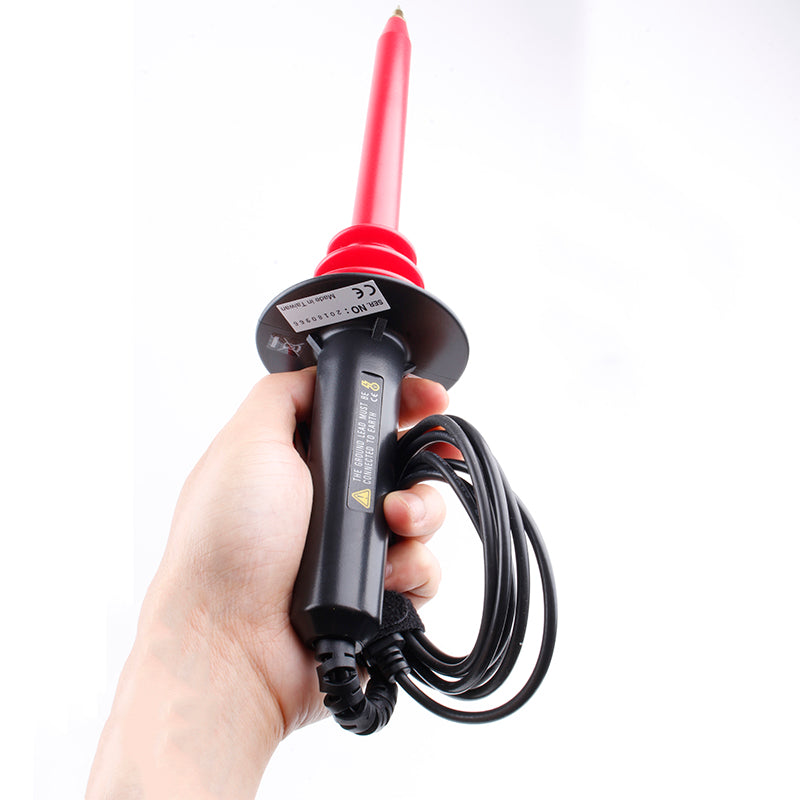

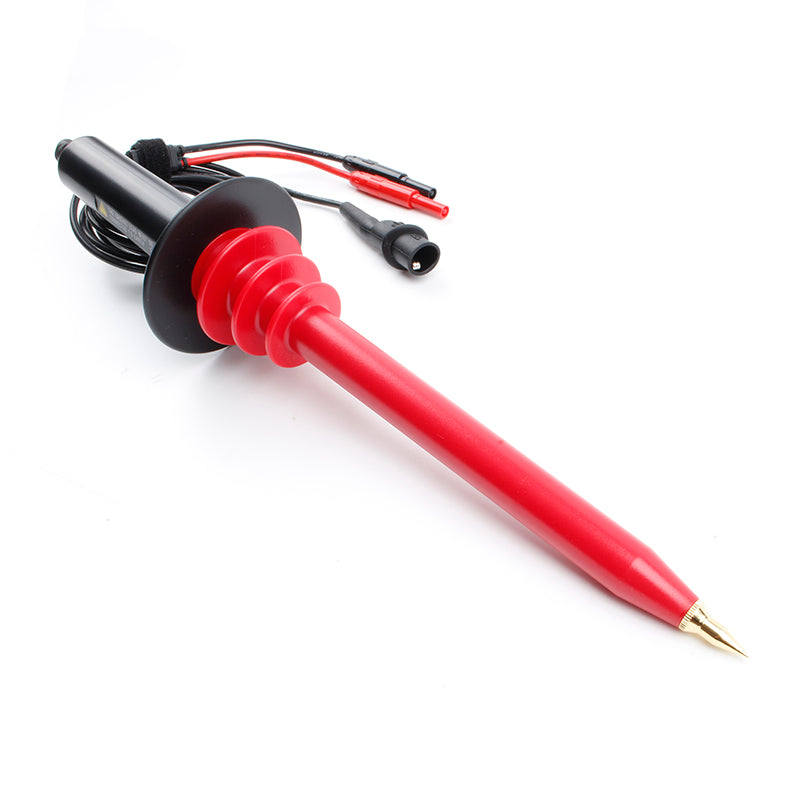

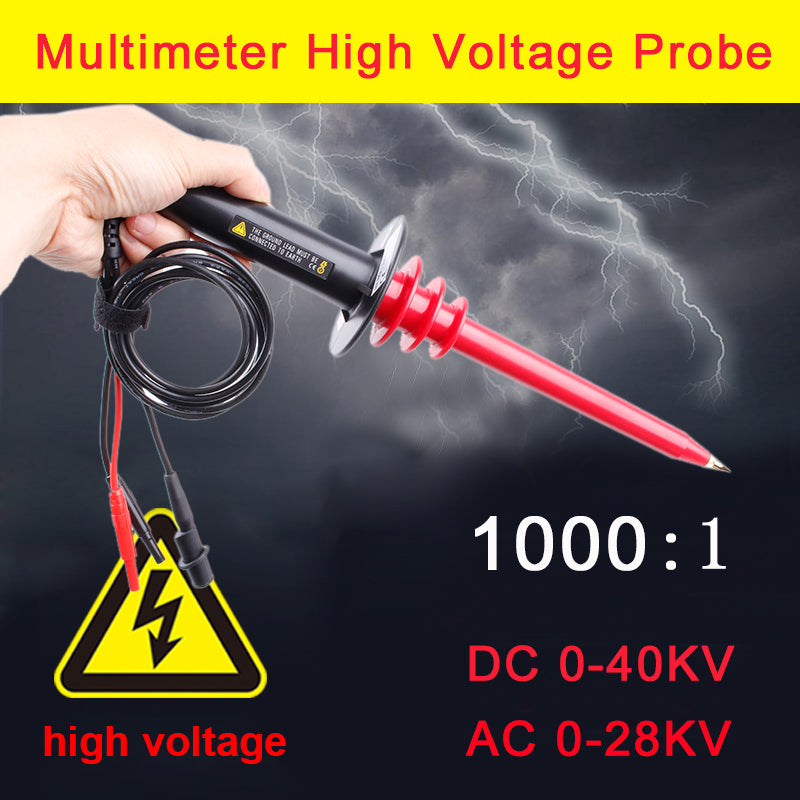

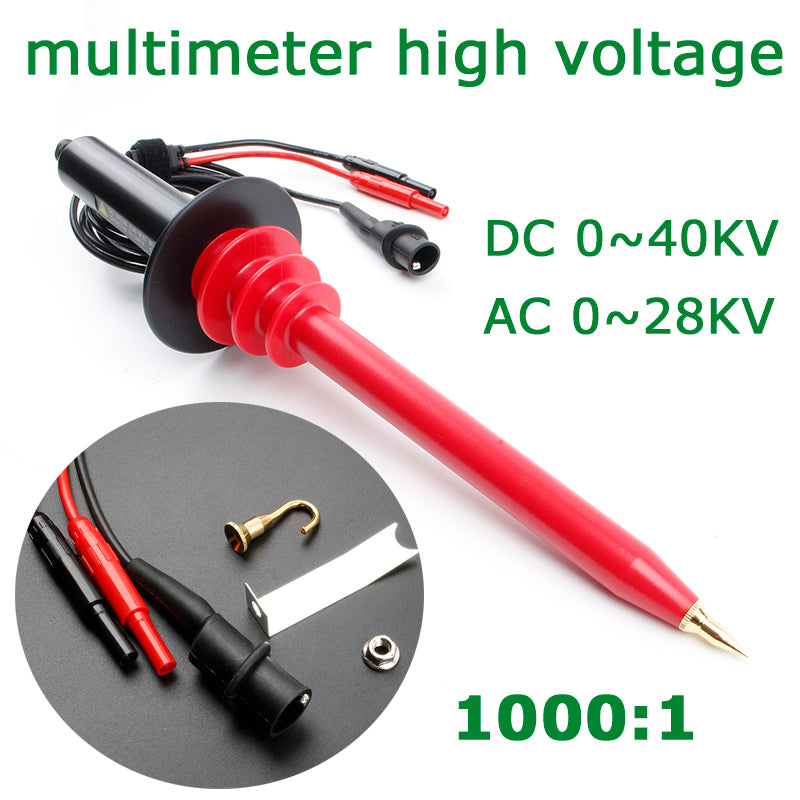

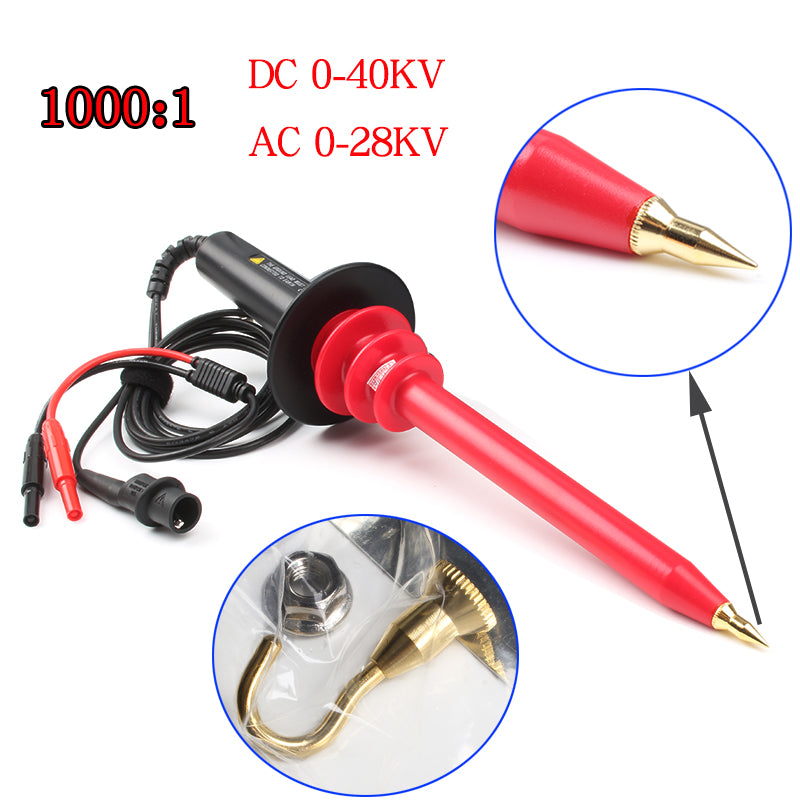

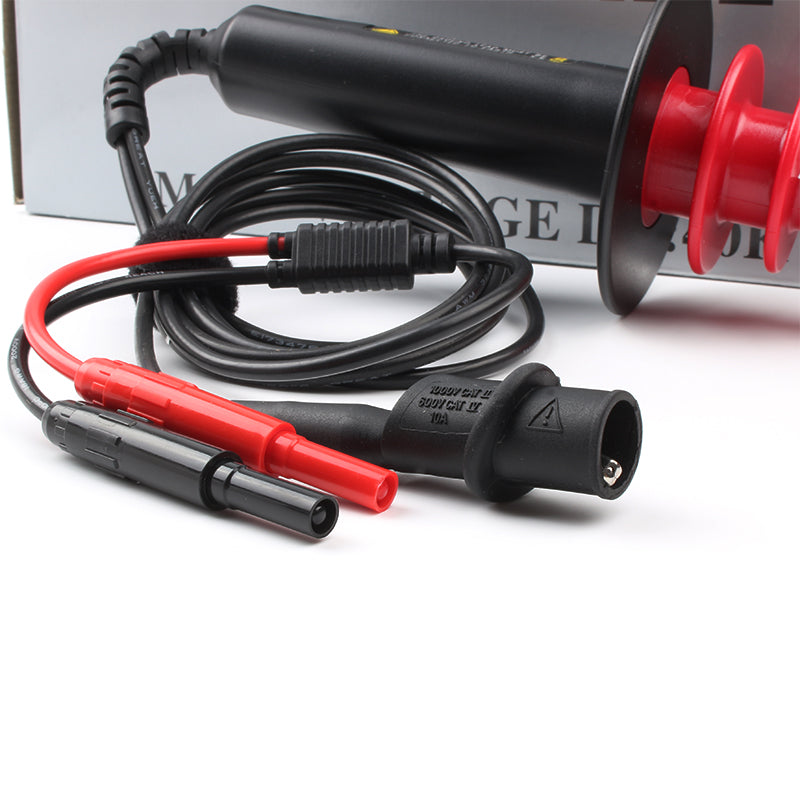

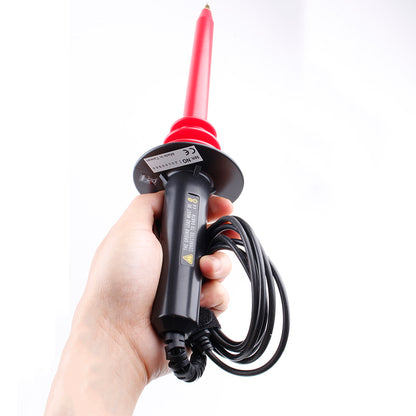

HVP-40 High Voltage Probe-40kV DC/28kV AC High Voltage Attenuation Probe

Are you struggling with the risks and inaccuracies associated with measuring high voltages in your electrical projects?

Do you find it challenging to ensure safety while obtaining precise voltage readings in high-voltage systems?

The HVP-40 is a high-precision, high-voltage probe designed for safe and accurate measurement of both AC and DC high voltages. With its robust construction and advanced electrical performance, this probe is ideal for engineers and technicians working with high-voltage systems.

Key Specifications

Electrical Performance

• Maximum Measurable Voltage：DC 0~40kV, AC 0~28kV (50/60Hz only)
• Input Impedance：1000MΩ
• Attenuation Ratio: 1000:1
• Polarity: Supports both positive and negative polarity measurements
• Accuracy:
  • DC: ±1% (0–20kV range), ±2% (20–40kV range)
  • AC: -5% to -10% (1–28kV range, 50/60Hz)
• Temperature Coefficient: ≤200ppm/℃
• Maximum Load Current: ≤40μA (at 40kV DC)
• Maximum Power Consumption: ≤1.6W

DC Voltage Measurement Scenarios

1. Power Supply Testing
2. Battery Research and Development
3. Electrostatic Equipment

AC Voltage Measurement Scenarios

1. Power System Maintenance
2. Industrial Machinery
3. Research and Development

Safety and Certifications

 Passed TUV GS, UL safety tests, compliant with EN61010, UL3111-1, TUV-GS IEC1010 CATⅡ Pollution 2 standards

Usage Precautions

• For use by trained or experienced engineers only
• Operate with two people; avoid solo high-voltage testing
• Inspect equipment and cables for damage before use
• Ensure dry hands, shoes, and work surface during operation
• Turn off high-voltage power before connecting or disconnecting devices
• Keep the probe body clean to prevent induced currents and electric shock hazards

Purchase Notes

The PINTECH HVP-40 High Voltage Probe is an essential tool for high-voltage testing applications, providing reliable and safe measurements in demanding environments. Order now to enhance your high-voltage measurement capabilities!
