Hantek HT8100 High-Voltage Isolated Probe: Precision for High-Speed High-Voltage Testing
Tired of high-voltage probes that lack bandwidth or compromise safety? The Hantek HT8100 delivers 100MHz high-speed performance + dual attenuation—ideal for industrial, automotive, and lab high-voltage testing!

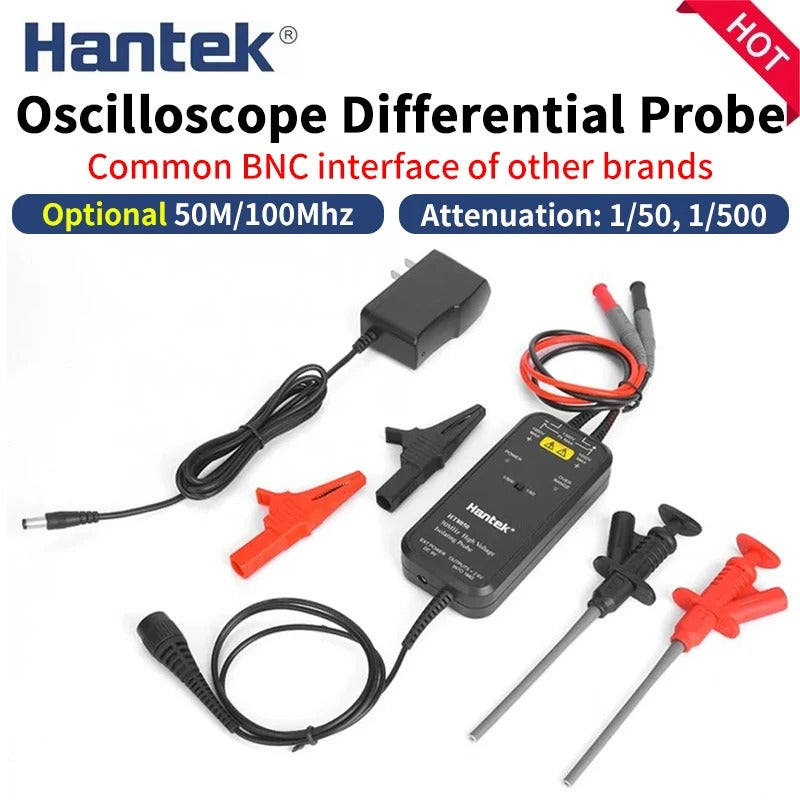

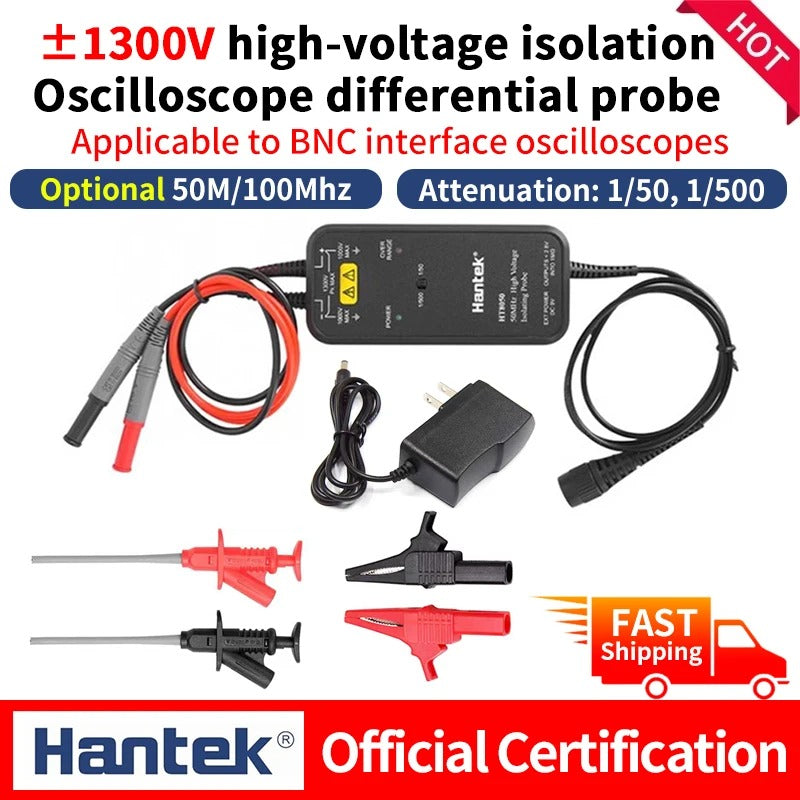

Design & Build

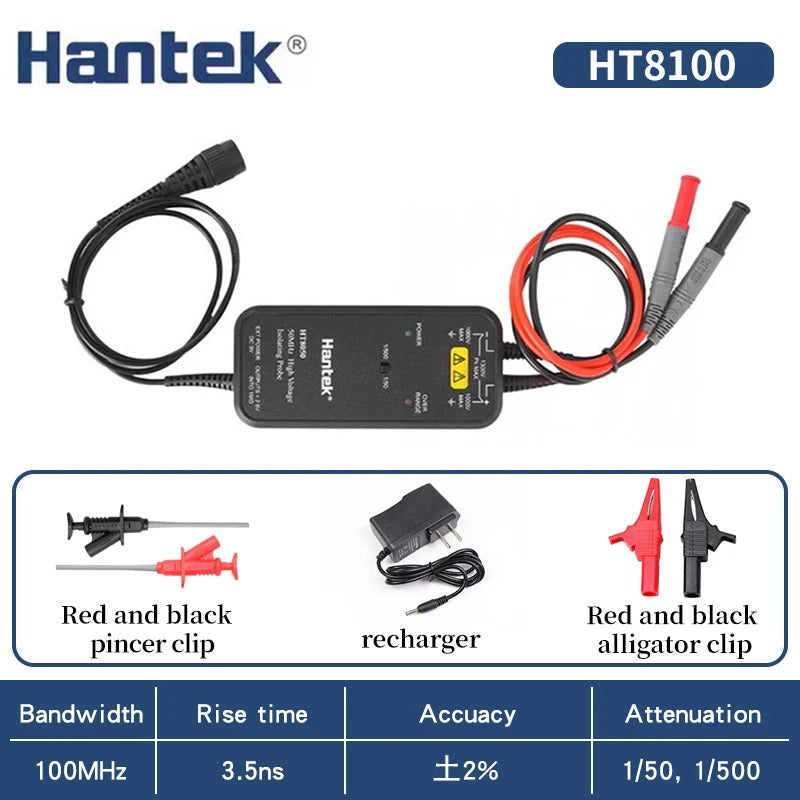

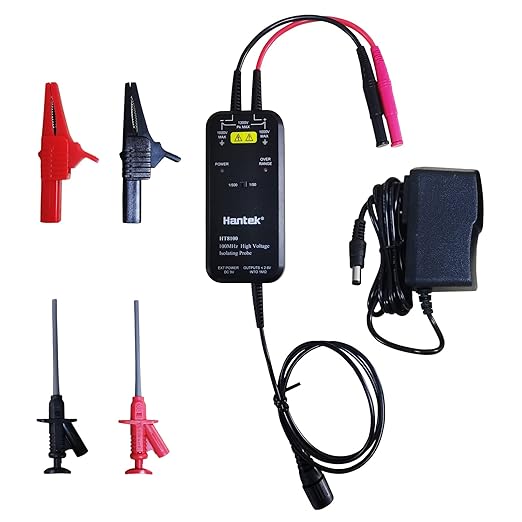

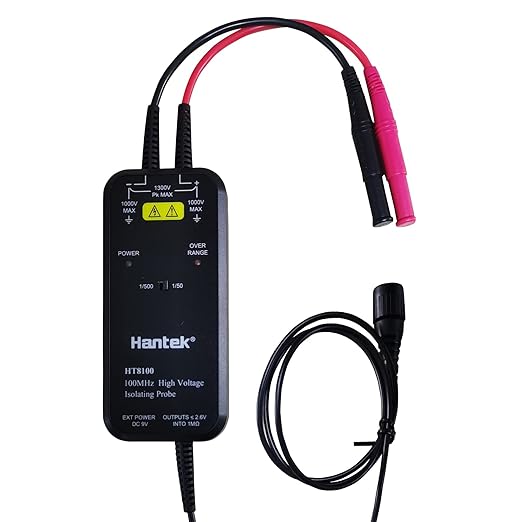

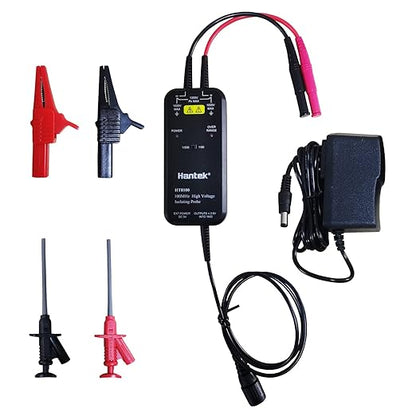

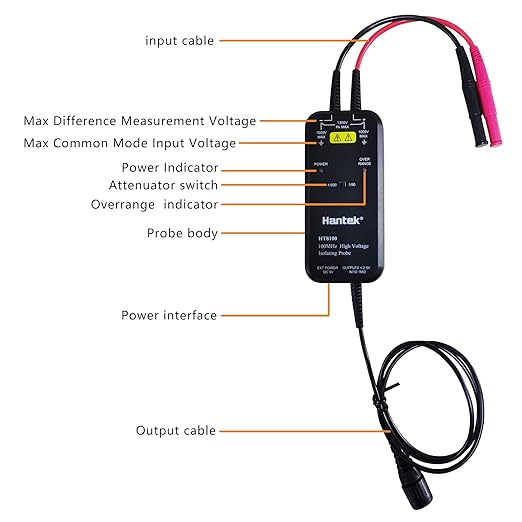

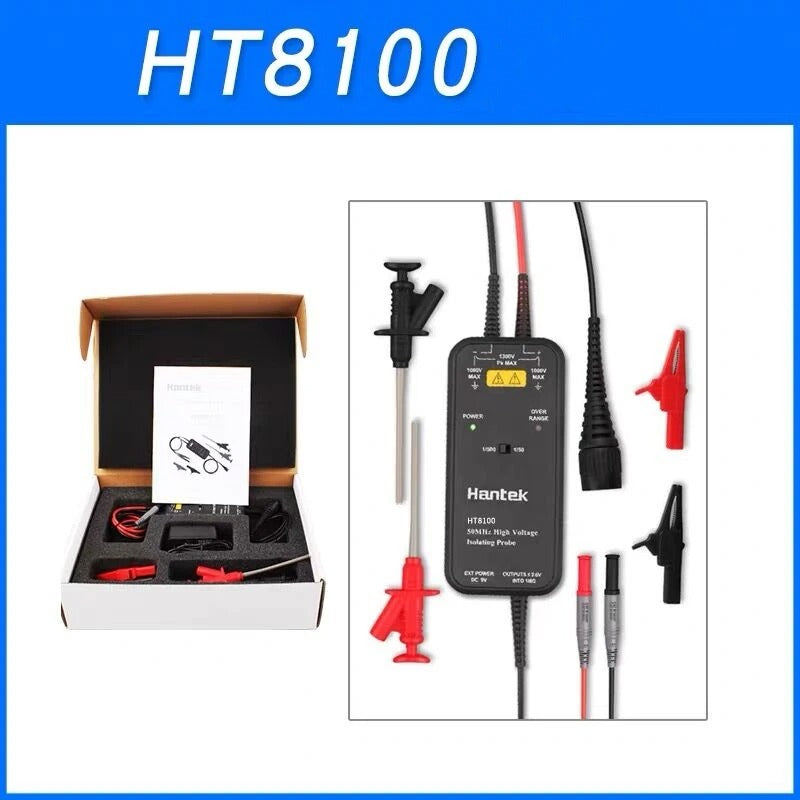

Compact probe body (120×55×24mm) for easy handling; lightweight (≈156g) to prevent fatigue during extended use. Durable cables: 25cm input cable (flexible for tight spaces) + 90cm output cable for stable connection. Equipped with gator clips (84×35×13mm) and finger pins (160×47×16mm) for secure, versatile clamping.

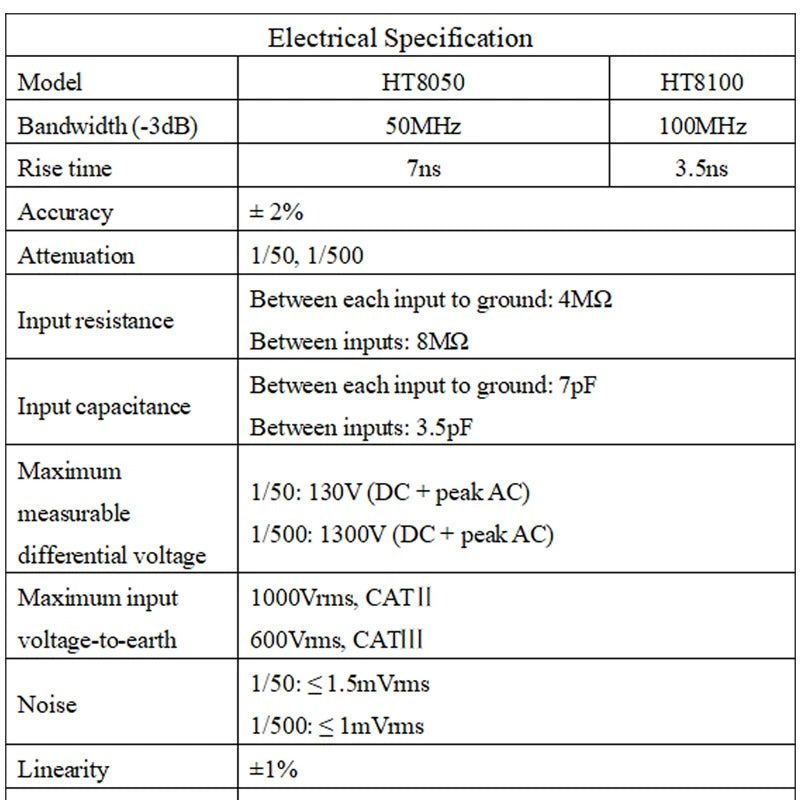

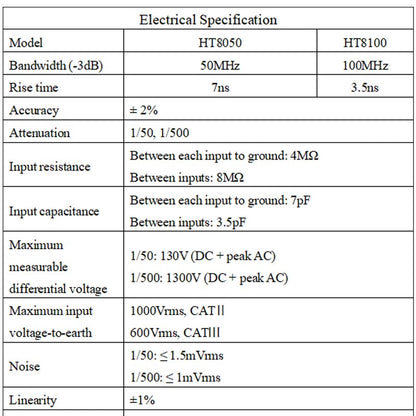

Key Specifications
Parameter
Detail
Model
HT8100
Bandwidth (-3dB)
100MHz
Rise Time
≤3.5ns
Attenuation Ratio
1/50, 1/500
Accuracy
±2%
Input Impedance
Single-ended to ground: 4MΩ±1%;
Between inputs: 8MΩ±1%
Input Capacitance
Single-ended to ground: ≤8pF;
Between inputs: ≤4pF
Max Difference Voltage
1/50: ±130V (DC+peak AC);
1/500: ±1300V (DC+peak AC)
Max Common Mode Voltage
1000Vrms (CAT II);
600Vrms (CAT III)
Noise
1/50: ≤2mVrms;
1/500: ≤1mVrms
Power
AC100-240V (input) → DC9V 1000mA (output adapter)
Working Temp
0-40℃;
Storage Temp: -10-45℃
Key Functions
100MHz High-Speed Performance: Captures fast high-voltage signals (e.g., inverter switching, industrial pulse waveforms) with clarity—no distortion, ideal for high-frequency circuits.
Dual Attenuation Modes: Switch 1/50 for ±130V low-high voltage testing or 1/500 for ±1300V high-voltage tasks, covering power electronics, motor drives, and industrial equipment.
Isolated Safety & Precision: High common-mode rejection ratio (DC: ≥80dB; 1MHz: ≥50dB) minimizes interference; ±1% linearity ensures accurate voltage-to-signal conversion.
Over-Range Warning: Red LED lights up when voltage exceeds thresholds (≥130V/1300V), protecting users and equipment.
Applicable Scenarios
Industrial Power Testing: Analyze high-voltage frequency converters, motor drives, and power distribution systems—troubleshoot malfunctions efficiently.
Automotive Electronics: Test high-voltage components (e.g., EV charging systems, battery management) with safe isolation and fast signal capture.
Lab R&D: Support high-frequency high-voltage circuit development (e.g., power modules) with 100MHz bandwidth and precise measurements.
Power Electronics Maintenance: Inspect inverters, transformers, and high-voltage controllers—ensure stable operation and compliance with safety standards.
Why Choose HT8100?
Speed & Range: 100MHz bandwidth + 1300V max voltage covers high-speed, high-voltage professional needs.
Safety & Reliability: CAT II/CAT III certification + over-range warning for secure operation; durable build resists workshop wear.
User-Friendly: Universal power adapter (100-240V) works globally; compact design fits on-site and bench testing.
Ready to upgrade high-voltage testing? Click “Add to Cart”—the HT8100’s speed, safety, and precision make it a pro’s must-have. Secure yours for reliable high-voltage analysis today!
