Overview

This series of handheld oscilloscopes is engineered for portable, high-precision signal analysis, catering to field testing, R&D, and maintenance scenarios. With a compact design and versatile features, they deliver clear waveform visualization, accurate measurements, and flexible operation for various electrical signal applications.

Key Features

Portable and Ergonomic: Compact, lightweight design with one-handed grip, ideal for on-site work, field repairs, and mobile testing.

Multi-Function Integration:

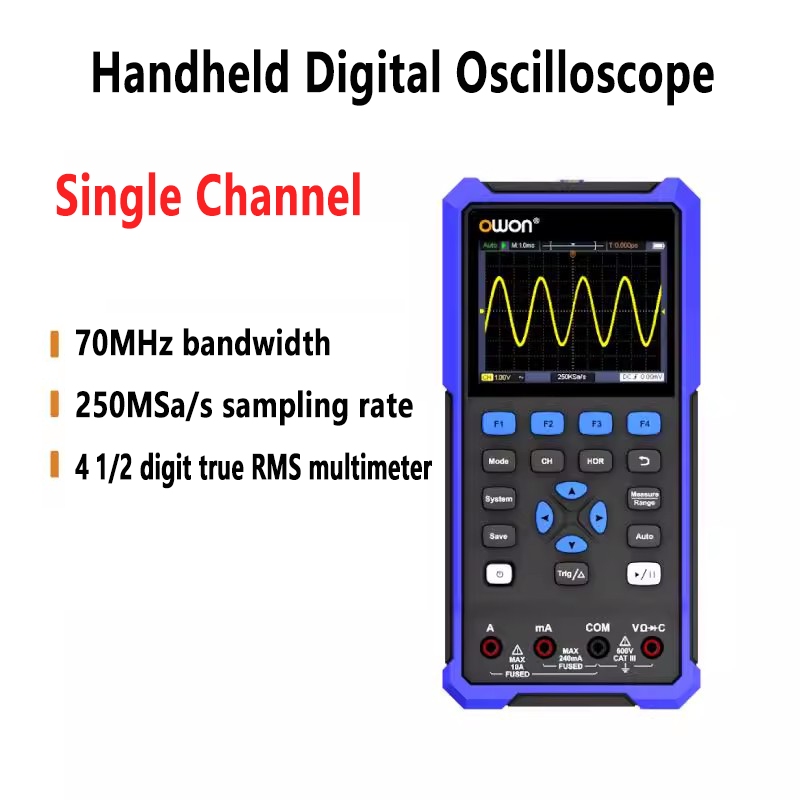

Model 1: Single-channel oscilloscope + 4 1/2-digit true RMS multimeter.

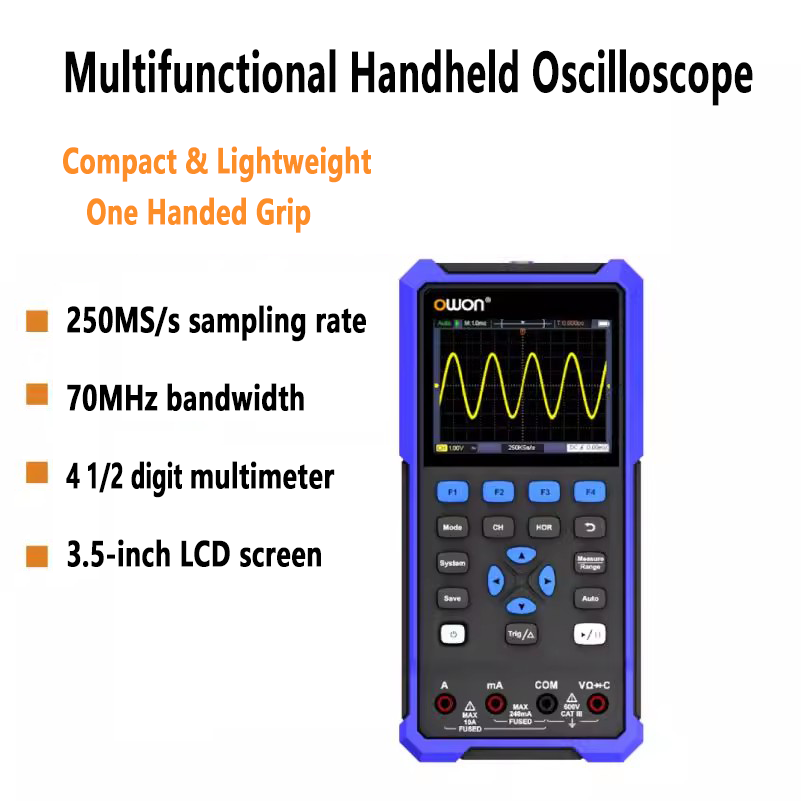

Model 2: Dual-channel oscilloscope+ 4 1/2-digit true RMS multimeter.

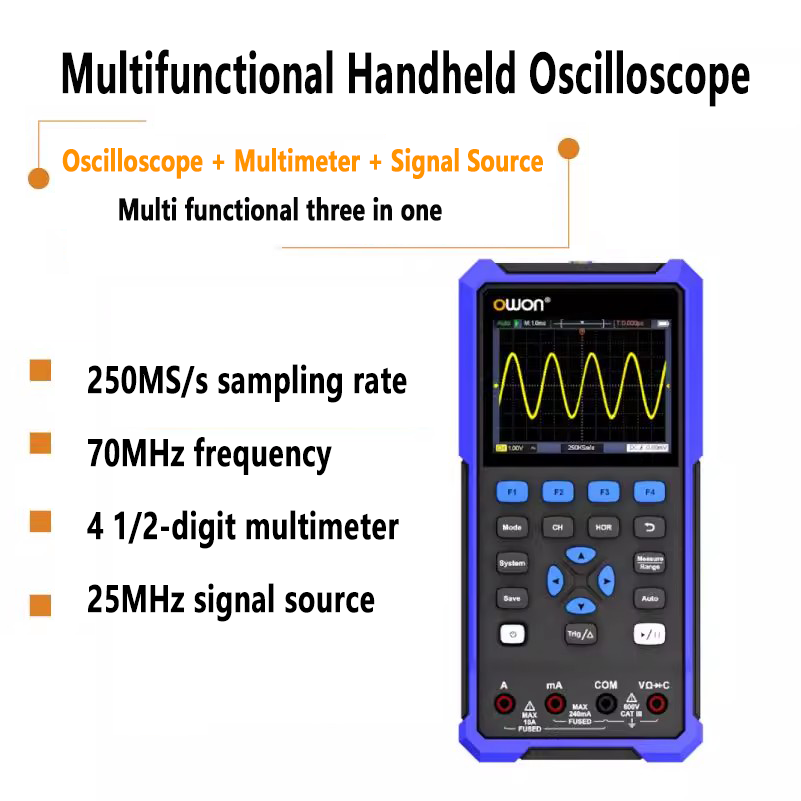

Model 3: Dual-channel oscilloscope + 4 1/2-digit true RMS multimeter + single-channel signal source.

High Performance: All models feature a 250MSa/s real-time sampling rate and 70MHz bandwidth, ensuring accurate capture of fast-changing signals.

Clear Display and Fast Refresh: Equipped with a 3.5-inch LCD display and a waveform refresh rate of 10,000wfms/s for real-time signal visualization.

Versatile Sampling and Storage: Support normal and peak sampling modes, with 8k record length (Model 1 offers 4k/8k), enabling capture of both regular and transient signals.

Rich Trigger and Measurement: Offer edge trigger, automatic measurements (period, frequency, mean, etc.), and cursor measurement for precise data analysis.

Reliable Connectivity and Power: USB Type-C communication interface for data transfer, and durable construction suitable for harsh environments.

Signal Generation (Model 3 Only): Provides a 25MHz signal source with sine, square, ramp, and pulse waveforms, enabling signal stimulation and analysis in one device.

Technical Specifications

Parameter	Model 1	Model 2	Model 3
Channels	Single-channel	Dual-channel	Dual-channel + single-channel signal source
Bandwidth	70MHz	70MHz	70MHz
Real-Time Sampling Rate	250MSa/s	250MSa/s	250MSa/s
Sampling Modes	Normal, peak	Normal, peak	Normal, peak
Record Length	8k	8k	8k
Display	3.5-inch LCD	3.5-inch LCD	3.5-inch LCD
Waveform Refresh Rate	10,000wfms/s	10,000wfms/s	10,000wfms/s
Trigger Type	Edge	Edge	Edge
Automatic Measurements	Period, frequency, mean, PK-PK, max, min, amplitude, RMS	Period, frequency, mean, PK-PK, max, min	Period, frequency, mean, PK-PK, max, min
Multimeter (Model 1)	4 1/2-digit true RMS	4 1/2-digit true RMS	4 1/2-digit true RMS
Signal Source (Model 3)	-	-	25MHz max output (sine, square, ramp, pulse)
Communication Interface	USB Type-C	USB Type-C	USB Type-C

Model Selection Tips

Model 1: Ideal for users needing a compact single-channel oscilloscope with integrated multimeter functionality for basic signal testing and electrical measurement in fieldwork, maintenance, or DIY projects.

Model 2: Perfect for those requiring dual-channel signal analysis to compare and debug two signals simultaneously, such as in embedded system development, circuit troubleshooting, and industrial equipment testing.

Model 3: Suited for advanced applications that demand both dual-channel oscilloscope and signal source capabilities, making it ideal for R&D labs, product development, and complex testing scenarios where signal generation and analysis are needed in one device.

Application Scenarios

Field Maintenance and Troubleshooting: Diagnose electrical issues in industrial machinery, HVAC systems, and automotive electronics on-site.

Embedded System Debugging: Test and verify signals from microcontrollers, sensors, and communication modules in portable embedded projects.

Electronics R&D (Model 3): Generate custom test signals and analyze circuit responses for product development and quality control.

Educational Labs: Teach students about electrical signal characteristics, waveform analysis, and oscilloscope operation with a portable, easy-to-use device.

DIY Electronics Projects: Assist hobbyists and makers in debugging and testing custom electronic circuits and prototypes.

Power Electronics Testing: Analyze waveforms of power supplies, inverters, and motor drives in both laboratory and field environments.

Get this handheld oscilloscope now to achieve portable, precise, and versatile signal analysis for your on-the-go testing and development needs!
