Overview

This series of handheld oscilloscopes is designed for portable and precise signal analysis, catering to field testing, on-the-go R&D, and maintenance needs. With compact design and versatile features, they deliver clear waveform visualization, accurate measurements, and flexible operation for a variety of electrical signal scenarios.

Key Features

Portable and Lightweight: Compact design with one-handed grip, ideal for fieldwork, on-site maintenance, and mobile testing.

Multiple Function Integration:

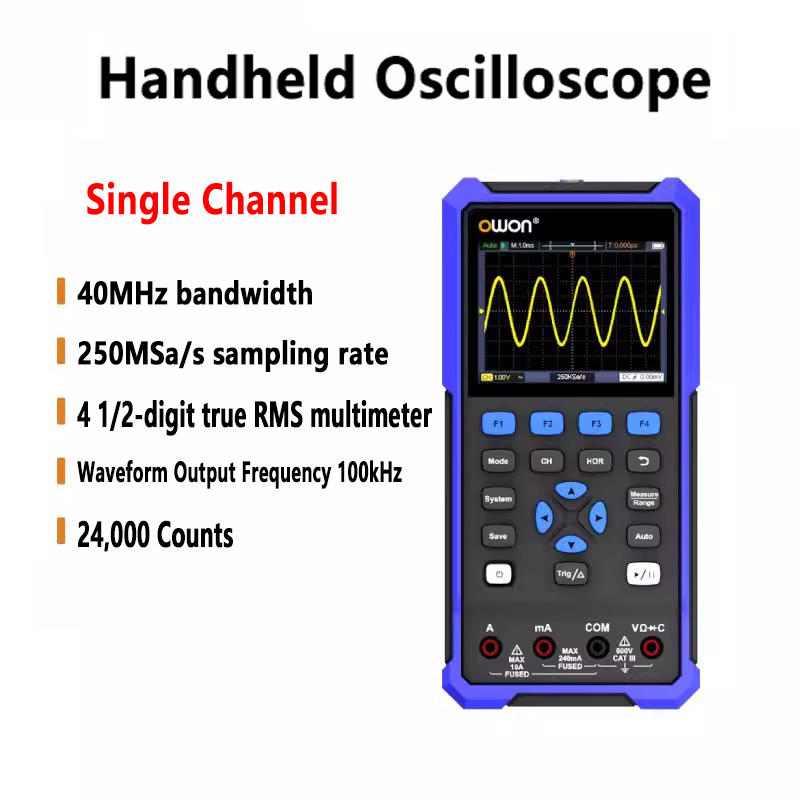

Model 1: Single-channel Oscilloscope.

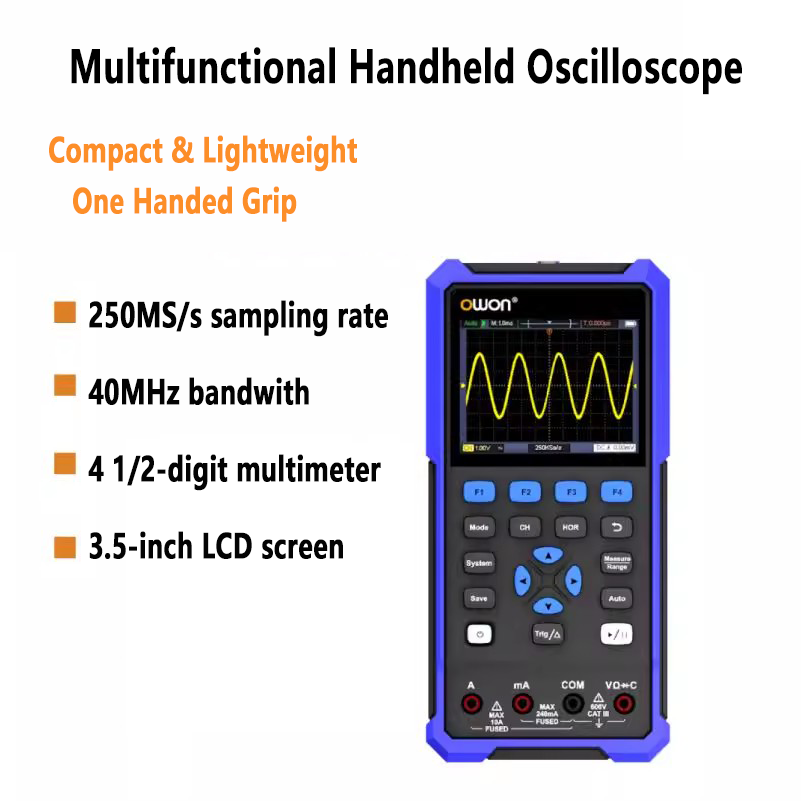

Model 2: Dual-channel oscilloscope.

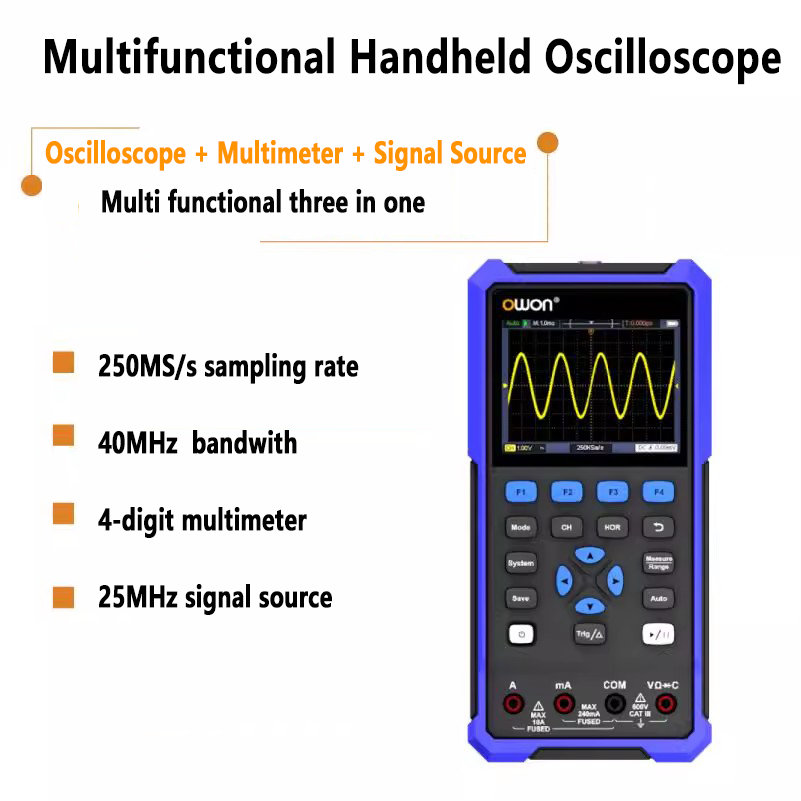

Model 3: Dual-channel oscilloscope + Multimeter+ signal source.

High Sampling and Bandwidth: All models feature a 250MSa/s real-time sampling rate and 40MHz bandwidth, ensuring accurate capture of fast-changing signals.

Clear Display and Fast Refresh: Equipped with a 3.5-inch LCD display and a waveform refresh rate of 10,000wfms/s for real-time signal visualization.

Versatile Sampling and Storage: Support normal and peak sampling modes, with 8k storage depth, enabling capture of both regular and transient signals.

Rich Trigger and Measurement: Offer edge trigger and 8 types of automatic measurements (frequency, period, amplitude, etc.), along with cursor measurement for precise data analysis.

Long Battery Life and Connectivity: Built-in high-capacity battery for extended use, with USB Type-C communication interface for data transfer and PC connection.

Durable and Reliable: Designed to withstand salt spray, vibration, and extreme temperature tests, ensuring stable performance in harsh environments.

Technical Specifications

Parameter	Model 1	Model 2	Model 3
Channels	Single-channel	Dual-channel	Dual-channel + single-channel signal source
Bandwidth	40MHz	40MHz	40MHz
Real-Time Sampling Rate	250MSa/s	250MSa/s	250MSa/s
Sampling Modes	Normal, peak	Normal, peak	Normal, peak
Storage Depth	8k	8k	8k
Display screen	3.5-inch LCD	3.5-inch LCD	3.5-inch LCD
Waveform Refresh Rate	10,000wfms/s	10,000wfms/s	10,000wfms/s
Trigger Type	Edge	Edge	Edge
Automatic Measurements	8 types	8 types	8 types
Display Accuracy	4½-digit true RMS	4½-digit true RMS	4½-digit true RMS
Signal Source (Model 3)	-	-	25MHz max output, sine/square/sawtooth/pulse waves
Communication Interface	USB Type-C	USB Type-C	USB Type-C
Power	Battery/DC	Battery/DC	Battery/DC

Model Selection Tips

Model 1: Ideal for users who need a compact single-channel oscilloscope with integrated multimeter functionality for basic signal testing and electrical measurement in fieldwork or maintenance.

Model 2: Perfect for those requiring dual-channel signal analysis for comparing and debugging two signals simultaneously, such as in embedded system development and circuit troubleshooting.

Model 3: Suited for advanced applications that need both dual-channel oscilloscope and signal source capabilities, enabling signal generation and analysis in one device for R&D and complex testing projects.

Application Scenarios

Field Maintenance and Troubleshooting: Diagnose electrical issues in industrial equipment, HVAC systems, and electrical wiring on-site.

Automotive Electronics Testing: Analyze signals from sensors, actuators, and ECUs in automotive repair and development.

Embedded System Debugging: Test and verify signals from microcontrollers, sensors, and communication modules in portable embedded projects.

Educational Labs: Teach students about electrical signal characteristics, waveform analysis, and oscilloscope operation in electronics courses with a portable device.

DIY Electronics Projects: Assist hobbyists and makers in debugging and testing custom electronic circuits and prototypes.

Signal Generation and Analysis (Model 3): Generate custom test signals and analyze circuit responses, suitable for product development and quality control.

Get this handheld oscilloscope now to achieve portable, precise, and versatile signal analysis for your on-the-go testing and development needs!
