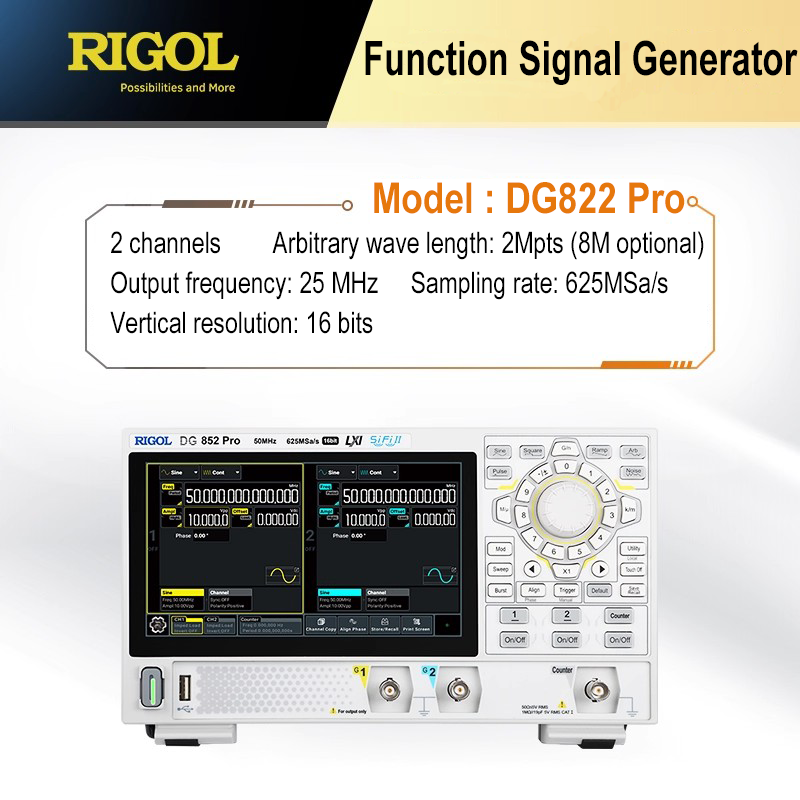

RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter
RIGOL Function Signal Generator DG821 Pro DG822 Pro DG852 Pro Signal Generator Adjustable 25MHz 50MHz 625 MSa/s Frequency Meter
Prix habituel
$428.00 USD
Prix habituel
Prix promotionnel
$428.00 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Overview
RIGOL's DG821 Pro, DG822 Pro, and DG852 Pro are high - performance function signal generators, ideal for precise signal generation in electronics, telecommunications, and research.
Key Features
- High Resolution & Sampling Rate: 16 - bit vertical resolution and 625 MSa/s sampling rate for accurate signal output.
- Rich Built - in Waveforms: Include sine, square, sawtooth, pulse, noise, and 148 arbitrary waveforms like Sinc, exponential rise/fall, ECG, and Gaussian.
- Diverse Output Modes & Modulation: Support continuous wave, modulation, sweep, burst, and sequence modes, with modulation types such as AM, FM, PM, ASK, FSK, PSK, PWM, and SUM.
- Intuitive Operation & Connectivity: 7 - inch 1024*600 touchscreen, support for Web Control, and interfaces like LAN, USB Host, and USB Device.
- Portable & Flexible Power Supply: Compact size (26616580mm) and weight (1.78kg), with power supply options of mains or mobile power (DC 15V, 3A).
Technical Specifications
|
Parameter
|
DG821 Pro
|
DG822 Pro
|
DG852 Pro
|
|
Channels
|
1
|
2
|
2
|
|
Frequency Range
|
1uHz - 25MHz
|
1uHz - 25MHz
|
1uHz - 50MHz
|
|
Storage Depth
|
2 Mpts/CH (8 Mpts/CH optional)
|
2 Mpts/CH (8 Mpts/CH optional)
|
2 Mpts/CH (8 Mpts/CH optional)
|
|
Sampling Rate
|
625 MSa/s
|
625 MSa/s
|
625 MSa/s
|
|
Vertical Resolution
|
16bit
|
16bit
|
16bit
|
|
Amplitude Range
|
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
|
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
|
50Ω: 1mVpp - 10Vpp; High Impedance: 2mVpp - 20Vpp
|
|
Frequency Counter
|
500MHz
|
500MHz
|
500MHz
|
|
Modulation Types
|
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
|
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
|
AM, FM, PM, ASK, FSK, PSK, PWM, SUM
|
|
Remote Control
|
Support Web Control
|
Support Web Control
|
Support Web Control
|
|
Interfaces
|
LAN, USB Host, USB Device
|
LAN, USB Host, USB Device
|
LAN, USB Host, USB Device
|
|
Screen
|
7 - inch touchscreen (1024*600)
|
7 - inch touchscreen (1024*600)
|
7 - inch touchscreen (1024*600)
|
|
Dimensions
|
26616580mm
|
26616580mm
|
26616580mm
|
|
Weight
|
1.78kg
|
1.78kg
|
1.78kg
|
|
Power Supply
|
Mains/mobile power (DC 15V, 3A)
|
Mains/mobile power (DC 15V, 3A)
|
Mains/mobile power (DC 15V, 3A)
|
|
Power Consumption
|
≤ 45W
|
≤ 45W
|
≤ 45W
|
Selection Tips
- Choose DG821 Pro if you need a single - channel signal generator with a frequency range up to 25MHz.
- Opt for DG822 Pro when you require dual - channel signal generation with a frequency range up to 25MHz.
- Select DG852 Pro if dual - channel signal generation with a frequency range up to 50MHz is needed.
Application Scenarios
- Electronics R & D: Generate test signals for circuit design and debugging.
- Telecommunications Testing: Test communication systems with modulated signals.
- Education: Demonstrate signal generation principles in electronics courses.
- Industrial Automation: Provide control signals for automated systems.
- Audio Testing: Generate audio frequency signals for speaker and amplifier testing.
- Research Labs: Create custom waveforms for scientific experiments.
Get RIGOL function signal generators now for precise signal generation!
