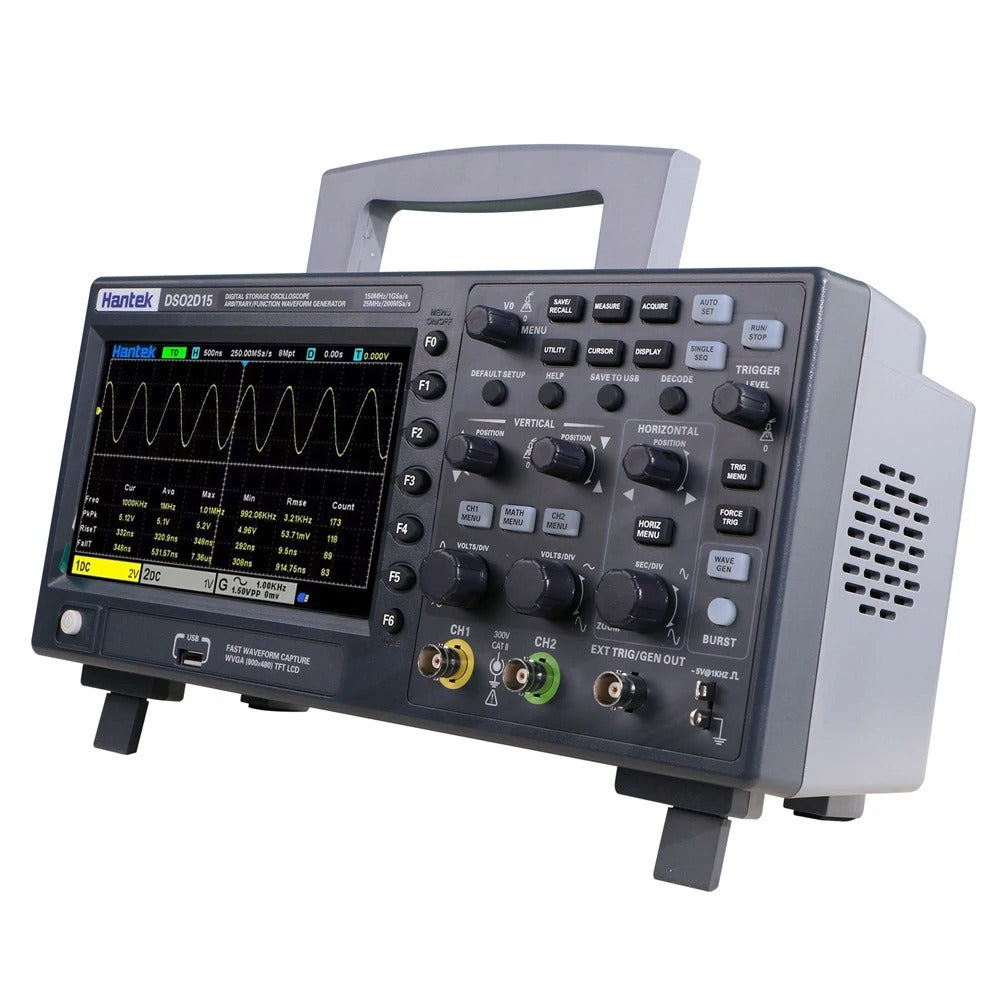

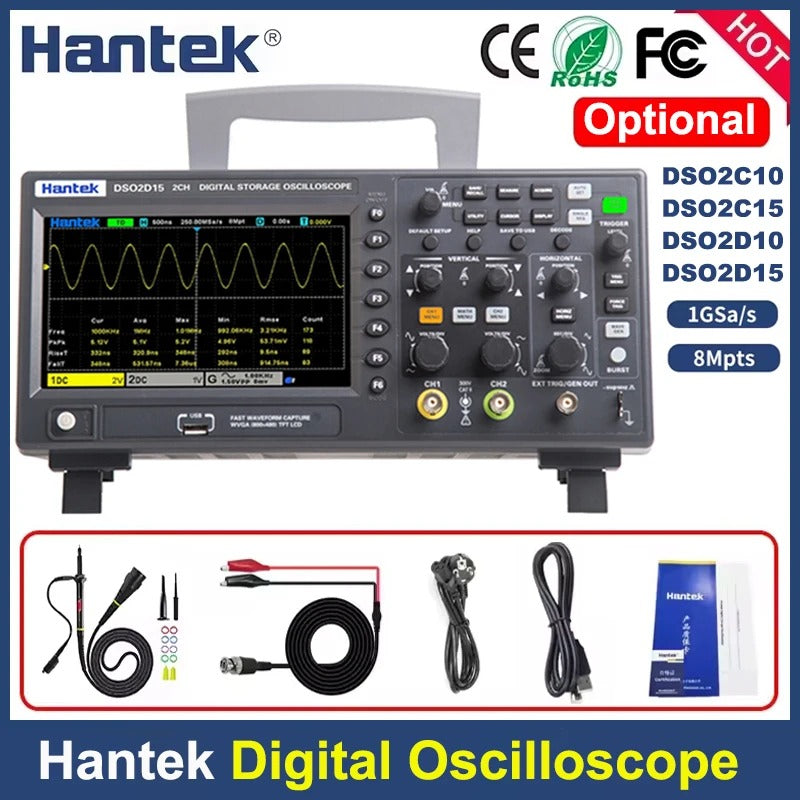

Hantek DSO2D15 Digital Storage Oscilloscope: 2CH 150MHz with Built-in AWG
Need a versatile oscilloscope for mid-range high-frequency testing? The Hantek DSO2D15 delivers 2-channel 150MHz bandwidth + 1GSa/s sampling rate, plus a built-in 30MHz function generator (AWG)—ideal for electronics engineers, lab researchers, and medium-scale R&D, with full serial protocol decoding/triggering.
User-Friendly Design
Dual-Channel Control : Independent knobs for each channel; quick adjustment of signal amplitude, offset, and time base.
Clear Display : 7-inch 800×480 TFT LCD (16M color); adjustable brightness/grid; supports waveform overlay for comparison.
Quiet & Portable : Fanless design (noise-free) + 1.9kg compact build; fits lab benches or on-site testing.
Key Specifications
Parameter
Detail
Model
Hantek DSO2D15
Oscilloscope Core
Bandwidth: 150MHz (2 channels);
Sampling rate: 1GSa/s (single CH), 500MSa/s (dual CH); Memory depth: 8Mpts (single CH), 4Mpts (dual CH)
Vertical Performance
Sensitivity: 2mV/div~10V/div; Vertical resolution: 8 bits;
Rise time: 2.3ns
Horizontal Control
Scale range: 2ns/div~100s/div;
Time base accuracy: ±50ppm
Decoding & Trigger
Supports I2C, SPI, UART/RS232, CAN protocols;
12 trigger types (edge/pulse/window, etc.)
Math Operations
+, -, ×, ÷, FFT (spectral analysis);
32 auto-measurements (frequency/peak-to-peak, etc.)
Max Input Voltage
300VRMS, CAT II 300V
Built-in AWG
Frequency range: 30MHz;
Sampling rate: 200MSa/s;
Waveforms: sine/square/ramp/exp/noise/DC/arb (8-bit resolution)
Interface
USB Host (data storage to U-disk) + USB Device (PC connection);
supports SCPI remote control
Weight & Power
1.9kg;
AC 100~240V±10% (45~66Hz);
Power consumption: <30W
Core Advantages
High-Freq Versatility : 150MHz bandwidth captures faster signals (e.g., high-speed ICs, RF modules) vs. 100MHz models.
All-in-One Value : Combines oscilloscope + 30MHz AWG; eliminates need for separate signal generators.
Efficient Debugging : Serial protocol decoding + auto-measurements cut testing time for complex circuits.
Applicable Scenarios
Mid-Range R&D : Debug 150MHz-range circuits (IoT high-speed modules, industrial controllers).
Lab Testing : Conduct signal analysis, spectral measurement (via FFT), and component validation.
Electronics Production : QC checks for mid-frequency electronics (power supplies, sensor modules).
Advanced Education : Teach high-frequency waveform analysis and protocol decoding.
Why Choose DSO2D15?
Performance Upgrade : 150MHz bandwidth + 30MHz AWG meets mid-range high-frequency needs.
Cost-Effective : All-in-one design saves budget vs. buying separate scope + AWG.
Reliable & Quiet : Fanless industrial build ensures stable use in noise-sensitive environments.
Elevate your high-frequency testing! Click “Add to Cart” to get the Hantek DSO2D15.
