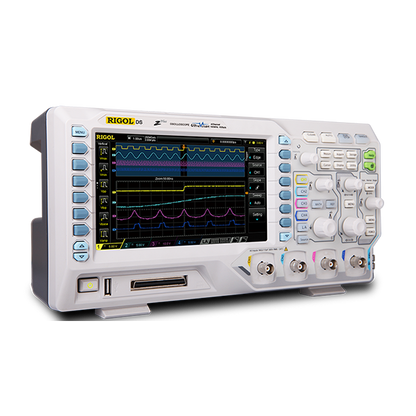

RIGOL Digital Oscilloscope DS1202Z-E DS1102Z-E 100MHZ 200MHZ Bandwidth Storage Dual Channel 1GSa/s Sampling Rate 24Mpts Memory
RIGOL Digital Oscilloscope DS1202Z-E DS1102Z-E 100MHZ 200MHZ Bandwidth Storage Dual Channel 1GSa/s Sampling Rate 24Mpts Memory
Prix habituel
$319.00 USD
Prix habituel
Prix promotionnel
$319.00 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
English Manual
Overview
The DS1102Z - E and DS1202Z - E oscilloscopes are high - performance tools for signal measurement and analysis. With two models offering different analog bandwidths, they meet diverse testing needs in electronics and engineering fields.
Key Features
- Dual Analog Channels: Both models have 2 analog channels for simultaneous signal observation.
- High Sampling Rate & Storage Depth: Share a 1GSa/s sampling rate (shared) and 24Mpts storage depth (shared) for detailed signal capture.
- Fast Waveform Refresh: 30,000wfms/s waveform refresh rate for real - time signal monitoring.
- Versatile Decoding & Analysis: Support FFT, serial decoding (parallel, RS232, I²C, SPI), and 3 - 6 digit frequency counter.
- Clear Display & Connectivity: 7 - inch LCD screen (800*480); USB and LAN communication interfaces.

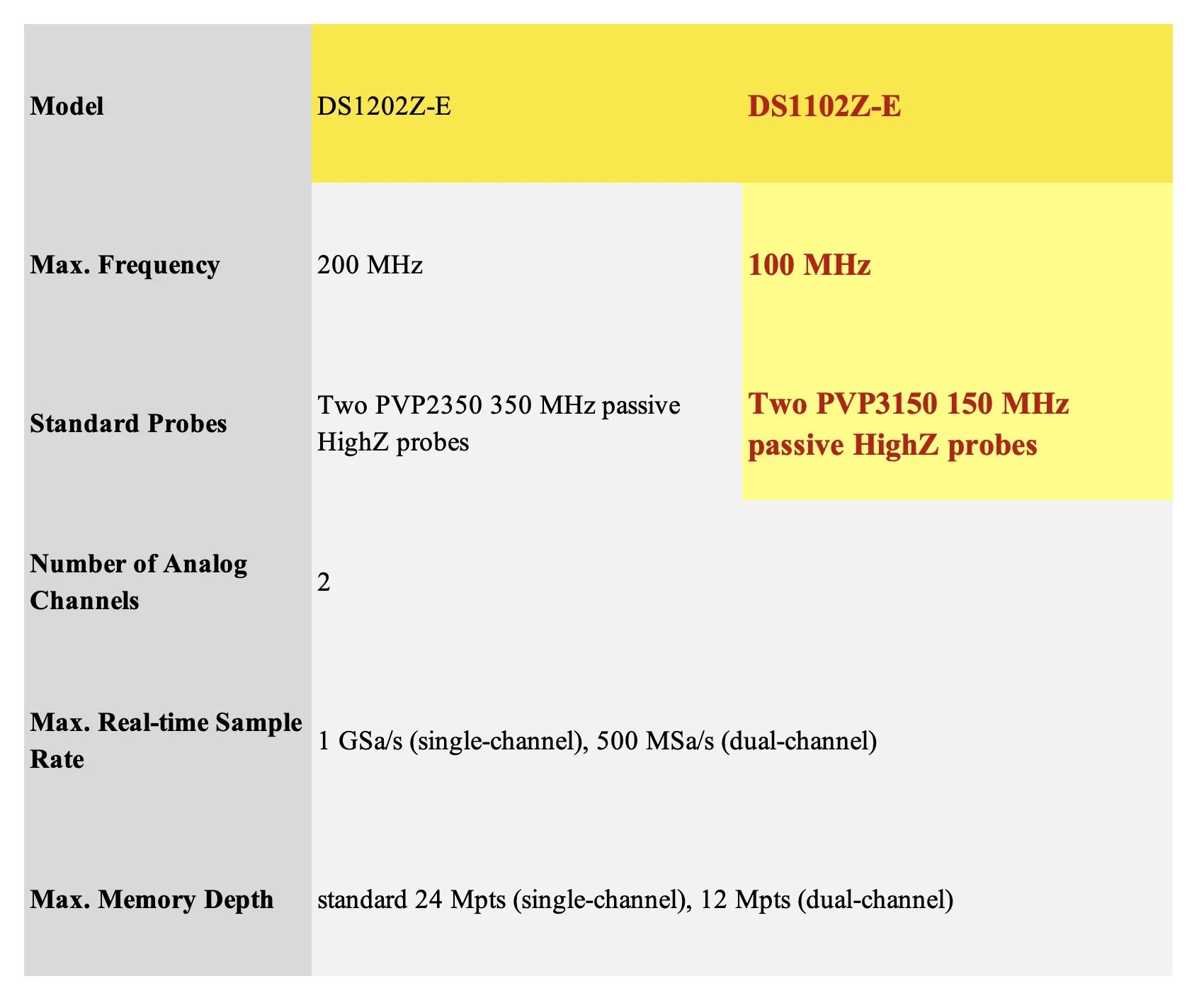

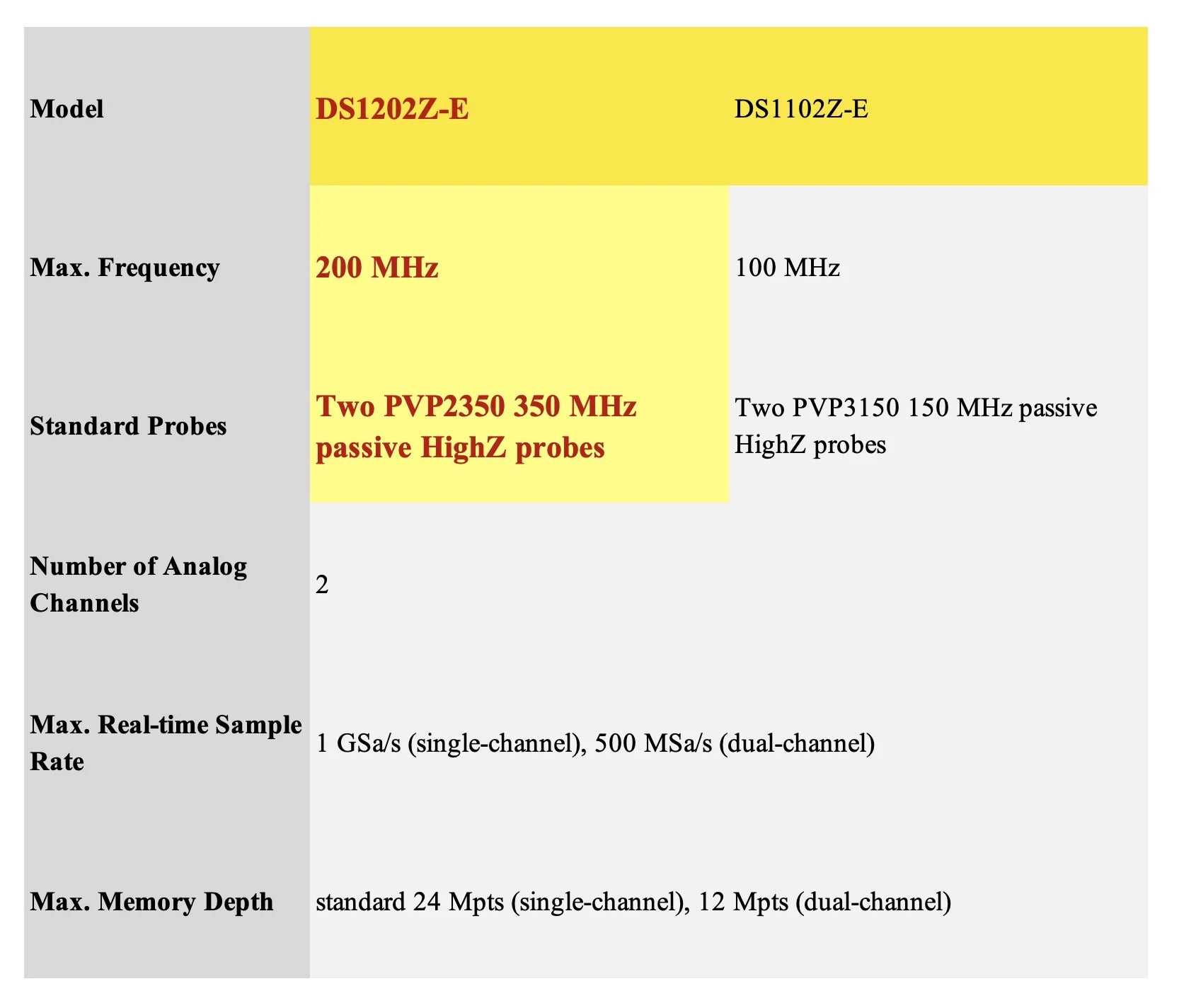

Technical Specifications
|
Parameter
|
DS1102Z - E
|
DS1202Z - E
|
|
Analog Bandwidth
|
100MHz
|
200MHz
|
|
Analog Channels
|
2
|
2
|
|
External Trigger
|
✓
|
✓
|
|
Vertical Resolution
|
8bit
|
8bit
|
|
Max Storage Depth
|
24Mpts (shared)
|
24Mpts (shared)
|
|
Max Sampling Rate
|
1GSa/s (shared)
|
1GSa/s (shared)
|
|
Waveform Refresh Rate
|
30,000wfms/s
|
30,000wfms/s
|
|
Min Vertical Division
|
1mV/div
|
1mV/div
|
|
Min Time Base Division
|
2ns/div
|
2ns/div
|
|
Frequency Counter
|
3 - 6 digits
|
3 - 6 digits
|
|
FFT
|
✓
|
✓
|
|
Serial Decoding
|
Parallel, RS232, I²C, SPI
|
Parallel, RS232, I²C, SPI
|
|
Screen
|
7 - inch LCD (800*480)
|
7 - inch LCD (800*480)
|
|

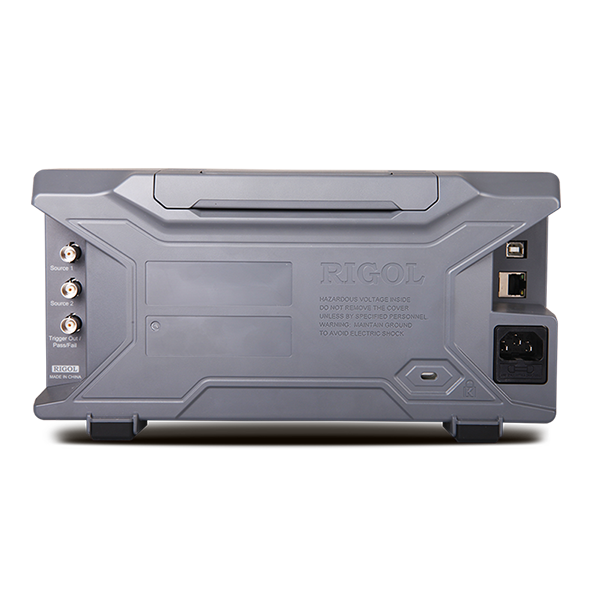

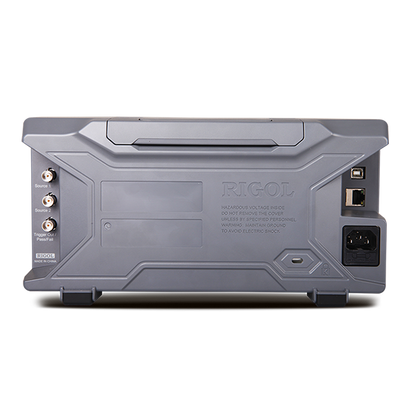

Communication Interfaces
|
USB, LAN
|
USB, LAN
|
|
Weight
|
3Kg
|
3Kg
|
|
Dimensions
|
313161122mm (WHD)
|
313161122mm (WHD)
|
|
Power Supply
|
Mains
|
Mains
|
|
Power Consumption
|
<50W
|
<50W
|
Application Scenarios
- Electronics Design & Development: Analyze and debug analog and digital signals in circuit design.
- Embedded Systems Testing: Monitor and decode serial communications (I²C, SPI, RS232) in embedded projects.
- Power Electronics: Measure voltage and current waveforms in power conversion systems.
- Educational Institutions: Teach signal analysis and oscilloscope operation in electronics courses.
- Maintenance & Repair: Troubleshoot electronic equipment by observing signal abnormalities.
- RF Circuit Testing: Use FFT for frequency domain analysis in radio - frequency circuits (DS1202Z - E for higher bandwidth needs).
Choose DS1102Z - E (100MHz) or DS1202Z - E (200MHz) and order now for precise signal measurement!
