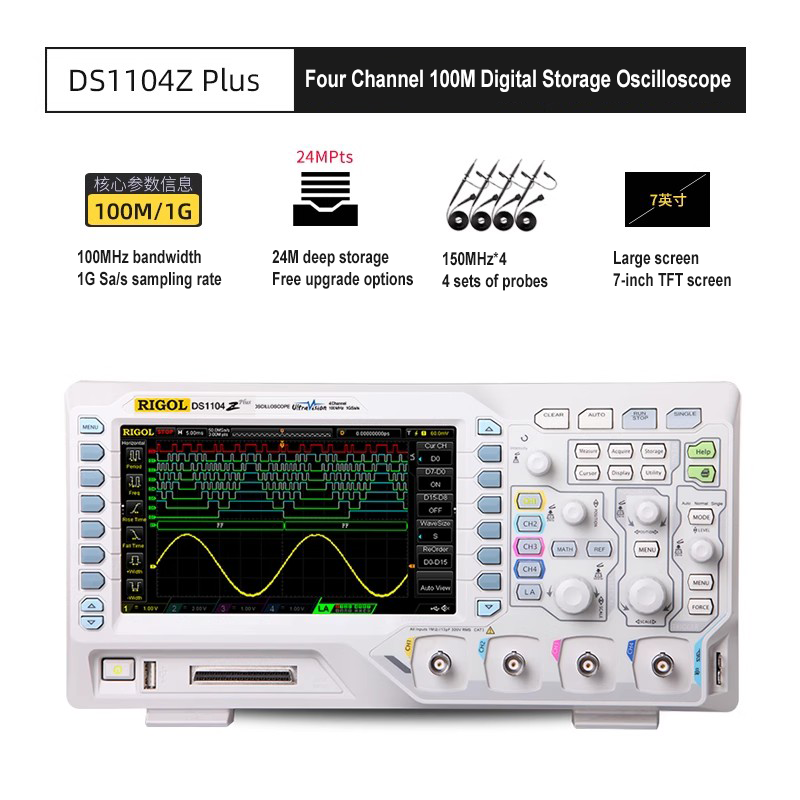

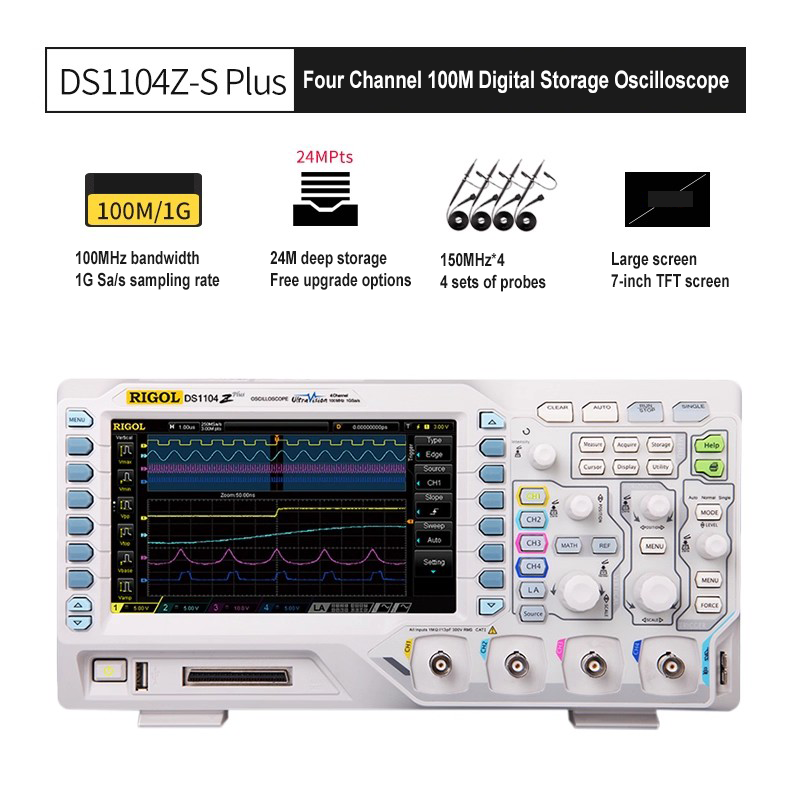

RIGOL Digital Oscilloscope DS1104Z Plus DS1104Z-S Plus 100MHz 24Mpts Memory DepthStorage Desktop Oscilloscope
RIGOL Digital Oscilloscope DS1104Z Plus DS1104Z-S Plus 100MHz 24Mpts Memory DepthStorage Desktop Oscilloscope
Prix habituel
$849.00 USD
Prix habituel
Prix promotionnel
$849.00 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Overview
The DS1104Z Plus and DS1104Z - S Plus oscilloscopes are high - performance tools for precise signal measurement and analysis. With a 100MHz analog bandwidth and 4 analog channels, they cater to diverse engineering and electronics testing needs.
Key Features
- High Bandwidth & Channels: 100MHz analog bandwidth and 4 analog channels for comprehensive signal capture.
- Fast Sampling & Storage: 1GSa/s real - time sample rate and 24Mpts max memory depth for detailed signal analysis.
- Efficient Waveform Capture: 30,000wfm/s waveform capture rate for real - time monitoring.
- Expandable Digital Channels: 16 optional digital channels (with probe) for mixed - signal analysis.
- Built - in Signal Source (DS1104Z - S Plus): 2CH built - in signal source for convenient testing.
Technical Specifications
|
Parameter
|
DS1104Z Plus
|
DS1104Z - S Plus
|
|
Bandwidth
|
100MHz
|
100MHz
|
|
Analog Channels
|
4
|
4
|
|
Real - time Sample Rate
|
1GSa/s
|
1GSa/s
|
|
Max Memory Depth
|
24Mpts
|
24Mpts
|
|
Waveform Capture Rate
|
30,000wfm/s
|
30,000wfm/s
|
|
Digital Channels
|
16 (Probe opt.)
|
16 (Probe opt.)
|
|
Built - in Signal Source
|
-
|
2CH
|
Application Scenarios
- Electronics Design: Analyze and debug high - frequency analog/digital signals in circuit design.
- Embedded Systems Testing: Monitor and decode serial communications with optional digital channels.
- Educational Labs: Teach advanced oscilloscope operation and signal analysis in electronics courses.
- Industrial Maintenance: Troubleshoot industrial equipment by observing signal abnormalities.
- Research Projects: Conduct precise high - frequency signal measurement for scientific research.
- Product Validation: Test and validate signal integrity in electronic product development.
Get DS1104Z Plus or DS1104Z - S Plus now for accurate high - frequency signal testing!
