Battery lmpedance Meter 0.01mΩ~30Ω 0.001mΩ~33Ω desktop Battery Analyzer Health Testing of Household Lithium Batterie

$784.90 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Model 0.01mΩ~30Ω 0.001mΩ~33Ω

Quantité

The Battery Resistance Meter is a versatile tester for AC resistance and DC voltage measurement. With two models covering different ranges, it's ideal for precise testing in various industries.

Key Features

Dual Measurement: Tests AC resistance and DC voltage.

Clear Display: 4.3 - inch TFT LCD for easy reading.

High Accuracy: Ensures reliable results for resistance and voltage.

Multiple Ranges & Modes: Auto or manual range selection for flexibility.

Fast Testing Speed: Efficient measurement for quick results.

Convenient Calibration & Comparison: Full - range short - circuit zeroing and PASS/FAIL LED display.

Flexible Triggering & Connectivity: Multiple trigger modes and RS232/Handler interfaces.

Technical Specifications

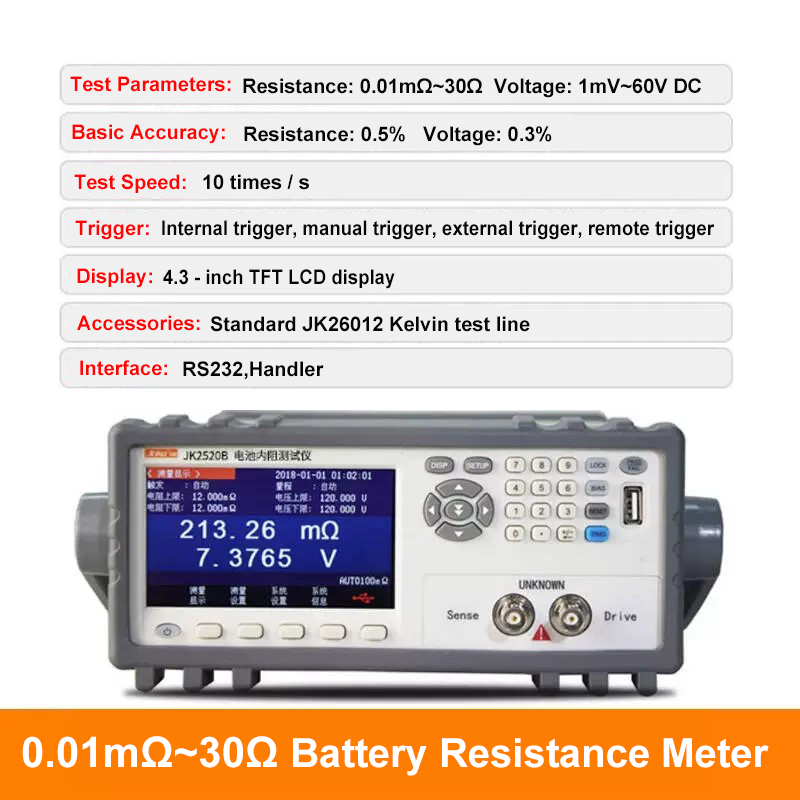

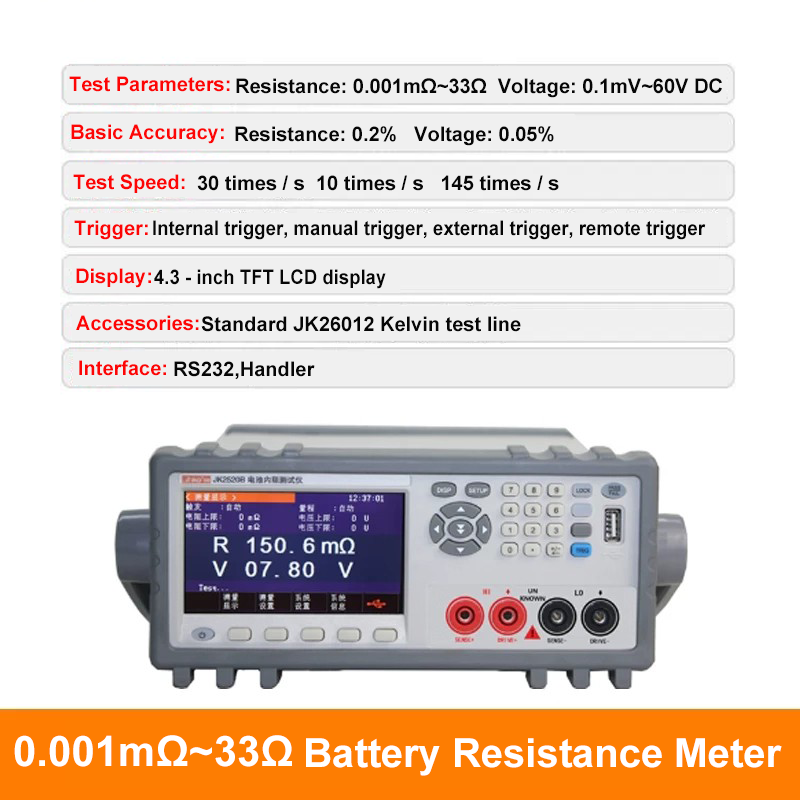

Parameter	0.01mΩ ~ 30Ω	0.001mΩ ~ 33Ω
Test Parameters	AC resistance, DC voltage	AC resistance, DC voltage
Display	4.3 - inch TFT LCD	4.3 - inch TFT LCD
Basic Accuracy (Resistance)	0.5%	0.2%
Basic Accuracy (Voltage)	0.3%	0.05%
Measurement Range (Resistance)	0.01mΩ ~ 30Ω	0.001mΩ ~ 33Ω
Measurement Range (Voltage)	1mV ~ 60VDC	0.1mV ~ 60.00VDC
Signal Source	AC 1kHz, open - circuit voltage <20mV, test current <10mA	AC 1kHz, open - circuit voltage <20mV, test current <10mA
Range	4 - range auto/manual	7 - range auto/manual
Test Speed	10 times/second	30/10/145 times/second
Display Result	Direct reading, Δ%	Direct reading, Δ%
Calibration	Full - range short - circuit zeroing	Full - range short - circuit zeroing
Comparator	PASS/FAIL front - panel LED display	PASS/FAIL front - panel LED display
Trigger Modes	Internal, manual, external, remote	Internal, manual, external, remote
Interfaces	RS232, Handler	RS232, Handler
Power Requirements	198VAC ~ 240VAC, 50Hz, max 15VA	198VAC ~ 240VAC, 50Hz, max 15VA
Dimensions	Rack: 215(w)×88(H)×335(D) mm; External: 235(w)×105(H)×360(D) mm	Rack: 215(w)×88(H)×335(D) mm; External: 235(w)×105(H)×360(D) mm
Weight	Approx. 3.6kg	Approx. 3.6kg
Other Features	Keyboard lock, data save, internal flash & U - disk record	Keyboard lock, data save, internal flash & U - disk record
Accessories	505 Kelvin test line	505 Kelvin test line
Optional Accessories	506A test probe, 506 test leads	506A test probe, 506 test leads

Application Scenarios

Electronics Manufacturing: Test resistance of components like resistors and voltage of circuits.

Automotive Industry: Measure resistance in wiring and DC voltage in electrical systems.

Aerospace: Check resistance of aerospace - grade parts and voltage of onboard systems.

Power Sector: Monitor resistance in cables and DC voltage in power distribution.

Research Labs: Conduct precise resistance and voltage experiments.

Quality Control: Ensure products meet resistance and voltage specs.

Get the 0.01mΩ ~ 30Ω or 0.001mΩ ~ 33Ω now for accurate testing!
