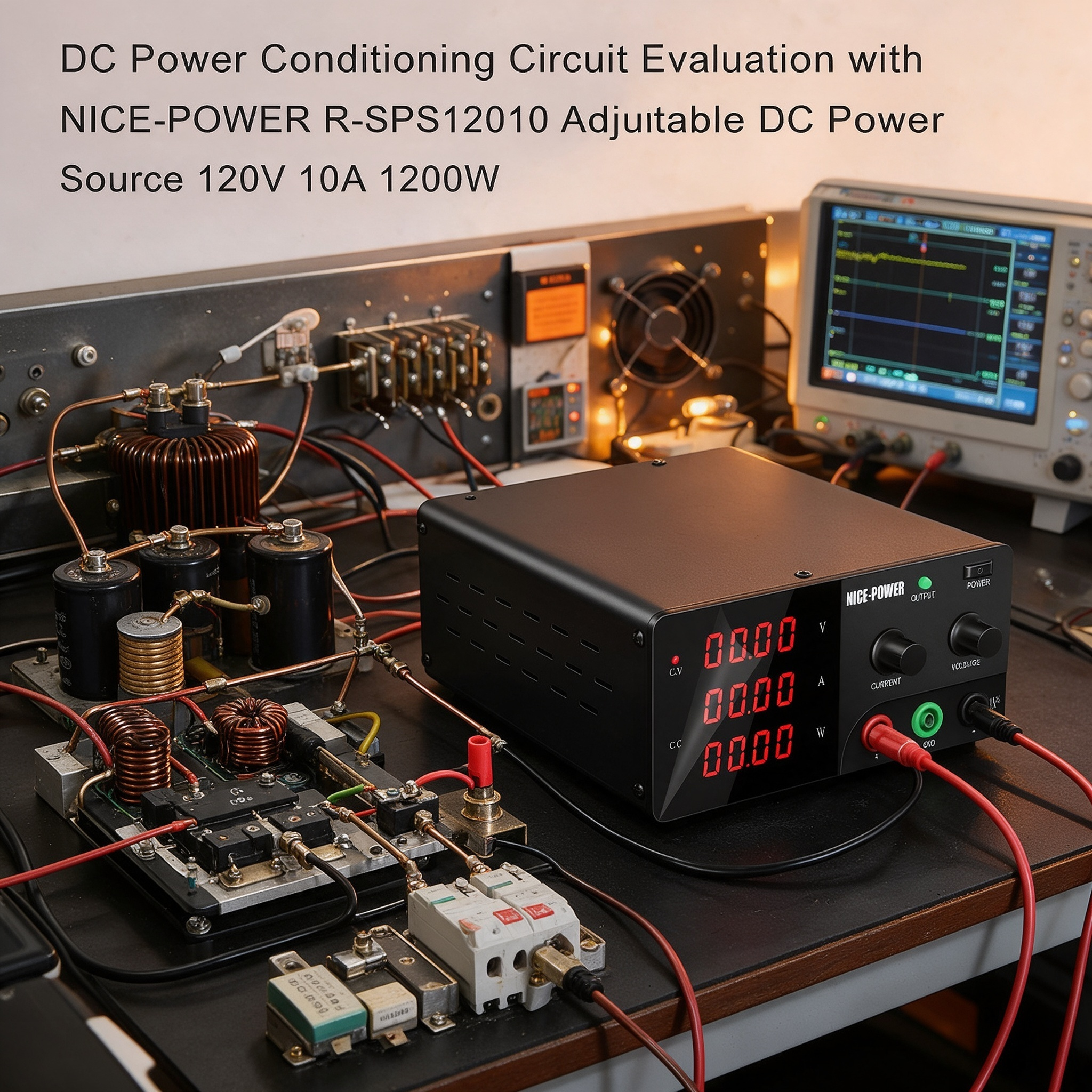

DC Power Conditioning Circuit Evaluation with
NICE-POWER R-SPS12010 Adjustable DC Power
Source 120V 10A 1200W
Key Features
Adjustable 0–120V DC Input for Power Conditioning Circuit Evaluation
The NICE-POWER R-SPS12010 adjustable DC power source provides a 0–120V DC output for compatible power conditioning circuits and electronic prototypes. Engineers can select the input voltage required by the circuit under evaluation, making it useful for bench setups involving DC input stages, voltage conditioning networks, and power interface circuits. The adjustable range supports different test configurations, provided the selected voltage remains within the circuit’s specified input limits.
1200W Rated Output for Compatible Conditioning Circuits
With a rated output power of 1200W and an output current range of 0–10A, the R-SPS12010 can supply compatible power conditioning assemblies during development and bench evaluation. It can provide the DC input needed when examining a circuit’s behavior under a defined supply condition. The connected circuit’s voltage, current, polarity, and power requirements must be checked before testing. The rated voltage, current, and power are maximum output specifications and should not be assumed to be simultaneously available under every operating condition.
CV/CC Operation for Defined Input Supply Conditions

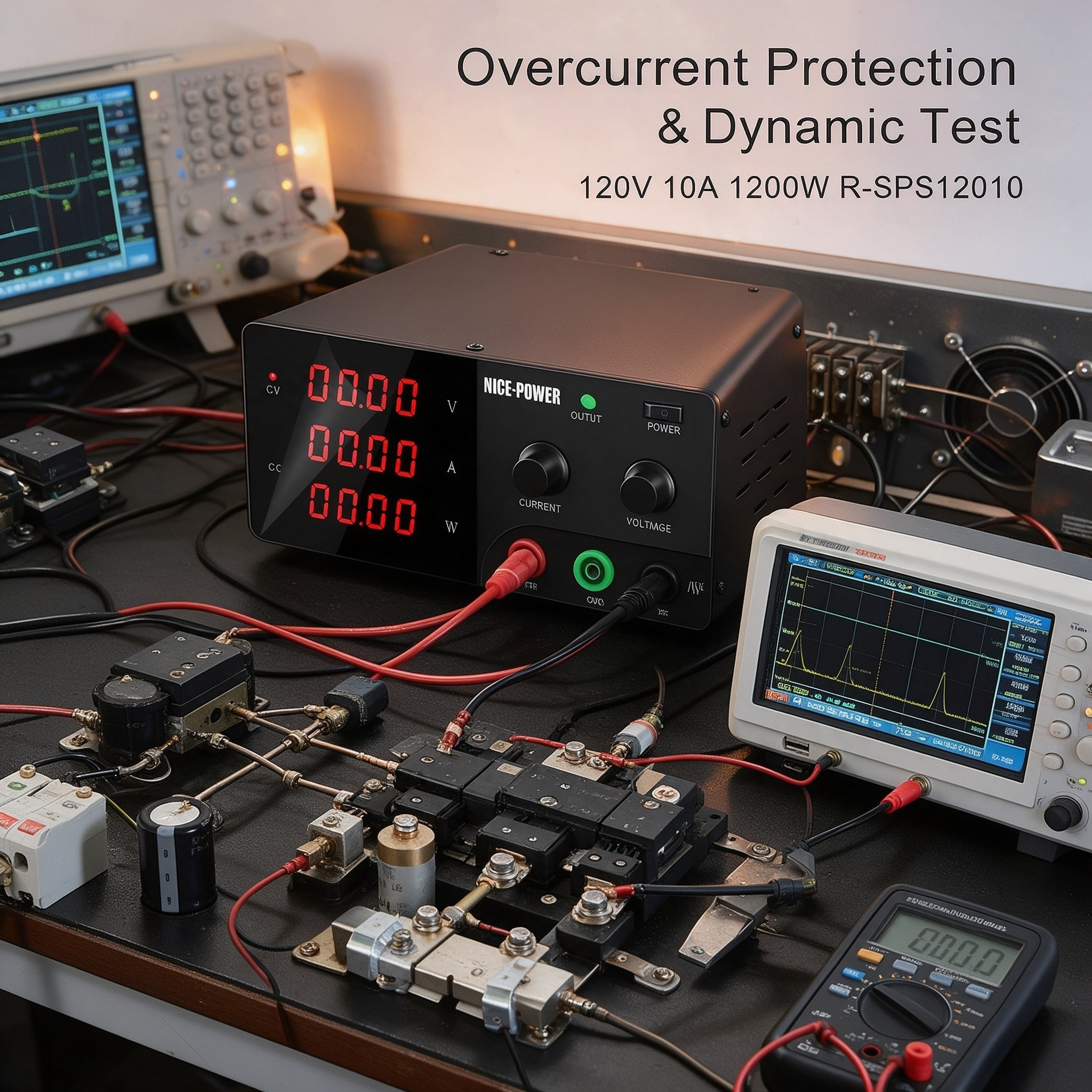

The R-SPS12010 supports Constant Voltage (CV) and Constant Current (CC) operation, with automatic switching according to output and load conditions. CV mode supplies a selected DC input voltage for routine evaluation of a power conditioning circuit. CC mode can limit output current under applicable operating conditions. These functions help establish the input supply conditions for testing, but they do not independently regulate the circuit connected to the power supply or confirm the performance of its conditioning stage.
Voltage, Current, and Power Readings for Source Monitoring
The front-panel display provides voltage and current readings together with output power information. During power conditioning circuit evaluation, engineers can observe the power supply’s output while the circuit is energized and compare the readings with expected input conditions. This helps monitor the source side of the test setup. It does not measure the conditioning circuit’s output ripple, noise spectrum, transient response, or voltage regulation; these characteristics require suitable external measurement instruments.
Manual Voltage Adjustment and Output ON/OFF Control
The encoder knob allows users to adjust the output settings manually, while the output ON/OFF control helps manage power during bench setup and connection changes. Engineers can select the intended DC input voltage before energizing a compatible circuit and switch the output off before modifying the wiring. The standard R-SPS12010 is a manually adjusted, non-programmable model and should not be described as automatically sweeping through test voltages or running a programmed test sequence.
Front and Rear Output Terminals for Circuit Bench Setups
The R-SPS12010 includes front and rear output terminals to accommodate different bench wiring arrangements. The front output terminals are intended for output currents below 5A, while the rear terminals can be used for full-power output with suitable wiring and connections. Select the terminal arrangement based on the expected current and test setup, and verify cable ratings, polarity, and circuit input requirements before enabling the output.
Applications
DC Input Verification for Power Conditioning Circuits
Supply the specified DC input to a compatible conditioning circuit before assessing its output behavior. The adjustable output allows engineers to establish the required input condition for a test setup. Measurements of the circuit’s output voltage, ripple, and regulation should be taken separately using appropriate instruments.
Power Conditioning Prototype Development
Use the R-SPS12010 as the input DC source during development of a power conditioning prototype. Engineers can set the intended supply voltage while checking circuit connections and preparing the prototype for performance evaluation. This separates the task of supplying input power from the task of measuring how effectively the circuit conditions that power.
Voltage Regulation Circuit Bench Evaluation
Provide a defined DC input to a compatible voltage regulation or conditioning circuit during engineering checks. The adjustable source can support test setups at selected input voltage levels within the circuit’s permitted range. To determine whether the circuit maintains its specified output voltage, use a suitable voltmeter or other measurement equipment at the circuit output.
Power Conditioning Circuit Repair Checks
After repairing a conditioning circuit or replacing components, use the adjustable DC power source to reapply the specified input voltage for a controlled power-up check. The supply’s output readings can help engineers observe the input-side current and power demand. These readings alone cannot confirm that the conditioning circuit is functioning correctly or identify the cause of an internal fault.
Input Variation Tests for Compatible DC Circuits

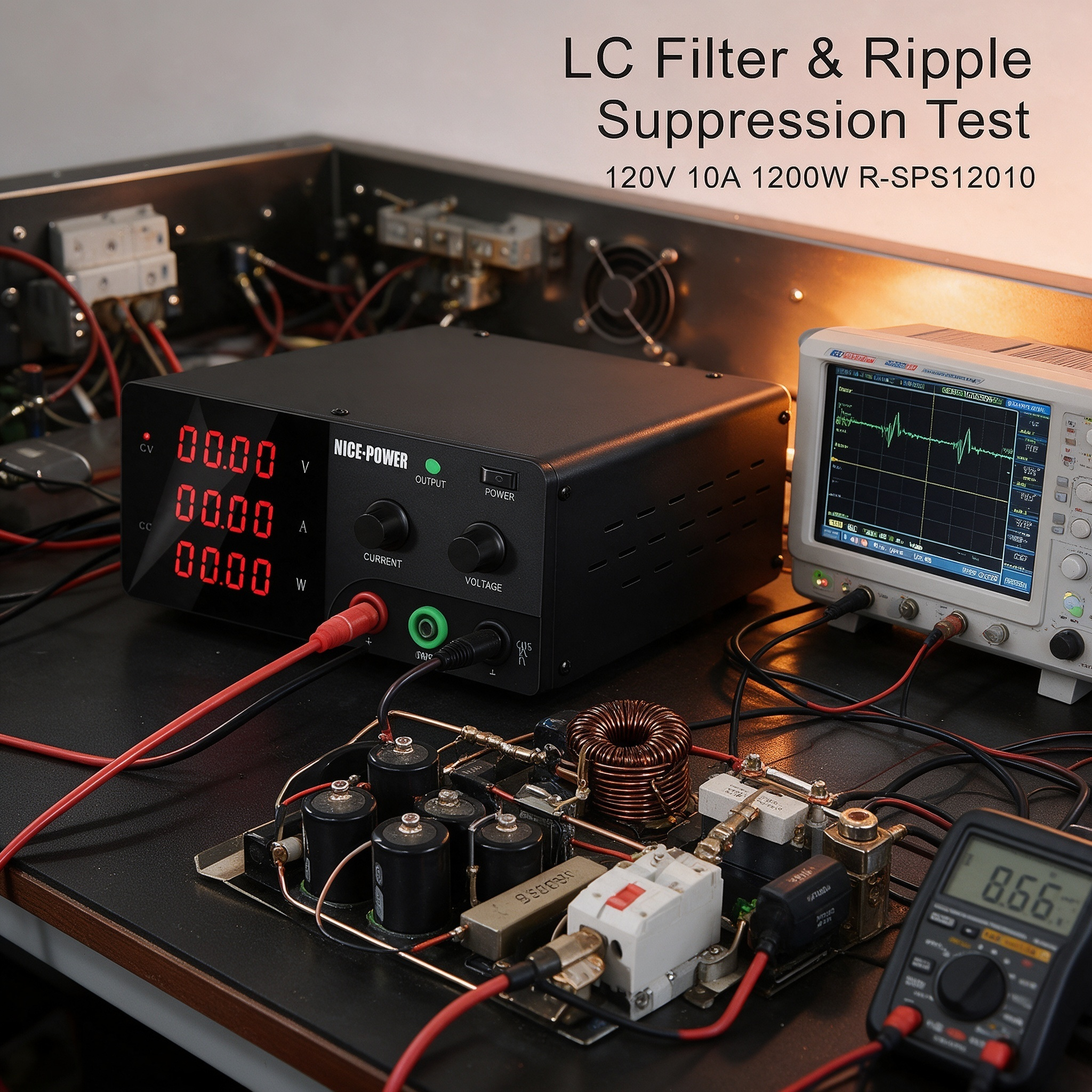

For conditioning circuits designed to accept different DC input levels, manually set the R-SPS12010 to the input voltage required for each planned test. This supports comparisons across specified supply conditions during development and troubleshooting. Any assessment of output stability, noise suppression, ripple attenuation, or transient performance requires external measurement equipment and a defined test procedure.
Quality Check and Terms of Service:
-
Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.
-
Certifications: Has passed CE & FCC Certification.
-
Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer Support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS12010 / R-SPS12010-R |
| Product Type |
Adjustable DC Power Source |
| Rated Output Power |
1200W |
| Output Voltage Range |
0–120V |
| Output Current Range |
0–10A |
| Operating Modes |
Constant Voltage (CV) / Constant Current (CC) |
| Voltage Load Regulation |
≤0.1% + 10mV |
| Current Load Regulation |
≤0.1% + 2.5mA |
| Voltage Line Regulation |
≤0.01% + 2.5mV |
| Current Line Regulation |
≤0.1% + 2.5mA |
| Voltage Setting Resolution |
10mV |
| Current Setting Resolution |
10mA |
| Voltage Readback Resolution |
10mV |
| Current Readback Resolution |
10mA |
| Voltage Setting Accuracy |
≤0.05% + 10mV |
| Current Setting Accuracy |
≤0.01% + 10mA |
| Voltage Readback Accuracy |
≤0.05% + 10mV |
| Current Readback Accuracy |
≤0.01% + 10mA |
| Voltage Ripple (Peak-to-Peak) |
≤400mVp-p |
| Voltage Ripple (RMS) |
≤60mVrms |
| Current Ripple |
≤20mArms (20Hz–20MHz) |
| Rise Time (No Load) |
≤150ms |
| Rise Time (Full Load) |
≤200ms |
| Fall Time (No Load) |
≤15s |
| Fall Time (Full Load) |
≤50ms |
| Dynamic Response Time |
≤20ms |
| Efficiency |
≥85% |
| Display |
Four-digit voltage/current display with power display |
| Output Control |
Output ON/OFF |
| Adjustment Method |
Manual encoder knob |
| Output Terminals |
Front and rear output terminals |
| Front Output Terminal Use |
For output currents below 5A |
| Rear Output Terminal Use |
Suitable for full-power output with appropriate wiring and connections |
| Communication Interfaces |
Optional; confirm the selected model and configuration |
| Operating Temperature |
0°C–40°C |
| Product Dimensions |
Approx. 26.5 × 18.5 × 8cm |
| Net Weight |
Approx. 2.8kg |
Why Choose NICE-POWER R-SPS12010 for DC Power Conditioning Circuit Evaluation?
The NICE-POWER R-SPS12010 adjustable DC power source provides a 0–120V output range, up to 10A output current, and a rated power of 1200W for compatible power conditioning circuits and engineering prototypes. CV/CC operation, manual voltage adjustment, output ON/OFF control, and voltage, current, and power readings help engineers establish and monitor the input supply conditions used during circuit development, repair checks, and bench evaluation.
When evaluating a power conditioning circuit, a controllable input source is only one part of the test setup. The R-SPS12010 supplies DC power to the circuit, while verifying voltage regulation, ripple reduction, noise filtering, transient response, or conditioning efficiency requires appropriate external instruments and a suitable measurement procedure.

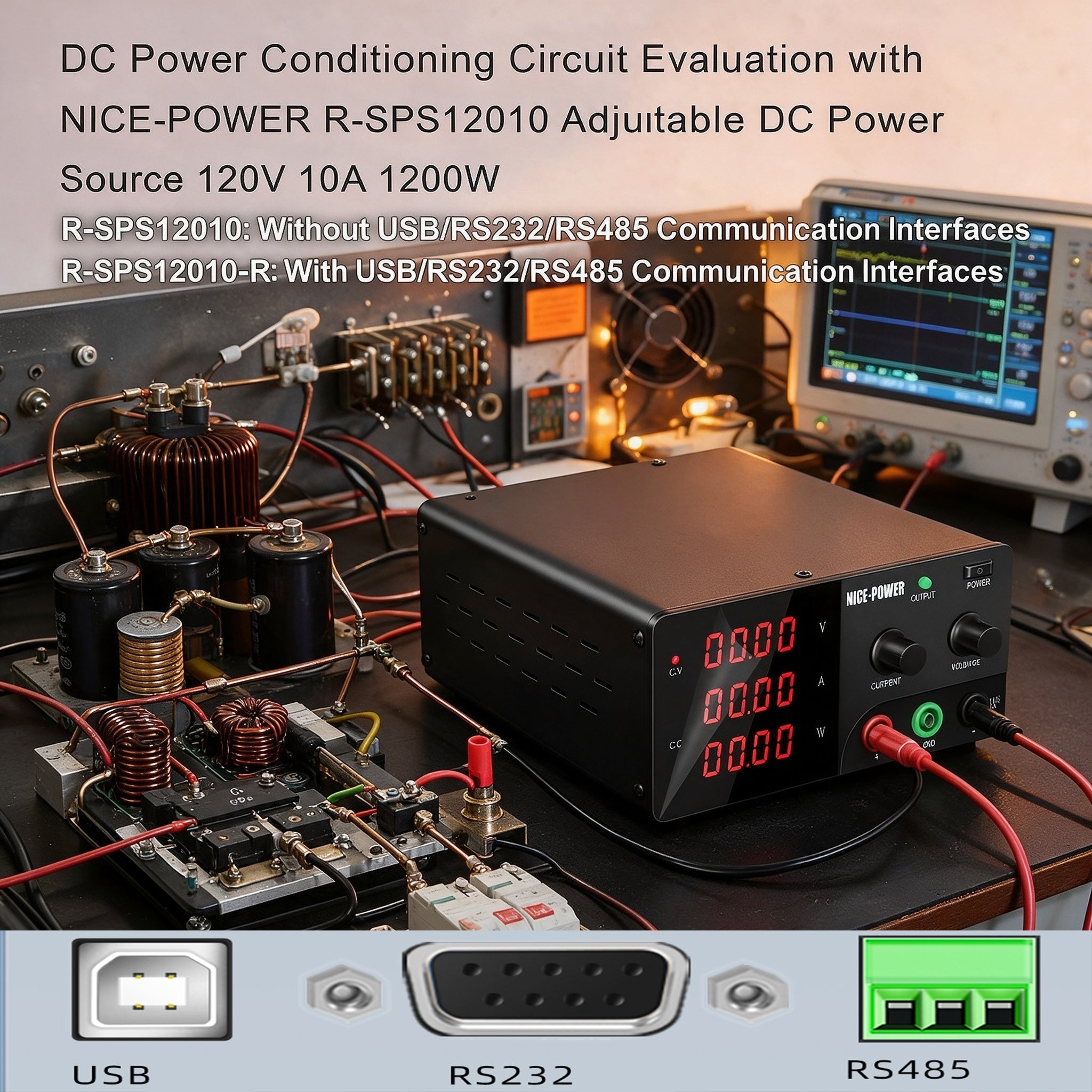

Model Configuration Note: The R-SPS12010 is the standard manually adjusted version, while the R-SPS12010-R is the programmable version. USB, RS232, and RS485 communication interfaces are optional and should be confirmed for the selected configuration before purchase.
