DC Motor Drive Development Using R-SPS3060

0-60A 0-30V 1800W Regulated DC Power Source

Key Features

0–30V DC Output for Motor Drive Development

The NICE-POWER R-SPS3060 series provides an adjustable DC output from 0–30V, with a maximum output current of 60A and rated output power of 1800W. It can provide DC input power to compatible motor drive controllers, drive circuit prototypes, and low-voltage power electronics assemblies during development. Before connecting a drive system, verify its DC bus voltage, current demand, startup requirements, and total power consumption against the supply's ratings.

Constant Voltage and Constant Current Operating Modes

The power supply supports Constant Voltage (CV) and Constant Current (CC) operating modes, with corresponding indicators on the front panel. These modes allow users to work with different DC supply conditions when developing compatible drive electronics. The appropriate operating mode and output settings depend on the circuit design and the requirements of the device under development.

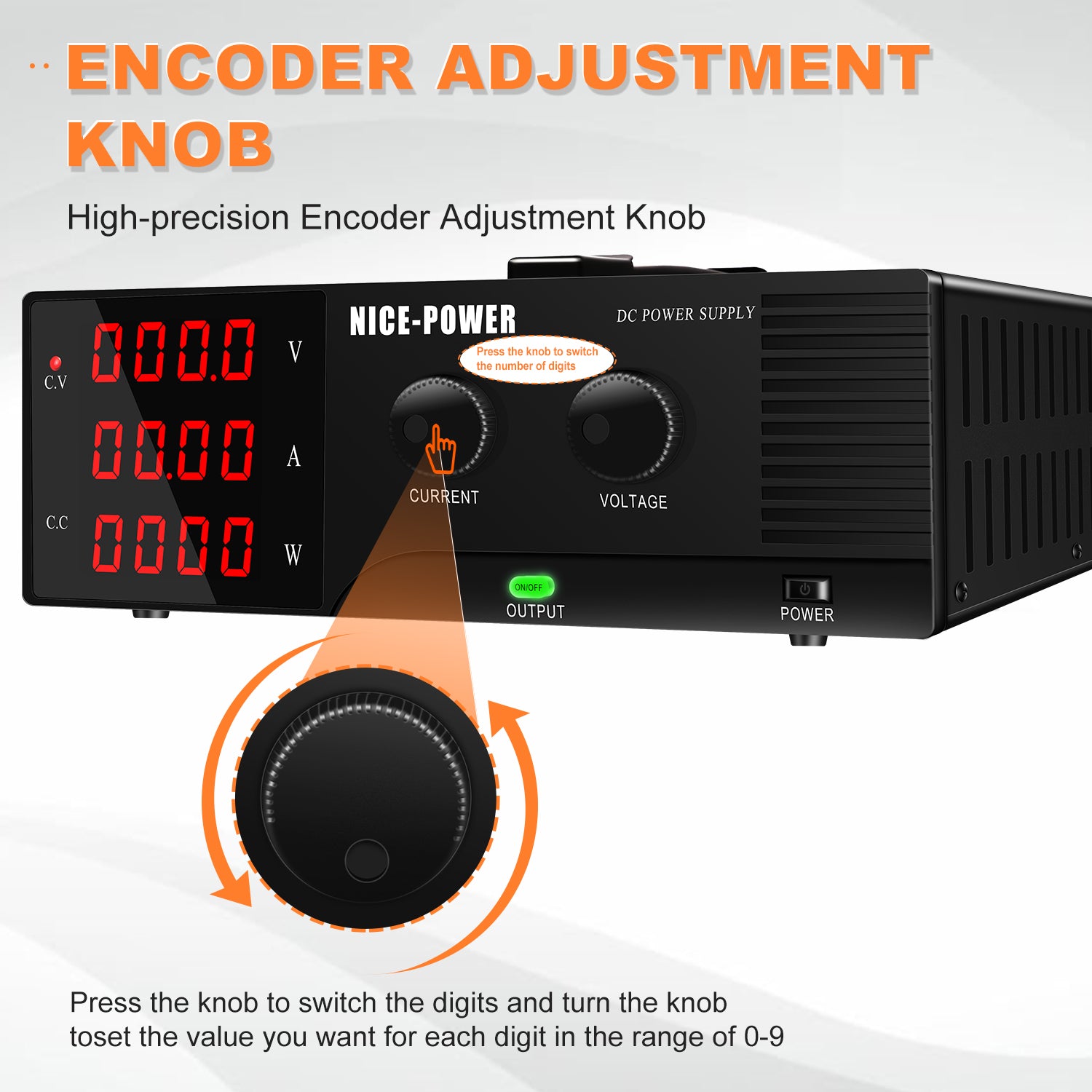

Manual Output Adjustment for Bench Setup

The front-panel encoder knob allows users to adjust the DC output settings during motor drive development. The output ON/OFF control helps users manage power delivery while preparing a test bench, connecting a compatible controller, or changing the setup with the output switched off. This supports manual adjustment of the input supply without implying automatic voltage programming or motor drive control.

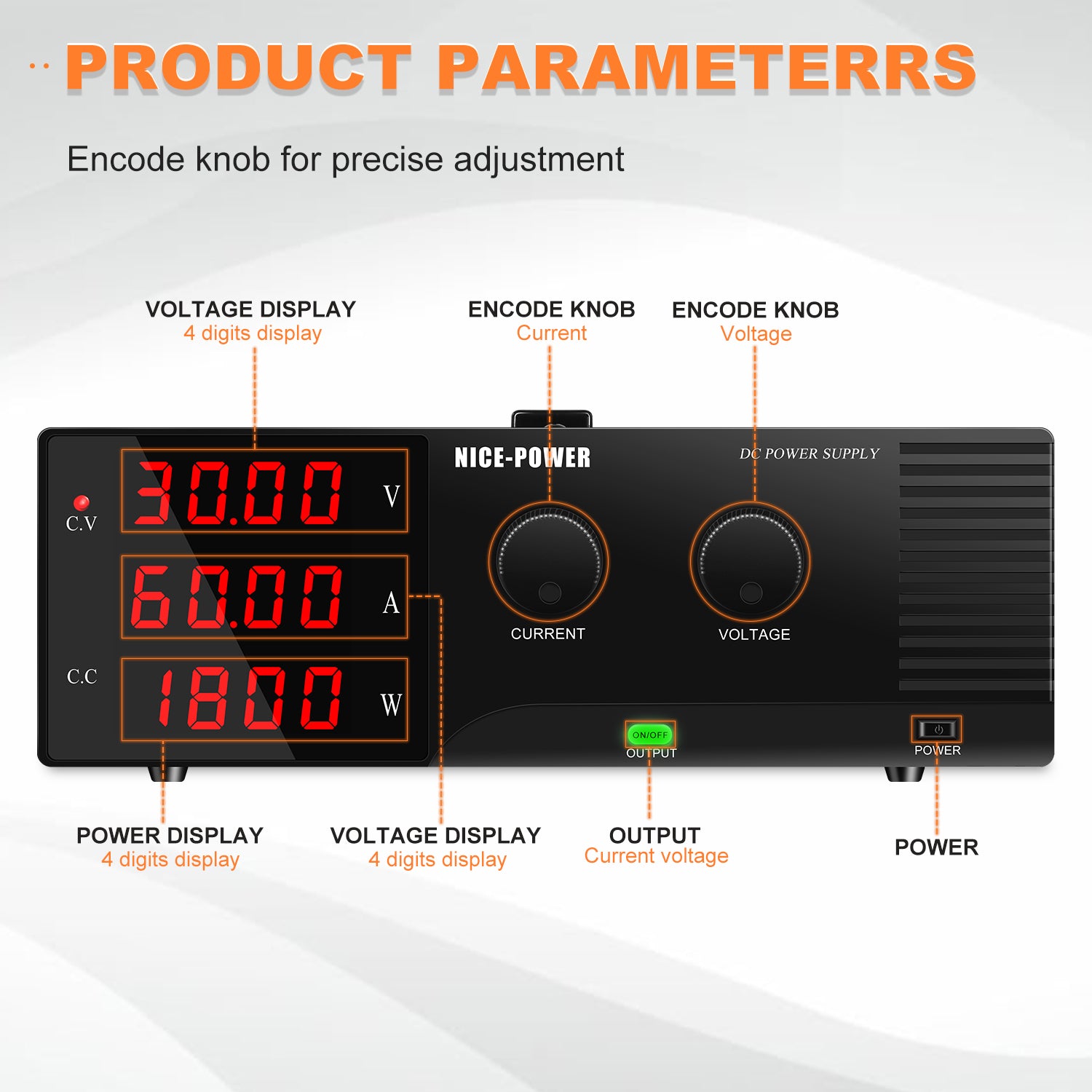

Voltage, Current, and Power Display

The four-digit voltage and current display provides visible output readings, while the power display shows output power information during operation. These displays help engineers observe the power supply's operating condition while a motor drive controller is energized. They do not measure motor speed, torque, controller efficiency, or switching waveforms.

Model Options for Different Communication Requirements

The R-SPS3060 and R-SPS3060-R share the same listed output ratings and other technical specifications, but differ in communication connectivity.

• R-SPS3060: No communication interfaces; suitable for setups operated through the front panel.

• R-SPS3060-R: Equipped with USB, RS-232, and RS-485 communication interfaces.

Select the model according to the connectivity required by your development setup. Communication interface availability does not by itself establish support for a specific protocol, computer-control application, or automated motor drive test.

Applications

Motor Drive Controller DC Bus Supply

Use the R-SPS3060 series to provide DC input power to a compatible motor drive controller during bench development. Set the output voltage within the controller's documented DC bus input range and ensure its current demand and power consumption remain within the supply's limits. The supply provides the DC input; motor commutation, speed control, and torque control are handled by the drive system and its associated control equipment.

Motor Drive Circuit Prototype Development

During early-stage development, the adjustable DC output can supply compatible drive circuit prototypes and low-voltage power electronics assemblies. Engineers can adjust the input supply manually as they investigate circuit operation under selected conditions. Additional instruments and appropriate control hardware are required to evaluate electrical waveforms, motor speed, torque, or other drive-system performance parameters.

DC Motor Drive Test Bench Setup

The R-SPS3060 series can serve as the DC source in a motor drive test bench containing a compatible controller, motor, protection arrangements, and suitable measurement equipment. Its front-panel controls support practical setup and supply adjustment. The required source current, startup demand, wiring capacity, and any energy returned by the drive system must be considered before testing; this power supply should not be assumed to absorb regenerative energy.

Low-Voltage Motor Control Research and Education

For laboratory research and engineering education, the supply can provide DC input power to compatible motor control circuits and drive controller experiments. The CV/CC indicators, encoder adjustment, output ON/OFF control, and displayed output readings help users configure the DC supply and observe its operating condition. Motor speed and torque measurements, closed-loop control evaluation, and switching analysis require the appropriate external hardware and instruments.

Quality Check and Terms of Service:

• Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.

• Certifications: Has passed CE & FCC Certification.

• Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer Support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER R-SPS3060?

Developing a motor drive system requires a suitable DC input source that matches the controller's electrical requirements. The NICE-POWER R-SPS3060 series combines a 0–30V adjustable output, maximum current of 60A, and rated power of 1800W for compatible low-voltage motor drive development and power electronics experiments.

Its encoder adjustment, CV/CC indicators, output ON/OFF control, and voltage, current, and power displays support hands-on bench work. Choose the R-SPS3060 for front-panel operation without communication interfaces, or the R-SPS3060-R when USB, RS-232, and RS-485 connectivity is required.

Before connecting a motor drive controller, check the DC bus voltage range, maximum input current, startup demand, wiring and connector ratings, and total power requirements. If the drive can return energy to the DC bus during braking or deceleration, ensure the test setup has a suitable method for handling that energy. Motor speed, torque, efficiency, and switching performance require appropriate external measurement equipment.
