Overview

This series of DC low resistance testers is engineered for precise measurement of low resistance in various electrical components, catering to R&D, industrial production, and quality control. With high accuracy, multiple measurement ranges, and user-friendly features, they ensure reliable and efficient resistance testing.

Key Features

High-Precision Measurement:

Basic resistance measurement accuracy of 0.05%, with a resolution as low as 1μΩ, ensuring precise readings.

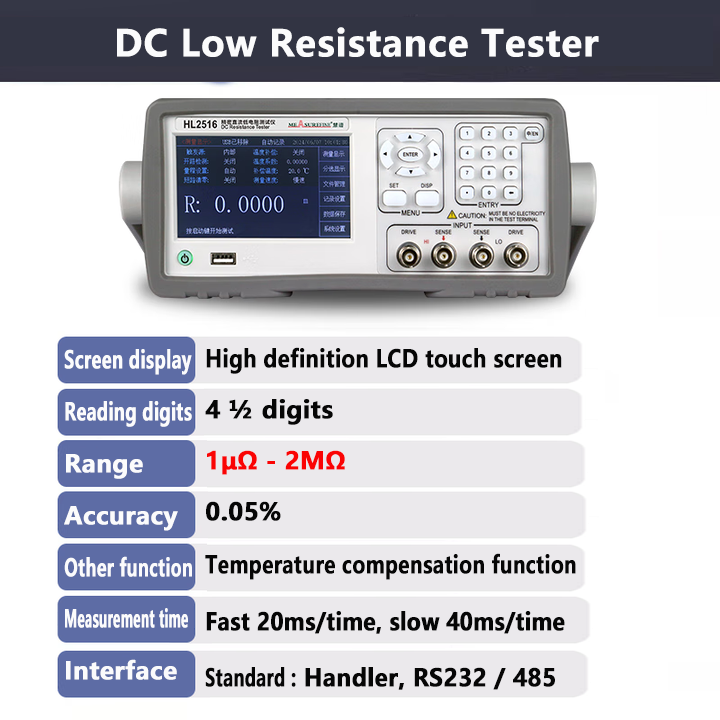

Model 1: Measurement range 1μΩ-2MΩ, supporting resistance ranges like 20mΩ, 200mΩ, 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ.

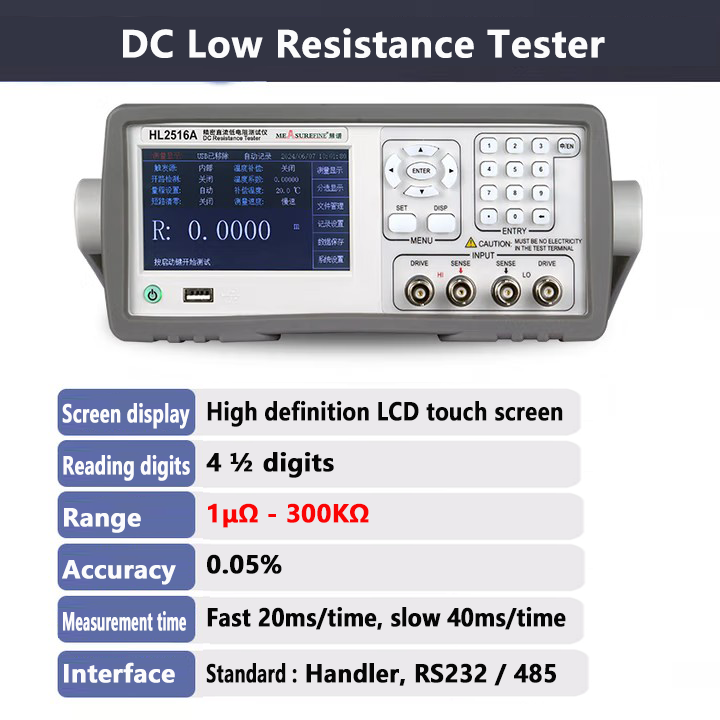

Model 2: Measurement range 1μΩ-300kΩ, with resistance ranges including 20mΩ, 200mΩ, 20Ω, 200Ω, 2kΩ, 20kΩ, 300kΩ.

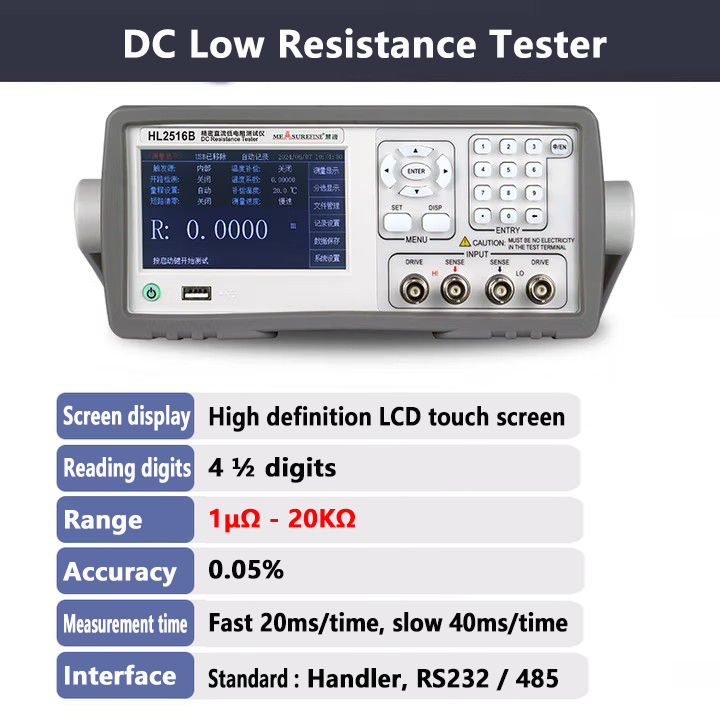

Model 3: Measurement range 1μΩ-20kΩ, covering resistance ranges such as 20mΩ, 200mΩ, 20Ω, 200Ω, 2kΩ, 20kΩ.

Efficient Testing:

Fast resistance measurement time (20ms for fast mode, 40ms for slow mode) and temperature measurement time (100±10ms for Model 1).

Four-terminal test configuration to eliminate the influence of test lead and contact resistance.

Intuitive Operation & Display:

4.3-inch high-definition LCD touchscreen with 4½-digit reading, supporting Chinese-English interface switching for easy operation.

Advanced Functions:

Model 1: Features temperature measurement (PT1000 sensor, -200.0°C-300°C), temperature compensation, and temperature conversion functions.

Model 2 & 3: Do not have temperature measurement and related compensation/conversion functions.

Statistical function for pass/fail judgment, with 10 groups of measurement setting parameters saveable.

Connectivity & Compatibility:

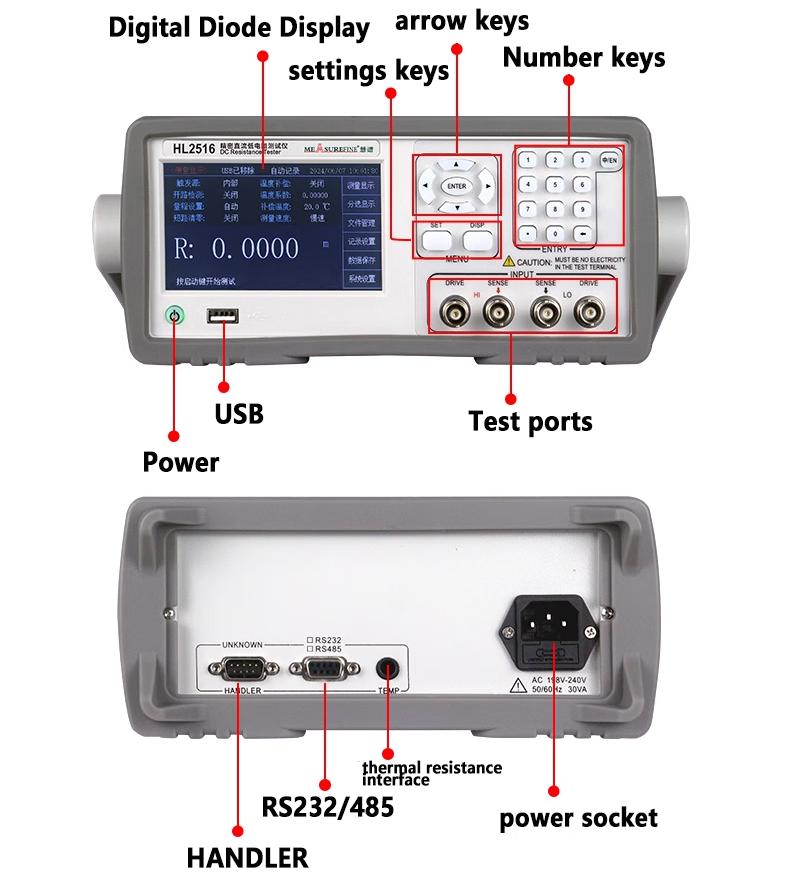

Standard RS232/485 and HANDLER interfaces for data export and integration with other devices.

Low-voltage measurement mode (open circuit voltage ≤40mV) to protect DUTs.

Technical Specifications

Parameter	Model 1	Model 2	Model 3
Measurement Range	1μΩ-2MΩ	1μΩ-300kΩ	1μΩ-20kΩ
Resistance Ranges	20mΩ, 200mΩ, 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ	20mΩ, 200mΩ, 20Ω, 200Ω, 2kΩ, 20kΩ, 300kΩ	20mΩ, 200mΩ, 20Ω, 200Ω, 2kΩ, 20kΩ
Accuracy	0.05%	0.05%	0.05%
Resistance Measurement Time	Fast: 20ms, Slow: 40ms	Fast: 20ms, Slow: 40ms	Fast: 20ms, Slow: 40ms
Temperature Measurement	Yes (PT1000, -200.0°C-300°C)	No	No
Temperature Compensation	Yes	No	No
Interfaces	RS232/485, HANDLER	RS232/485, HANDLER	RS232/485, HANDLER
Display	4.3-inch TFT touchscreen	4.3-inch TFT touchscreen	4.3-inch TFT touchscreen

Model Selection Tips

Model 1: Ideal for applications requiring wide resistance range (up to 2MΩ) and temperature measurement/compensation, such as advanced material testing and precision component R&D.

Model 2: Suited for testing with resistance up to 300kΩ, suitable for industrial production lines and quality control of medium-resistance components.

Model 3: Best for low-resistance (up to 20kΩ) testing scenarios, like connector, wire, and small electrical component inspections.

Application Scenarios

Electronics Manufacturing: Test resistance of coils, contacts, joints, and cables to ensure product quality.

Automotive Industry: Measure resistance of automotive wiring harnesses, connectors, and electrical components for reliability.

Aerospace: Inspect low-resistance components in avionic systems for safety and performance.

Research Labs: Conduct precise resistance and temperature experiments in material science and electrical engineering.

Battery Testing: Evaluate internal resistance of batteries and battery packs for performance analysis.

Power Industry: Monitor resistance of electrical connections and grounding systems to prevent failures.

Get this DC low resistance tester now to achieve accurate, efficient, and reliable resistance measurement for your R&D, production, and quality control needs!
