Overview

This series of high-frequency AC/DC current probes is designed for precise measurement of high-speed current signals, catering to power electronics, new energy, and advanced R&D applications. With excellent bandwidth performance, low noise, and user-friendly features, they ensure accurate current waveform acquisition and analysis in demanding testing scenarios.

Key Features

Different Bandwidths:

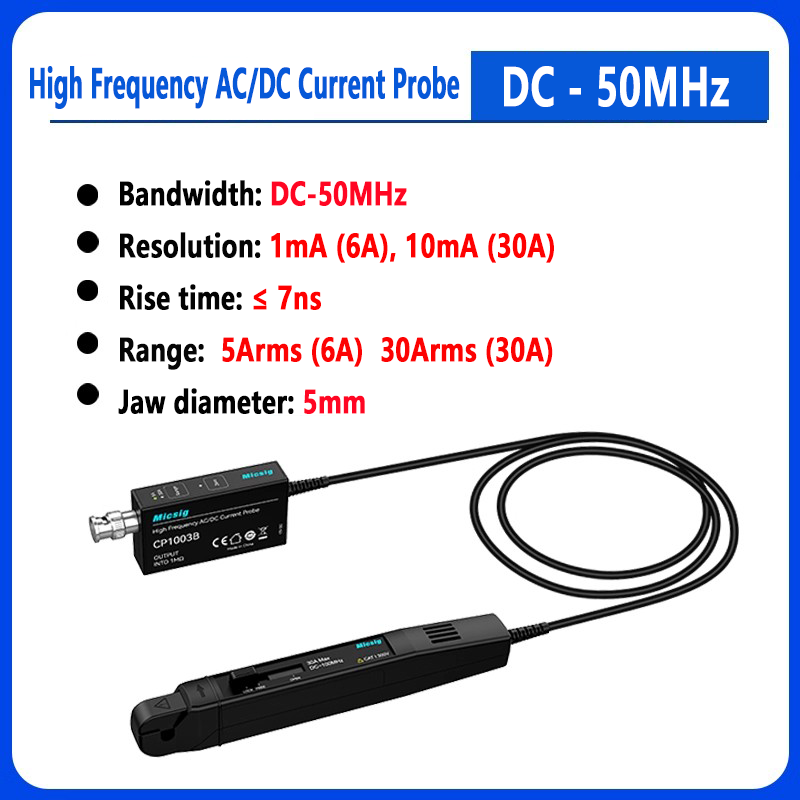

Model 1: DC-50MHz bandwidth.

Model 2: DC-100MHz bandwidth.

Dual Current Ranges: Both models support 6A (2X attenuation) and 30A (10X attenuation) ranges, with output sensitivity of 1V/2A (6A) and 1V/10A (30A).

Fast Rise Time: Model 1 has a rise time ≤7ns, and Model 2 has a rise time ≤3.5ns, enabling capture of fast transient current signals.

Low Noise and High Precision: Features low noise (≤1.4mA RMS) and high DC precision (+1%+10mA for 6A range, +1%+50mA for 30A range), ensuring accurate measurement.

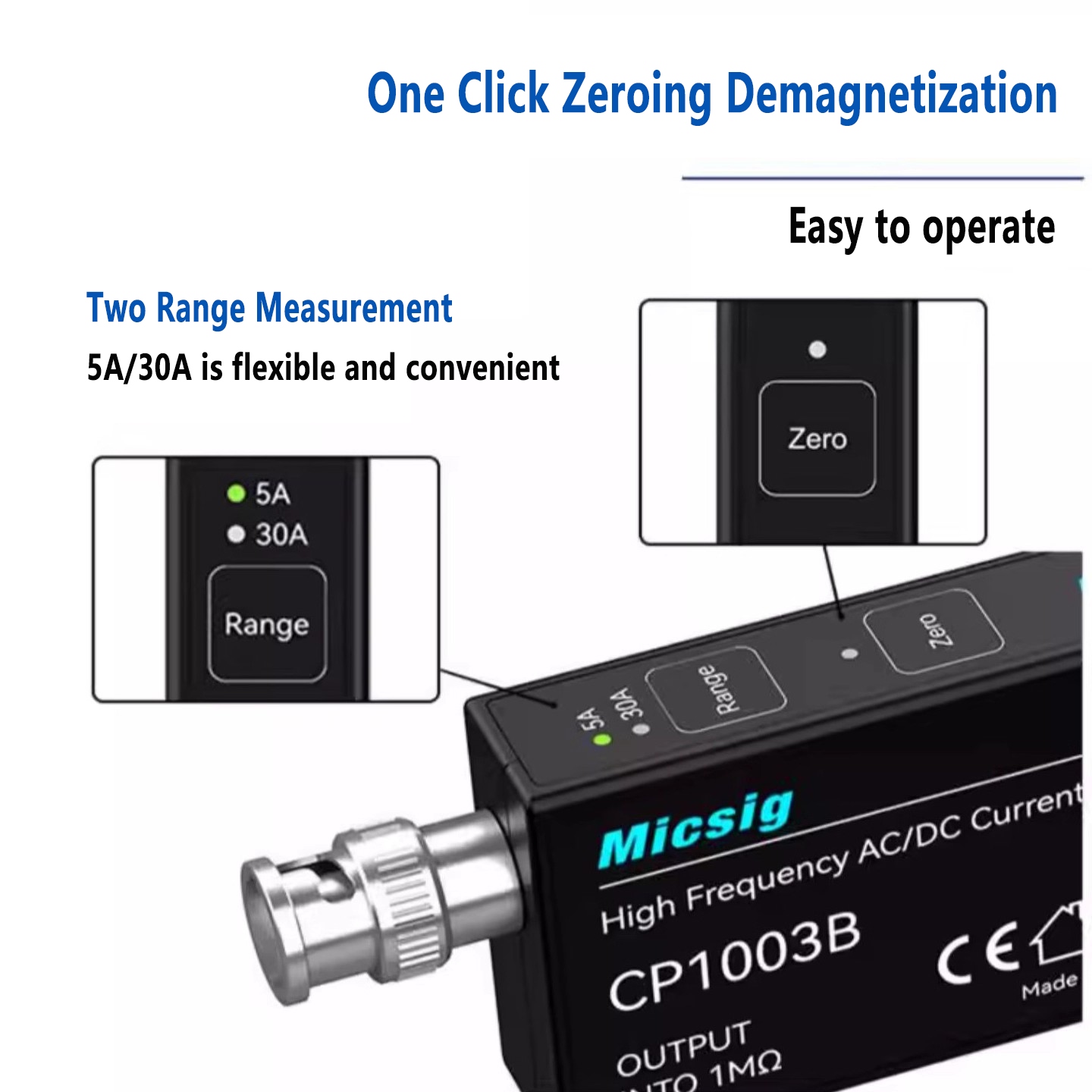

User-Friendly Functions: Includes one-button demagnetization and zero adjustment, overload indicator (flashing button light), and compact design for easy handling.

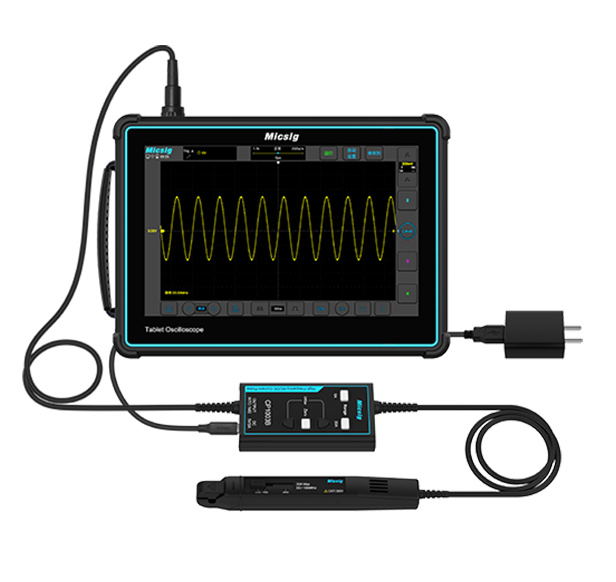

Wide Compatibility: Standard BNC interface is compatible with all oscilloscope brands, ensuring seamless integration.

High Voltage Rating: CAT I 300V maximum working and floating voltage, suitable for various high-voltage environments.

Technical Specifications

Parameter	Model 1	Model 2
Bandwidth	DC-50MHz	DC-100MHz
Rise Time	≤7ns	≤3.5ns
Current Ranges	6A (2X), 30A (10X)	6A (2X), 30A (10X)
Output Sensitivity	1V/2A (6A), 1V/10A (30A)	1V/2A (6A), 1V/10A (30A)
DC Precision (Typical)	+1%+10mA (6A), +1%+50mA (30A)	+1%+10mA (6A), +1%+50mA (30A)
Noise	≤1.4mA RMS	≤1.4mA RMS
Max Working Voltage	CAT I 300V	CAT I 300V
BNC Interface	Yes	Yes

Model Selection Tips

Model 1: Ideal for applications requiring up to 50MHz bandwidth, such as medium-speed power supplies, general motor drives, and scenarios where moderate frequency range is sufficient.

Model 2: Perfect for high-frequency testing (up to 100MHz bandwidth) with faster rise time, suitable for advanced power converters, high-speed digital systems, and applications where capturing ultra-fast transient currents is critical.

Application Scenarios

New Energy Vehicles: Test motor drive currents, battery management system currents, and power converter currents.

Power Electronics: Analyze switching power supply currents, inverter currents, and rectifier currents.

Industrial Automation: Measure currents in high-speed industrial control systems and power transmission equipment.

Electronics R&D: Conduct high-frequency current signal analysis in lab environments, including semiconductor device testing.

Switching System Testing: Analyze inrush currents and transient currents in switch power supplies and electronic devices.

Aerospace Electronics: Test high-speed electronic systems and component currents in aerospace applications.

Get this high-frequency AC/DC current probe now to achieve accurate, reliable, and efficient high-speed current measurement for your professional testing and development needs!
