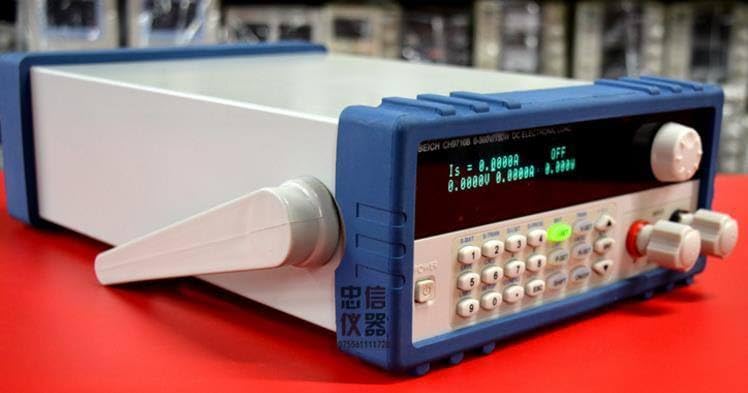

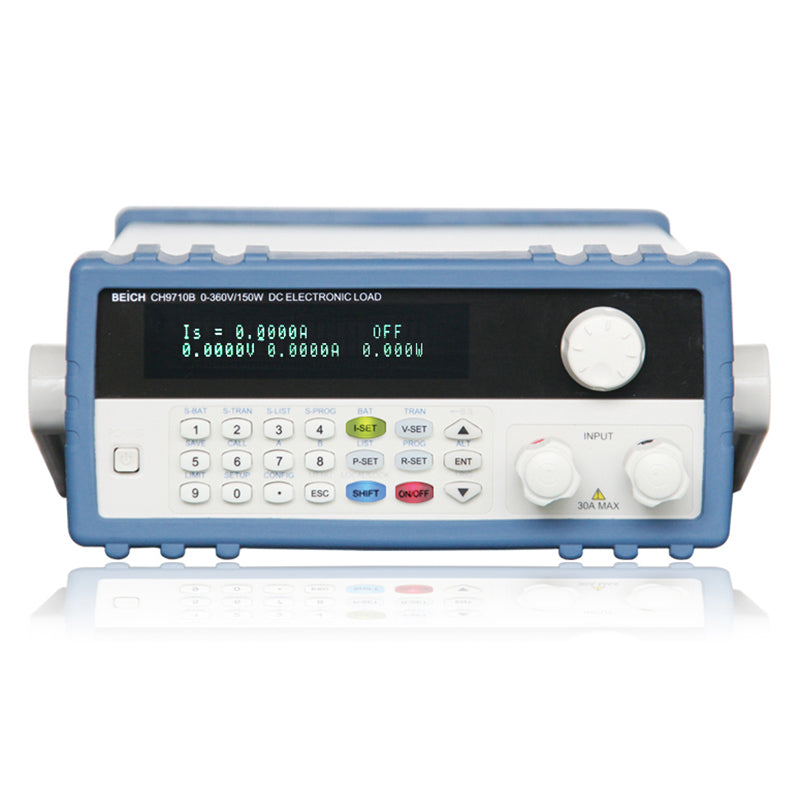

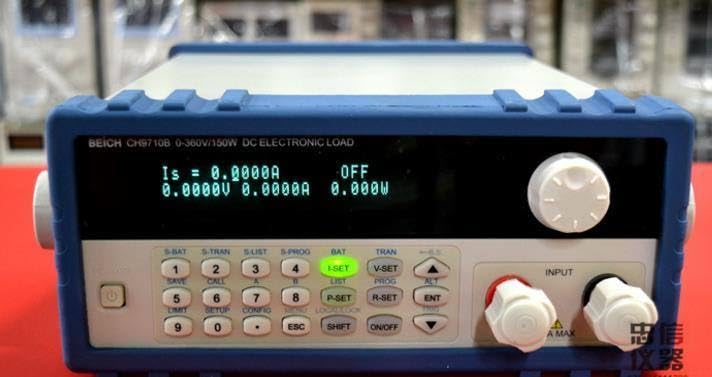

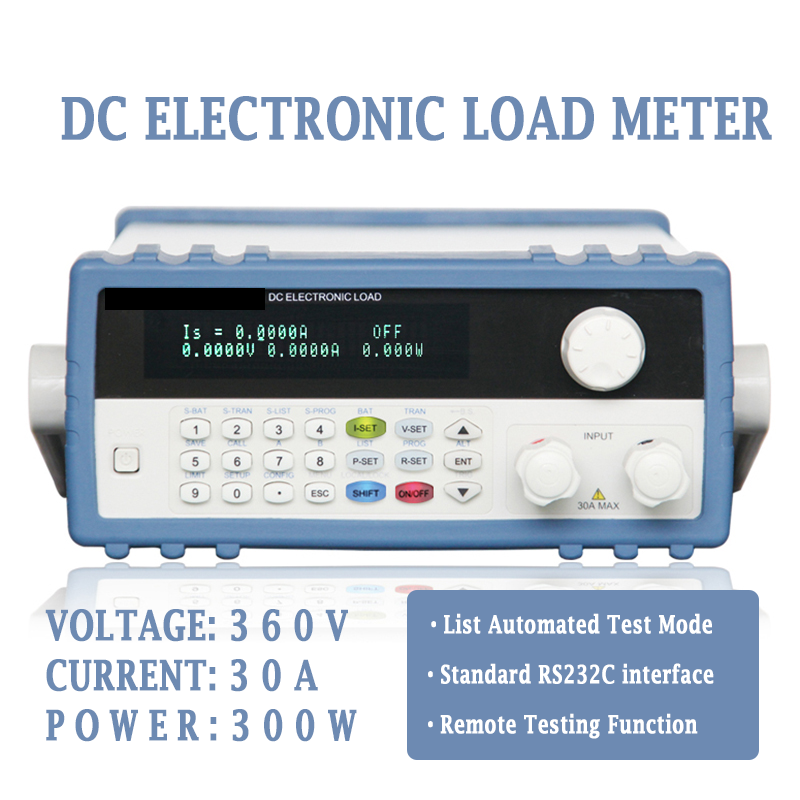

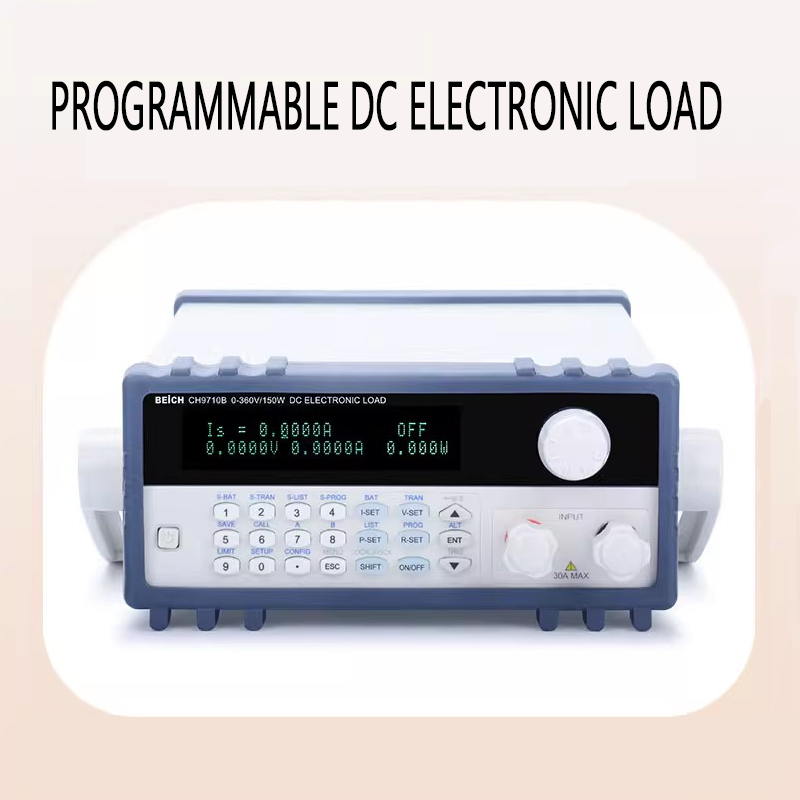

DC electronic load 30A 360V 150W 300W Battery Capacity Tester High-Accuracy Resolution Electronic Load Meter Standard RS232C interface

$284.90 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Model 150W 360V 30A 300W 360V 30A

Quantité

English Manual

When it comes to precise testing of power sources and electronic devices, the Model 1 and Model 2 electronic loads are reliable choices. These models are designed to meet various testing needs with their comprehensive features and capabilities.

Shared Core Features

High - Voltage Compatibility: Both models support a maximum input voltage of 360V, making them suitable for testing non - isolated drive power supplies.

Multiple Test Modes: Feature constant current, constant voltage, constant resistance, and constant power modes, allowing for versatile testing scenarios.

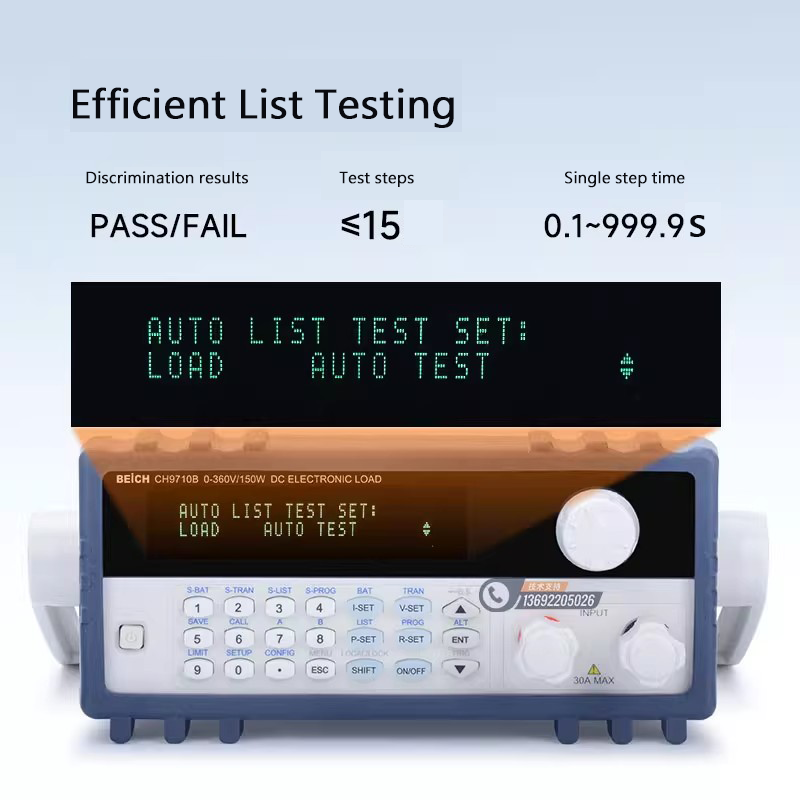

Advanced Functionality: Equipped with dynamic measurement, battery test, and list automatic test modes.

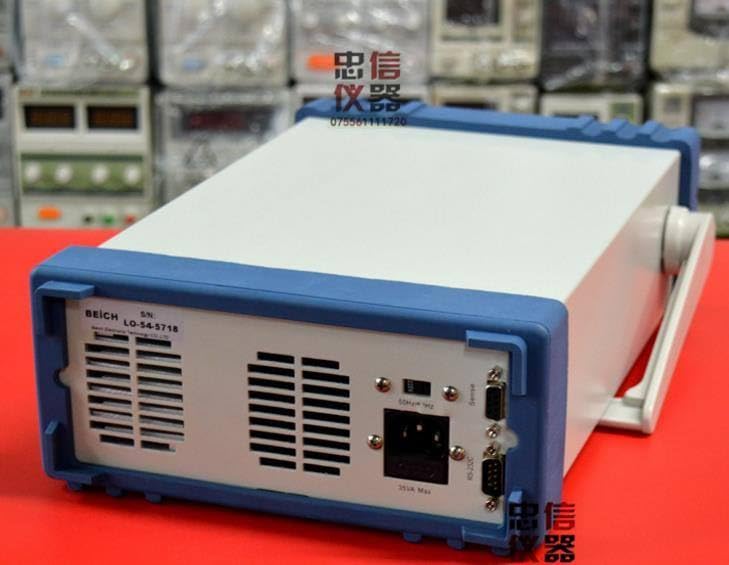

Standard Interface: Have a standard RS232C interface for easy connection to other devices or systems.

Protection Mechanisms: Include over - voltage, over - current, over - power, and over - temperature protection to safeguard the device and the tested components.

Model Differences & Ideal Use Scenarios

Feature/Model	Model 1	Model 2
Input Power Rating	150W	300W
Display	High brightness VFD	High - brightness VFD
Weight	Approximately 6kg	Approximately 6.5kg
Ideal Use Scenarios	Suited for applications where lower power testing requirements are sufficient. Need a reliable load for general - purpose testing without the need for high - power handling.	Recommended for scenarios that demand higher power handling, like testing larger power supplies or industrial - grade electronic components.

Detailed Technical Specifications

Parameter	Model 1	Model 2
Input Voltage Range	0 - 360V	0 - 360V
Input Current Range	1mA - 30A	1mA - 30A
Load Accuracy (Voltage)	0 - 36V: ±(0.05% + 0.03%FS), 1mV resolution 0 - 360V: ±(0.05% + 0.03%FS), 10mV resolution	0 - 36V: ±(0.05% + 0.03%FS), 1mV resolution 0 - 360V: ±(0.05% + 0.03%FS), 10mV resolution
Load Accuracy (Current)	0 - 3A: ±(0.05% + 0.05%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.05%FS), 1mA resolution	0 - 3A: ±(0.05% + 0.05%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.05%FS), 1mA resolution
Constant Voltage Mode Accuracy	1.5V - 36V: ±(0.05% + 0.03%FS), 1mV resolution 1.5V - 360V: ±(0.05% + 0.03%FS), 10mV resolution	1.5V - 36V: ±(0.05% + 0.03%FS), 1mV resolution 1.5V - 360V: ±(0.05% + 0.03%FS), 10mV resolution
Constant Current Mode Accuracy	0 - 3A: ±(0.05% + 0.03%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.03%FS), 1mA resolution	0 - 3A: ±(0.05% + 0.03%FS), 0.1mA resolution 0 - 30A: ±(0.05% + 0.03%FS), 1mA resolution
Constant Resistance Mode Accuracy	Multiple ranges with different accuracies (e.g., 0.05Ω - 5Ω: ±(0.2% + 0.2%FS), 0.001Ω resolution)	Multiple ranges with different accuracies (e.g., 0.05Ω - 5Ω: ±(0.2% + 0.2%FS), 0.001Ω resolution)
Constant Power Mode Accuracy	Multiple ranges with different accuracies (e.g., 0 - 50W: ±(0.1% + 0.1%FS), 1mW resolution)	Multiple ranges with different accuracies (e.g., 0 - 50W: ±(0.1% + 0.1%FS), 1mW resolution)
Battery Test Function	Input voltage: 0.8 - 360V, max capacity: 999A/H, resolution: 0.1mA, discharge time: 1 - 60000sec	Input voltage: 0.8 - 360V, max capacity: 999A/H, resolution: 0.1mA, discharge time: 1 - 60000sec
Dynamic Test Mode	T1&T2 (A value or B value test time): 0.1mS - 999S, error < 2.5% + 0.1mS	T1&T2 (A value or B value test time): 0.1mS - 999S, error < 2.5% + 0.1mS
Protection Range	> Rated conditions 5%	> Rated conditions 5%
Input - End Impedance	≥200KΩ	≥200KΩ
Dimensions (W x H x D)	230mm x 100mm x 350mm	230mm x 100mm x 350mm

Choose the electronic load based on your power requirements and display preferences. Add to cart now and enhance your testing capabilities.
