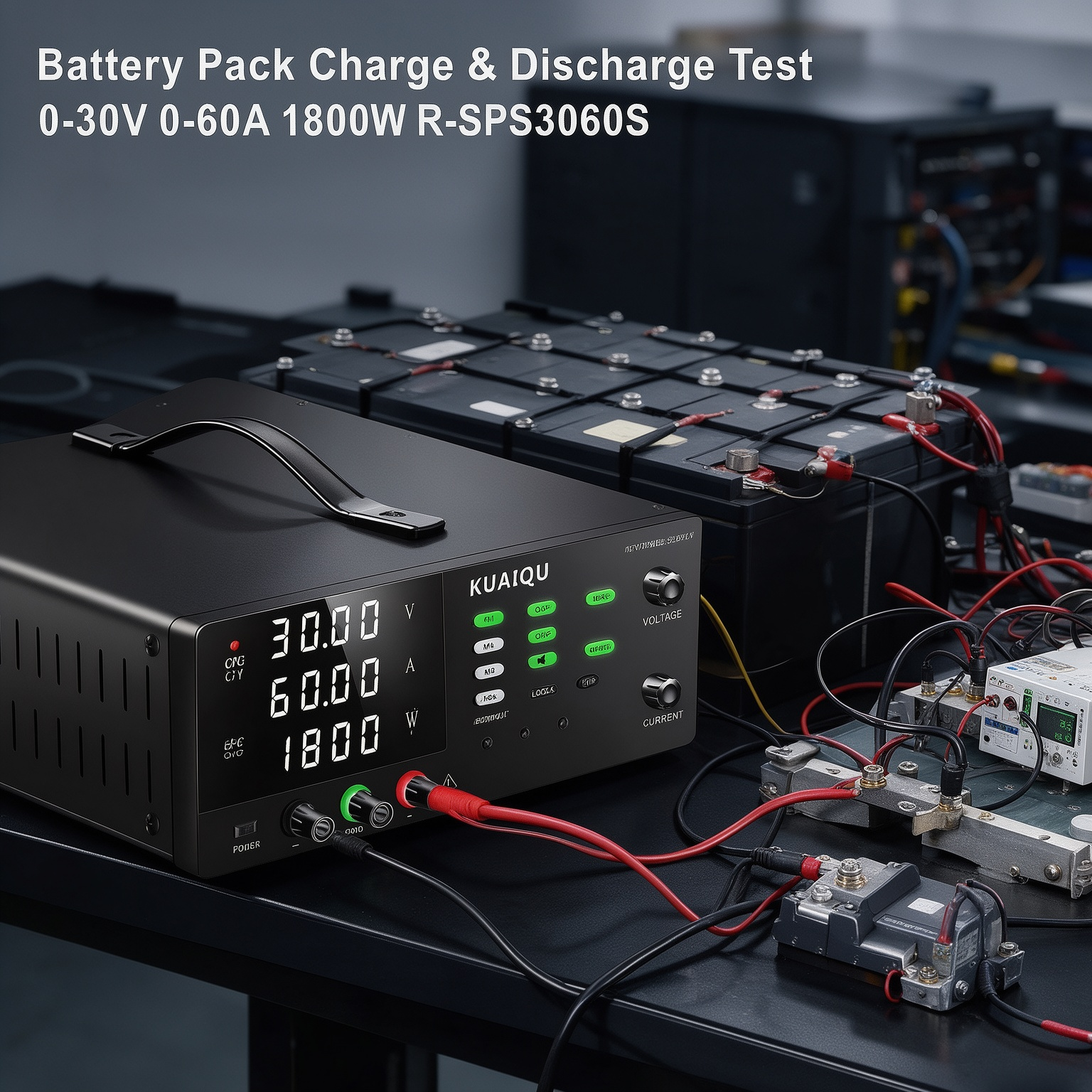

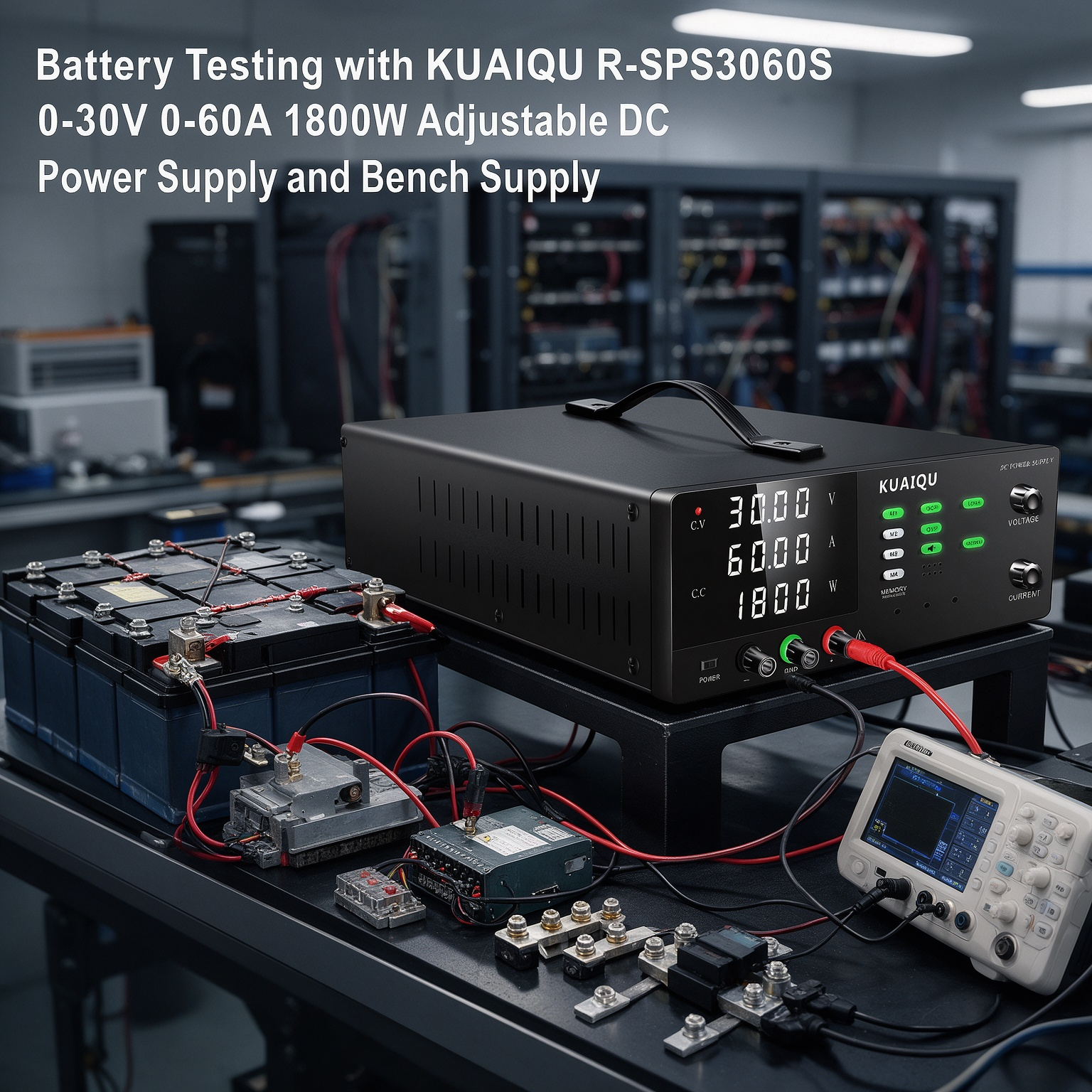

Battery Testing with KUAIQU R-SPS3060S
0-30V 0-60A 1800W Adjustable DC Power
Supply and Bench Supply
Battery testing often requires a controllable DC power source that can provide different voltage and current conditions while allowing the operator to observe the electrical response of the connected battery or battery-related test setup. The KUAIQU R-SPS3060S 0-30V 0-60A 1800W Adjustable DC Power Supply and Bench Supply is designed for battery testing applications that require higher current within a low-voltage DC range.
With an adjustable 0–30V output, up to 60A current, and 1800W maximum output power, the R-SPS3060S can be used as the DC power source for compatible battery testing setups, battery-related development work, and laboratory evaluation. The combination of voltage and current adjustment allows engineers to establish appropriate DC operating conditions within the rated range rather than relying on a fixed-output power source.
For repeated battery testing, the supply also provides direct voltage, current, and power readback, precision encoder adjustment, M1-M3 memory settings, Output ON/OFF control, OCP, OVP, and Panel Lock. These functions help organize the power supply side of a battery test setup while keeping the product within its actual role as an adjustable DC power source.
Key Features
0-30V 0-60A 1800W Adjustable DC Power Supply
The R-SPS3060S provides a 0–30V adjustable output with up to 60A current and 1800W maximum output power.
This output range gives battery testing setups a substantial amount of current capability while maintaining a low-voltage DC output range. It is suitable for compatible batteries and battery-related test circuits whose required voltage and current remain within the rated operating range.
Adjustable Voltage for Different Battery Test Conditions
Battery testing may require different DC voltage settings depending on the device or test condition being evaluated.
The adjustable 0–30V output allows the operator to set the required voltage within the power supply's rated range, making the same bench supply adaptable to different compatible battery testing arrangements.
60A Current Capability for Higher Current Battery Testing
Current capability is an important consideration when the battery or test circuit requires more than a conventional low-current laboratory supply can provide.
With up to 60A output current, the R-SPS3060S is designed for battery testing setups where higher current demand is part of the test condition.
1800W Output for High-Power Test Setups
The 1800W maximum output gives the R-SPS3060S additional power capacity for higher-demand battery testing applications.
The combination of 30V, 60A, and 1800W allows the power supply to support compatible battery test setups where both voltage and current requirements need to be considered together.
Real-Time Voltage, Current, and Power Display
The four-digit display shows output voltage, current, and power, allowing the operator to monitor the electrical condition of the test setup directly from the front panel.
For battery testing, seeing these values together makes it easier to observe how the connected test circuit is operating while the DC output is being adjusted.
Precision Encoder for Voltage and Current Adjustment
The precision encoder provides controlled adjustment of voltage and current settings.
This is useful when establishing a specific battery test condition or making incremental changes to the DC output during laboratory evaluation.

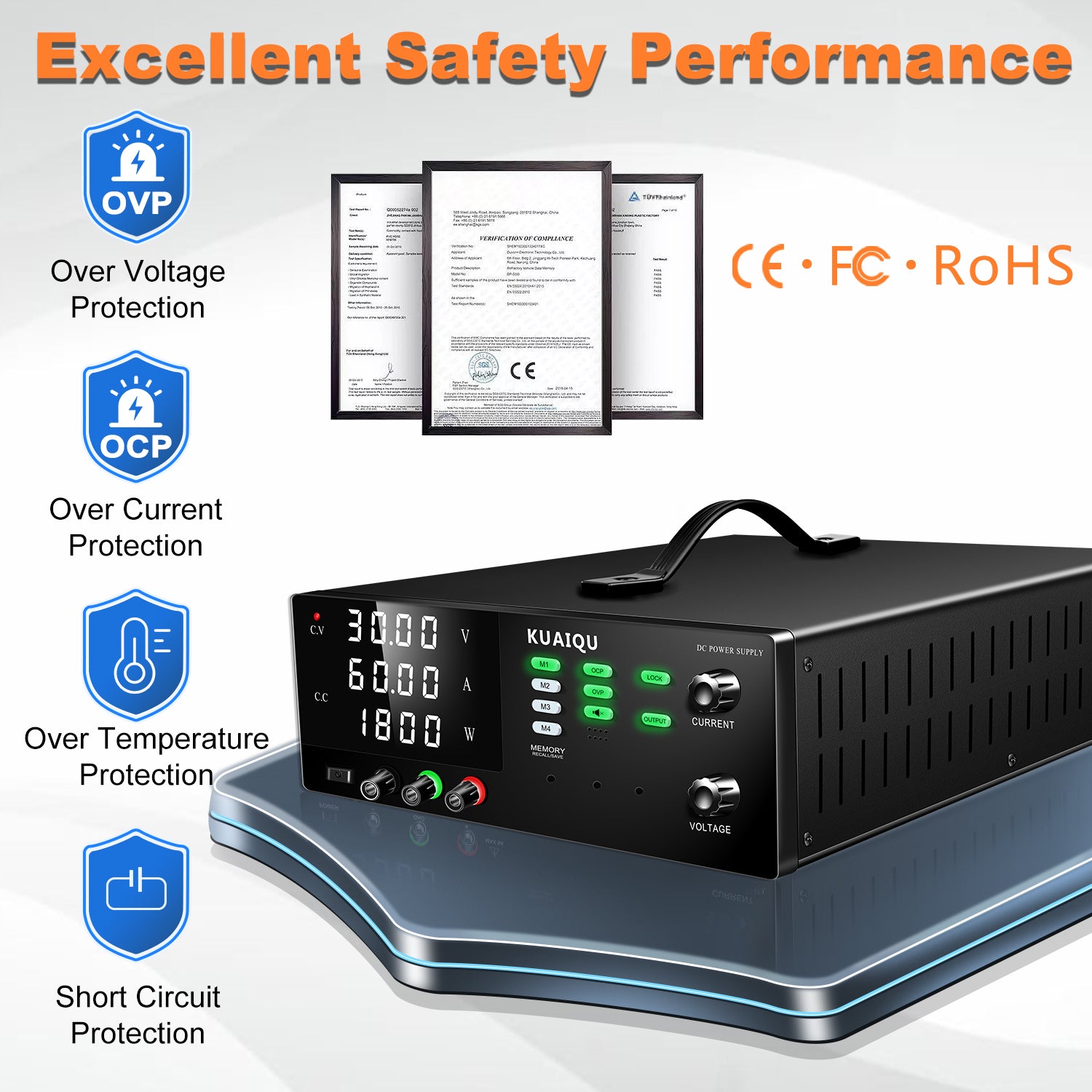

OCP and OVP Protection
The R-SPS3060S includes Over Current Protection and Over Voltage Protection for controlled operation of the DC output.
These protection functions are particularly useful when working with battery-related test setups, where an incorrectly configured voltage or excessive current condition can affect the connected equipment.
Output ON/OFF Control for Test Setup Management
The independent Output ON/OFF function allows the operator to control when the DC output is applied to the connected battery test setup.
This provides a practical way to prepare the test connection or stop DC output without repeatedly changing the main voltage and current settings.

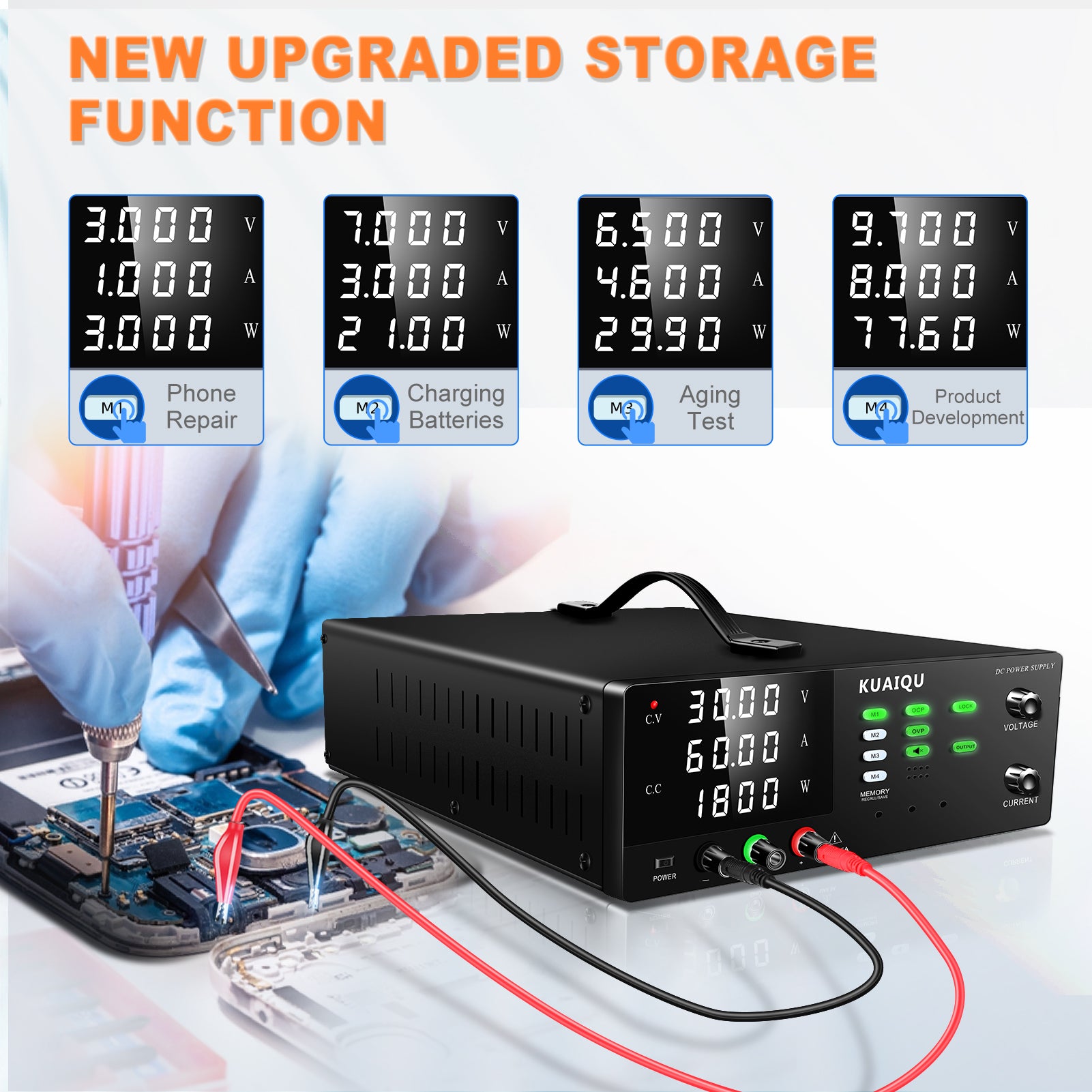

M1-M3 Memory for Repeated Battery Tests
The R-SPS3060S provides three memory groups, M1-M3, for storing frequently used settings.
When battery testing involves returning to previously established voltage and current conditions, stored settings can reduce repeated manual adjustment and make the test setup easier to reproduce.
Panel Lock for Stable Test Settings
Panel Lock helps prevent unintended changes to the configured output parameters during operation.
This is useful when a battery test needs to remain under a defined DC voltage and current condition for an extended period.
Front and Rear Output Connections
The R-SPS3060S provides front and rear output connections for different battery testing bench arrangements.
The front terminals can be convenient for laboratory bench testing, while the rear output can be used when the power supply is integrated into a more permanent test setup.

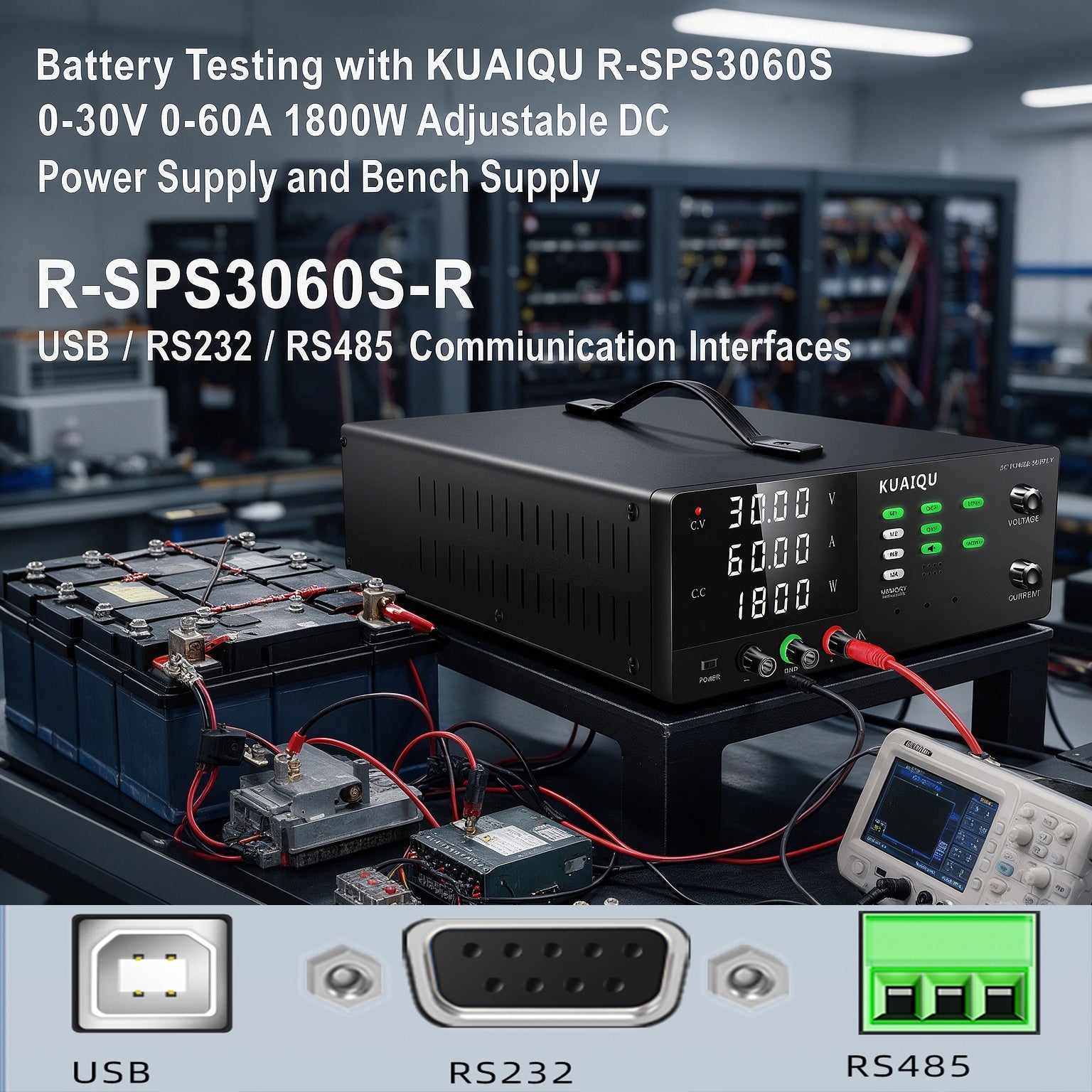

USB/RS232/RS485 Communication Interfaces
The R-SPS-S series supports USB/RS232/RS485 communication interfaces according to configuration.
These interfaces provide connection options for compatible laboratory or equipment setups where communication with the DC power supply is required.
Applications
Battery Testing
The R-SPS3060S can provide adjustable DC power for compatible battery testing setups requiring up to 30V, 60A, and 1800W within the product's rated operating range.
High Current Battery Testing
The 60A current capability makes the R-SPS3060S suitable for battery test arrangements where higher current demand is an important part of the evaluation.
Battery Test Setup Development
During battery-related development work, engineers may need to establish different DC voltage and current conditions. The adjustable output provides a flexible DC source for these compatible test arrangements.
Battery Operating Condition Evaluation
The adjustable output allows different DC supply conditions to be established within the 0–30V rated voltage range, supporting evaluation of compatible battery-related devices and circuits.
Battery Related Circuit Testing
The R-SPS3060S can serve as the adjustable DC source for circuits associated with battery systems when the required operating conditions remain within the supply's voltage, current, and power limits.
High Power Battery Test Bench
With up to 60A and 1800W output, the R-SPS3060S can be incorporated into higher-power laboratory battery test benches where a substantial DC source is required.
Repeated Battery Test Conditions
M1-M3 memory allows three frequently used voltage and current settings to be stored for repeated testing, helping reduce repeated manual configuration.
Battery Electronics Development
The adjustable DC output, four-digit readback, encoder adjustment, OCP, OVP, and Output ON/OFF control make the R-SPS3060S suitable for battery-related electronic development and bench evaluation.
Laboratory Battery Testing
The R-SPS3060S provides an adjustable bench power source for laboratory battery testing applications that require controlled DC voltage and current within its rated specifications.
Battery Test Equipment Power Source
For compatible battery testing equipment and test circuits, the R-SPS3060S can function as the adjustable DC power source used to establish the required electrical input conditions.
Quality Check and Terms of Service:
-

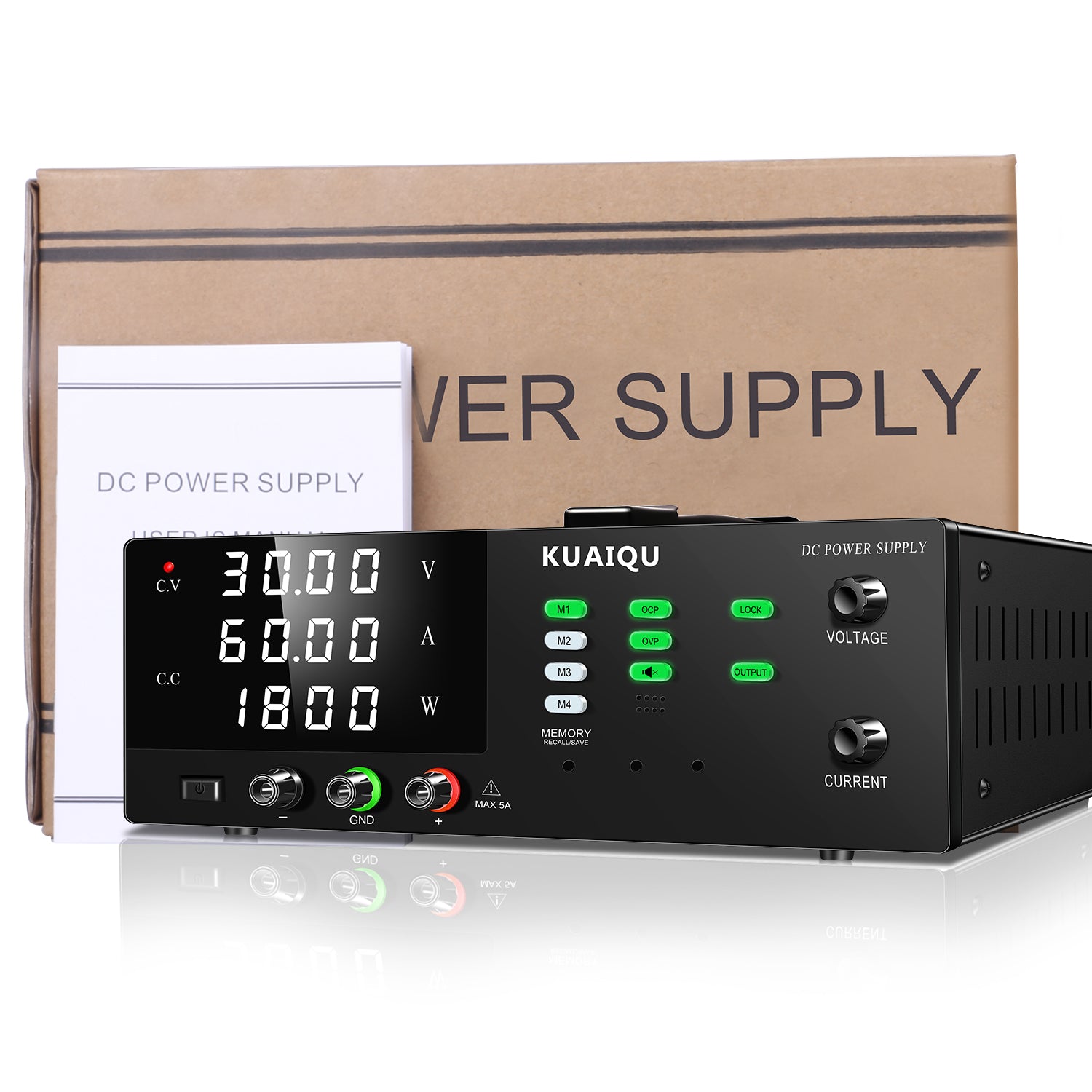

Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
-
Has passed CE & FCC Certification.
-
All DC power supplies and accessories are inspected before shipment to ensure good quality.
-
Customer support: Contact us with any questions, and we'll respond within 24 hours.
Technical Specifications
| Parameter |
Specification |
| Model |
R-SPS3060S |
| Product Type |
Adjustable DC Power Supply and Bench Supply |
| Output Voltage |
0–30V |
| Output Current |
0–60A |
| Maximum Output Power |
1800W |
| Load Regulation Voltage |
≤0.1% + 10mV |
| Load Regulation Current |
≤0.1% + 2.5mA |
| Line Regulation Voltage |
≤0.01% + 2.5mV |
| Line Regulation Current |
≤0.1% + 2.5mA |
| Setting Resolution Voltage |
10mV |
| Setting Resolution Current |
10mA |
| Readback Resolution Voltage |
10mV |
| Readback Resolution Current |
10mA |
| Setting Accuracy Voltage |
≤0.05% + 10mV |
| Setting Accuracy Current |
≤0.01% + 10mA |
| Readback Accuracy Voltage |
≤0.05% + 10mV |
| Readback Accuracy Current |
≤0.01% + 10mA |
| Voltage Ripple |
≤400mVp-p / ≤60mVrms |
| Current Ripple |
≤20mArms |
| Rise Time, No Load |
≤150ms |
| Rise Time, Full Load |
≤200ms |
| Fall Time, No Load |
≤15s |
| Fall Time, Full Load |
≤50ms |
| Dynamic Response |
≤20ms |
| Efficiency |
≥85% |
| Display |
Four-Digit Voltage, Current, and Power Display |
| Protection |
OCP and OVP |
| Output Control |
Output ON/OFF |
| Memory |
M1-M3, 3 Memory Groups |
| Adjustment |
Precision Encoder |
| Panel Function |
Panel Lock |
| Communication |
USB/RS232/RS485 Communication Interfaces according to configuration |
| Output Connections |
Front and Rear Output Ports |
| Rated Test Environment |
0°C–40°C |
| Dimensions |
Approx. 26.5 × 19 × 8.5 cm |
| Net Weight |
Approx. 2.5 kg |
| Package Size |
Approx. 38 × 24.5 × 12.5 cm |
| Package Weight |
Approx. 3.2 kg |
| Carton Quantity |
6 pcs/carton |
Why Choose KUAIQU R-SPS3060S?
A High-Current DC Source for Battery Testing
The R-SPS3060S is built around the requirements of test setups that need more current than a typical laboratory bench supply can provide. Its 0–30V, 0–60A, 1800W output combination provides a substantial DC source for compatible battery testing applications.
Rather than positioning the product as a dedicated battery analyzer or battery cycler, the R-SPS3060S serves the role it is designed for: providing adjustable DC power to the battery or battery-related test setup.
Flexible Voltage and Current Conditions
Battery testing may involve different electrical conditions from one test setup to another. The adjustable voltage and current output allows the operator to establish the required DC conditions within the rated range.
This flexibility also allows the same bench supply to be used across different compatible battery-related development and evaluation tasks.
Monitor the Test Condition Directly
The four-digit display provides direct voltage, current, and power readback while the test is running.
For a battery test setup, this gives the operator immediate visibility into the DC output condition instead of relying only on the preset values.
Repeat Frequently Used Test Settings
Battery testing can involve repeated tests under the same electrical conditions. The M1-M3 memory function provides three stored settings, while Panel Lock helps prevent accidental changes after the desired parameters have been established.
Protection for Controlled DC Output
OCP and OVP add protection functions to the adjustable DC output, giving the operator additional control when working with battery-related test circuits and equipment.
Designed as an Adjustable Bench Supply
With precision encoder adjustment, Output ON/OFF control, four-digit V/I/P display, memory settings, Panel Lock, and front and rear output connections, the R-SPS3060S can be used as a practical Adjustable DC Power Supply and Bench Supply for Battery Testing.
Its combination of 30V voltage capability, 60A current capacity, and 1800W output power makes it particularly suited to battery test setups where higher current is an important requirement.
