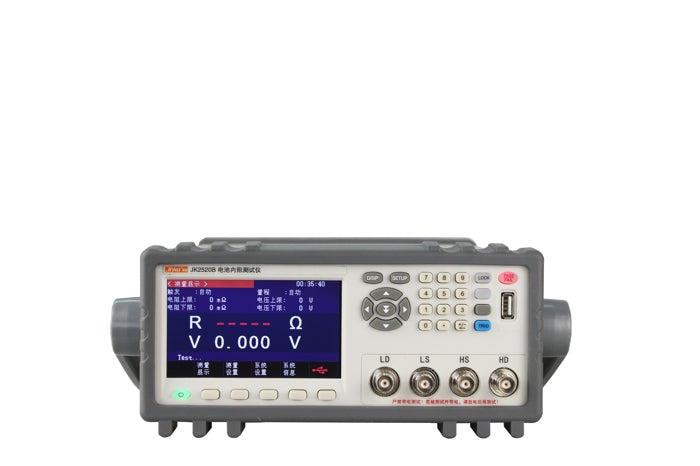

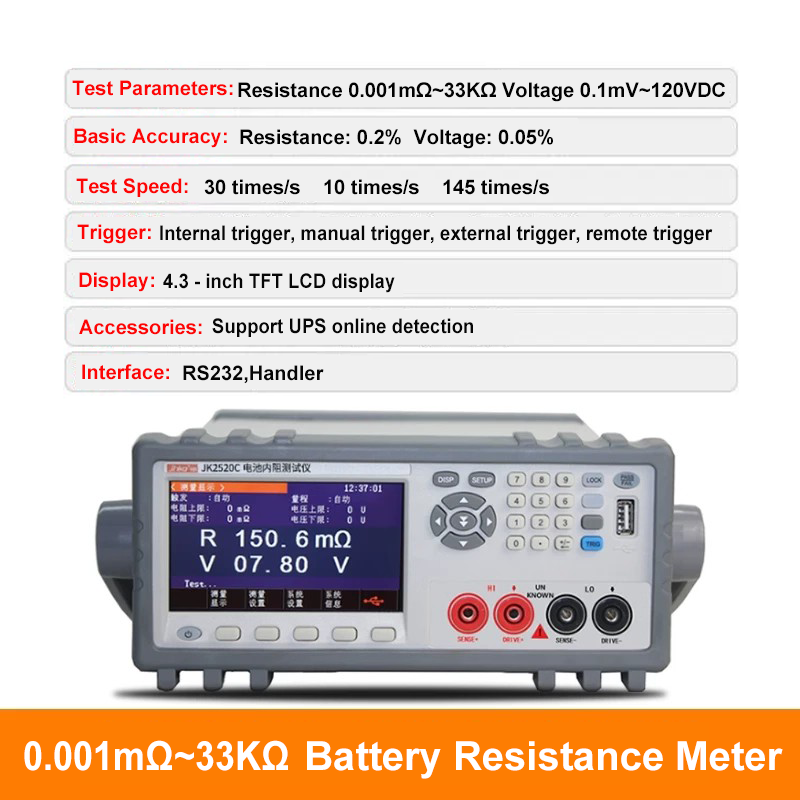

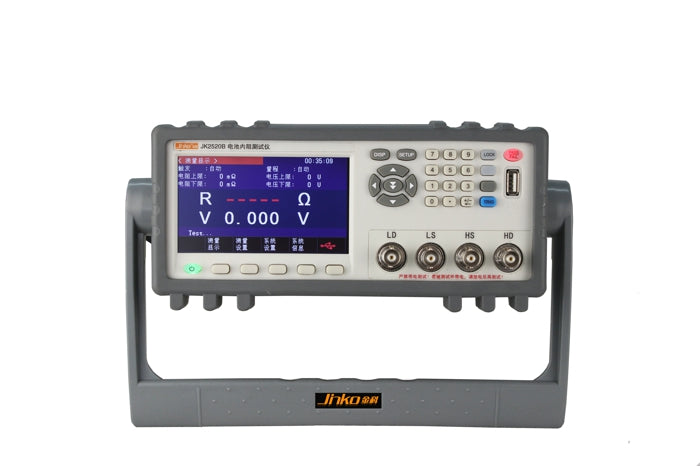

Battery Voltage Internal Resistance Tester Automotive range 0.001mΩ~33KΩ battery comprehensive tester 4 Modes Trigger

$1,699.00 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Model 0.001mΩ~33KΩ

Quantité

The Battery Resistance Meter is a high - precision tester for AC resistance and DC voltage, ideal for diverse testing needs with its wide range, accuracy, and handy features.

Key Features

Dual Measurement: Tests AC resistance and DC voltage.

Clear Display: 4.3 - inch TFT LCD for easy reading.

High Accuracy: 0.2% (resistance), 0.01% (voltage).

Flexible Speed: 30/10/145 times/s test speeds.

Multiple Triggers: Internal, manual, external, remote triggering.

Easy Calibration: Full - range short - circuit zeroing.

Connectivity: RS232, Handler interfaces.

Data Management: Keyboard lock, data save, flash/U - disk record.

Technical Specifications

Parameter	Details
Test Parameters	Resistance: 0.001mΩ - 33KΩ; Voltage: 0.1mV - 120VDC
Display	4.3 - inch TFT LCD
Basic Accuracy (Resistance)	0.2%
Basic Accuracy (Voltage)	0.01%
Measurement Range	Resistance: 0.001mΩ - 33KΩ; Voltage: 0.1mV - 120VDC
Signal Source	AC 1kHz, open - circuit voltage <20mV, test current <10mA
Range	Four - range auto/manual
Test Speed	30/10/145 times/s
Display Result	Direct reading, Δ%
Calibration	Full - range short - circuit zeroing
Comparator	PASS/FAIL front - panel LED
Trigger Modes	Internal, manual, external, remote
Interface	RS232, Handler
Power	198 - 240VAC, 50Hz, max 15VA
Dimensions	Rack: 215×88×335mm; External: 235×105×360mm
Weight	~3.6kg
Accessories	505 Kelvin test line
Optional Accessories	506A probe, 506 test leads

Application Scenarios

Battery Industry: Test battery internal resistance/voltage for health checks.

Electronics Mfg: Inspect component resistance/voltage for quality.

Automotive: Measure wiring resistance and system voltage to diagnose faults.

Power Electronics: Test power component resistance and supply voltage.

R&D: Get precise readings for experiments in material science/electrical engineering.

QC Labs: Ensure products meet resistance/voltage specs.

Order Battery Resistance Meter now for accurate resistance & voltage testing!
