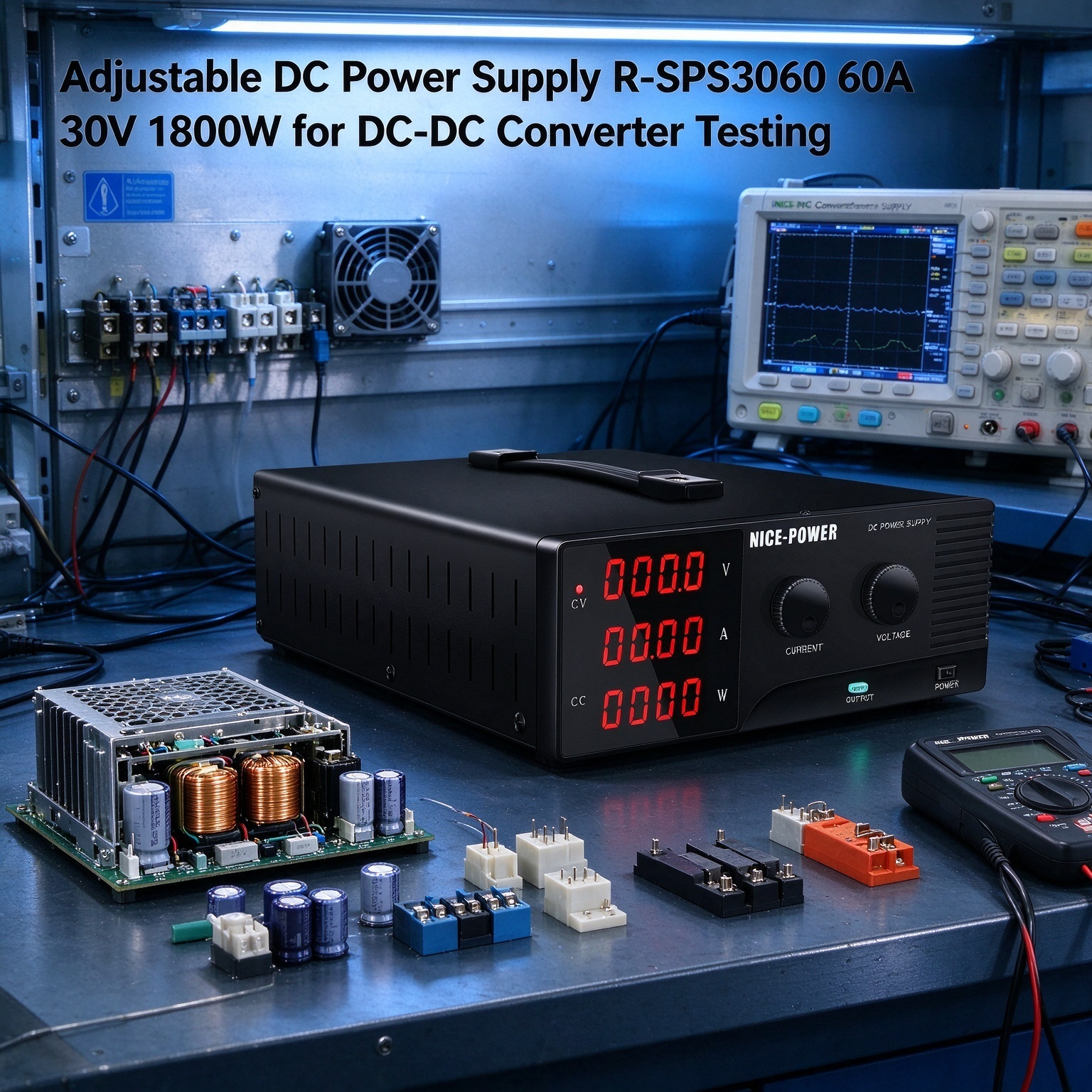

Adjustable DC Power Supply R-SPS3060 60A 30V

1800W for DC-DC Converter Testing

Key Features

30V Output Range for DC-DC Converter Input Requirements

The NICE-POWER R-SPS3060 delivers an adjustable DC output from 0–30V, with a maximum output current of 60A and rated power of 1800W. It can serve as the input source for DC-DC converter modules whose specified input voltage and power requirements fall within these limits. Before connecting a converter, check its permitted input range and startup current to select an appropriate supply setting.

CV/CC Modes for Different Input Supply Conditions

Constant Voltage (CV) and Constant Current (CC) modes support different supply conditions during converter experiments. The front-panel indicators show the operating mode, helping users identify the supply's operating state while configuring the test setup. The selected mode and output settings should be appropriate for the converter under evaluation.

Front-Panel Adjustments for Manual Test Setup

The encoder knob allows users to change output settings for individual test conditions. The output ON/OFF control lets users switch the supply output during circuit connection, setup changes, and test preparation. This arrangement is useful for bench procedures that require manually setting the converter's input voltage rather than relying on an automated voltage-sweep system.

Output Readings for Bench Observation

The four-digit voltage and current display provides visible output readings, while the power display shows output power information. These readings help users monitor the supply during converter operation. They represent the power supply's own output readings, not a complete measurement of the converter's efficiency, output regulation, switching waveform, or ripple.

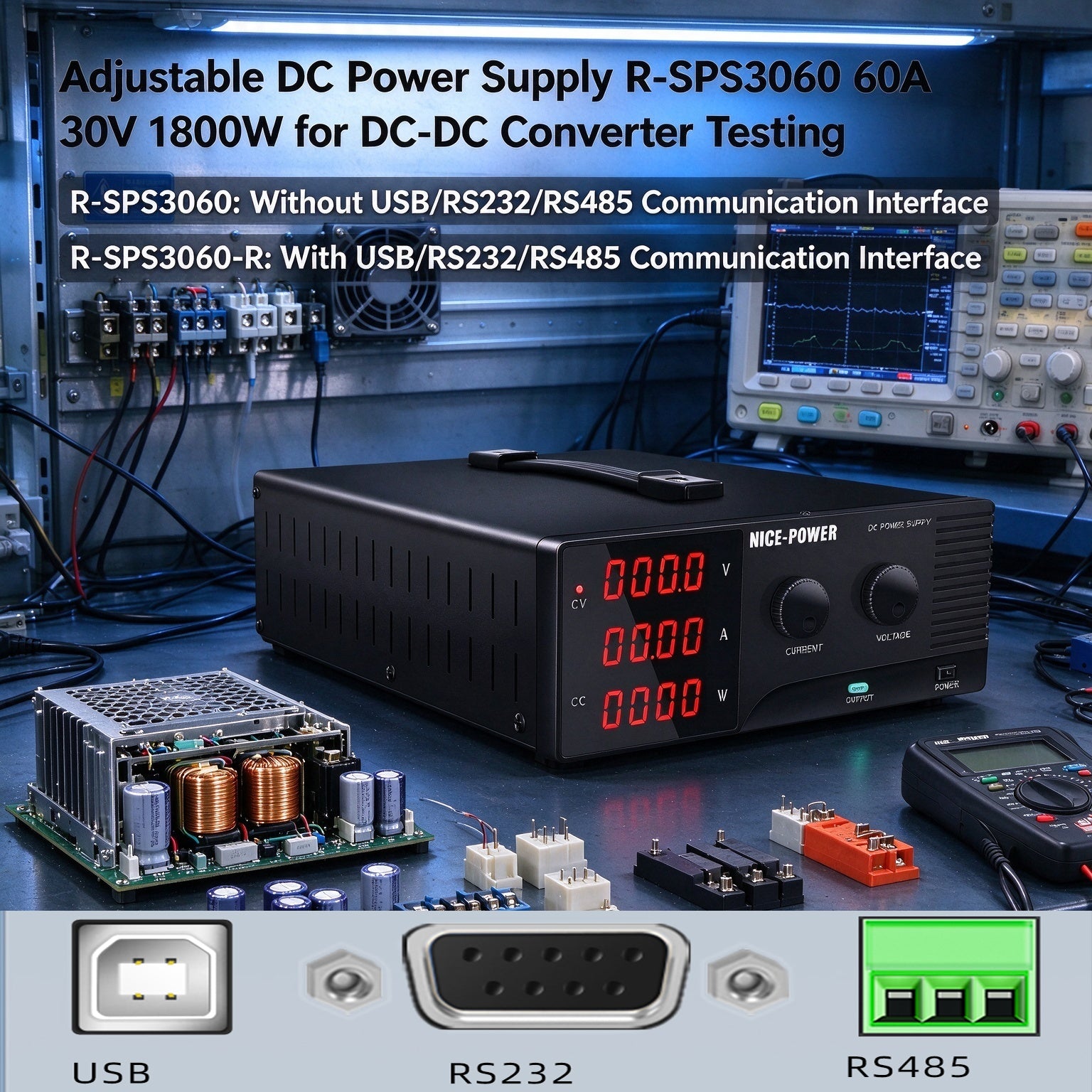

Choose the Model According to Communication Needs

The two models share the same listed output ratings and other technical specifications, with one important difference:

• R-SPS3060: No communication interfaces; suited to setups operated through the front panel.

• R-SPS3060-R: Equipped with USB, RS-232, and RS-485 communication interfaces for setups that require these connections.

Confirm interface and software compatibility before integrating the R-SPS3060-R into a computer-based test setup. The presence of communication interfaces alone does not establish support for a specific command protocol or automated converter-testing function.

Applications

DC-DC Converter Input-Voltage Evaluation

Use the R-SPS3060 as the DC input source when checking a compatible converter at selected input-voltage settings. Set the supply manually within the converter's documented input range and observe the supply's output readings as the converter operates. Use separate measurement instruments to determine the converter's output voltage, output current, or other performance parameters.

Converter Startup and Operating-Point Checks

During a basic bench check, the supply can provide input power while an engineer observes whether the connected converter starts and operates under a selected supply condition. The converter's rated input voltage, expected input current, and startup demand must be checked in advance. The power supply does not independently determine whether the converter has passed a functional test.

DC-DC Module Prototype Evaluation

For prototype development, the R-SPS3060 can supply DC input power to converter boards and modules whose requirements match its output capability. Engineers can change the supply settings between manually defined test conditions and use external instruments to inspect the converter's output behavior. Tests involving efficiency, transient response, switching performance, and ripple require the corresponding external test equipment.

Converter Test-Bench and Laboratory Setups

The R-SPS3060 can serve as the input supply in a test bench that includes a DC-DC converter, an appropriate load, and measurement instruments. Its adjustable output and front-panel controls support the supply side of the setup. The R-SPS3060-R offers USB, RS-232, and RS-485 interfaces when communication connectivity is required, subject to protocol and software compatibility.

Quality Check and Terms of Service:

• Package Includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.

• Certifications: Has passed CE & FCC Certification.

• Quality Inspection: All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer Support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER R-SPS3060?

Selecting an input source is an important part of building a DC-DC converter test bench. The R-SPS3060 combines a 0–30V adjustable output, up to 60A, and 1800W rated power for compatible converter modules and low-voltage power circuits. Manual encoder adjustment, CV/CC indicators, output ON/OFF control, and visible output readings support practical bench setup without presenting the instrument as a complete automated testing system.

The R-SPS3060 and R-SPS3060-R provide the same listed output capability, allowing selection based on communication requirements. Choose the standard model for front-panel operation or the R-SPS3060-R when USB, RS-232, or RS-485 connectivity is needed.

Before use, verify the converter's input-voltage limits, maximum input current, startup demand, and power consumption. A complete converter evaluation may also require an electronic load, multimeter, oscilloscope, suitable probes, and other instruments according to the test objectives.
