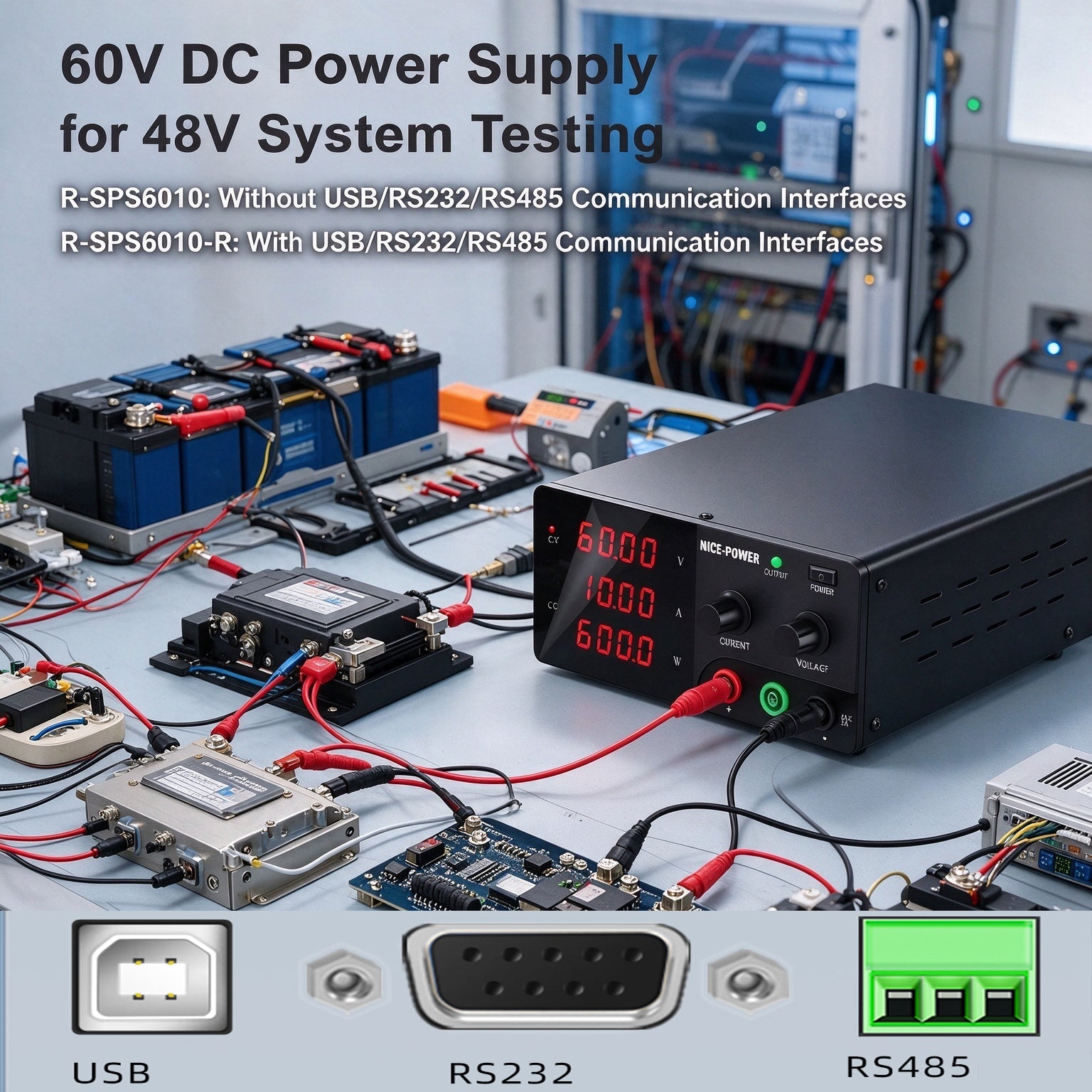

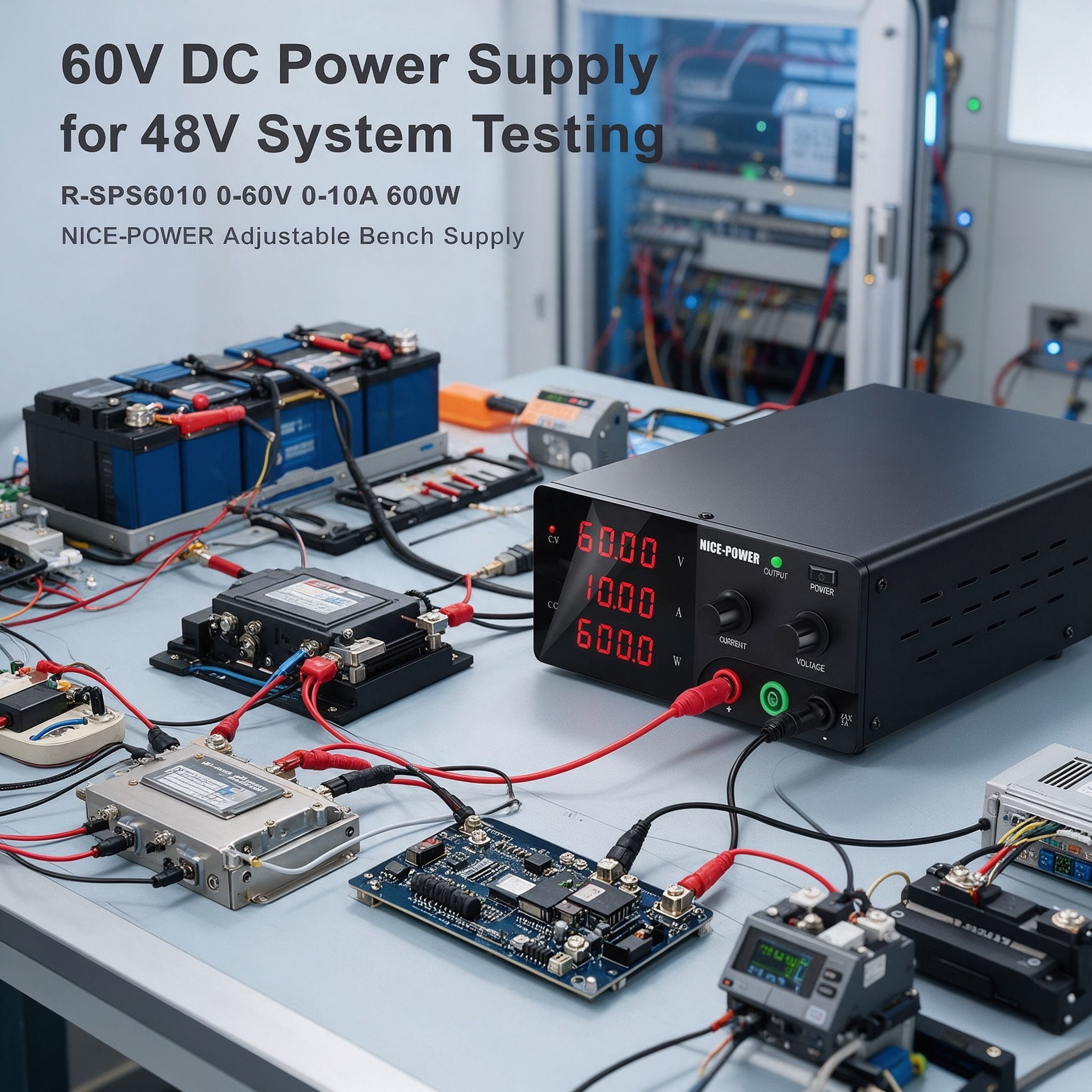

60V DC Power Supply for 48V System Testing

R-SPS6010 0-60V 0-10A 600W NICE-POWER

Adjustable Bench Supply

A 48V-class electronic system needs a suitable DC source during development, troubleshooting, and pre-integration checks. The NICE-POWER R-SPS6010 provides an adjustable 0-60V output, up to 10A of current, and 600W rated power, giving engineers room to configure the DC supply conditions required by compatible 48V equipment and electronic assemblies. Instead of being limited to a fixed 48V output, users can adjust the voltage to suit the device under test, monitor the supply's voltage and current readback, and switch the output on or off during bench procedures. With front and rear output connections, the R-SPS6010 fits both accessible benchtop experiments and test setups that require rear-panel power connections.

Key Features

60V Maximum Output for Flexible 48V Supply Settings

The R-SPS6010 offers a 0-60V adjustable DC output, allowing users to set a suitable supply voltage for compatible 48V-class electronic equipment. This range provides flexibility for different test conditions within the connected device's permitted input range. Before applying power, confirm the device's rated voltage and ensure the selected setting does not exceed its limits.

600W Rated Output for Compatible DC Loads

With a rated output of 600W and a current range of 0-10A, the R-SPS6010 can supply compatible electronic modules and DC assemblies used in 48V system development. The usable operating point depends on voltage, current, and total power together. For example, at 48V, the 600W power rating limits the output current to approximately 12.5A mathematically, but the model's 10A maximum current is the tighter limit; actual output must stay within both ratings.

Voltage, Current, and Power Display for Supply Monitoring

When evaluating a DC-powered system, users need to know what the power supply is delivering. The R-SPS6010 includes a four-digit voltage and current display and a power display, helping users observe the supply output during setup and operation. These readings are useful for checking the source's output conditions, but they do not independently measure the internal voltage, current, or efficiency of the complete system.

Encoder Adjustment for Different Operating Conditions

The front-panel encoder allows users to adjust voltage and current settings directly. This is useful when preparing a test, selecting the required DC input for a compatible module, or repeating experiments at different supply settings. It supports manual bench operation without claiming programmable voltage profiles or automated test sequences.

Output ON/OFF Control for Test Preparation

The dedicated Output ON/OFF control lets users enable or disable the power supply output while retaining the configured settings. This supports a controlled workflow when preparing connections, checking a test fixture, or applying power after the setup is ready. Disable the output before changing wiring and follow the connected equipment's recommended startup procedure.

Front and Rear Output Ports for Different Test Bench Arrangements

The R-SPS6010 provides output connections on the front and rear panels. Front-panel access is convenient for individual devices and benchtop experiments, while the rear-panel connection can be used when the application requires the full rated output. The front-panel output is rated below 5A, so applications requiring the full rated output should use the rear-panel connection according to the product specifications.

Applications

48V DC Equipment Supply Verification

Use the R-SPS6010 to supply compatible 48V-class electronic equipment during laboratory checks. Users can set the required DC voltage, observe the power supply's output readback, and check basic operating behavior before the equipment is integrated into a larger assembly.

Electronic Module Integration Checks

Before installing a DC-powered module into a system, engineers may need to verify that it powers up correctly under its specified supply conditions. The R-SPS6010 can provide adjustable DC power for compatible modules during these preliminary checks. Communication, signal integrity, and complete functional verification require appropriate additional equipment.

48V Control and Interface Electronics Testing

The R-SPS6010 can supply suitable control boards and interface circuits designed for compatible DC input conditions. Its adjustable output is useful when establishing the intended supply voltage during development and troubleshooting. Check each board's permitted input range before connecting it, particularly when the circuit is designed specifically for a nominal 48V supply.

DC Power System Prototype Evaluation

For engineers developing DC-powered assemblies, the R-SPS6010 can serve as the input source for compatible prototypes during initial evaluation. Its voltage and current readback helps users monitor the supply output while external instruments are used to examine other system characteristics. This is suitable for routine development work rather than specialized system certification testing.

Quality Check and Terms of Service:

Before connecting a device, confirm its nominal voltage, allowable input range, current requirement, polarity, wiring, and maximum power consumption. Configure the R-SPS6010 within both the device's specifications and the power supply's rated limits. Ensure the wiring and connectors are suitable for the intended current, disable the output before changing connections, and follow the equipment manufacturer's operating instructions.

The R-SPS6010 is an adjustable DC bench power supply. It is not a dedicated 48V battery simulator, battery cycler, programmable transient generator, or automated system test platform. It does not claim battery charge-discharge cycling, programmable voltage profiles, load-dump simulation, or specialized protection testing. The built-in display reports power supply output values and should not be treated as a substitute for external instruments used to measure system-level performance.

Technical Specifications

Why Choose NICE-POWER R-SPS6010?

The NICE-POWER R-SPS6010 is designed for users who need more voltage adjustment range than a fixed 48V source provides. Its 0-60V output, 0-10A current range, and 600W rated power support compatible 48V-class electronics and DC system prototypes. Voltage and current readback, power display, direct encoder adjustment, and Output ON/OFF control help users configure and monitor the supply during bench procedures. Combined with front and rear output connections, these features make the R-SPS6010 a practical adjustable DC source for system development, module checks, and laboratory evaluation within its specified limits.
