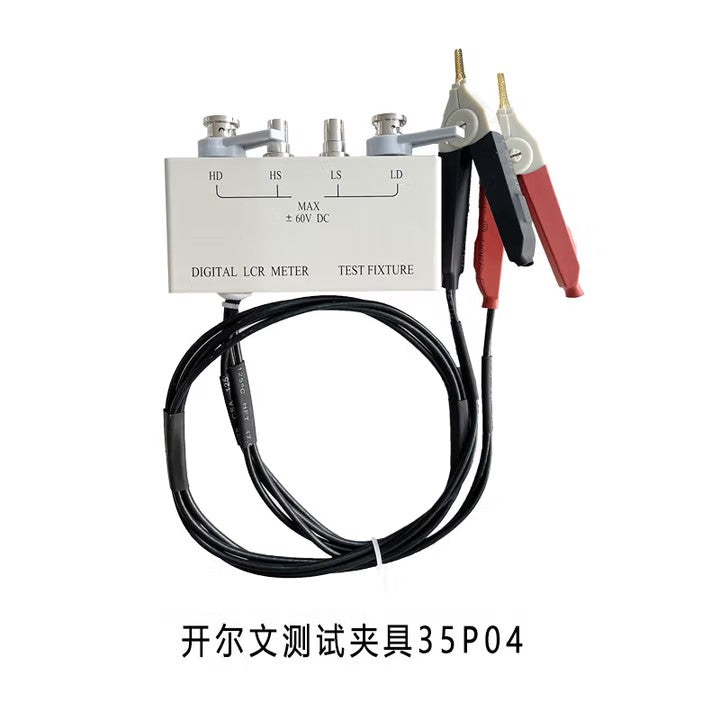

Kelvin Test Fixture 35P04 Precision Focus low-resistance measurements for electronics labs,manufacturing QC 4-wire

Kelvin Test Fixture 35P04 Precision Focus low-resistance measurements for electronics labs,manufacturing QC 4-wire

$81.99 USD
$81.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Kelvin Test Fixture: High-Precision Low-Resistance Measurement Tool

Need accurate low-resistance testing for components? The Kelvin Test Fixture uses 4-wire Kelvin principle to eliminate lead resistance interference, delivering reliable results for resistors, connectors, and circuit boards—ideal for electronics labs, manufacturing QC, and component validation.

User-Friendly Design

  • Secure Connection: Spring-loaded probes ensure tight, stable contact; compatible with most benchtop multimeters/ohmmeters.
  • Durable Build: High-quality copper probes (anti-oxidation) + ABS housing; resistant to wear for long-term use.
  • Easy Operation: Compact size (fits bench/assembly lines); no complex setup—plug-and-test.

Key Specifications

Parameter
Detail
Type
4-Wire Kelvin Test Fixture
Measurement Range
1mΩ~200MΩ (optimized for low-resistance <10Ω)
Probe Material
Copper alloy (high conductivity, anti-oxidation)
Contact Force
Spring-loaded (50~100g, adjustable)
Compatibility
Works with multimeters/ohmmeters with 4-wire input (e.g., ET32 series, Fluke, Keysight)
Housing Material
ABS plastic (heat-resistant, impact-proof)
Dimensions
80×50×30mm (compact, space-saving)
Weight
~100g (lightweight for portability)

Core Advantages

  • Eliminate Lead Resistance: 4-wire design separates current/voltage paths, ensuring accurate low-resistance readings.
  • Stable Contact: Spring-loaded probes avoid poor contact errors, reducing test repeatability issues.
  • Wide Compatibility: Works with most brand-name test equipment, no need for specialized tools.

Applicable Scenarios

  1. Component Testing: Measure low-resistance of resistors, inductors, and thermal resistors (Pt100/Cu50).
  1. PCB/Connector QC: Check contact resistance of PCB traces, connectors, and terminal blocks.
  1. Battery Testing: Test internal resistance of lithium-ion/polymer batteries.
  1. Lab R&D: Validate low-resistance components in circuit design and prototype testing.

Why Choose This Kelvin Test Fixture?

  • Precision Focus: Optimized for low-resistance measurements where lead resistance matters.
  • Cost-Effective: Affordable solution to upgrade existing test equipment’s low-resistance accuracy.
  • Durable & Portable: Compact, robust design suits both lab and on-site testing needs.
Upgrade your low-resistance testing! Click “Add to Cart” to get the Kelvin Test Fixture.
