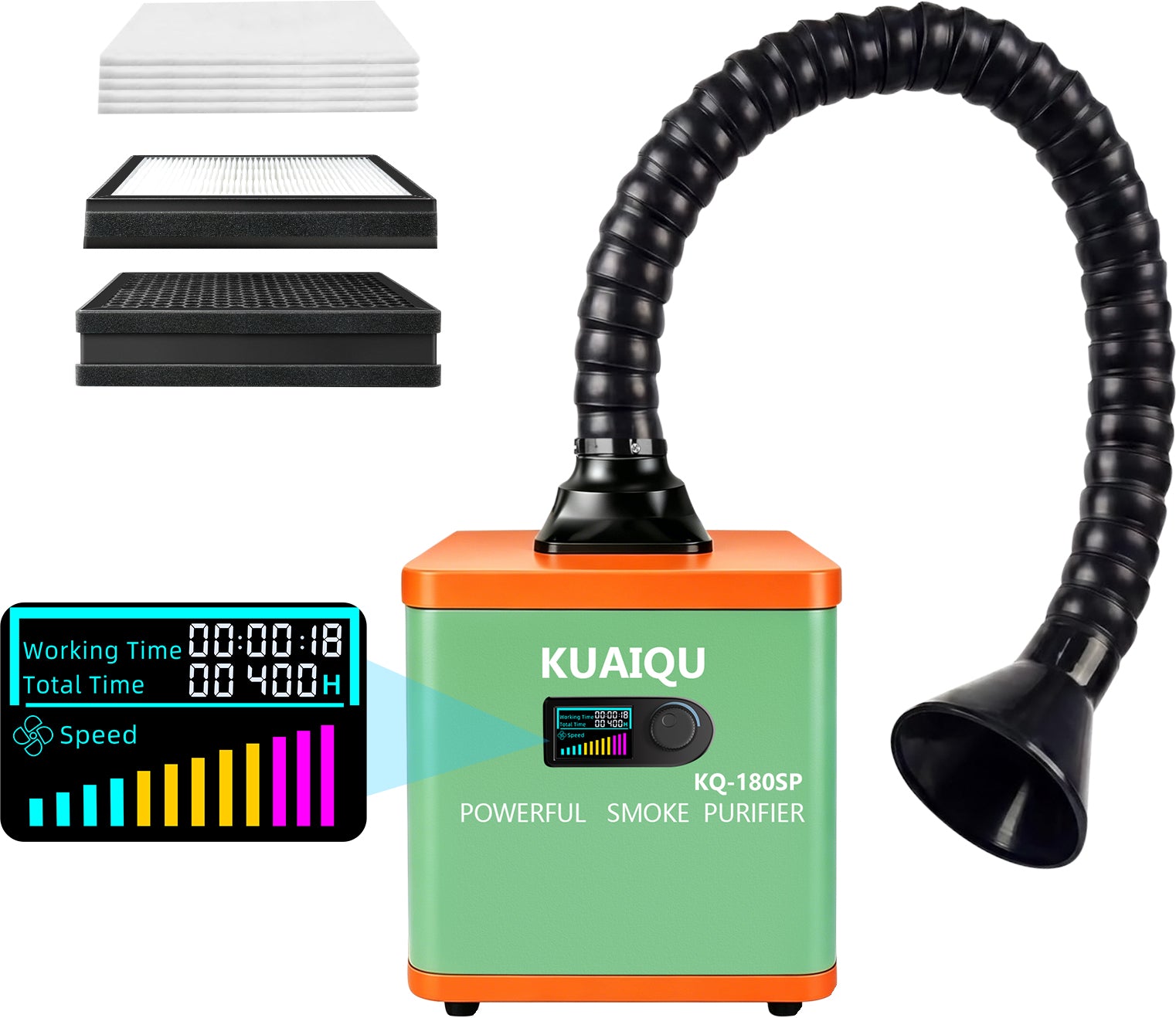

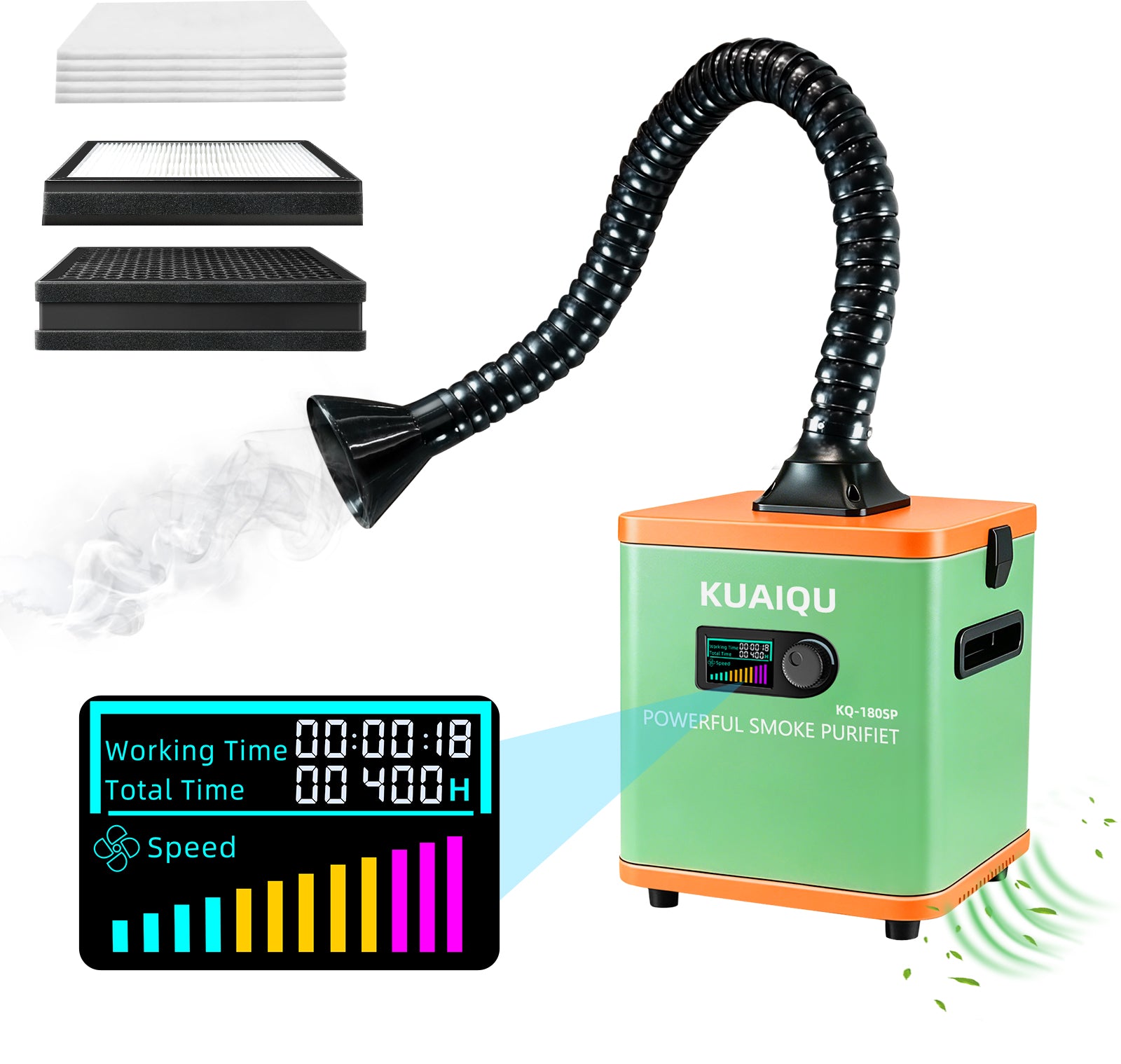

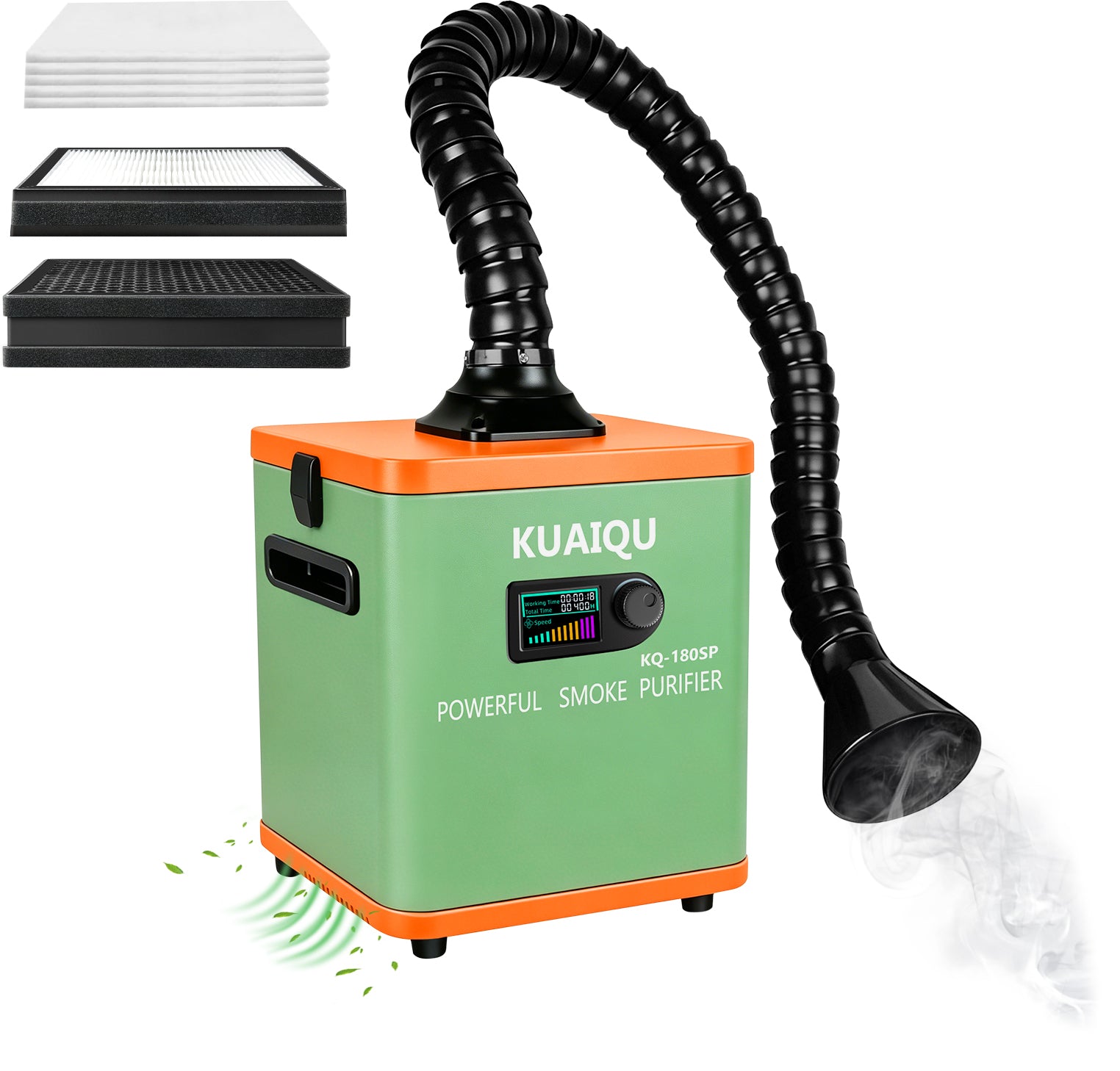

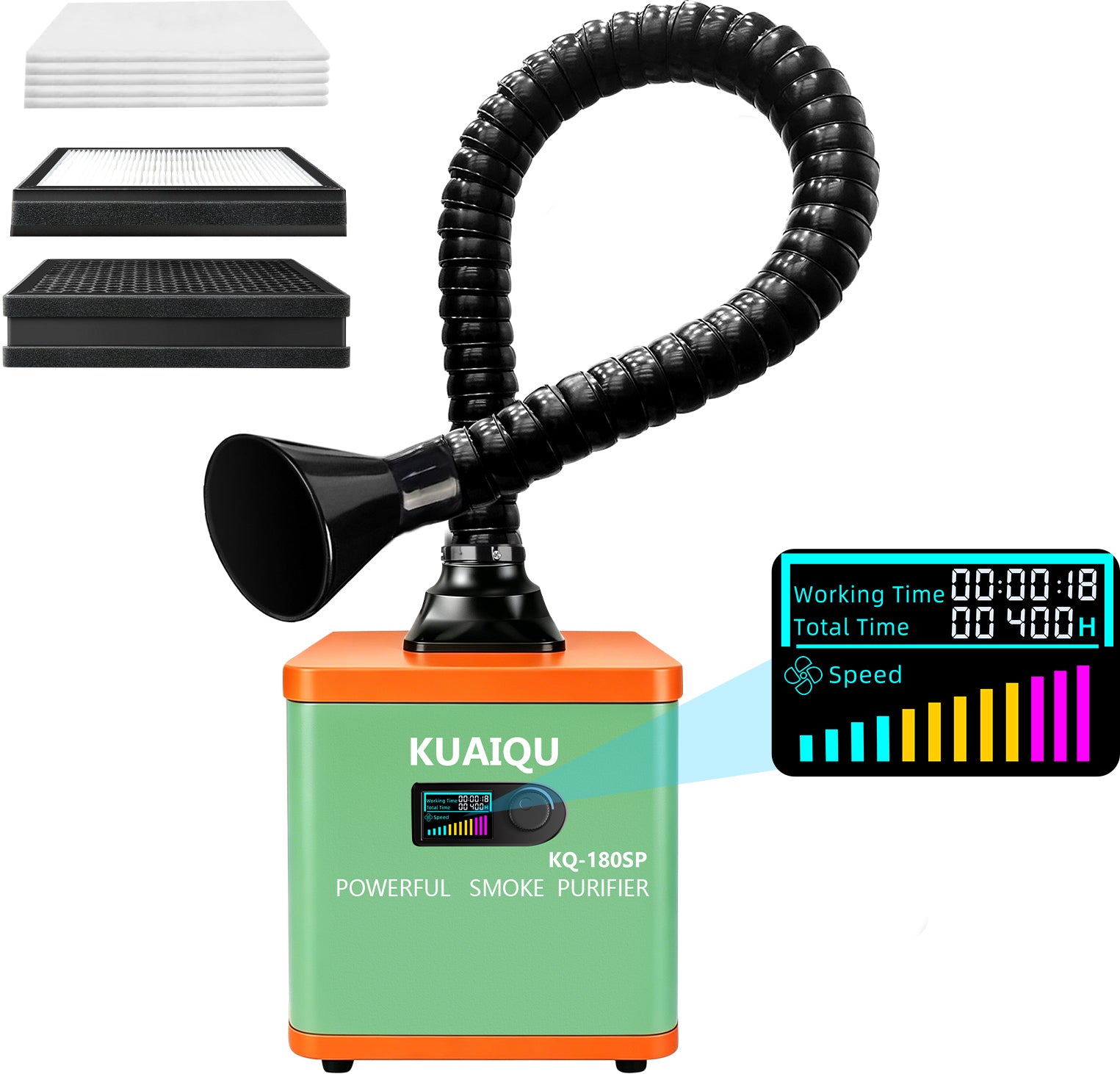

KQ-180SP 180W Laser Fume Extractor with HEPA & Activated Carbon Filter, Adjustable Airflow Smoke & Fume Extraction System
Description
The 180W Laser Fume Extractor is designed to remove smoke, fumes, fine dust, and harmful gases generated during laser engraving, laser marking, DIY fabrication, and workshop applications. Equipped with a high-static-pressure fan and a three-stage filtration system, it provides effective source extraction while helping extend filter service life.
The pre-filter cotton, HEPA filter, and activated-carbon filter work together to capture particles and reduce unwanted gases and odors. The stepless airflow adjustment knob allows you to adjust extraction performance according to smoke intensity and working conditions.
The system can be used as a standalone laser fume extractor or connected with multiple units for expanded extraction requirements. Simple installation makes it suitable for desktop laser workstations, workshops, makerspaces, and production environments.
Key Features

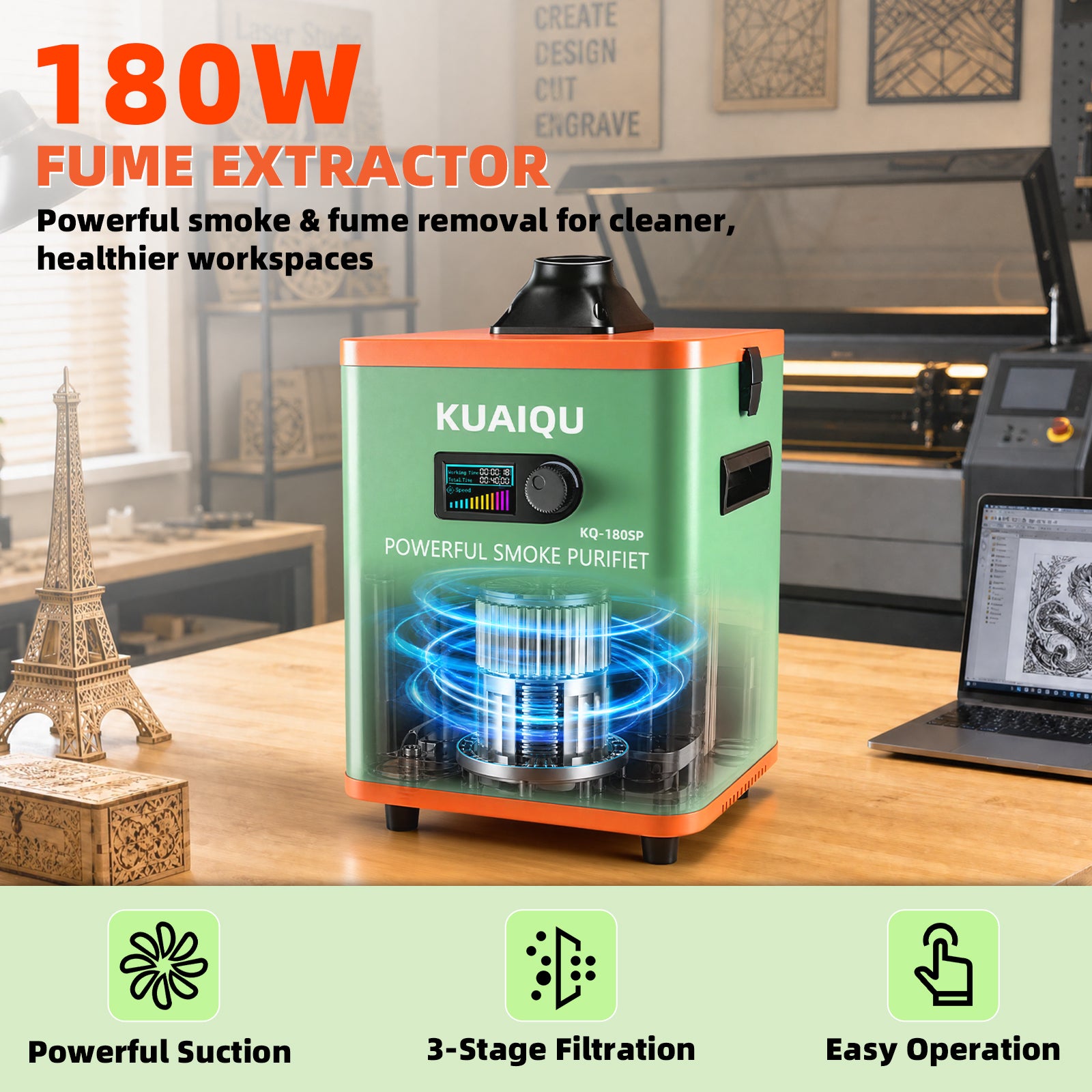

180W Laser Fume Extraction
With a rated power of 180W, this laser fume extractor provides effective smoke and fume extraction for laser engraving, laser marking, DIY fabrication, and other applications that generate airborne contaminants.

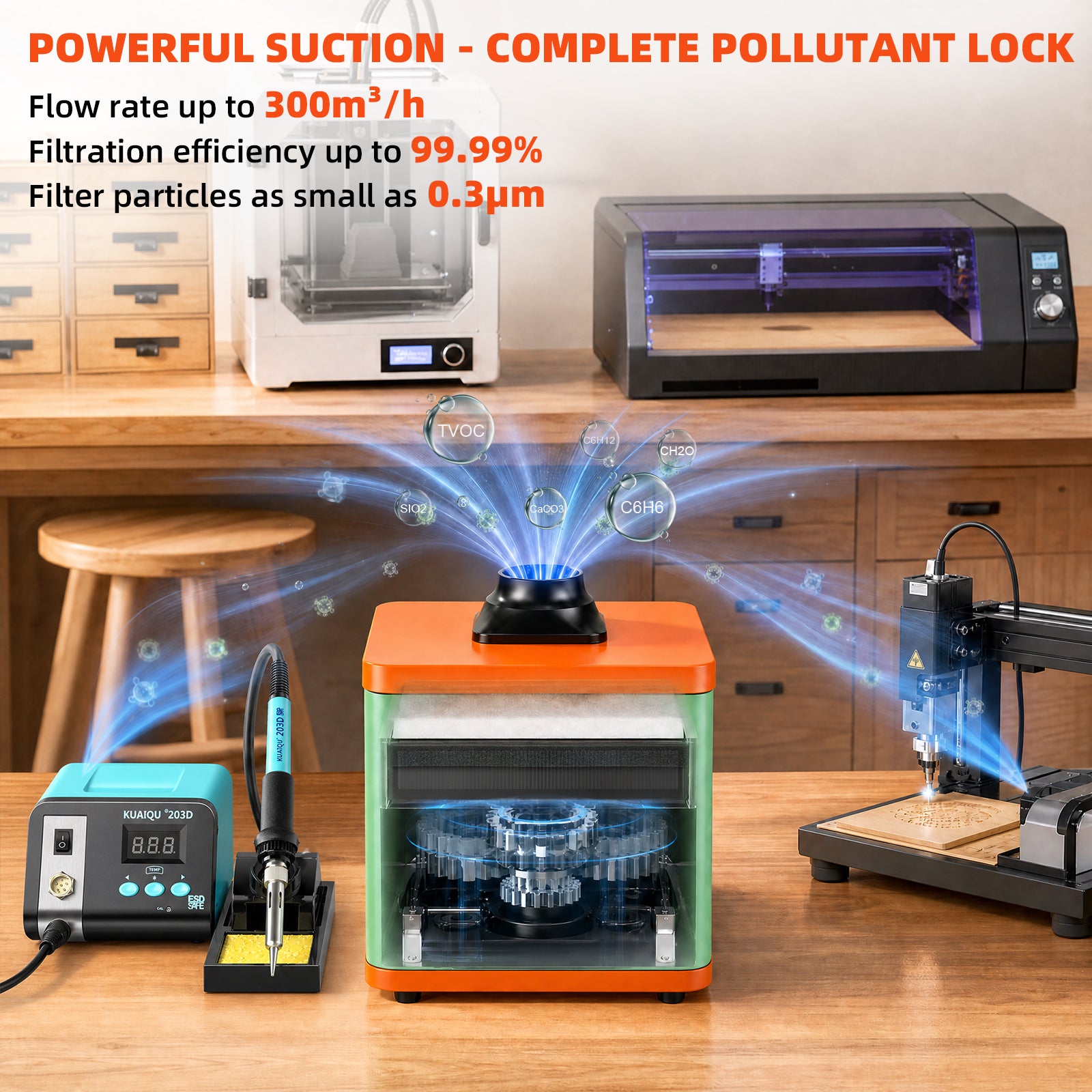

3-Stage Filtration System
The filtration system combines pre-filter cotton, HEPA filtration, and activated carbon filtration to provide multi-stage treatment of smoke, fine particles, and unwanted gases.
99.99% HEPA Filtration
The HEPA filter achieves 99.99% filtration efficiency for 0.3 μm particles, helping capture fine particles generated during laser processing.
Activated Carbon Filtration
The activated-carbon filter helps remove harmful gases and unwanted odors from laser processing fumes, providing an additional filtration stage beyond particle removal.
Replaceable Pre-Filter Cotton
The pre-filter cotton captures larger particles before they reach the main filter, helping prevent premature clogging and extending the service life of the main filtration system.

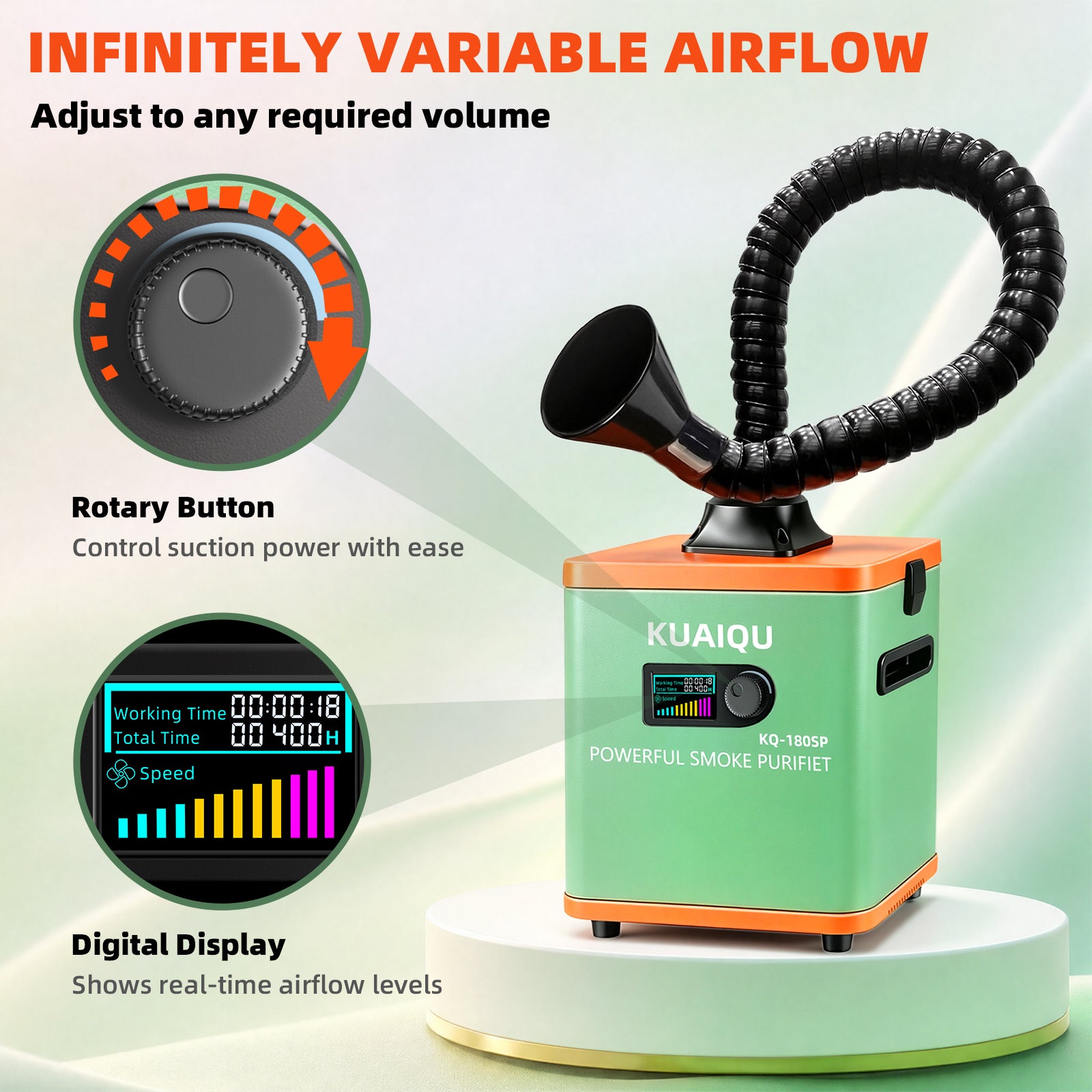

Stepless Airflow Adjustment
The integrated adjustment knob allows continuous airflow control, making it easy to adjust extraction performance according to the amount of smoke and fumes produced by different laser processing applications.
High-Static-Pressure Fan
The high-static-pressure fan is designed to provide effective airflow through the multi-stage filtration system, supporting stable laser fume extraction performance.
Single or Multi-Unit Operation
The unit can be used independently or connected with multiple fume extractors when additional extraction capacity is required, making it suitable for multi-machine laser workshops and production workstations.
Simple Installation
The laser fume extraction system is designed for straightforward installation and does not require complicated setup or specialized installation procedures.
Applications
Laser Engraving
Ideal for laser engraving machines used in desktop workshops, maker spaces, and fabrication environments. It helps extract smoke, fine dust, and fumes generated during engraving operations.
Laser Marking
Suitable for laser marking workstations where localized smoke and fumes are generated during material marking and processing.
DIY Laser Fabrication
A practical solution for makers and DIY users working with desktop laser engravers and fabrication equipment. Adjustable airflow allows extraction performance to be adapted to different processing conditions.
Workshop Fume Extraction
Suitable for workshops and production areas where localized processing generates smoke, dust, and airborne particles. The multi-stage filtration system helps improve the working environment.
Multi-Machine Laser Workshops
Multiple units can be connected when expanded extraction capability is required, making the system suitable for multi-machine laser engraving workshops, production workstations, and makerspaces.

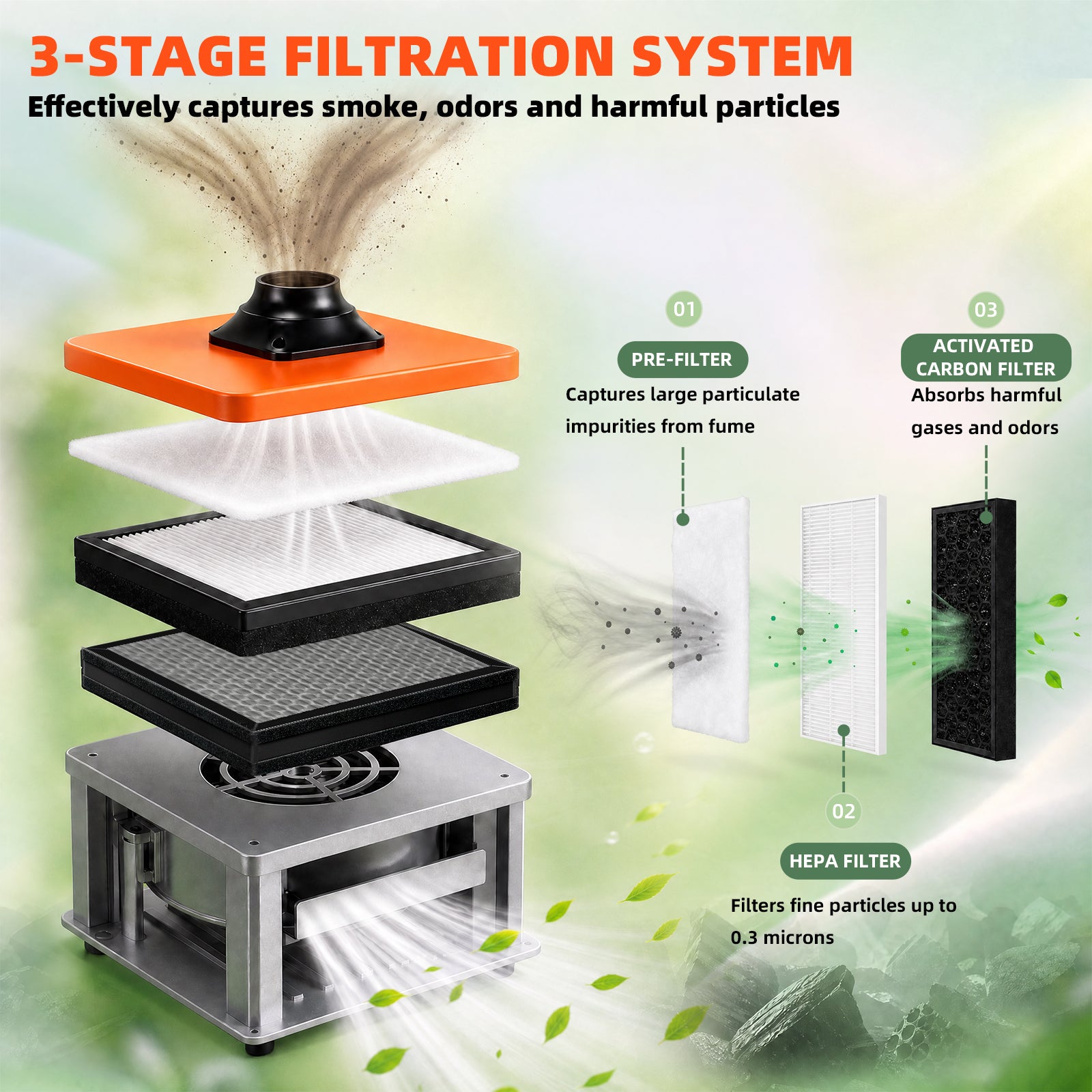

Filtration System
Pre-Filter Cotton
The pre-filter cotton captures larger particles and debris before they reach the main filter, helping reduce filter loading, prevent premature clogging, and extend main filter service life.
HEPA Filter
The HEPA filter provides 99.99% filtration efficiency for 0.3 μm particles, helping capture fine airborne particles generated during laser engraving and marking.
Activated Carbon Filter
The activated-carbon filter helps remove harmful gases and unwanted odors from processing fumes.
The three filtration stages work together to provide a multi-stage laser fume filtration system for smoke, fine particles, and gases generated during laser processing.
Package Includes
- 1 × Fume Extractor Host
- 1 × Bamboo-Joint Hose
- 1 × Power Cord
- 1 × User Manual
- 1 × Warranty Card
- 5 × Pre-Filter Cotton
Warranty
This product is covered by 1 year of free-of-charge maintenance service from the date of purchase.
The warranty does not cover damage caused by improper operation, insufficient maintenance, unauthorized modification or adjustment, operation outside the specified environmental conditions, use in humid, acidic, or polluted environments, or damage caused by natural disasters.
Pre-filter cotton and main filters are consumable parts and are not covered by the free warranty service.
Technical Specifications
| Parameter | Value |
|---|---|
| Input voltage | 200V–240V, 50Hz or 100V–120V, 60Hz (Refer to the product model label) |
| Power | 180 W |
| Maximum airflow | 300 m³/h (no-load condition) |
| Control mode | Adjustment knob |

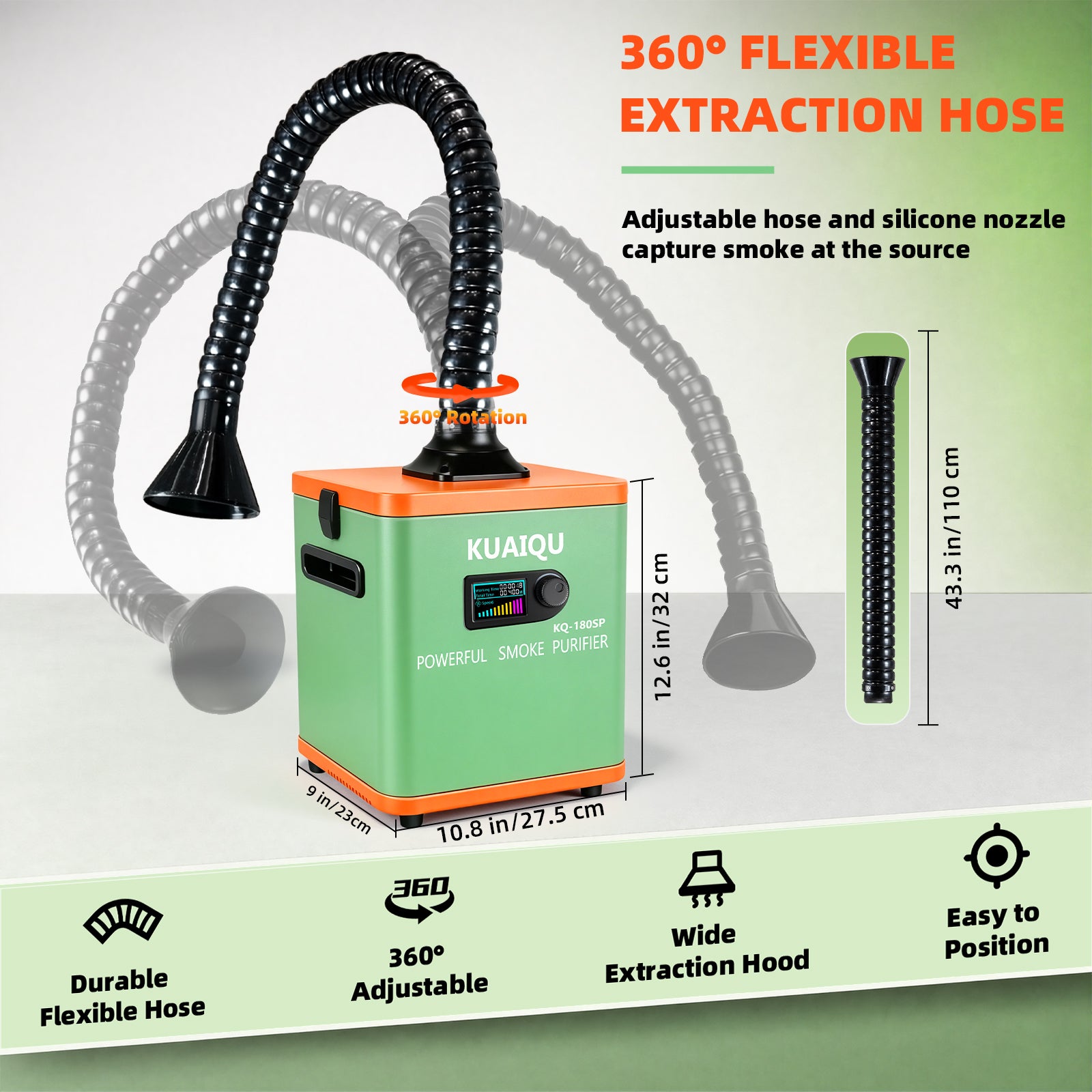

| Bamboo-joint hose | Length: 1.0 m, Diameter: 50 mm |
| Product dimensions | 30.2 cm × 25.3 cm × 38.3 cm (11.9 in × 10 in × 15.1 in) |
| Net weight | 5.5 kg (12.13 lb) |
| Gross weight | 6.5 kg (14.3 lb) |
