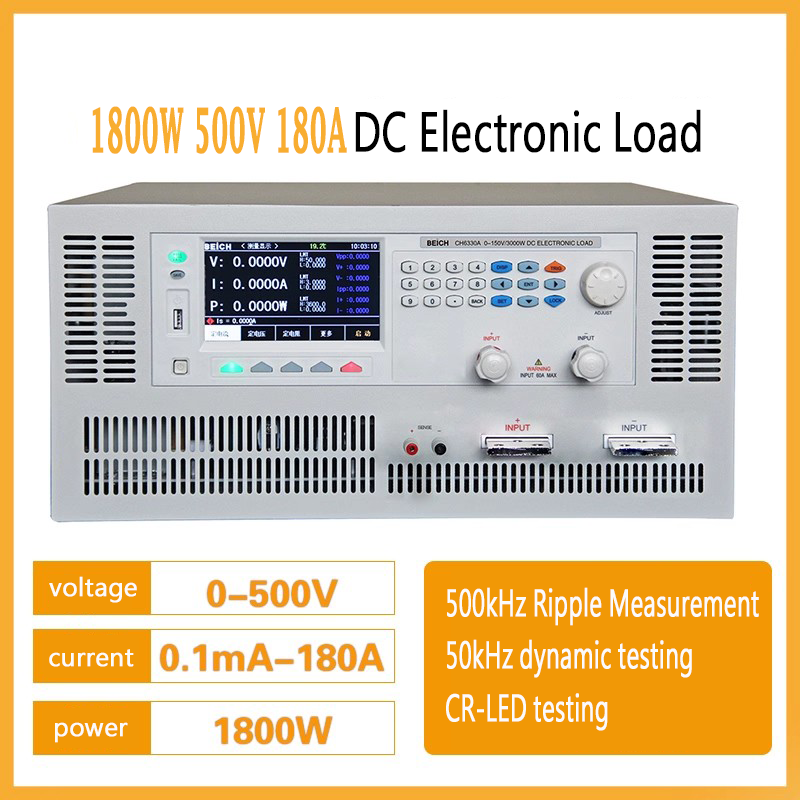

Digital Battery Capacity Tester 1800W 500kHz 150V 500V 240A 180A optional High-Accuracy Resolution for Automotive Electronics,Aging Instrument

• 5-inch TFT LCD Display: Supports optional Chinese or English interface for intuitive operation.

• High-Speed Sampling & Measurement: 500kHz high-speed sampling AD enables real-time measurement of voltage/current peak values (Vpp/Vp+/Vp-/Ipp/Ip+/Ip-).

• High Resolution: Voltage and current display resolution up to 0.0001, suitable for wide-ranging precision testing.

• Specialized Test Modes:

• CR-LED test mode with convenient parameter setting for LED-related testing;

• OCP test function to automatically obtain OCP protection points, peak power (Pmax), and voltage/current parameters;

• Battery test mode for testing endurance, capacity, internal resistance, and curve drawing;

• List test mode for comprehensive power supply testing under multiple load conditions (including comparator function).

• Dynamic Load Performance: 50kHz dynamic load frequency with settable current slope, plus real-time voltage peak (Vp+/Vp-) measurement.

• Time Measurement: Supports OVP protection point time test and power start-up/hold time test.

• Data & Software Management:

• USB flash drive for software upgrades (keeping the device up-to-date);

• One-click screen copying for easy saving/transfer of display content;

• 100 internal setting files and 500 external (USB) setting files for parameter storage and recall.

• Connectivity & Compatibility: Standard Handler and RS232C interfaces for online operation and signal output; compatible with mainstream serial communication commands from other manufacturers for direct replacement.

• Automotive Electronics: Ideal for testing car battery chargers, automotive power distribution systems, and low-voltage electrical components. Its high-current capacity simulates real-world power demands of vehicle devices, ensuring load handling capability.

• Consumer Electronics: Suitable for evaluating chargers and power supplies for large-capacity portable devices (laptops, high-power power banks, electric scooters), with accurate power output measurement under different loads.

• Industrial Power Supplies: Perfect for testing high-voltage power supplies in industrial automation equipment, CNC machines, and control systems, verifying stability and reliability under varying loads.

• Renewable Energy Systems: Applicable for testing high-voltage battery packs and inverters in solar/wind energy systems, assessing performance during charging/discharging to ensure renewable energy setup efficiency.

Don’t miss out on this high-precision, reliable electronic load—place your order today to elevate your testing efficiency and accuracy!
