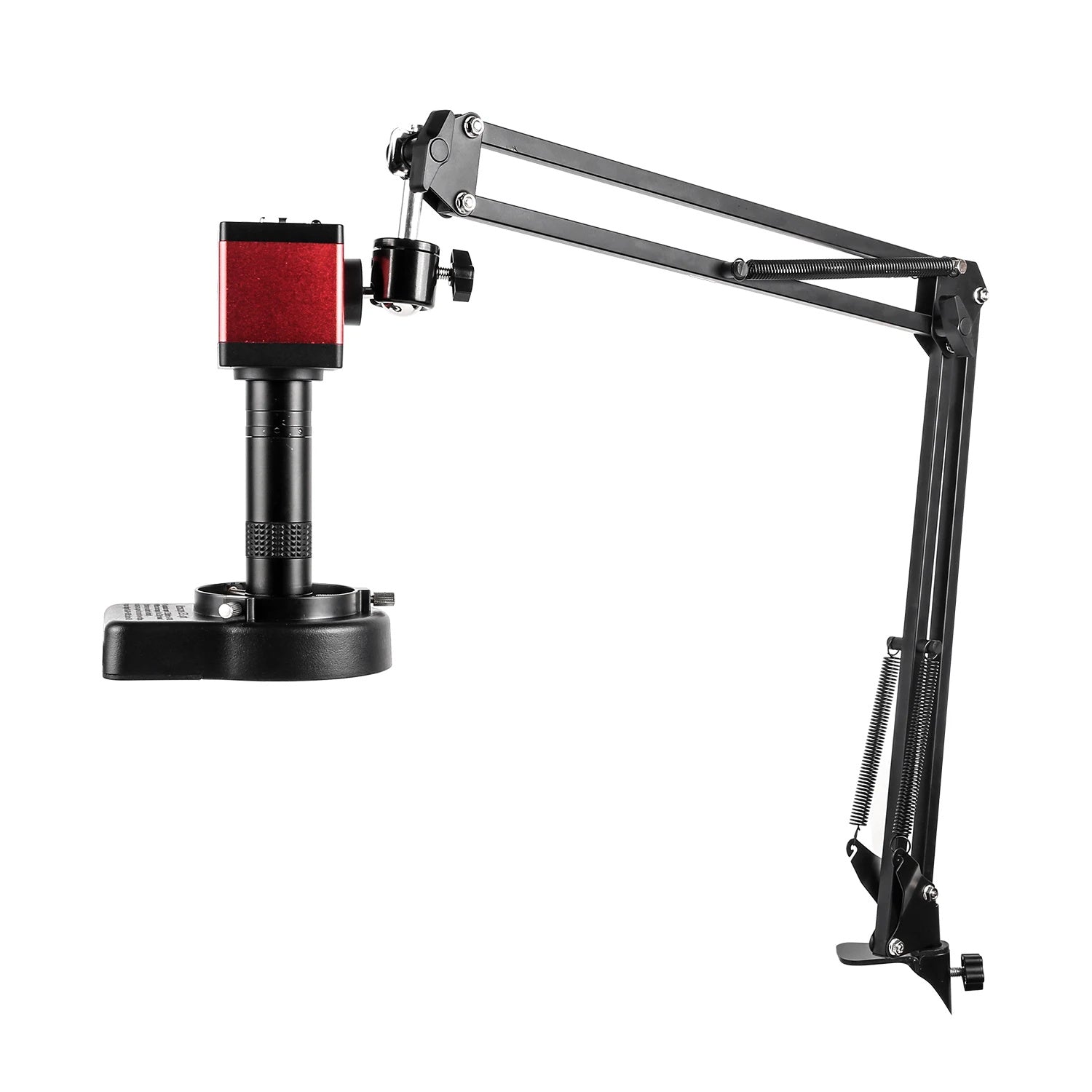

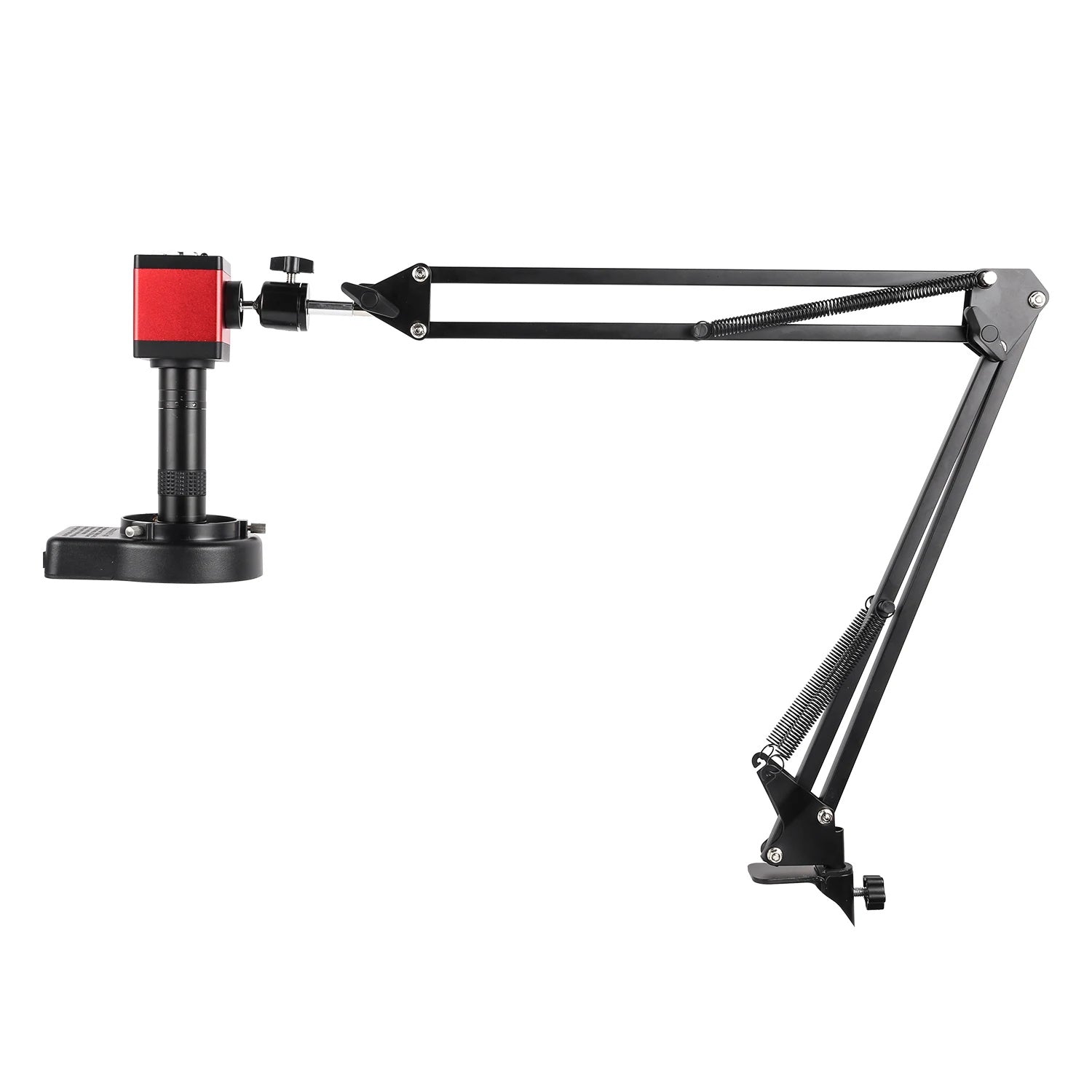

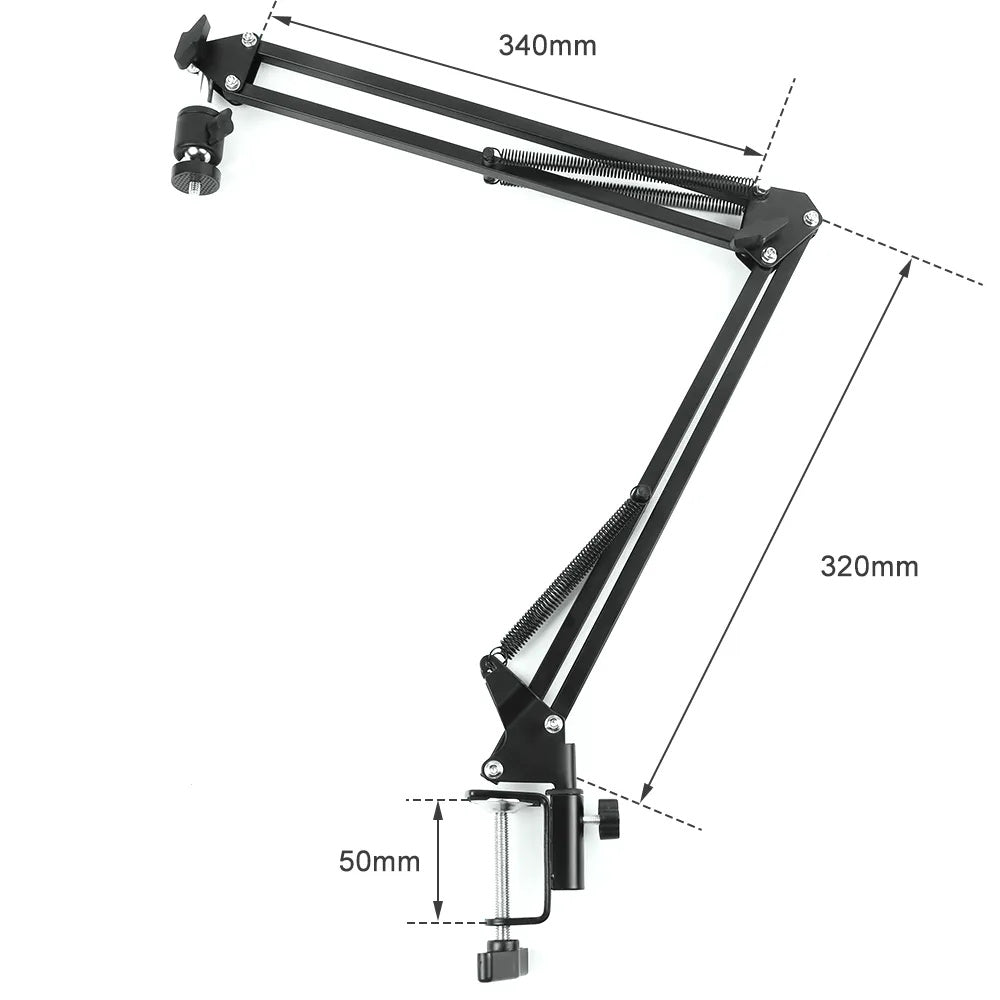

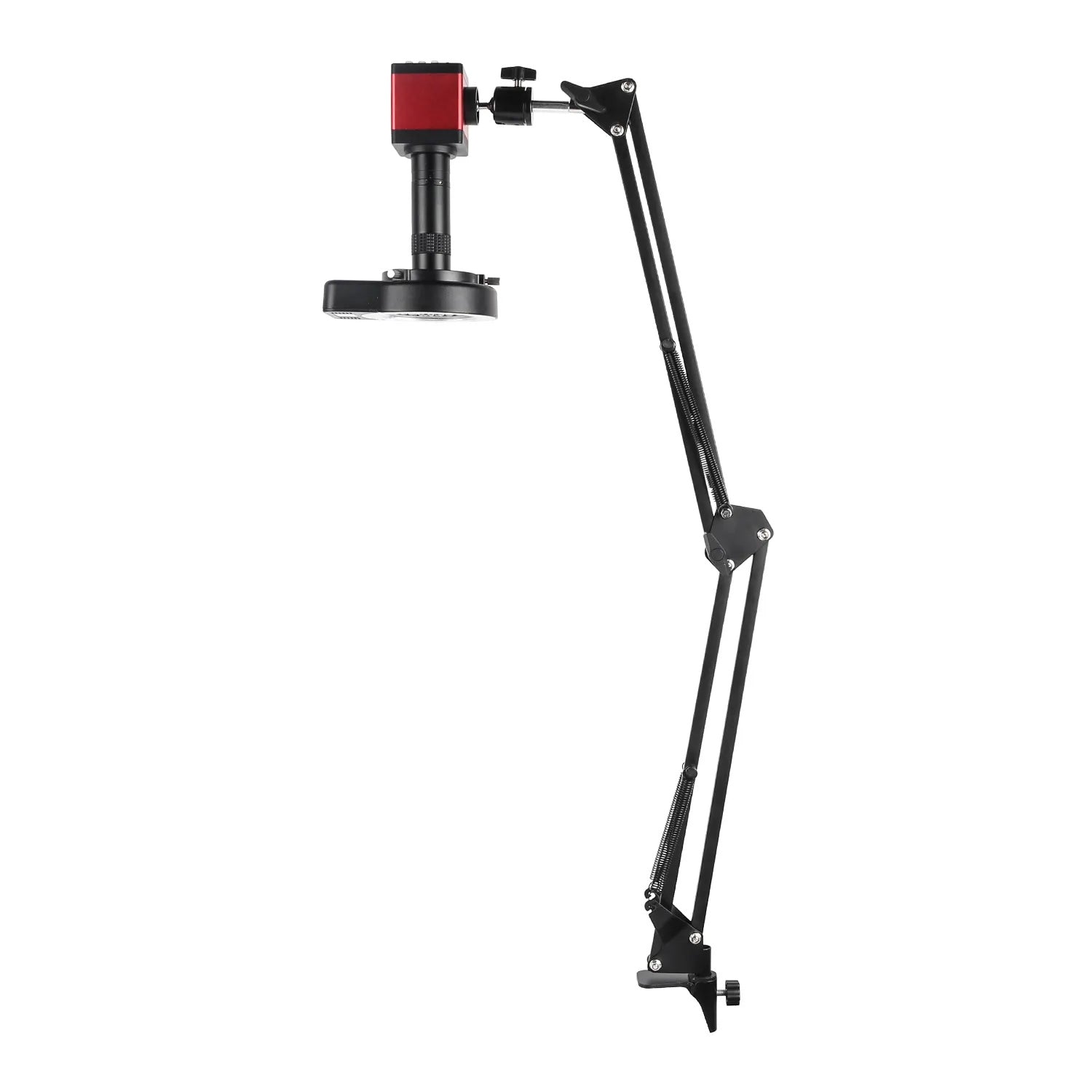

YIZHAN 13MP Digital Microscope, 150X Lens, GC2053 Sensor, HDMI VGA Output, Foldable Stand for Precision Inspection

English Manual

The ZDT150X-XVH2003 is a professional digital microscope featuring 150X zoom capability and a 13MP GC2053 sensor for high-quality imaging. It delivers 60FPS video output through HDMI and VGA ports, with multiple display resolution options for versatile connectivity. Designed for electronics repair, industrial inspection, and laboratory applications requiring detailed observation.

Key Features:
✔ High-Power Zoom: 150X magnification (8X-150X range)
✔ Clear Imaging: 13MP GC2053 sensor with 2.8μm large pixels
✔ Smooth Video: 60FPS output for real-time observation
✔ Versatile Connectivity: HDMI + VGA with multiple resolution support
✔ Advanced Controls: Adjustable brightness, contrast, sharpness
✔ Measurement Tools: 8-color cross lines with adjustable width
✔ Compact Design: 175×50mm lens, lightweight at 0.57kg

Technical Specifications:

• Zoom Range: 8X-150X (6.5:1 zoom ratio)
• Sensor: 13MP GC2053 (1/3")
• Pixel Size: 2.8μm×2.8μm
• Video Output: HDMI/VGA at 60FPS
• Supported Resolutions:
  • HDMI: 16:9, 4:3
  • VGA: 1920×1080 to 800×600
• Lens Mount: C/CS
• Working Distance: 50-155mm
• Display Features:
  • 8-color cross lines (adjustable width)
  • Mirror flip (left/right/up/down)
  • B/W & negative modes
  • Image freeze & compare
• Power: 12V DC, 150mA
• Dimensions: 175×50mm (lens), 75×50×50mm (camera)
• Weight: 0.57kg (lens), 250g (camera)

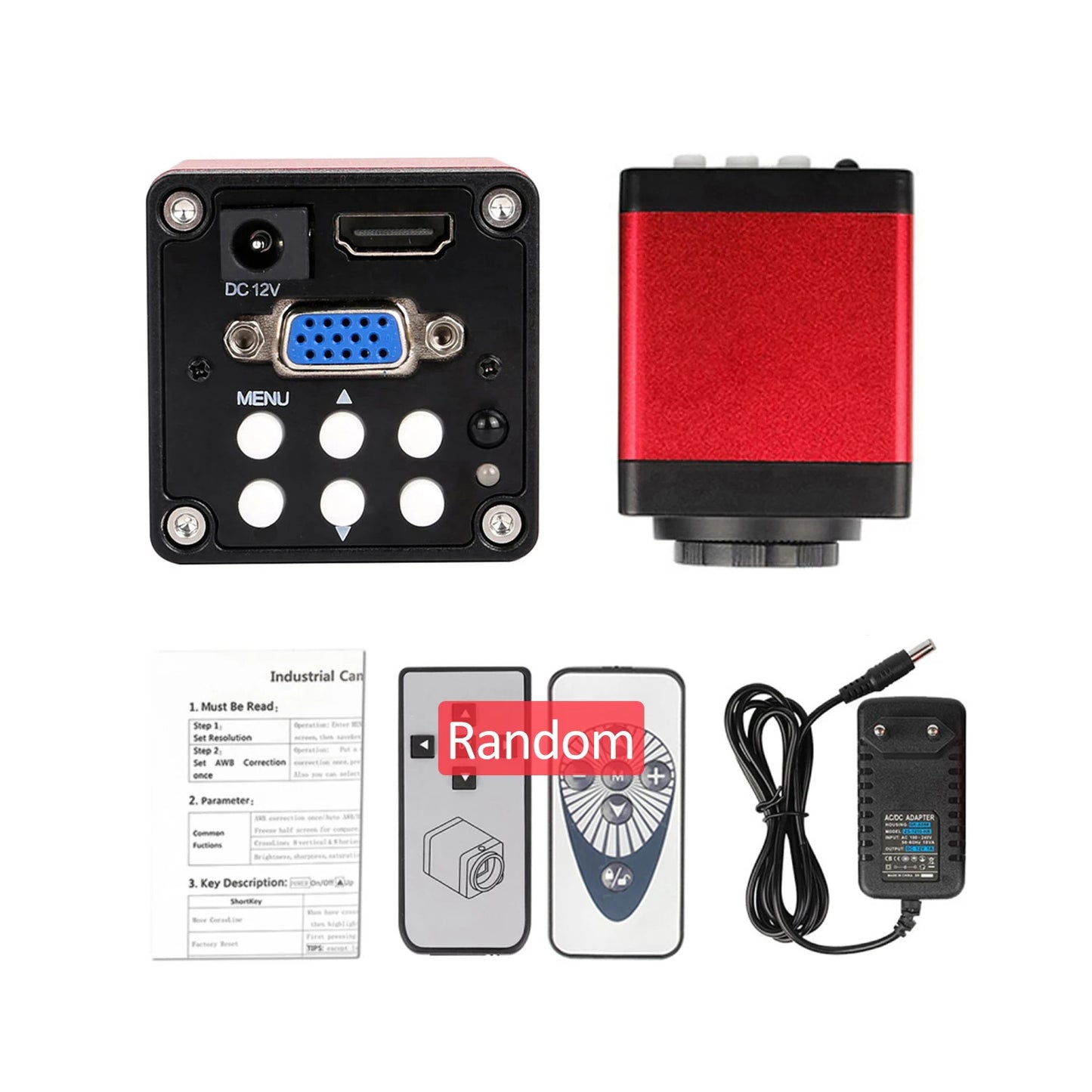

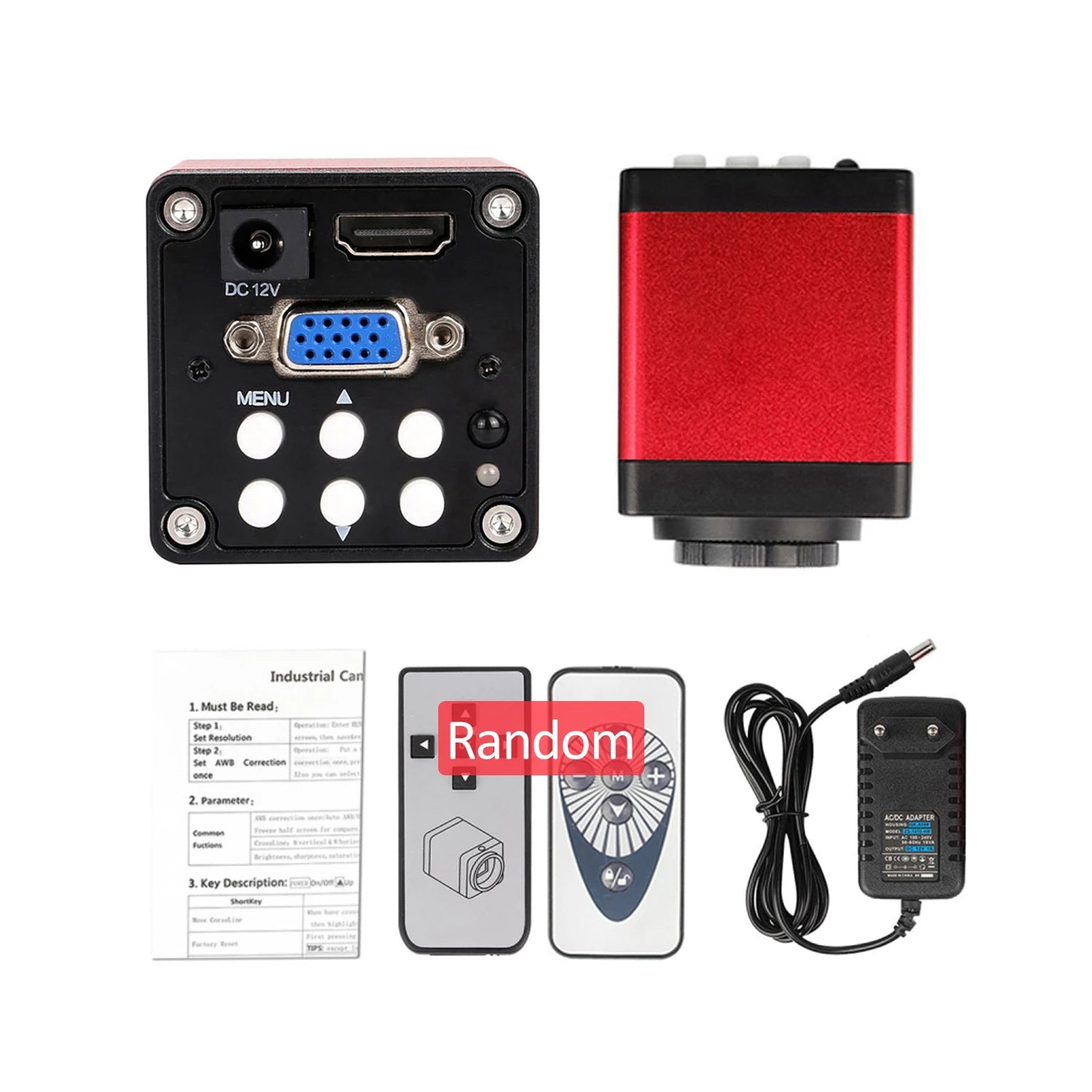

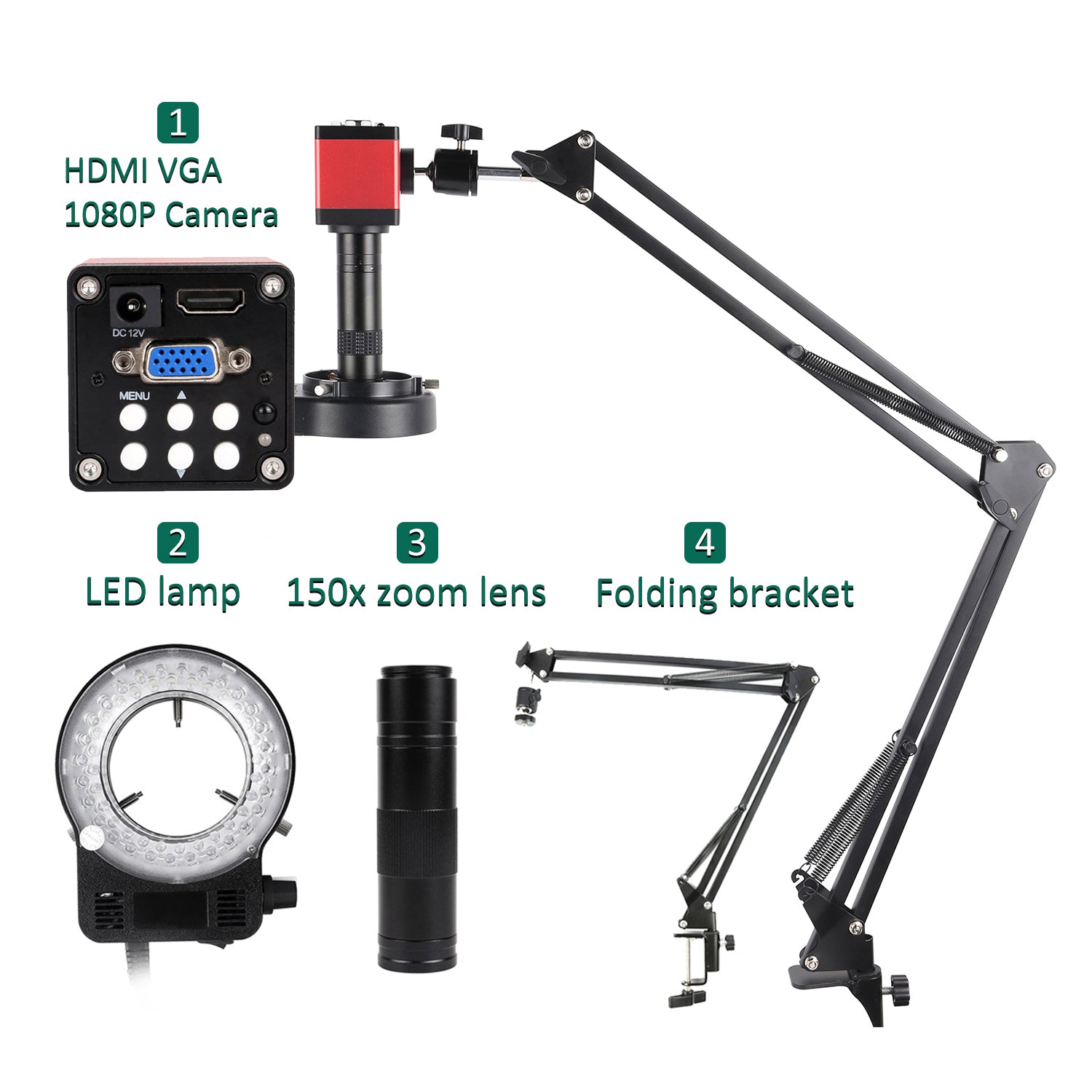

Package Includes:

• 1 × ZDT150X-XVH2003 Microscope Camera
• 1 × 150X Zoom Lens (C-Mount)
• 1 × 0.5X C-Mount Adapter
• Power Adapter
• HDMI Cable
• VGA Cable

Applications:
✔ Electronics Repair: PCB inspection and soldering
✔ Industrial QC: Precision component measurement
✔ Laboratory Research: Sample documentation
✔ Educational Use: Classroom demonstrations
