English Manual

The ZDT150X-XHU4002 is a professional-grade digital microscope featuring 150X zoom capability and a 48MP Panasonic CMOS sensor for ultra-high-definition imaging. It delivers 4K video recording and 1080P/60FPS output through HDMI and USB ports, with TF card storage (up to 64GB) and remote control operation for shake-free imaging. Designed for precision inspection in electronics repair, laboratory research, and industrial quality control.

Key Features:
✔ High-Power Zoom: 150X magnification (8X-150X range)

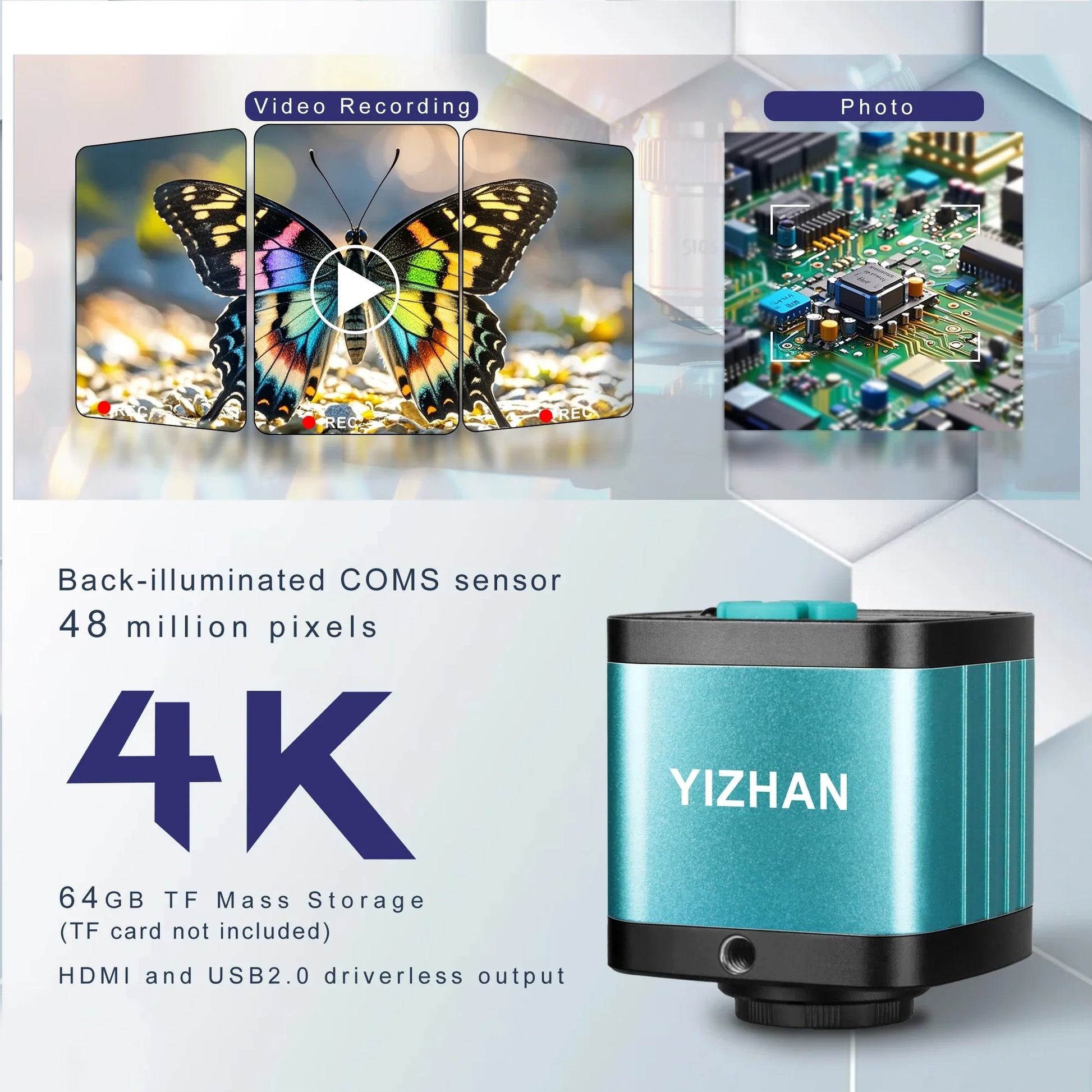

✔ Premium Imaging: 48MP Panasonic CMOS sensor (1/2.33")

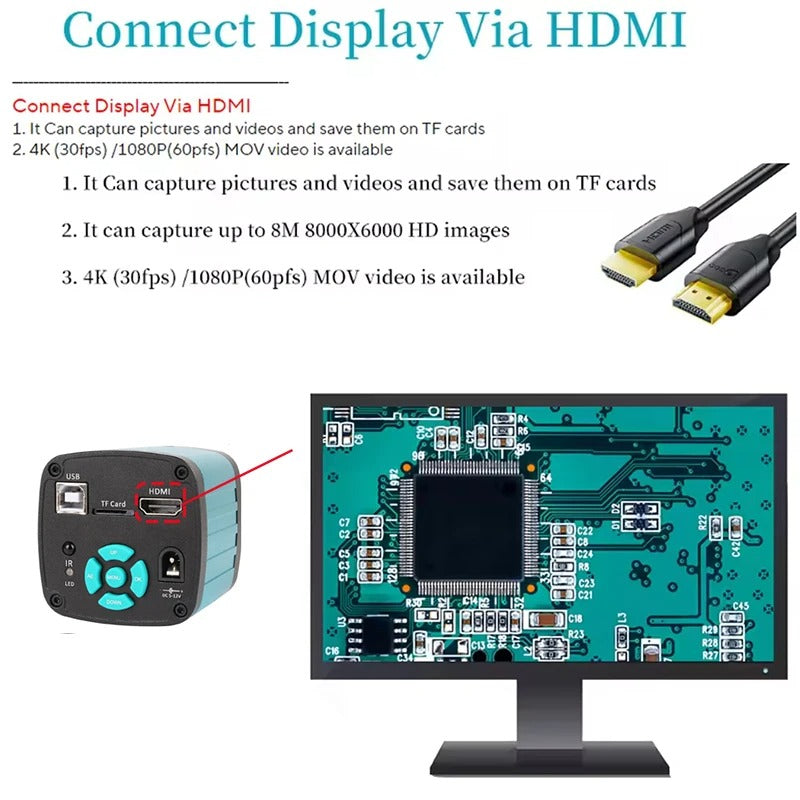

✔ 4K & 1080P Output: HDMI (60FPS) + USB (30FPS)
✔ Versatile Storage: Supports TF cards (max 64GB)
✔ Remote Operation: Wireless control for vibration-free capture

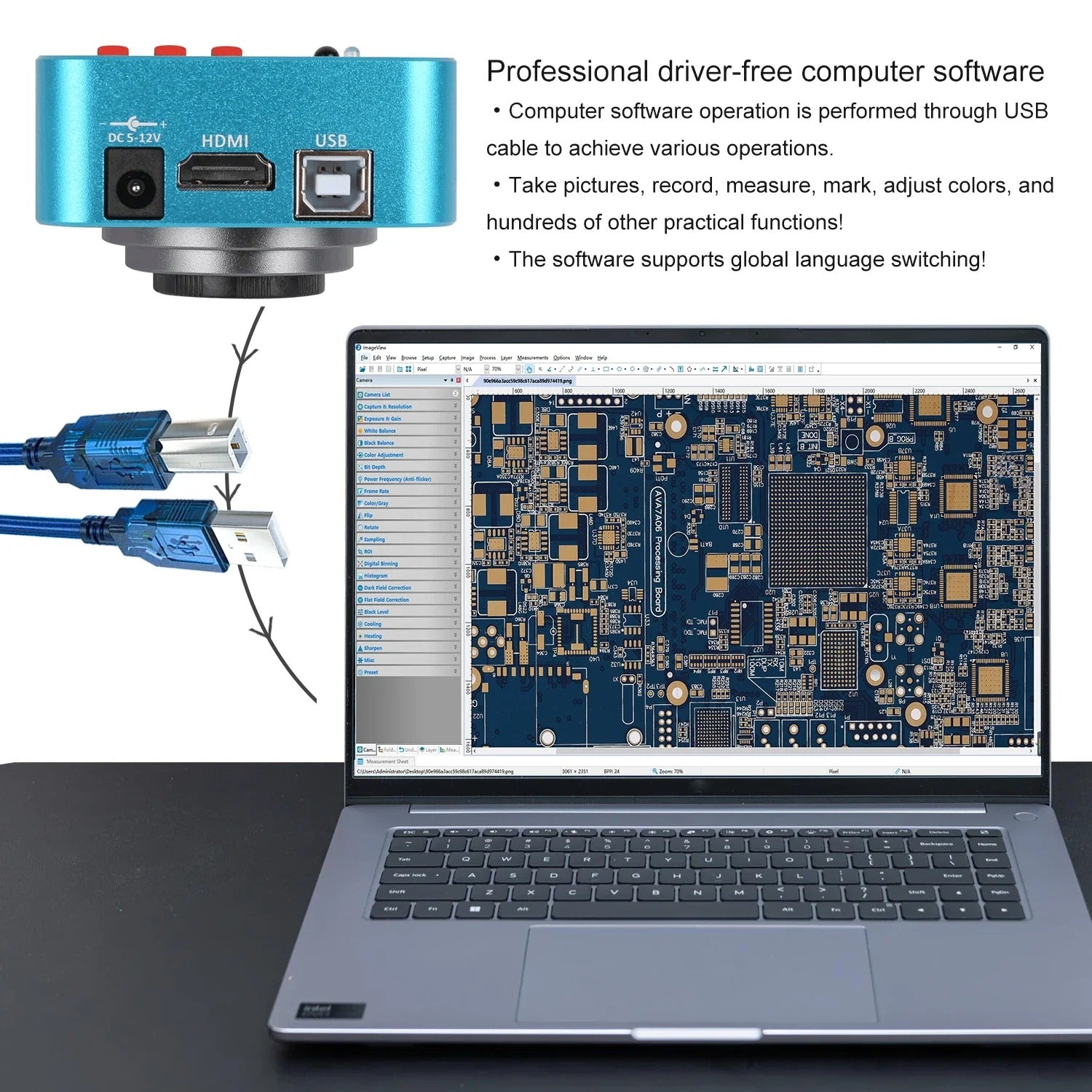

✔ Advanced Software: 8-line measurement tools + crosshair overlay
✔ Durable Build: Strong metal shell with compact design

Technical Specifications:

• Zoom Range: 8X-150X (6.5:1 zoom ratio)
• Camera Resolution: 4K + 1080P/60FPS (HDMI), 1080P/30FPS (USB)
• Sensor: 48MP Panasonic CMOS (1/2.33")
• Output Ports: HDMI + USB
• Storage: TF card (max 64GB)
• Exposure: Auto/manual with compensation
• White Balance: Auto/manual (RGB adjustable)
• Measurement Tools: 8 adjustable lines + center crosshair
• Language Support: English/Chinese
• Power Input: DC 5V-12V
• Dimensions: 66×66×49mm (camera), 175×50mm (lens)
• Weight: 0.57kg (lens), 250g (camera)

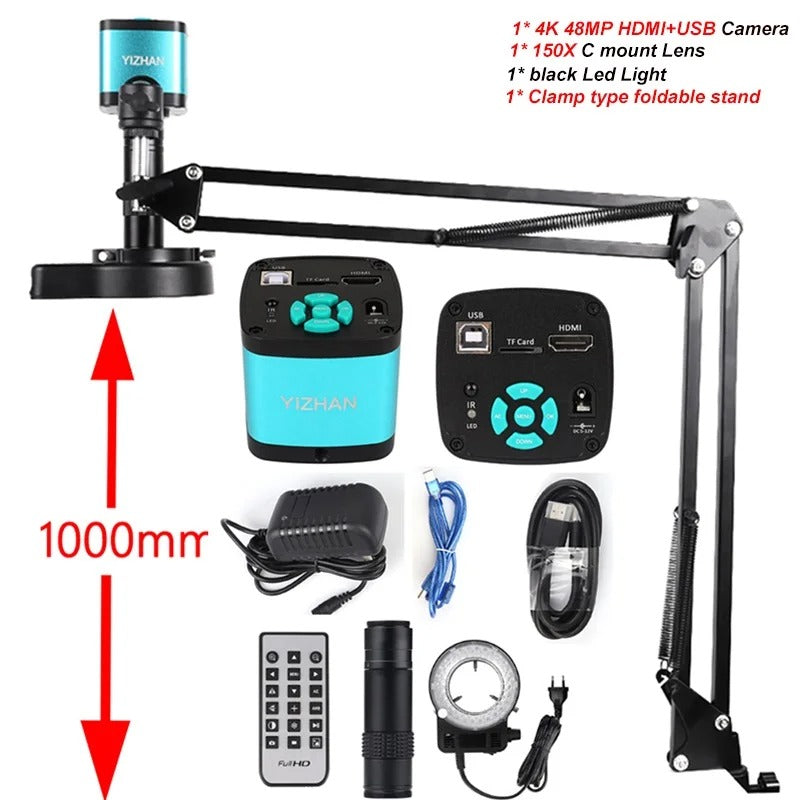

Package Includes:

• 1 × ZDT150X-XHU4002 Microscope Camera

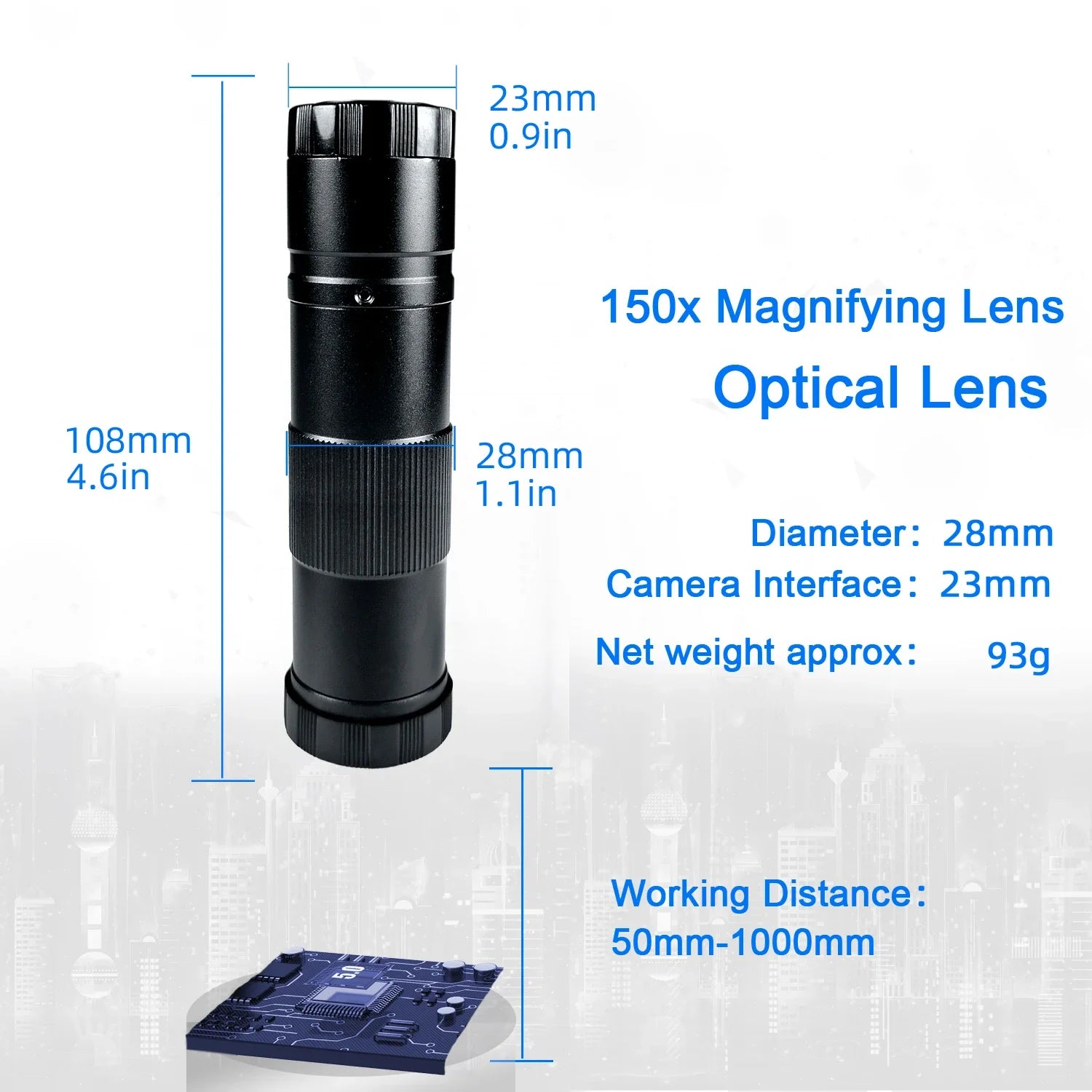

• 1 × 150X Zoom C-Mount Lens (175mm×50mm)
• 1 × 0.5X C-Mount Adapter
• 1 × Power Adapter
• 1 × HDMI Cable
• 1 × USB Cable
• 1 × Remote Control (battery not included)

Applications:
✔ Electronics Repair: PCB inspection and soldering
✔ Laboratory Analysis: Sample documentation
✔ Industrial QC: Precision component measurement
✔ Education: Classroom demonstrations
