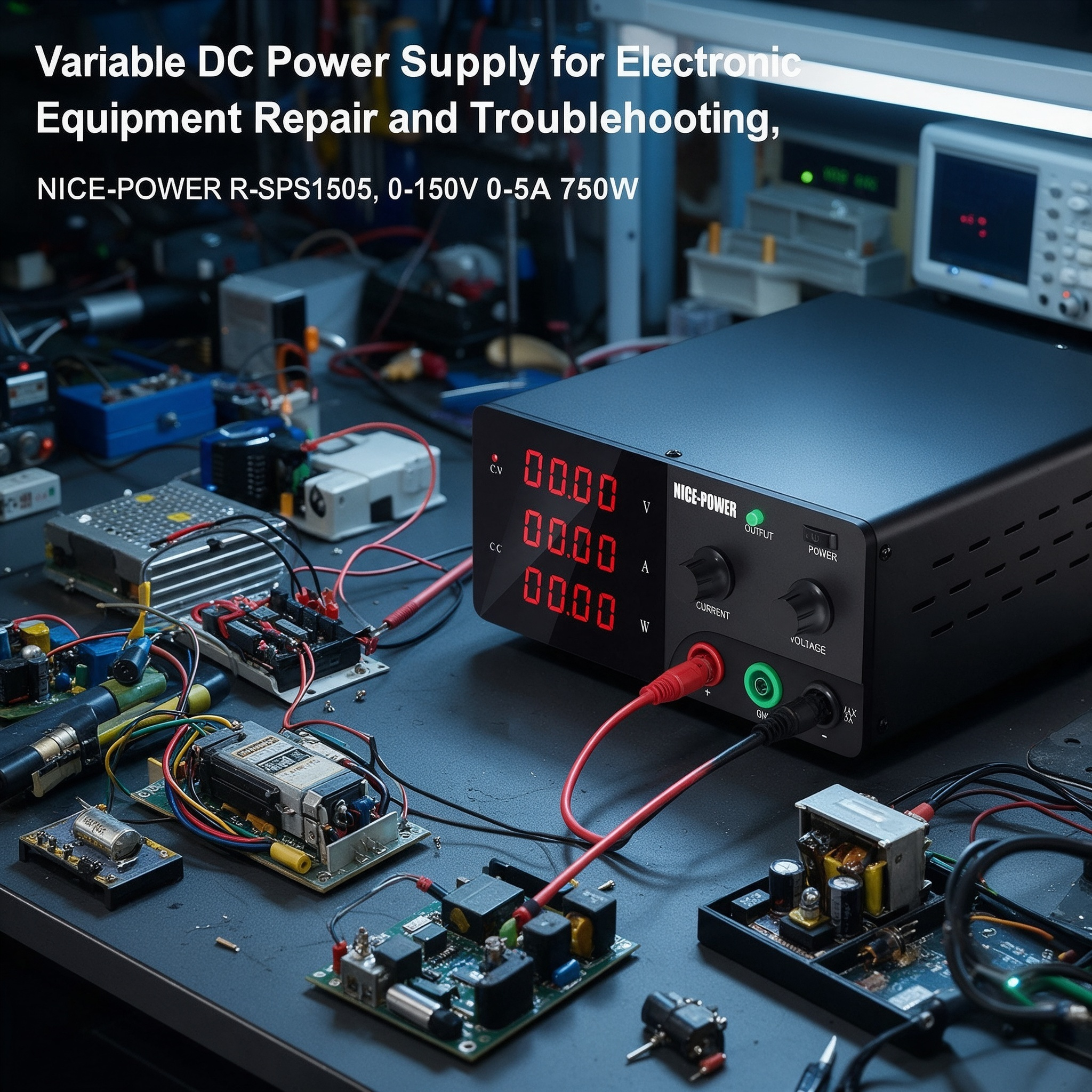

Variable DC Power Supply for Electronic Equipment

Repair and Troubleshooting, NICE-POWER

R-SPS1505, 0-150V 0-5A 750W

Key Features

Adjustable 0–150V DC Output for Electronic Equipment Repair

The NICE-POWER R-SPS1505 provides an adjustable DC output from 0 to 150V, making it suitable for supplying compatible electronic equipment, modules, and circuits during repair and troubleshooting. Technicians can select an appropriate output voltage according to the equipment's specified DC input requirements before powering it on.

750W Rated Output for Bench Repair Work

With a rated output power of 750W and an output current range of 0–5A, this variable DC power supply supports a range of electronic repair and bench-testing tasks within its rated limits. Before connecting a device, check its required voltage, expected current, polarity, and power consumption to ensure compatibility.

Digital Voltage, Current, and Power Display

The digital display shows output voltage, current, and power, helping technicians monitor the power supply output while checking an electronic device. These readings can help identify unusual supply-current behavior during troubleshooting, but they do not independently identify the cause of a fault.

Output ON/OFF Control for Repair Procedures

The Output ON/OFF control allows users to switch the DC output during repair setup and testing. Technicians can prepare the connections and output settings before applying power, then switch the output off when the test needs to stop or the setup requires adjustment. Always disconnect power before changing wiring.

Encoder Adjustment for Different Test Requirements

The encoder knob supports adjustment of the output settings, making it practical to prepare different DC voltage conditions for compatible equipment. This flexibility is useful for repair benches that handle multiple devices with different specified input voltages.

Front and Rear Output Connections

The power supply provides front-panel and rear-panel output connections for different bench arrangements. The front-panel output current is limited to below 5A, while the rear-panel output supports the rated output power. Select the appropriate connection according to the current required and the product's operating instructions.

Standard and Programmable Model Options

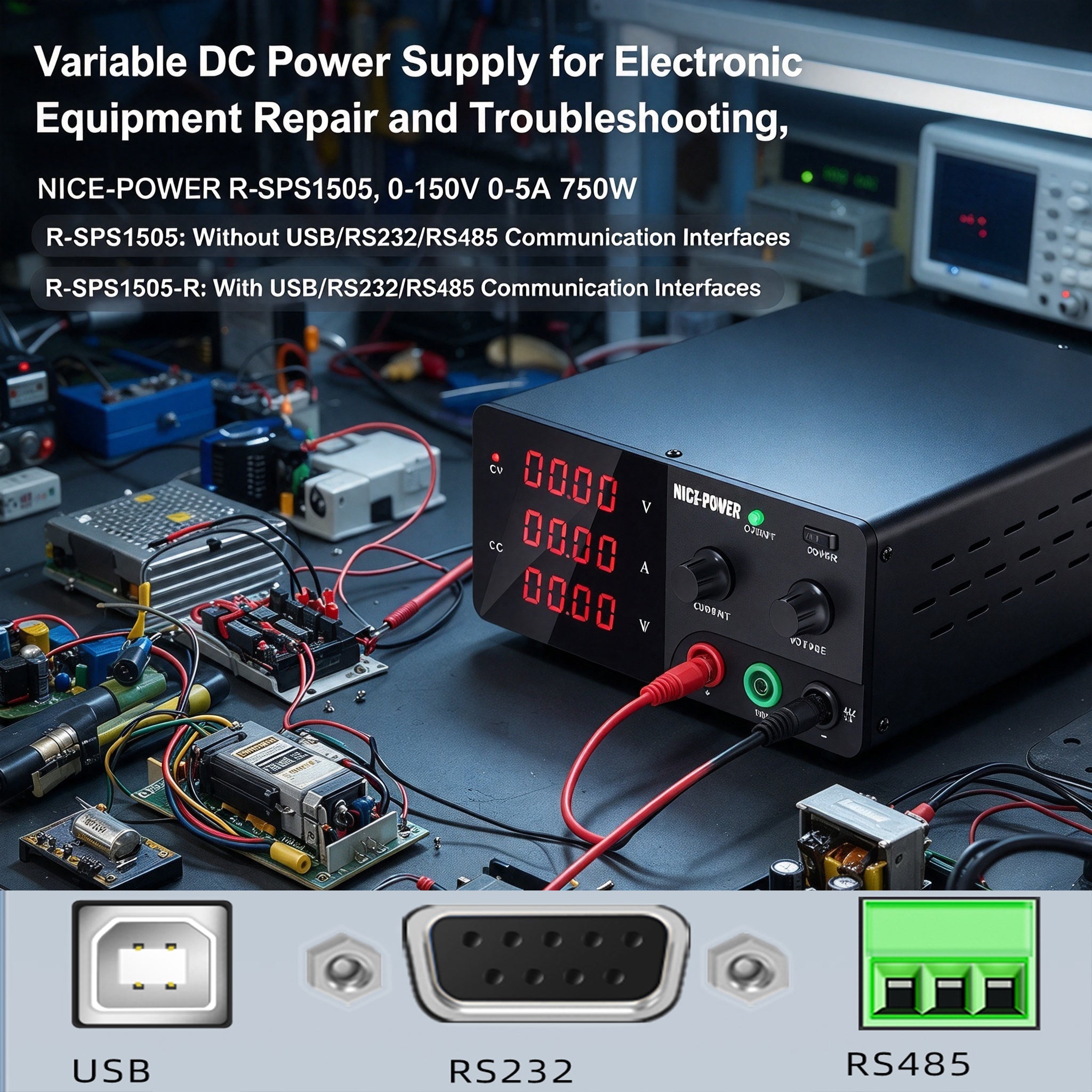

The R-SPS1505 is the standard model, while the R-SPS1505-R is the programmable version. USB, RS-232, and RS-485 communication interfaces are optional configurations and should be confirmed for the specific model and order. Do not assume that all communication interfaces are included as standard.

Applications

Electronic Equipment Power-Up Checks

Use the R-SPS1505 as an adjustable DC source when checking compatible electronic equipment on a repair bench. Set the output according to the device's rated input requirements, connect with the output switched off, and observe the displayed voltage, current, and power after applying power.

Circuit Board Troubleshooting

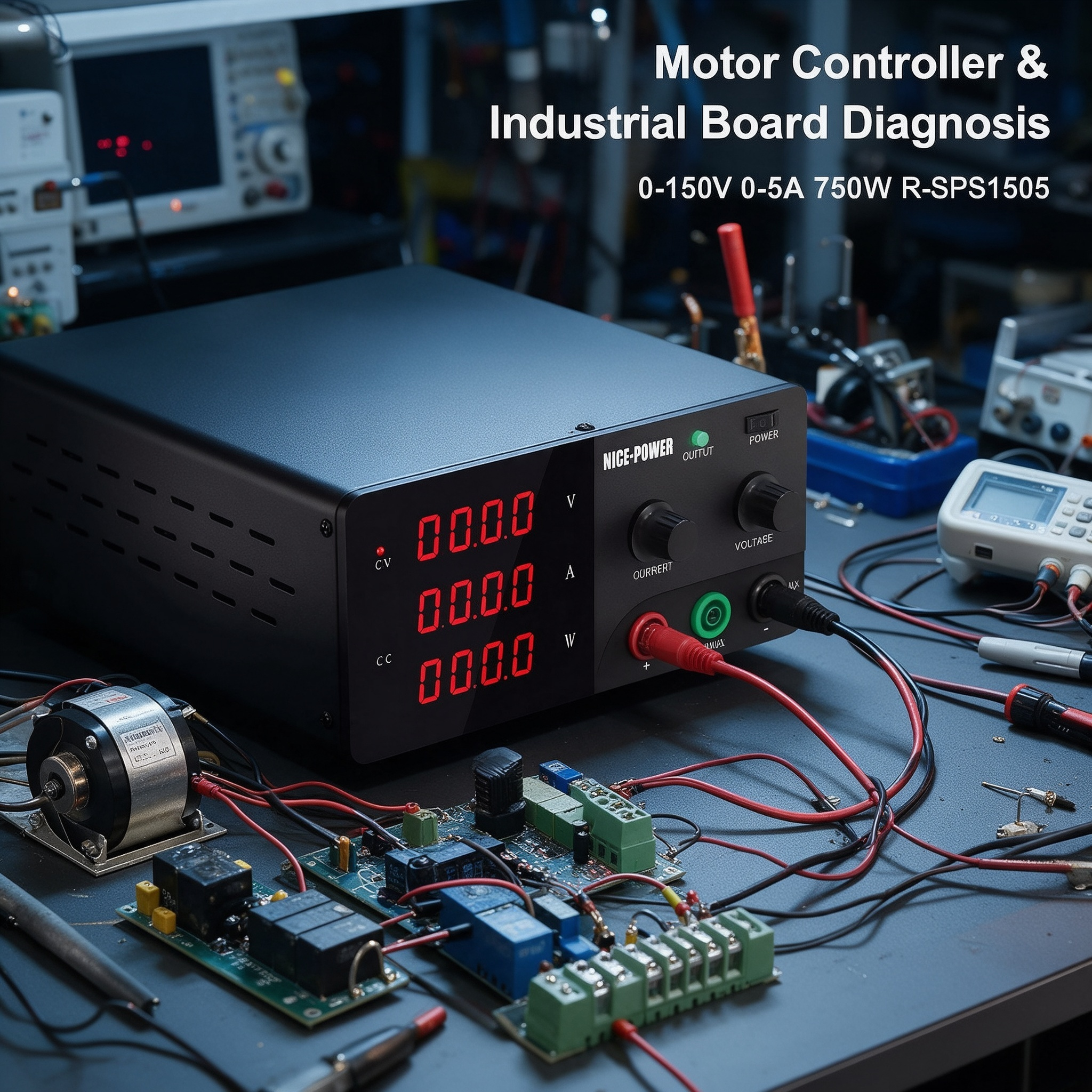

When diagnosing a faulty circuit board, technicians can use the power supply to provide the board's required DC input and monitor the output current during basic checks. Unexpected current readings may indicate that further inspection is needed, but locating a short circuit or defective component requires additional diagnostic procedures and suitable instruments.

Electronic Module Repair and Functional Checks

The adjustable DC output can power compatible electronic modules during repair, replacement, or post-repair checks. Technicians can select the required voltage for the module and observe the supply readings while checking basic operation. Verify the module's specifications before connecting it, particularly when the equipment has multiple power rails or a nonstandard input requirement.

Bench Testing with External Diagnostic Instruments

For more detailed electronic equipment troubleshooting, the R-SPS1505 can serve as the DC source in a repair bench setup alongside external instruments. A digital multimeter can measure voltage at specific circuit points, while an oscilloscope can be used to inspect signal behavior where appropriate. These diagnostic functions are provided by the external instruments, not automatically by the power supply.

Quality Check and Terms of Service:

• Package includes: DC Power Supply × 1, Output Power Cord × 1, Input Power Cord × 1, User Manual × 1, Warranty Card × 1.

• Has passed CE & FCC Certification.

• All DC power supplies and accessories are inspected before shipment to ensure good quality.

• Customer support: Contact us with any questions, and we'll respond within 24 hours.

Technical Specifications

Why Choose NICE-POWER R-SPS1505?

The NICE-POWER R-SPS1505 is an adjustable DC bench power supply for electronic equipment repair and troubleshooting. Its 0–150V output range and 750W rated power support compatible devices and circuits that require a DC source within the supply's specifications.

The digital voltage, current, and power display helps technicians observe the output during power-up checks, while the Output ON/OFF control and encoder adjustment support practical bench operation. For fault diagnosis that requires measurements at individual circuit points or inspection of electrical signals, use suitable external test instruments.

The R-SPS1505-R programmable version is also available for users who require the programmable model option. Communication interfaces such as USB, RS-232, and RS-485 are optional configurations and should be confirmed before purchase.
