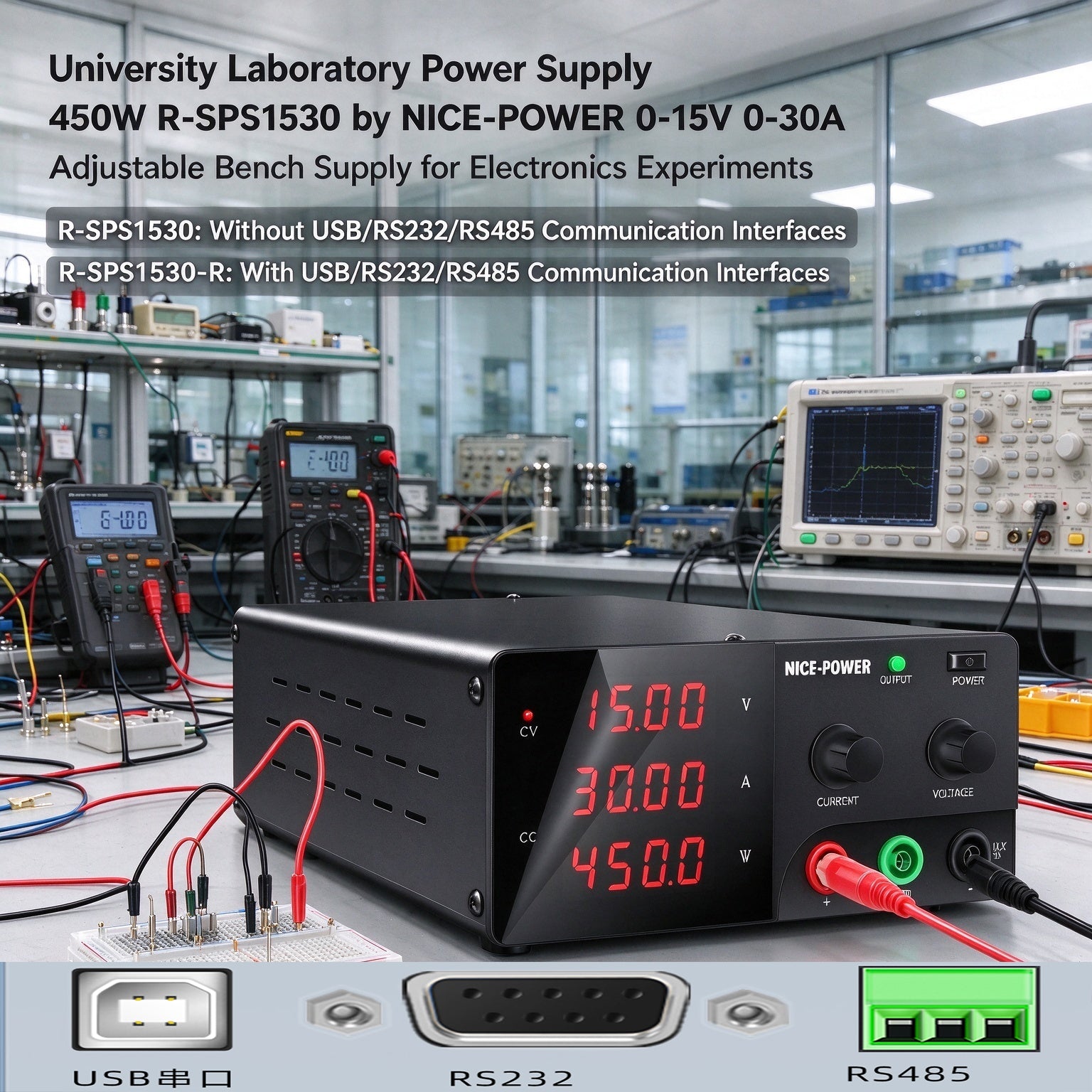

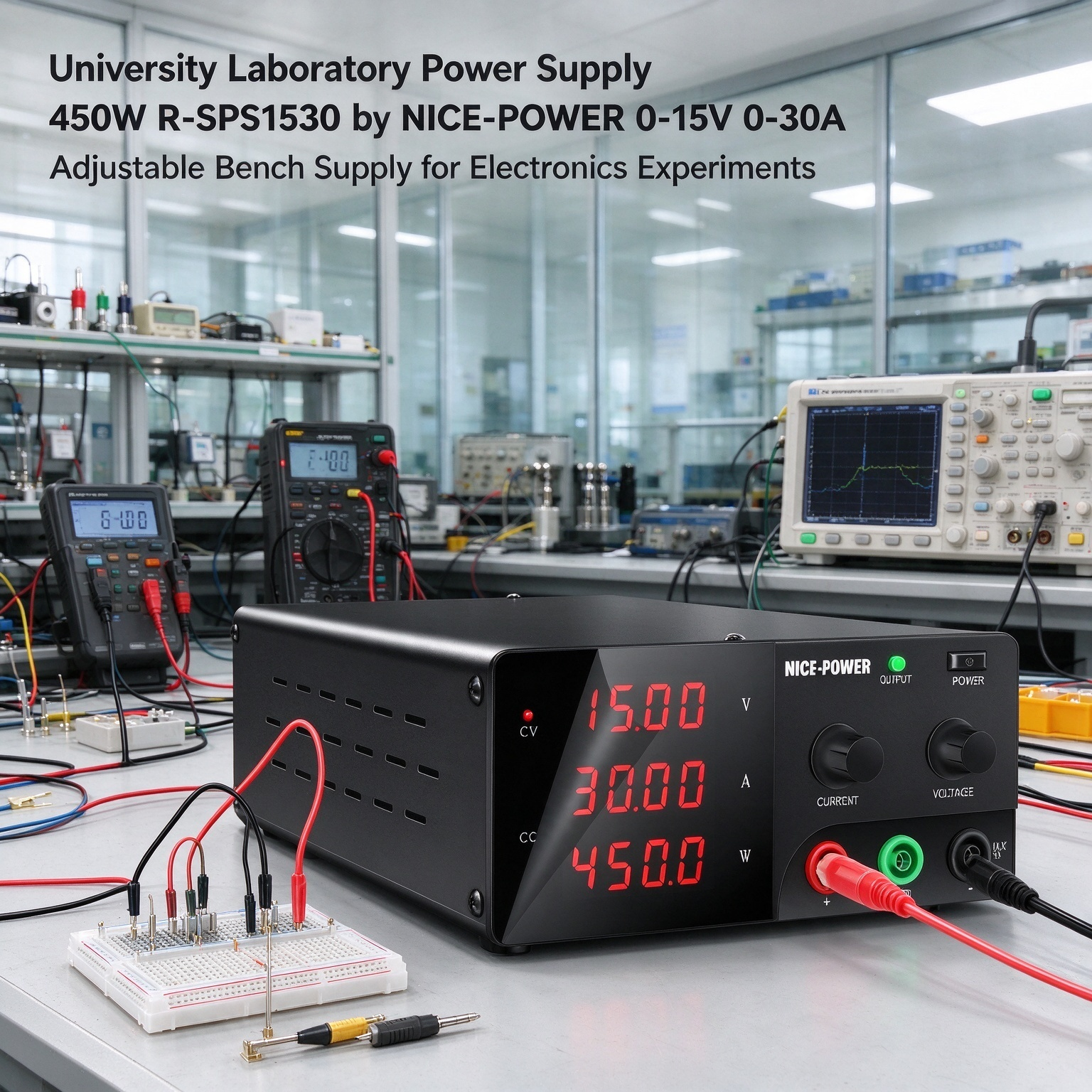

University Laboratory Power Supply 450W
R-SPS1530 by NICE-POWER 0-15V 0-30A
Adjustable Bench Supply for Electronics
Experiments
The NICE-POWER R-SPS1530 is a 450W adjustable bench supply designed for university laboratory experiments, electronics teaching, circuit development, and hands-on testing. With an adjustable 0-15V voltage range and 0-30A current range, it provides controllable DC power for a wide range of low-voltage electronics experiments. The clear four-digit voltage and current display, encoder adjustment, Output ON/OFF control, and flexible front and rear output connections make it practical for laboratory benches, teaching workstations, and electronics experiment setups.
Key Features
0-15V Voltage and 0-30A Current Adjustment
The R-SPS1530 provides an adjustable 0-15V output and 0-30A current range with a rated power of 450W. This combination gives students, instructors, and laboratory users flexible DC power for electronics experiments involving different voltage and current requirements.
Four-Digit Voltage and Current Display
The four-digit display provides clear voltage and current readback during experiments. Users can observe the power supply output while adjusting the operating conditions of the connected circuit.
Encoder Knob for Direct Adjustment
The front-panel encoder knob allows users to adjust voltage and current settings directly. This straightforward control method is suitable for teaching laboratories where students need to observe how circuit behavior changes as DC input conditions are adjusted.
Output ON/OFF Control
The dedicated Output ON/OFF function allows users to activate or deactivate the power supply output without changing the configured voltage and current settings. This is useful when connecting, checking, or modifying experimental circuits on a laboratory bench.
Front and Rear Output Connections
The R-SPS1530 provides output connections on both the front and rear panels. The front-panel output is suitable for convenient laboratory bench experiments, while the rear-panel connection can be used when the application requires the full rated output of the power supply.
450W DC Power for Electronics Experiments
With up to 450W of rated output power, the R-SPS1530 can support a broad range of low-voltage, higher-current laboratory exercises, circuit experiments, and electronics development tasks without requiring a dedicated power source for each basic experiment.
Applications

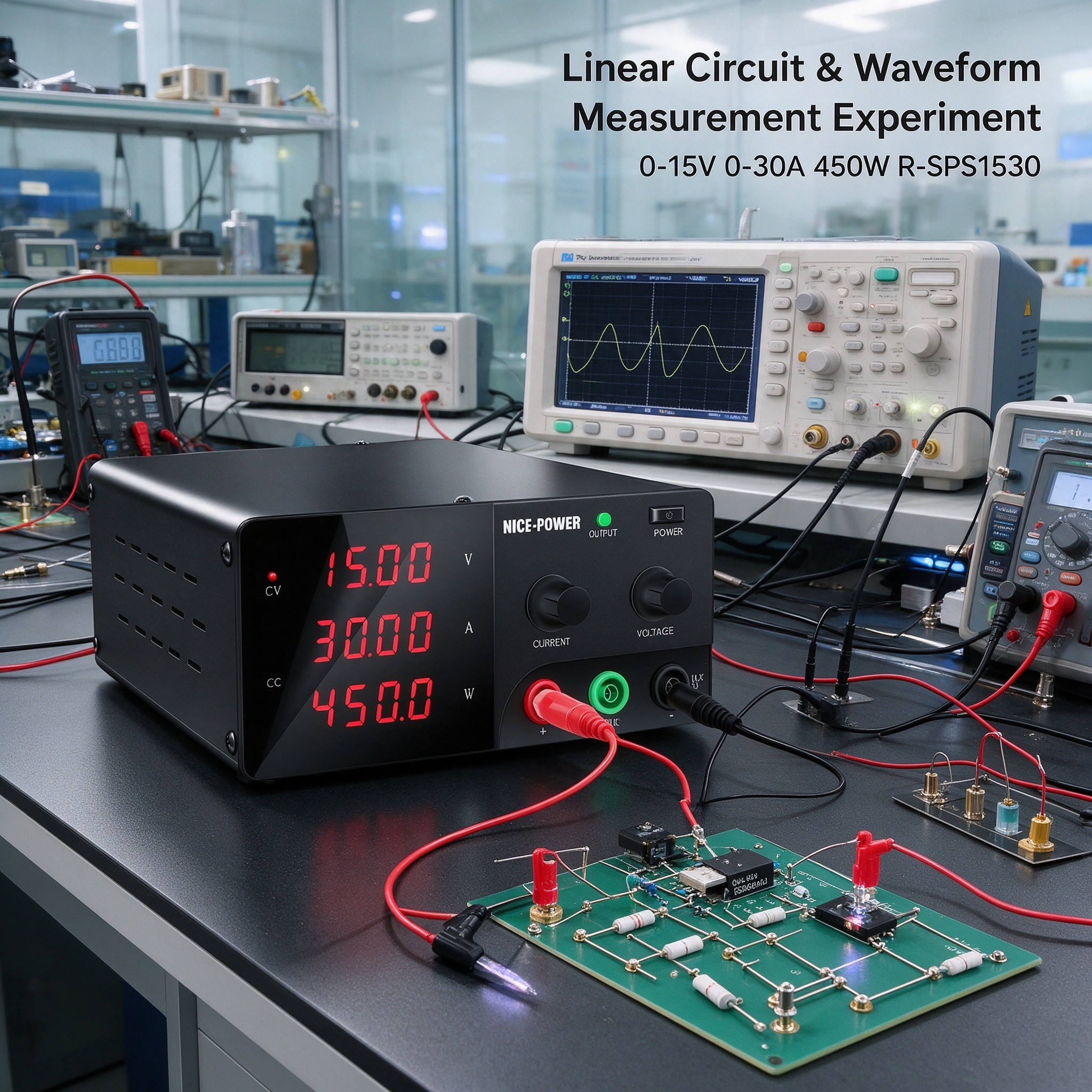

University Electronics Laboratory Experiments
Use the R-SPS1530 as an adjustable DC power source for university electronics experiments, allowing students to supply controlled voltage and current to circuits while observing changes in circuit operation.
Circuit Development and Debugging
The adjustable output makes the R-SPS1530 suitable for powering prototype circuits during development and debugging. Students and laboratory users can change voltage and current settings to evaluate circuit behavior under different operating conditions.
Electronics Teaching and Practical Training
The simple voltage and current adjustment, four-digit display, and Output ON/OFF control make the R-SPS1530 suitable for practical electronics courses, laboratory demonstrations, and hands-on training involving DC-powered circuits.

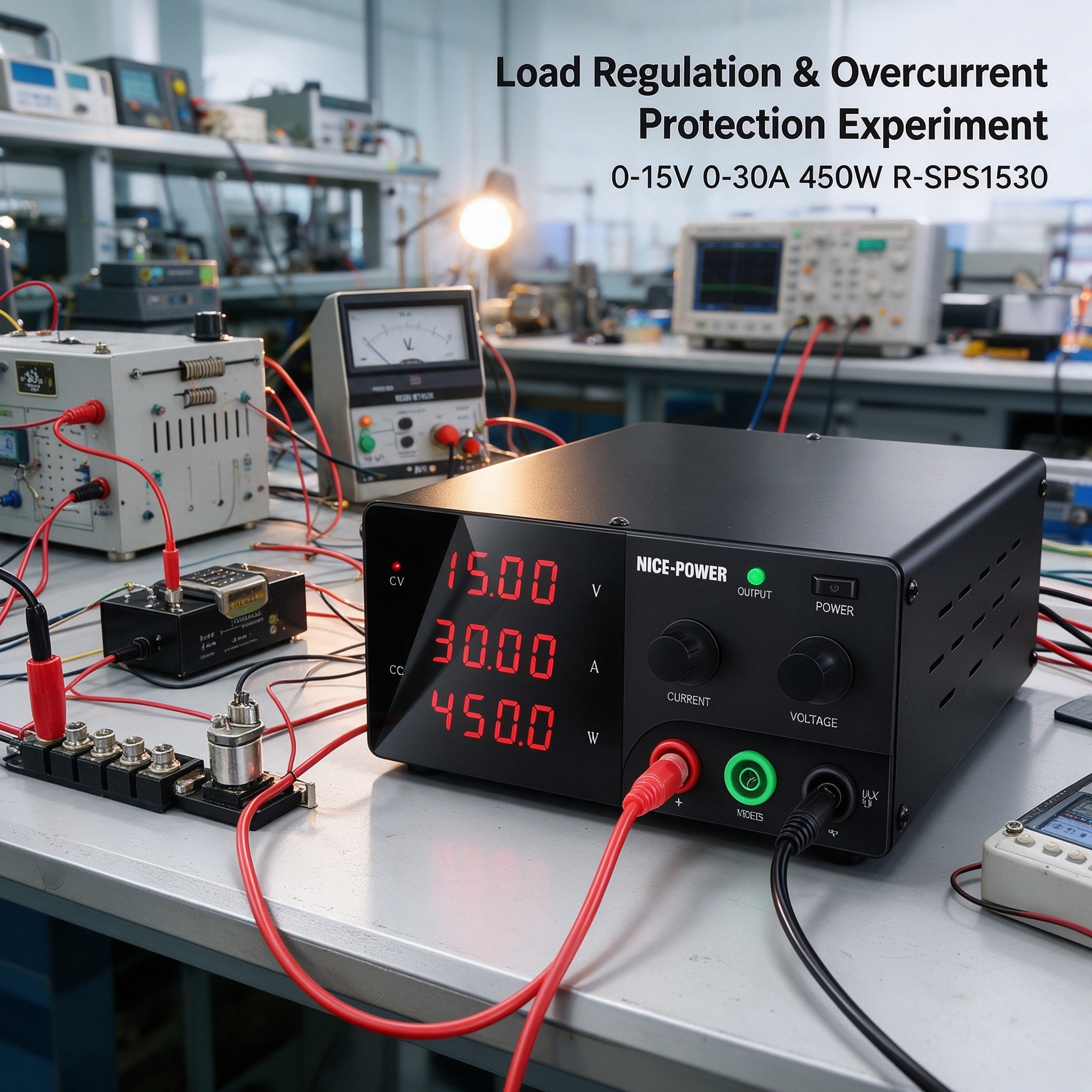

Low-Voltage High-Current Experimental Setups
The 0-30A current range provides additional flexibility for laboratory experiments that require higher current at relatively low DC voltage, including selected power electronics, motor-related, and other electronics bench experiments.
Quality Check and Terms of Service:
Every NICE-POWER power supply is designed for practical laboratory and electronics applications. Before use, select an appropriate voltage and current setting for the connected circuit and verify the wiring and load requirements. The R-SPS1530 is an adjustable DC power supply and should not be considered a complete circuit analyzer, oscilloscope, electronic load, battery cycler, or specialized test system.
For applications requiring functions such as waveform generation, battery charge-discharge cycling, photovoltaic simulation, automated test sequencing, or specialized circuit measurement, additional equipment may be required.
Technical Specifications
| Specification | R-SPS1530 |
|---|---|
| Product Type | Adjustable DC Power Supply |
| Rated Voltage | 0-15V |
| Rated Current | 0-30A |
| Rated Power | 450W |
| Voltage Setting Resolution | 10mV |
| Current Setting Resolution | 10mA |
| Voltage Readback Resolution | 10mV |
| Current Readback Resolution | 10mA |
| Voltage Setting Accuracy | ≤0.05% + 10mV |
| Current Setting Accuracy | ≤0.01% + 10mA |
| Voltage Readback Accuracy | ≤0.05% + 10mV |
| Current Readback Accuracy | ≤0.01% + 10mA |
| Voltage Load Regulation | ≤0.1% + 10mV |
| Current Load Regulation | ≤0.1% + 2.5mA |
| Voltage Line Regulation | ≤0.01% + 2.5mV |
| Current Line Regulation | ≤0.1% + 2.5mA |
| Ripple Voltage | ≤300mVp-p / ≤30mVrms |
| Ripple Current | ≤20mArms |
| Dynamic Response | ≤20ms |
| Rise Time | No Load ≤150ms; Full Load ≤200ms |
| Fall Time | No Load ≤15s; Full Load ≤50ms |
| Efficiency | ≥85% |
| Operating Temperature | 0°C-40°C |
| Product Size | Approx. 26.5 × 18.5 × 8cm |
| Net Weight | Approx. 2.8kg |
| Communication Interface | Optional: USB / RS-232 / RS485 |
Why Choose NICE-POWER R-SPS1530?
The NICE-POWER R-SPS1530 combines a 0-15V adjustable voltage range, 0-30A current range, and 450W output capacity in a practical bench power supply for university laboratory environments. Its four-digit voltage and current display, encoder adjustment, Output ON/OFF control, and front and rear output connections provide the basic controls needed for electronics experiments, circuit development, and hands-on technical education. For universities and electronics laboratories looking for an adjustable bench supply with higher current capability, the R-SPS1530 offers a practical solution for everyday experimental work.
