English Manual

Key Features:

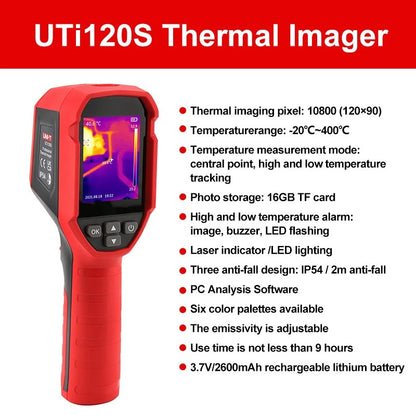

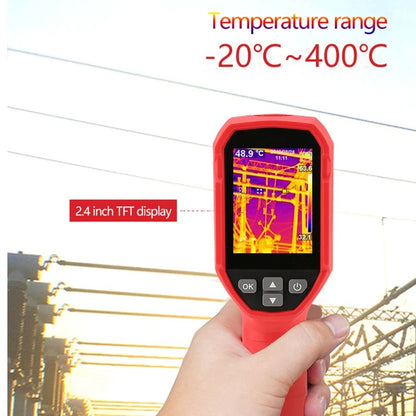

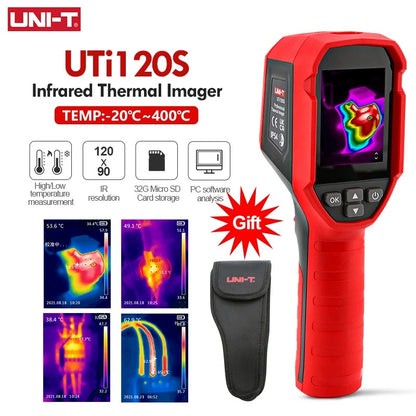

• High-Resolution Thermal Imaging: 120x90 IR resolution (10,800 pixels) with ±2℃/±2% accuracy, wide temperature range -20℃ to 400℃, and adjustable emissivity (0.01–0.99).
• Advanced Targeting & Alerts: Center-point temperature measurement, high/low-temperature auto-tracking, and LED/Laser/Alarm (image, sound, LED flash) for quick fault detection.
• Rugged & Portable: IP54 waterproof/dustproof, 2-meter drop resistance, and 3.7V/2600mAh rechargeable battery (9+ hours runtime).

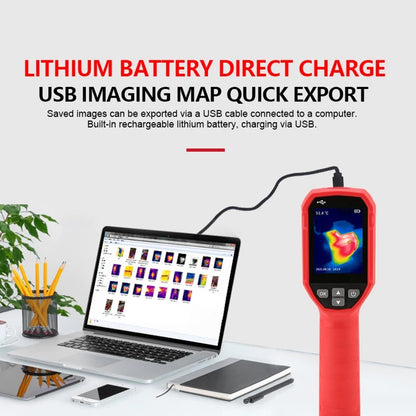

• Data Management: 16GB TF card storage, BMP image format, and PC software for detailed analysis (supports Windows).

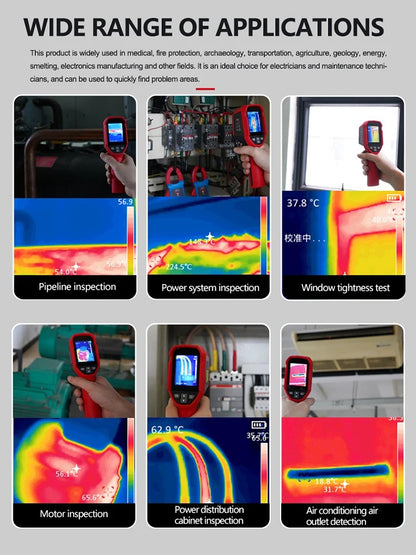

• Versatile Applications: Electrical maintenance (panels, motors), HVAC systems, plumbing, automotive diagnostics, and industrial inspections.

Packaging:

• 1×UTi120S Thermal Imager
• 1×16GB TF Card
• 1×Type-C USB Cable
• 1×User Manual

Technical Specifications:

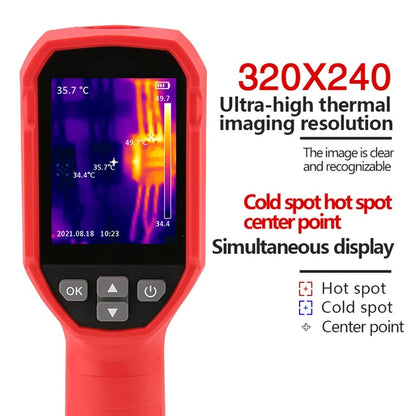

• Display: 2.4” TFT LCD (320×240 resolution).
• Response Time: ≤500ms.
• Spectral Bandwidth: 8–14μm.
• Frame Rate: ≤25Hz.

Why Choose UTi120S?

• Professional-Grade Accuracy: Combines high resolution, wide temperature range, and adjustable emissivity for reliable diagnostics.
• Durability: IP54 and 2m drop protection for harsh environments.
• User-Friendly: Intuitive controls with LED/Laser aids and PC software for efficient reporting.
