English Manual

Key Features:

• Multi-Material Detection:
  • Detects wood (20mm/38mm depth in precision/deep mode), metal (100mm/80mm for non-ferrous/ferrous), and live wires (110~220V, 50~60Hz, 50mm accuracy).
• Advanced Display & Alerts:
  • 2.4-inch color screen with real-time data visualization.
  • Voice alert for instant result announcements.
  • Sound/light dual alarms for high visibility.
• Durability & Portability:
  • 1-meter drop resistance for rugged use.
  • 300mAh rechargeable battery (≈3000 measurements per full charge).
  • Auto power off after 5 minutes of inactivity.
• Precision & Calibration:
  • Automatic calibration for consistent accuracy.

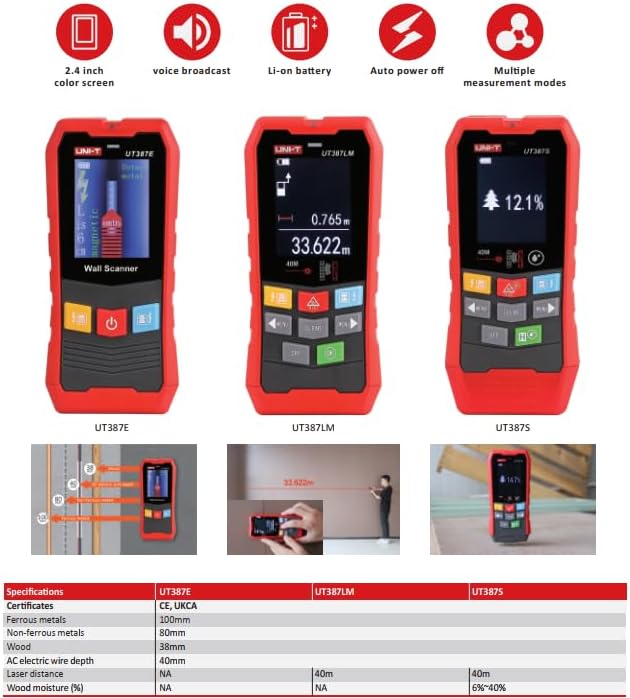

  • Measurement range: 0.05~40m (UT387LM/UT387S only; UT387E lacks laser distance).
  • IP54-rated for dust/water resistance (implied by 1m drop spec).

Applications:

• Construction: Wall stud, pipe, and wire location.
• Home Renovation: Hidden object detection in ceilings/floors.
• Electrical Work: Safe identification of live cables.

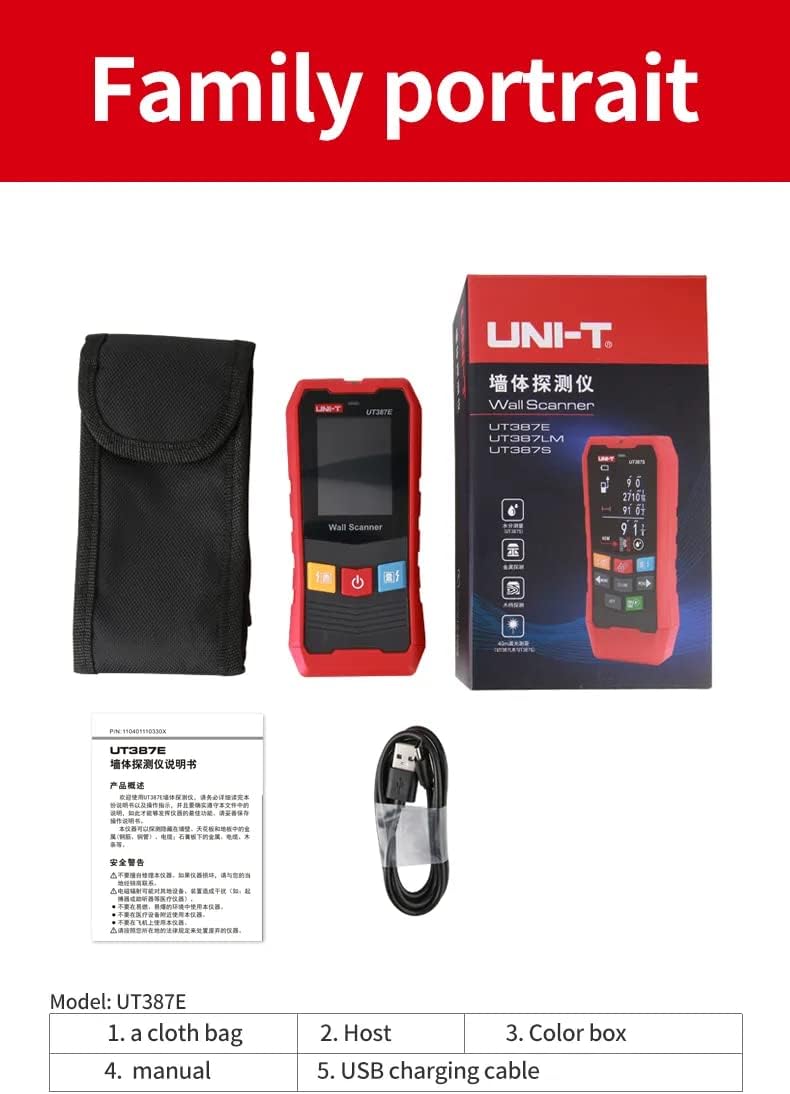

Packaging:

• 1×UT387E detector, 300mAh lithium battery, Type-C cable, user manual, warranty card.

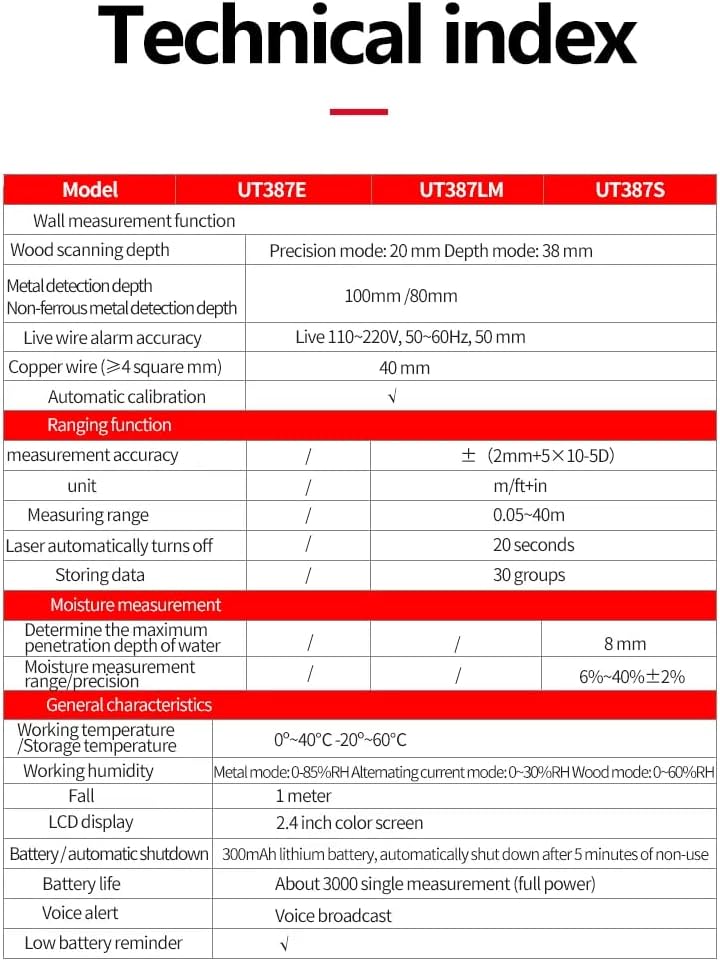

Technical Specifications:

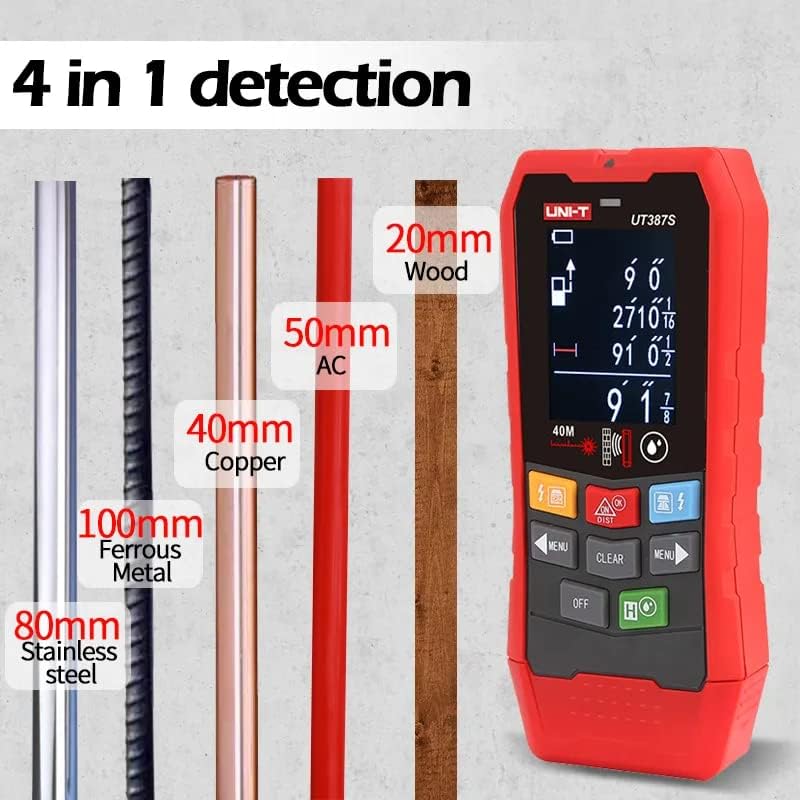

• Detection Modes: Wood, Metal (ferrous/non-ferrous), Live Wire.
• Scan Depth: Wood (20mm/38mm), Metal (100mm/80mm), Live Wire (50mm).
• Display: 2.4" color LCD with backlight.
• Battery: 300mAh Li-ion, USB-C charging.
• Auto Power Off: 5 minutes.
• Operating Conditions: 0°C~40°C, 0~85%RH (metal mode), 0~30%RH (AC mode), 0~60%RH (wood mode).
• Storage Conditions: -20°C~60°C, ≤80%RH.

Why Choose UT387E?

• All-in-One Detection: Combines wood, metal, and live wire scanning in a single tool.
• User-Friendly: Voice alerts and color screen simplify operation for professionals and DIYers.
• Rugged Reliability: 1m drop resistance and rechargeable battery ensure field-ready durability.
