Key Features:

• True RMS Measurement: Precise AC/DC voltage/current readings with 6000-count resolution and 40Hz~400Hz frequency response (supports DC current measurement).
• Advanced Functions:
  • Low-pass filter (LPF) for noisy signal accuracy.
  • Low-impedance (LoZ) ACV to eliminate ghost voltage interference.
  • DC current measurement (60A/600A/1000A) with ±(2.0%+5) accuracy.
  • Temperature measurement (-40°C~1000°C) and flexible current probe (expandable to 3000A).
  • Surge current measurement for motor startup analysis.
• Safety & Durability: CAT III 1000V/CAT IV 600V safety rating, IP54 dust/water resistance, and auto power-off for battery efficiency.
• User-Friendly Design:
  • Large 6000-count LCD with data hold/max/min/relative value functions.
  • NCV non-contact voltage detection and backlit display for low-light environments.

Applications:

• Industrial electrical maintenance, power system diagnostics, and HVAC system troubleshooting (supports DC current for battery/solar systems).

Packaging:

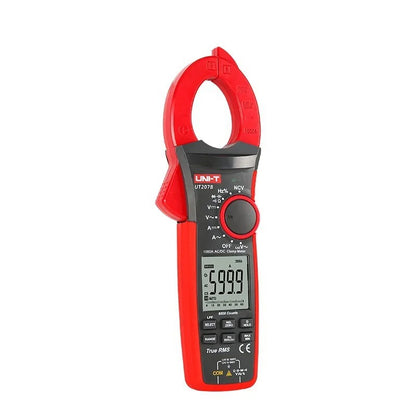

• 1×UT207B Digital Clamp Meter
• Test leads, temperature probe, flexible current probe (optional), user manual, warranty card.

Technical Specifications:

• Power Supply: 9V battery (6F22).
• Dimensions: 208mm×82mm×43mm; Weight: ~400g (with battery).

Why Choose UT207B?

• Expanded DC Current Capability: Measures DC current (60A/600A/1000A) with high precision, ideal for battery/solar/power supply testing.
• Precision & Versatility: Combines True RMS, LPF, LoZ, DC current, and temperature measurement for comprehensive electrical diagnostics.
• Safety & Durability: High safety ratings and rugged design for harsh industrial environments.
